Interlock Kit K-1610
K-1610 is being updated in 2023 to function without a filler plate.
If you place an order for K-1610 – you may receive K-1315 R5.
NO FILLER PLATE REQUIRED - K-1315 R5 IS THE MOST UP TO DATE KIT FOR THIS PANEL CONFIGURATION

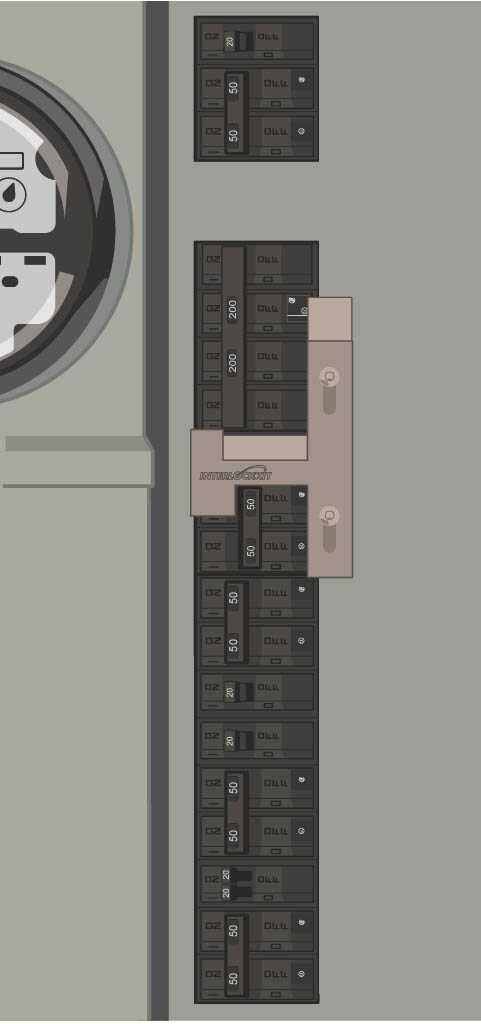

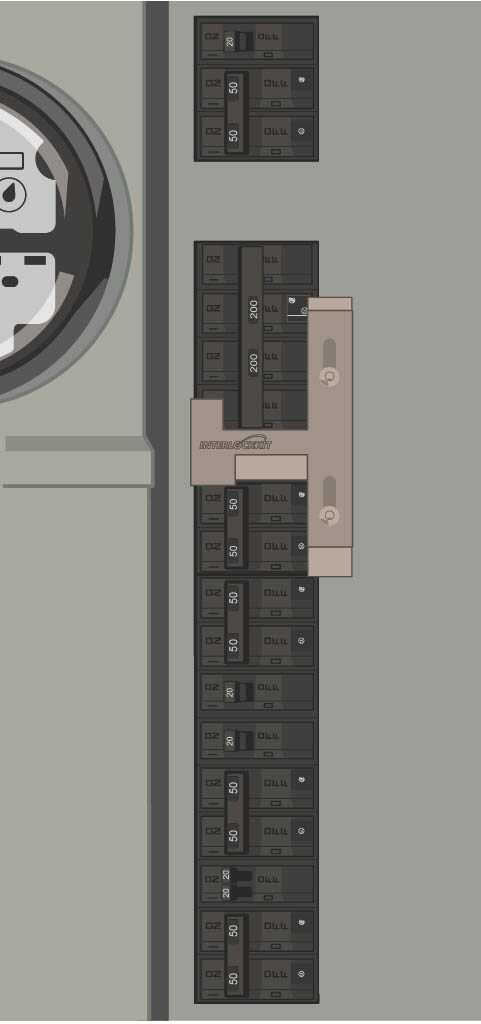

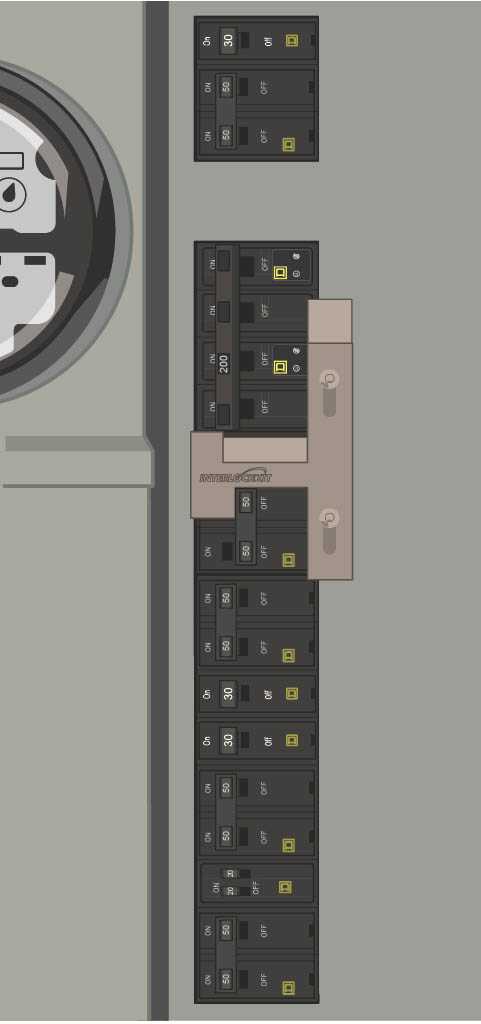

This Kit performs like a manual transfer switch for Siemens / Square D electrical panels with the following features:
- Single breaker column
- Meter main combo
- The main breaker sits amongst the other breakers within the breaker column

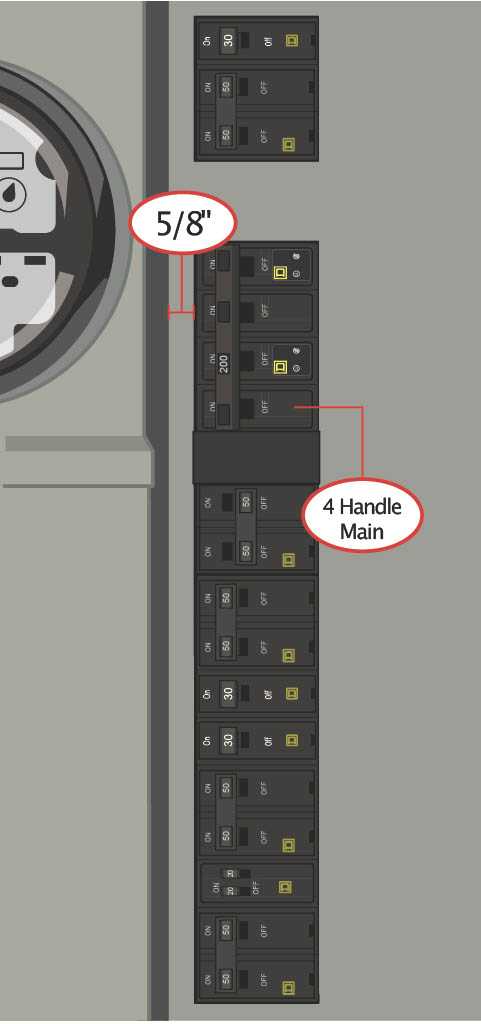

- The breaker column is about 5/8" from the left edge of the panel
- 150-200 amp main breaker: K-1610 works with TWO OR FOUR pole breakers
- Main breaker toggle action: horizontal (left-right) throw direction ON & OFF
- Install a generator breaker directly above/below the main breaker and filler plate (part provided)
- Page four of the installation instructions includes a list of contents for Kit K-1610
Modified versions of this Interlock Kit exist, see: Kit K-1315 if the breakers are throwing ON the opposite direction
|Catalog #:|| |
MC2442B1200ESV, MC2442S1200SC, MC2442S1200FC, SC816D200C, SC1624M125S – other compatible catalog #'s may not be listed here yet. Use the details listed in "Description" to help match your kit!
