Interlock Kit K-1210 | Interlock Kit

$149.95

51 in stock

You need extra 150 Points for getting this product for free

PATENT PENDING PRODUCT

Have a question or don’t see a kit for your panel? We make custom Interlock Kits for any panel or solar scenario – call (804) 531-3359 or Contact Us!

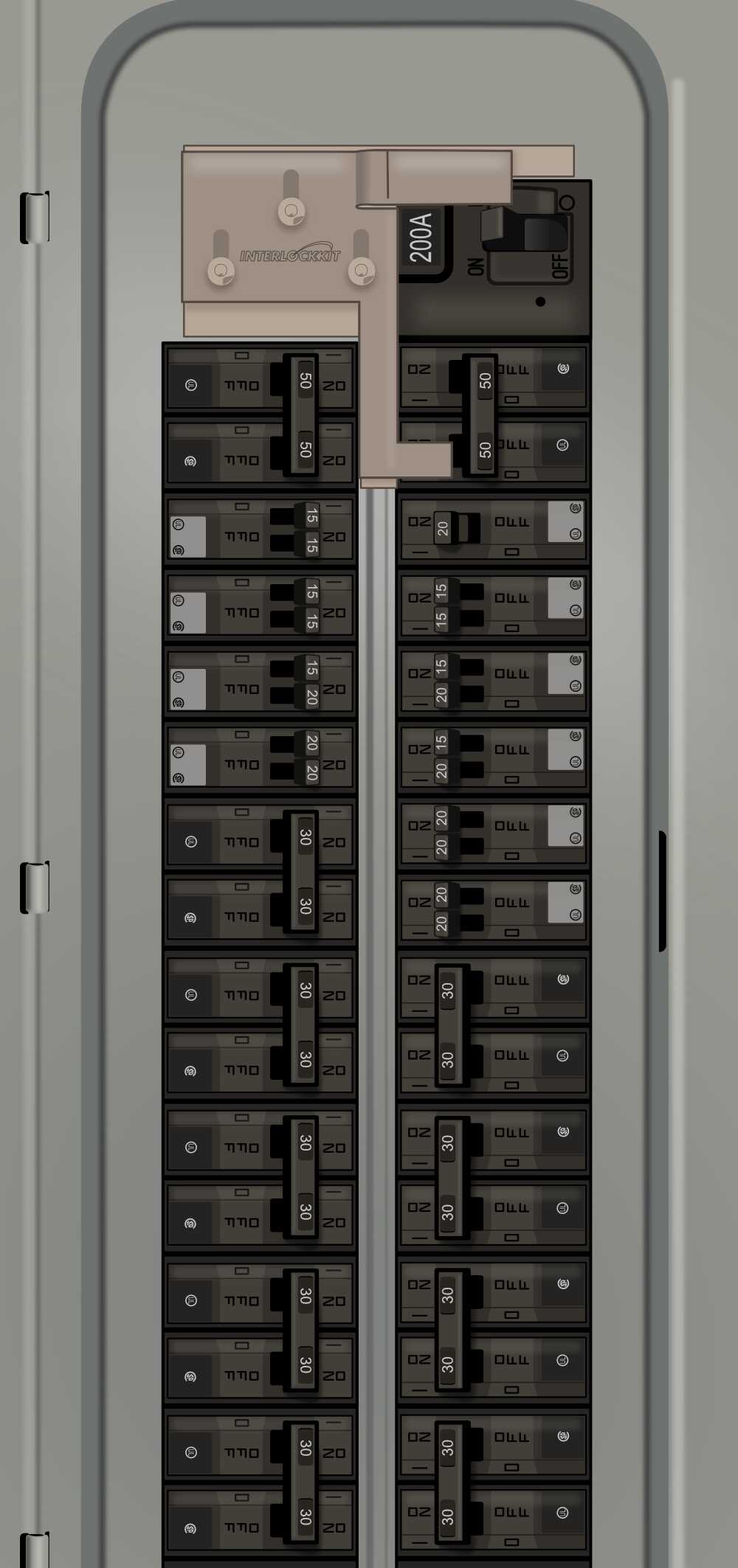

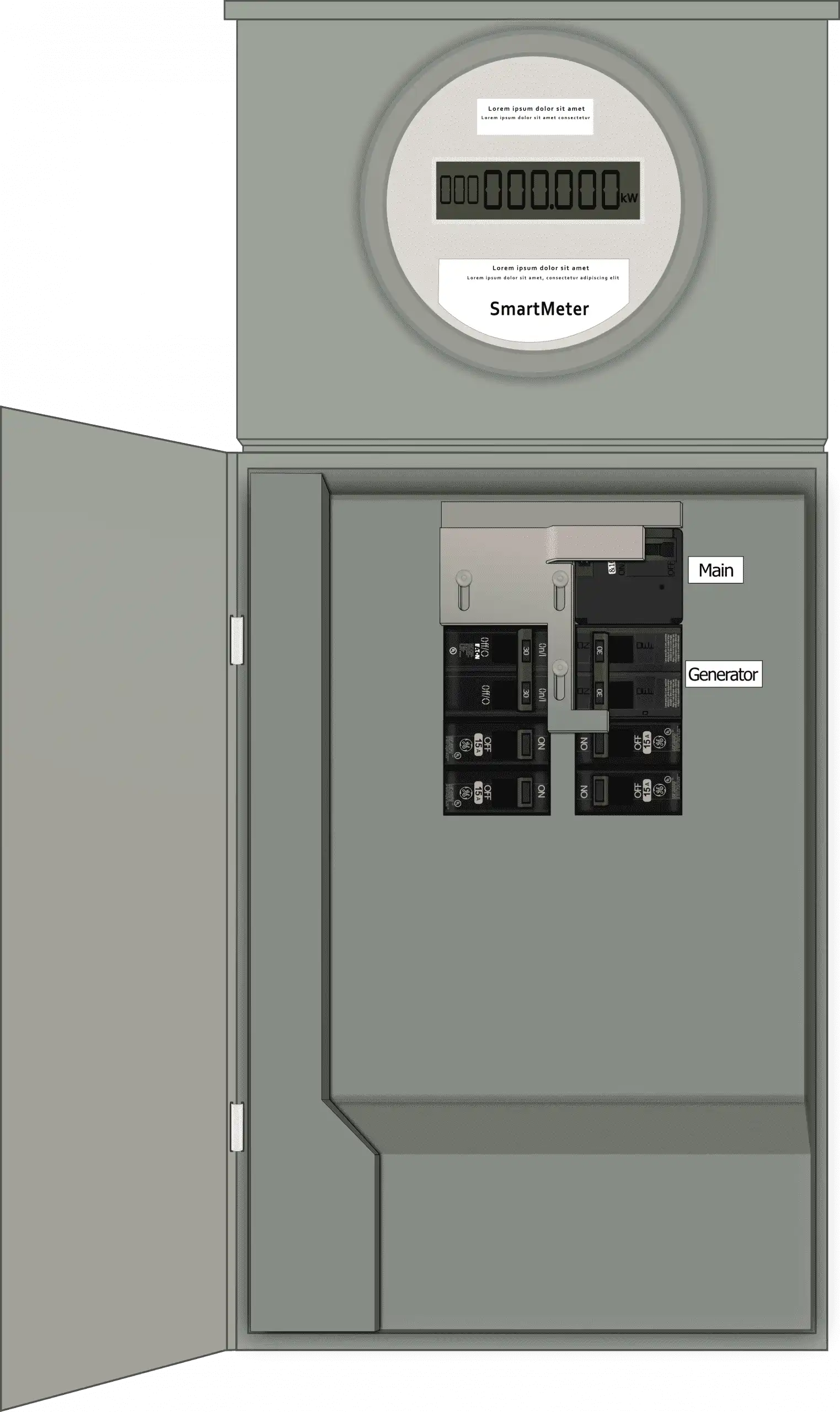

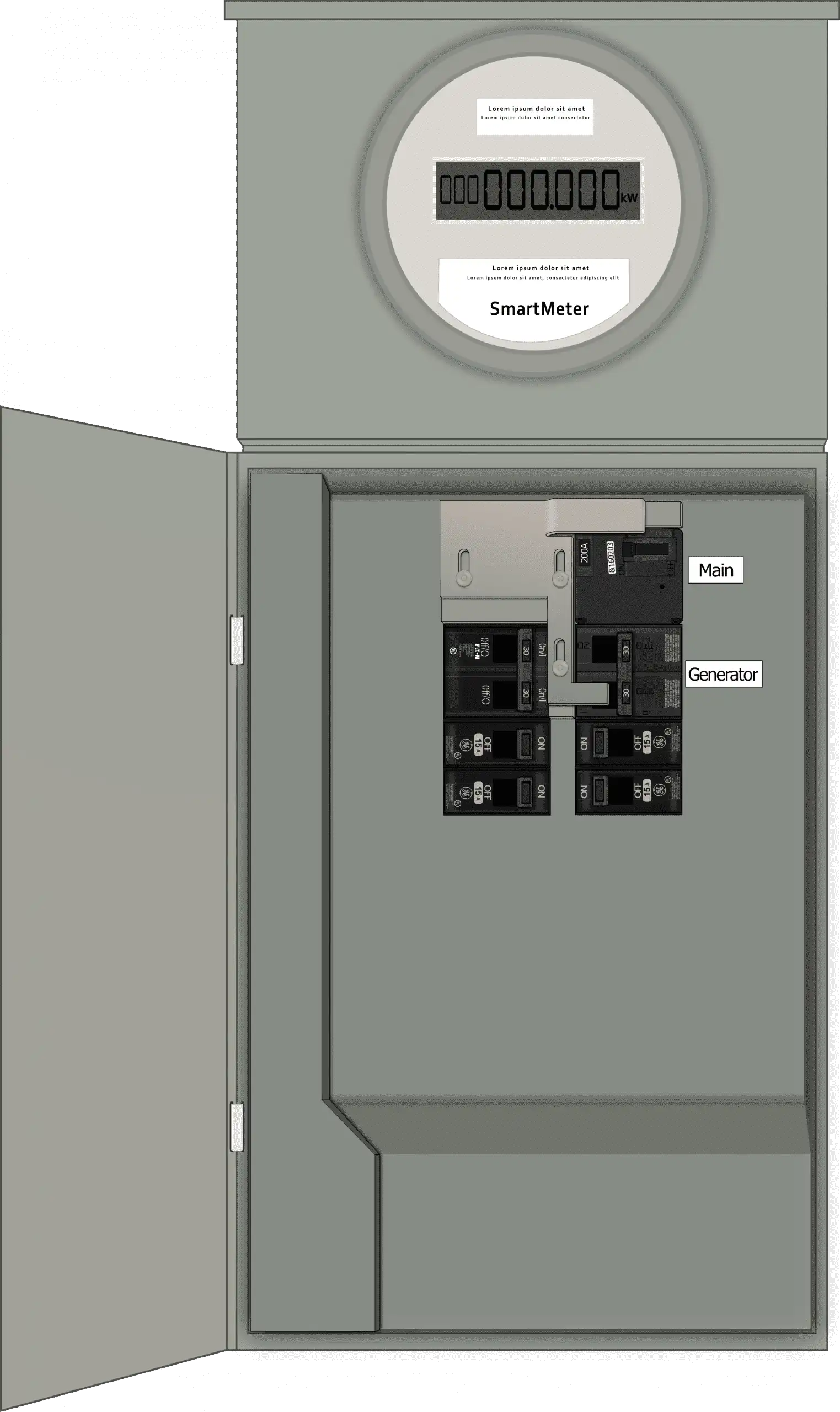

This Kit performs like a manual transfer switch for Siemens / ITE / Murray electrical panels with the following features:

  • Space between breaker columns: 1/2"

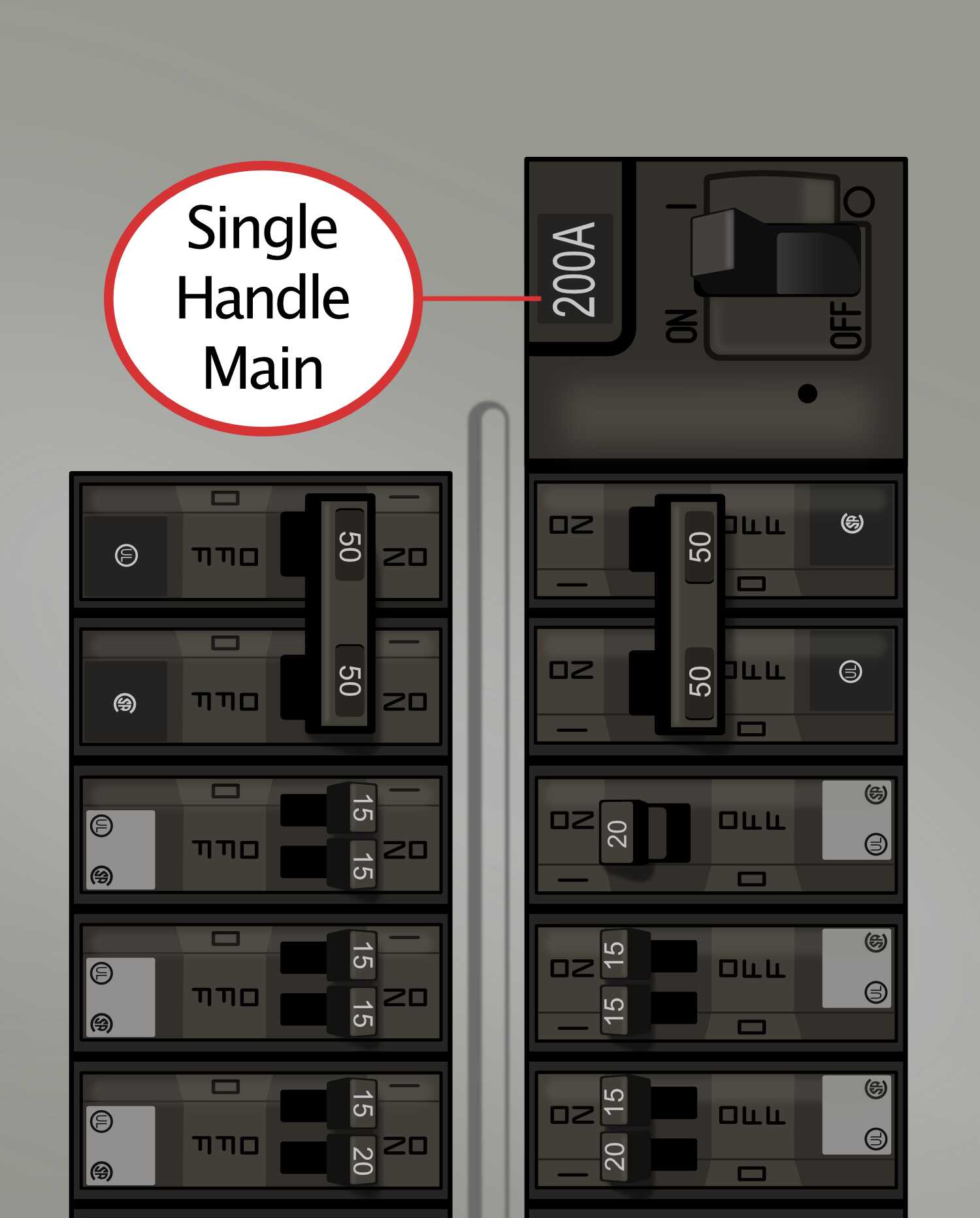

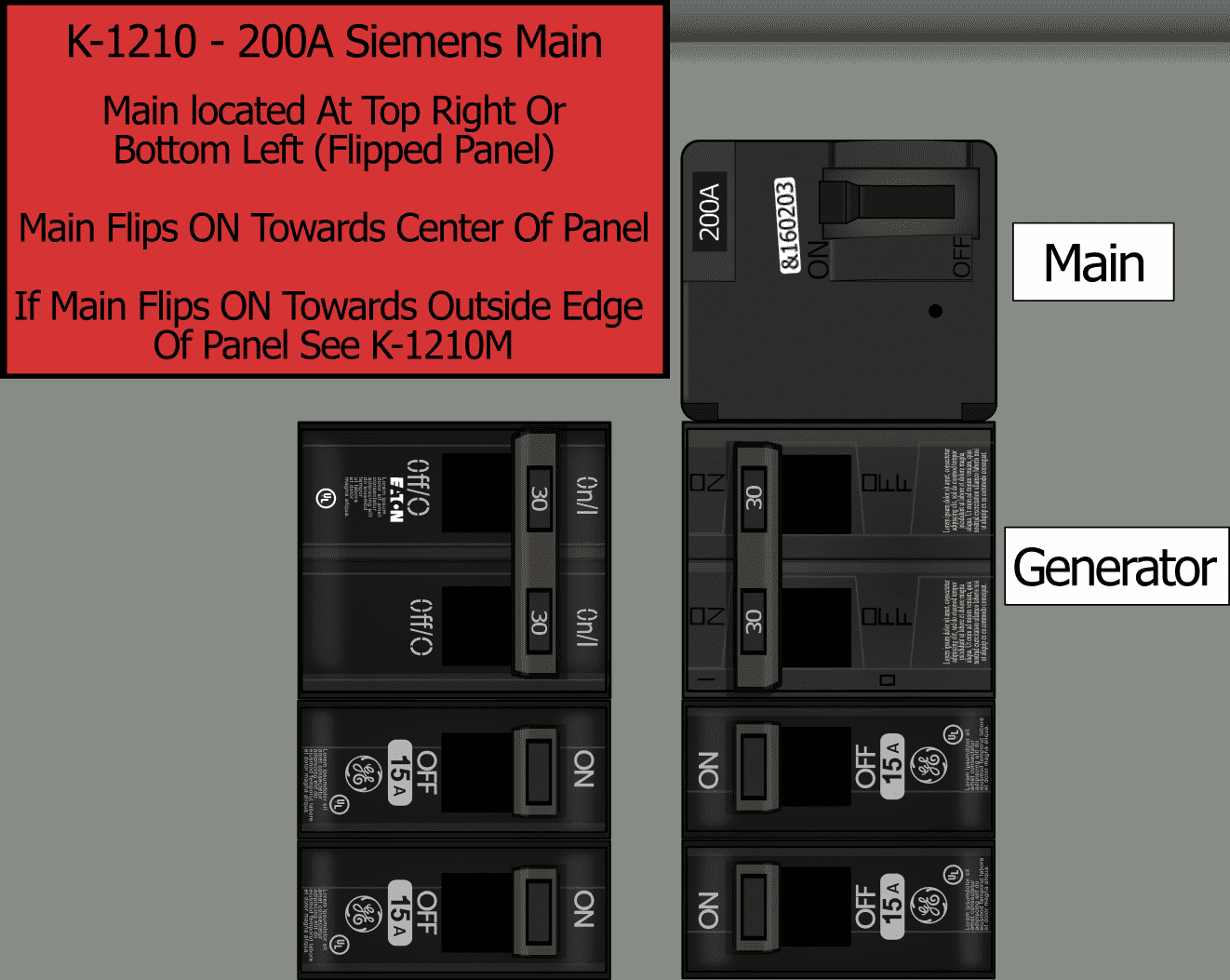

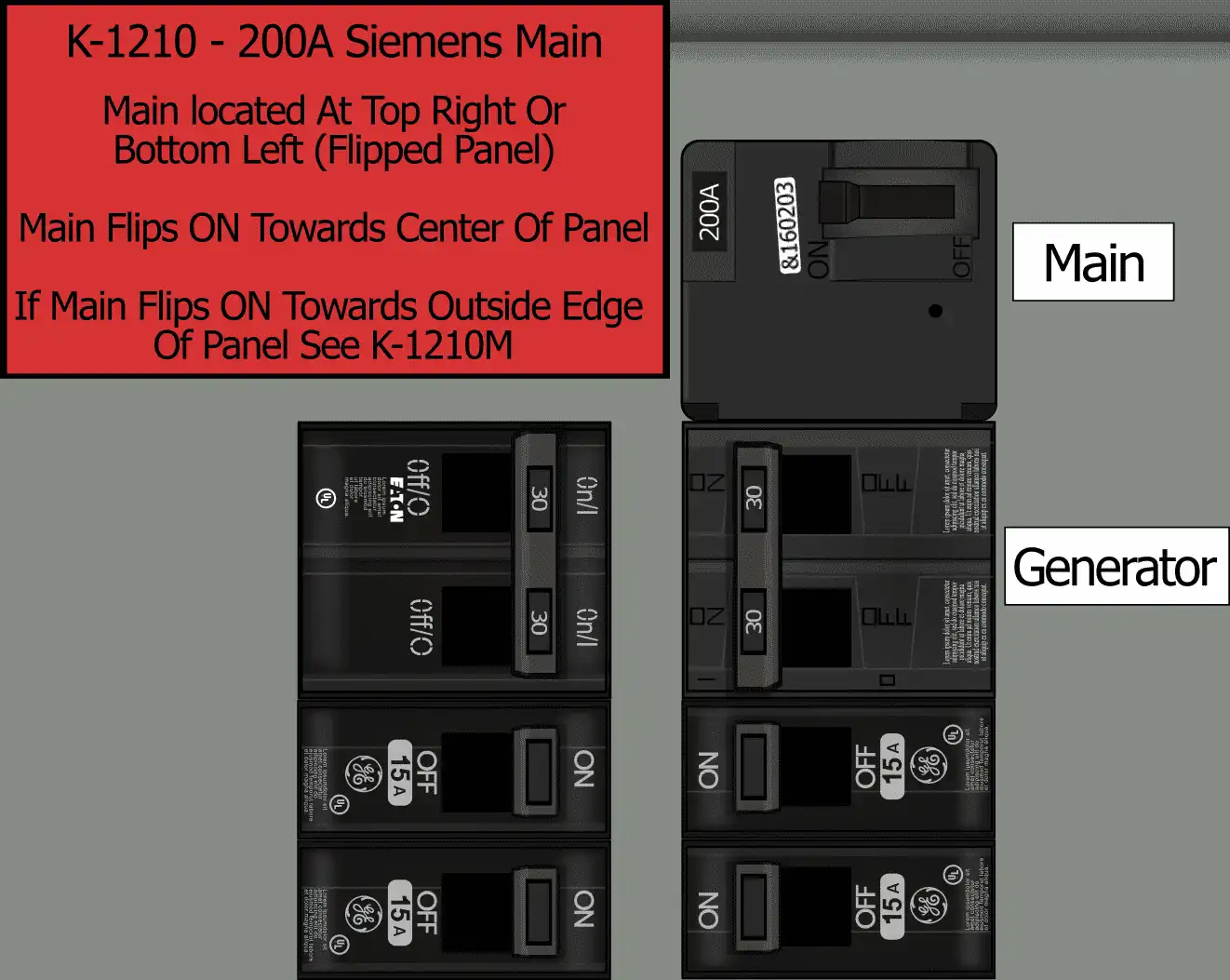

  • The main breaker sits directly on top of breaker stack in the right breaker column
  • 150-200 amp 2 pole main breaker
  • Main breaker toggle action: horizontal (left-right) throw direction ON & OFF

Requirements:

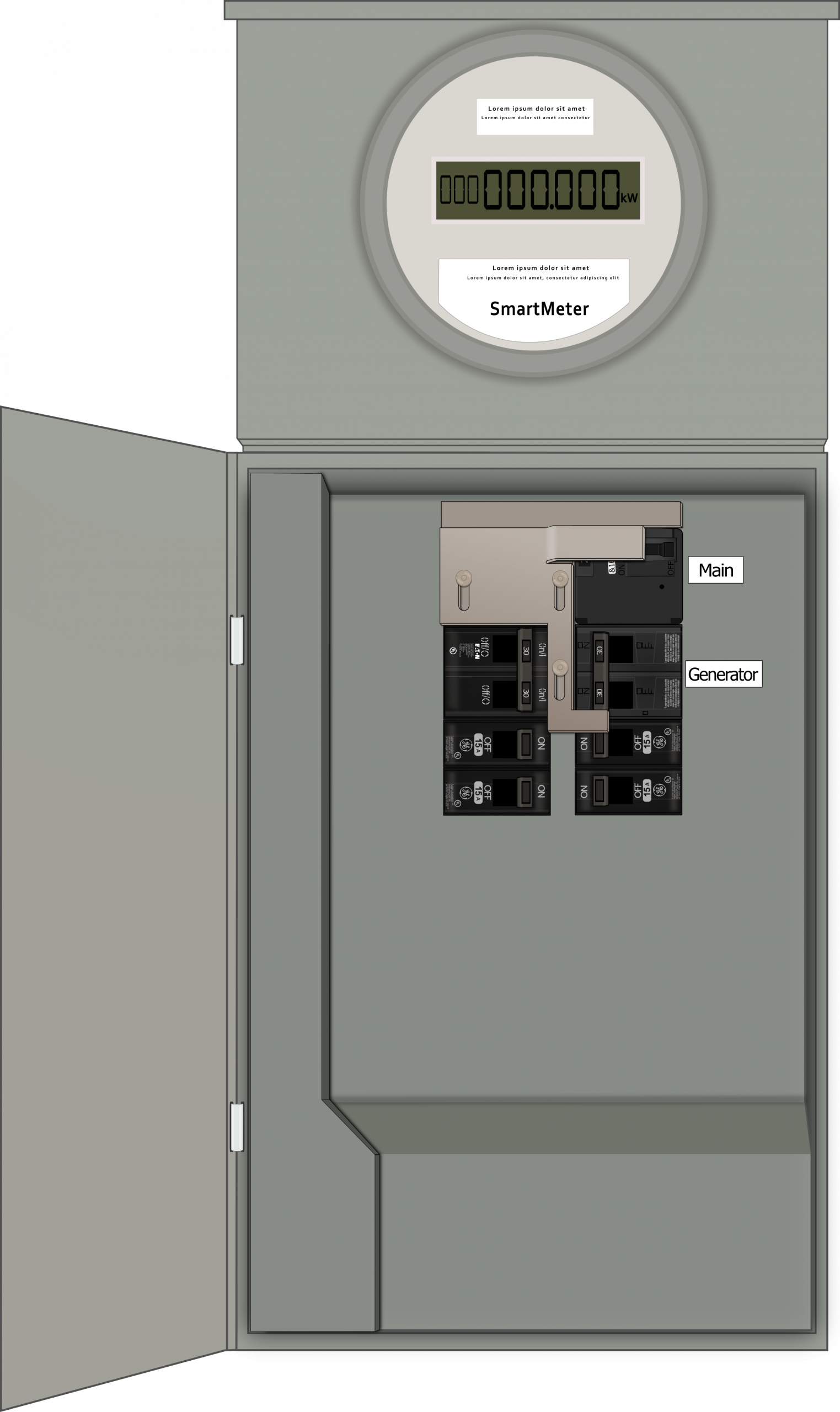

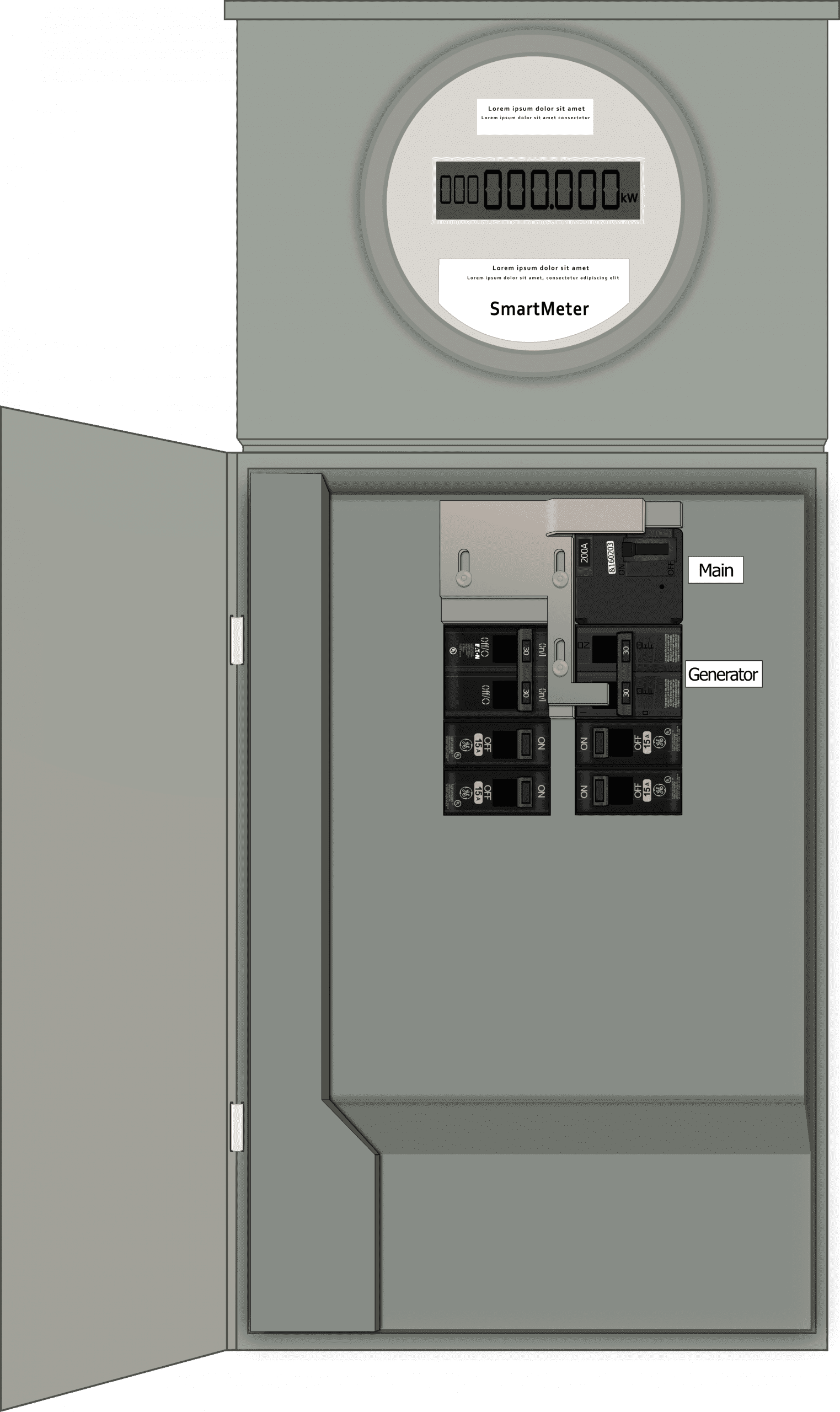

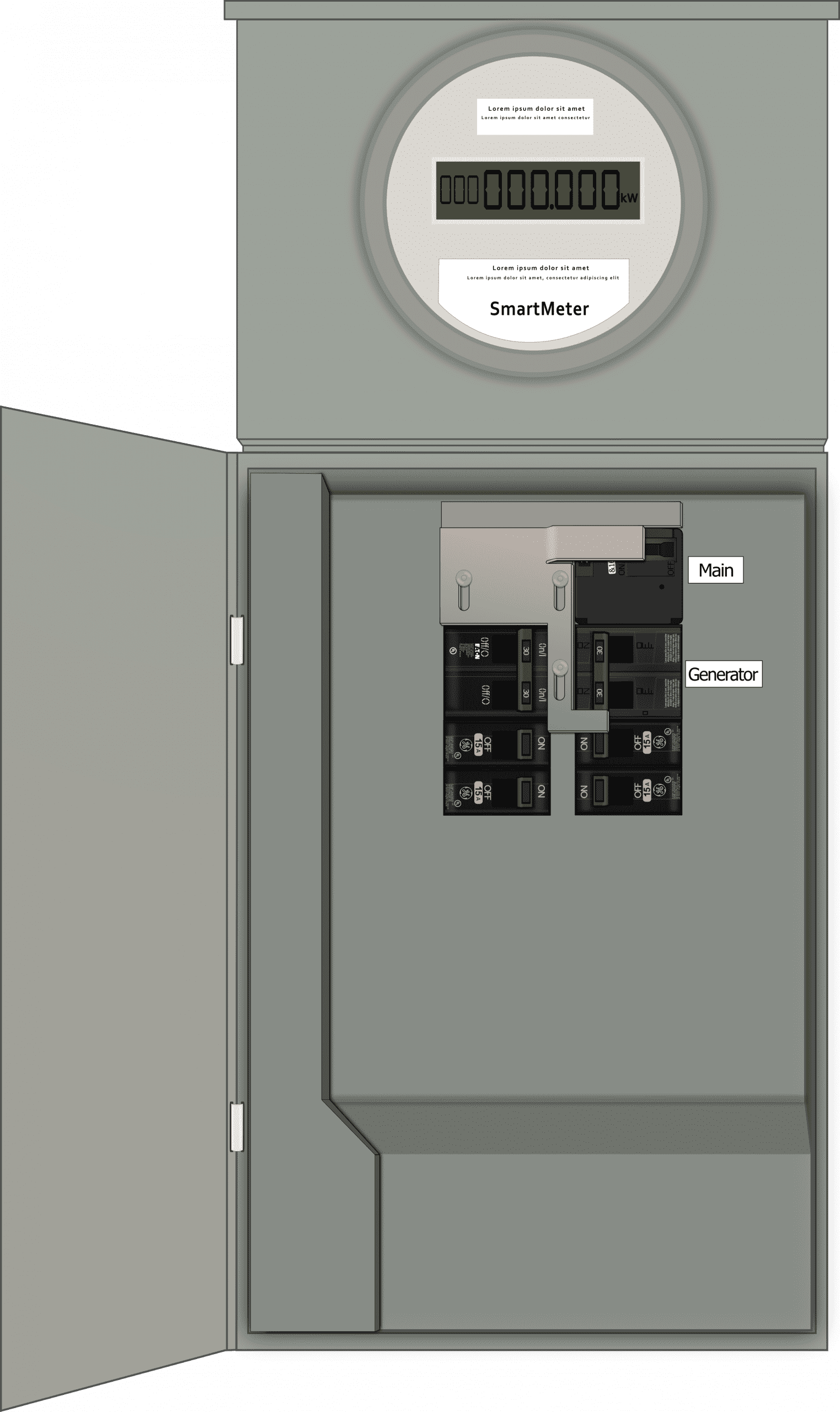

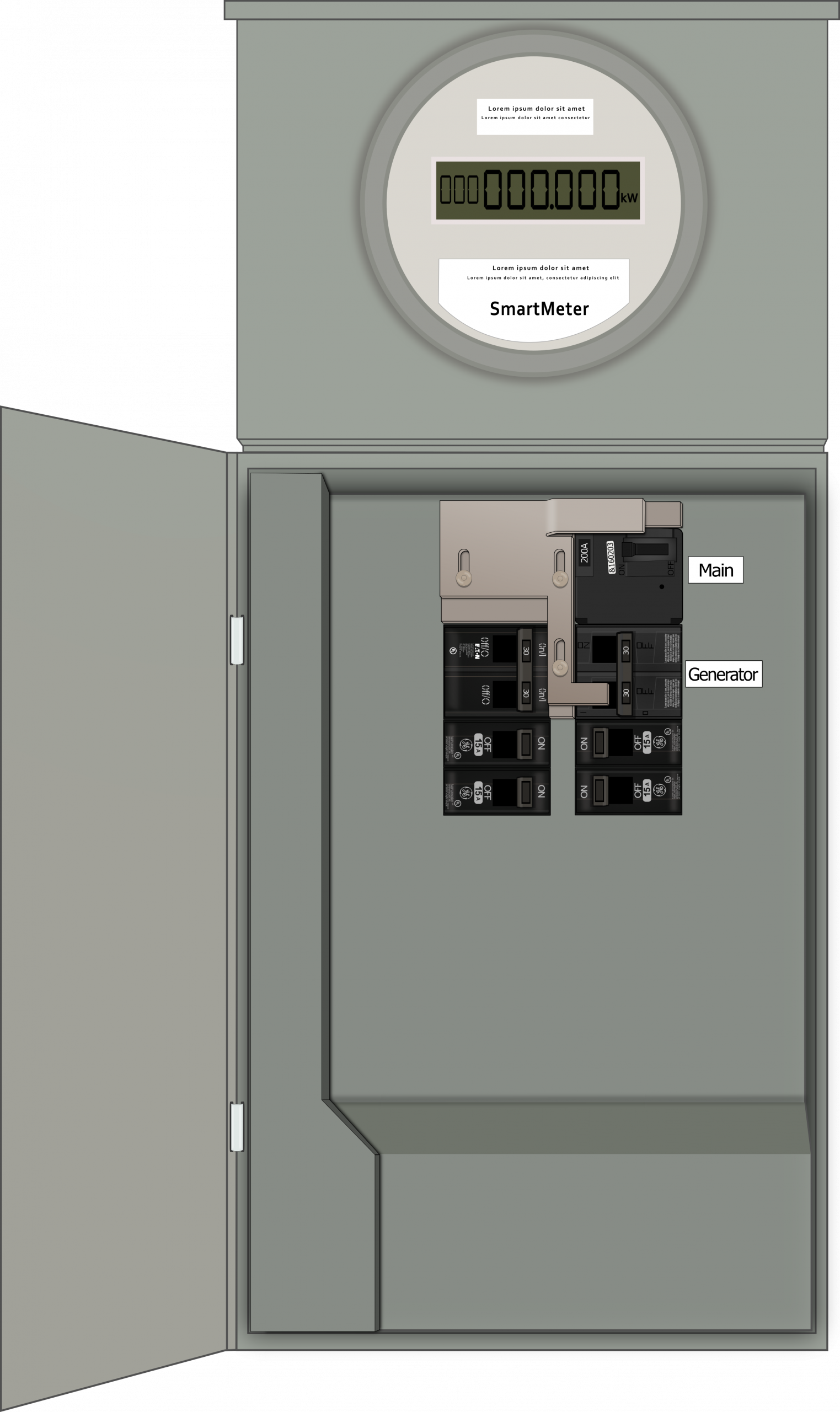

  • Install a 2 pole generator breaker at the top of the right column: spaces 2 & 4
  • Page four of the installation instructions includes a list of contents included in Kit K-1210

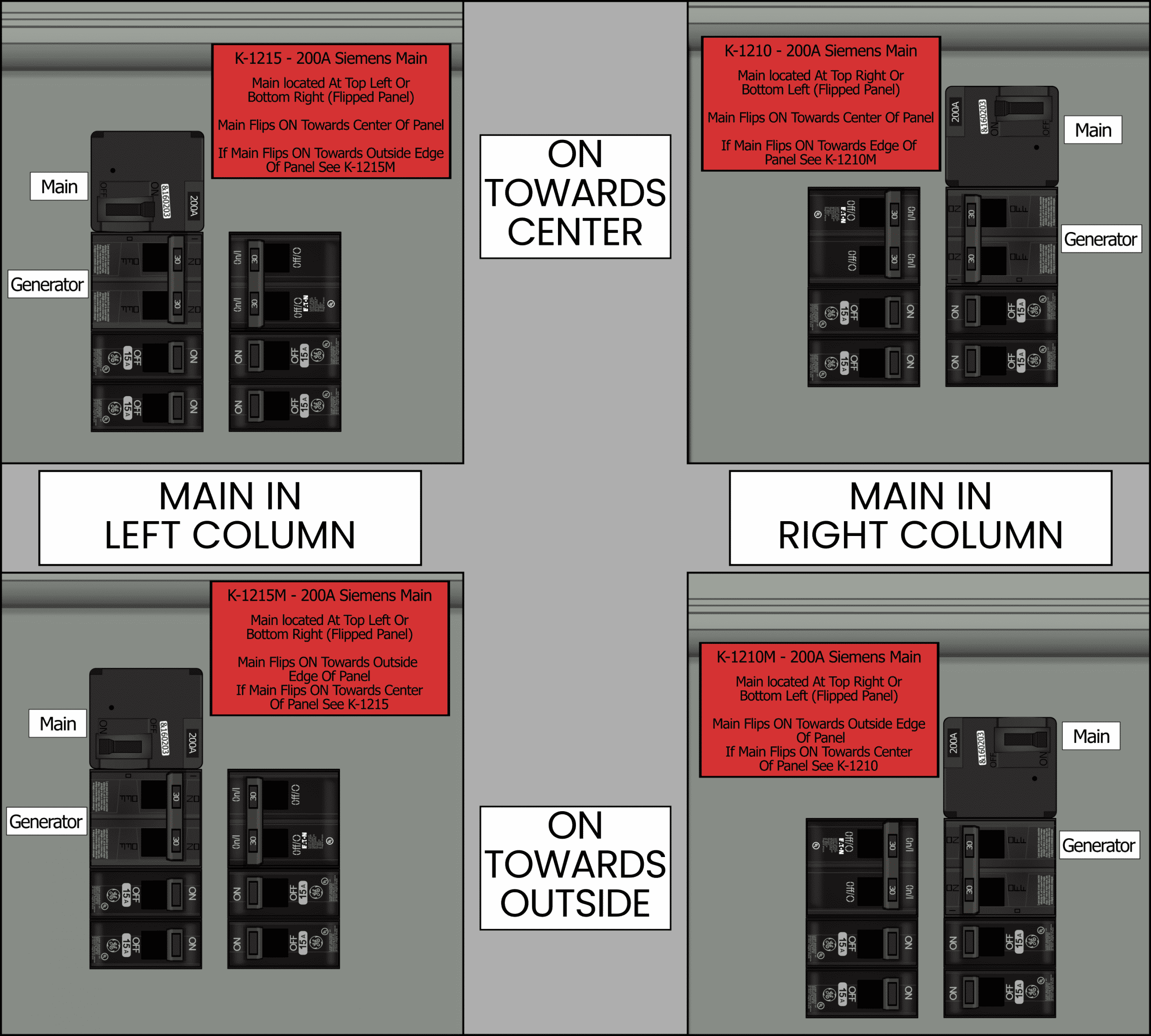

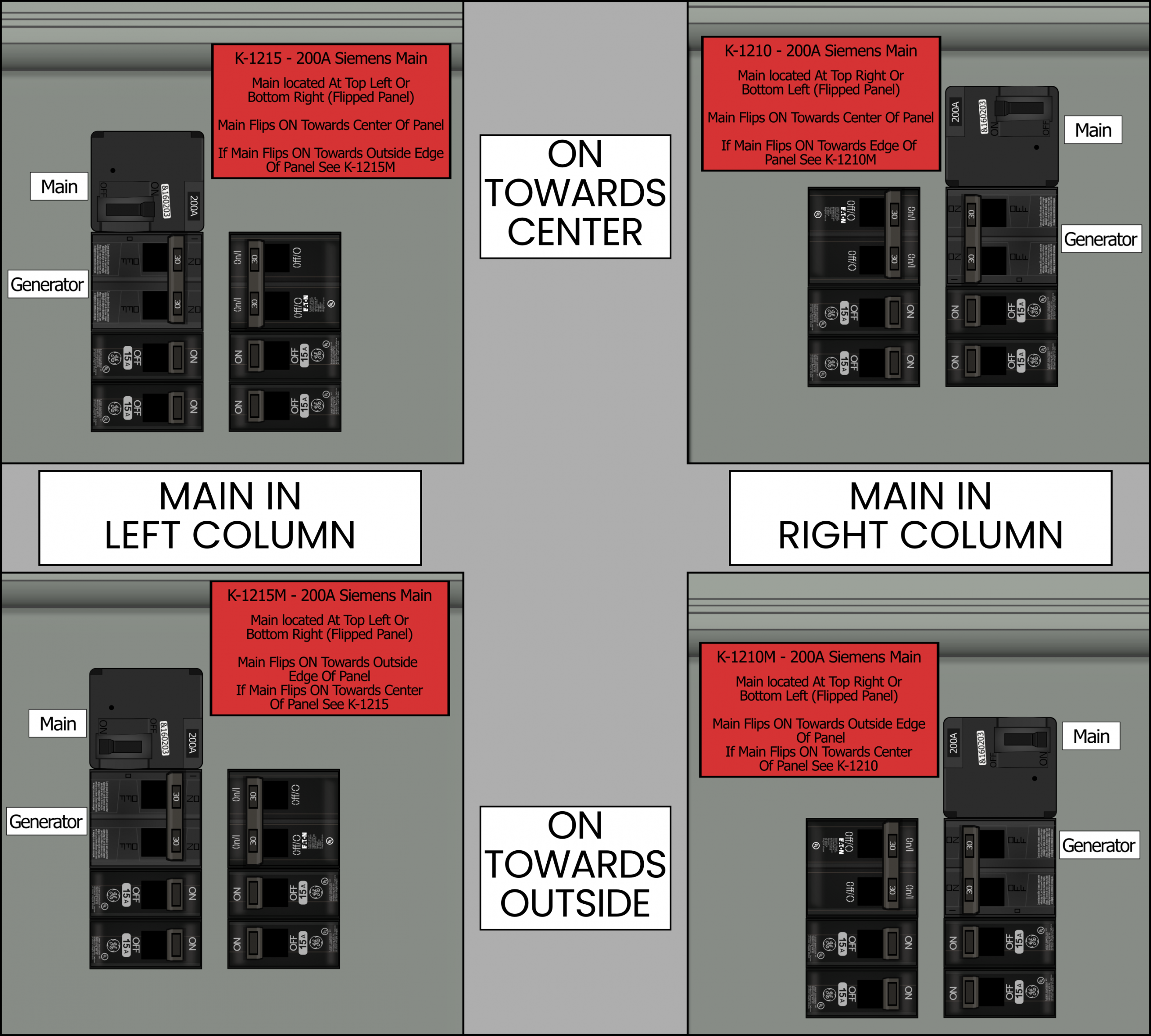

Modified versions of this Interlock Kit exist, see: Kit K-1210M, K-1215, K-1215M

Kit Installation Instructions

Additional information

Weight 1 lbs
Catalog #:

MC0816B1200TH, LC240PC model 18 Type 1 Type G, MC0816B1150RTH Type 3R – other compatible catalog #'s may not be listed here yet. Use the details listed in "Description" to help match your kit!
