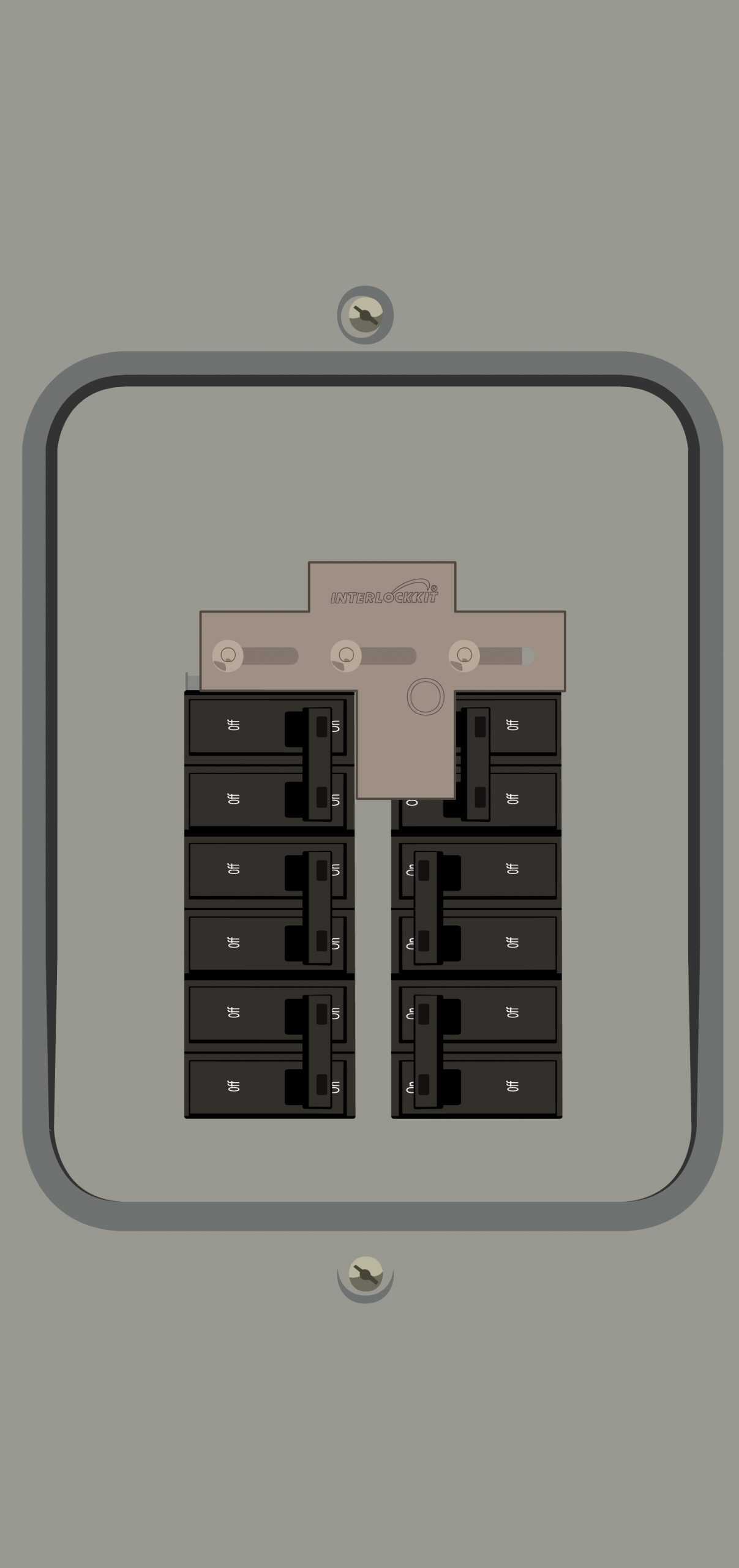

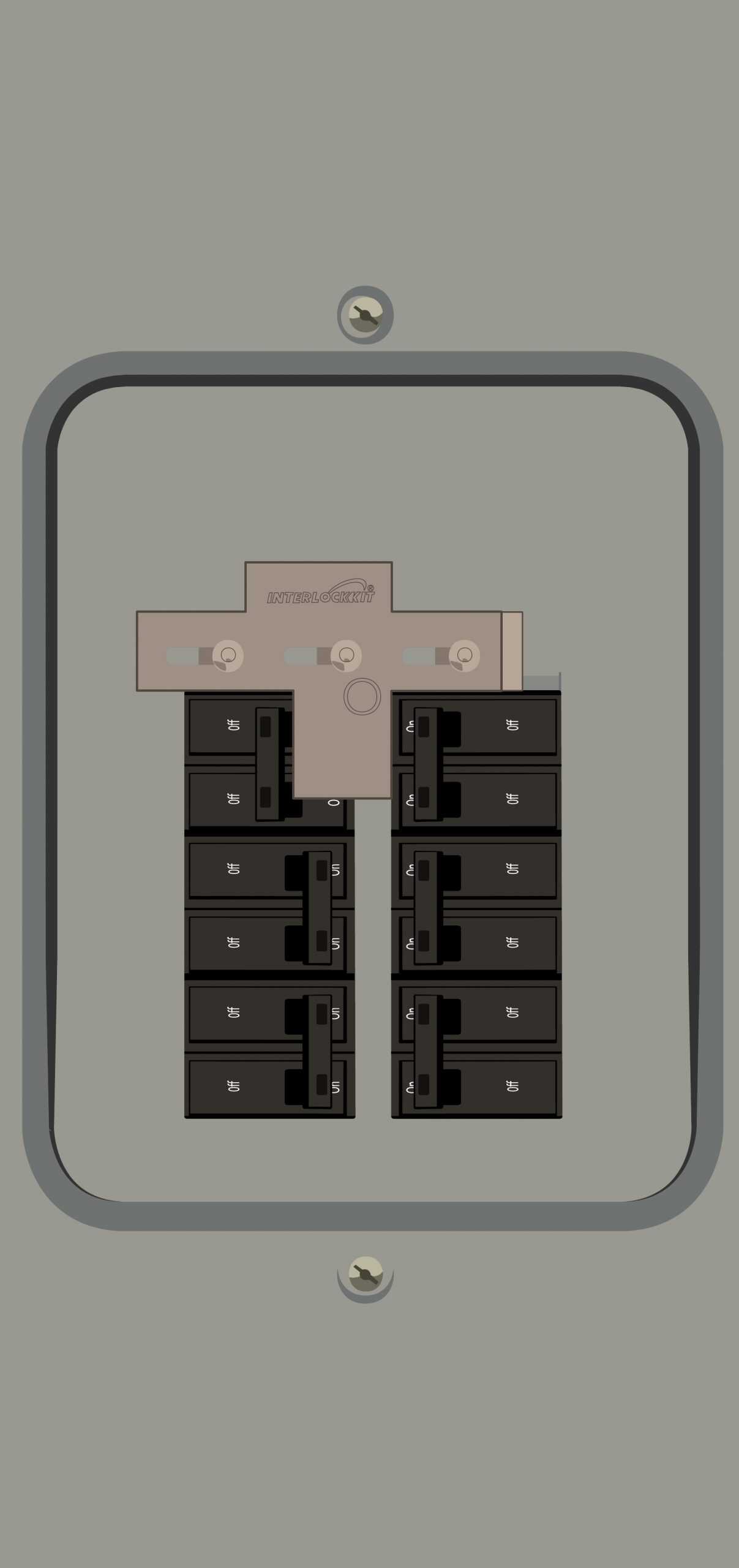

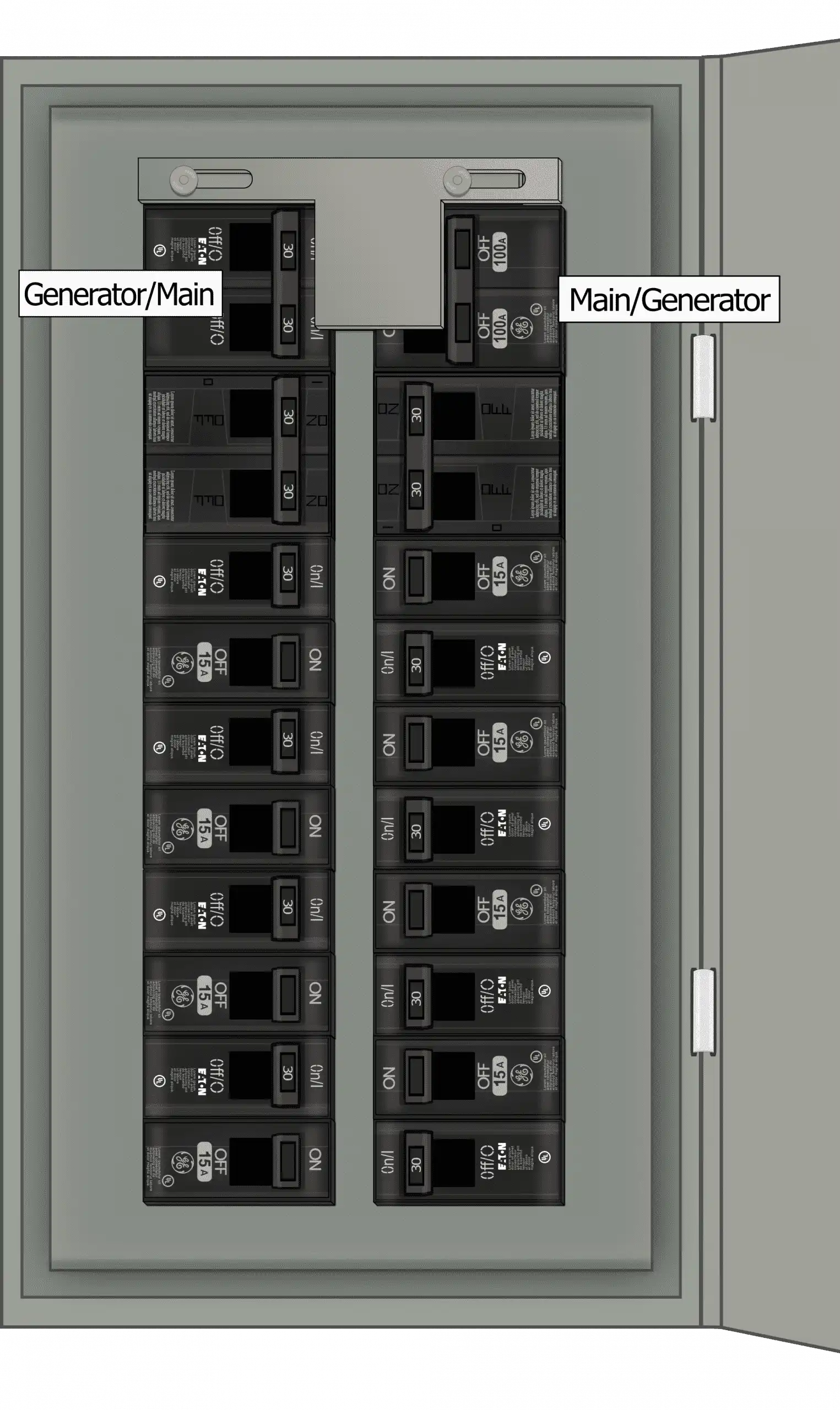

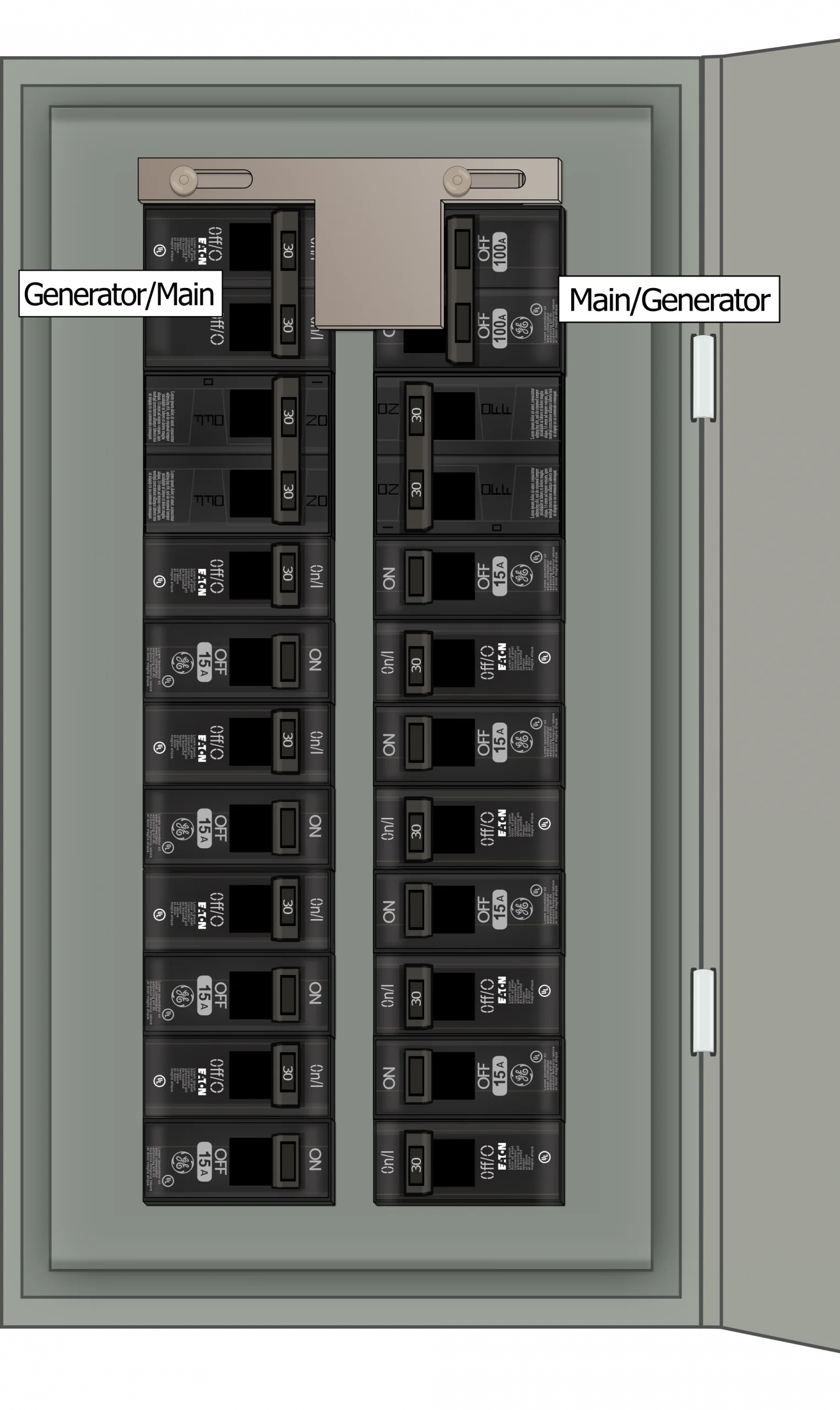

Interlock Kit K-9410

This kit mounts to Cutler Hammer / Square D / Siemens electrical panels with the following features:

• Space between breaker columns: 1/2"
• No gap

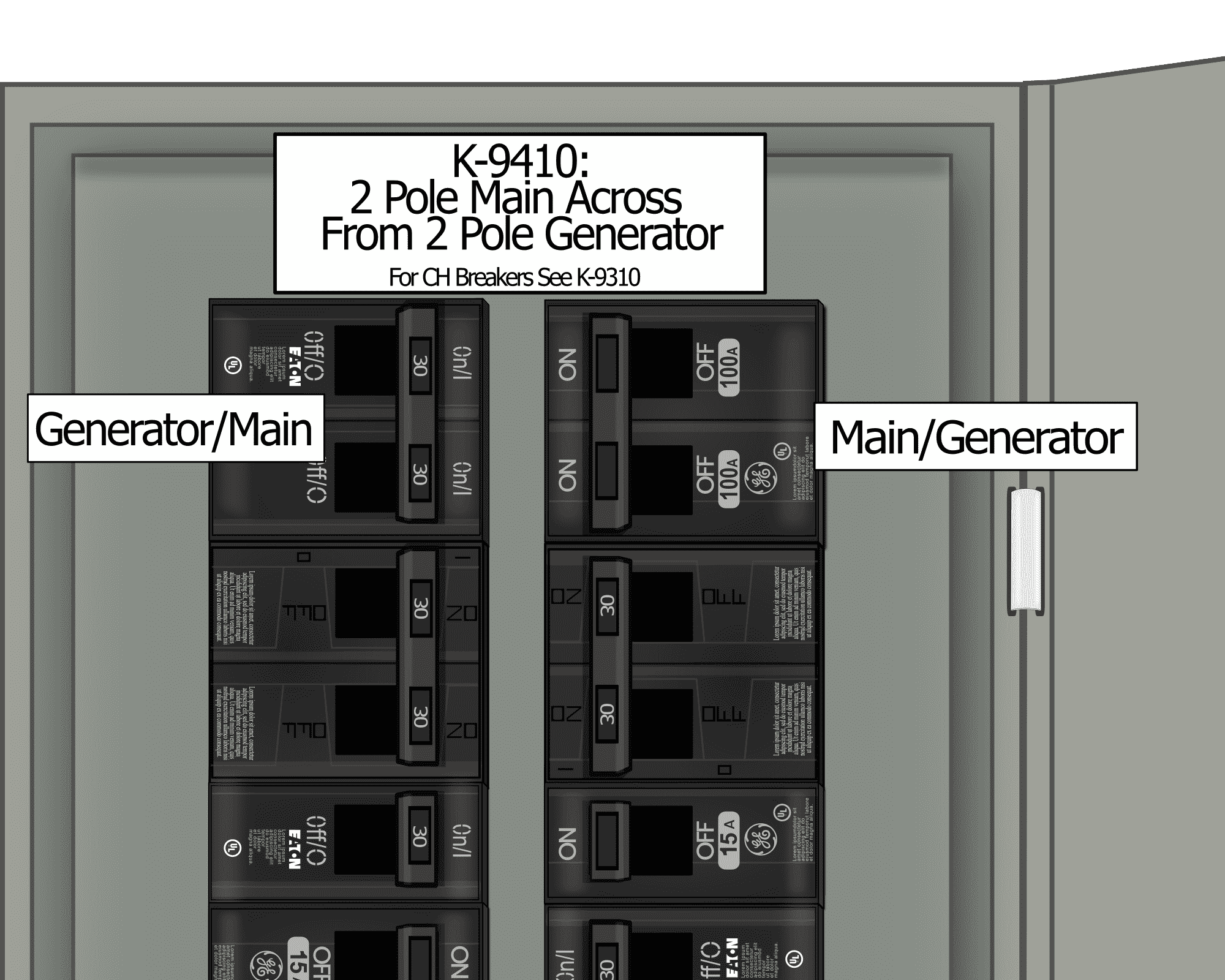

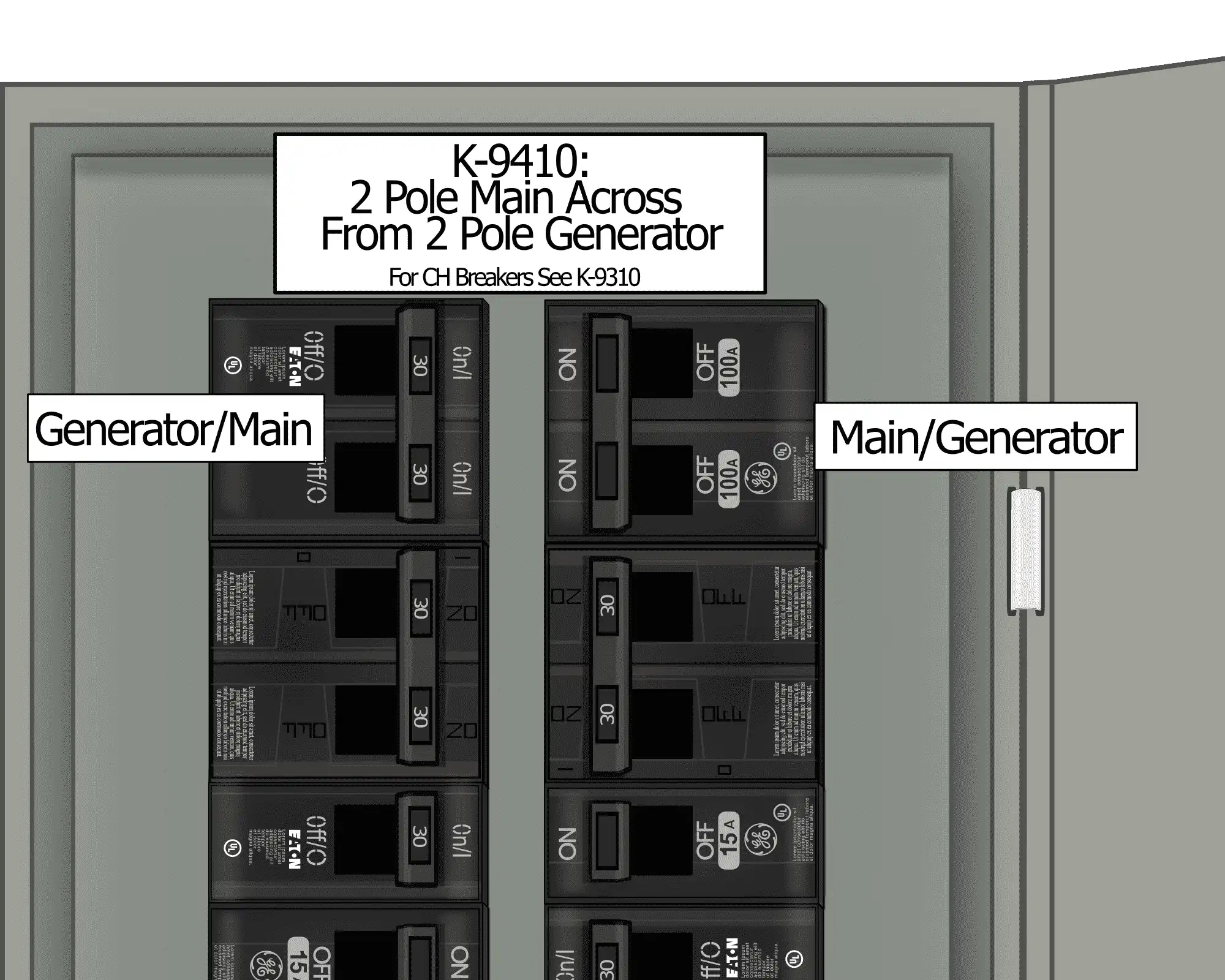

• 100-125 amp two pole main breaker
• Main breaker toggle action: horizontal (left-right) throw direction ON & OFF

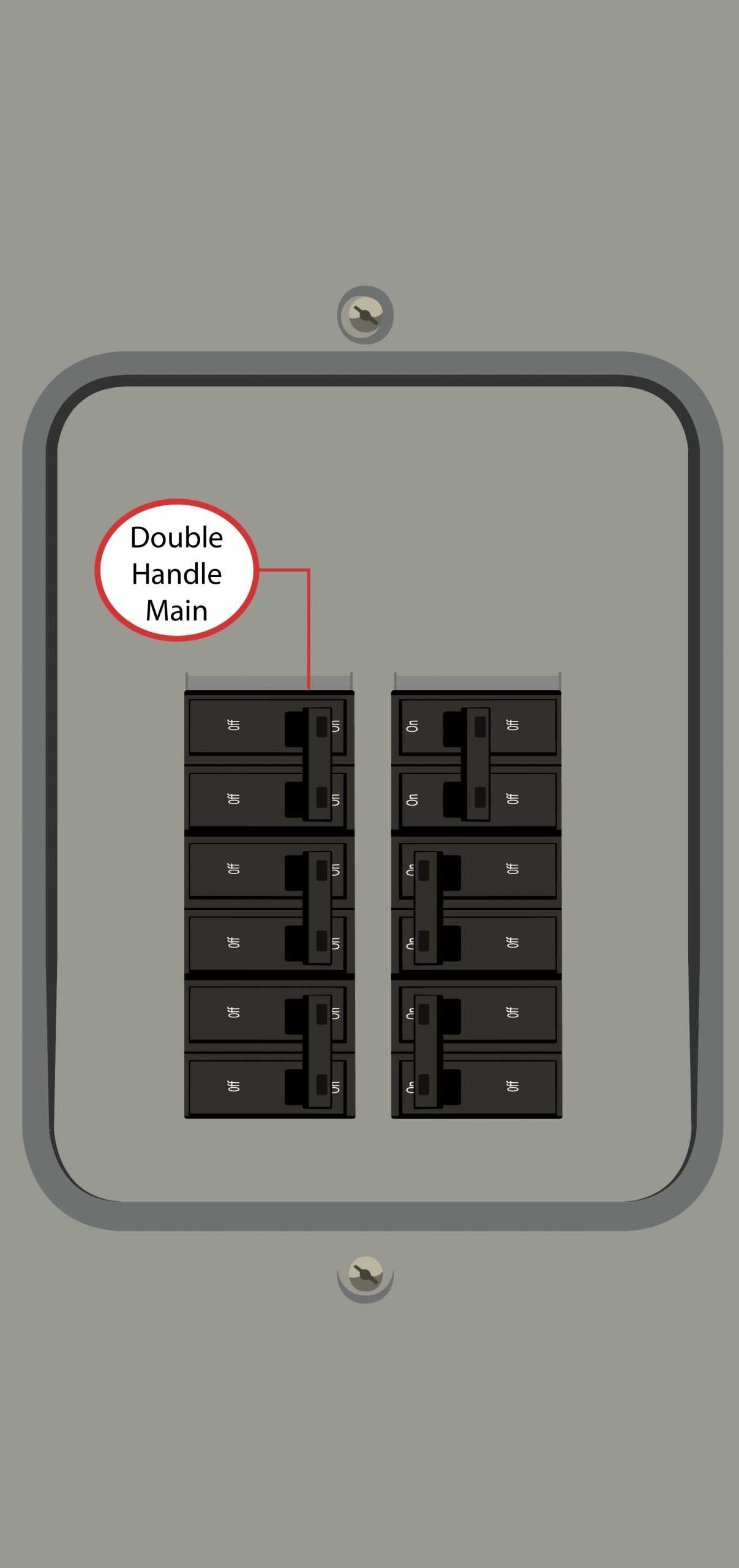

• Main breaker sits directly on top of the breaker stack in the right or left column
• Compatible with BR, QO, Homeline, & Siemens style breakers

Requirements:

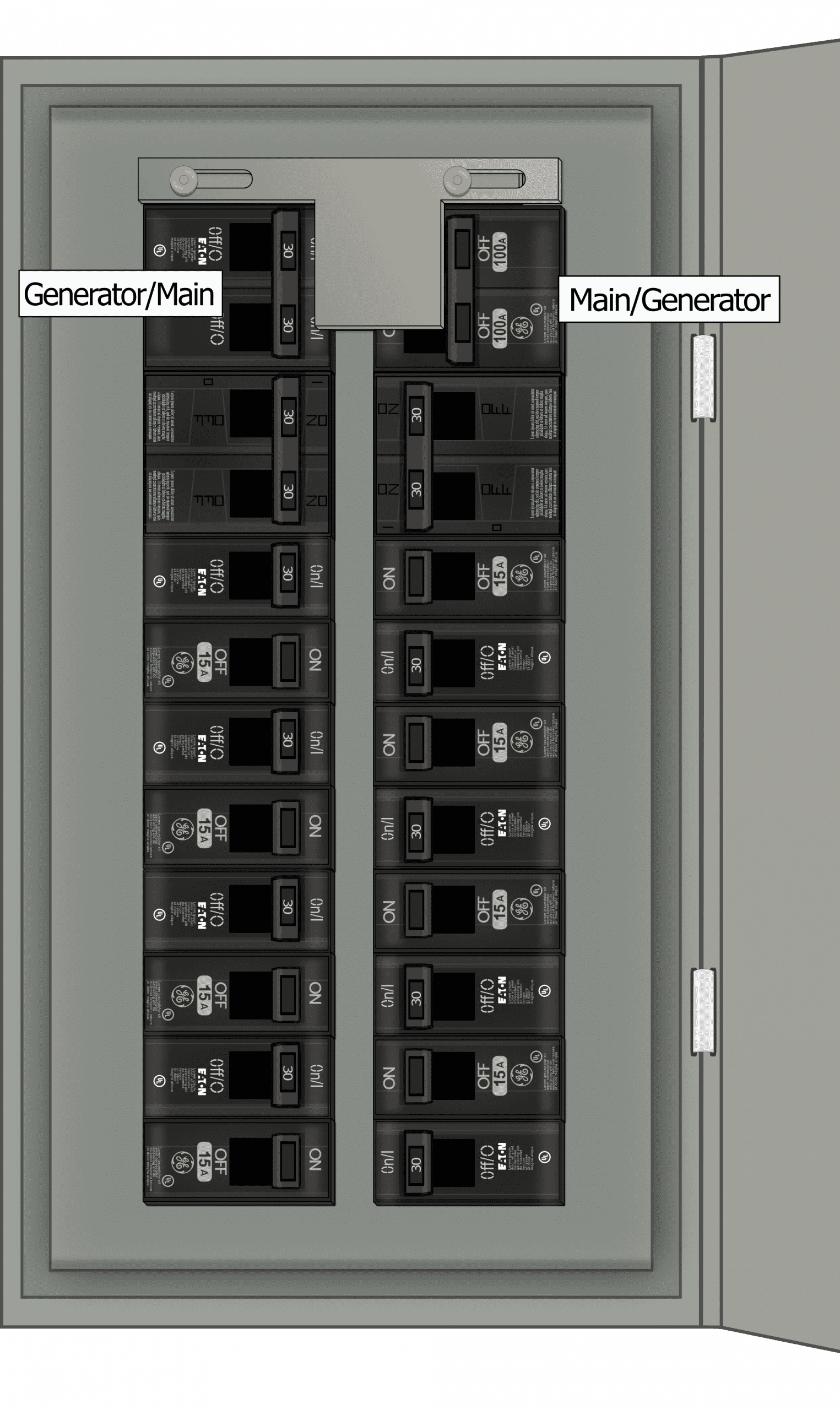

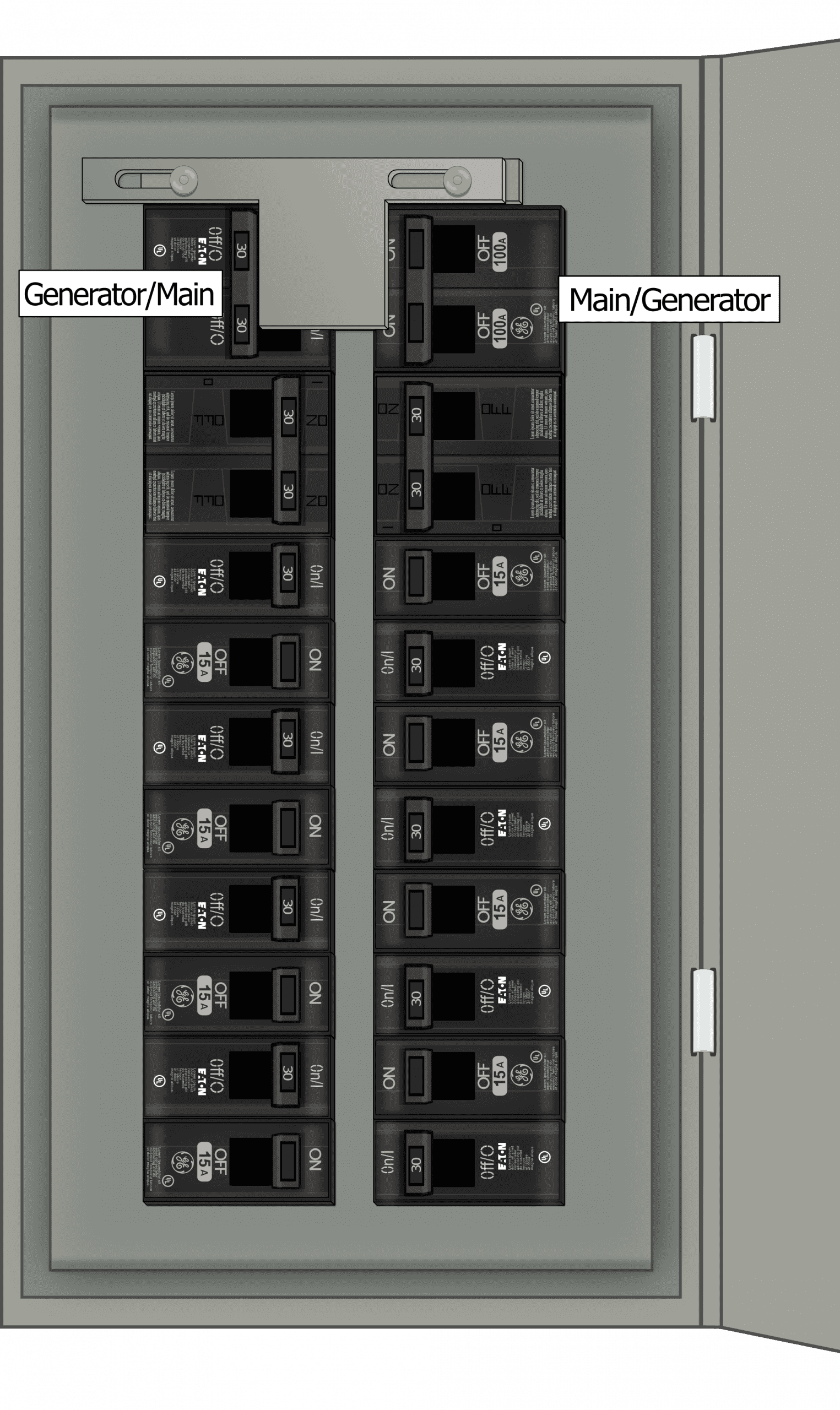

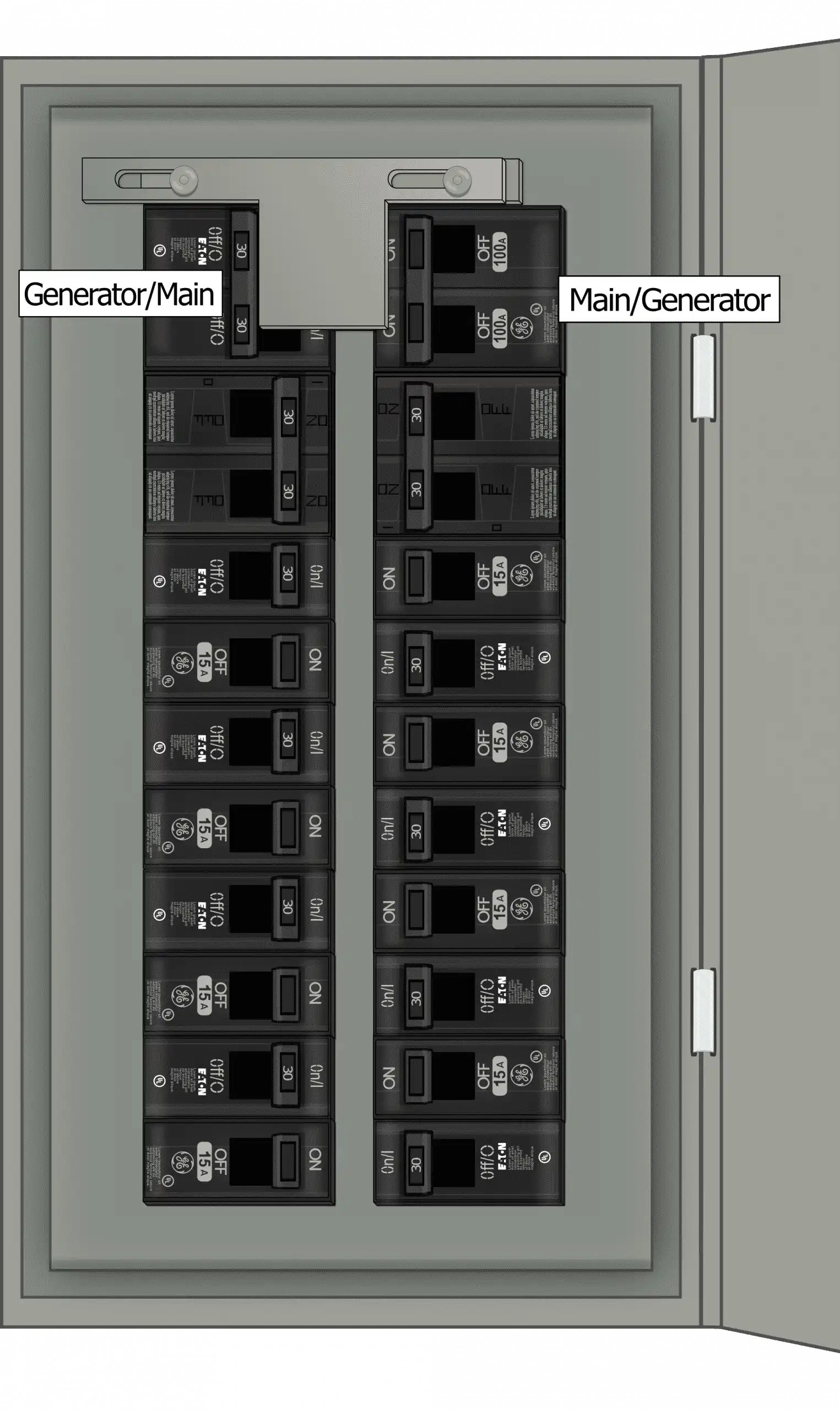

• Install a two pole generator breaker at the top of the opposite column from the main breaker
• Page four of the installation instructions includes a list of contents included in Kit K-9410

Interlock Kits similar to this kit include: K-9010, K-9011, K-9210, & K-9310

Kit Installation Instructions
