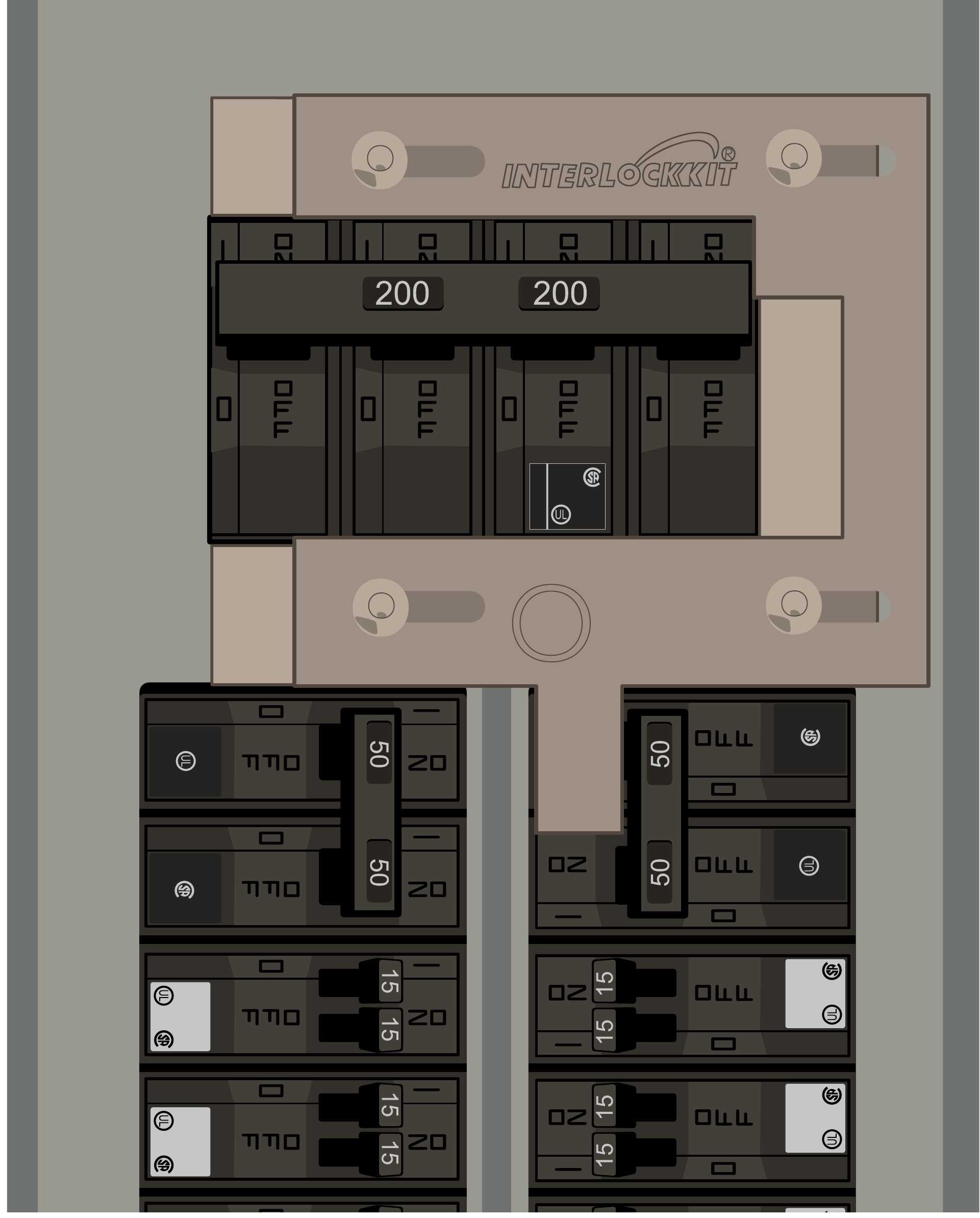

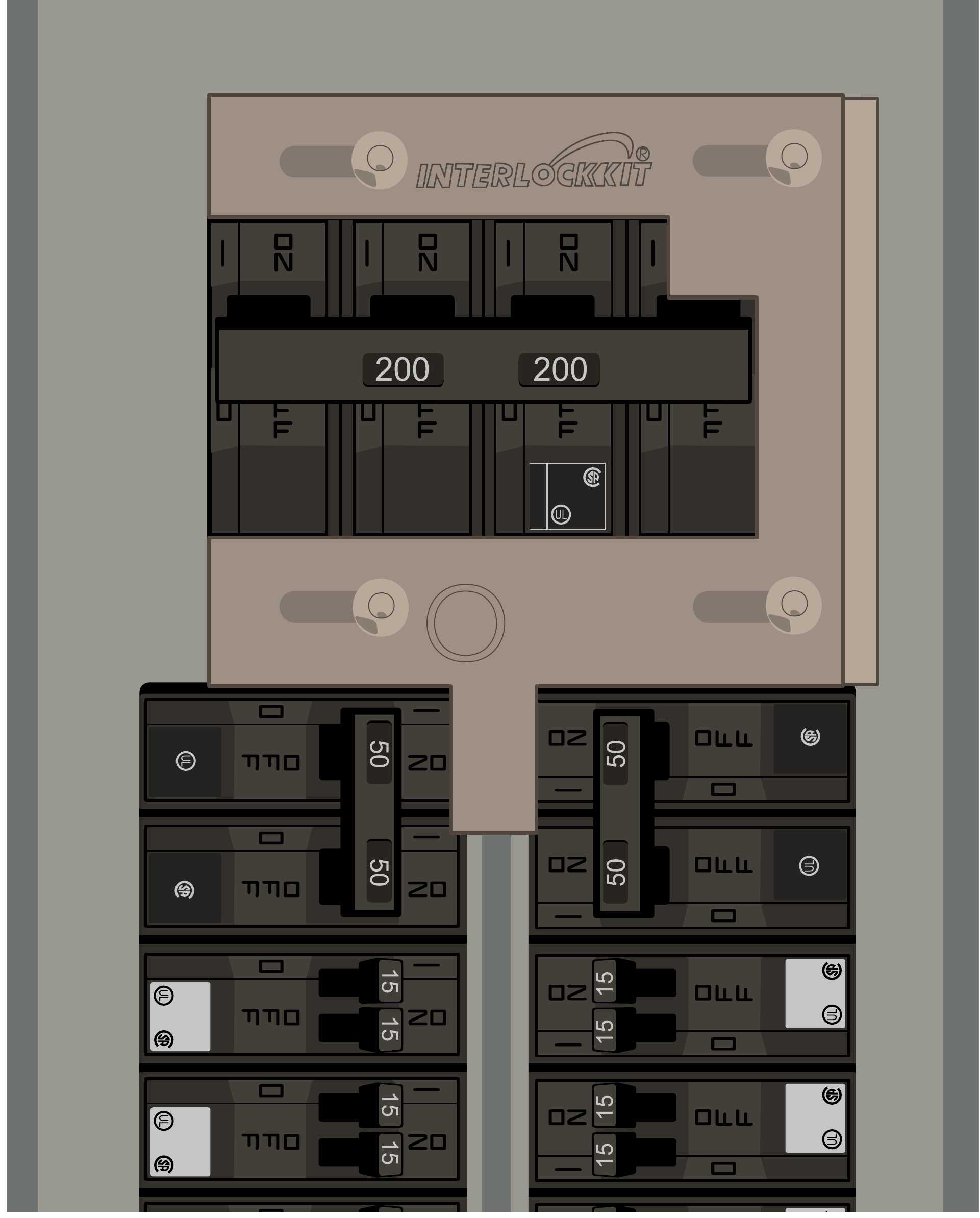

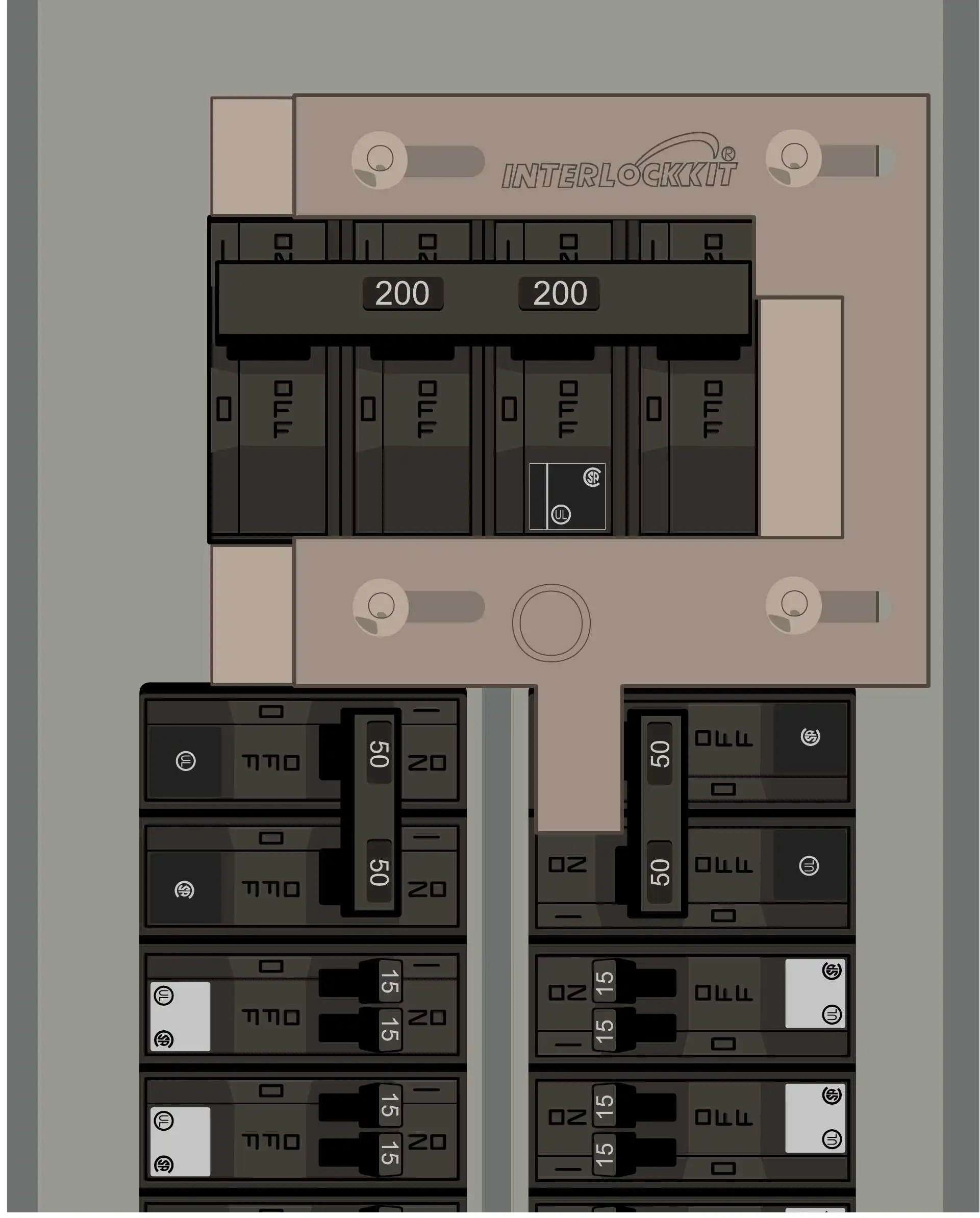

Interlock Kit K-1010
This Kit performs like a manual transfer switch for Siemens/ ITE / Murray / Gould electrical panels with the following features:
- Space Between breaker columns: 1/2"

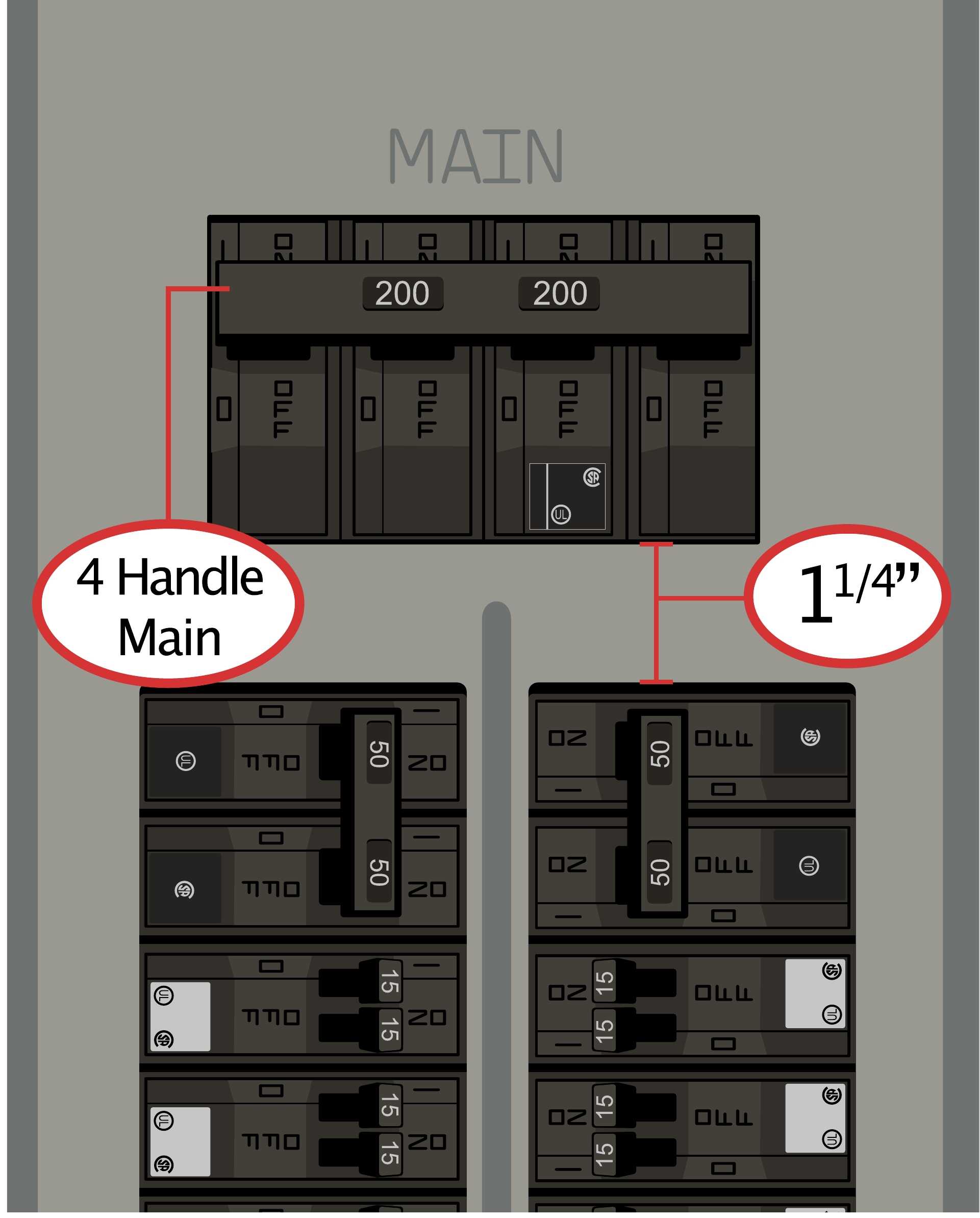

- Gap between the main breaker and columns below, is: 1 1/4" typically
- 150-200 amp main breaker
- Main breaker toggle action: vertical (up-down) throw direction ON & OFF

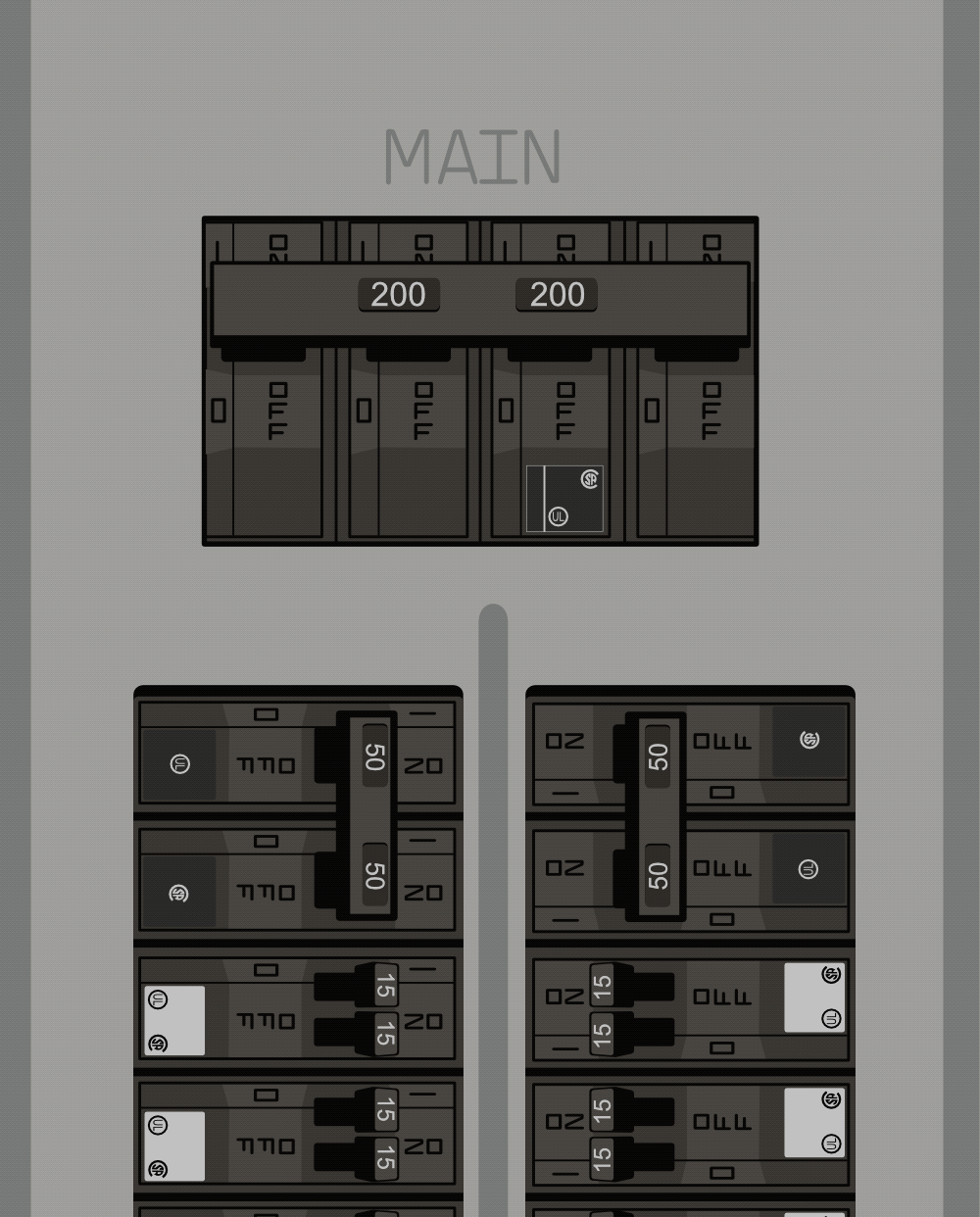

- Main breaker is centered over both breaker columns
- Install a two-pole generator breaker, located in: spaces 2 & 4 (top two spaces in the right column)
- See page four of the installation instructions for more info on the kit contents for Interlock Kit K-1010
Modified versions of this Interlock Kit exist, see: Kit K-8310
|Catalog #:|| |
G2040MB1200CU, G4040MB1200CU, M1632MB1200F – other compatible catalog #'s may not be listed here yet. Use the details listed in "Description" to help match your kit!
