Interlock Kit K-1210

Name: Interlock Kit K-1210
SKU: K-1210
Availability: InStock

$149.95

253 in stock

PATENT PENDING PRODUCT

Have a question or don’t see a kit for your panel? We make custom Interlock Kits for any panel or solar scenario – call (804) 531-3359 or Contact Us!

SKU: K-1210 Categories: Gould, ITE, Milbank, Murray, Siemens

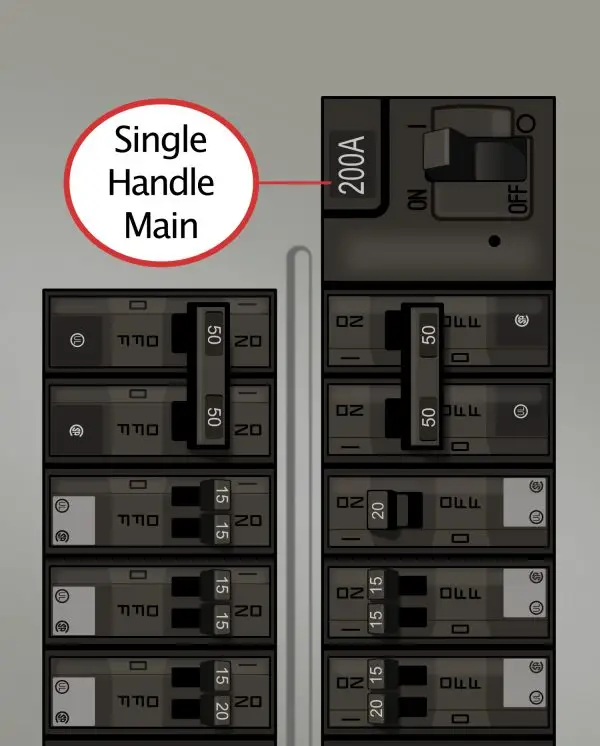

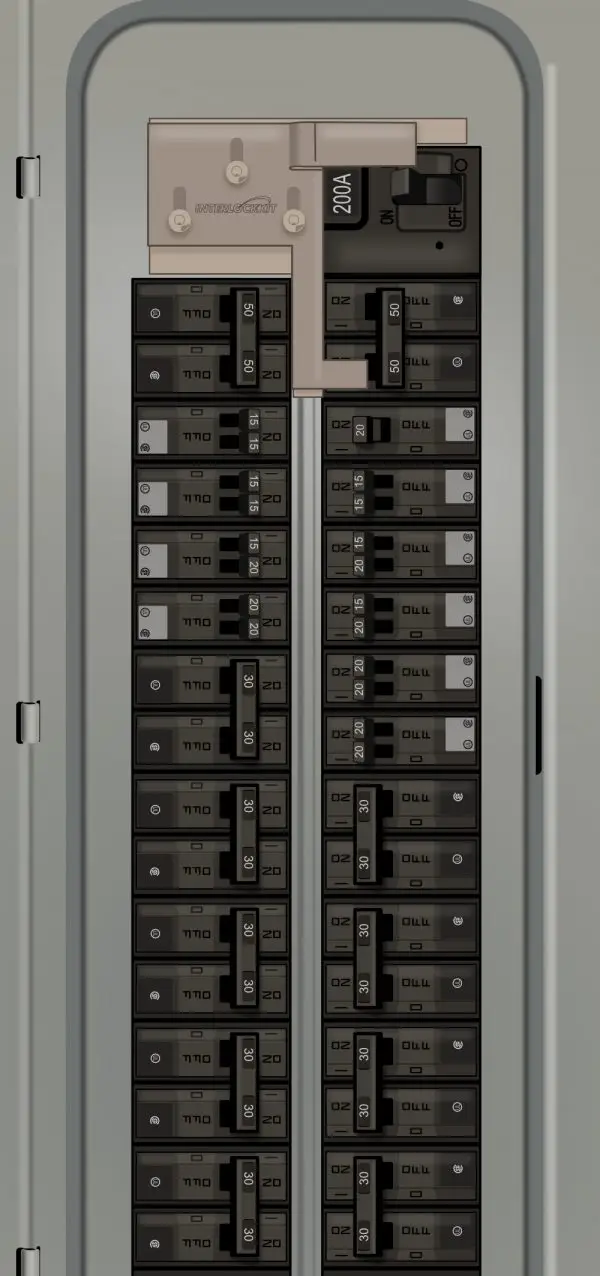

This Kit performs like a manual transfer switch for Siemens / ITE / Murray electrical panels with the following features:

Space between breaker columns: 1/2"
The main breaker sits directly on top of breaker stack in the right breaker column
150-200 amp 2 pole main breaker
Main breaker toggle action: horizontal (left-right) throw direction ON & OFF

Requirements:

Install a 2 pole generator breaker at the top of the right column: spaces 2 & 4
Page four of the installation instructions includes a list of contents included in Kit K-1210

Modified versions of this Interlock Kit exist, see: Kit K-1210M, K-1215, K-1215M

Additional information

Weight	1 lbs
Catalog #:	MC0816B1200TH, LC240PC model 18 Type 1 Type G, MC0816B1150RTH Type 3R – other compatible catalog #'s may not be listed here yet. Use the details listed in "Description" to help match your kit!
