Siemens / ITE / Murray Kit K-4110

$149.95

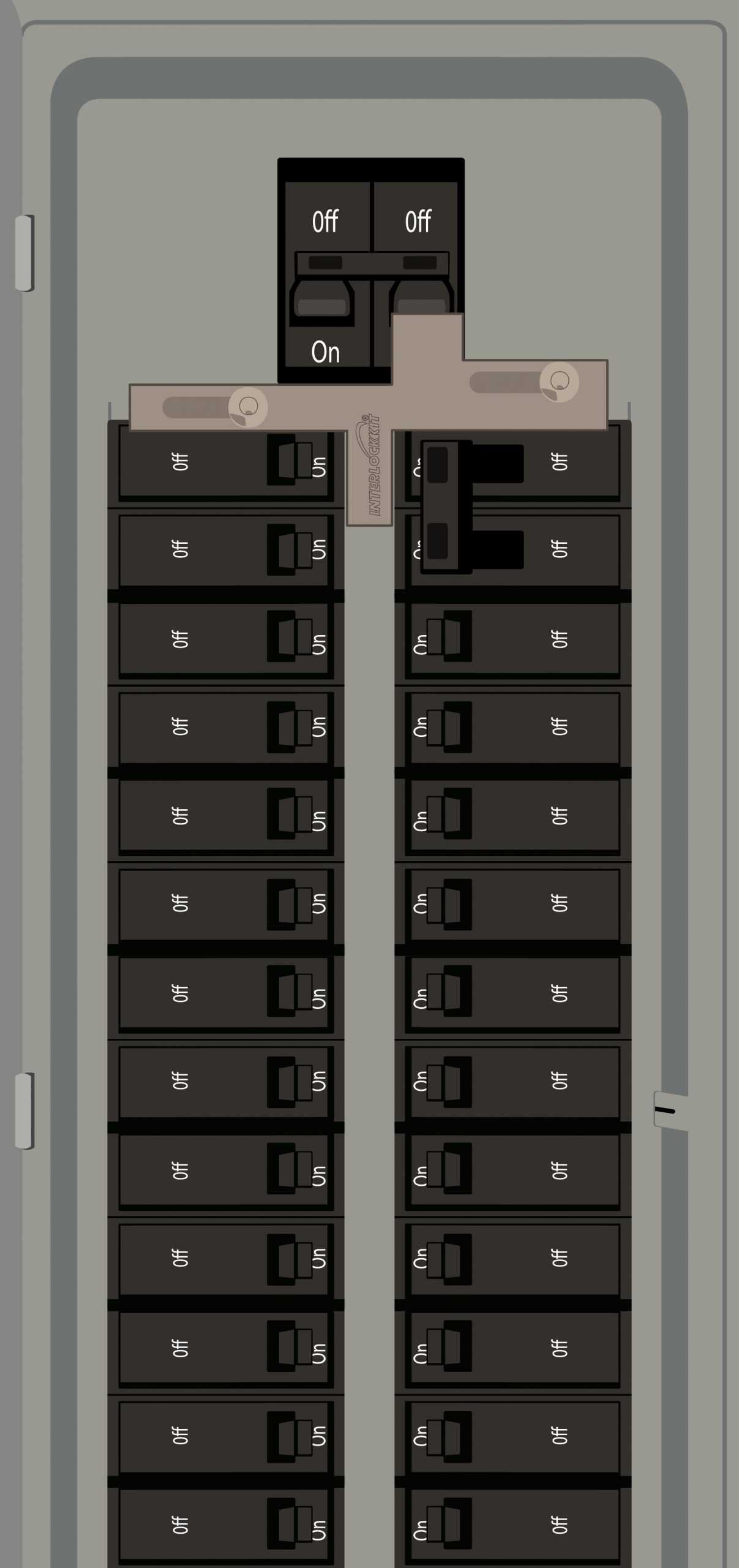

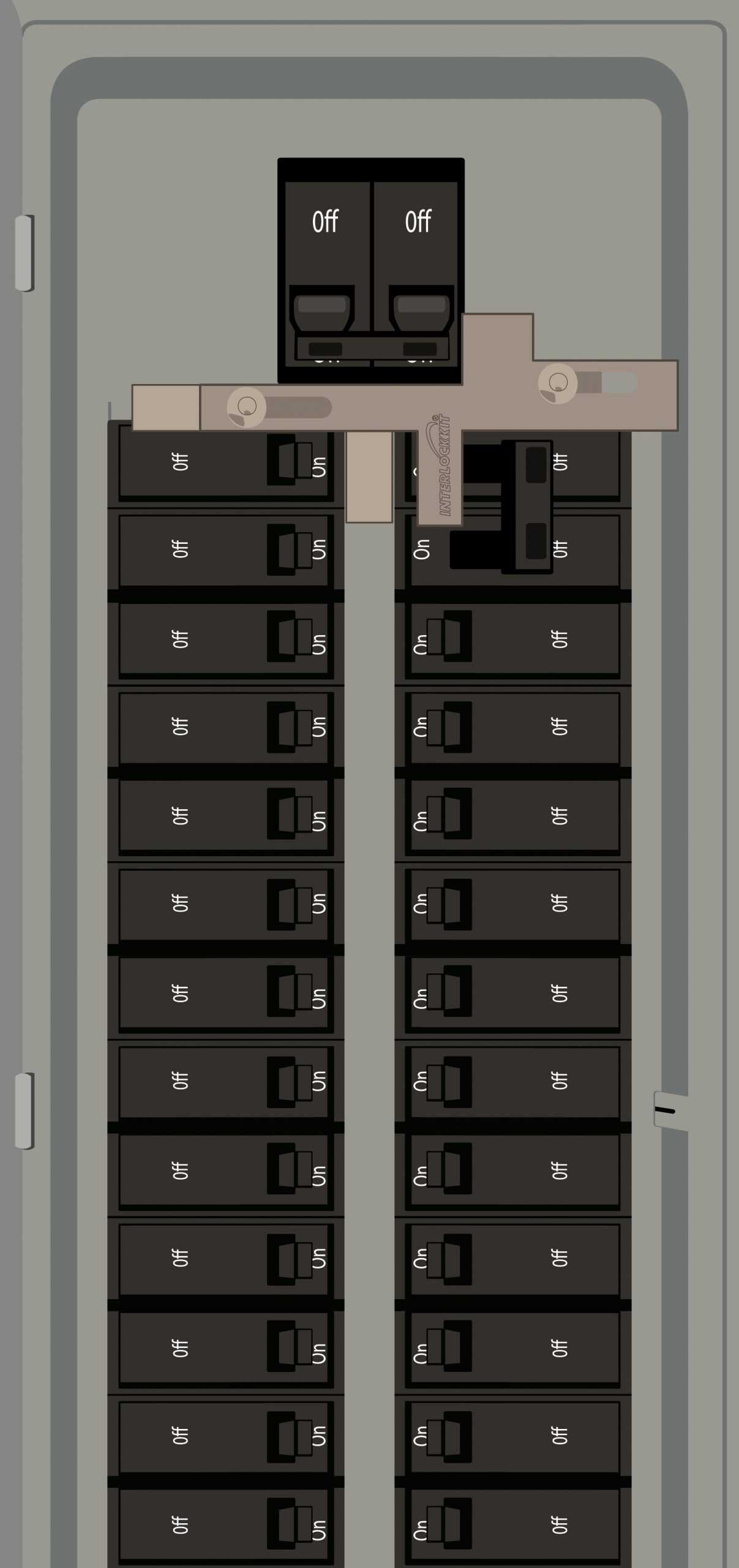

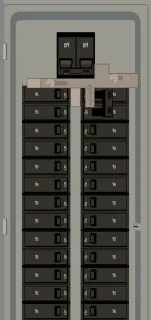

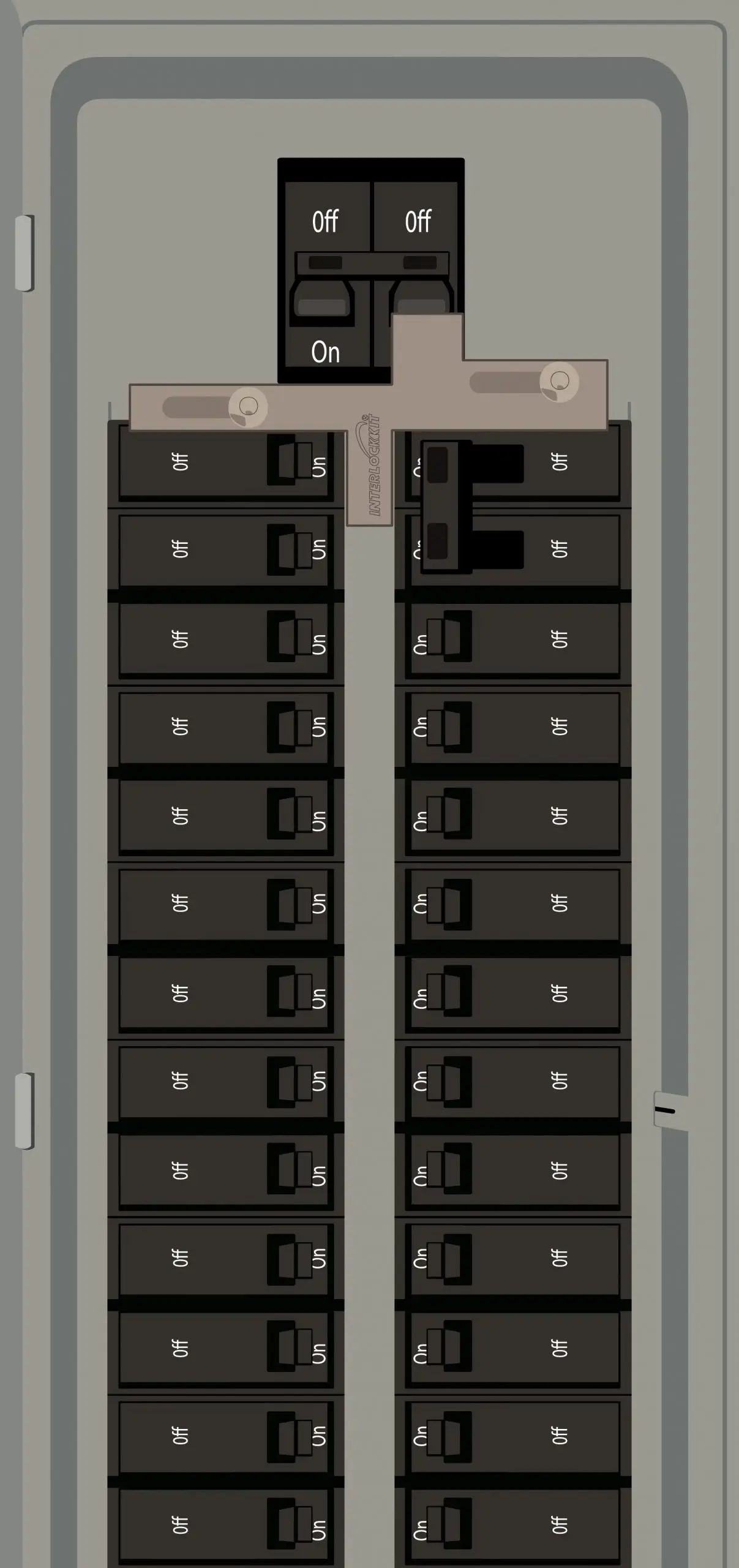

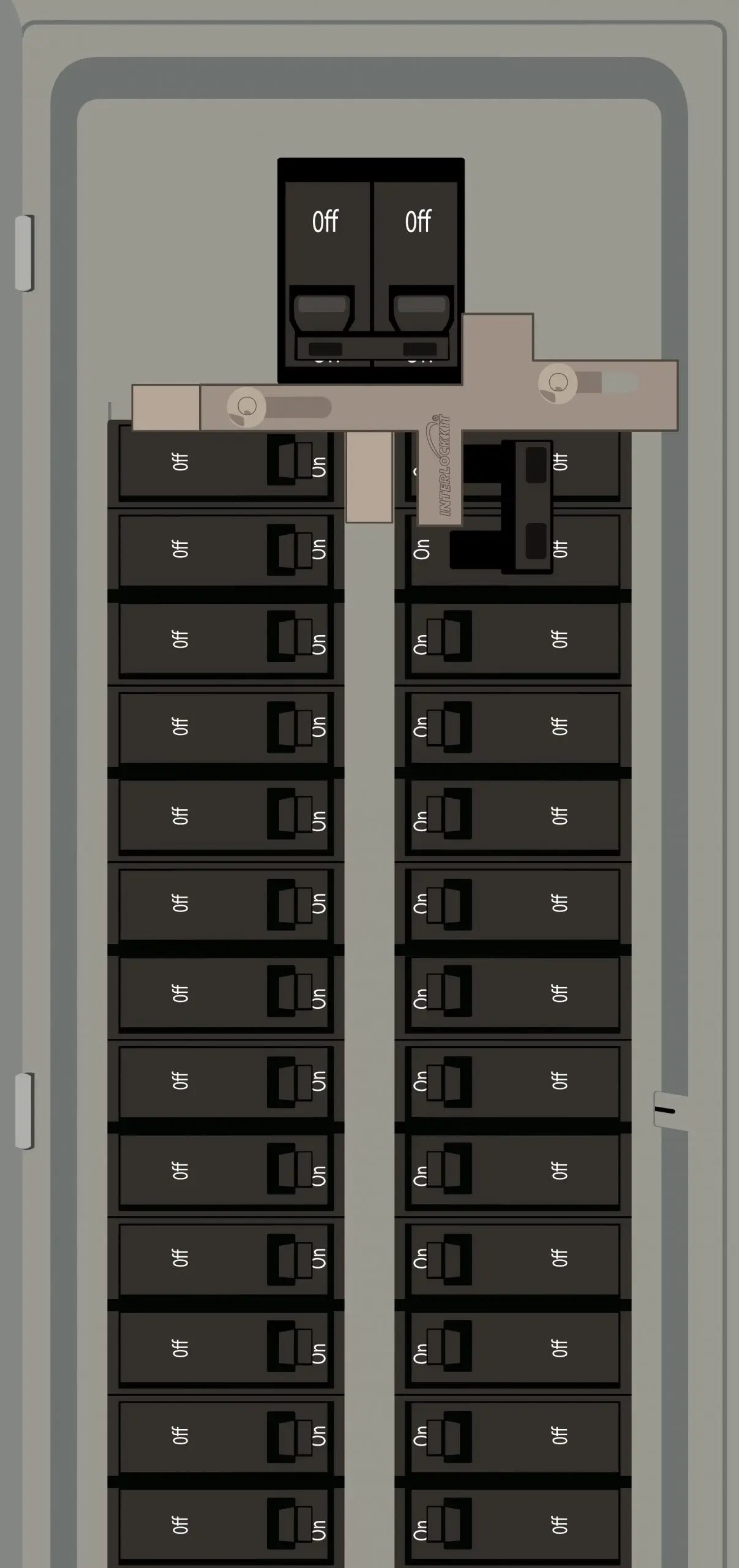

This Interlock Kit mounts to Siemens, ITE, and Murray electrical panels with the following features:

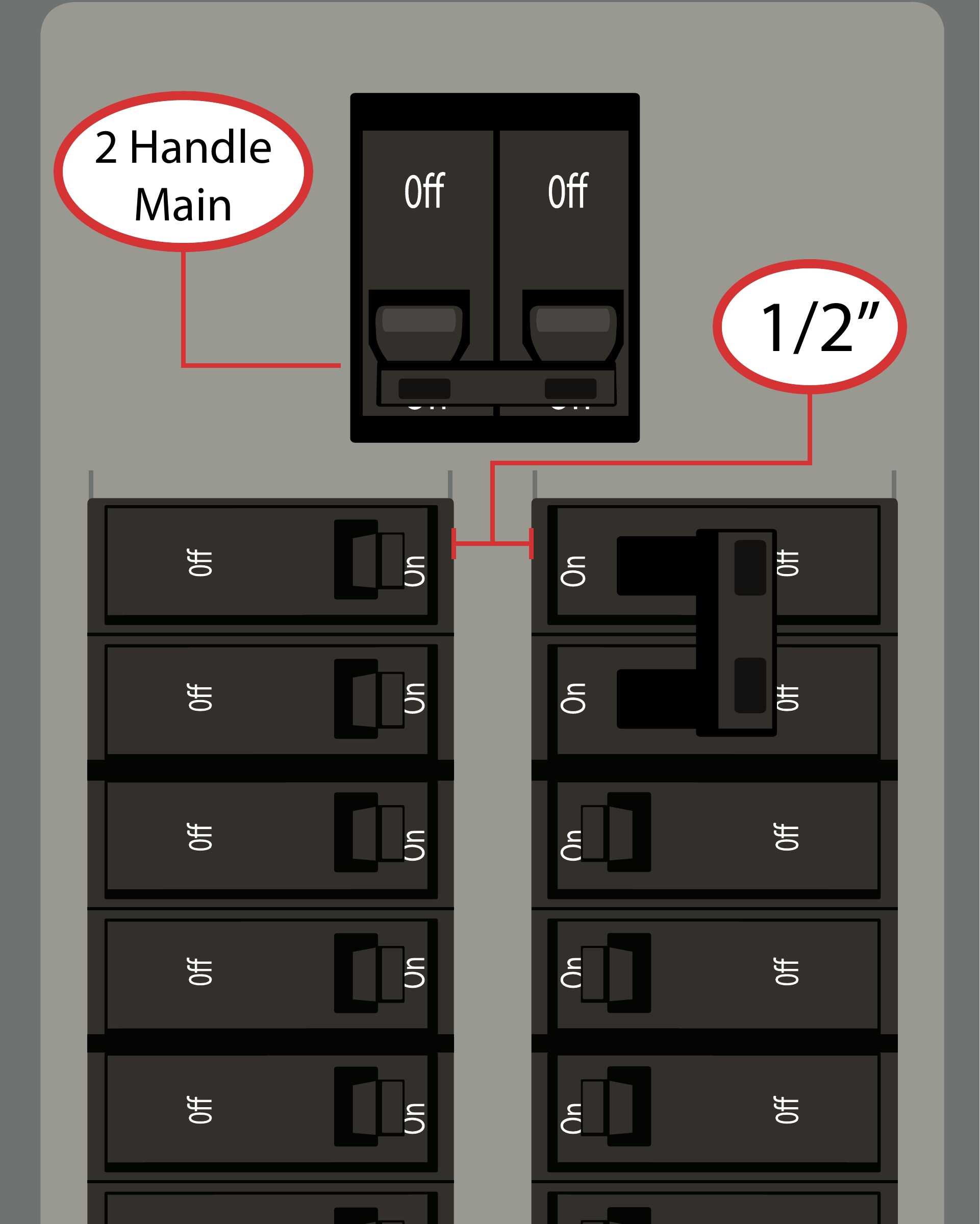

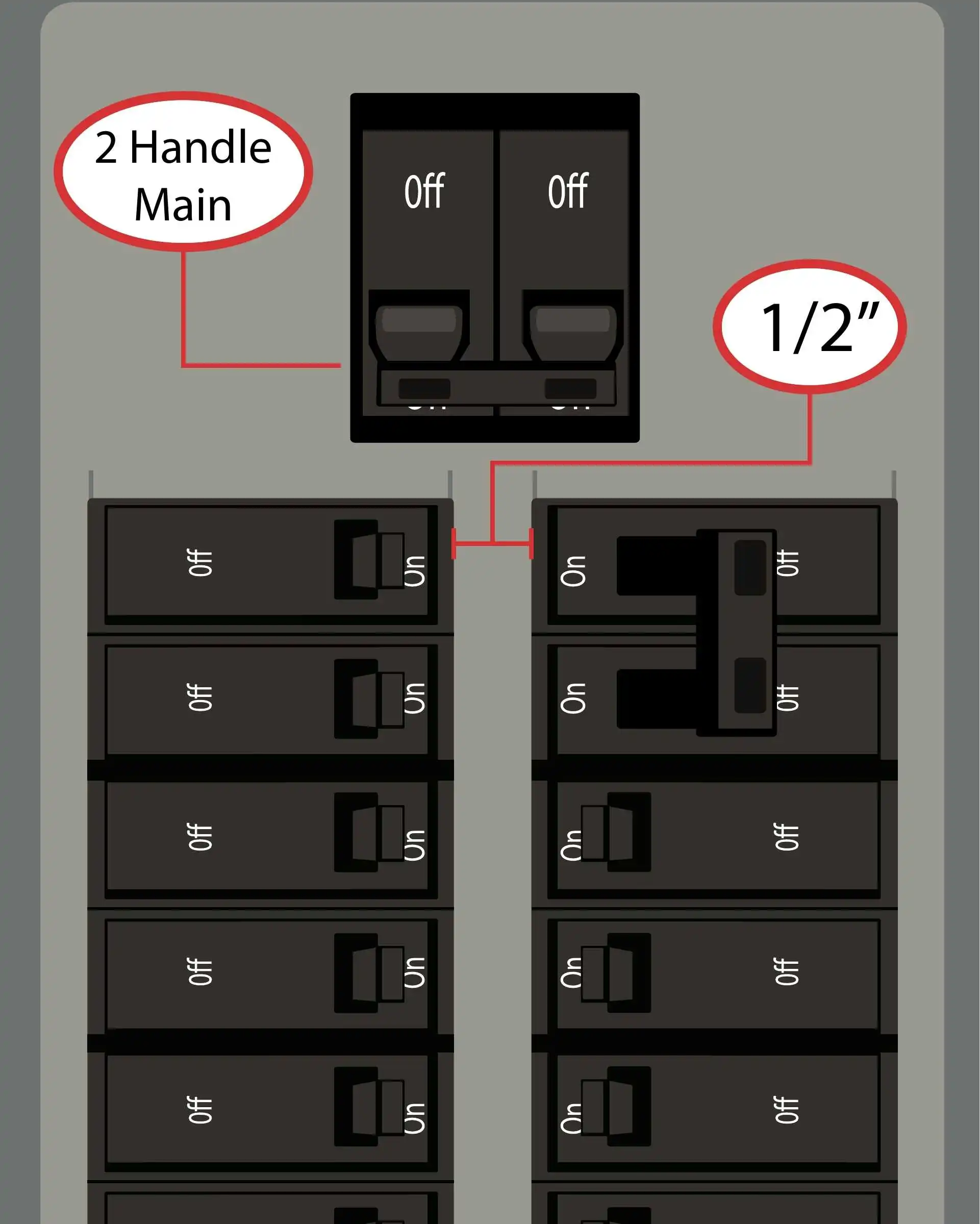

  • Space between breaker columns: 1/2″
  • Gap between main breaker and columns below, is: 1/2″
  • 100-125 amp main breaker
  • Main breaker toggle action: vertical (up-down) throw direction, but, ON is DOWN & OFF is UP
  • Main breaker centered over both breaker columns

Requirements:

  • Install a generator breaker at the top of the right column: spaces 2 & 4
  • Page four of the installation instructions includes a list of contents included in Kit K-4110

Modified versions of this Interlock Kit exist, see: K-4115 if main breaker is ON up and OFF when in the DOWN position

Kit Installation Instructions

Description

This Interlock Kit mounts to Siemens, ITE, and Murray electrical panels with the following features:

  • Space between breaker columns: 1/2″
  • Gap between main breaker and columns below, is: 1/2″
  • 100-125 amp main breaker
  • Main breaker toggle action: vertical (up-down) throw direction, but, ON is DOWN & OFF is UP
  • Main breaker centered over both breaker columns

Requirements:

  • Install a generator breaker at the top of the right column: spaces 2 & 4
  • Page four of the installation instructions includes a list of contents included in Kit K-4110

Modified versions of this Interlock Kit exist, see: K-4115 if main breaker is ON up and OFF when in the DOWN position

Kit Installation Instructions

Additional information

Weight 1 lbs
