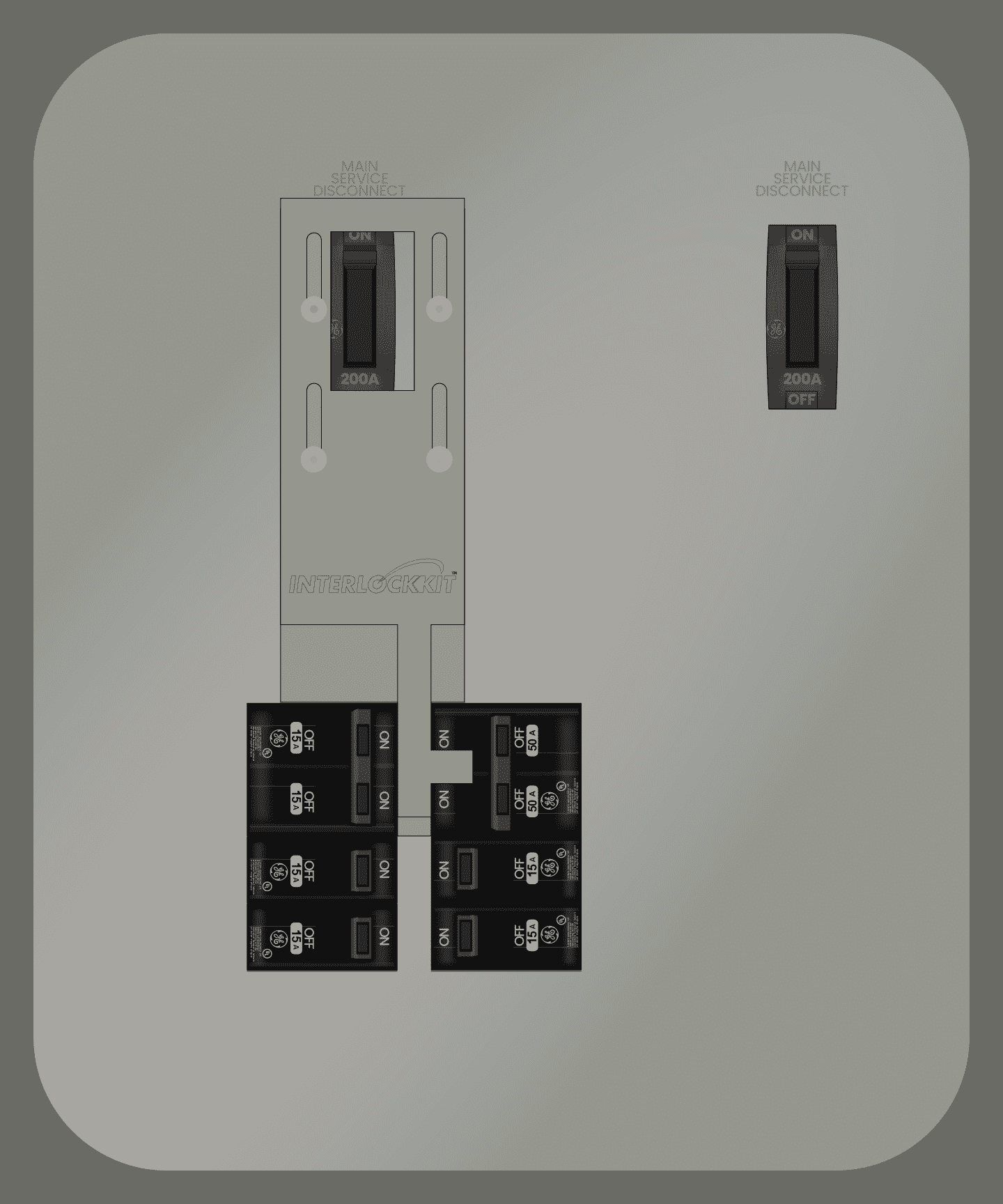

Interlock Kit K-8710

This Kit mounts to General Electric (GE) electrical panels with the following features:

• Space between breaker columns: 1/2"

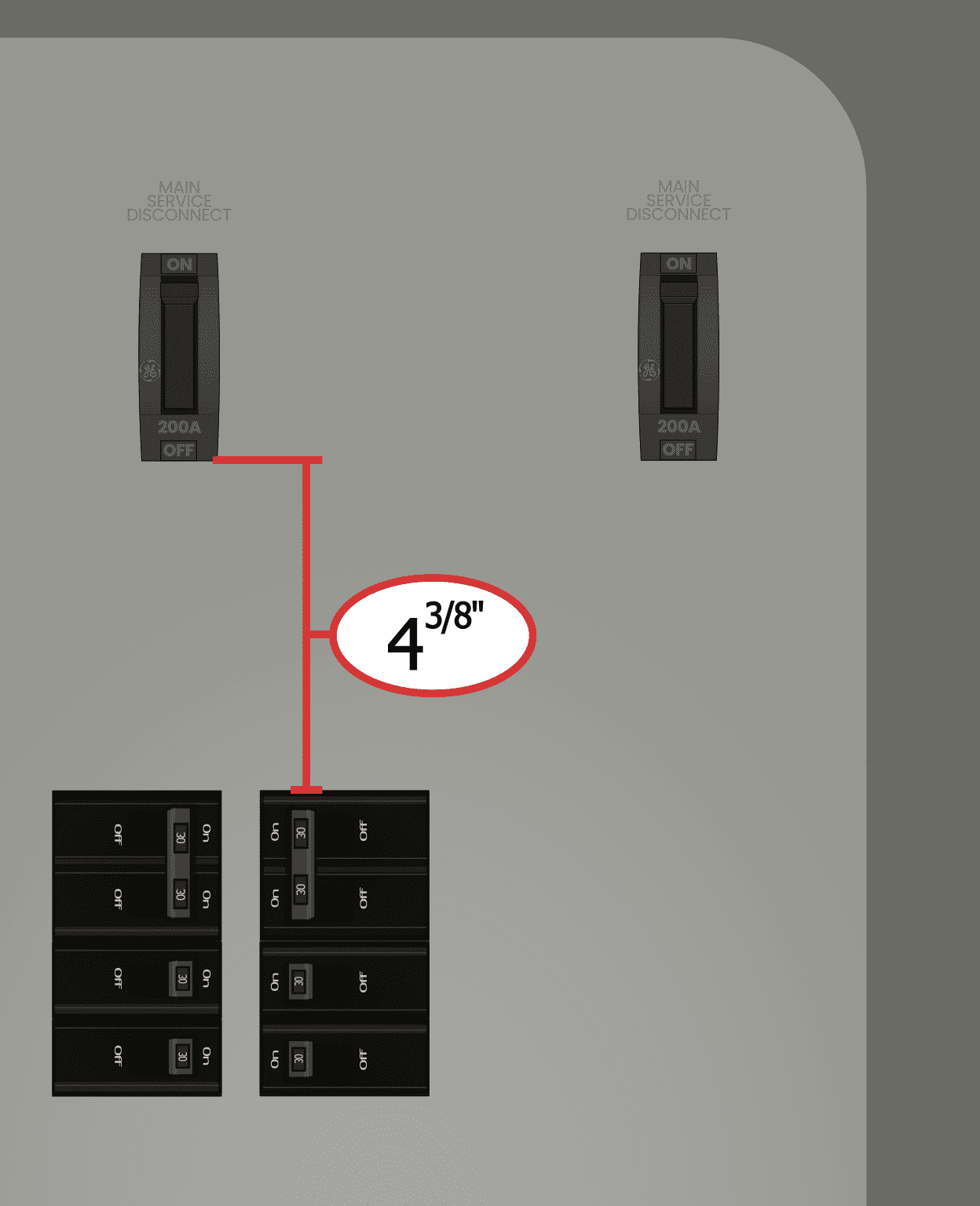

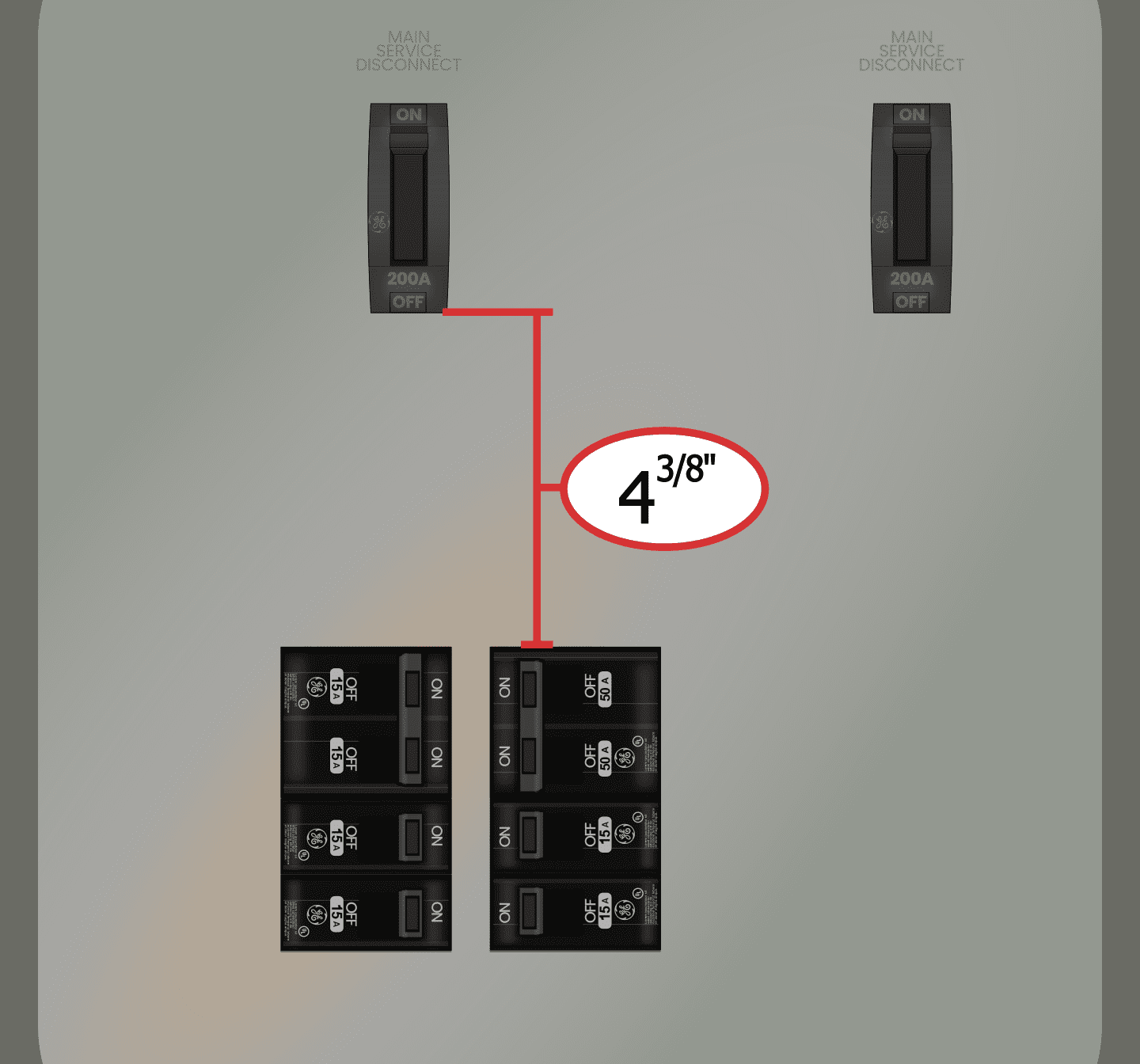

• Gap between the main breaker and columns below, is: 4 3/8"
• 150-200 amp main breaker
• Main breaker toggle action: vertical (up & down) throw direction ON & OFF
• Main breaker is offset ~3/4" to the left of the center of the branch breaker columns

Requirements

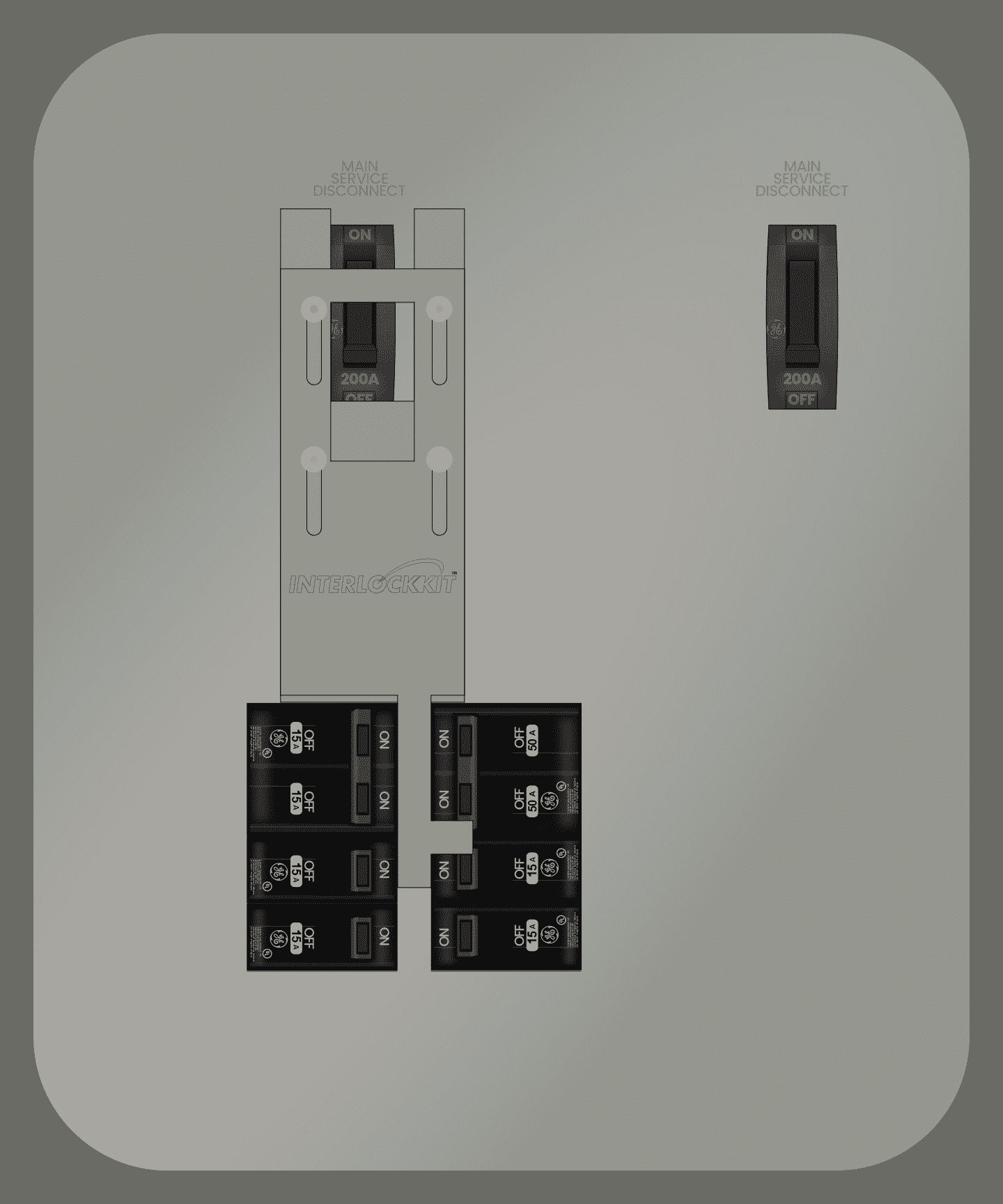

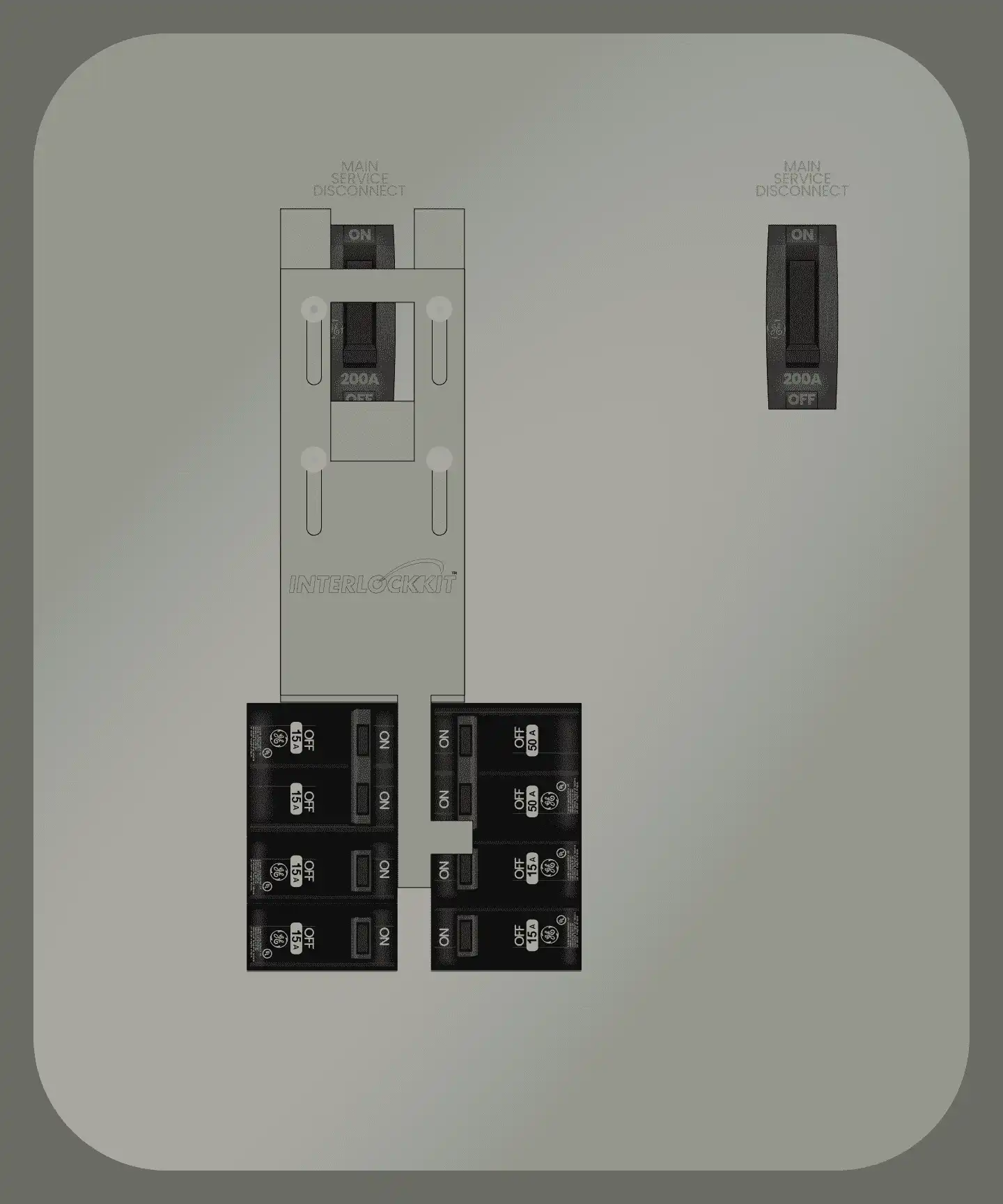

• Install a two pole generator breaker, located in: spaces 2 & 4 (top two spaces in the right column)

Kit Installation Instructions
