General Electric Kit K-8210
$149.95

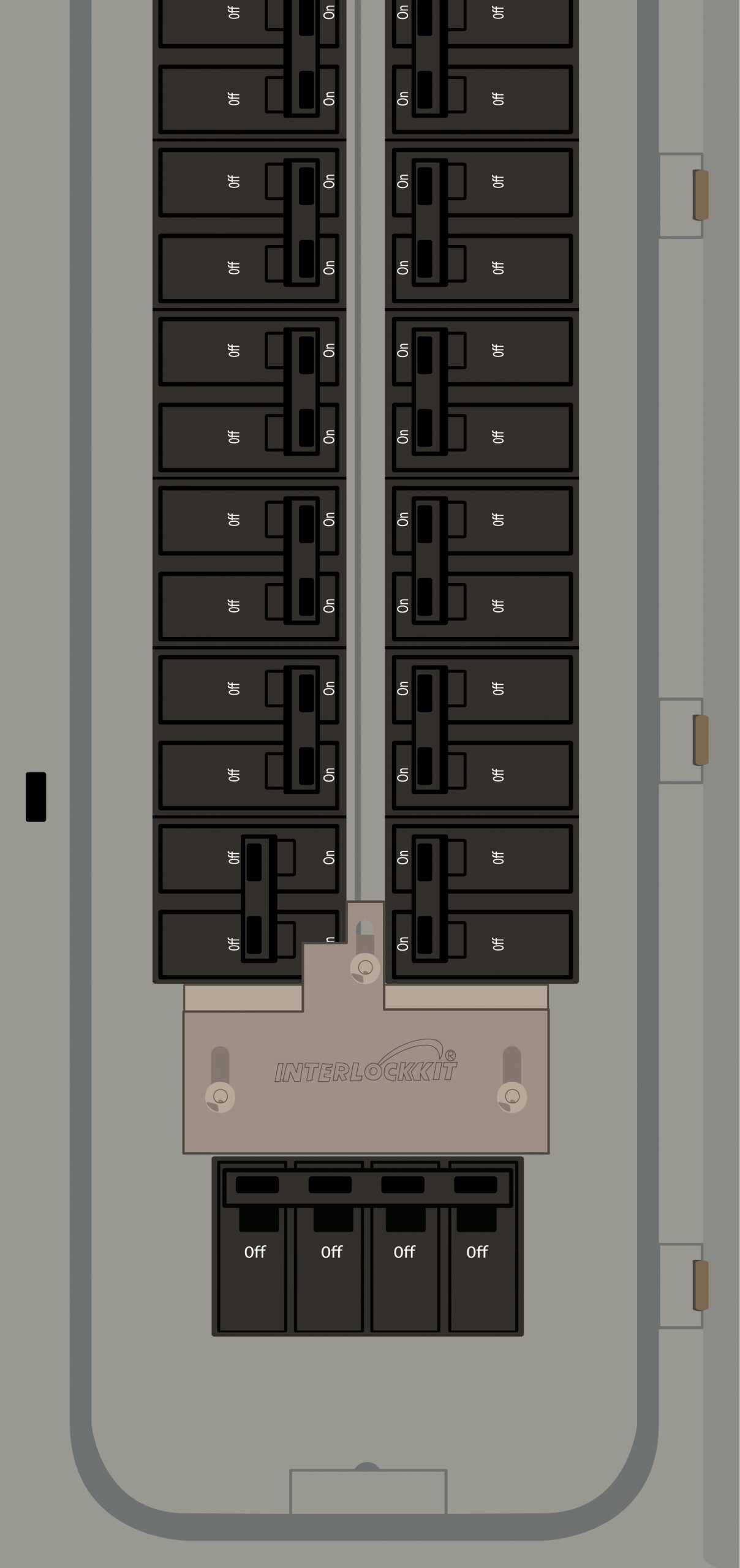

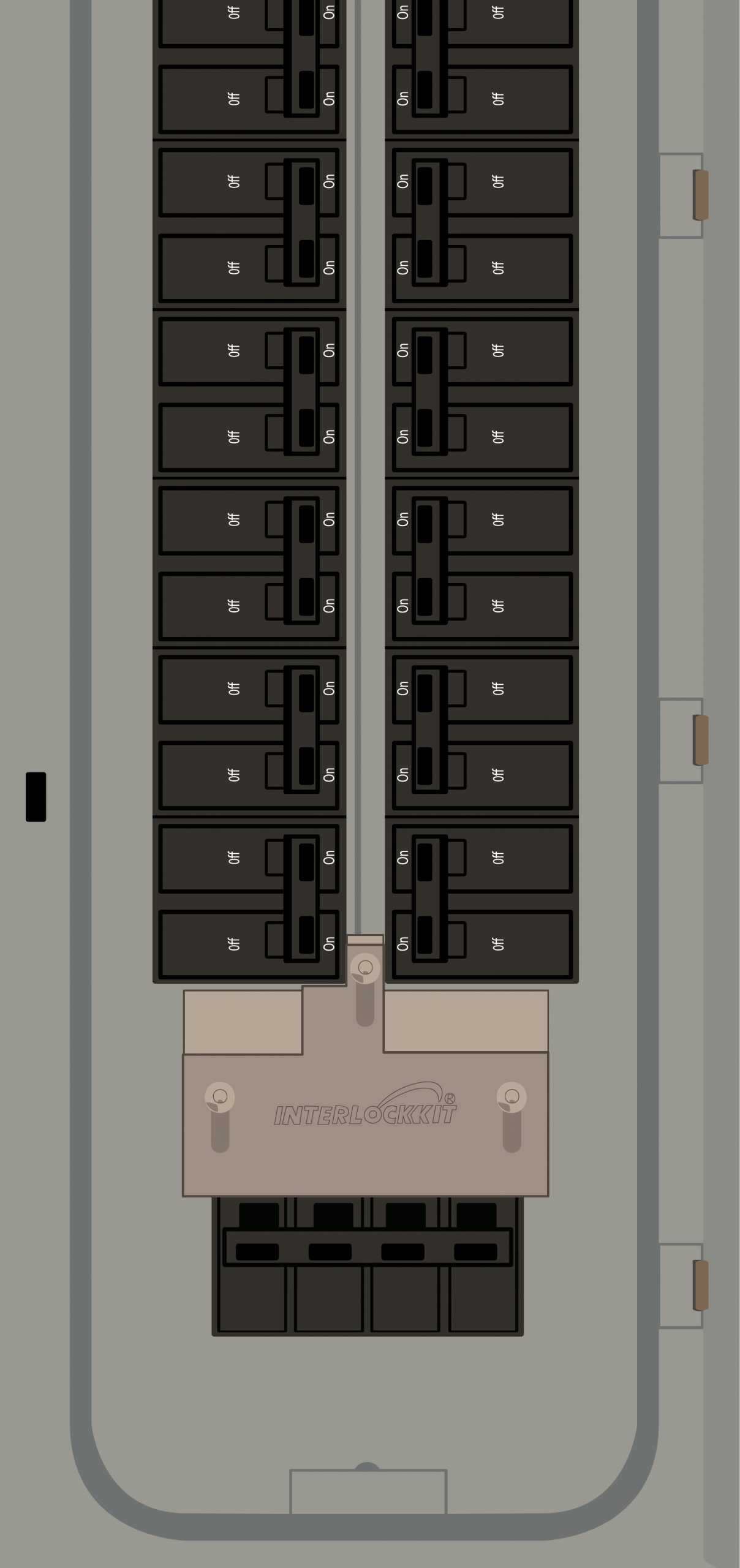

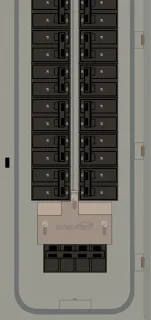

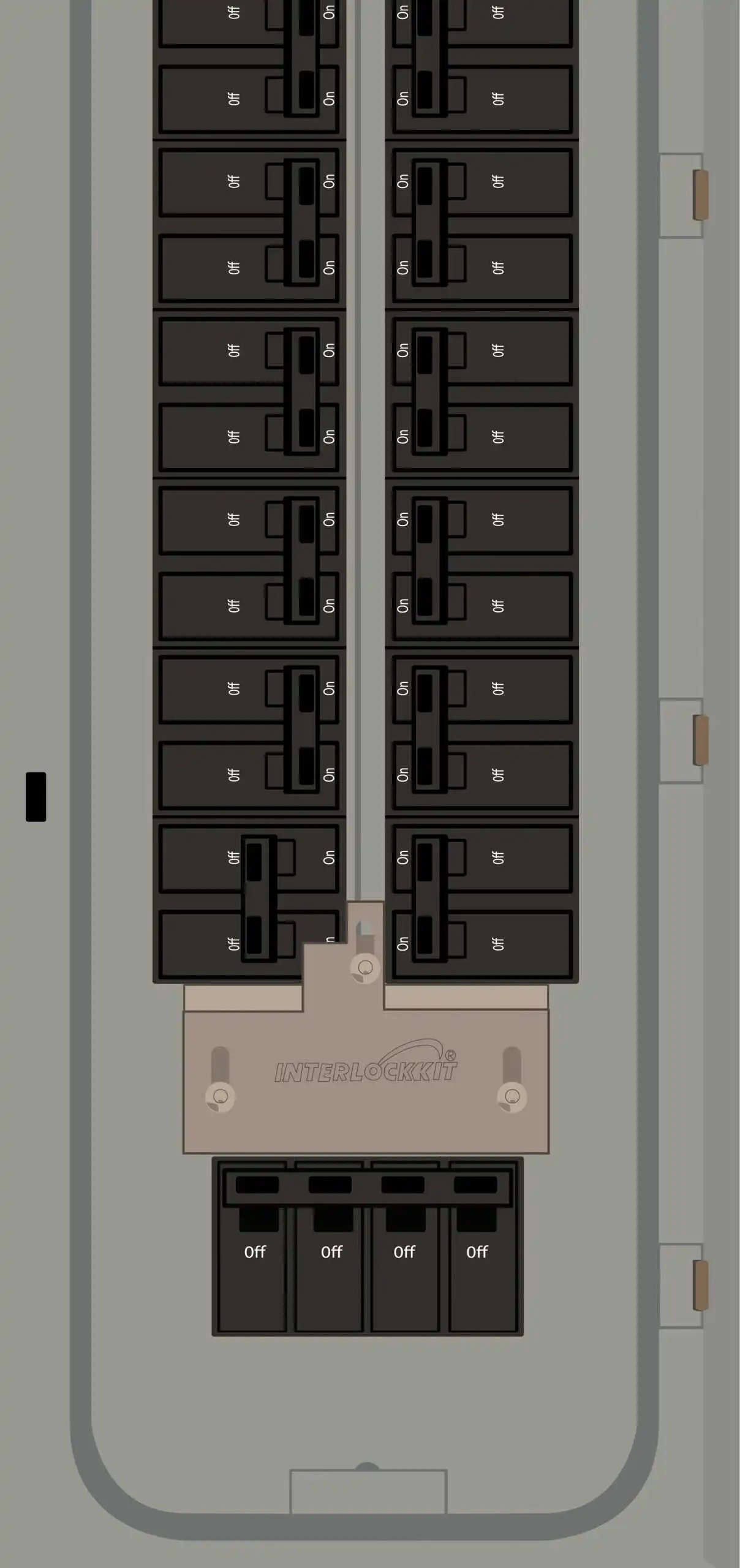

This Interlock Kit mounts to General Electric (GE) electrical panels with the following features:
- Space between breaker columns: 1/2″

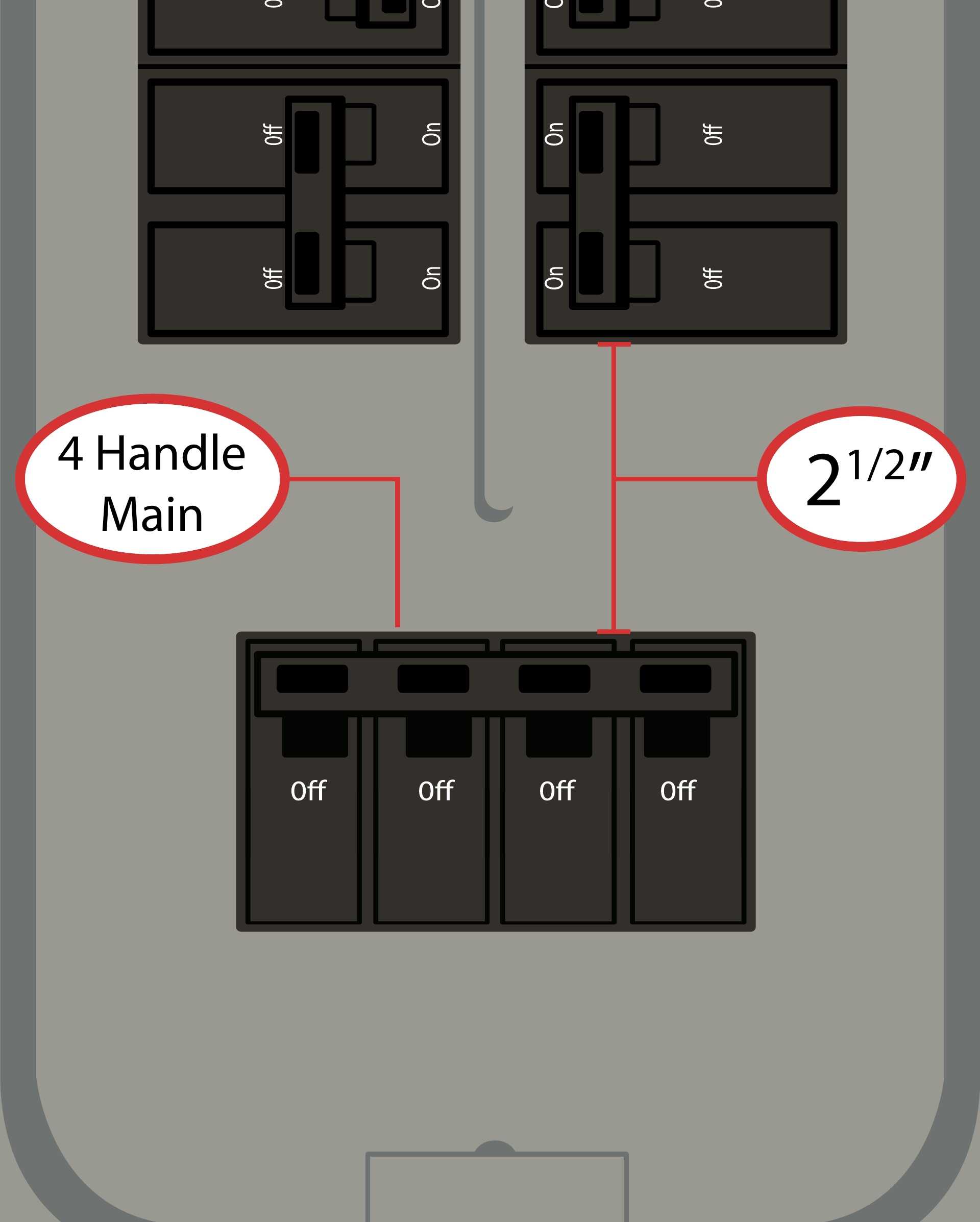

- Gap between the main breaker and columns above, is: 2 1/2″
- 100-200 amp main breaker
- Main breaker toggle action: vertical (up & down) throw direction ON & OFF
- Main breaker is centered directly below both breaker columns when main is bottom fed
Requirements
- Install a two pole generator breaker, located in: spaces 2 & 4 (bottom two spaces in the left column)
- Page four of the installation instructions includes a list of contents for Kit K-8210
Works with top fed or bottom fed main breakers
