Bryant / Westinghouse Kit K-3210

$149.95

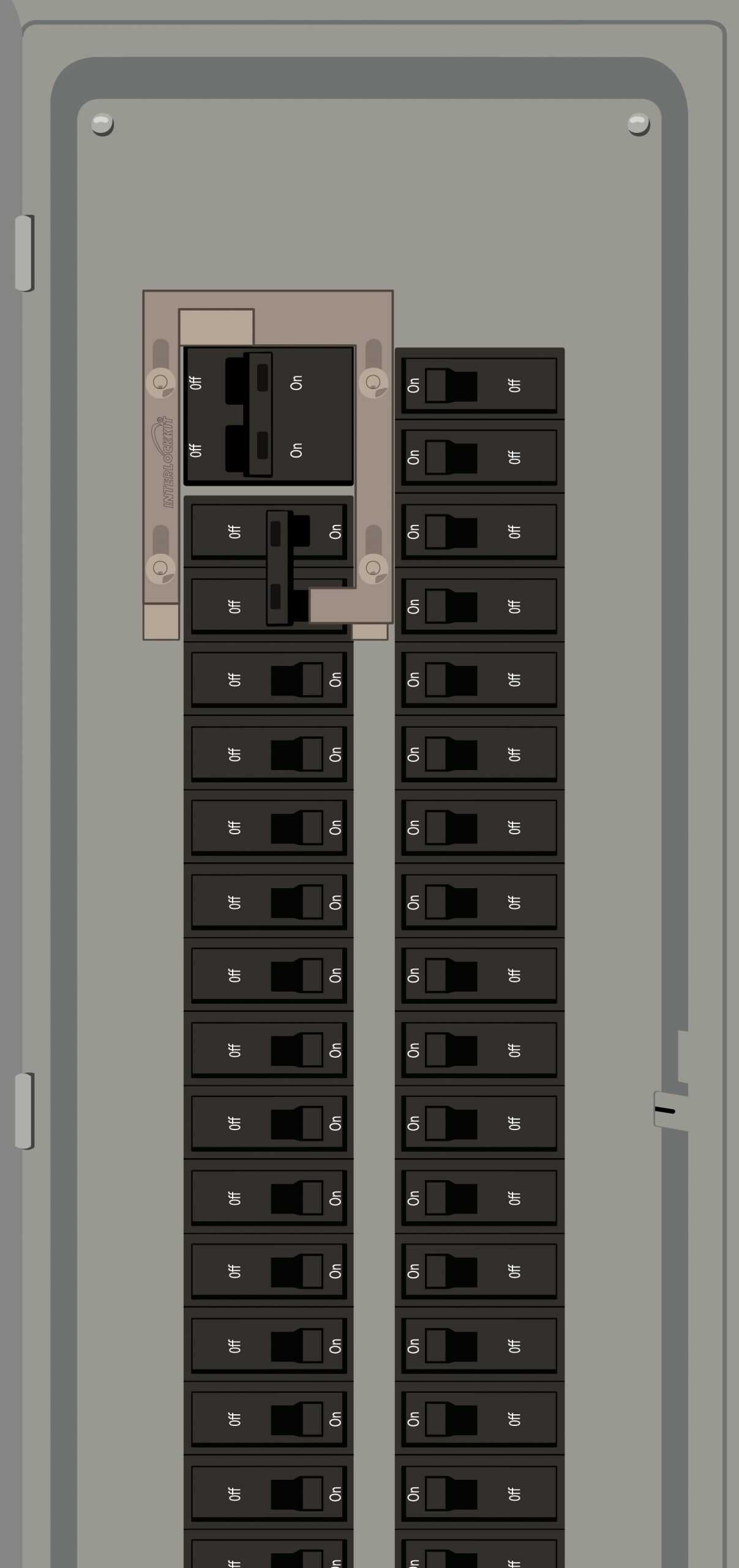

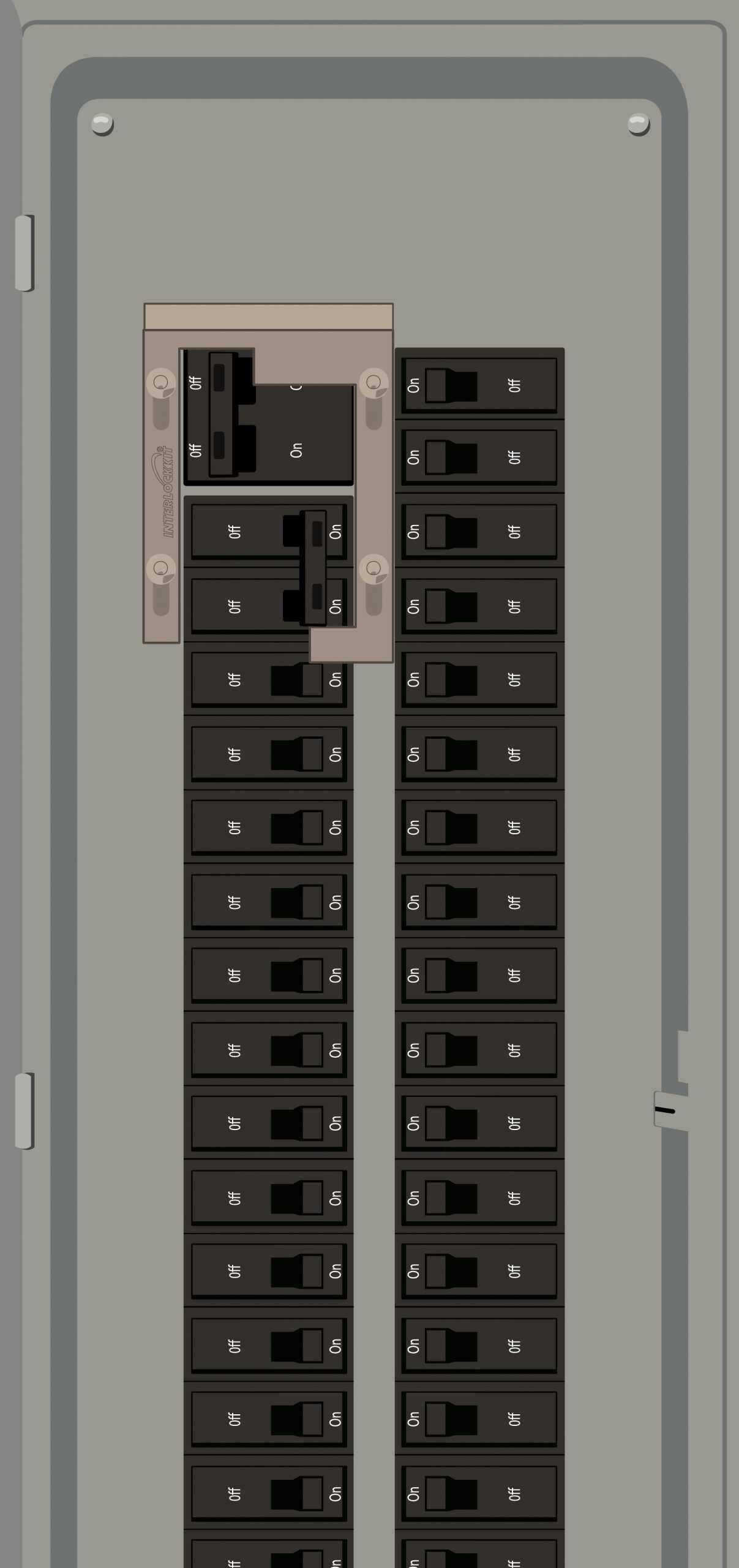

This Interlock Kit performs like a manual transfer switch for Bryant / Westinghouse electrical panels with the following features:

  • Space between breaker columns: 1/2″
  • No gap
  • 150-200 amp 2 pole main breaker
  • Main breaker toggle action: Horizontal (right-left) throw direction ON & OFF

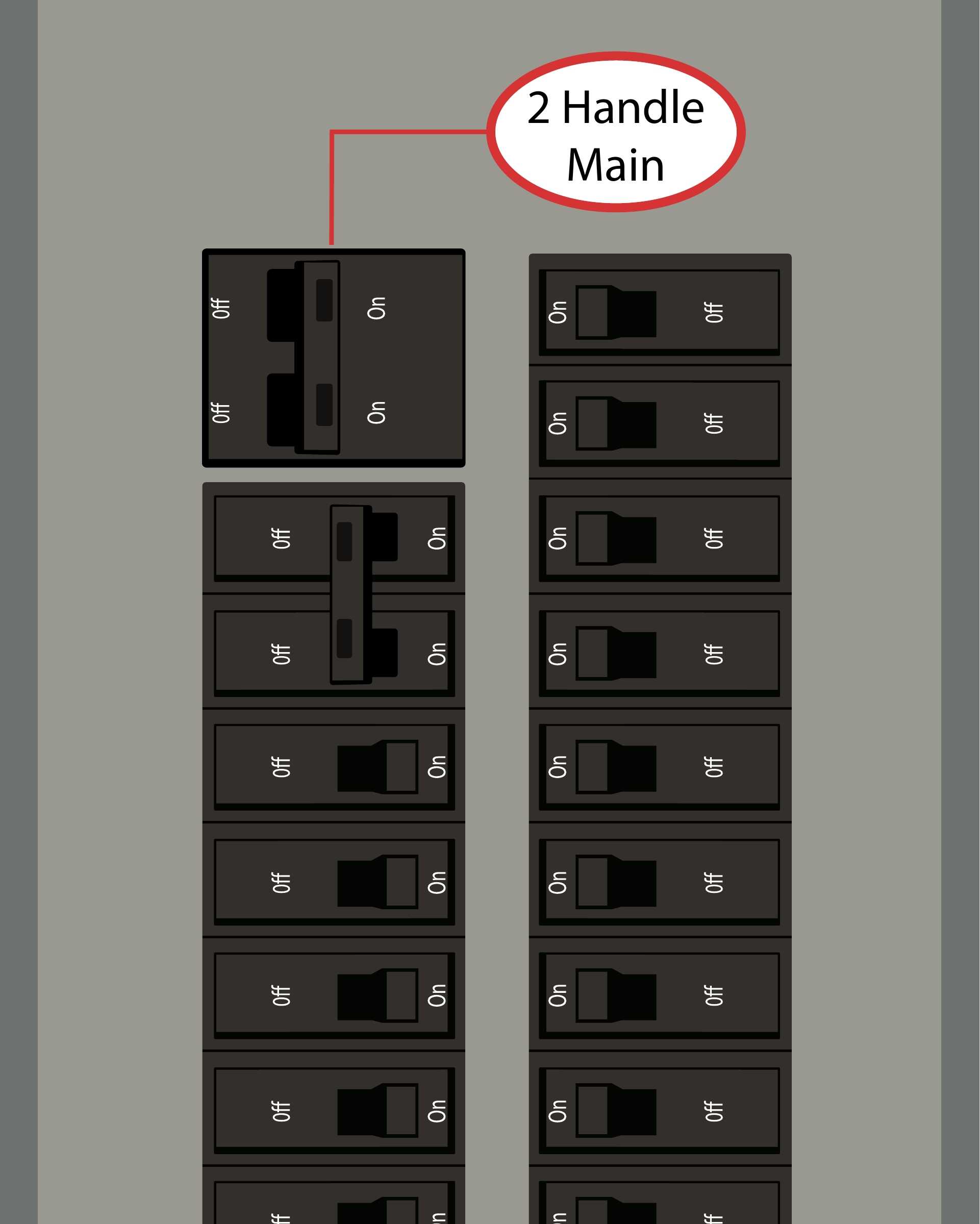

  • Main breaker sits directly over top of the left breaker column

Requirements:

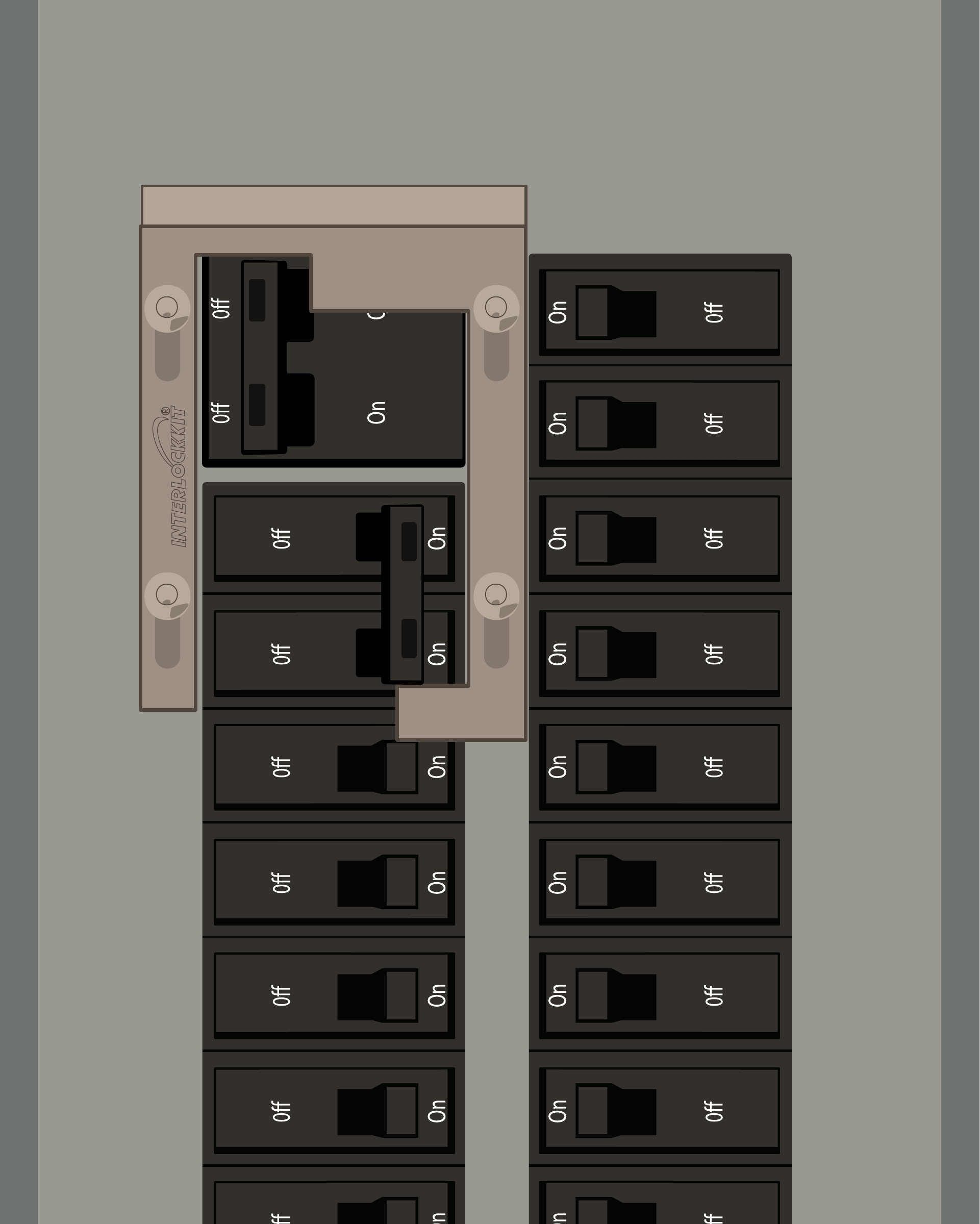

  • Install a generator breaker directly below the main breaker in spaces: 5 & 7
  • Page four of the installation instructions include a list of contents included in K-3210

See Interlock Kit K-3110 if the main breaker is located on the right side of the panel

Kit Installation Instructions

Description

This Interlock Kit performs like a manual transfer switch for Bryant / Westinghouse electrical panels with the following features:

  • Space between breaker columns: 1/2″
  • No gap
  • 150-200 amp 2 pole main breaker
  • Main breaker toggle action: Horizontal (right-left) throw direction ON & OFF
  • Main breaker sits directly over top of the left breaker column

Requirements:

  • Install a generator breaker directly below the main breaker in spaces: 5 & 7
  • Page four of the installation instructions include a list of contents included in K-3210

See Interlock Kit K-3110 if the main breaker is located on the right side of the panel

Kit Installation Instructions

Additional information

Weight 1 lbs
