Interlock Kit K-2210

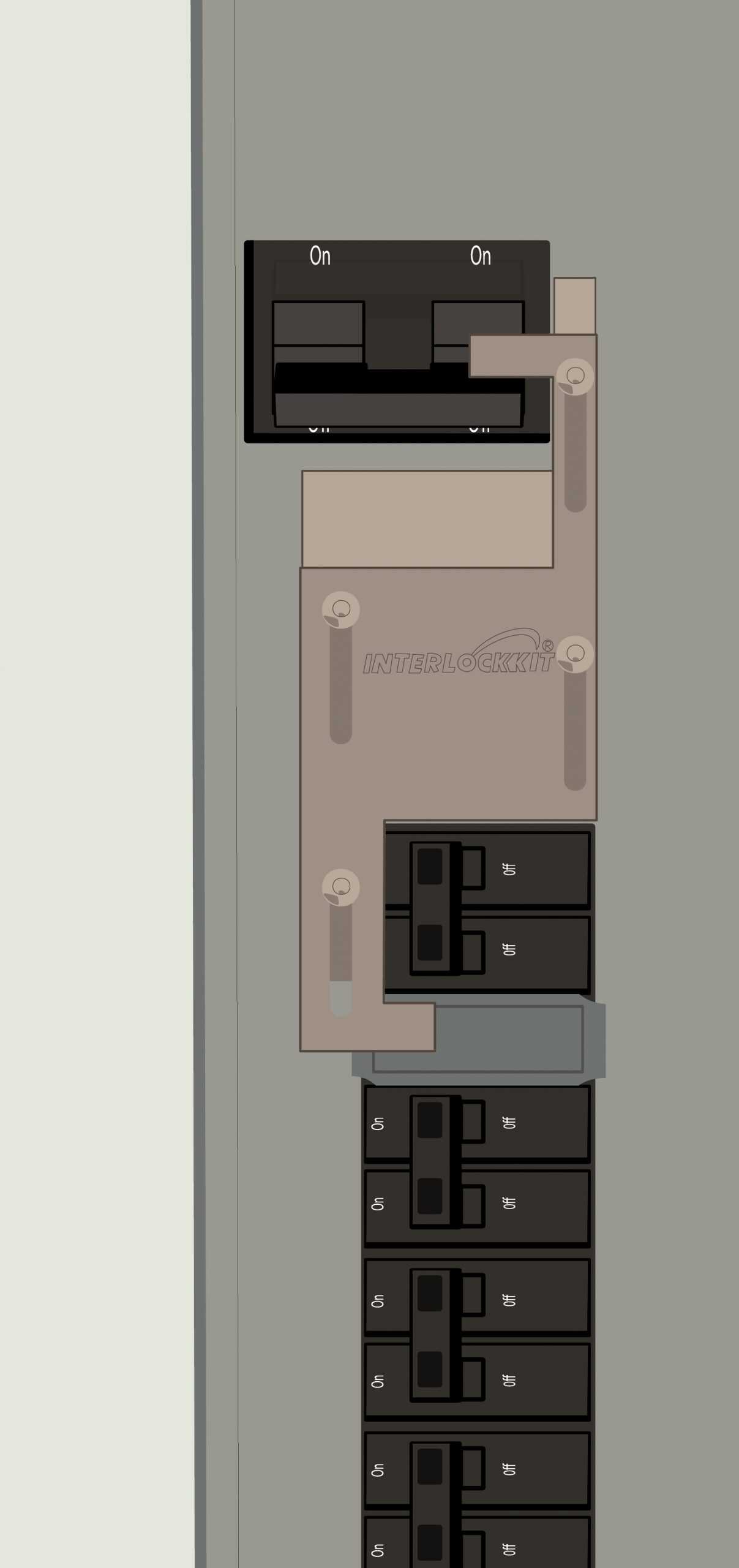

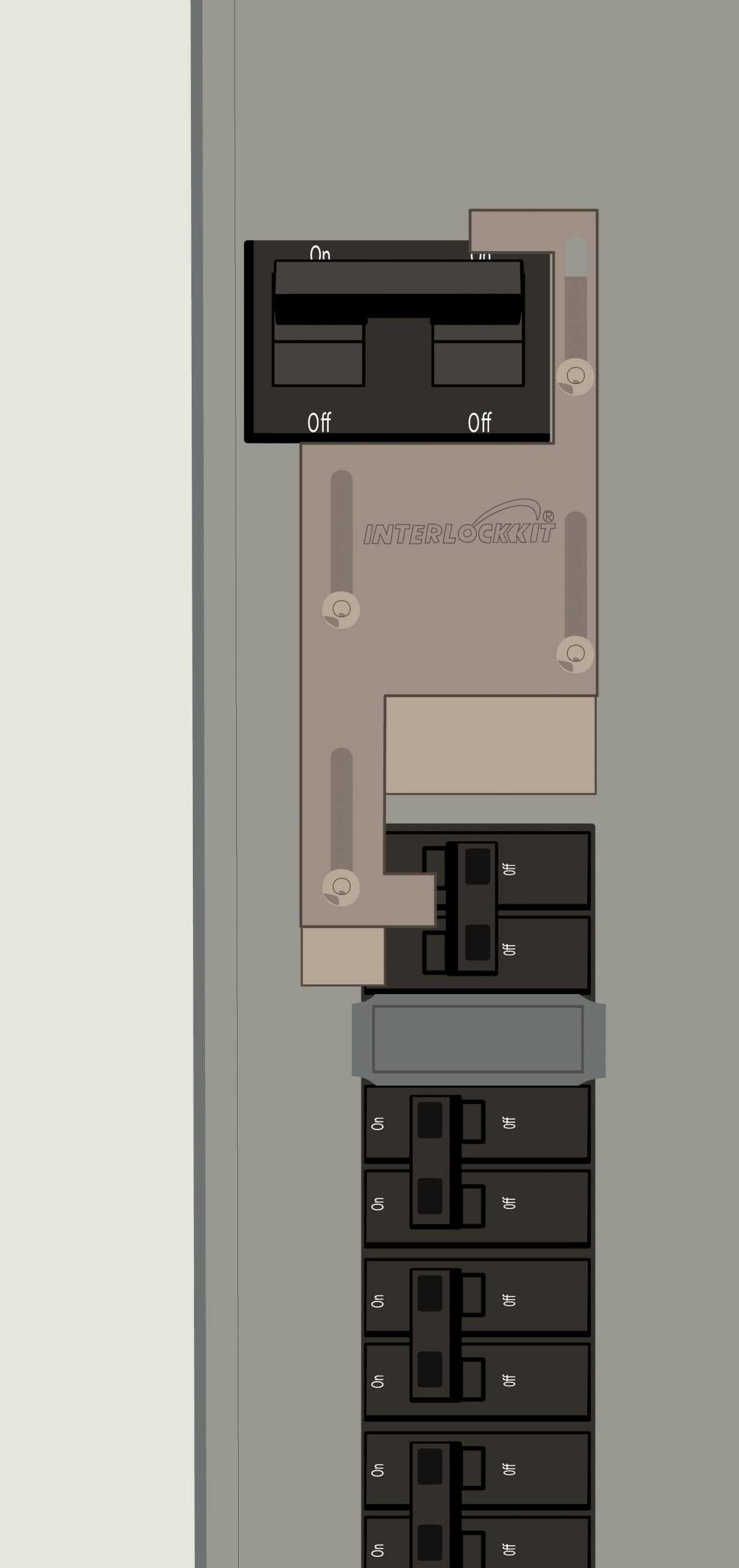

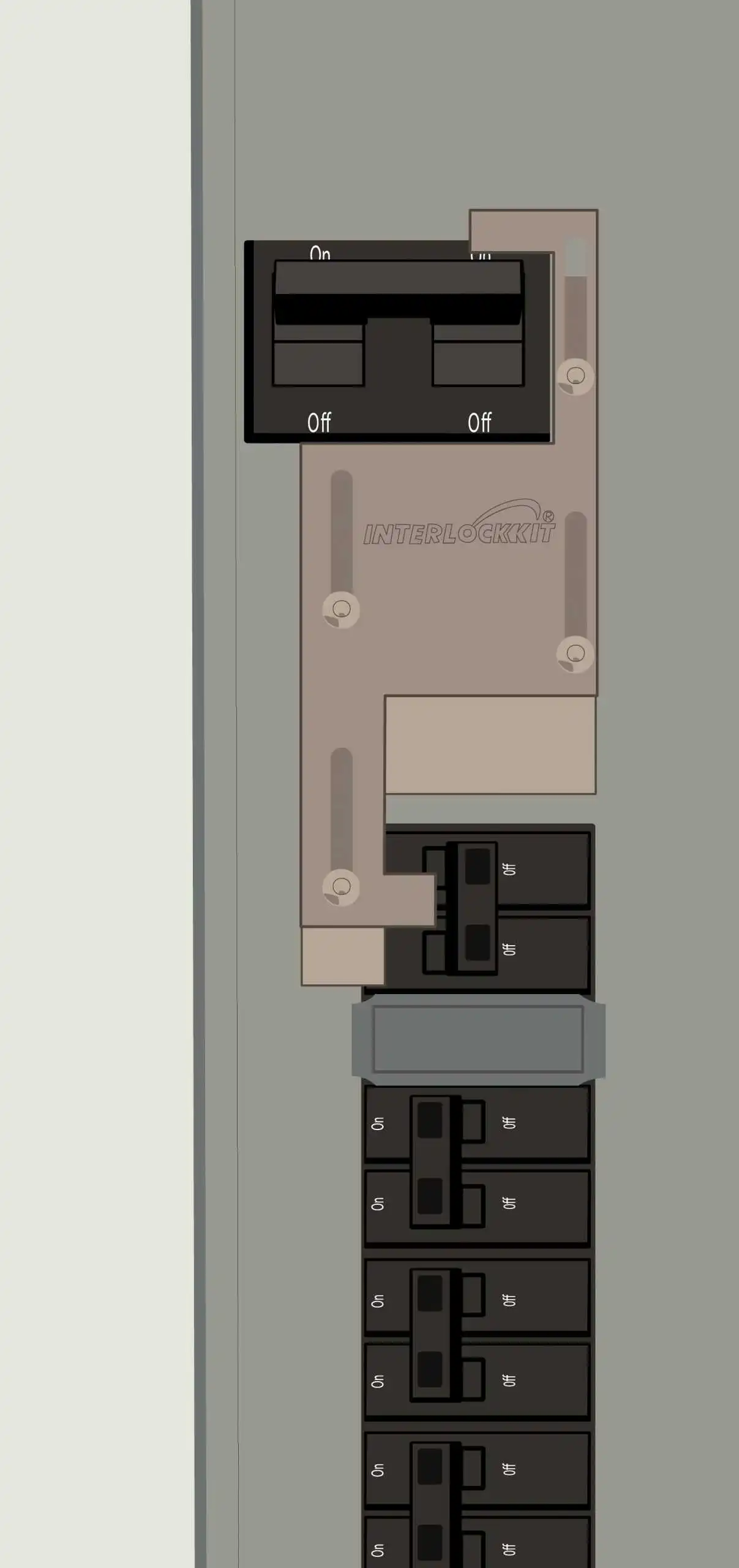

This Kit performs like a manual transfer switch for Westinghouse, Thomas & Betts, and Challenger electrical panels with the following features:

• Single breaker column below the main breaker

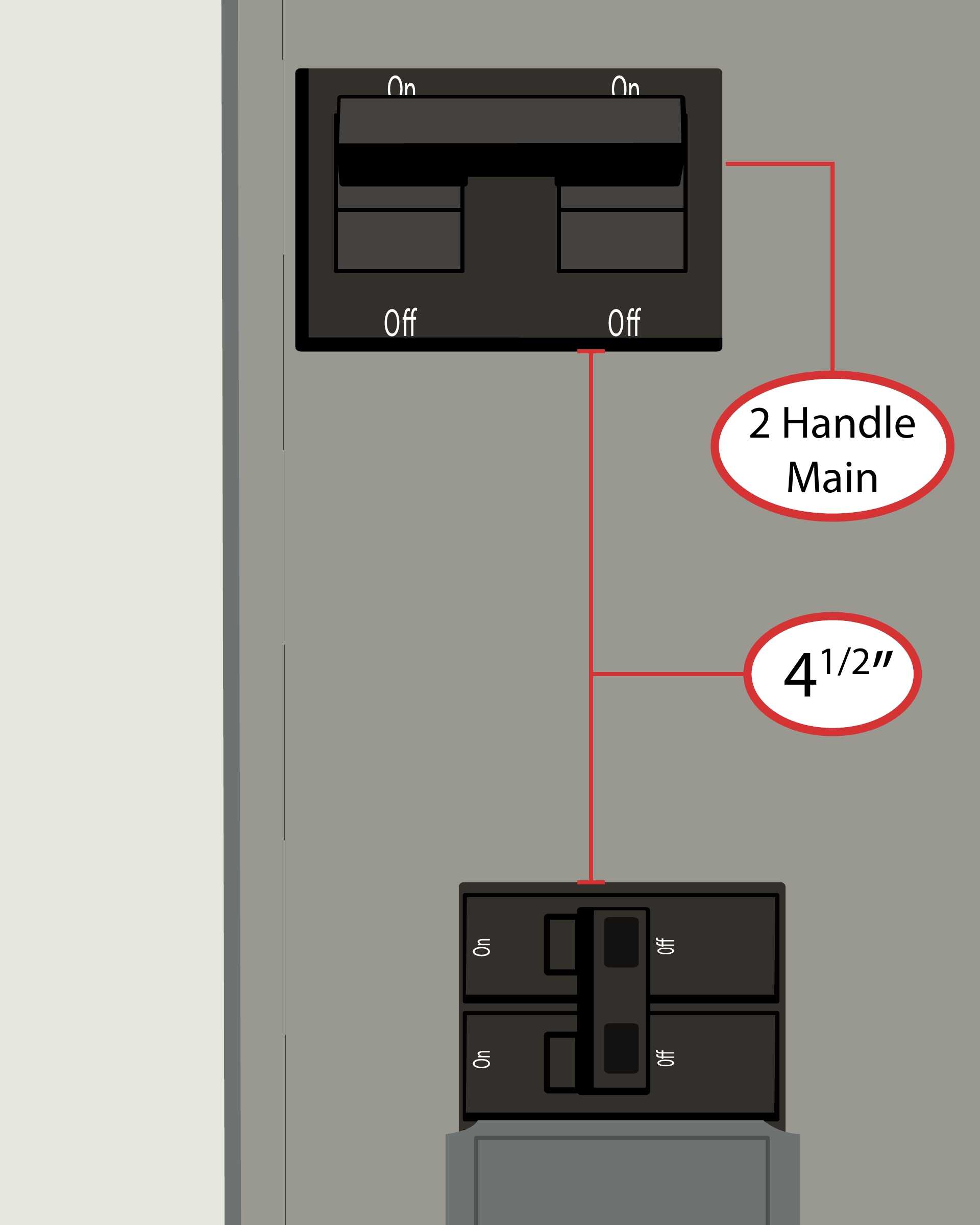

• Gap between the main breaker and column below, is: 4 1/2" approximately
• 150-200 amp main breaker
• Main breaker toggle action: vertical (up-down) throw direction ON & OFF
• Main breaker offset from center: 1/2" to the left

Requirements:

• Install a two pole generator breaker at the top of the breaker column: spaces 2 & 4
• Page four of the installation instructions include a list of contents in Kit K-2210

Kit Installation Instructions
