Interlock Kit K-8410 | Interlock Kit

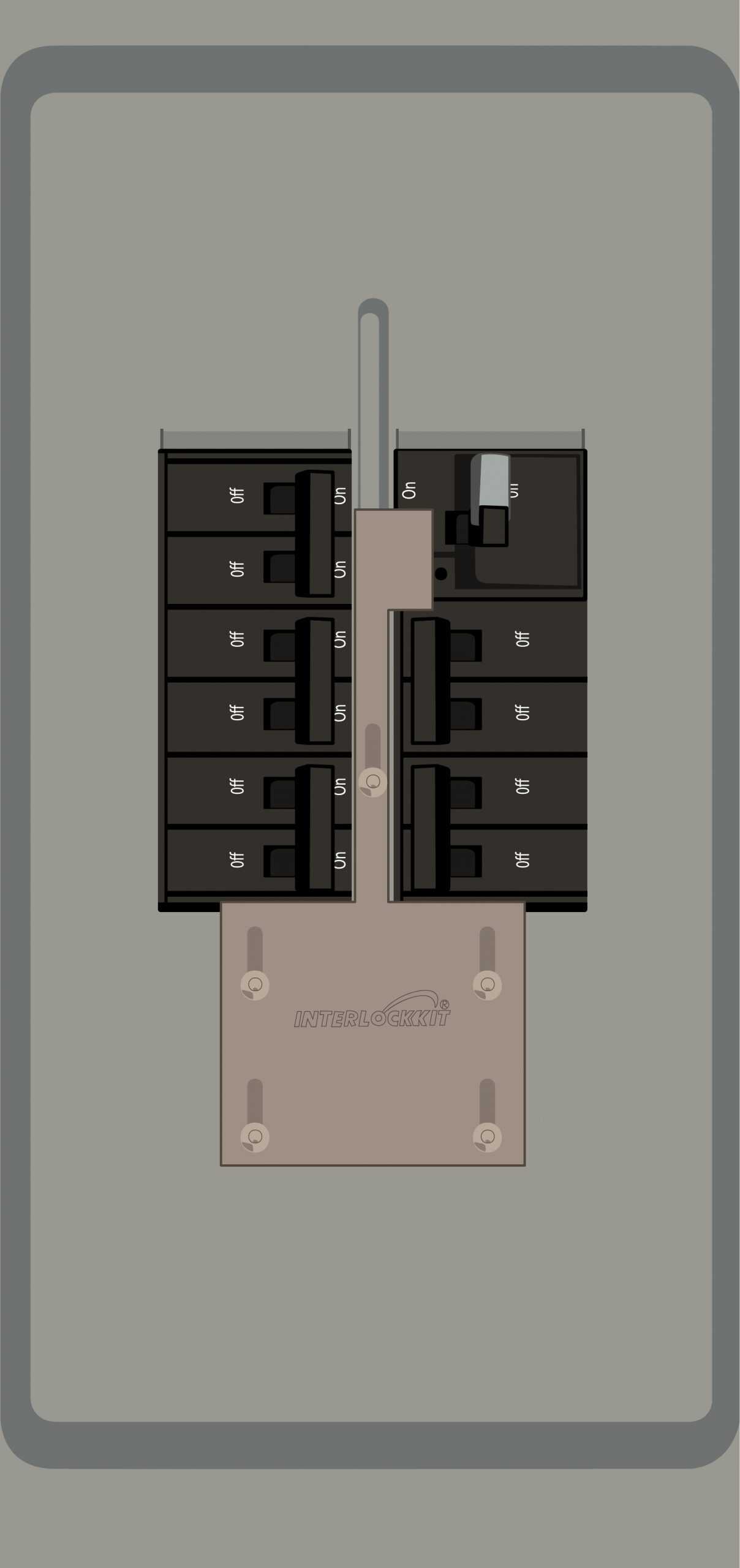

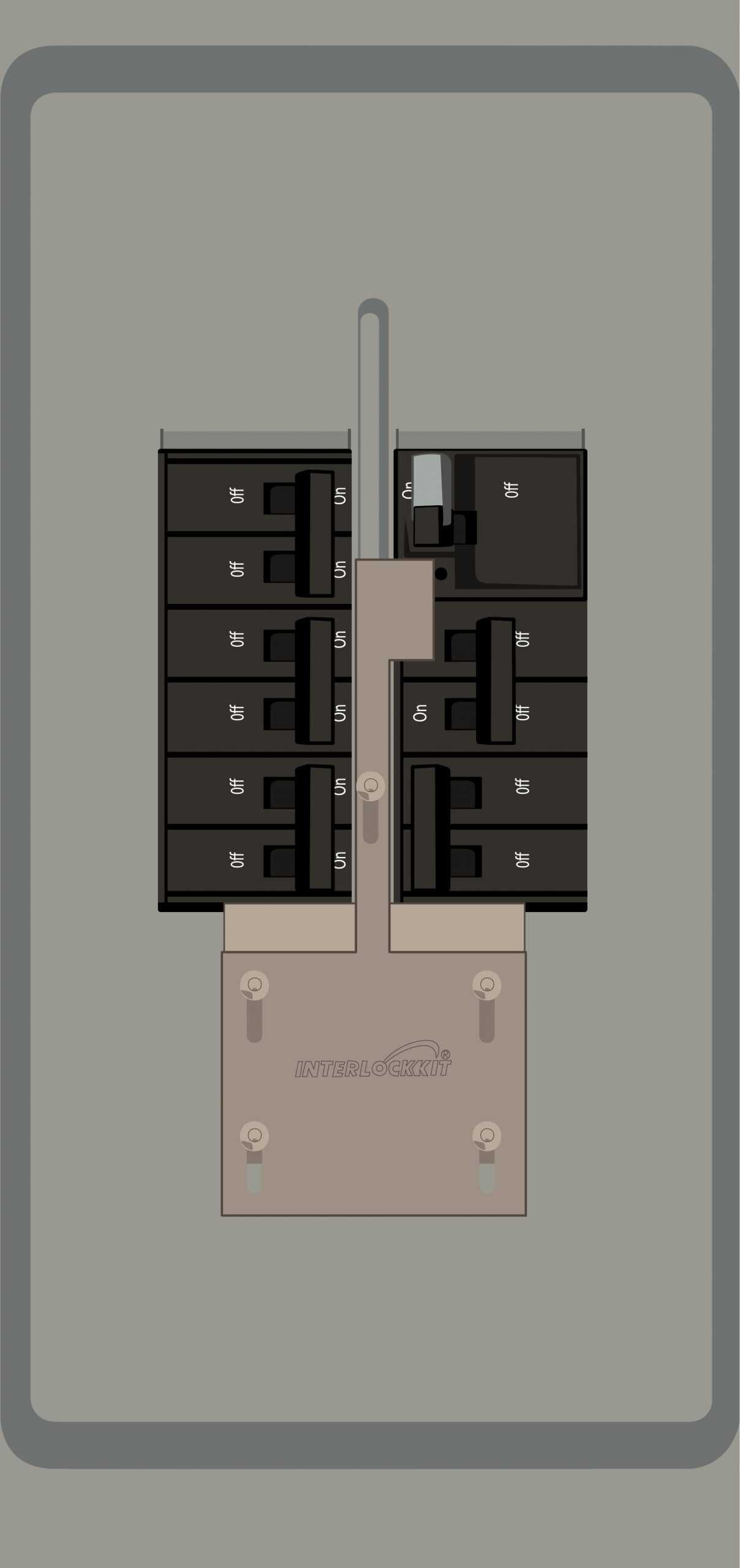

This Kit mounts to General Electric (GE) electrical panels with the following features:

• Space between breaker columns: 1/2"
• No gap
• 100-200 amp main breaker
• Main breaker toggle action: horizontal (left-right) throw direction ON & OFF

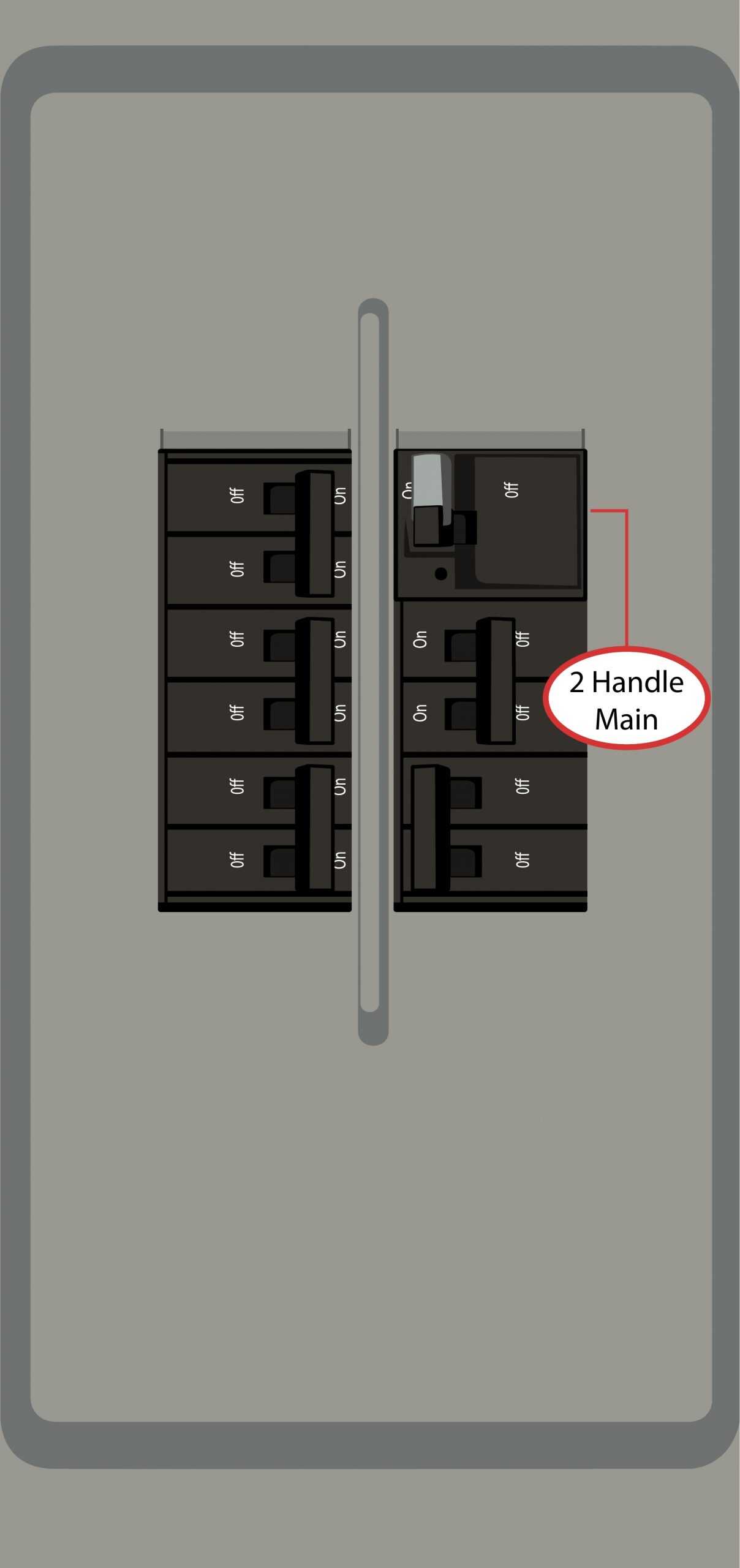

• Main breaker sits directly on top of the breaker stack in the right column

Requirements

• Install a generator breaker directly below the main breaker in spaces 2 & 4
• Page four of the installation instructions includes a list of contents included in Kit K-8410

Modified versions of this Interlock Kit exist, see: Kit K-8411 if your main breaker is in the left column

Kit Installation Instructions
