General Electric Kit K-8010

$149.95

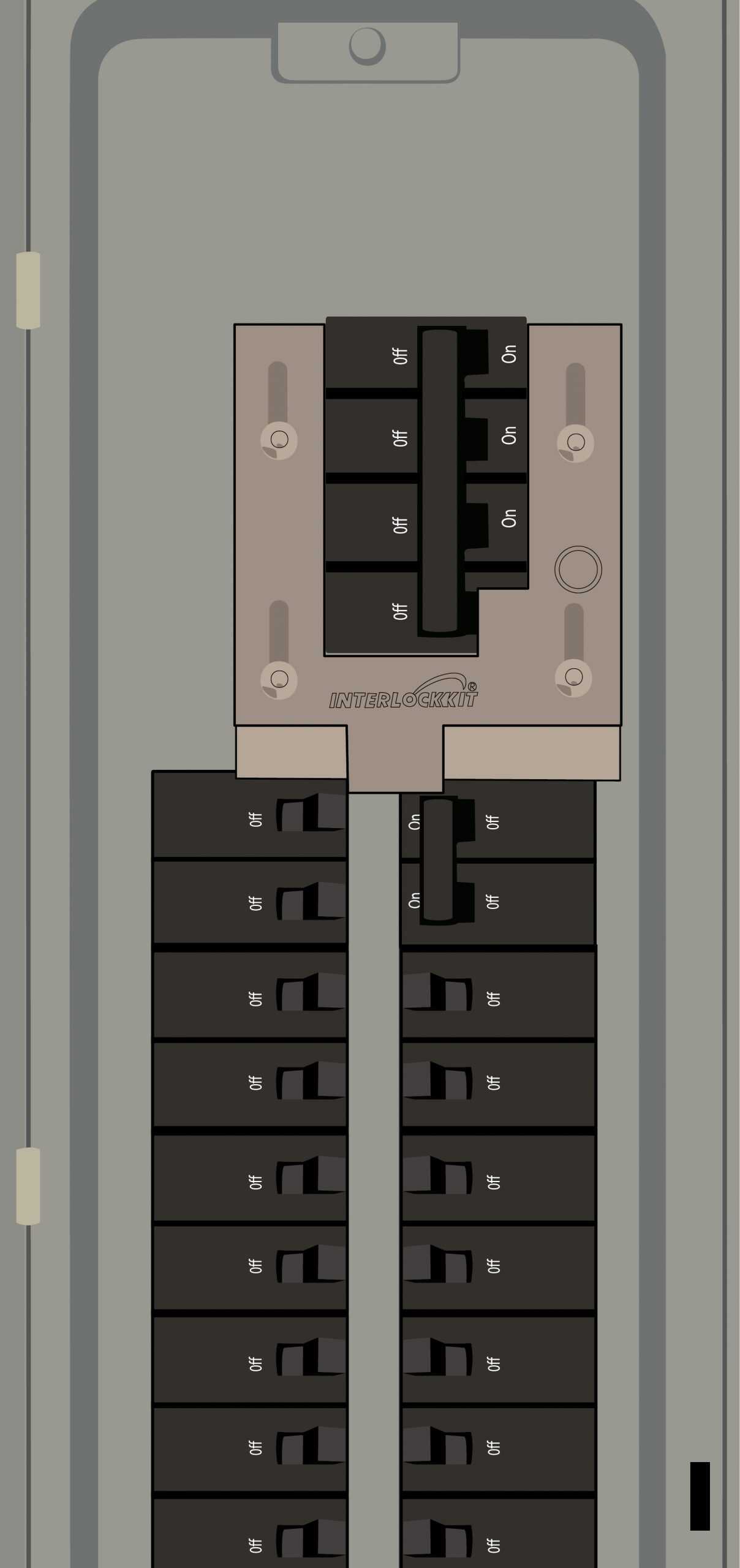

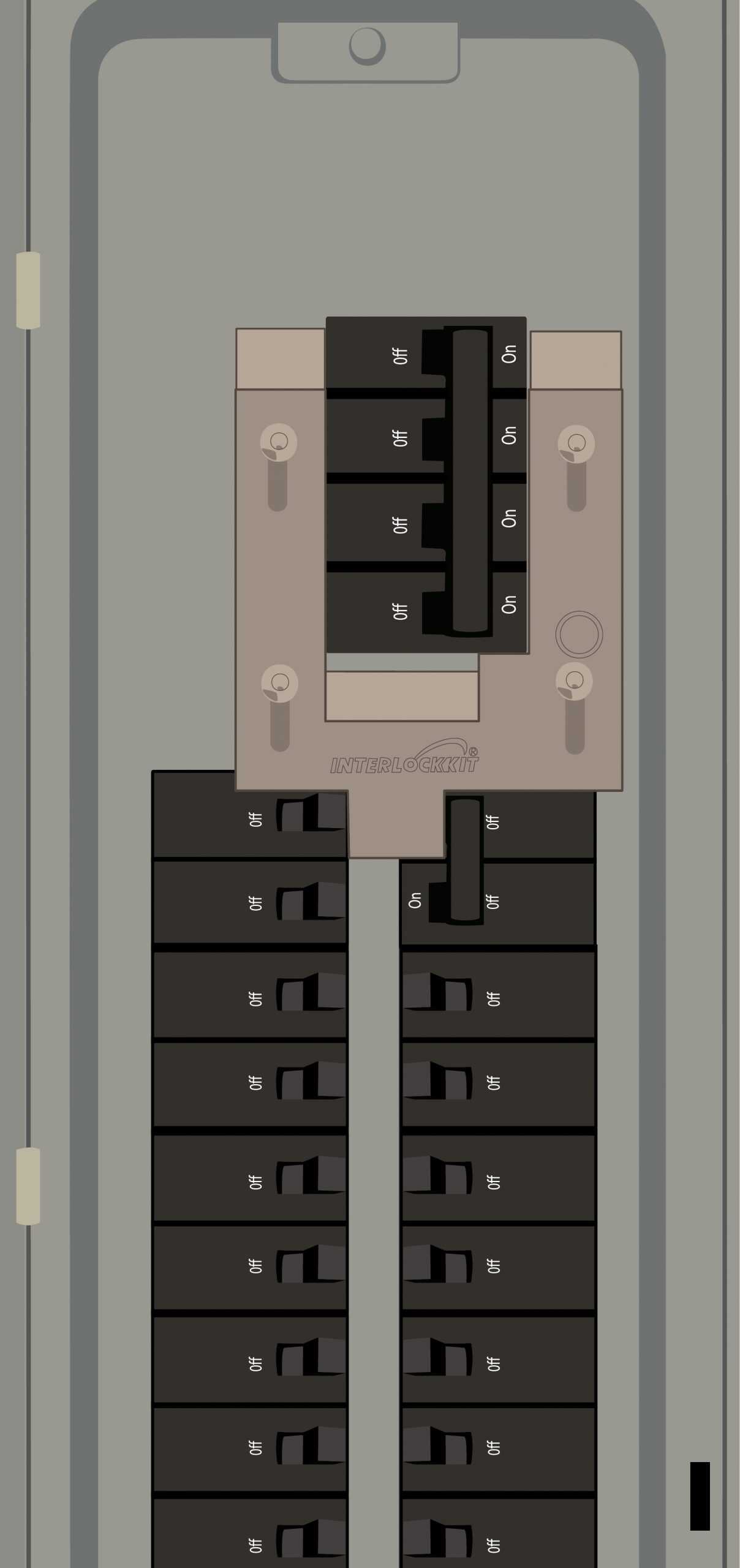

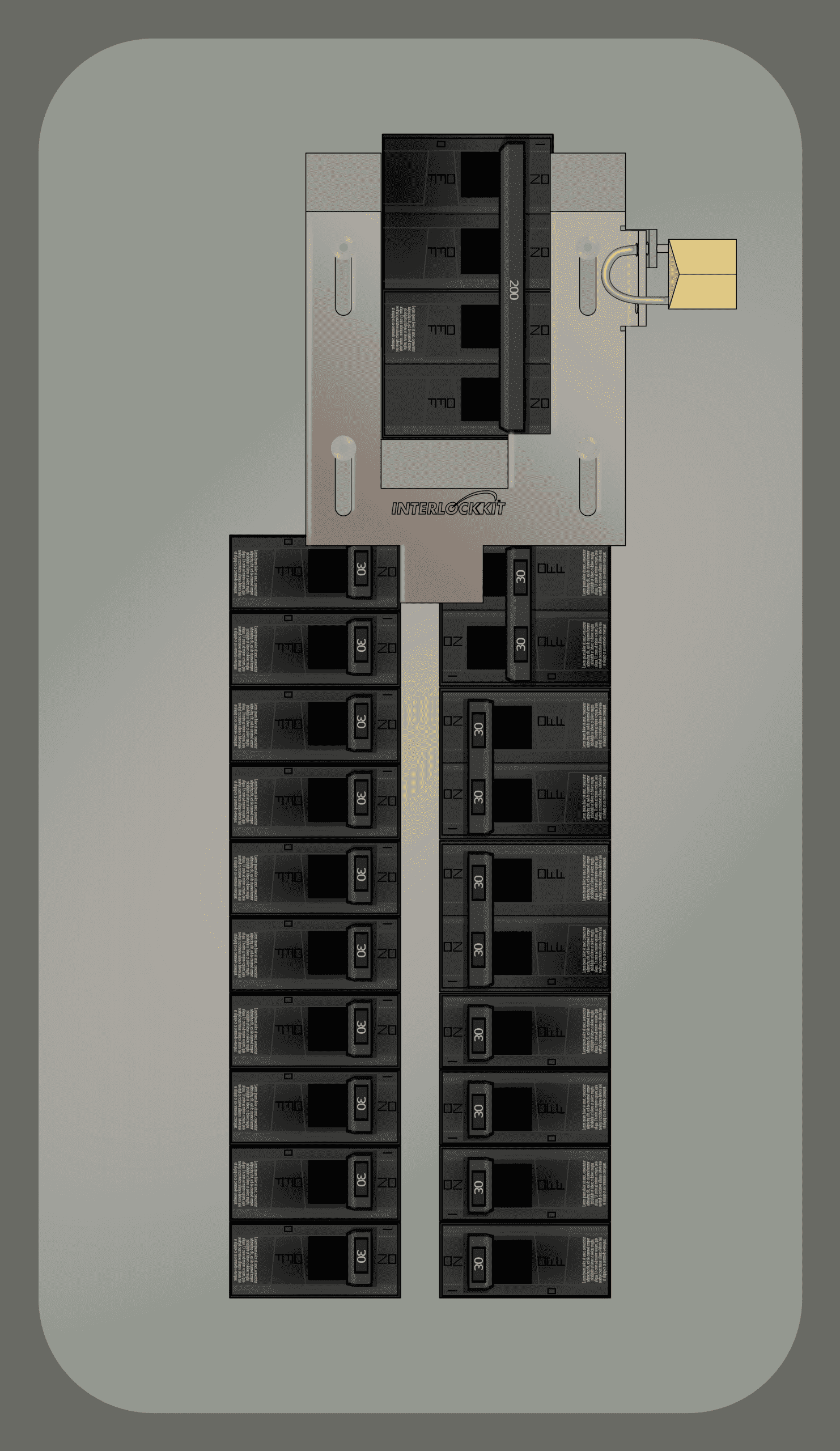

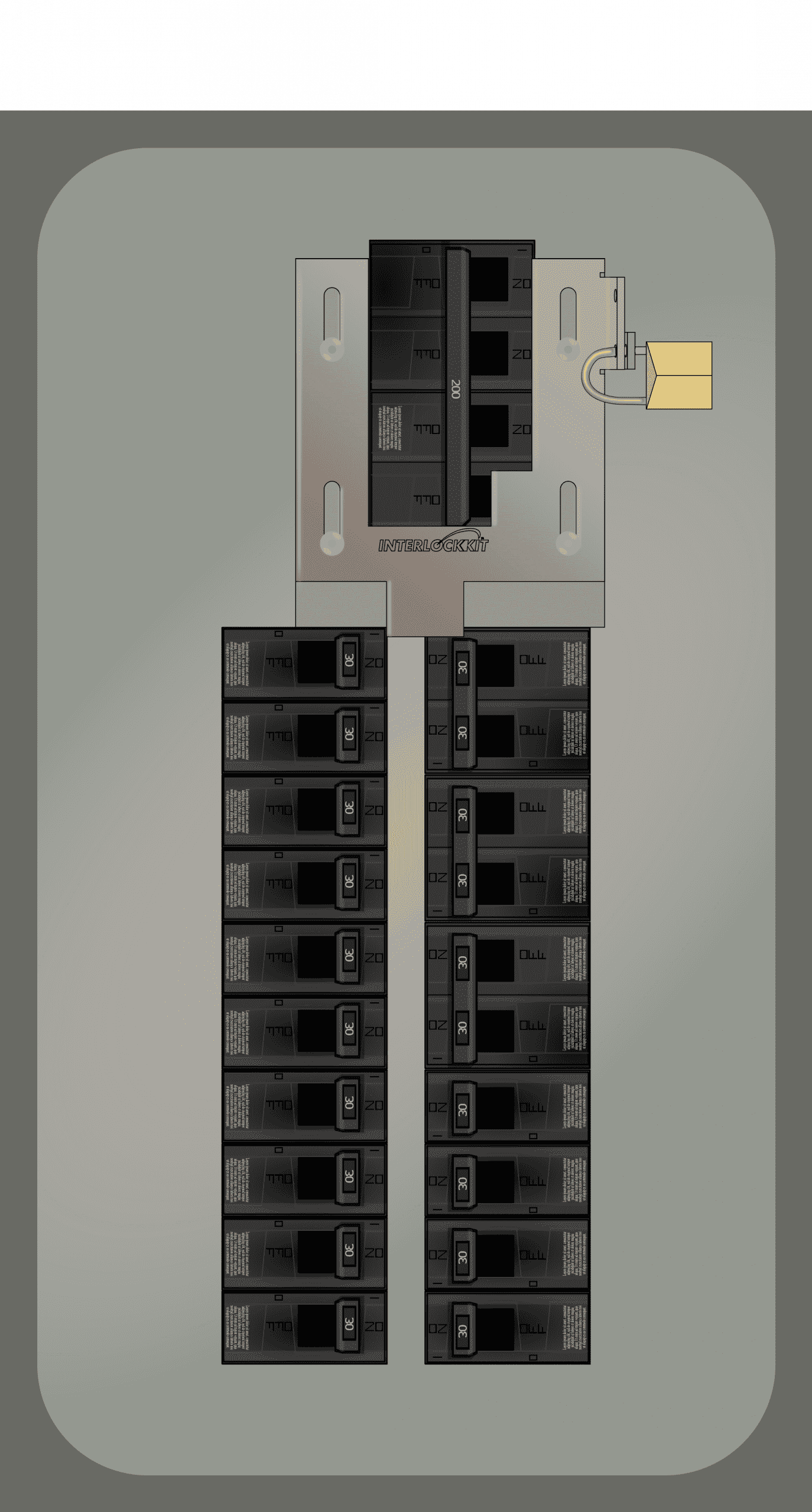

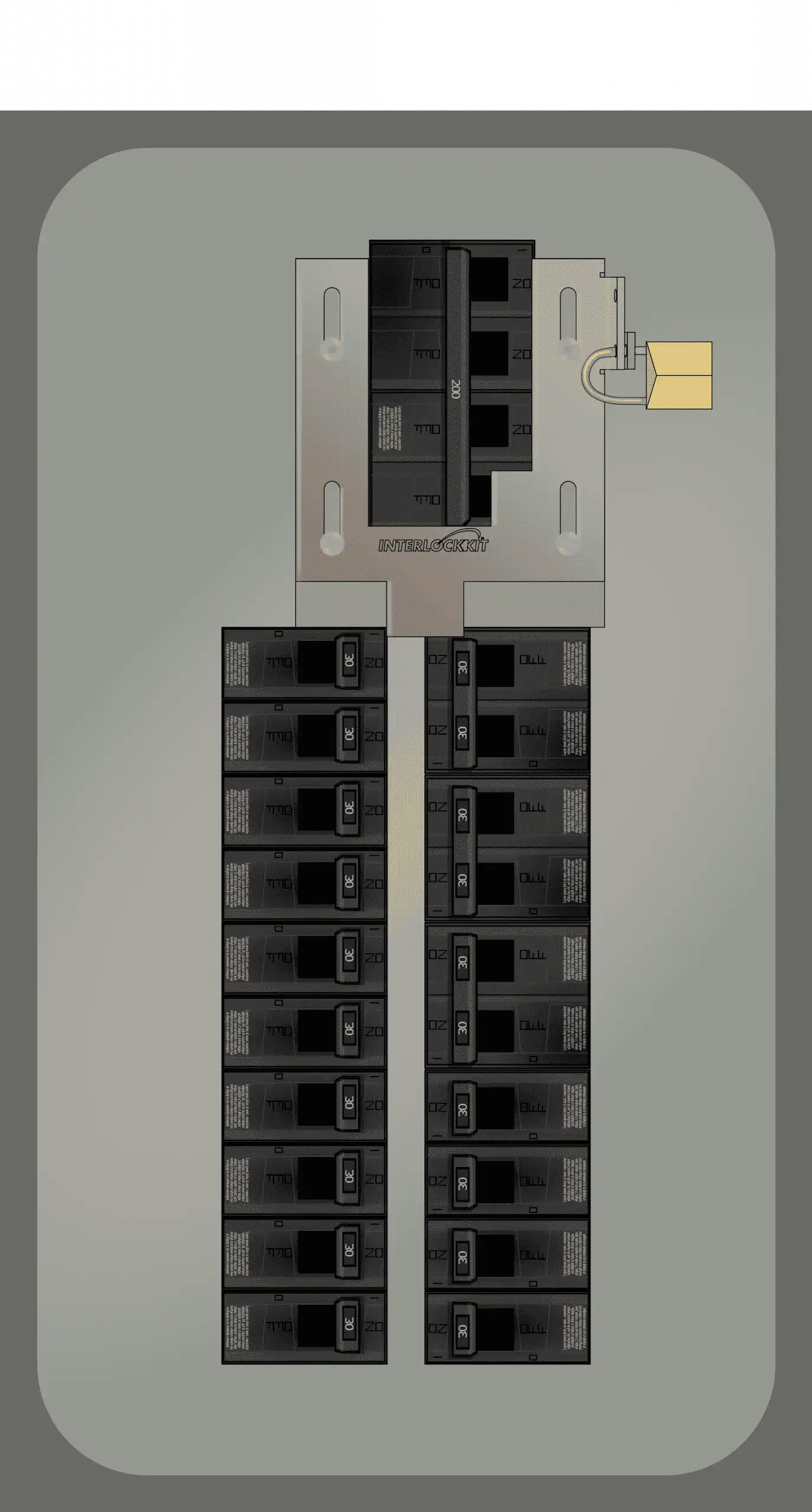

This Interlock Kit performs like a manual transfer switch for General Electric (GE) electrical panels with the following features:

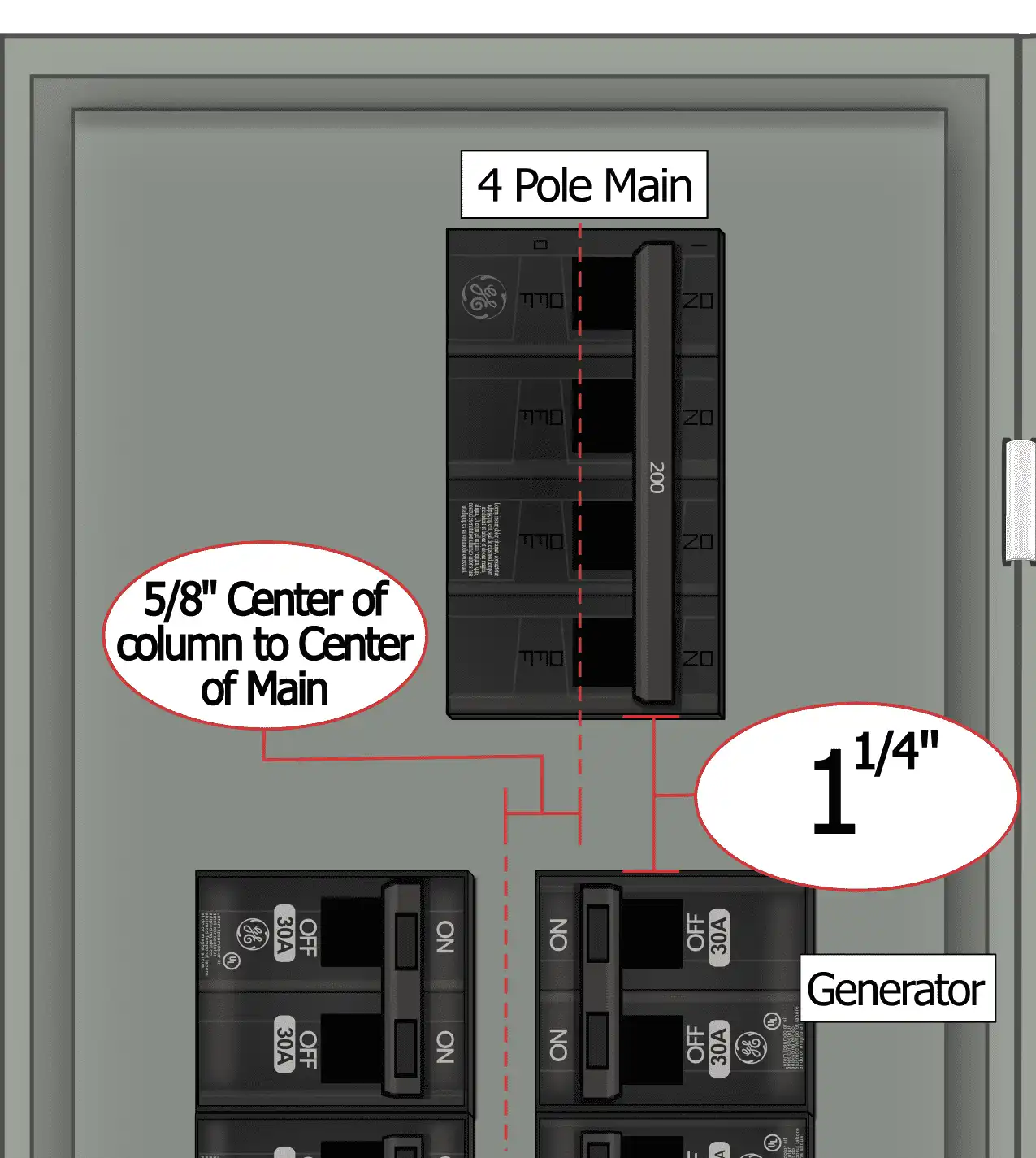

  • Space between breaker columns: 1/2″

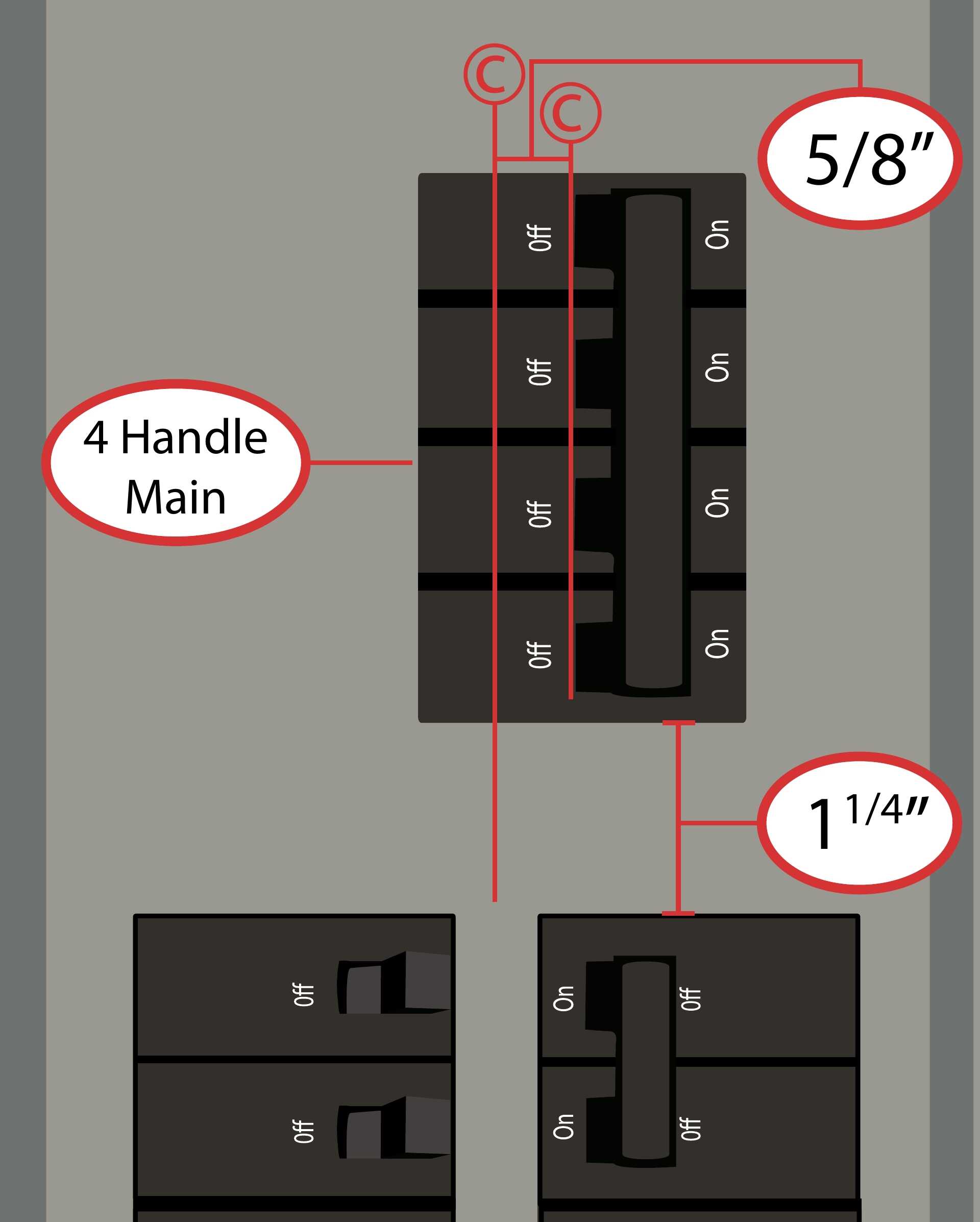

  • Gap between the main breaker and columns below, is: 1 1/4″ – 1 1/2″
  • 150-200 amp main breaker

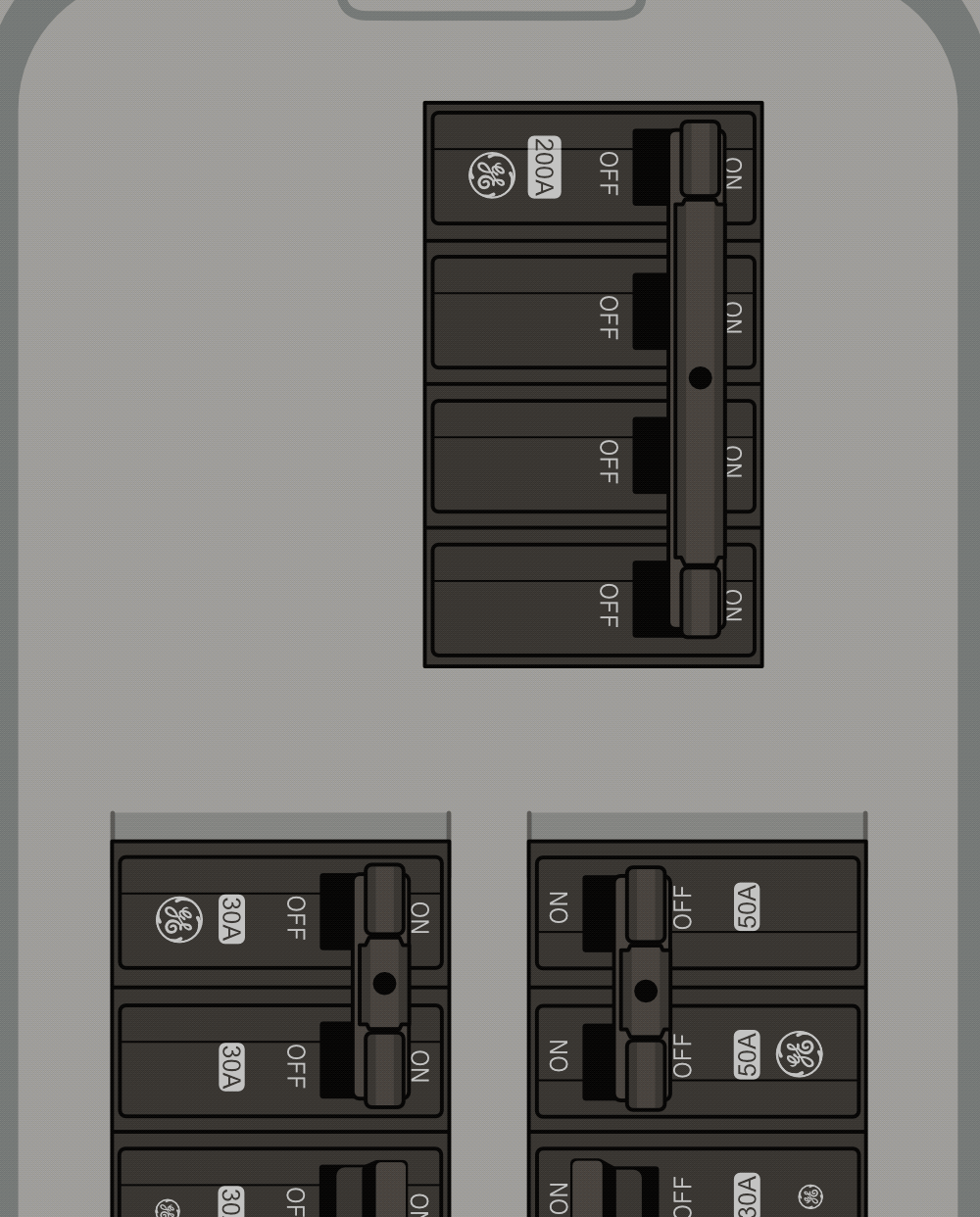

  • Main breaker toggle action: horizontal (left-right) throw direction ON & OFF

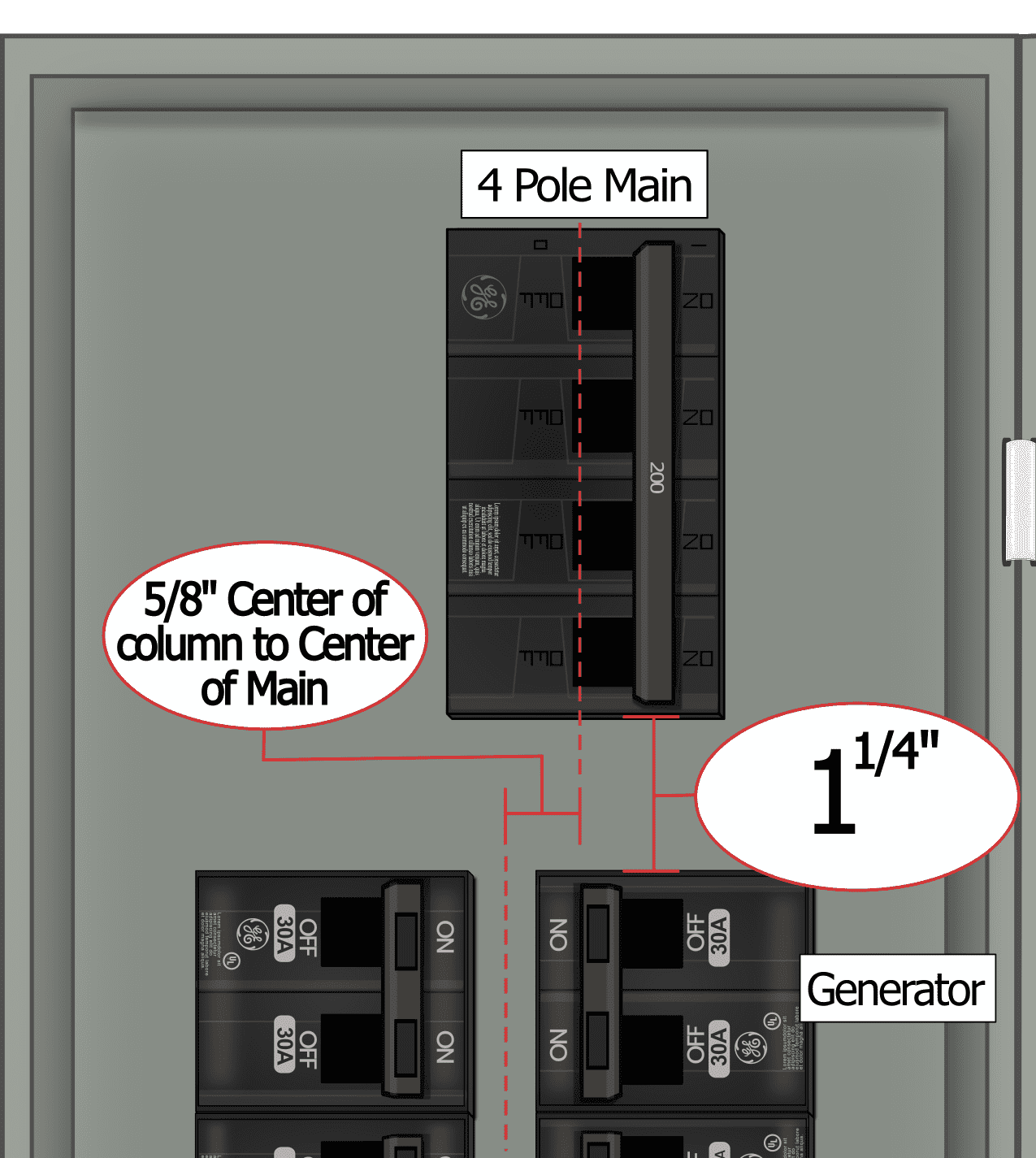

  • Main breaker is offset from the center: 5/8″ to the right

Requirements

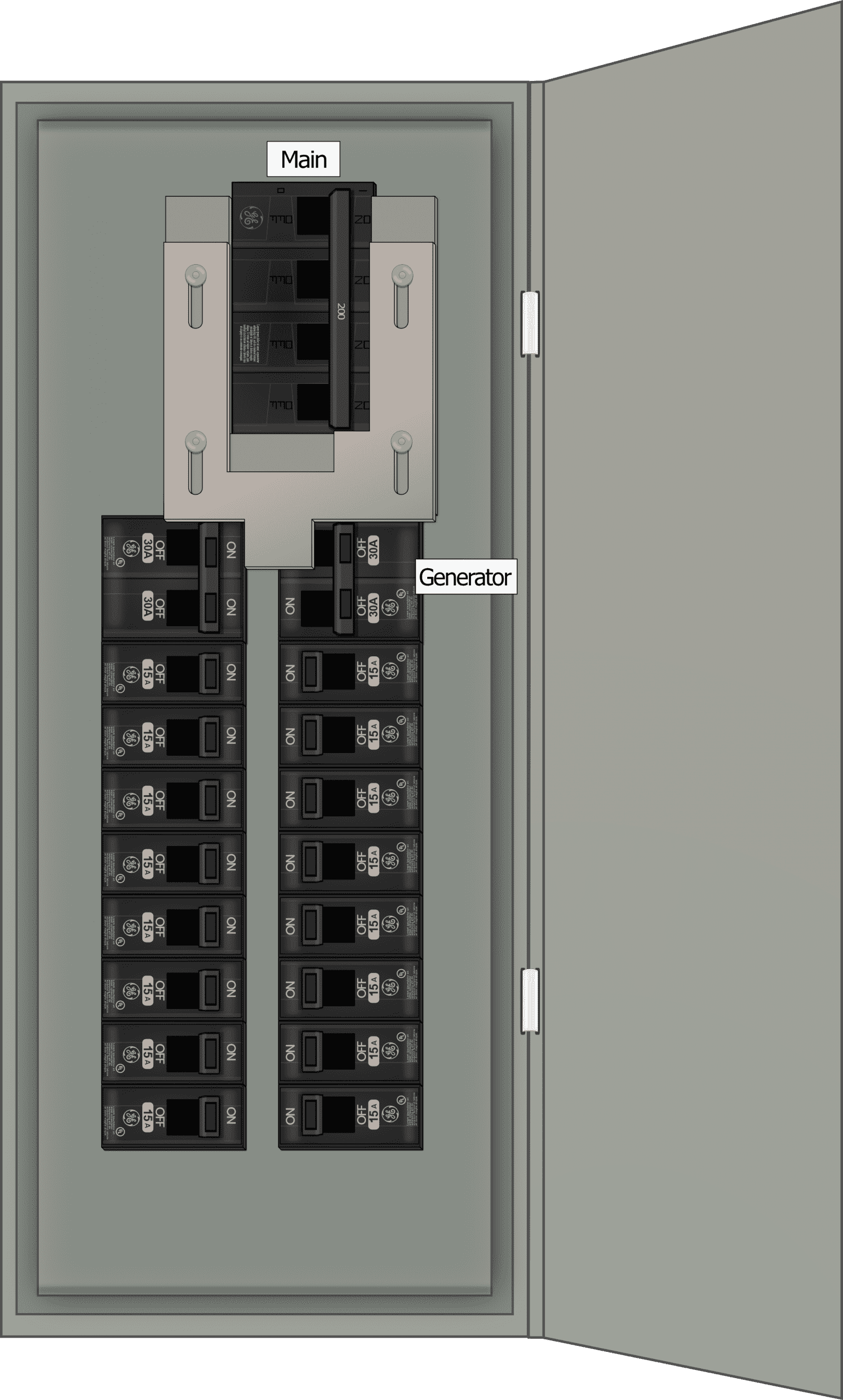

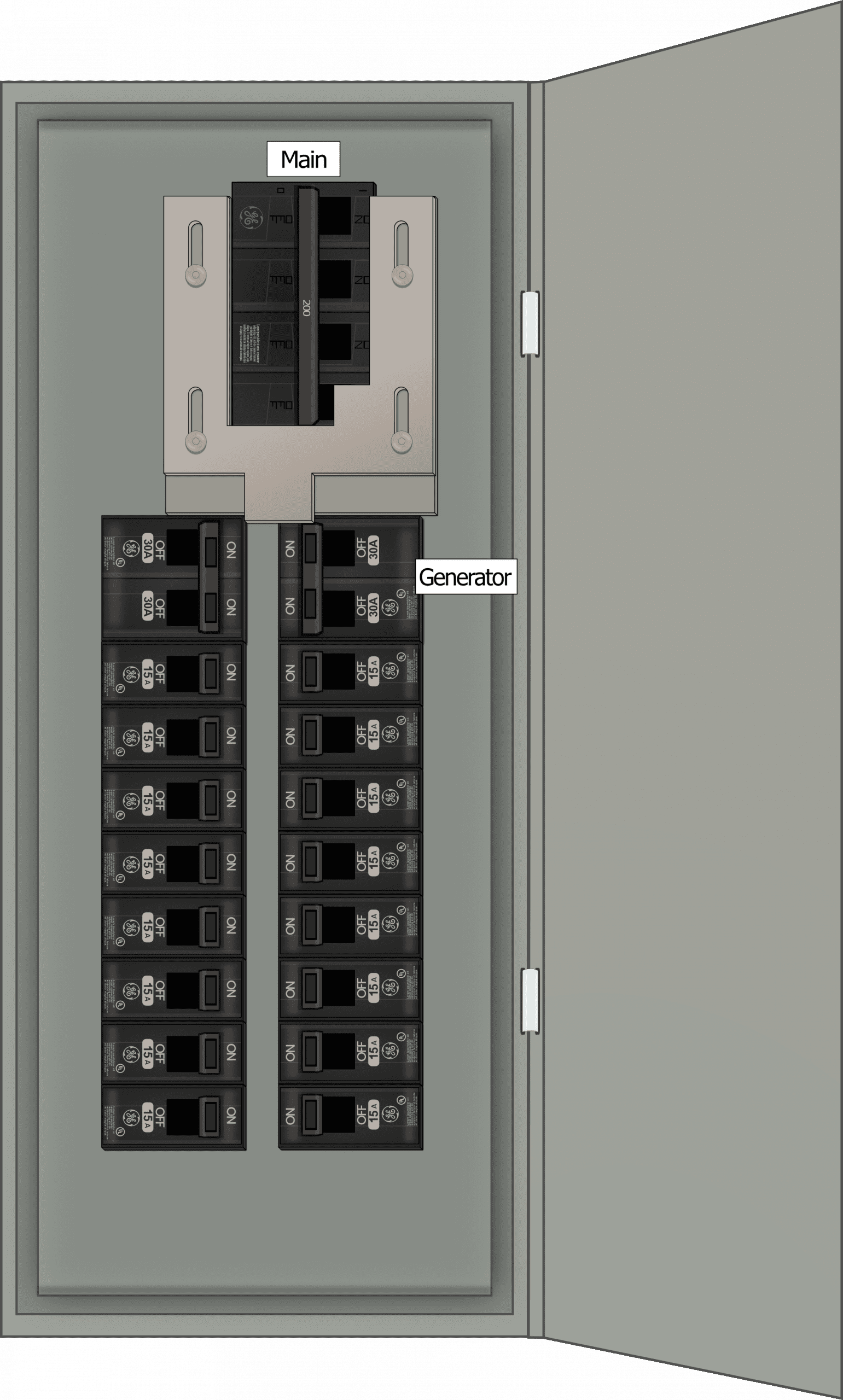

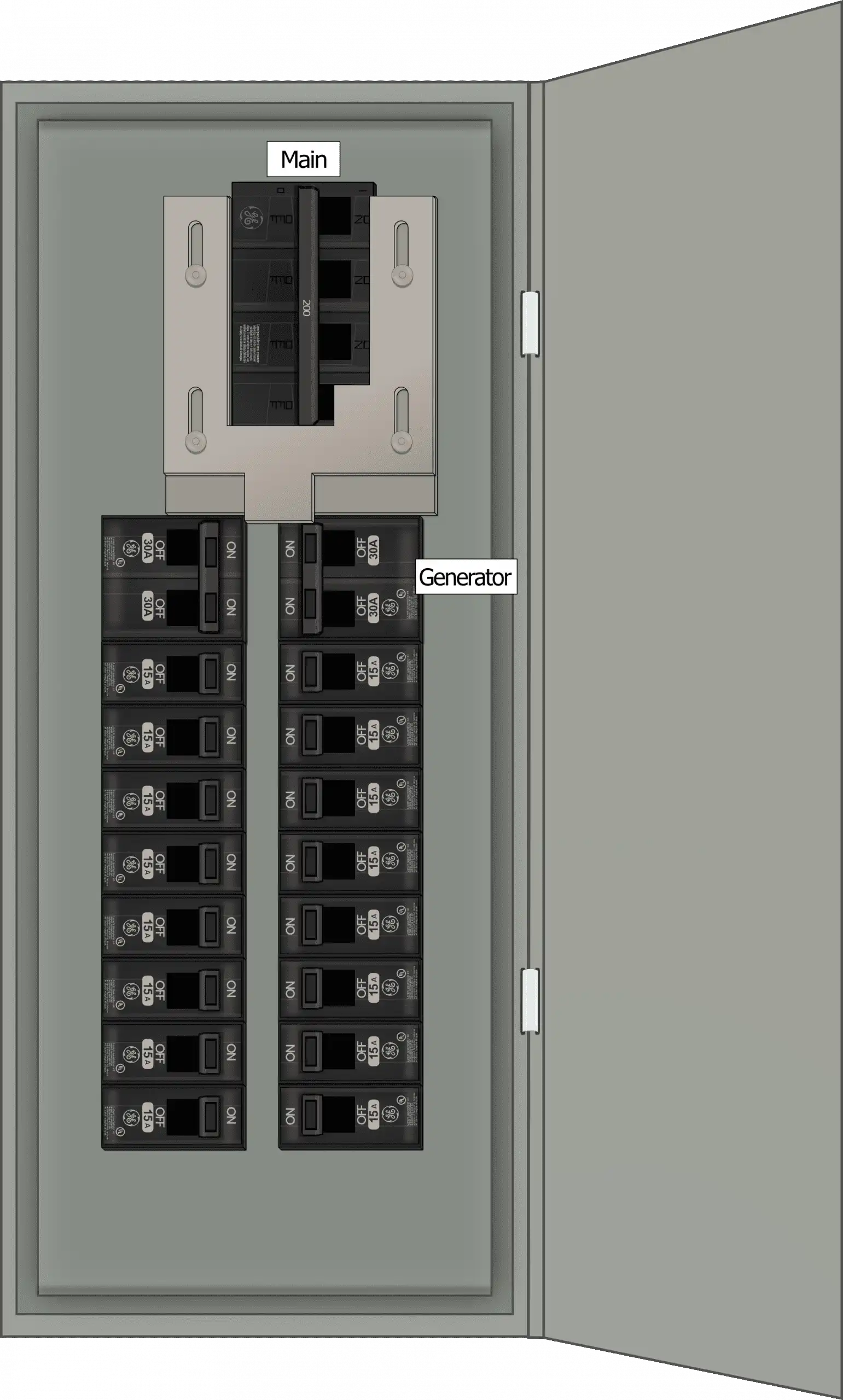

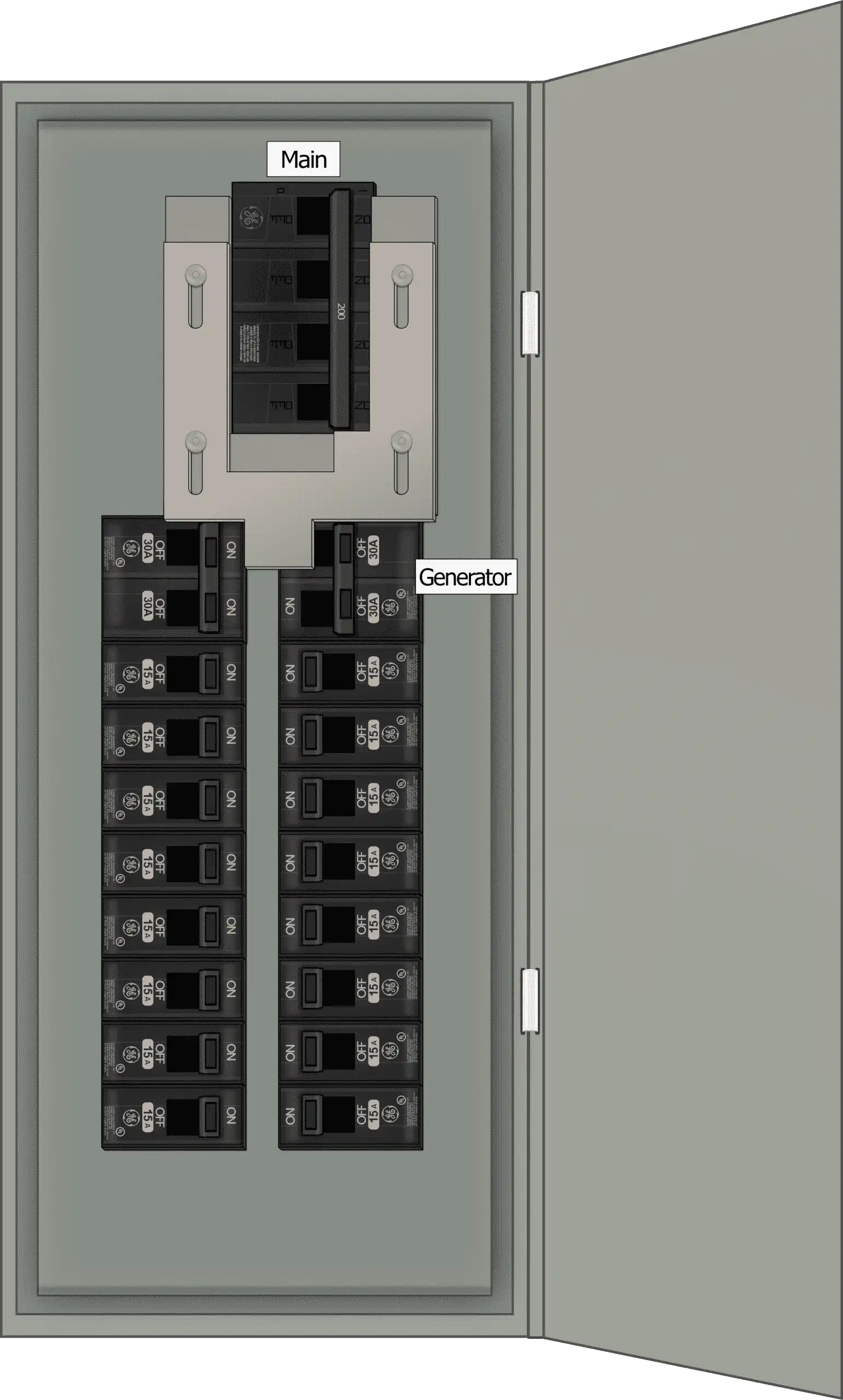

  • Install a two-pole generator breaker, located in: spaces 2 & 4 (top two spaces in the right column)
  • Page four of the installation instructions includes a list of contents for Kit K-8010

Modified versions of this Interlock Kit exist, see: Interlock Kit K-8011 (for main breakers 100-125 amps)

Kit Installation Instructions

Description

This Interlock Kit performs like a manual transfer switch for General Electric (GE) electrical panels with the following features:

  • Space between breaker columns: 1/2″
  • Gap between the main breaker and columns below, is: 1 1/4″ – 1 1/2″
  • 150-200 amp main breaker
  • Main breaker toggle action: horizontal (left-right) throw direction ON & OFF
  • Main breaker is offset from the center: 5/8″ to the right

Requirements

  • Install a two-pole generator breaker, located in: spaces 2 & 4 (top two spaces in the right column)
  • Page four of the installation instructions includes a list of contents for Kit K-8010

Modified versions of this Interlock Kit exist, see: Interlock Kit K-8011 (for main breakers 100-125 amps)

Kit Installation Instructions

Additional information

Weight 1 lbs
