General Electric Kit K-8016

$149.95

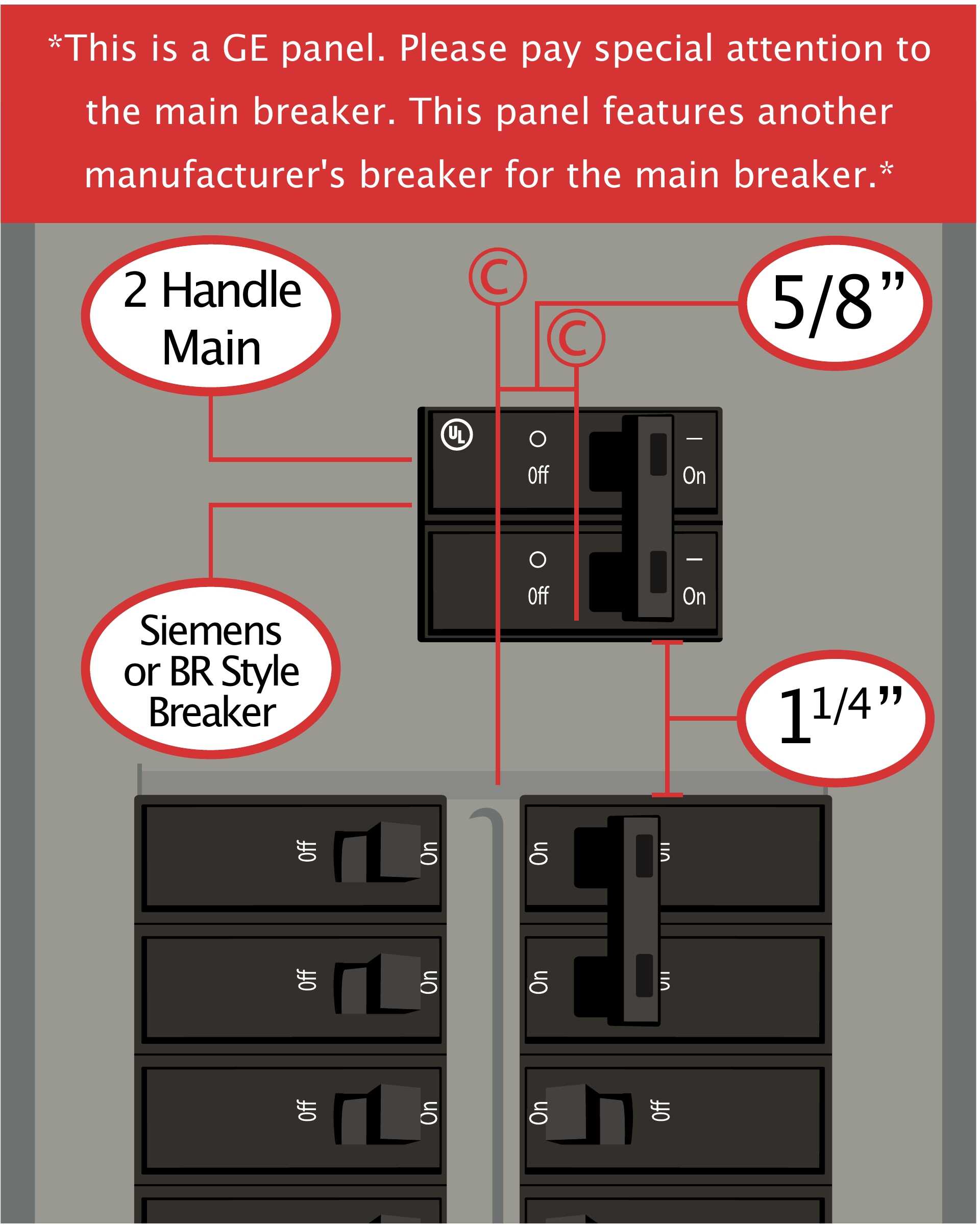

This Interlock Kit mounts to General Electric (GE) electrical panels with the following features:

  • Space between breaker columns: 1/2″
  • Gap between the main breaker and columns below, is: 1 1/4″
  • 100-125 amp main breaker
  • Main breaker toggle action: horizontal (left-right) throw direction ON & OFF
  • Main breaker is offset from the center: 5/8″ to the right
  • NEWER GE panels

Requirements

  • Install a two pole generator breaker in the top two spaces in the right column: spaces 2 & 4
  • Page four of the installation instructions includes a list of contents for K-8016

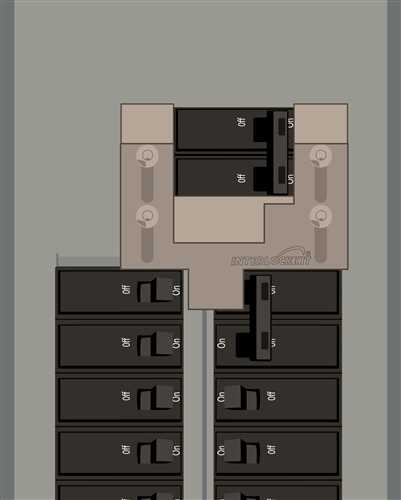

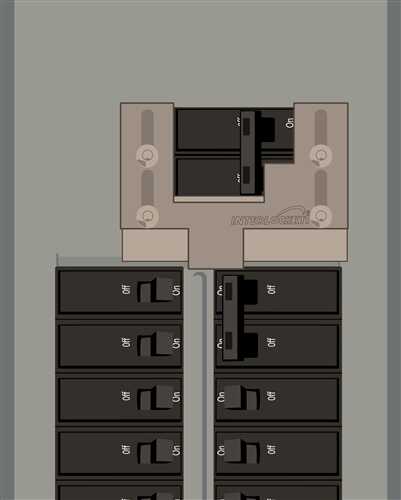

Modified versions of this Interlock Kit exist, see: K-8015

Kit Installation Instructions

Description

This Interlock Kit mounts to General Electric (GE) electrical panels with the following features:

  • Space between breaker columns: 1/2″
  • Gap between the main breaker and columns below, is: 1 1/4″
  • 100-125 amp main breaker
  • Main breaker toggle action: horizontal (left-right) throw direction ON & OFF
  • Main breaker is offset from the center: 5/8″ to the right
  • NEWER GE panels

Requirements

  • Install a two pole generator breaker in the top two spaces in the right column: spaces 2 & 4
  • Page four of the installation instructions includes a list of contents for K-8016

Modified versions of this Interlock Kit exist, see: K-8015

Kit Installation Instructions

Additional information

Weight 1 lbs
