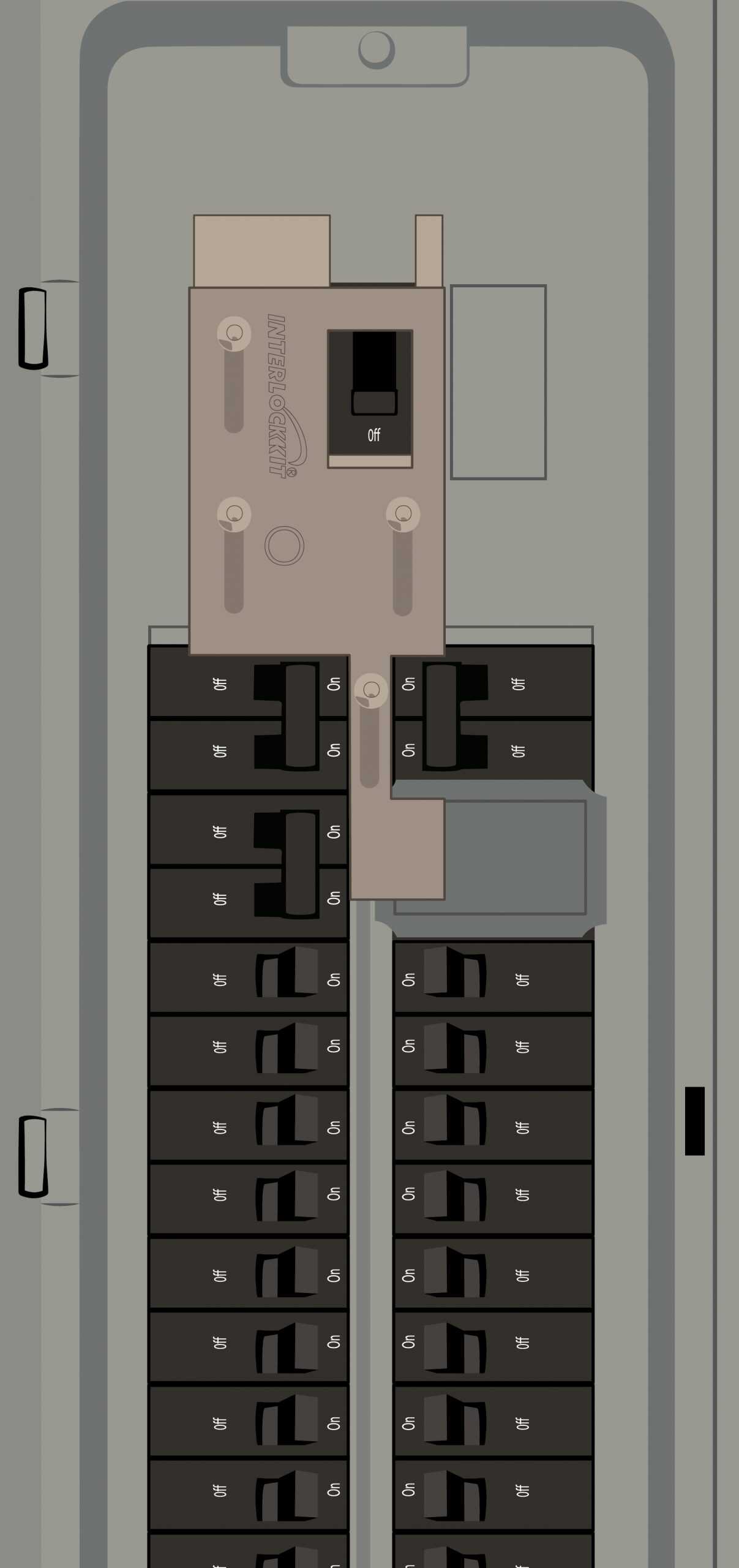

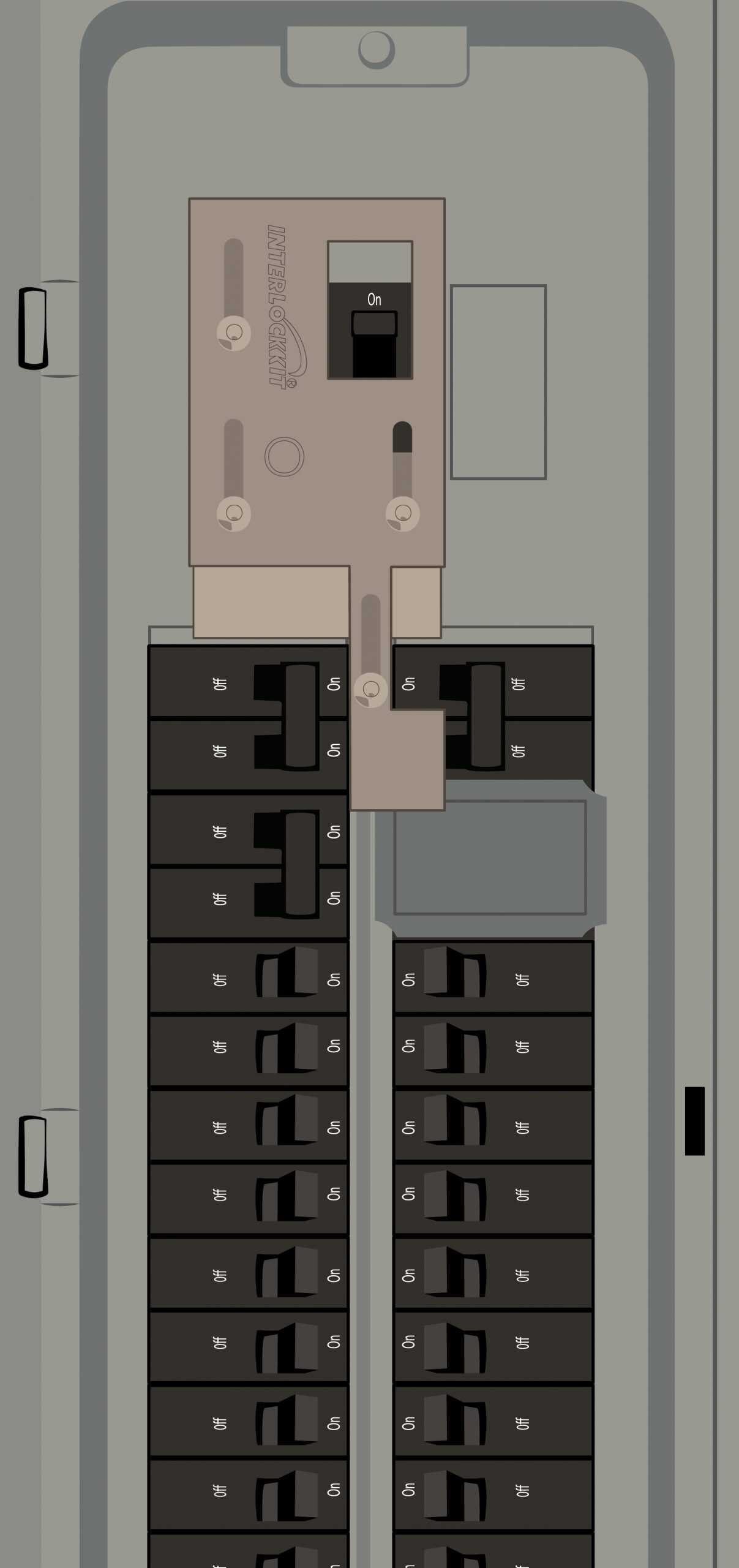

Interlock Kit K-8110

This Kit mounts to General Electric (GE) electrical panels with the following features:

• Space between breaker columns: 1/2"

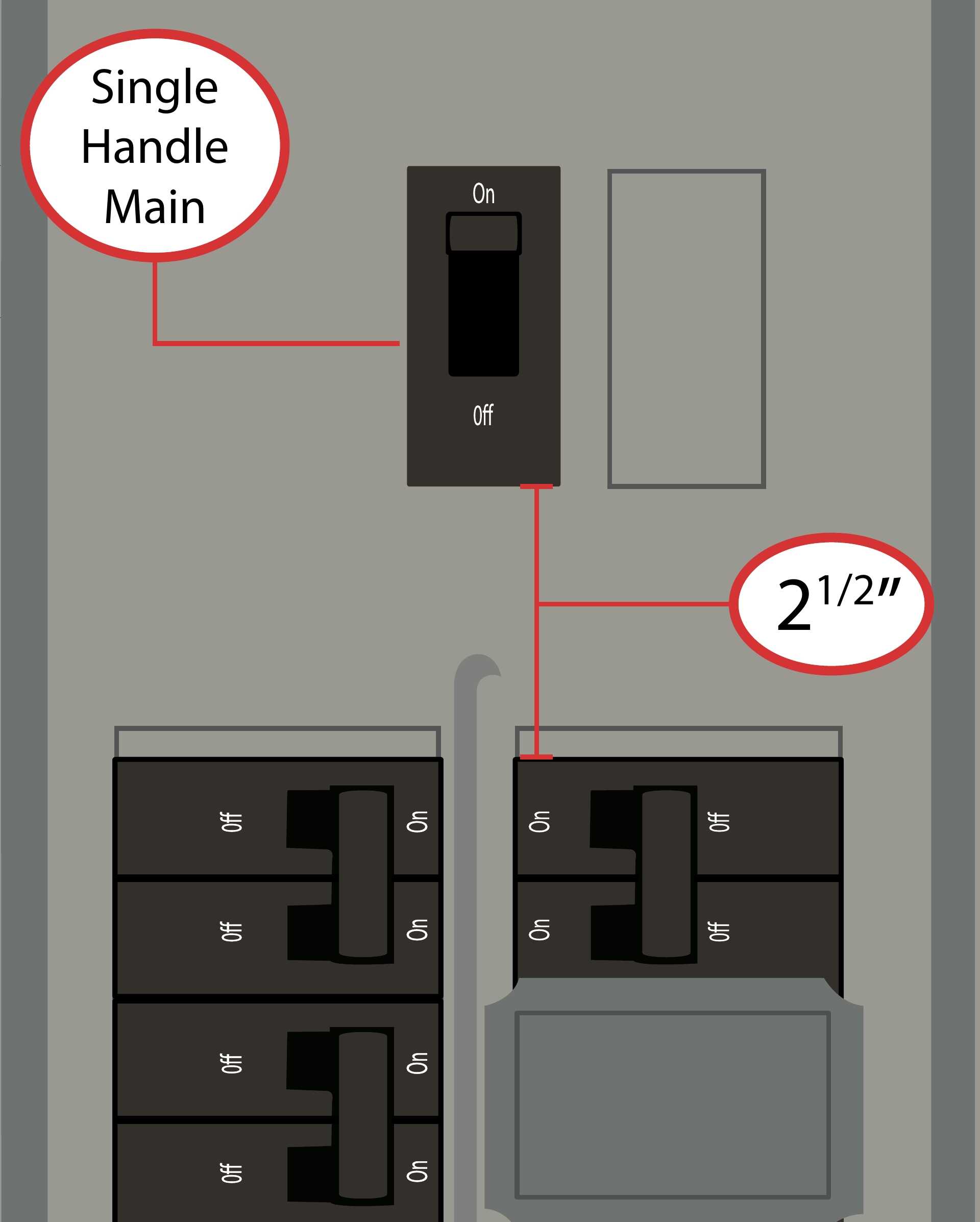

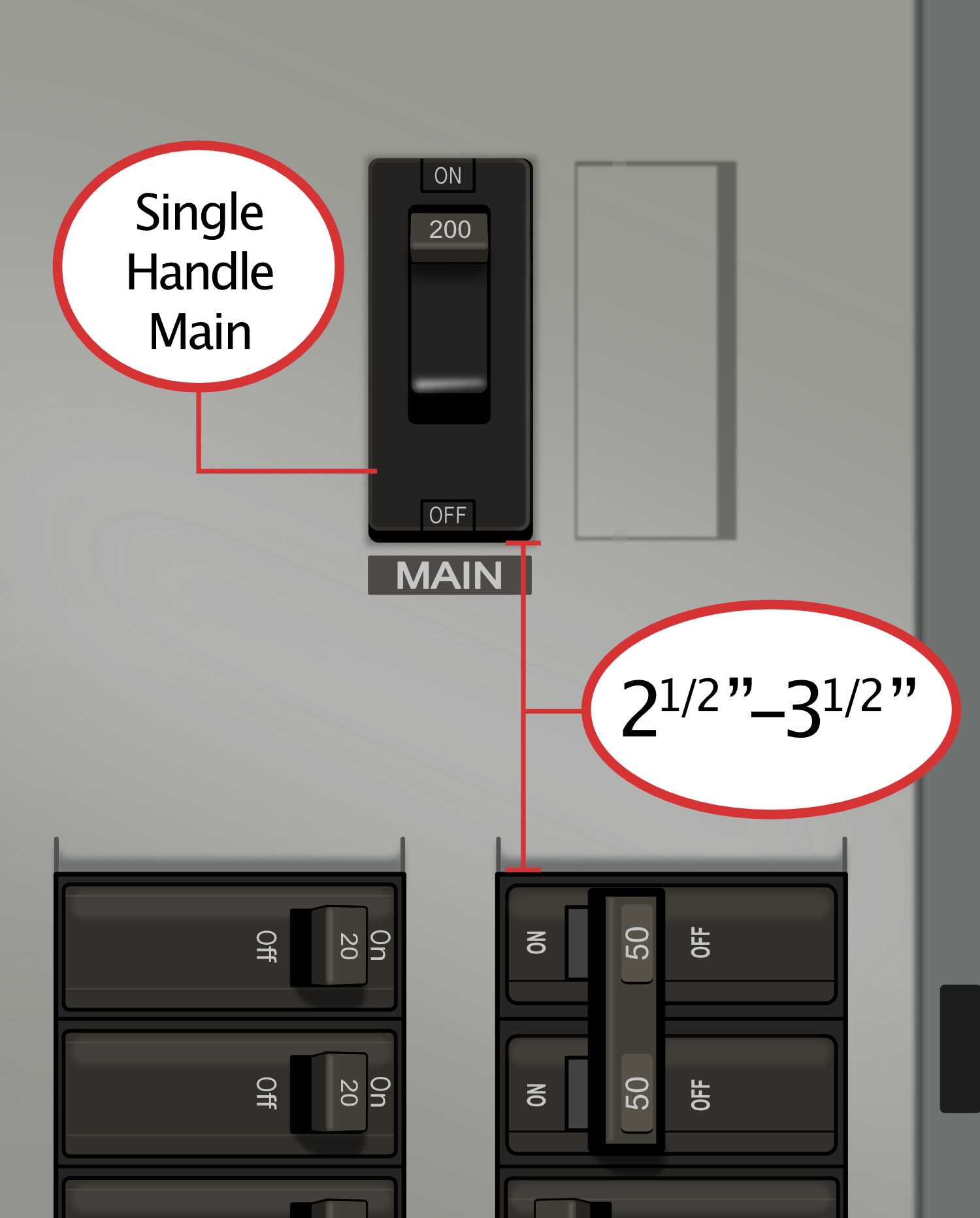

• Gap between the main breaker and columns below, is: 2 1/2"
• 150-200 amp main breaker
• Main breaker toggle action: vertical (up & down) throw direction ON & OFF
• Main breaker is centered directly over both breaker columns

Requirements

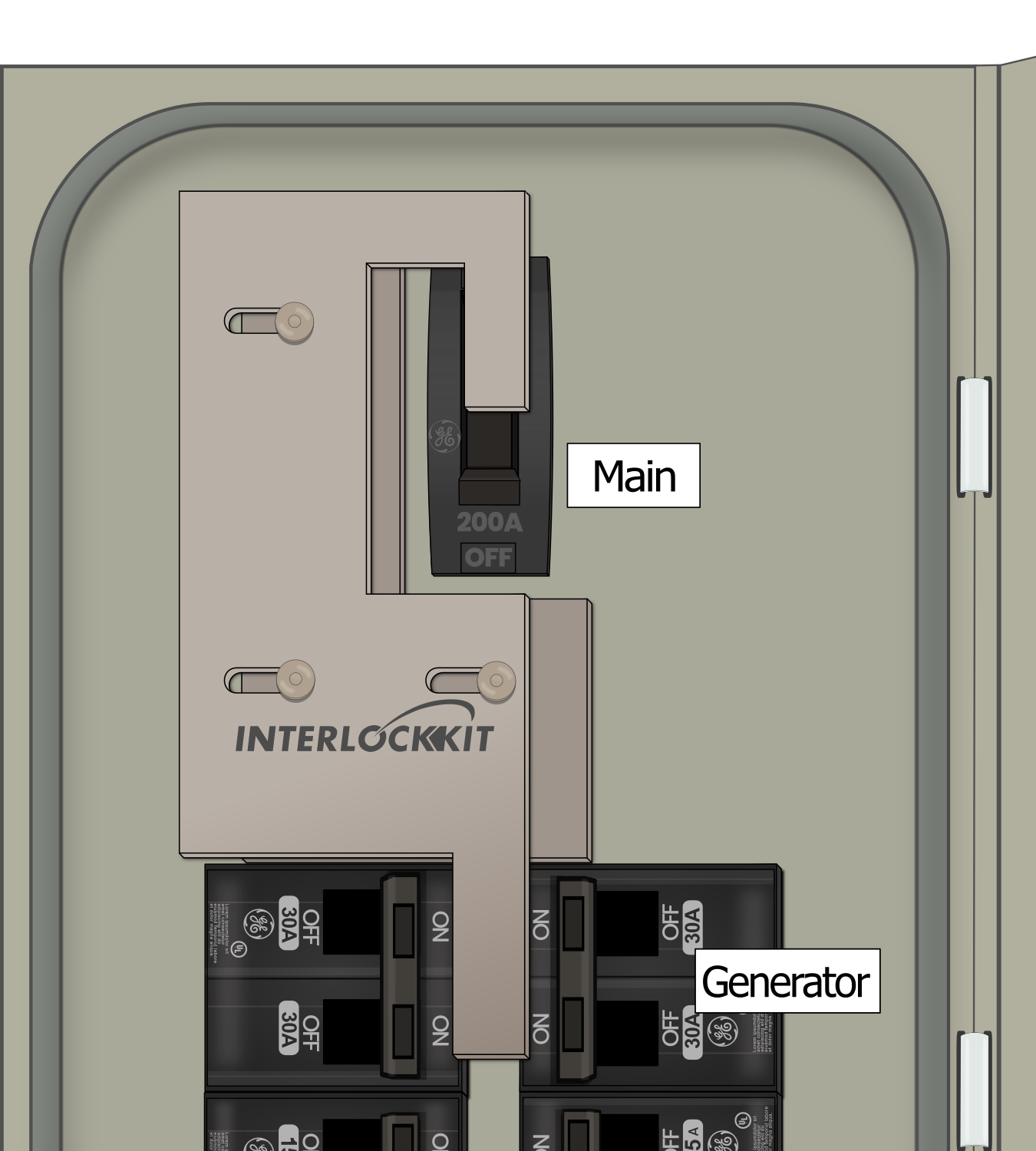

• Install a two pole generator breaker, located in: spaces 2 & 4 (top two spaces in the right column)
• Page four of the installation instructions includes a list of contents for Kit K-8110

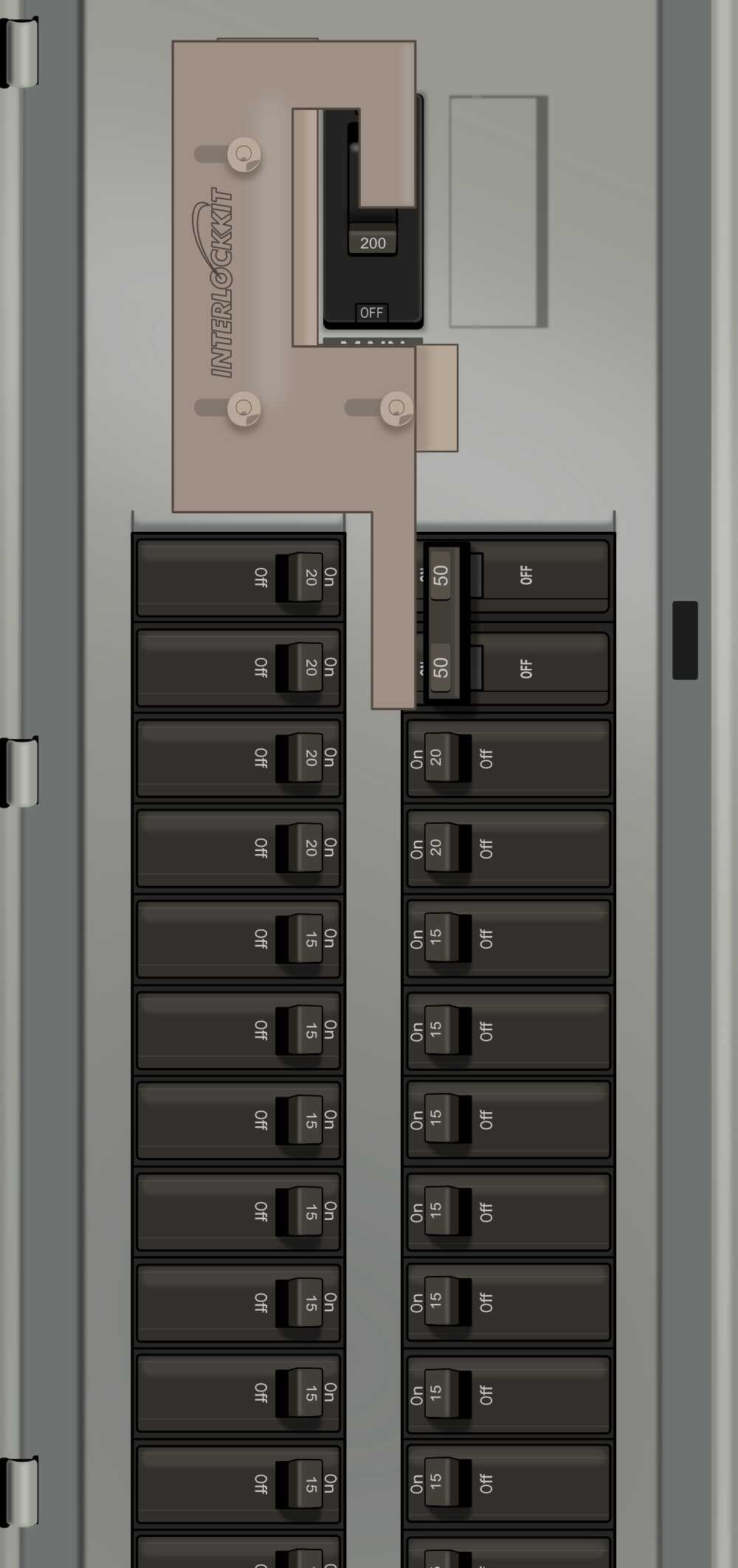

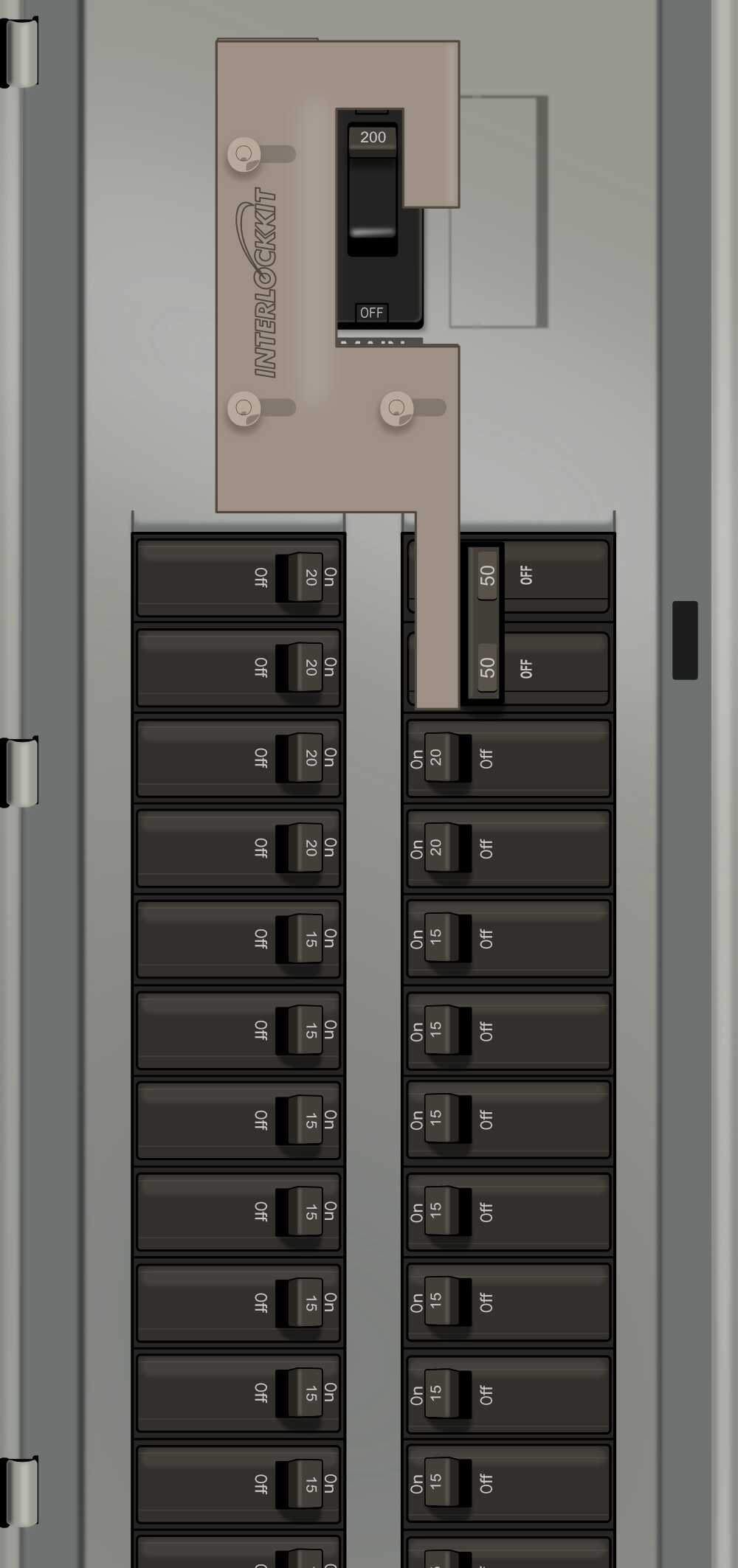

Modified versions of this Interlock Kit exist, see: Kit K-8110M (for panels where space 1 & 2 are not open)

Kit Installation Instructions
