Interlock Kit K-5410 | Interlock Kit

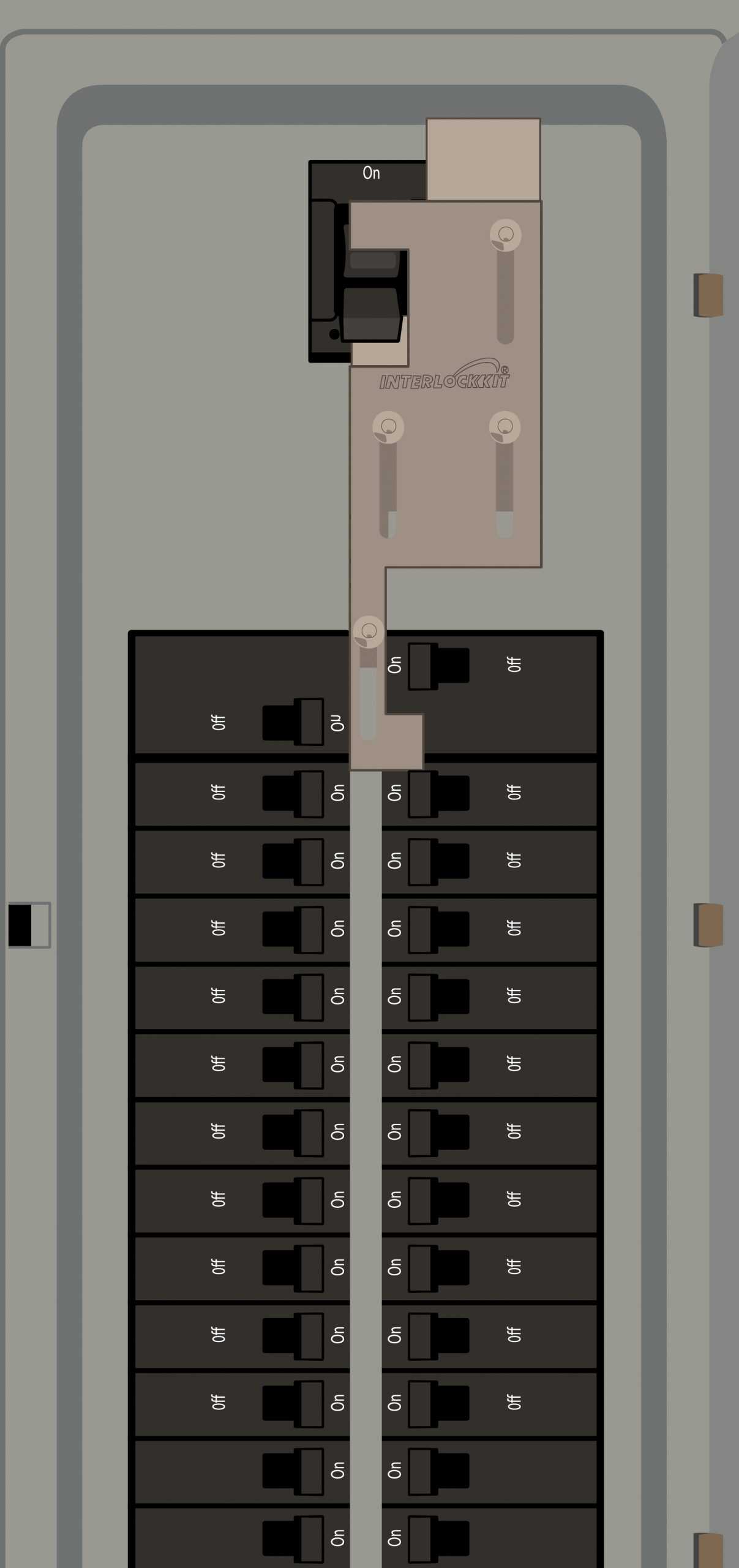

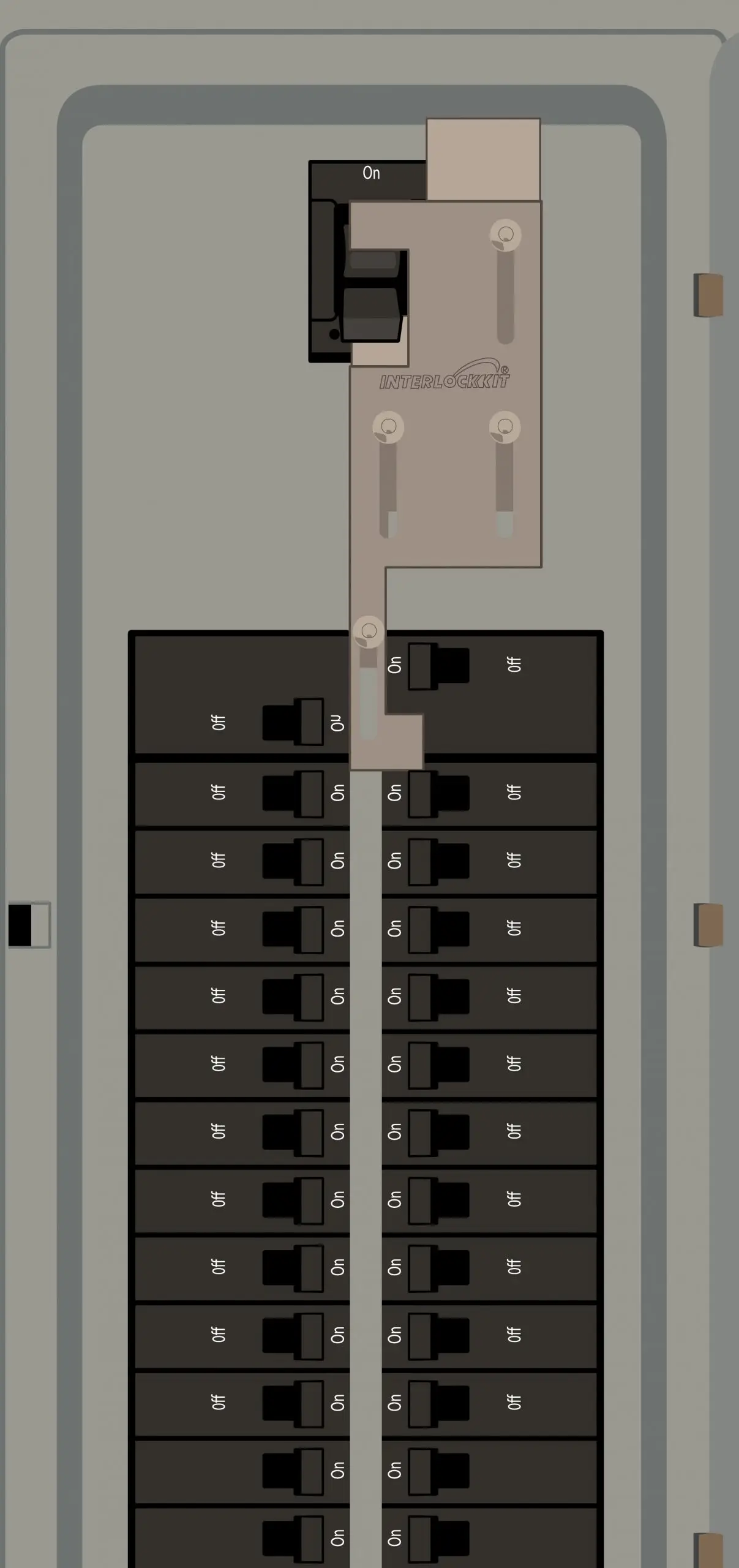

This Kit performs like a manual transfer switch for Square D electrical panel with the following features:

• Space between breaker columns: 1/2″

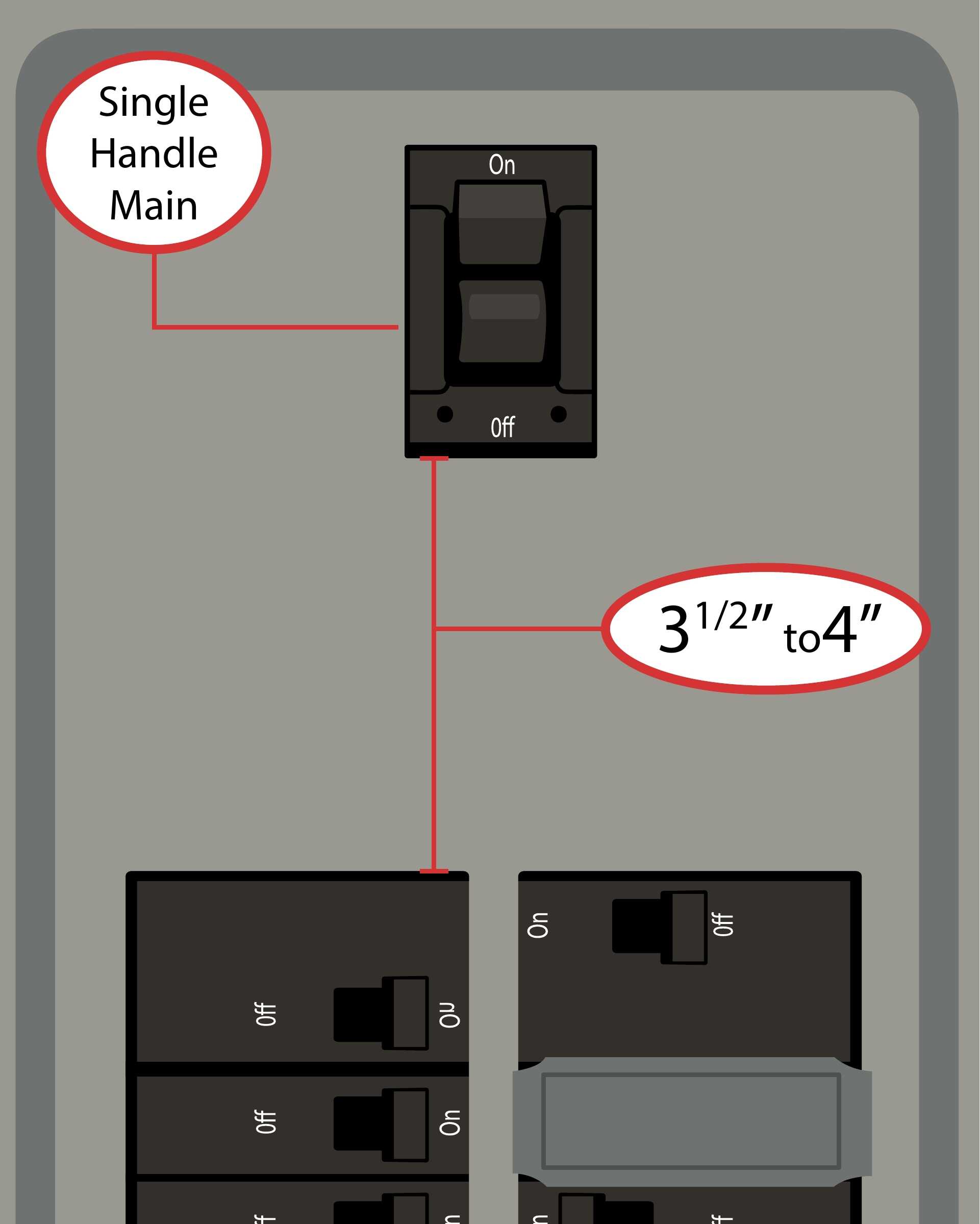

• Gap between main breaker and columns below, is:  3 1/2 - 4 "
• 150-200 amp main breaker
• Main breaker toggle action: vertical (up-down) throw direction ON & OFF
• Main breaker is centered over both breaker columns
• Compatible with QO type breakers

Requirements:

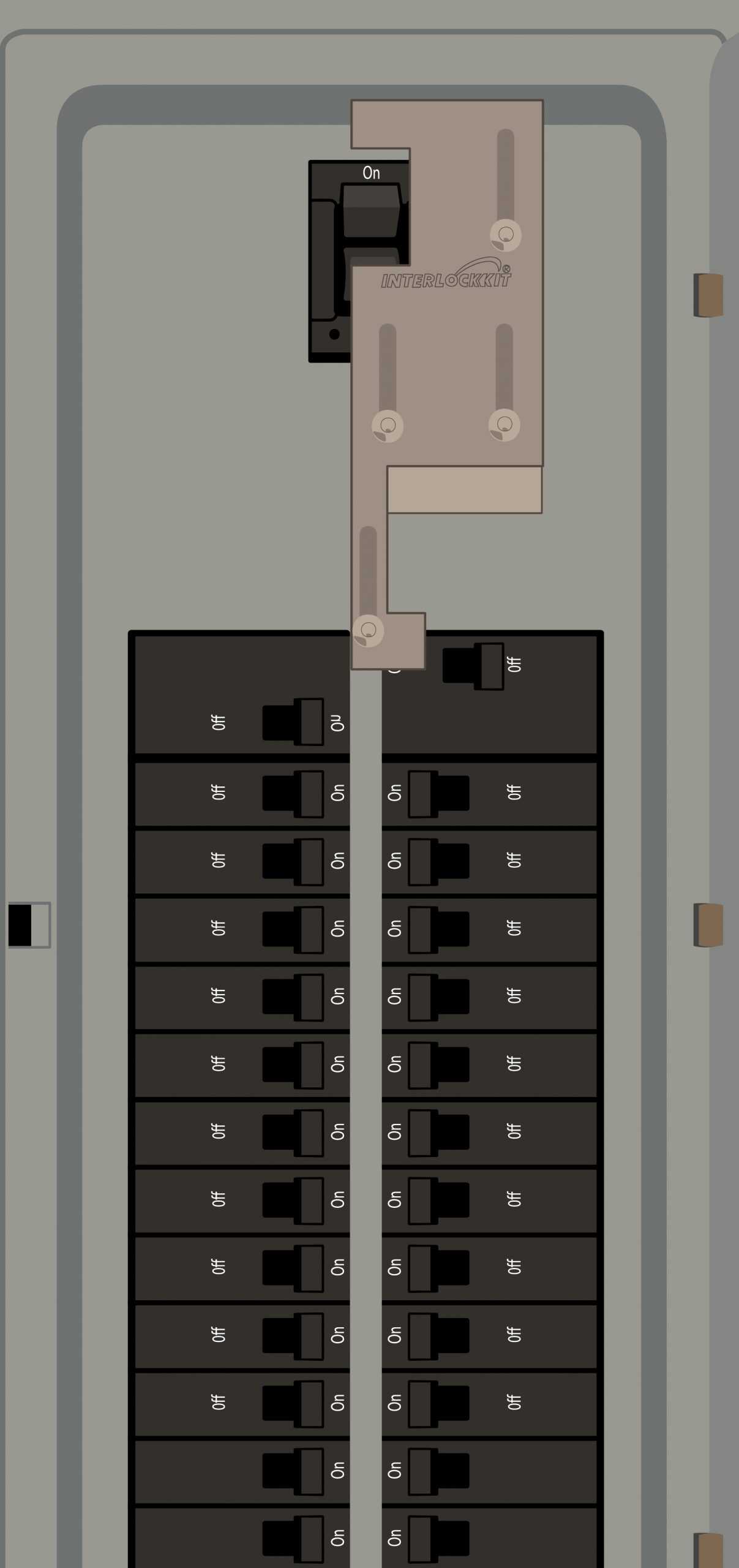

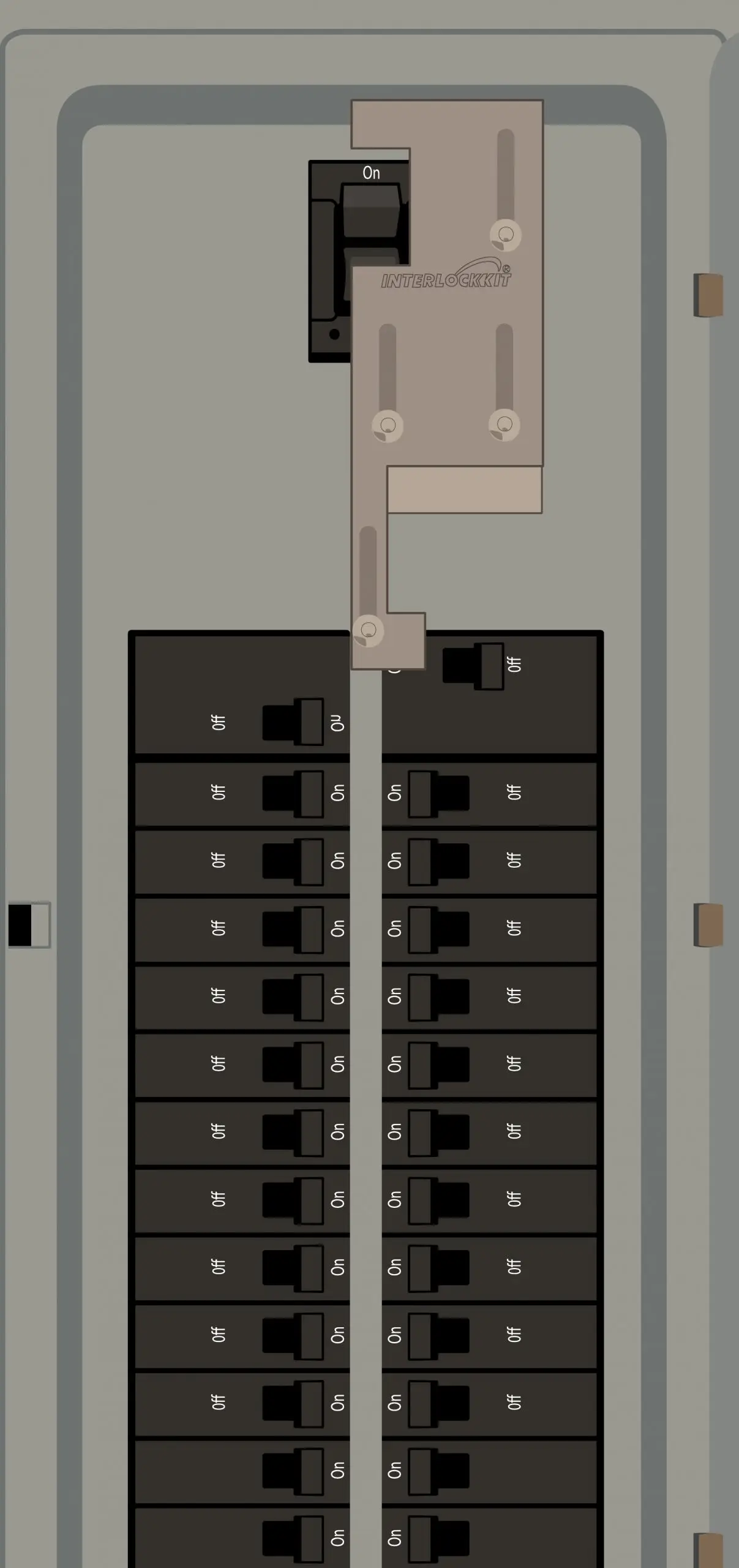

• Install a generator breaker at the top of the right breaker column: spaces 2 & 4
• Page four of the installation instructions includes a list of contents in Kit K-5410

Modified versions of this Interlock Kit exist, see: K-5210

Kit Installation Instructions
