Interlock Kit KS-5014-QO | Interlock Kit


36 in stock


Have a question or don’t see a kit for your panel? We make custom Interlock Kits for any panel or solar scenario – call (804) 531-3359 or Contact Us!

SKU: KS-5014-QO Categories: , ,

This Interlock Kit mounts to Square D electrical panels with the following features:

  • Space between breaker columns: 1/2"

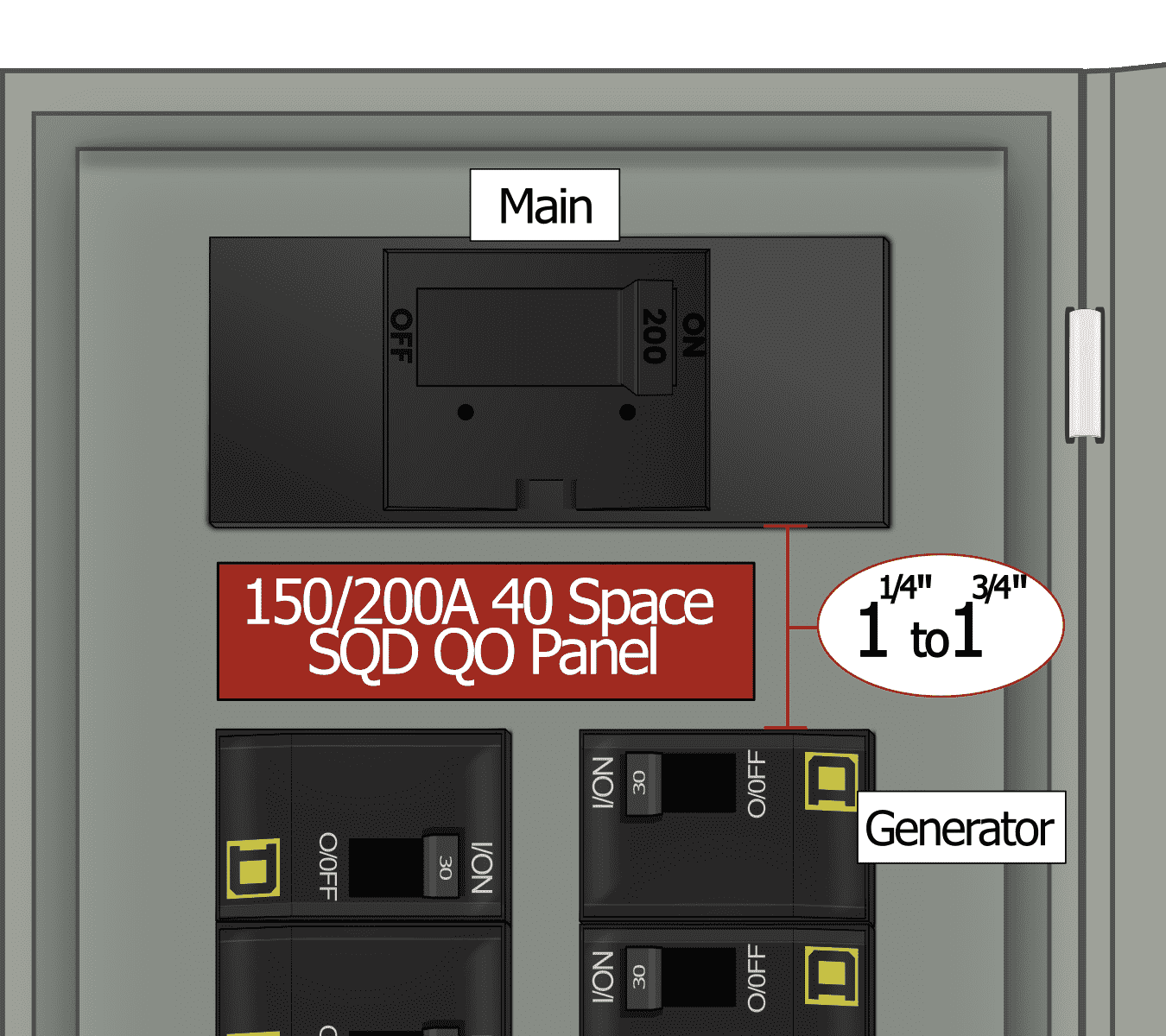

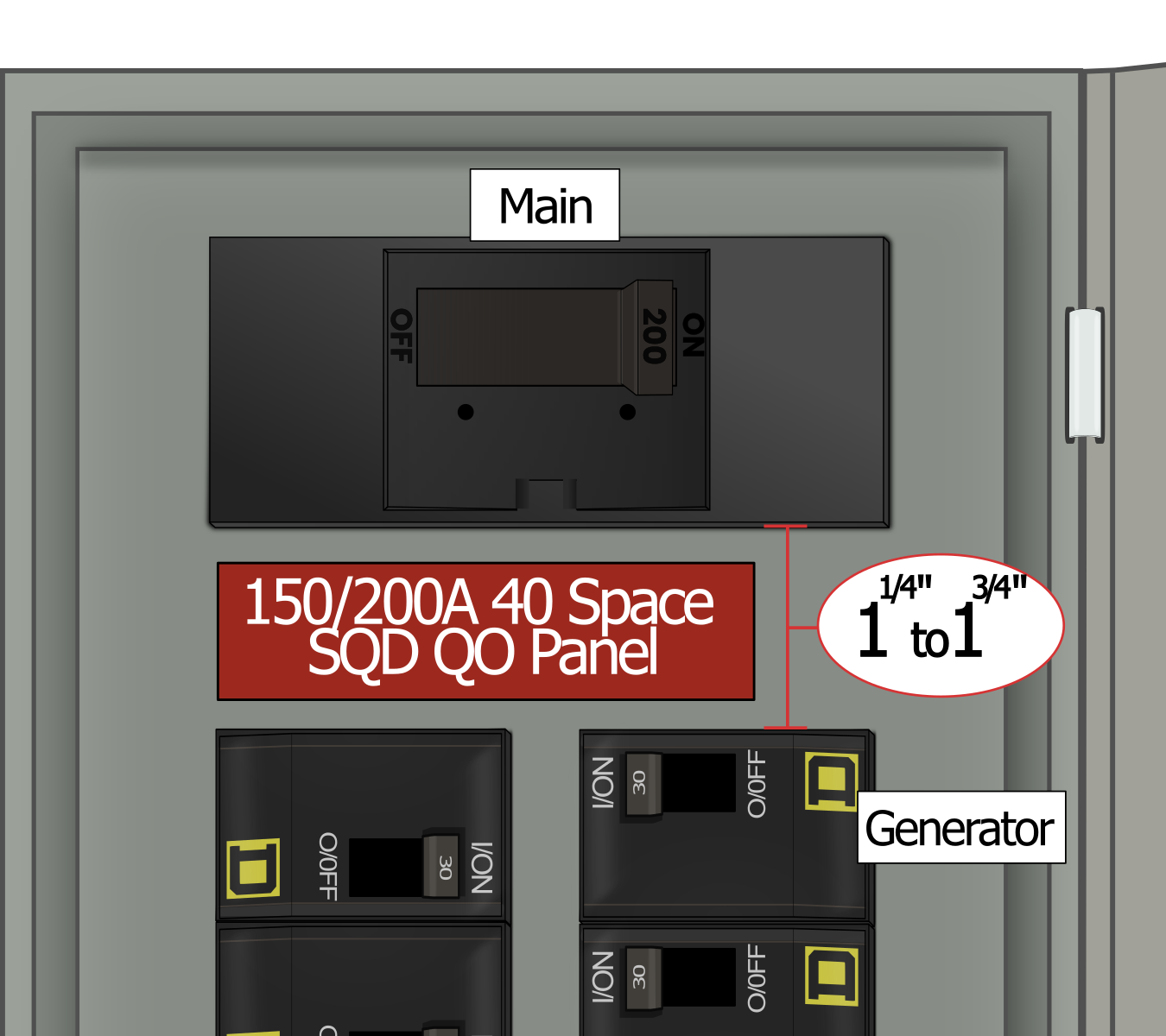

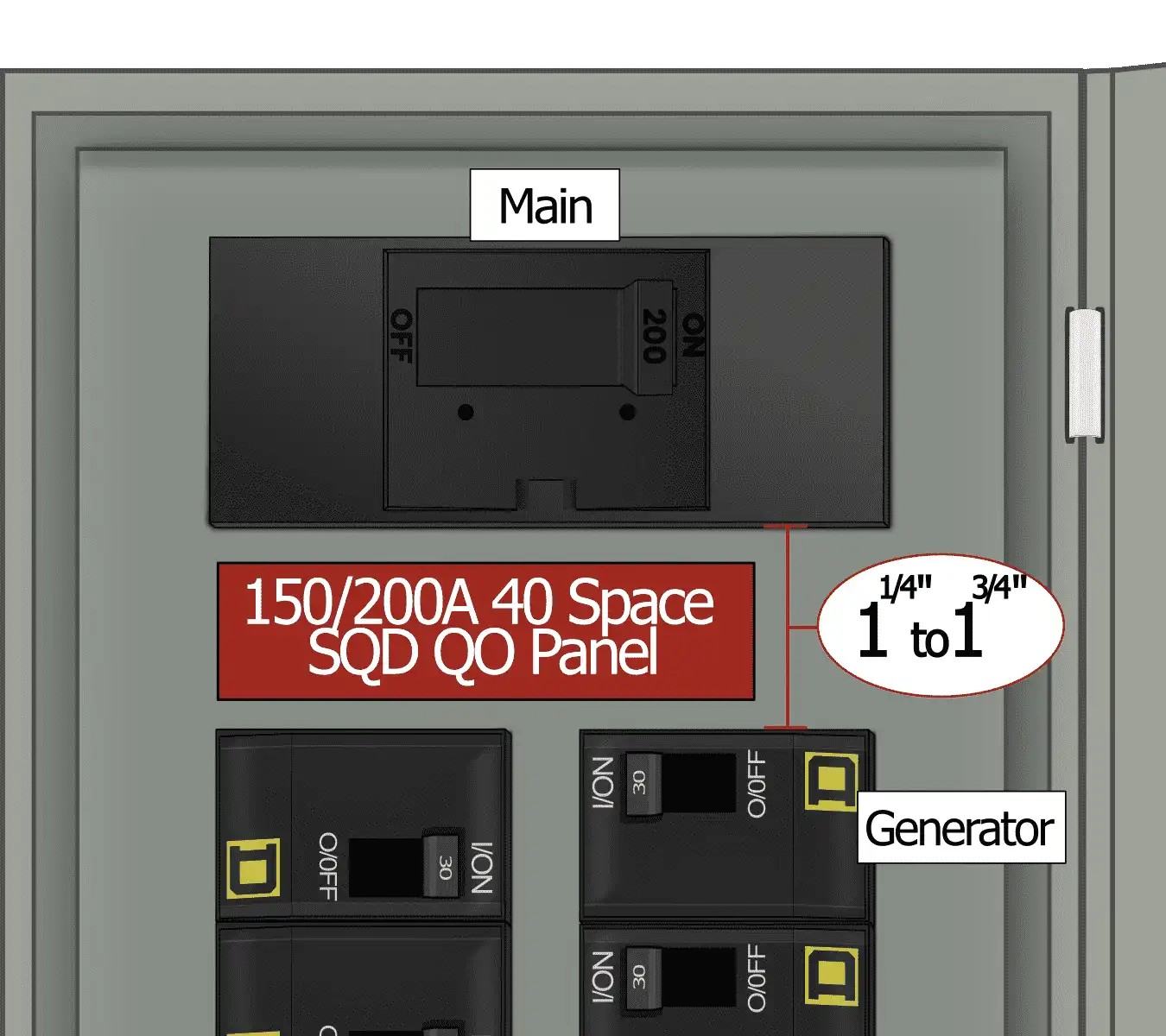

  • Gap between main breaker and columns below: 1 1/4 - 1 1/2"
  • 100-200 amp main breaker
  • Main breaker toggle action: horizontal (left-right) throw direction
  • Main breaker is centered over both breaker columns

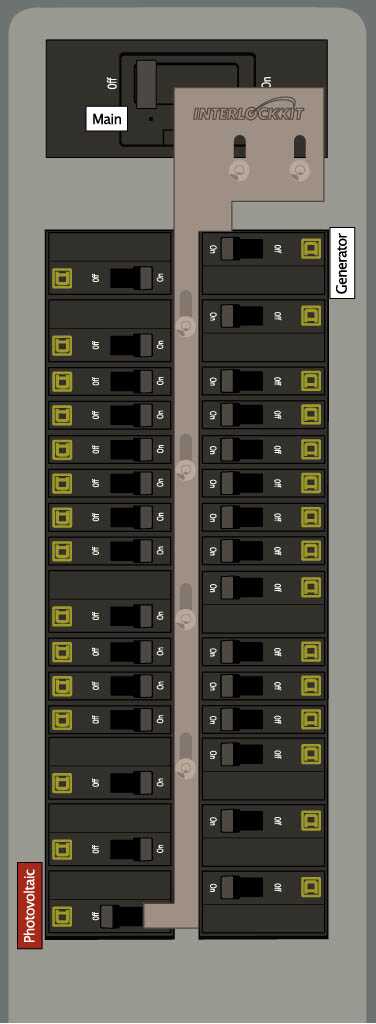

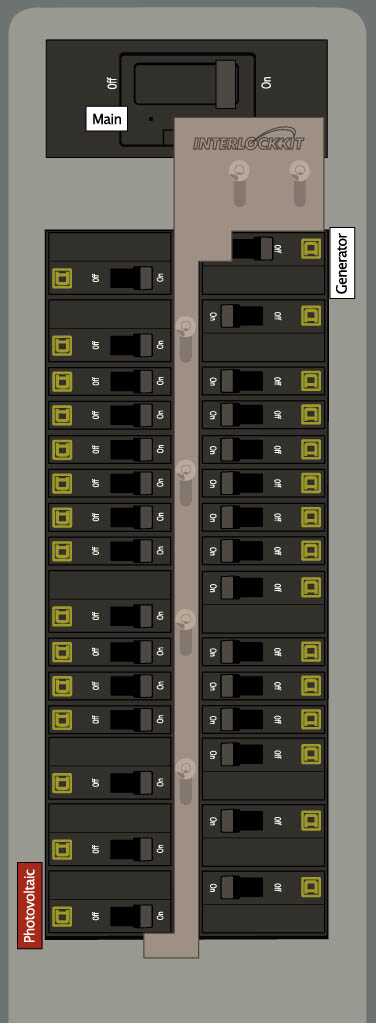

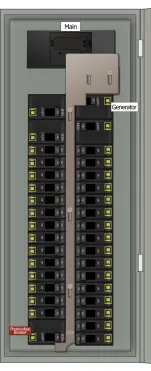

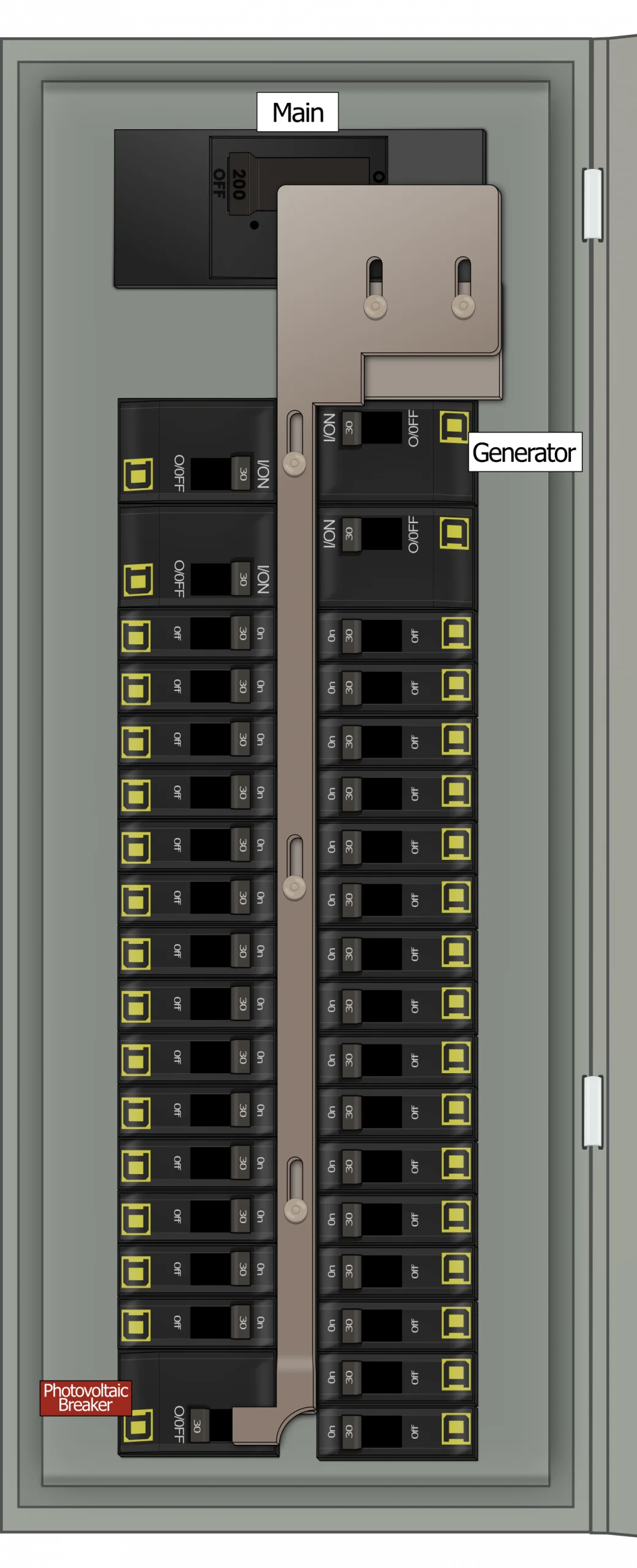

  • Install a generator breaker at the top of the right column: spaces 2 & 4

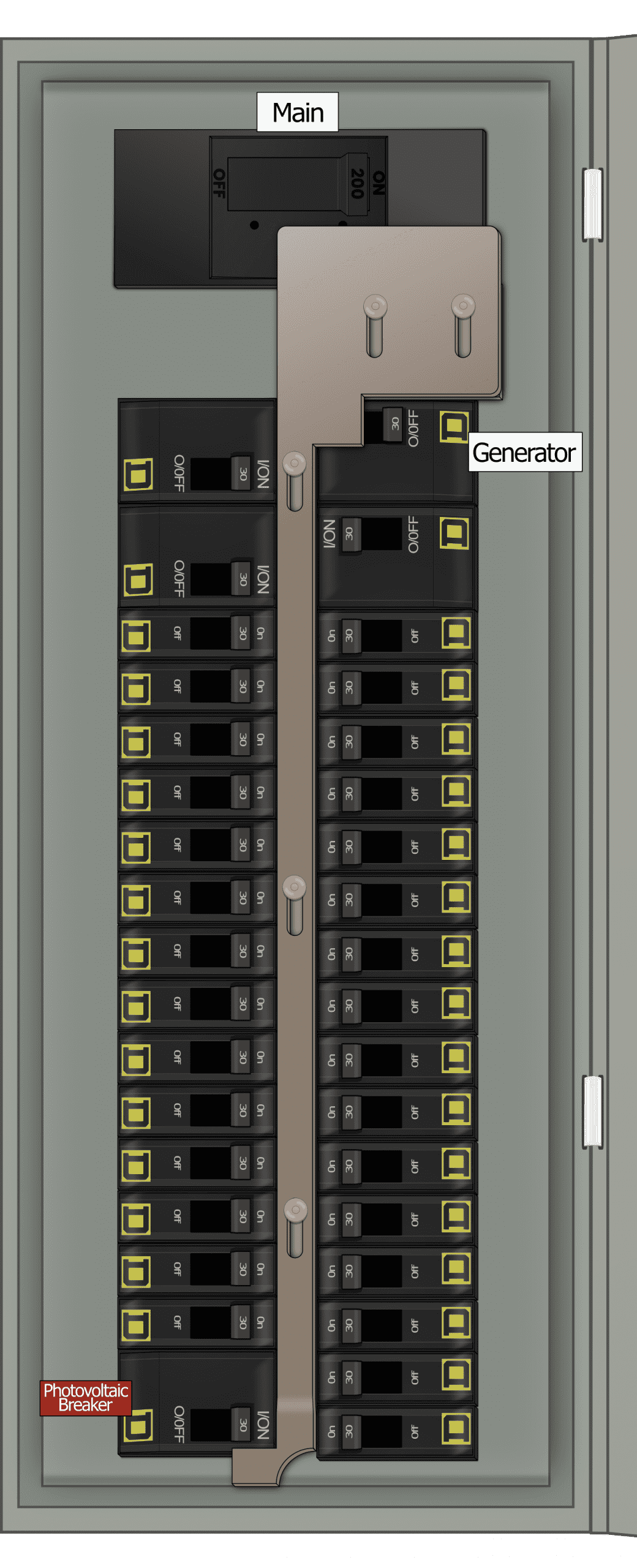

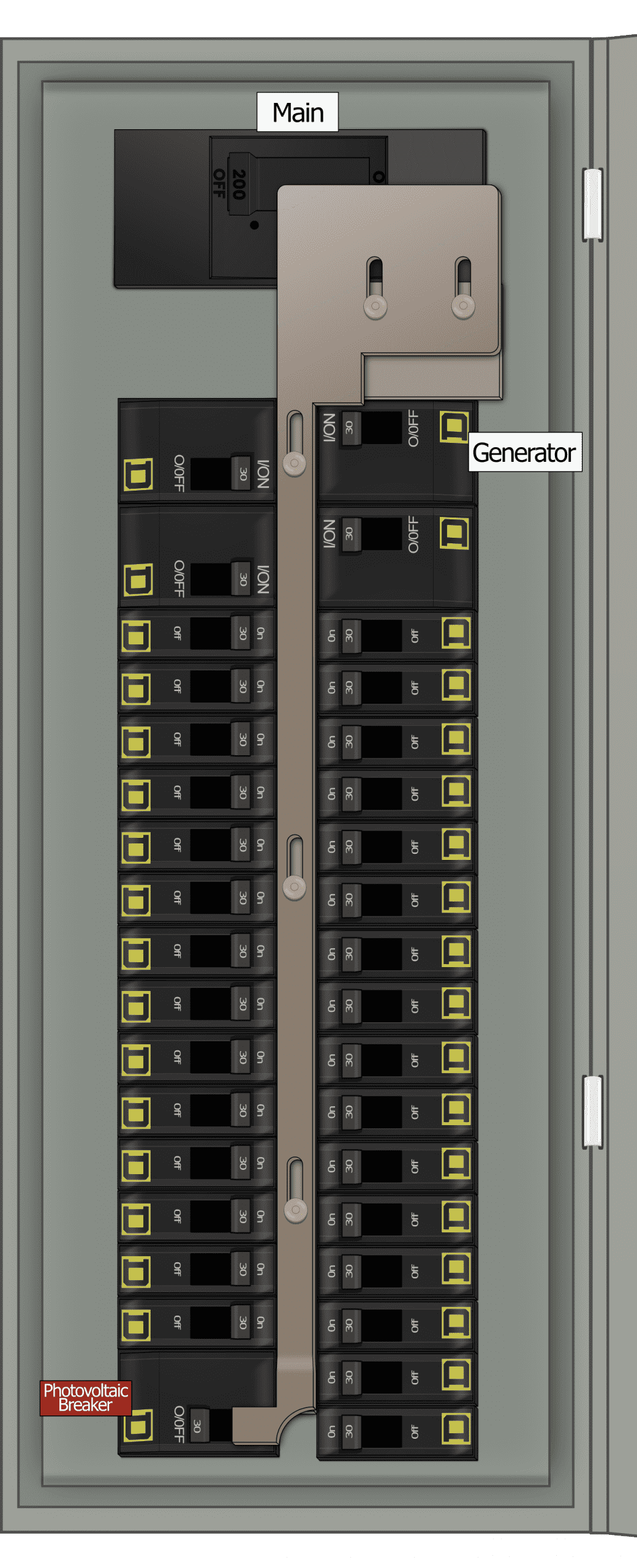

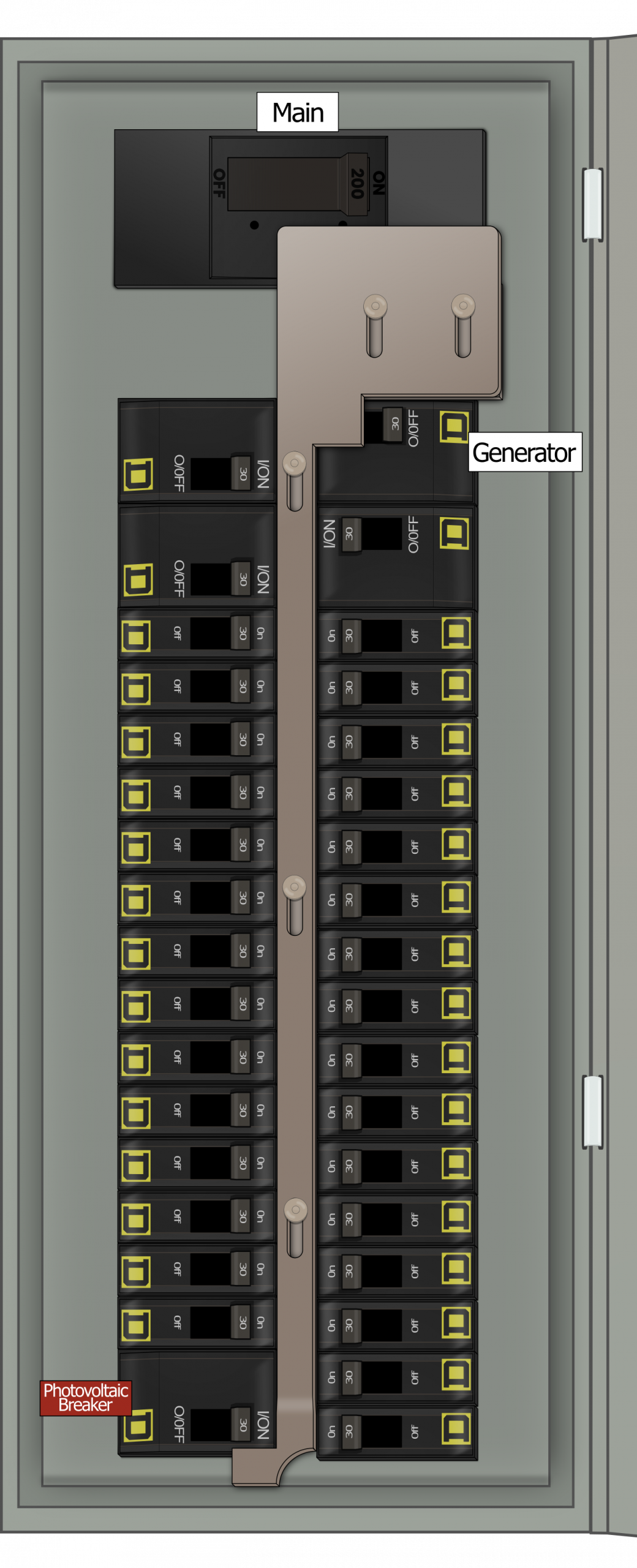

  • Install a solar breaker in the bottom left corner of the branch circuit columns
  • Compatible with 42 space 84 circuit panels. 21 3/4 inch spaces in the left column & 21 3/4 inch spaces in the right
  • Page four of the installation instructions includes a list of contents included in Kit KS-5014-QO

Modified versions of this Interlock Kit exist, see: KS-5011 QO, KS-5012-QO, KS-5013-QO (solar modified Interlock Kit) call for more details about modified kits: (804)726-2448

Additional information

Weight 1 lbs
