Cutler Hammer/EATON (CH Style) / Square D (Homeline) / General Electric Kit K-9310

$149.95

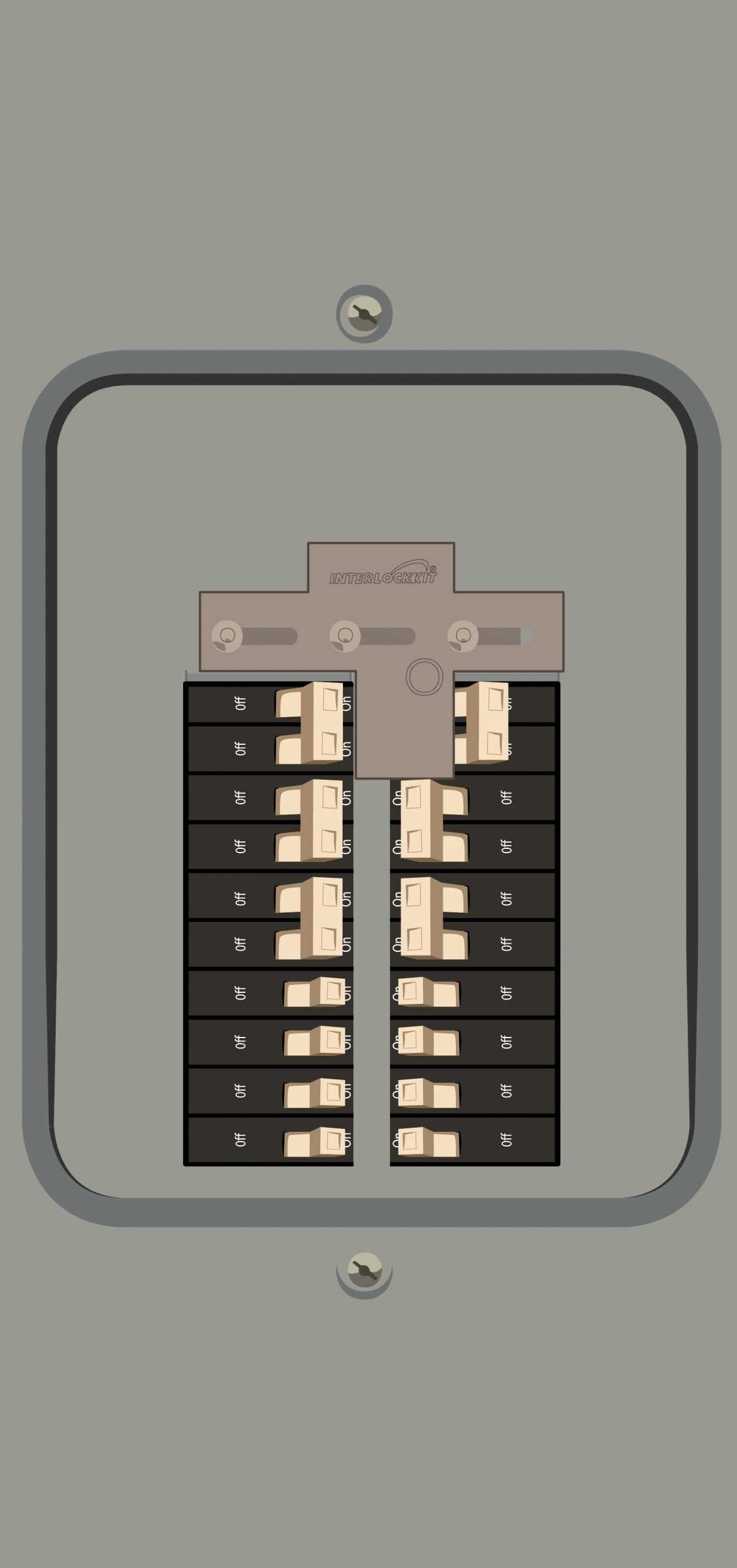

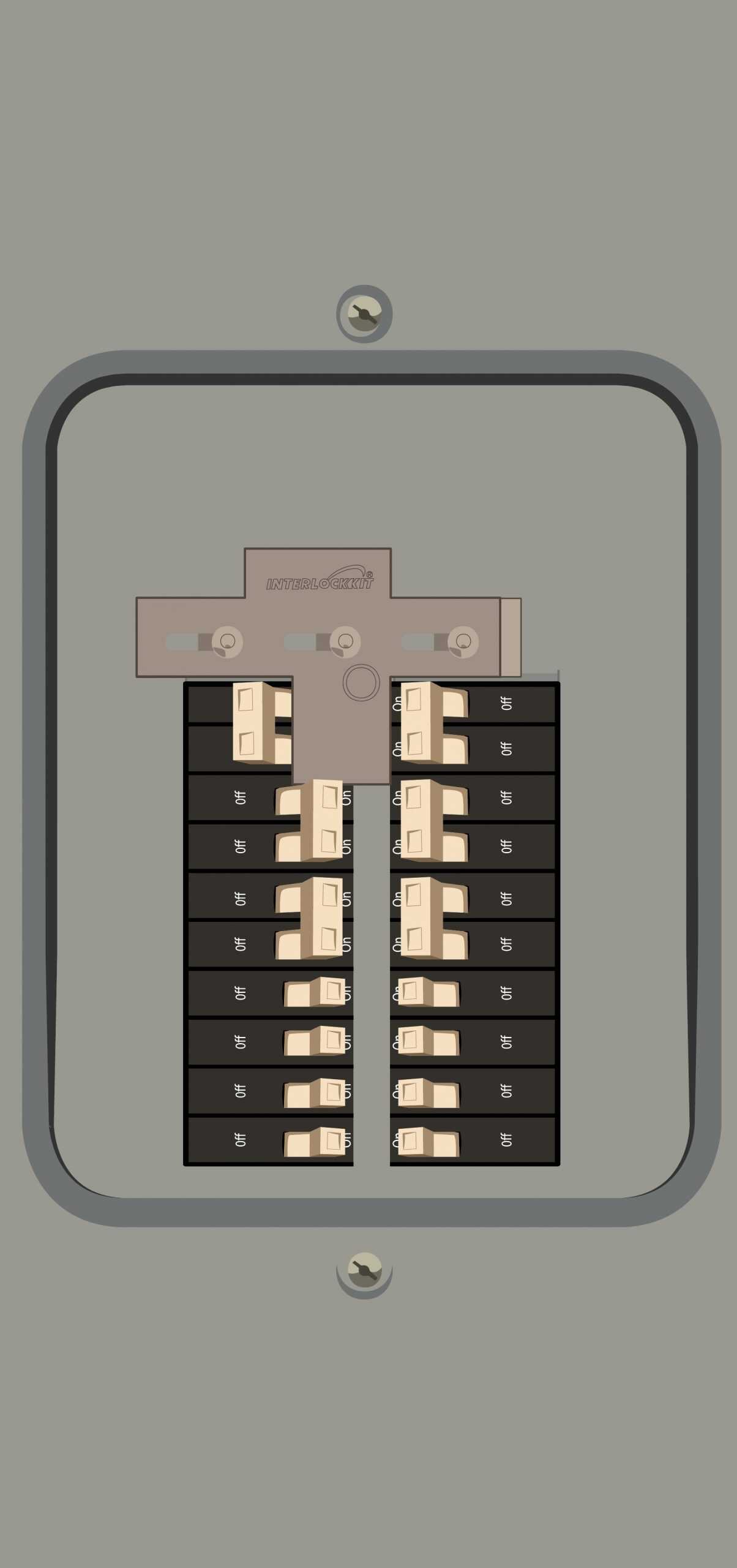

This Kit performs like a manual transfer switch for Cutler Hammer / Square D / and General Electric electrical panels with the following features:

  • Space between breaker columns: 1/2″
  • No gap
  • 100-125 amp two pole main breaker
  • Main breaker toggle action: horizontal (left-right) throw direction ON & OFF

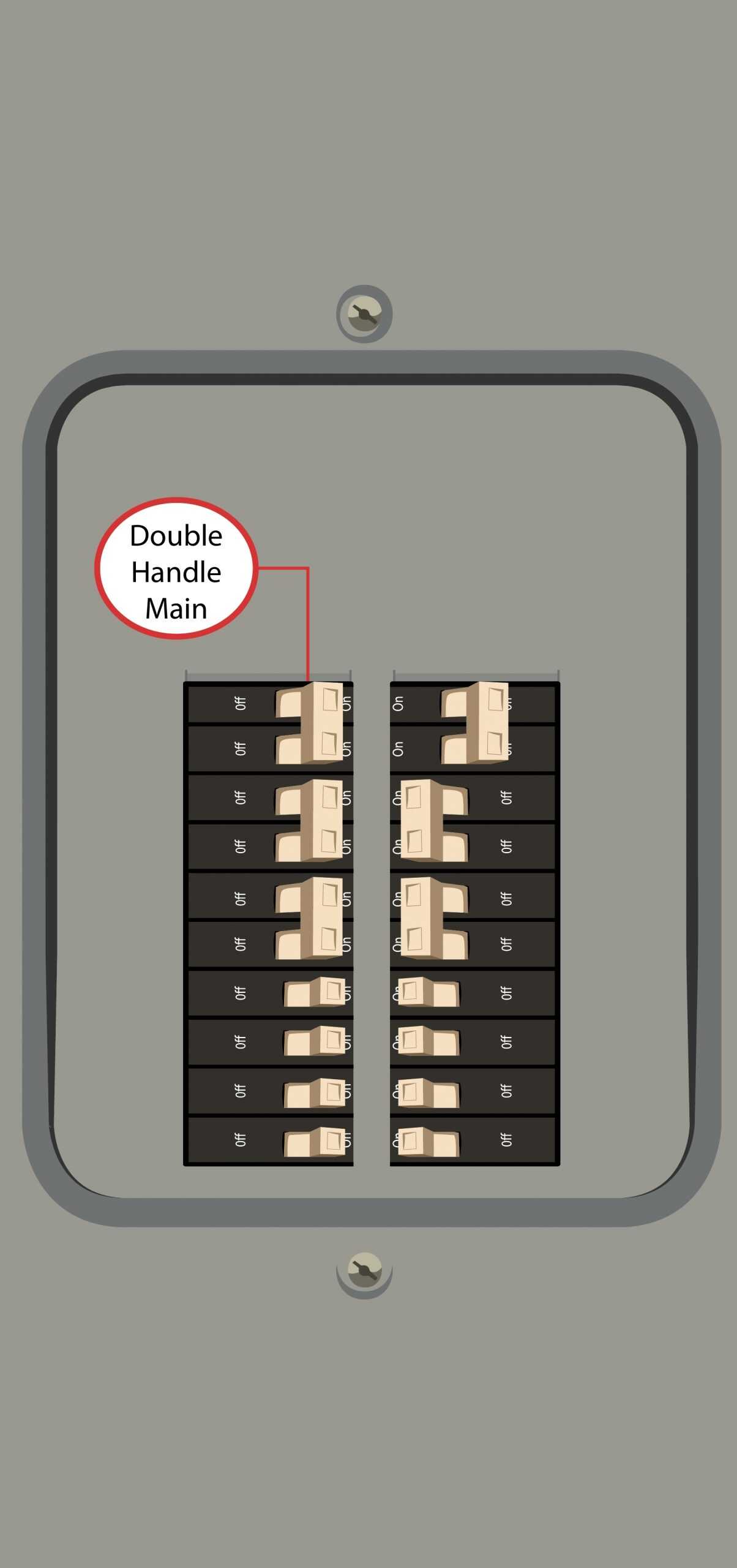

  • Main breaker sits directly on top of the breaker stack in the right or left breaker column
  • Compatible with CH style breakers

Requirements:

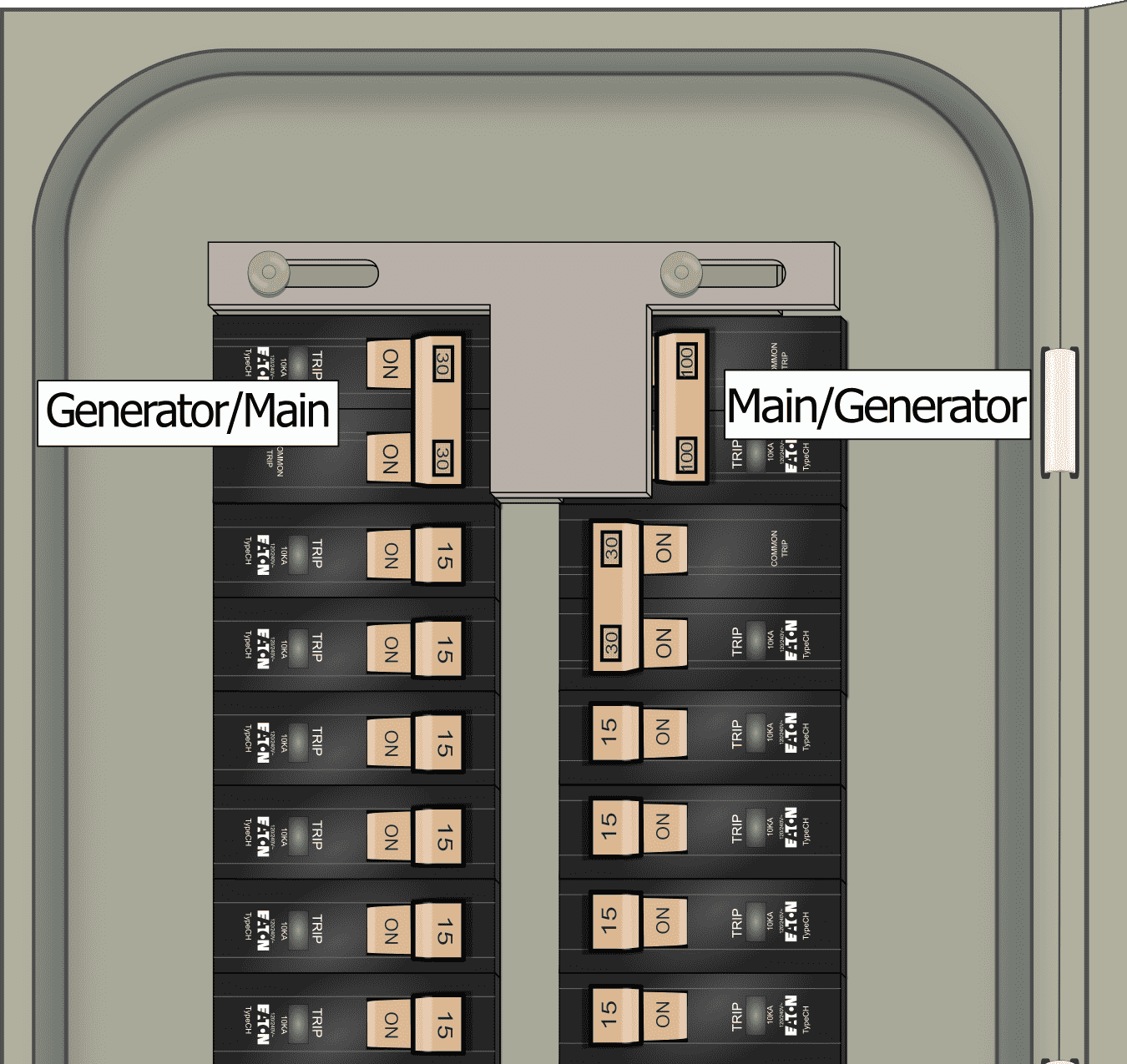

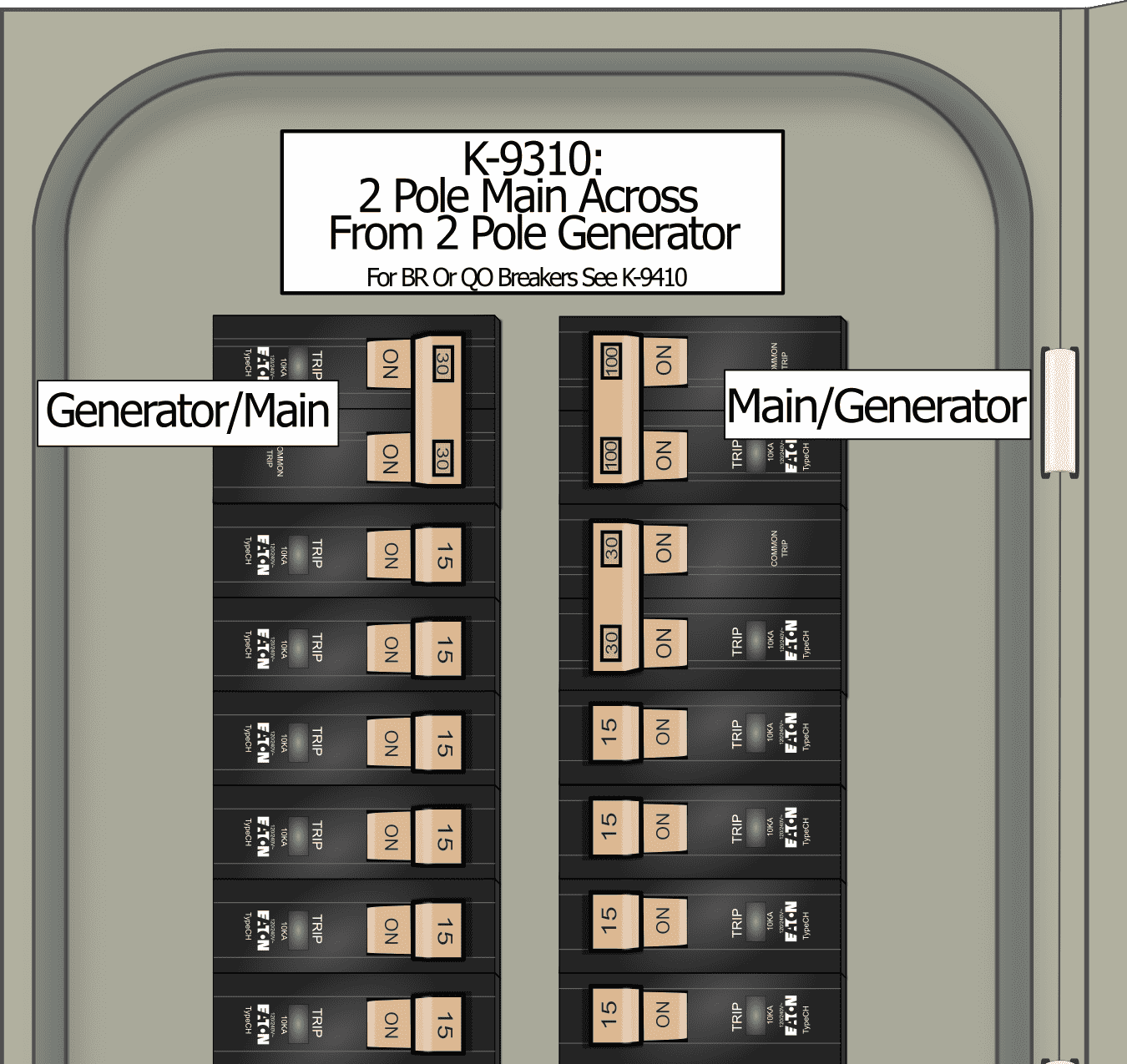

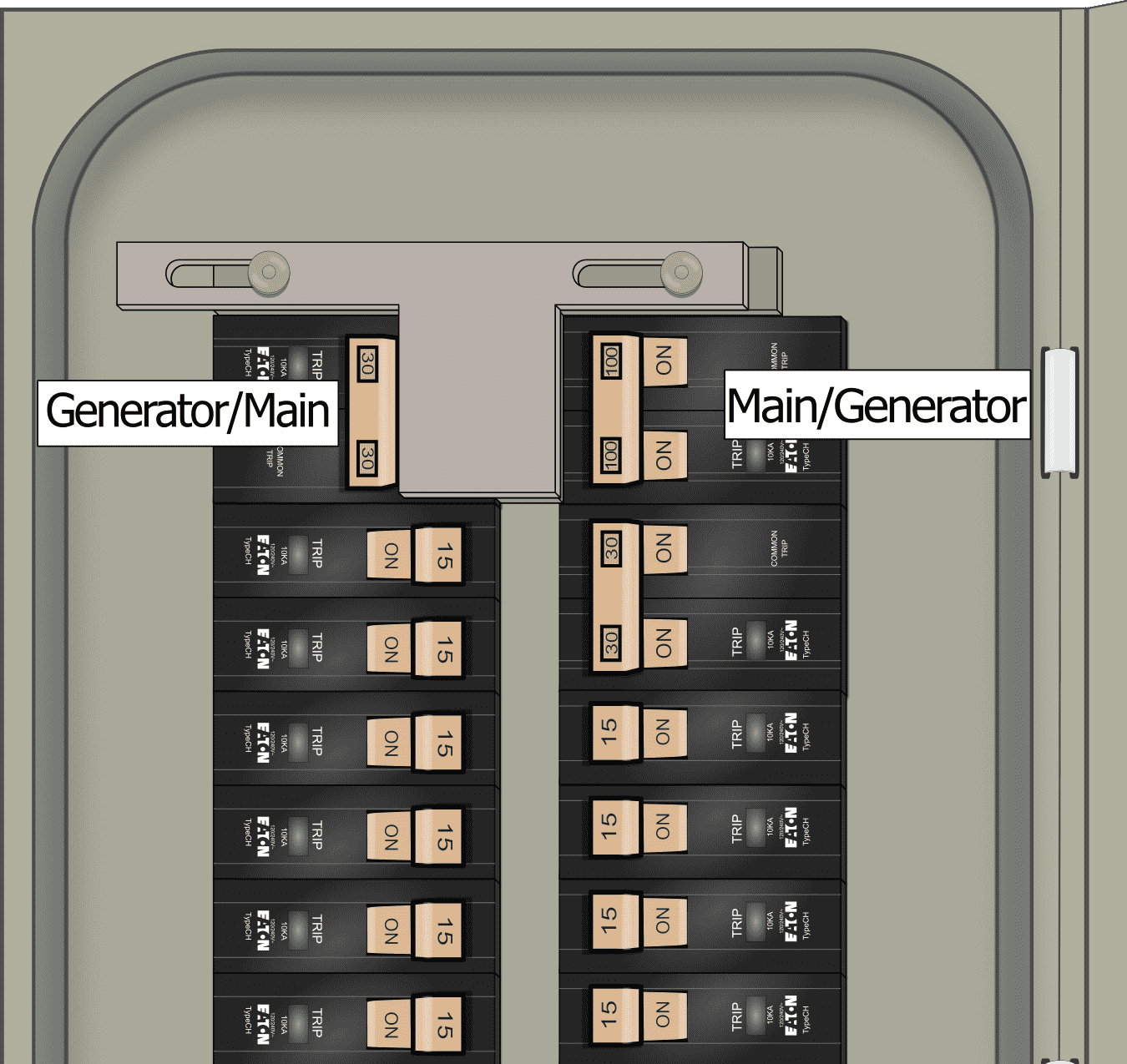

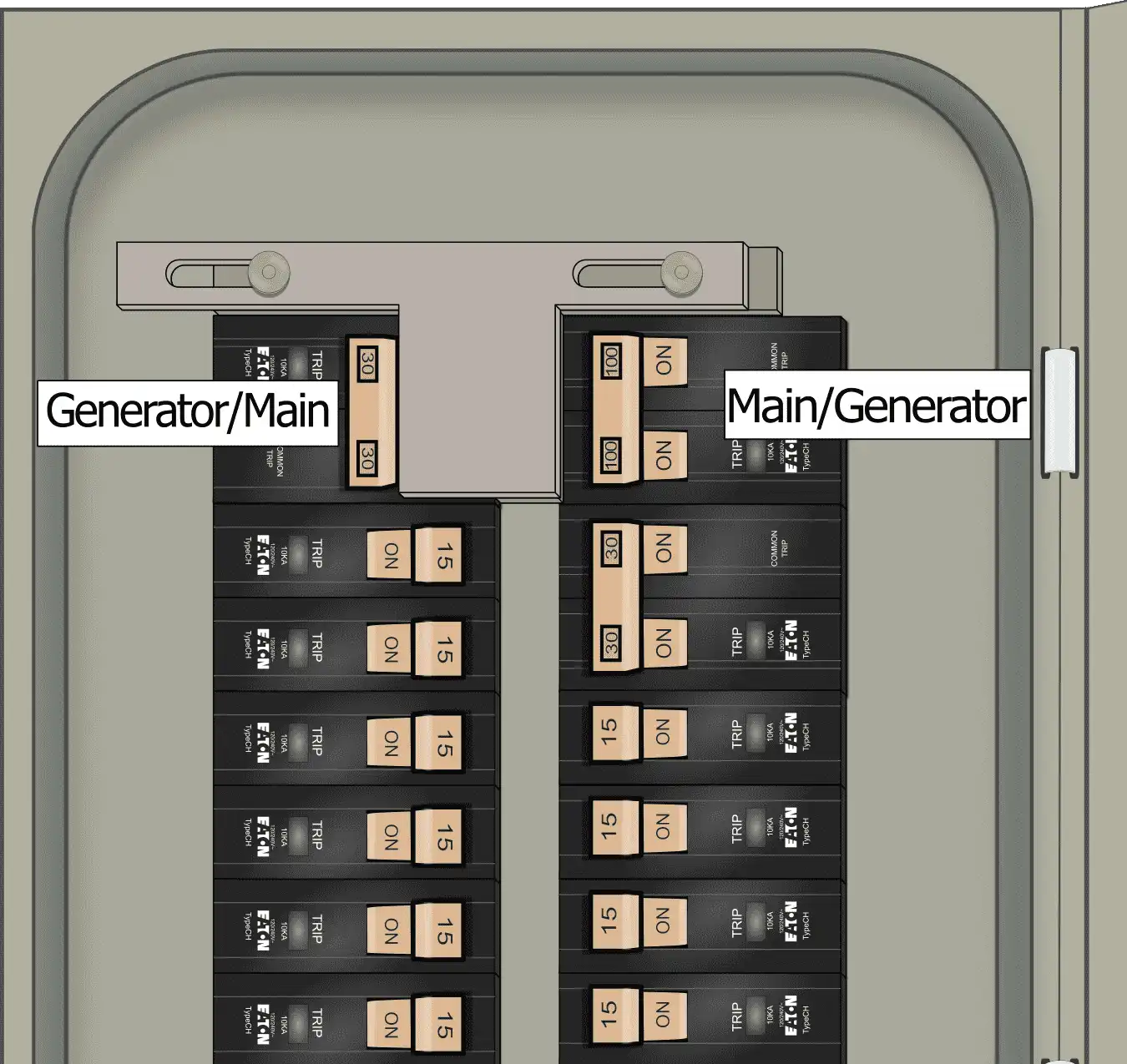

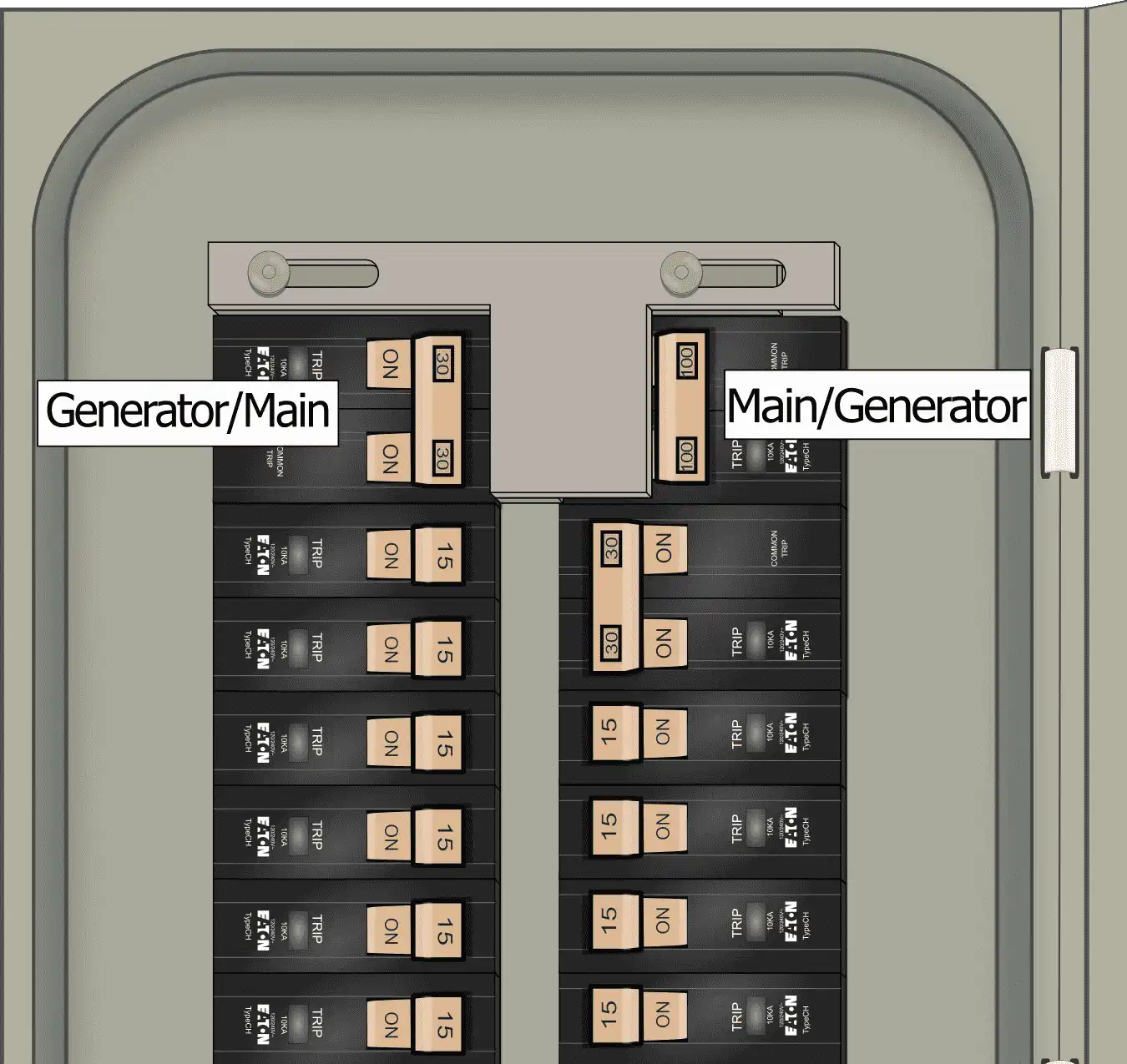

  • Install a two pole generator breaker at the top of the opposite column from the main breaker
  • Page four of the installation instructions includes a list of contents included in Kit K-9310

Interlock Kits similar to this kit include: K-9010, K-9011, K-9110, K-9210, & K-9410

Kit Installation Instructions

Description

This Kit performs like a manual transfer switch for Cutler Hammer / Square D / and General Electric electrical panels with the following features:

  • Space between breaker columns: 1/2″
  • No gap
  • 100-125 amp two pole main breaker
  • Main breaker toggle action: horizontal (left-right) throw direction ON & OFF
  • Main breaker sits directly on top of the breaker stack in the right or left breaker column
  • Compatible with CH style breakers

Requirements:

  • Install a two pole generator breaker at the top of the opposite column from the main breaker
  • Page four of the installation instructions includes a list of contents included in Kit K-9310

Interlock Kits similar to this kit include: K-9010, K-9011, K-9110, K-9210, & K-9410

Kit Installation Instructions

Additional information

Weight 1 lbs
