Interlock Kit K-5010
$149.95
PATENT PENDING PRODUCT
Have a question or don’t see a kit for your panel? We make custom Interlock Kits for any panel or solar scenario – call (804) 531-3359 or Contact Us!

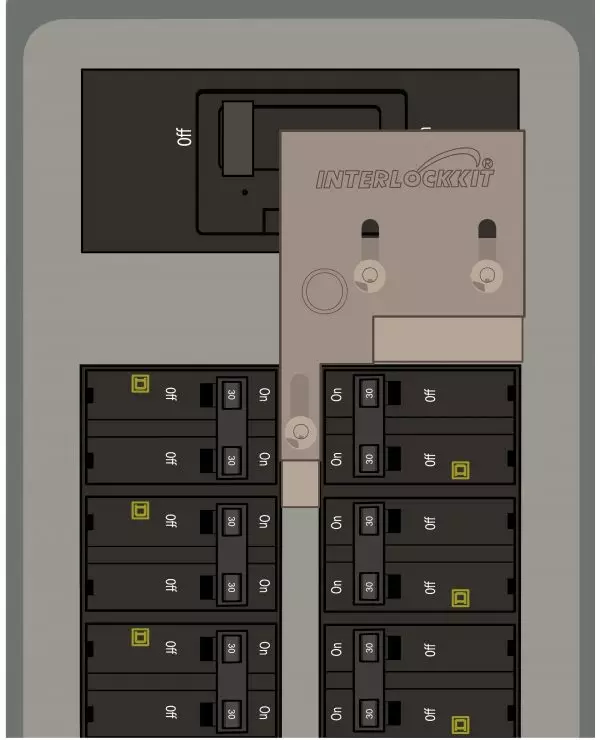

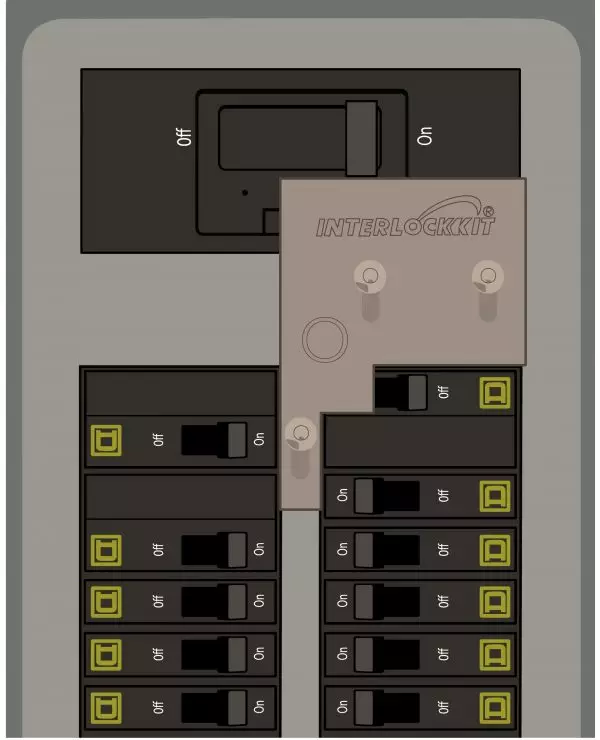

This Interlock Kit mounts to Square D electrical panels with the following features:
- Space between breaker columns: 1/2"
- Gap between main breaker and columns below: 1 1/4 - 1 1/2"
- 100-200 amp main breaker
- Main breaker toggle action: horizontal (left-right) throw direction
- Main breaker is centered over both breaker columns
- Compatible with: QO & HOMELINE type BREAKERS
Requirements:
- Install a generator breaker at the top of the right column: spaces 2 & 4
- Page four of the installation instructions includes a list of contents included in Kit K-5010
Modified versions of this Interlock Kit exist, see: K-5011 (not featured on site) , KS-5010 (solar modified Interlock Kit) call for more details about modified kits for K-5010: (804)726-2448
Additional information
| Weight | 1 lbs |
|---|---|
| Catalog #: | QO142M200PC,QO130M200PRB, QO130L200PGC, QO142L225PGRB, QO140M200C, QO140M200RB, HOM816M150PFTRB, HOM4080M200PC, QC816F150C, RC2040M200C, HOMC42U,HOMC42UC, HOMC30UC,HOMC30U, QC816F100CH, QC816F125X, QC816F150C, QC816F150CH,QC816F200C, QC816F200CH, QOC42UF, QO30M150RB, QOC40OU ,QOC30UF ,SC816F200F, SC3042M200PS, HOMC42UC, QOC30OU, QOC20OU, RC816F150C, RC2040M150CH, RC2040F150C, RC3040M150SL, SC2040M200PF — other compatible catalog #'s may not be listed here yet. Use the details listed in "Description" to help match your kit! |
