Interlock Kit K-5210

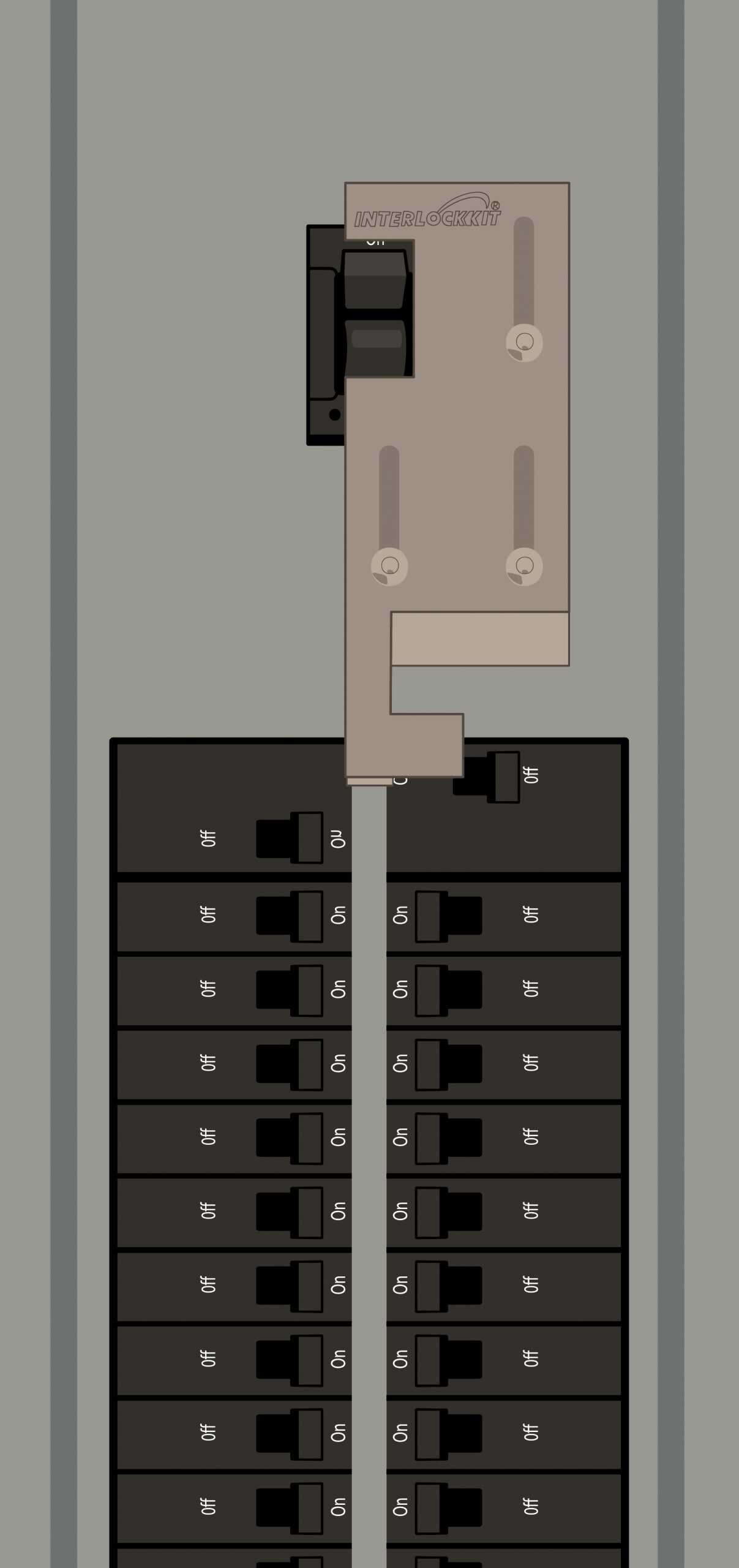

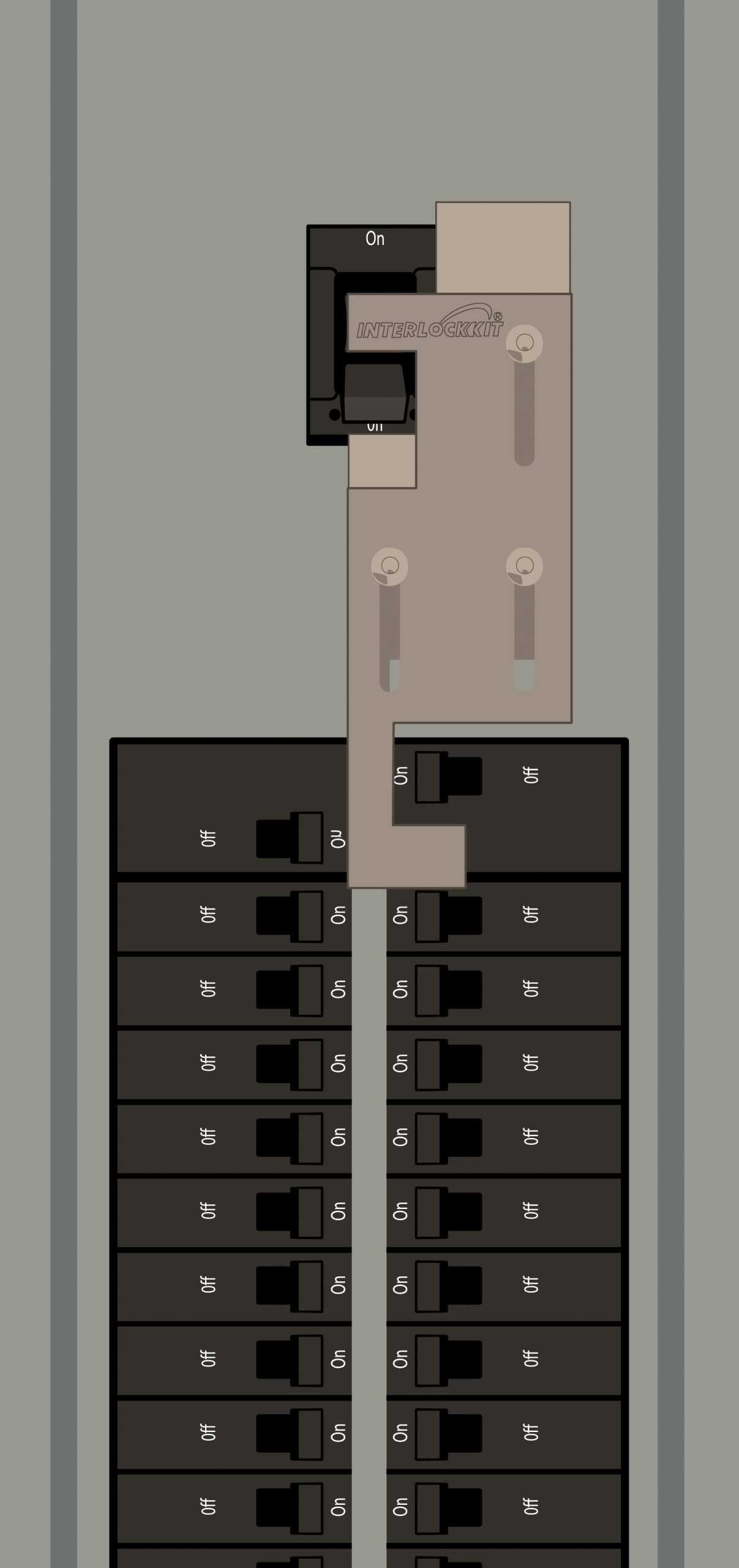

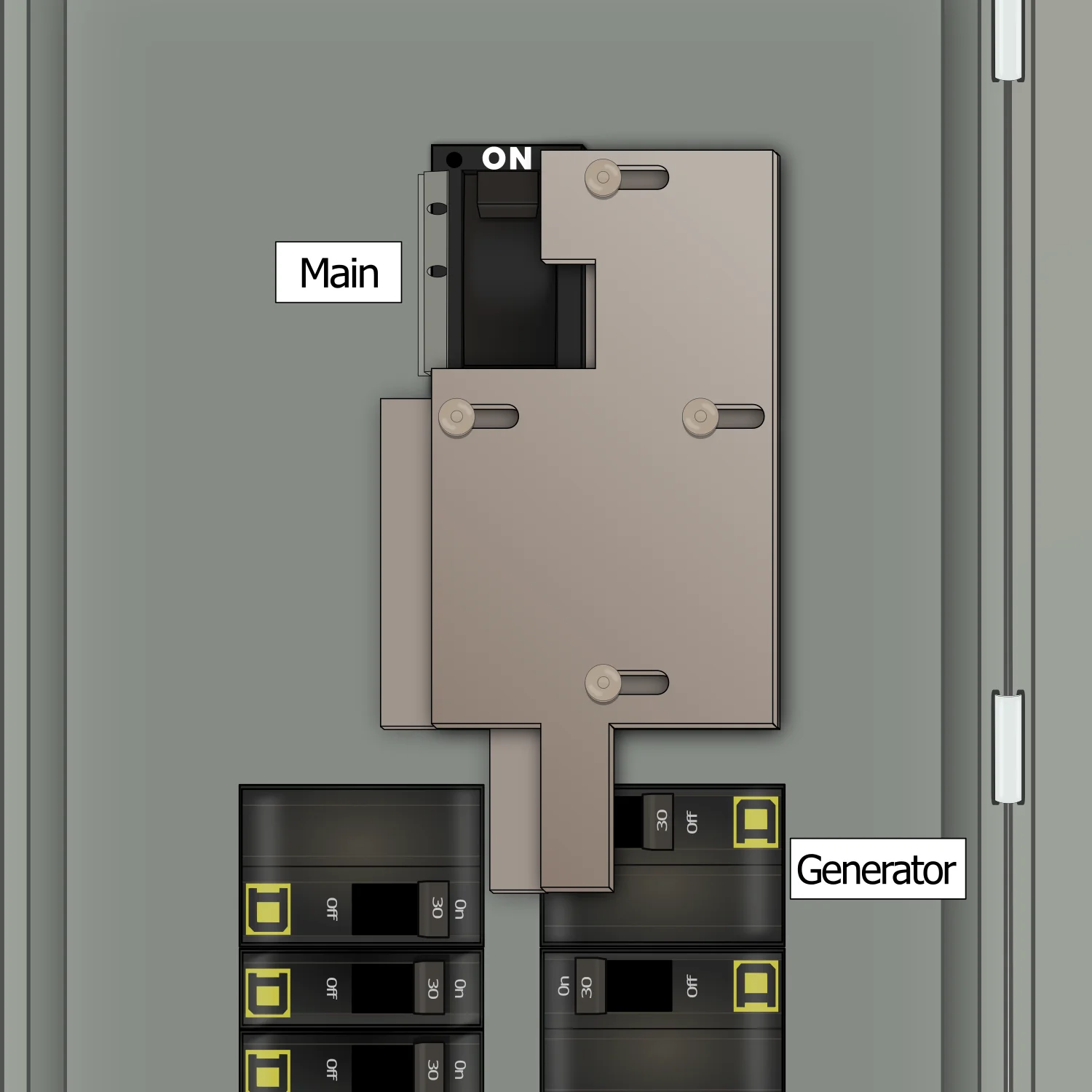

This Kit performs like a manual transfer switch for Square D electrical panel with the following features:

• Space between breaker columns: 1/2"

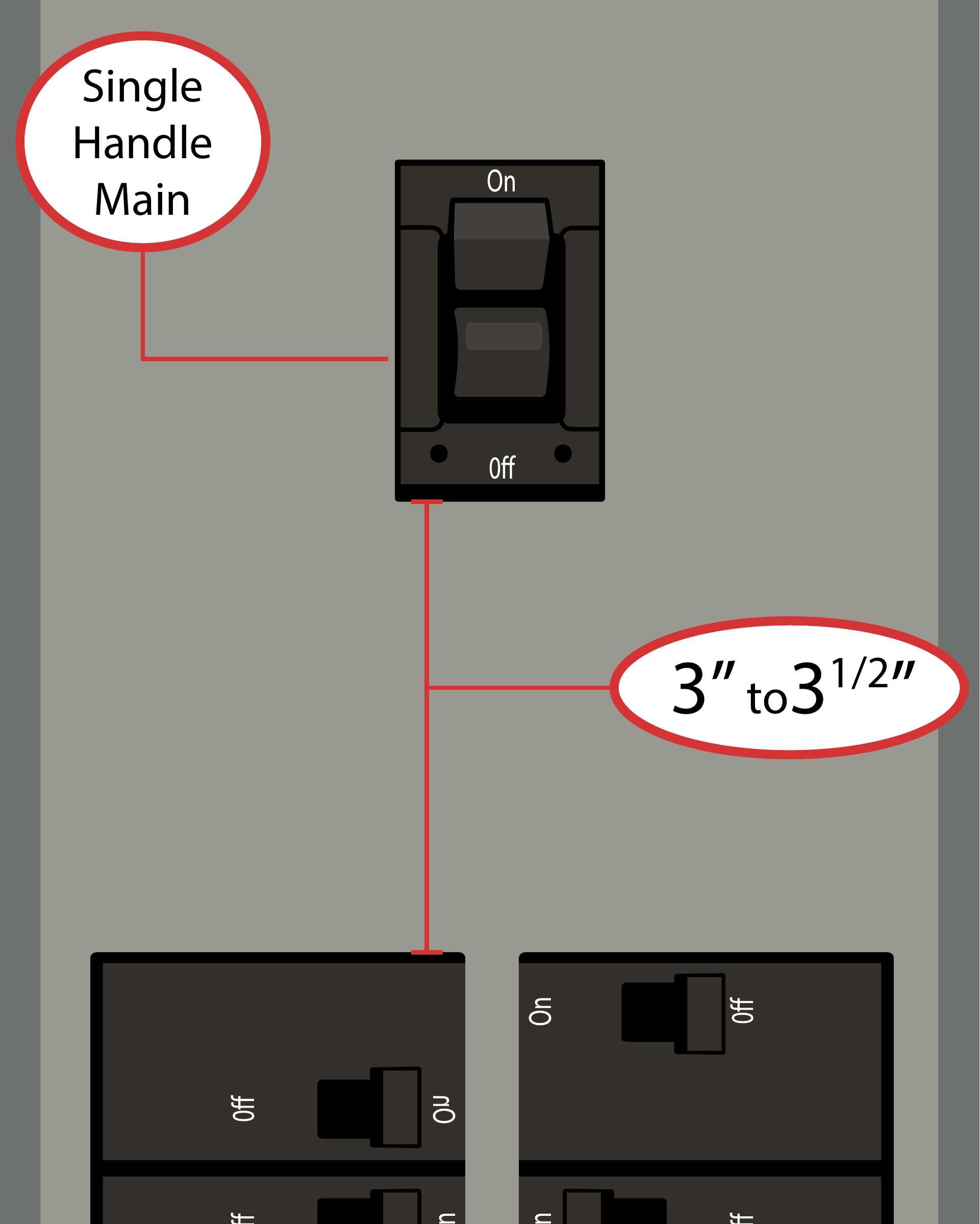

• Gap between main breaker and columns below, is: 3-3 1/2"
• 150-200 amp main breaker
• Main breaker toggle action: vertical (up-down) throw direction ON & OFF
• Main breaker is centered over both breaker columns
• Compatible with QO type breakers

Requirements:

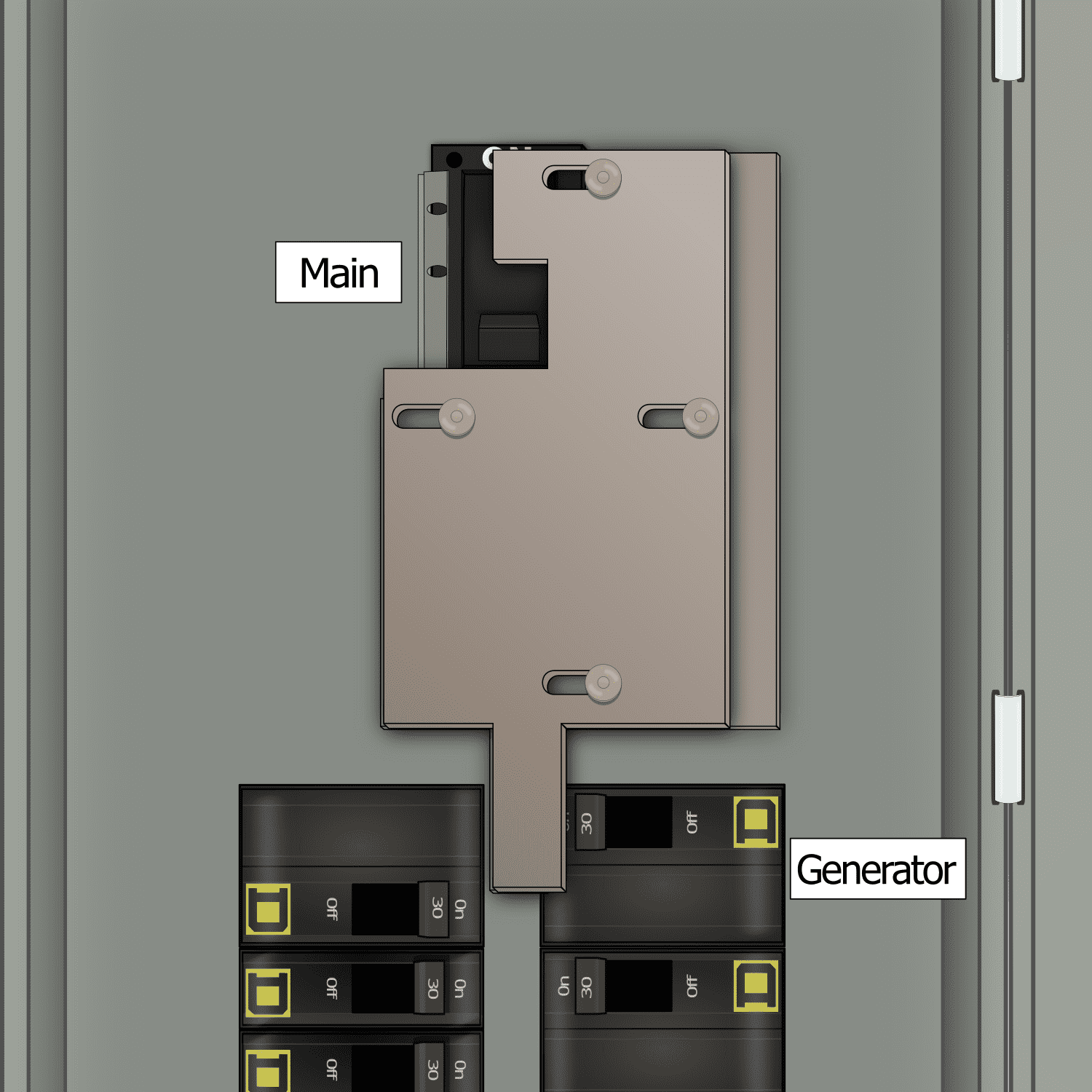

• Install a generator breaker at the top of the right breaker column: spaces 2 & 4
• Page four of the installation instructions includes a list of contents in Kit K-5210

Modified versions of this Interlock Kit exist, see: K-5410
Kit Installation Instructions
