Interlock Kit K-4510 | Interlock Kit

This Kit mounts to Siemens, ITE, Murray, Cutler Hammer, EATON, Crouse-Hinds, & Bryant electrical panels with the following features:

• Space between breaker columns: 1/2"

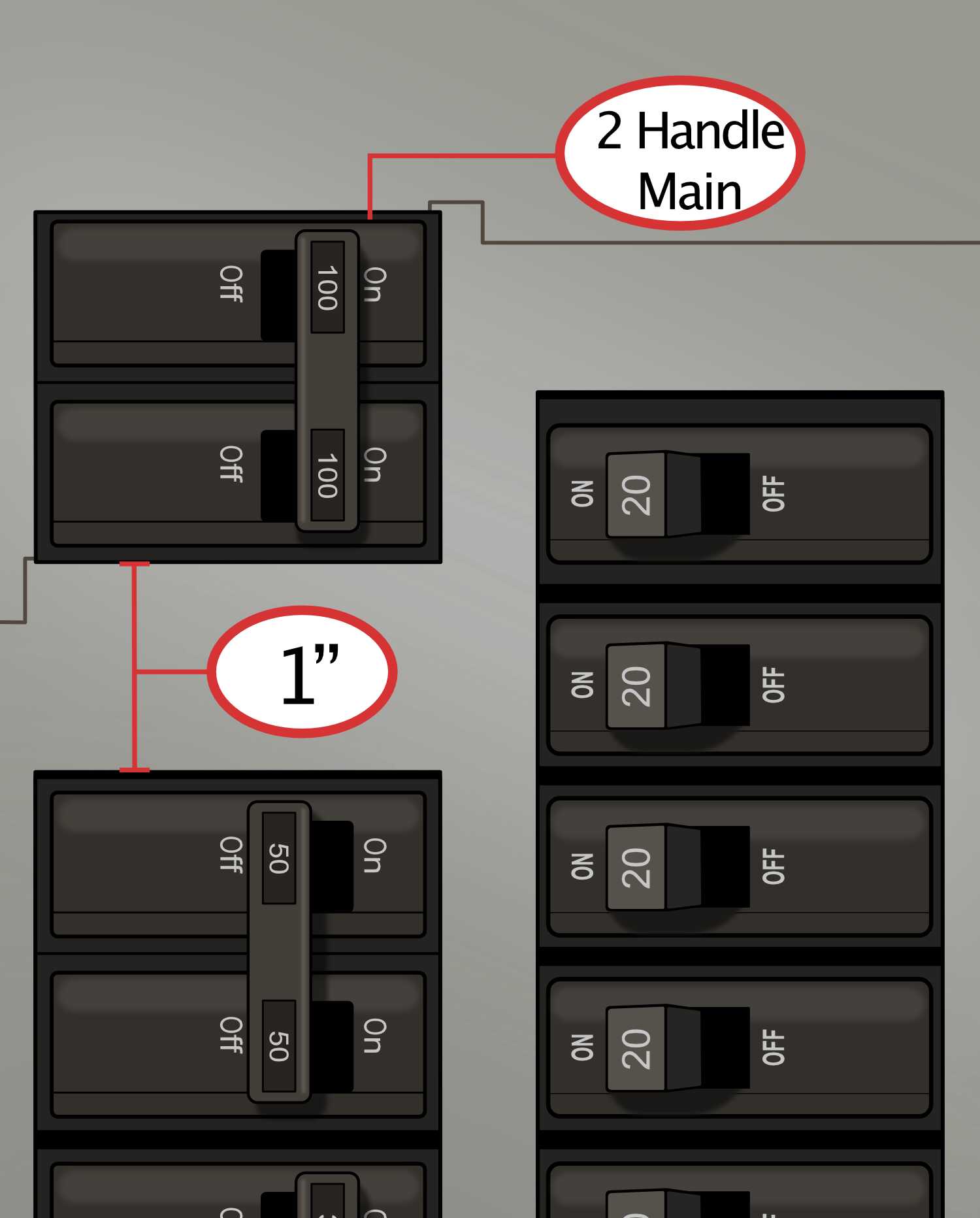

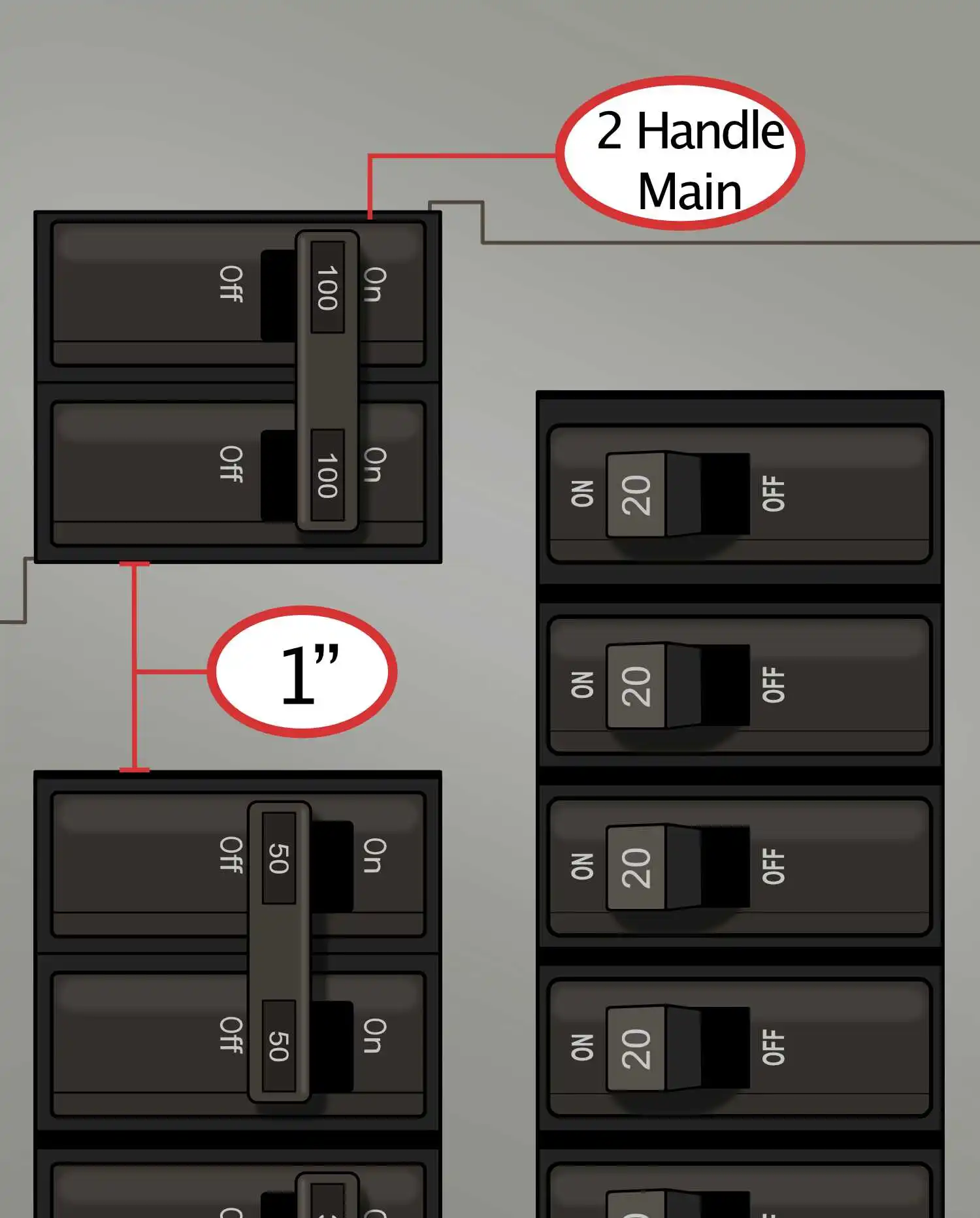

• Gap between main breaker and generator breaker: 1"
• 100-125 amp main breaker
• Main breaker toggle action: horizontal (left-right) throw direction ON & OFF
• Main breaker sits directly over top of the left breaker column
• Works with EQ loadcentre's single phase or three phase

Requirements

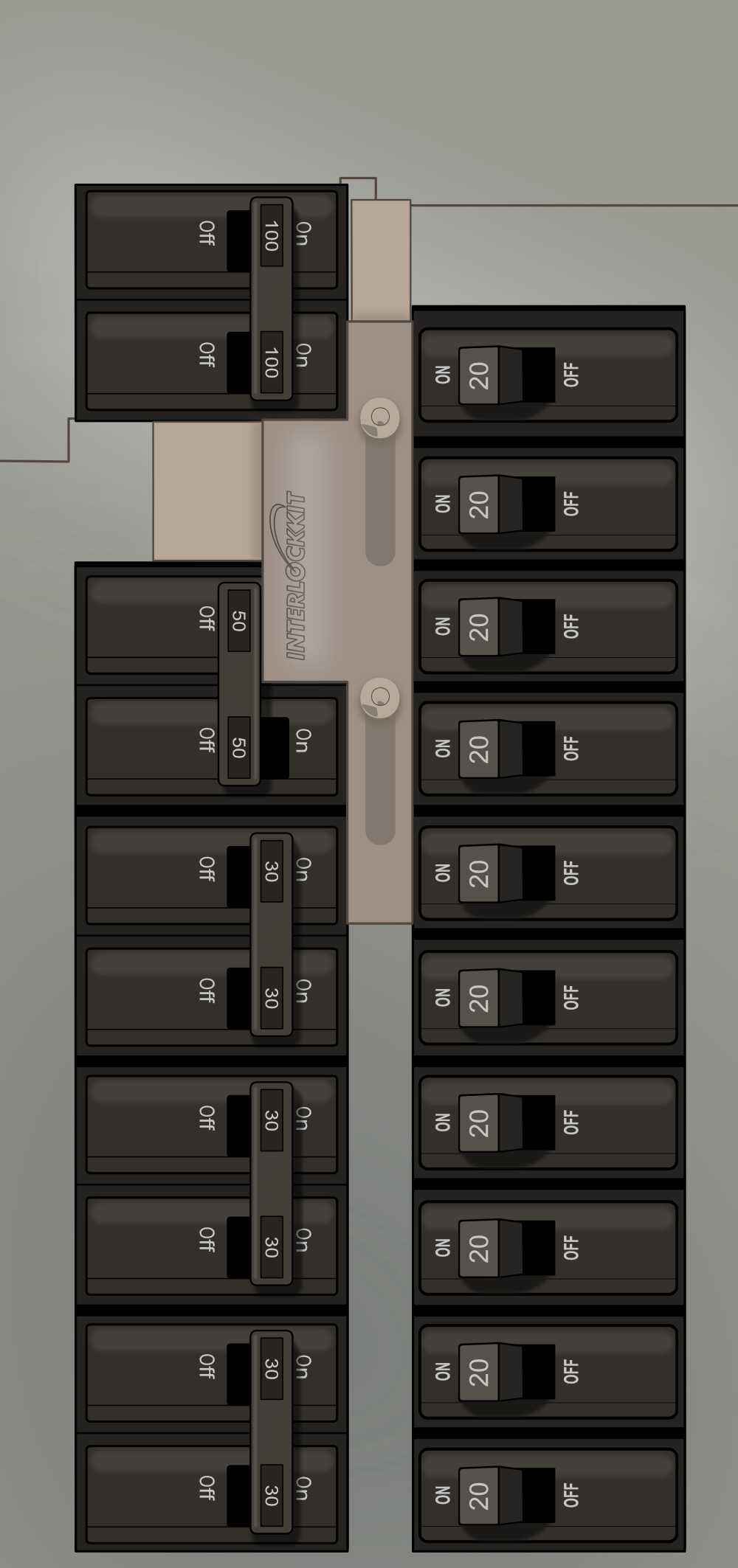

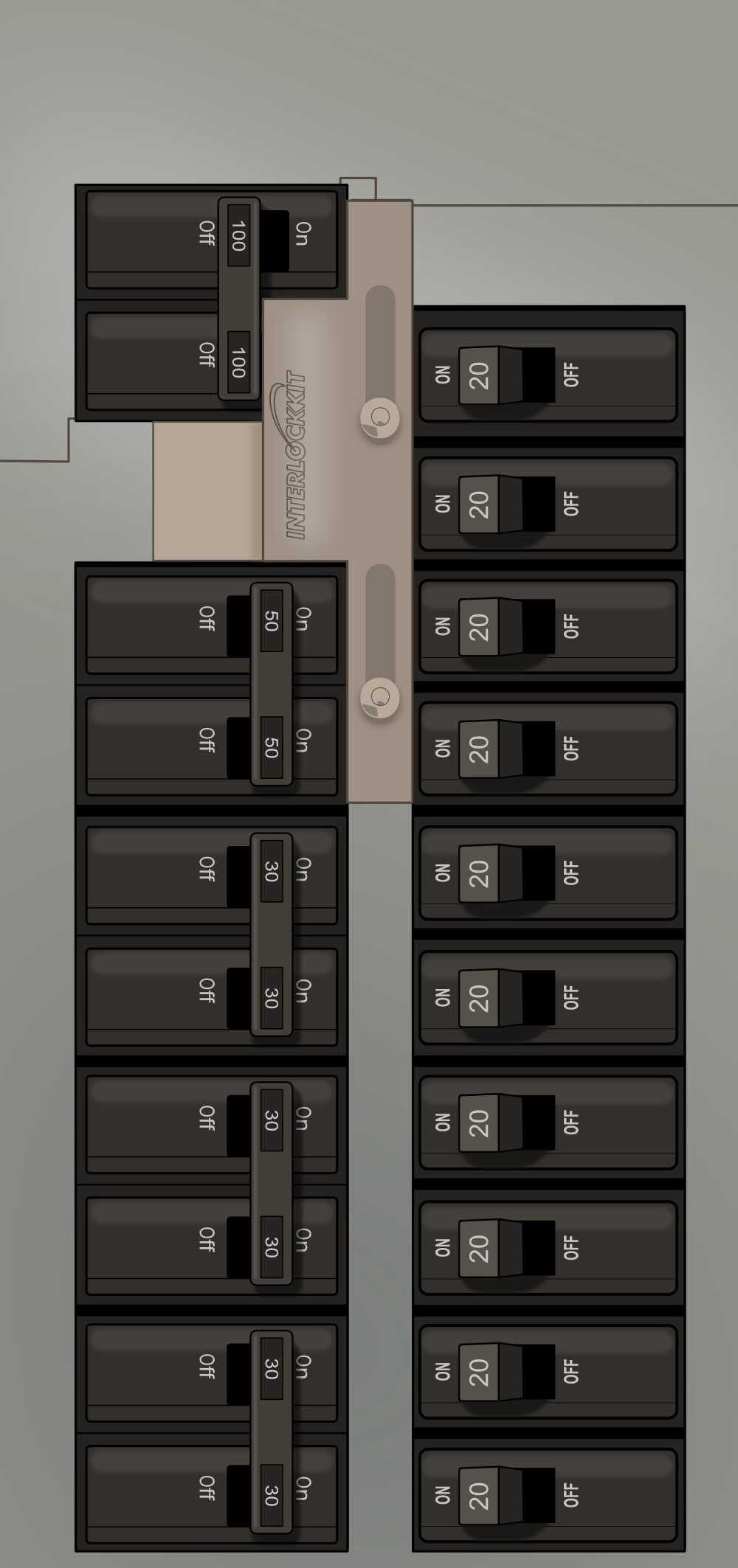

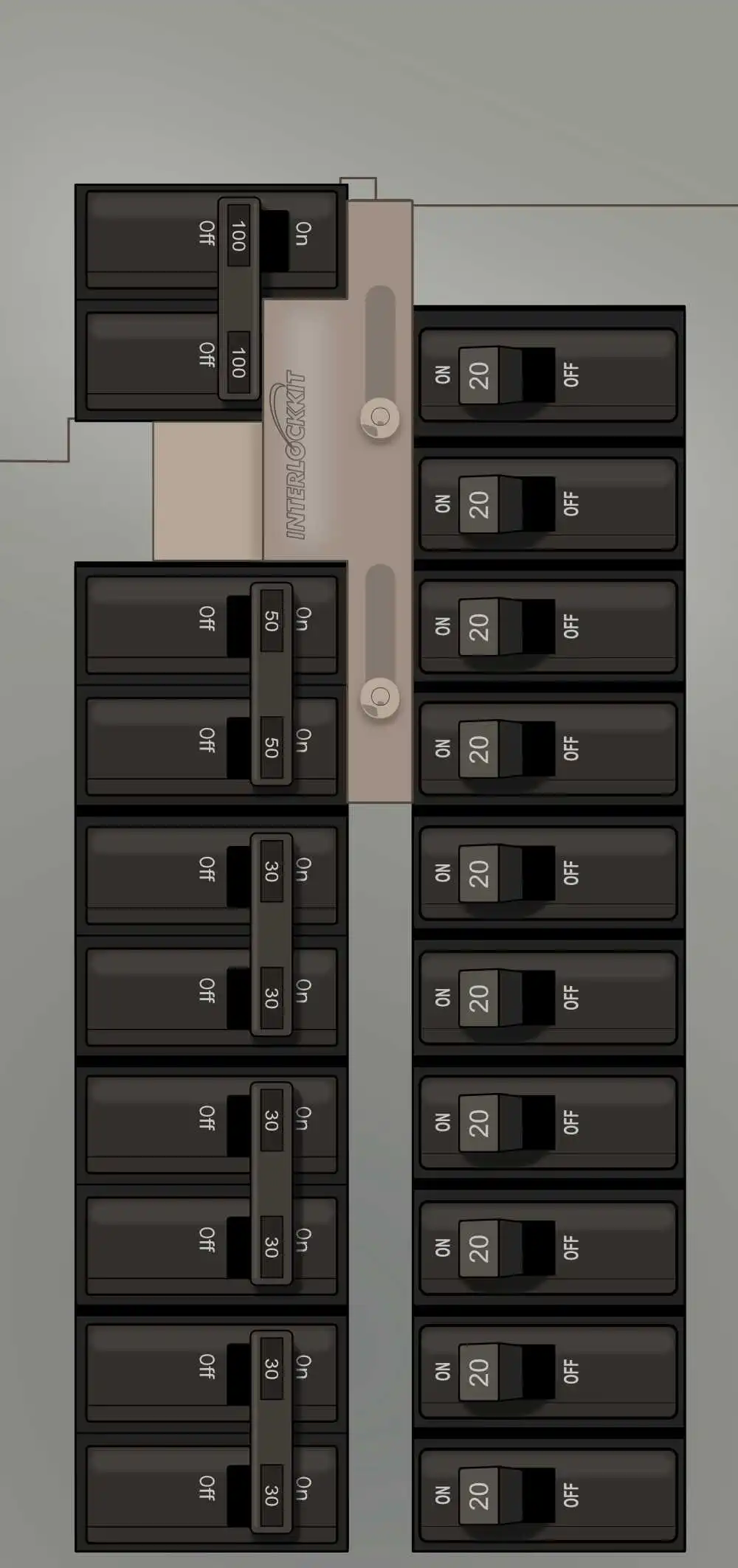

• Install a two pole generator breaker directly below the main breaker in spaces: 2 & 4
• Page four of the installation instructions includes a list of contents included in Kit K-4510

This kit works in any 1" gap between two, two pole breakers
