Interlock Kit KS-6512-CH

This Interlock Kit mounts to EATON electrical panels with the following features:

• SOLAR & GENERATOR COMPATIBLE INTERLOCK KIT
• Space between breaker columns: 1/2"
• Gap between main breaker and columns below: 1 1/4 - 1 1/2"
• 150-200 amp main breaker
• Main breaker toggle action: horizontal (left-right) throw direction
• Main breaker is centered over both breaker columns

Requirements:

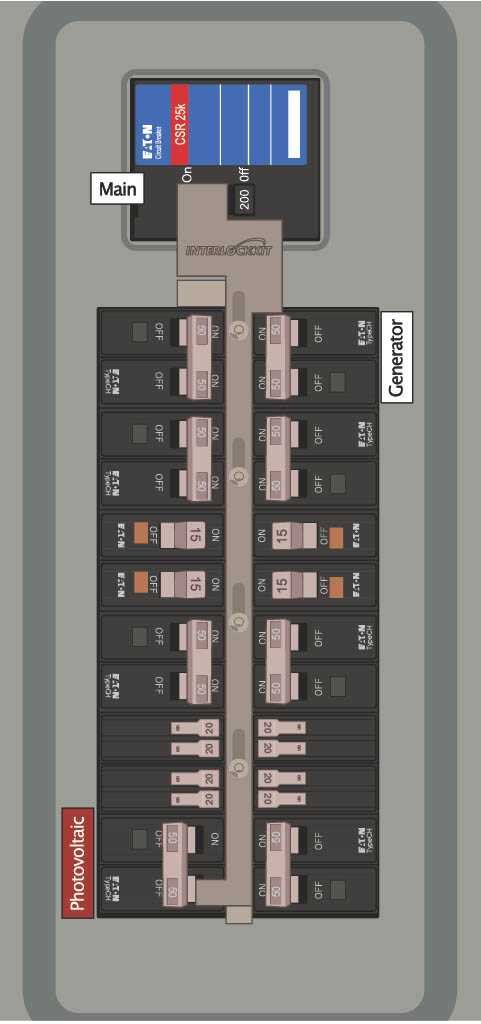

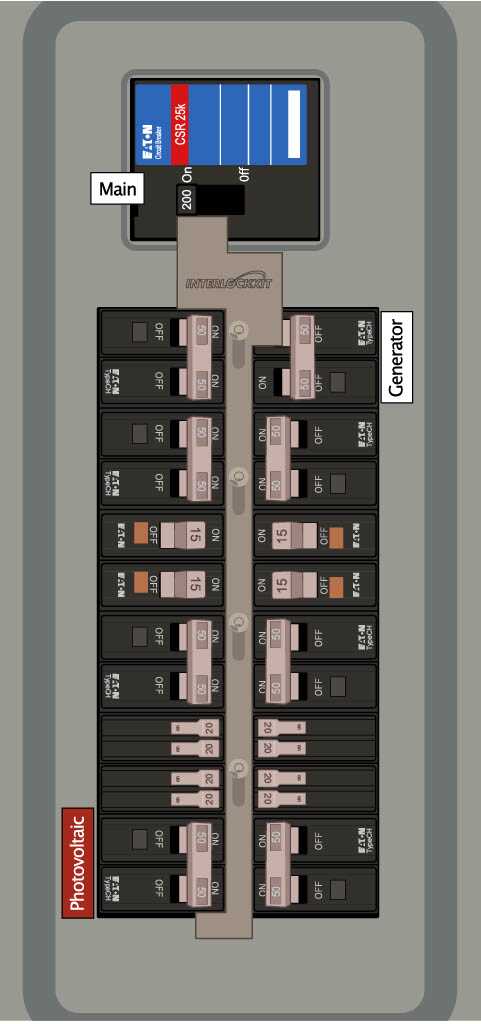

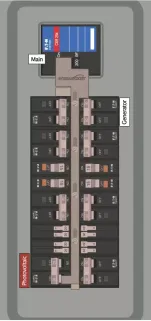

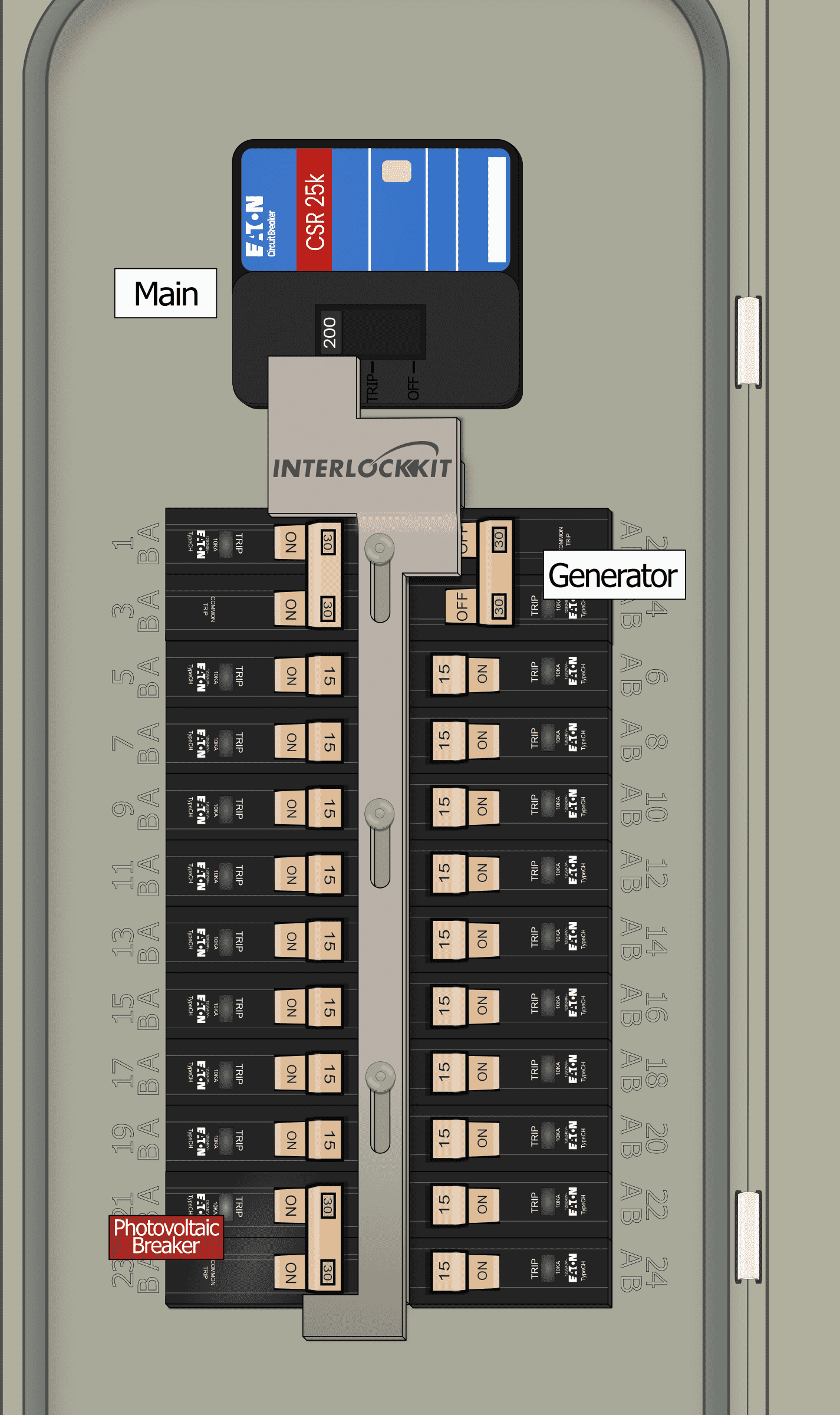

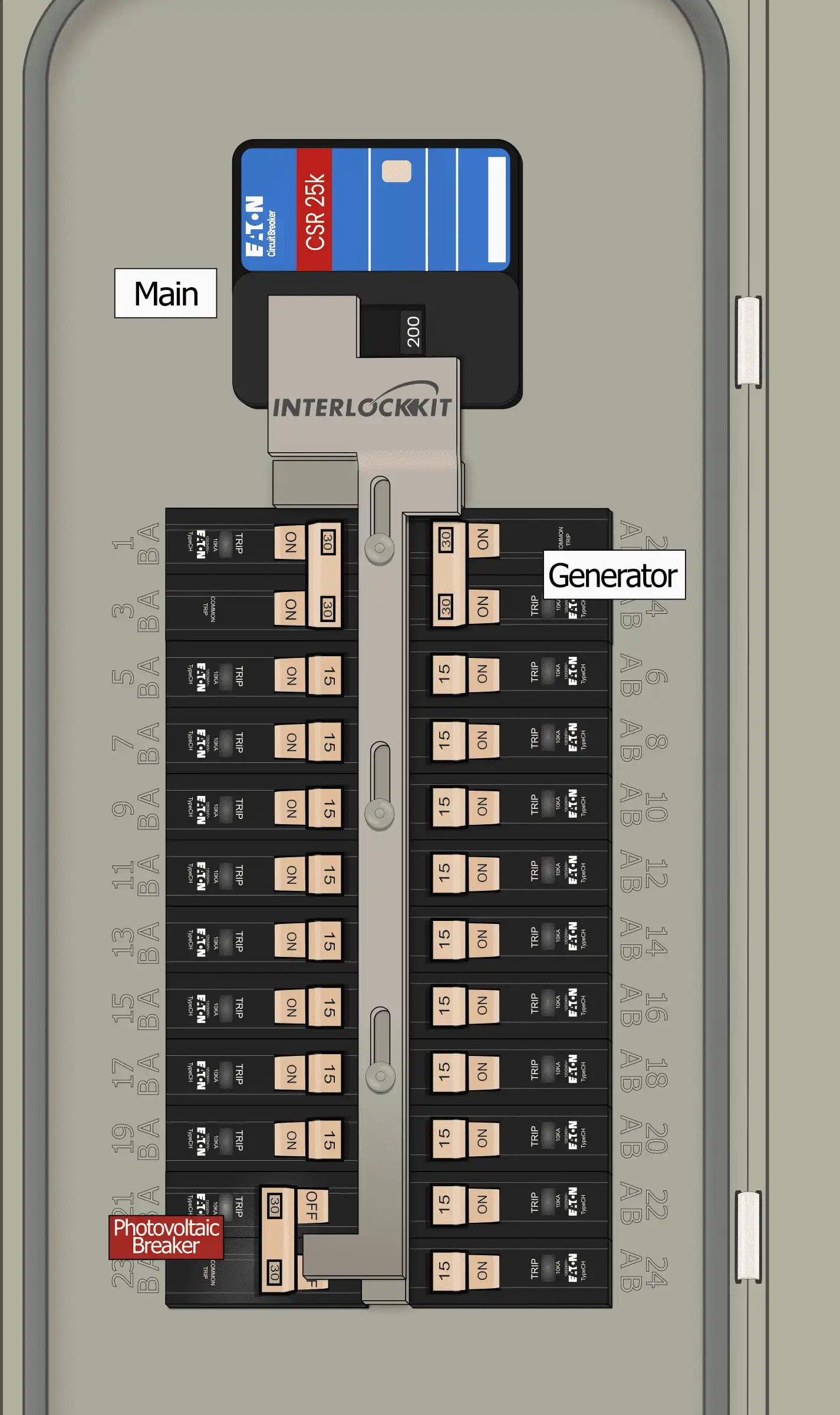

• Install a generator breaker at the top of the right column: spaces 2 & 4
• Install a solar breaker in the bottom left corner of the branch circuit columns
• Compatible with 24 space 48 CH circuit panels. 12 3/4 inch spaces in the left column & 12 3/4 inch spaces in the right column.
• Page four of the installation instructions includes a list of contents included in Kit KS-6512-CH

Modified versions of this Interlock Kit exist, see: KS-6514-CH, KS-6513-CH (solar modified Interlock Kit) call for more details about modified kits: (804)726-2448
