Cutler Hammer/EATON Kit K-6115

$149.95

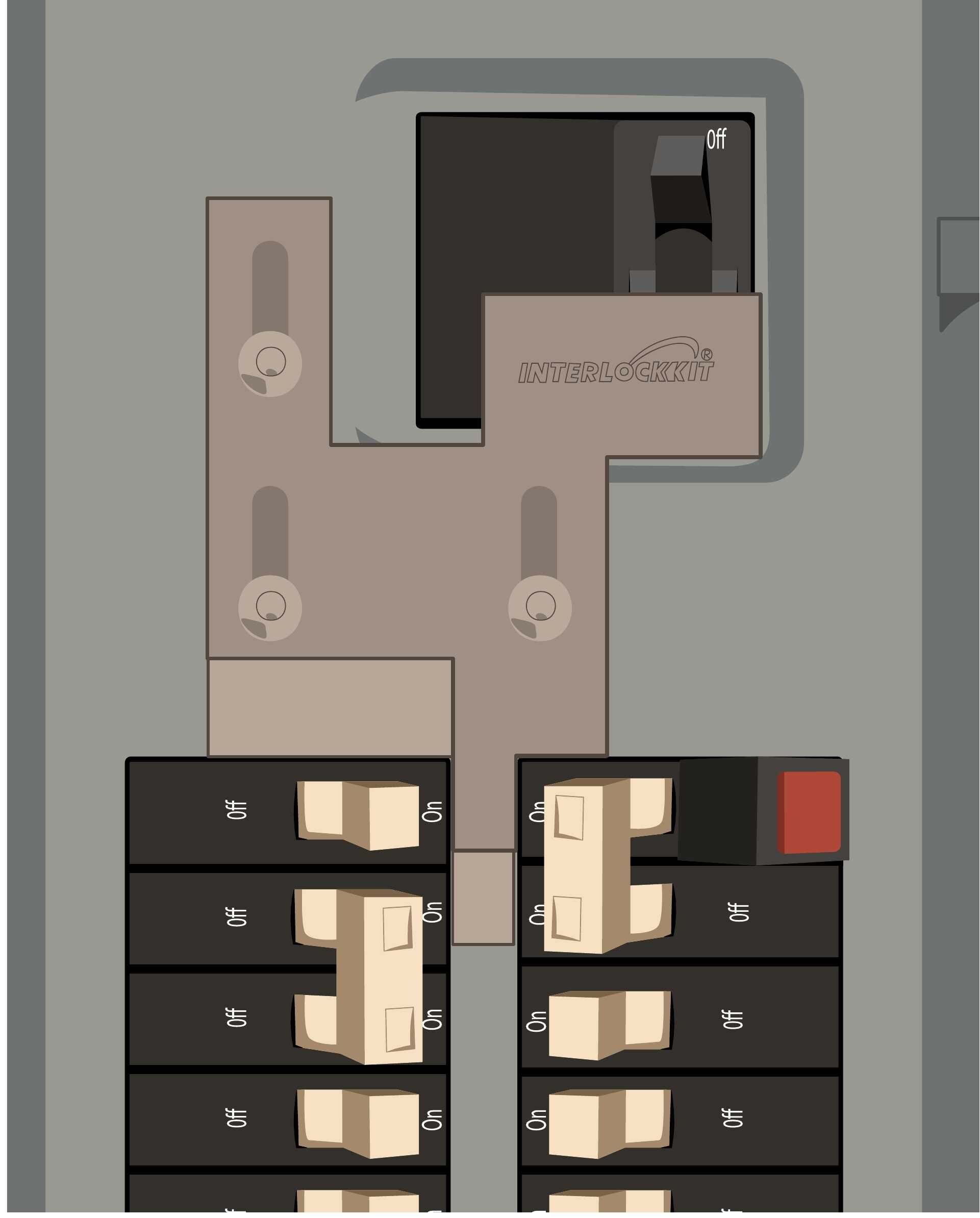

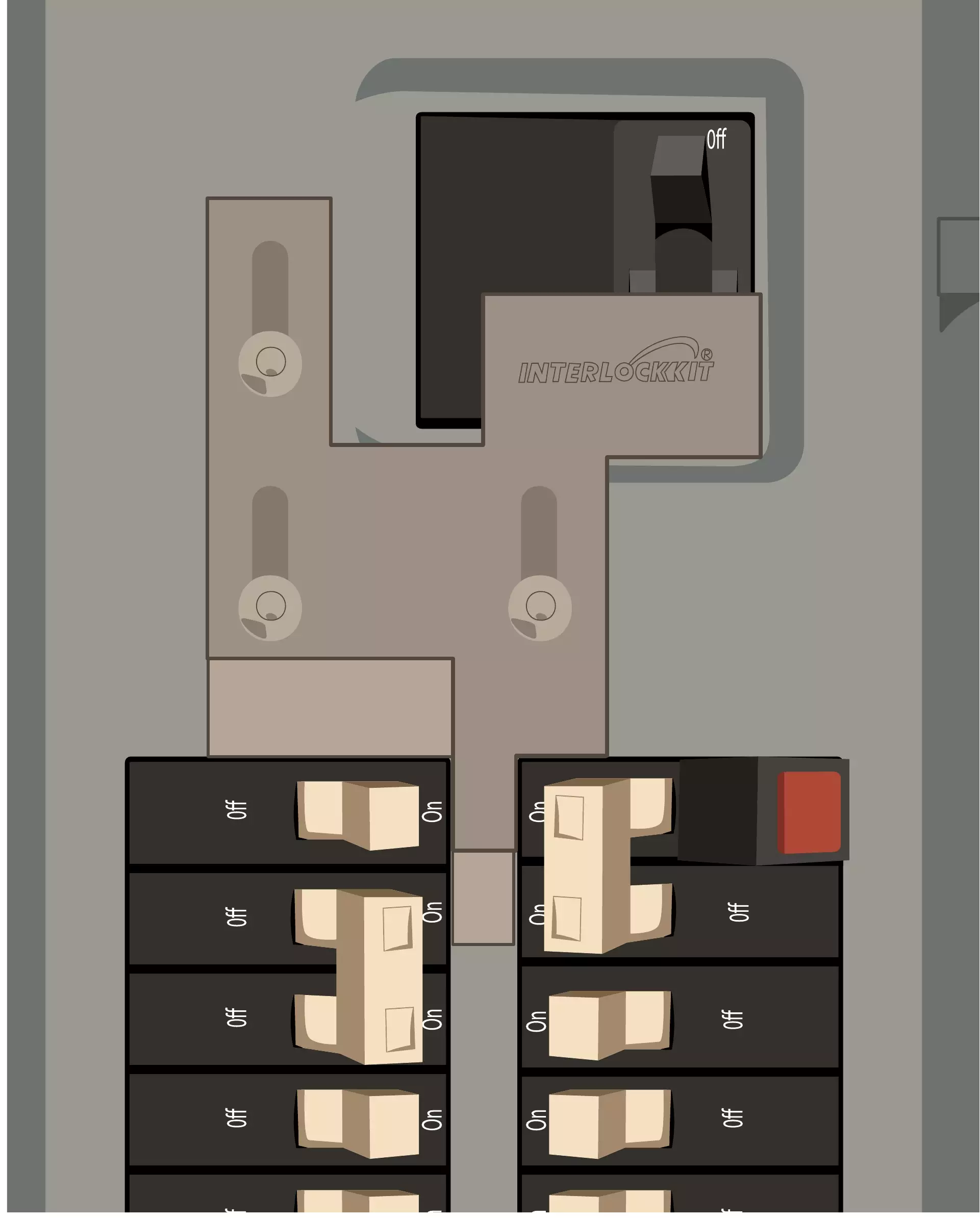

This Interlock Kit mounts to EATON/Cutler Hammer electrical panels and requires:

  • CH-style breakers (tan handle)
  • Vertical (up-down) throw
  • One-handle breaker
  • Toggle switch is offset right of center if the main is at the top of the panel (if bottom fed the main toggle switch will be offset to the left of center)
  • Inset in cover

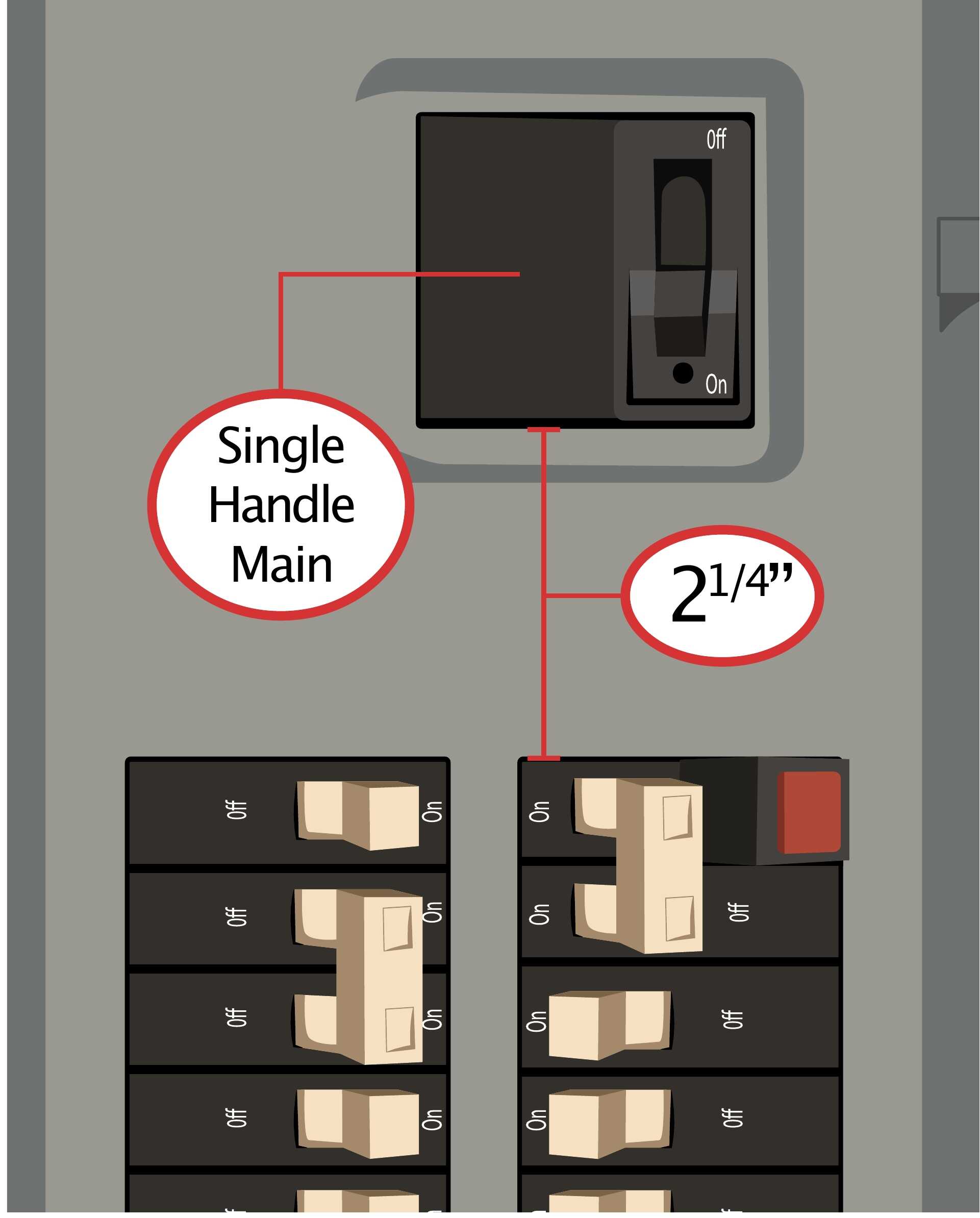

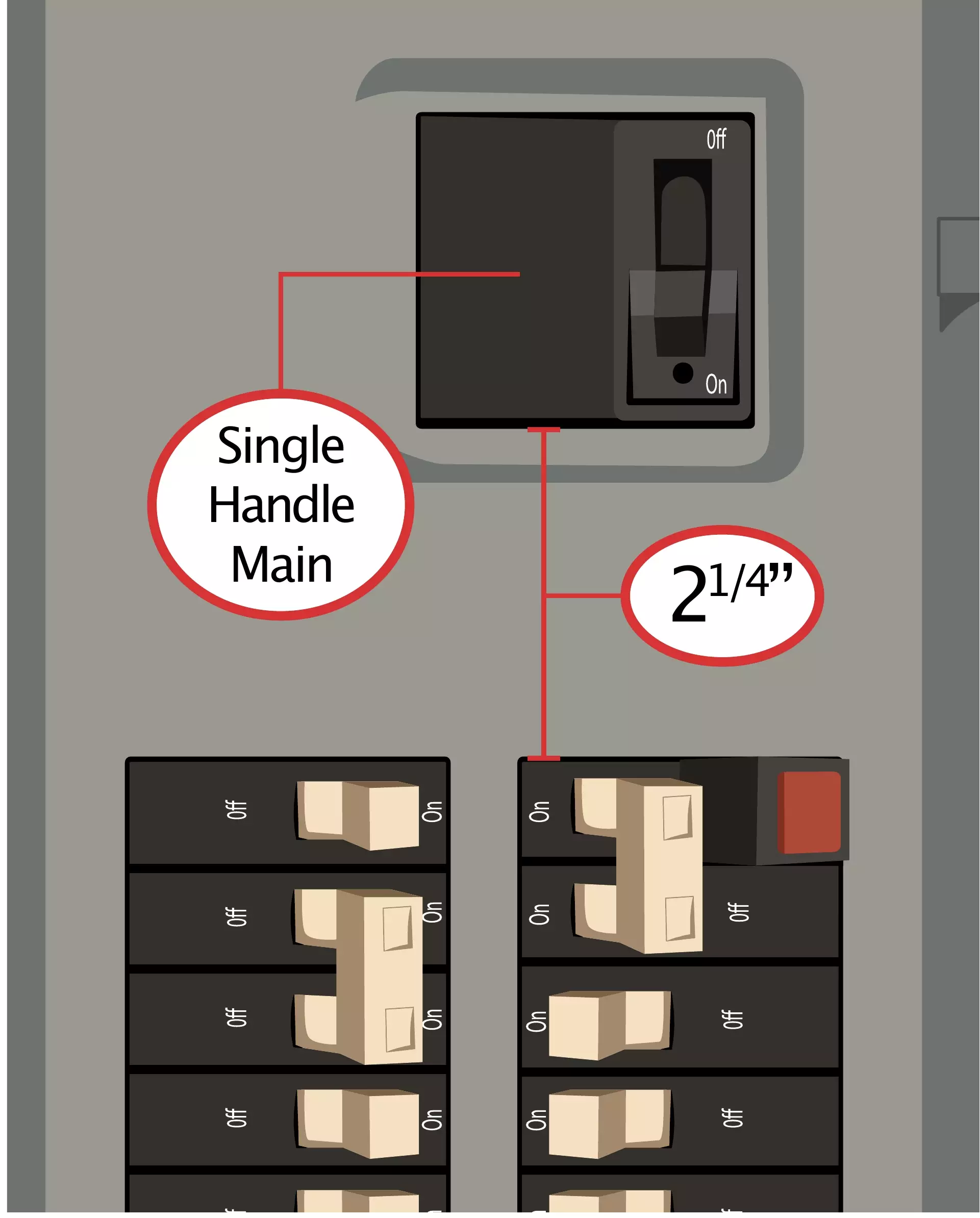

  • Distance from columns: 2¼” (above)

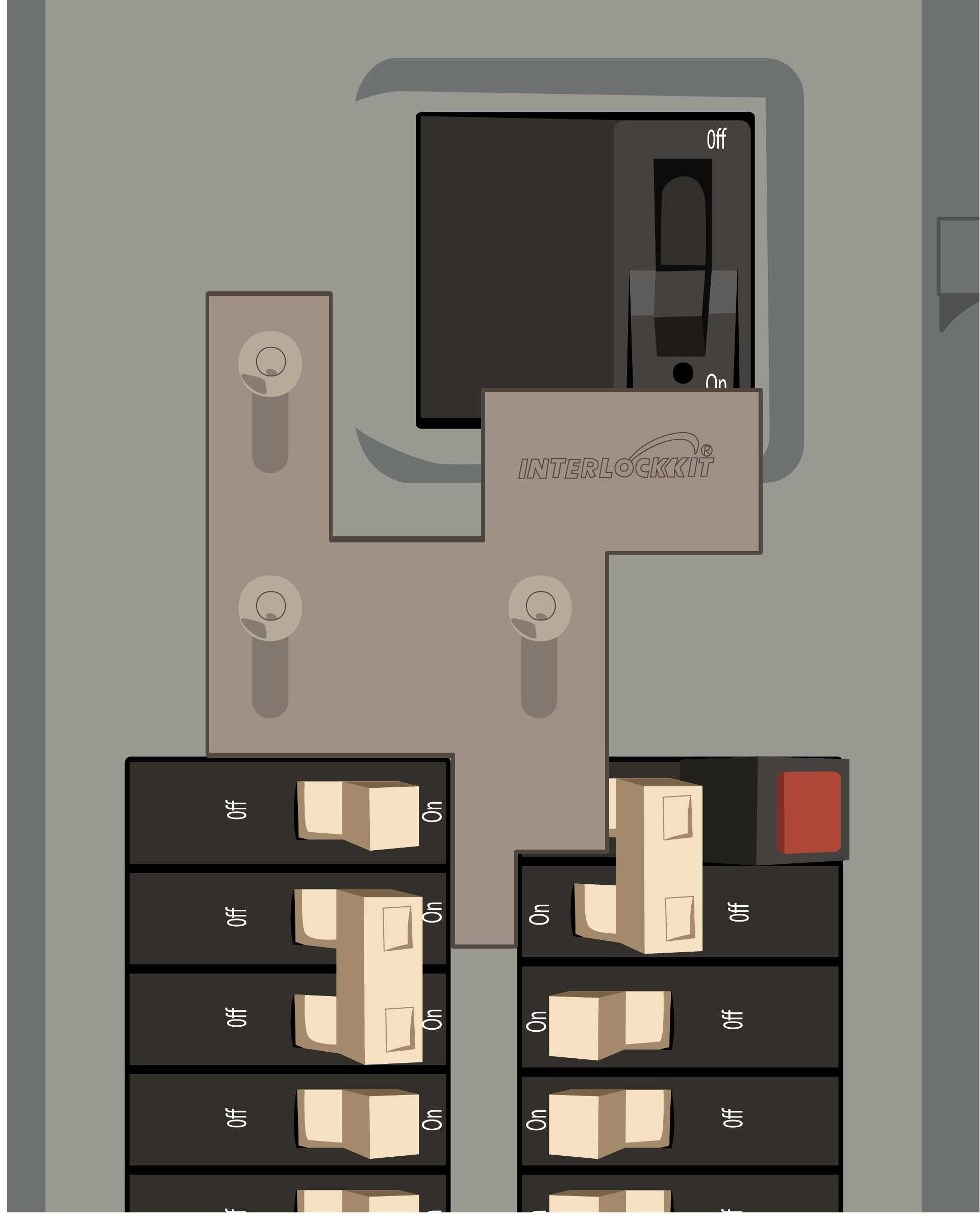

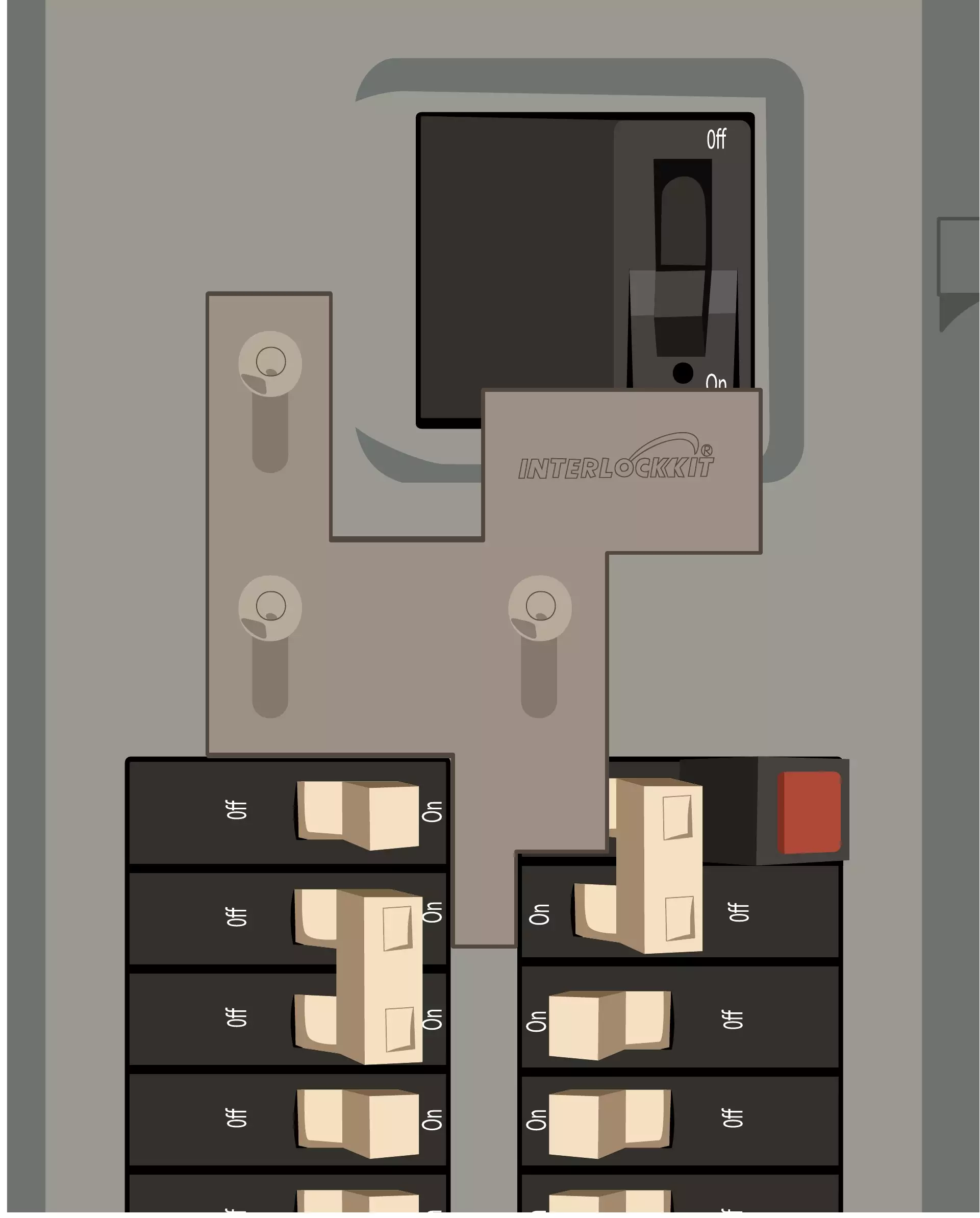

  • *Take note of the main toggle switch – NOTICE THE FLIPPED MAIN BREAKER: ON is down and OFF is up* (the opposite would be true if this panel was bottom fed, ON up and OFF down)



Space between breaker columns: ½”; three panel spaces required for this Kit.

Description

This Interlock Kit mounts to EATON/Cutler Hammer electrical panels and requires:

  • CH-style breakers (tan handle)
  • Vertical (up-down) throw
  • One-handle breaker
  • Toggle switch is offset right of center if the main is at the top of the panel (if bottom fed the main toggle switch will be offset to the left of center)
  • Inset in cover
  • Distance from columns: 2¼” (above)
  • *Take note of the main toggle switch – NOTICE THE FLIPPED MAIN BREAKER: ON is down and OFF is up* (the opposite would be true if this panel was bottom fed, ON up and OFF down)



Space between breaker columns: ½”; three panel spaces required for this Kit.

Additional information

Weight 1 lbs
