Cutler Hammer/EATON Kit K-6110

$149.95

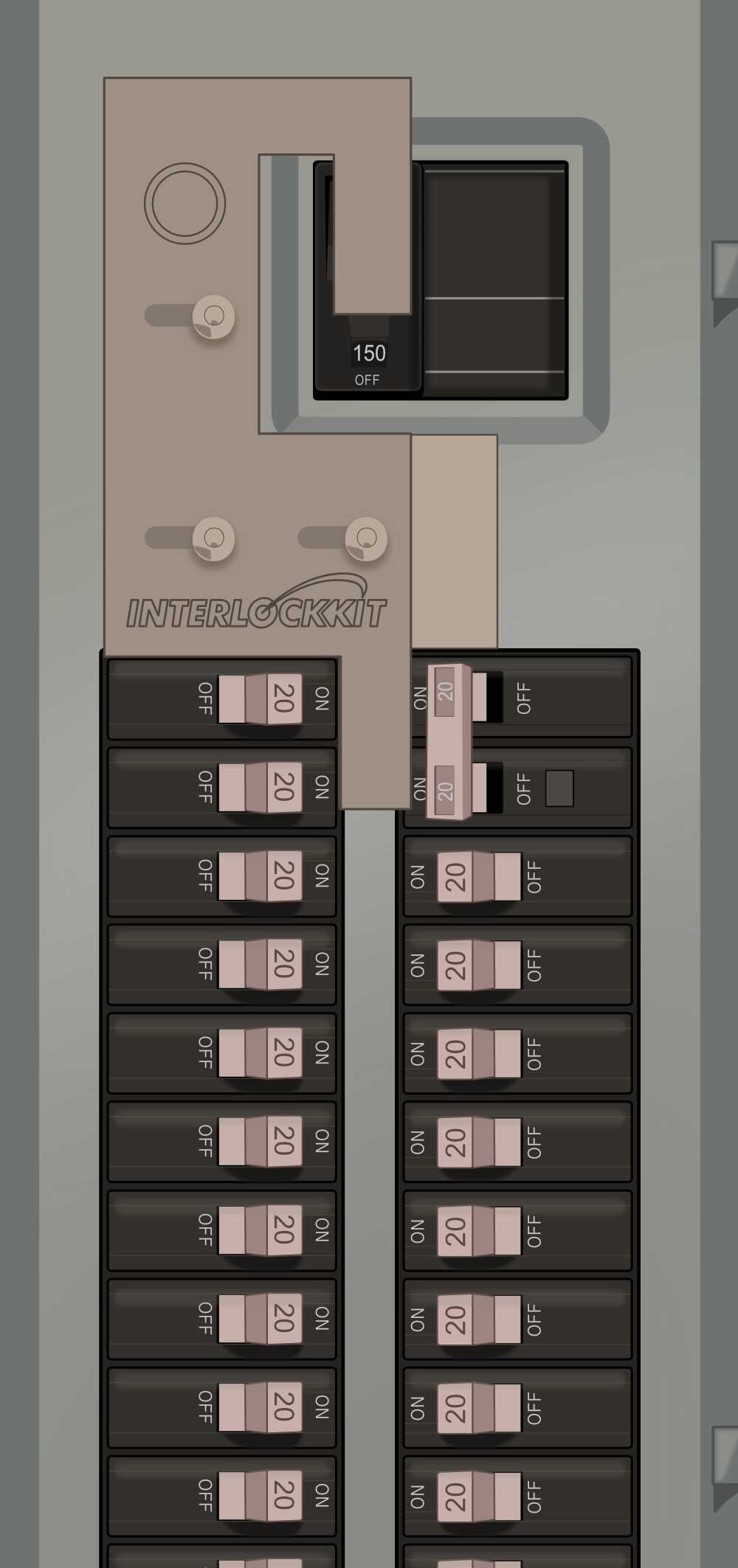

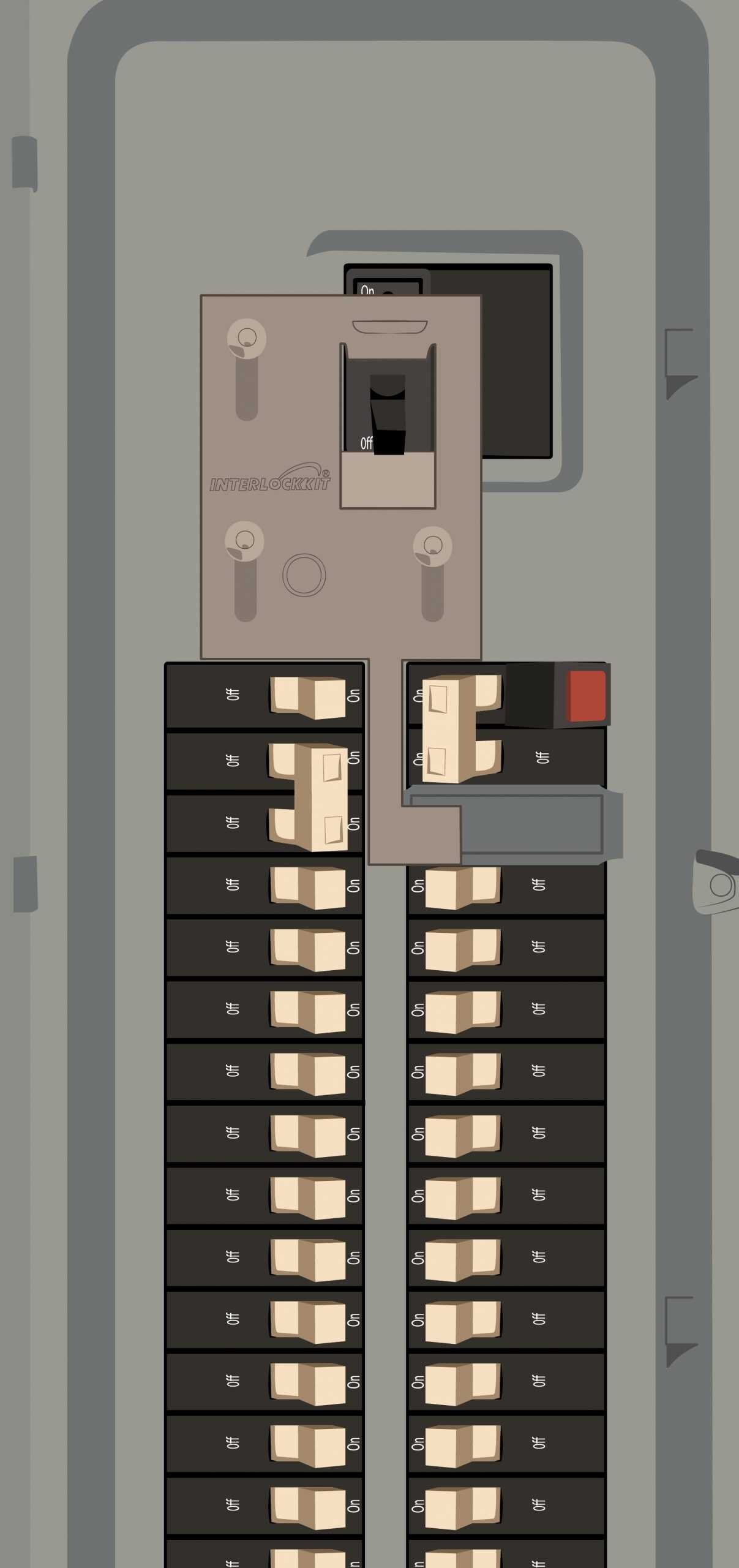

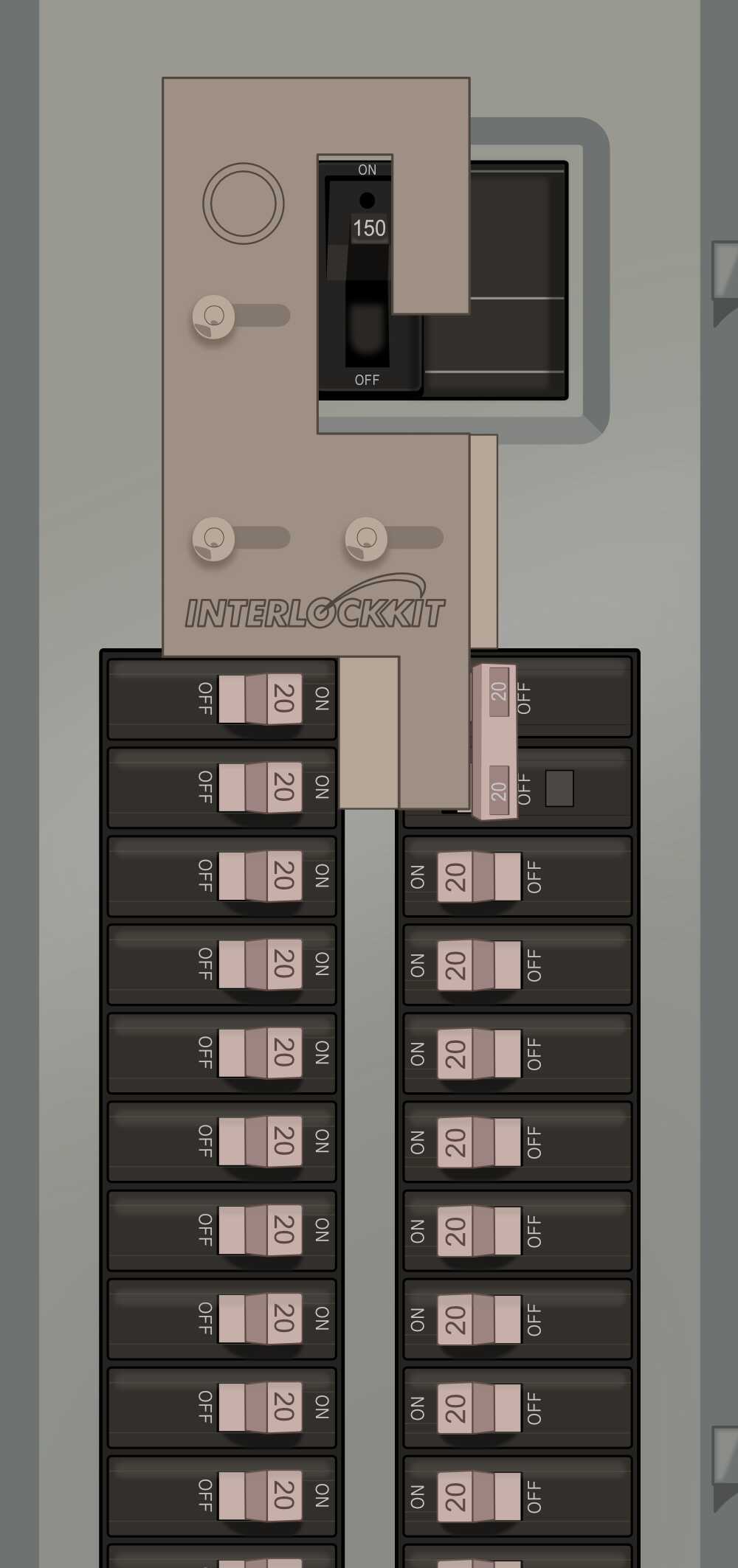

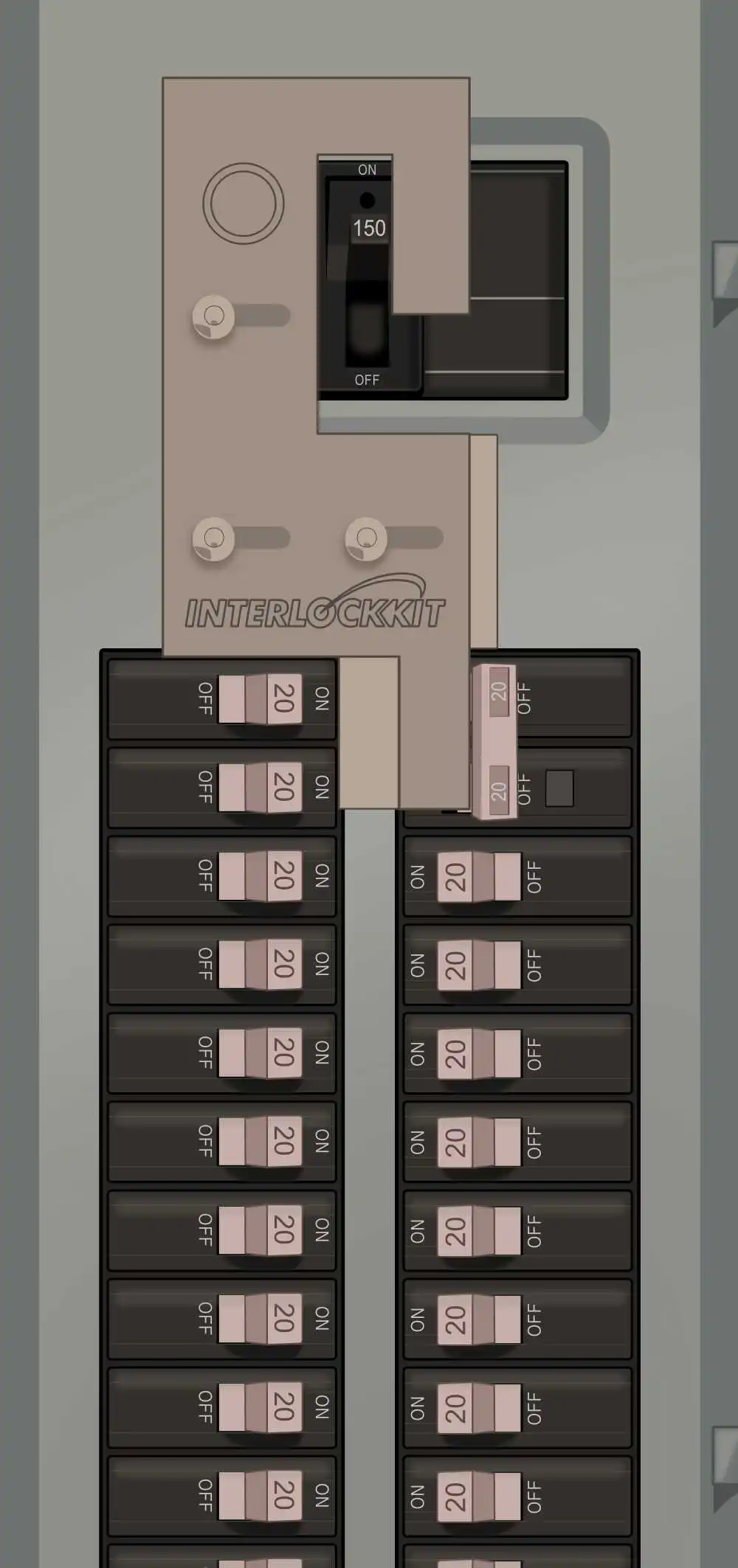

This Kit performs like a manual transfer switch for EATON / Cutler Hammer electrical panels with the following features:

  • Space between breaker columns: 1/2″

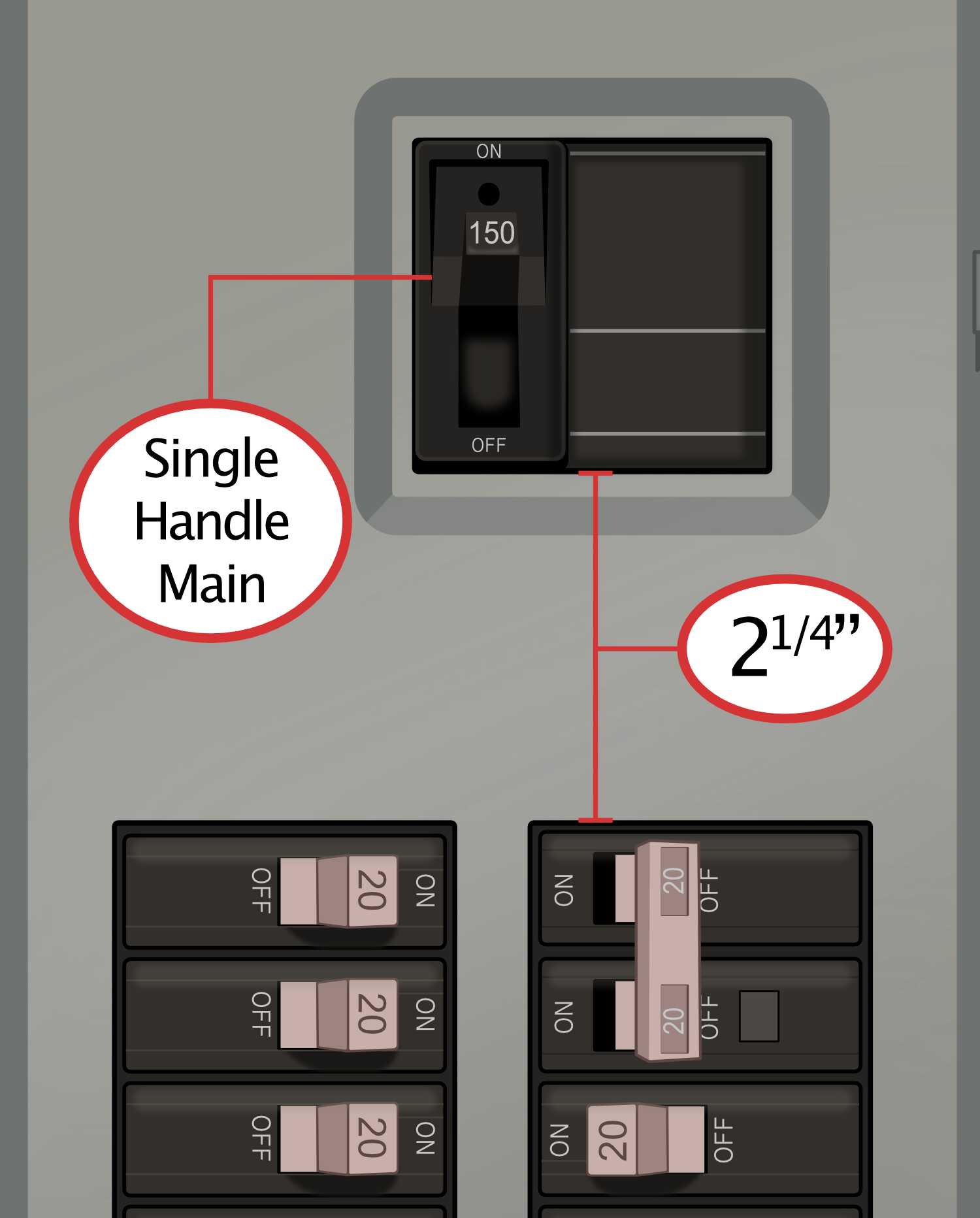

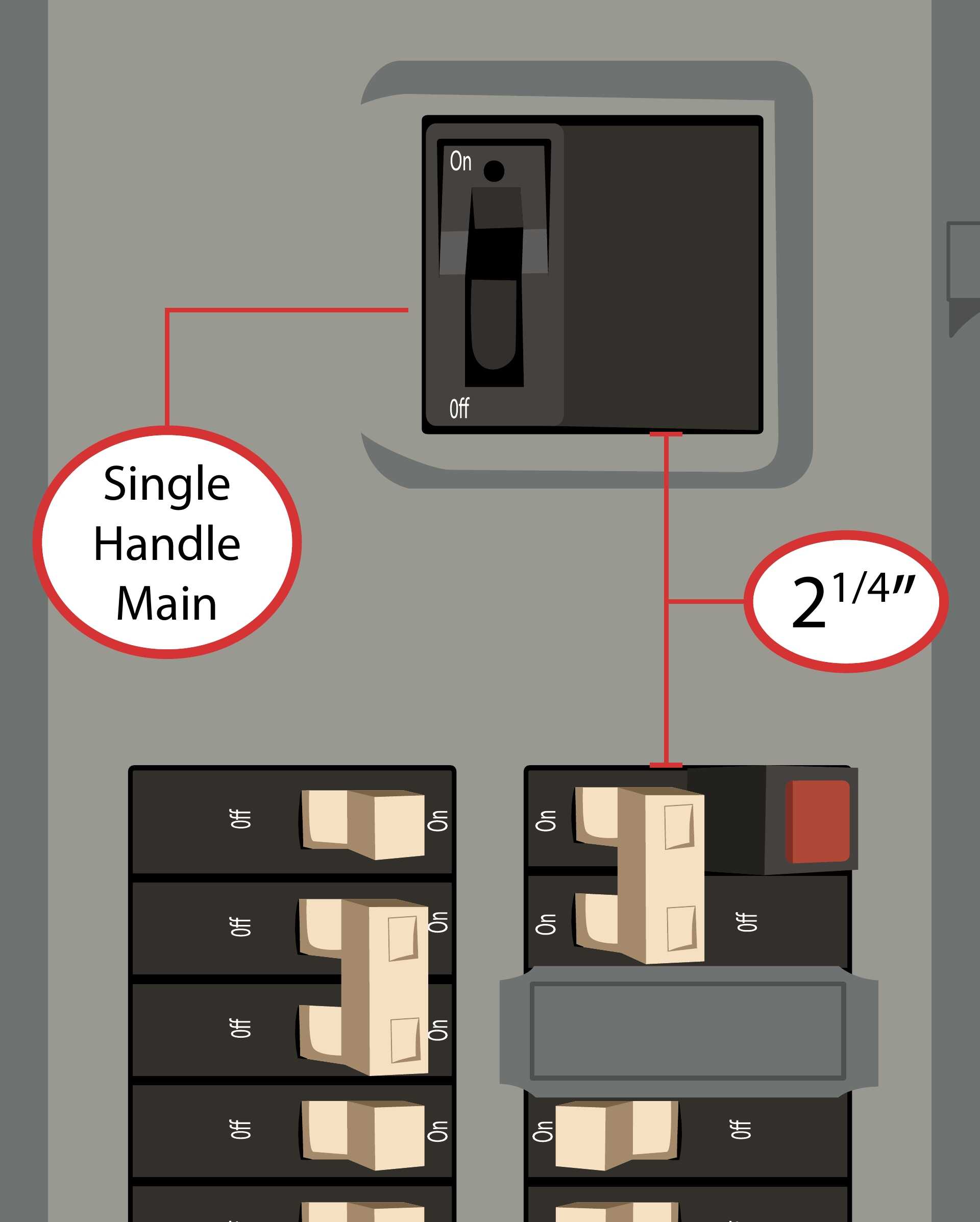

  • Gap between main breaker and breaker columns, is: 2 1/4″
  • 150-200 amp main breaker
  • Main breaker toggle action: Vertical (up-down) throw direction ON & OFF
  • main breaker is directly over top of both breaker columns
  • Compatible with CH breakers

Recommendations

  • install a two pole generator breaker at the top of the right column: spaces 2 & 4
  • Page four of the installation instructions includes a list of contents included in Kit K-6110

Modified versions of this Interlock Kit exist, see: K-6112, K-6115

Kit Installation Instructions

Description

This Kit performs like a manual transfer switch for EATON / Cutler Hammer electrical panels with the following features:

  • Space between breaker columns: 1/2″
  • Gap between main breaker and breaker columns, is: 2 1/4″
  • 150-200 amp main breaker
  • Main breaker toggle action: Vertical (up-down) throw direction ON & OFF
  • main breaker is directly over top of both breaker columns
  • Compatible with CH breakers

Recommendations

  • install a two pole generator breaker at the top of the right column: spaces 2 & 4
  • Page four of the installation instructions includes a list of contents included in Kit K-6110

Modified versions of this Interlock Kit exist, see: K-6112, K-6115

Kit Installation Instructions

Additional information

Weight 1 lbs
