Contractors
Interlock Kit KS-1215
$349.95
PATENT PENDING PRODUCT
Have a question or don’t see a kit for your panel? We make custom Interlock Kits for any panel or solar scenario – call (804) 531-3359 or Contact Us!

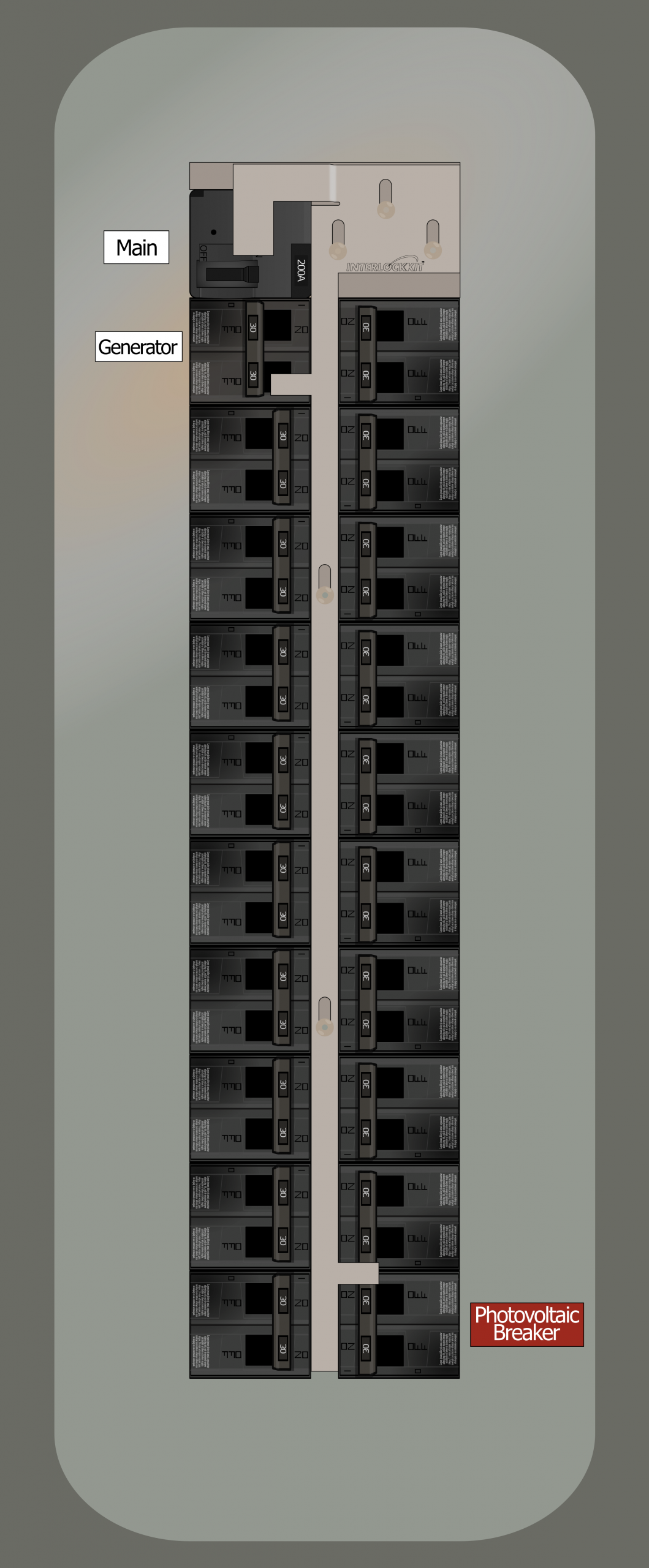

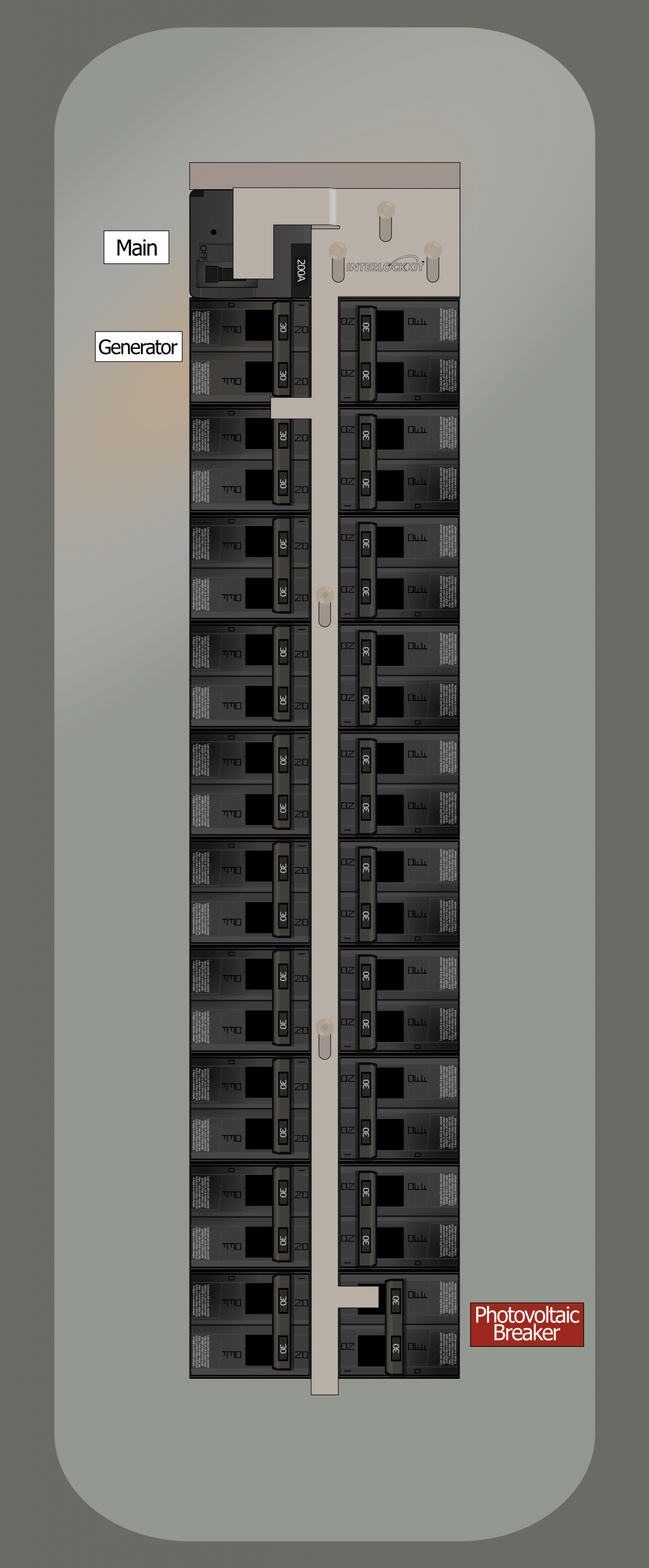

This Kit performs like a manual transfer switch for Siemens / ITE / Murray electrical panels with the following features:
- SOLAR & GENERATOR COMPATIBLE INTERLOCK KIT
- Space between breaker columns: 1/2″

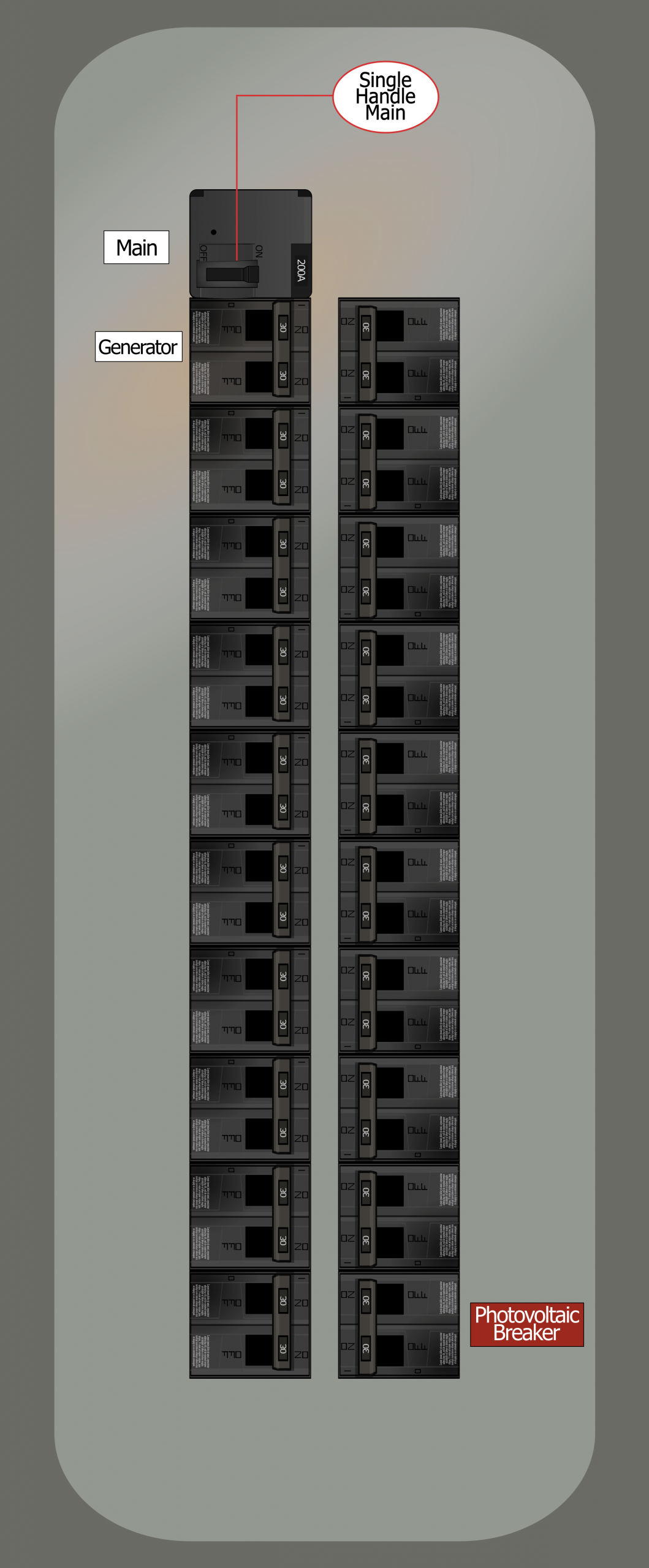

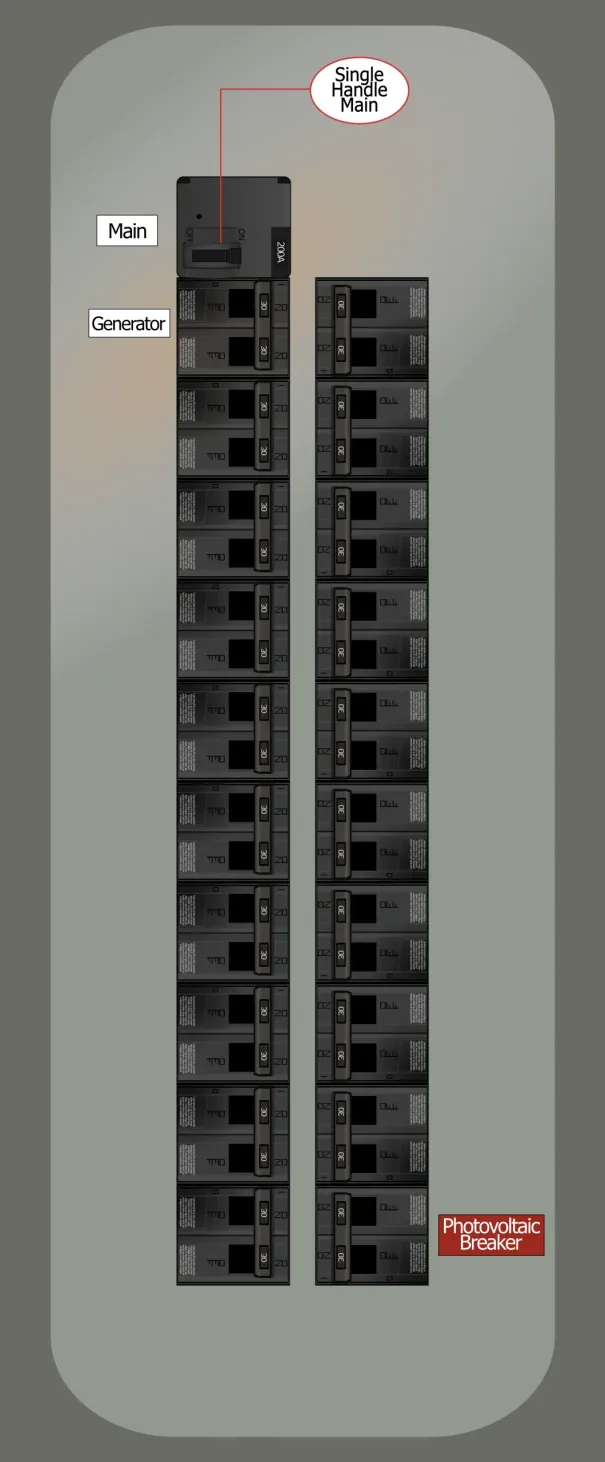

- The main breaker sits directly on top of breaker stack in the left breaker column
- 150-200 amp 2 pole main breaker
- Main breaker toggle action: horizontal (left-right) throw direction ON & OFF
Requirements:
- Install a 2 pole generator breaker at the top of the left column: spaces 1 & 3
- Install a 2 pole photovoltaic breaker at the bottom of the right column: spaces 18 & 20
- Compatible with 40 space panels. 20 1" spaces in the left column & 20 1" spaces in the right
Additional information
| Weight | 2 lbs |
|---|
Have a question or don’t see a kit for your panel? We make custom Interlock Kits for any panel or solar scenario – call (804) 531-3359 or Contact Us!
