Interlock Kit K-4115 | Interlock Kit

$149.95

114 in stock

PATENT PENDING PRODUCT

Have a question or don’t see a kit for your panel? We make custom Interlock Kits for any panel or solar scenario – call (804) 531-3359 or Contact Us!

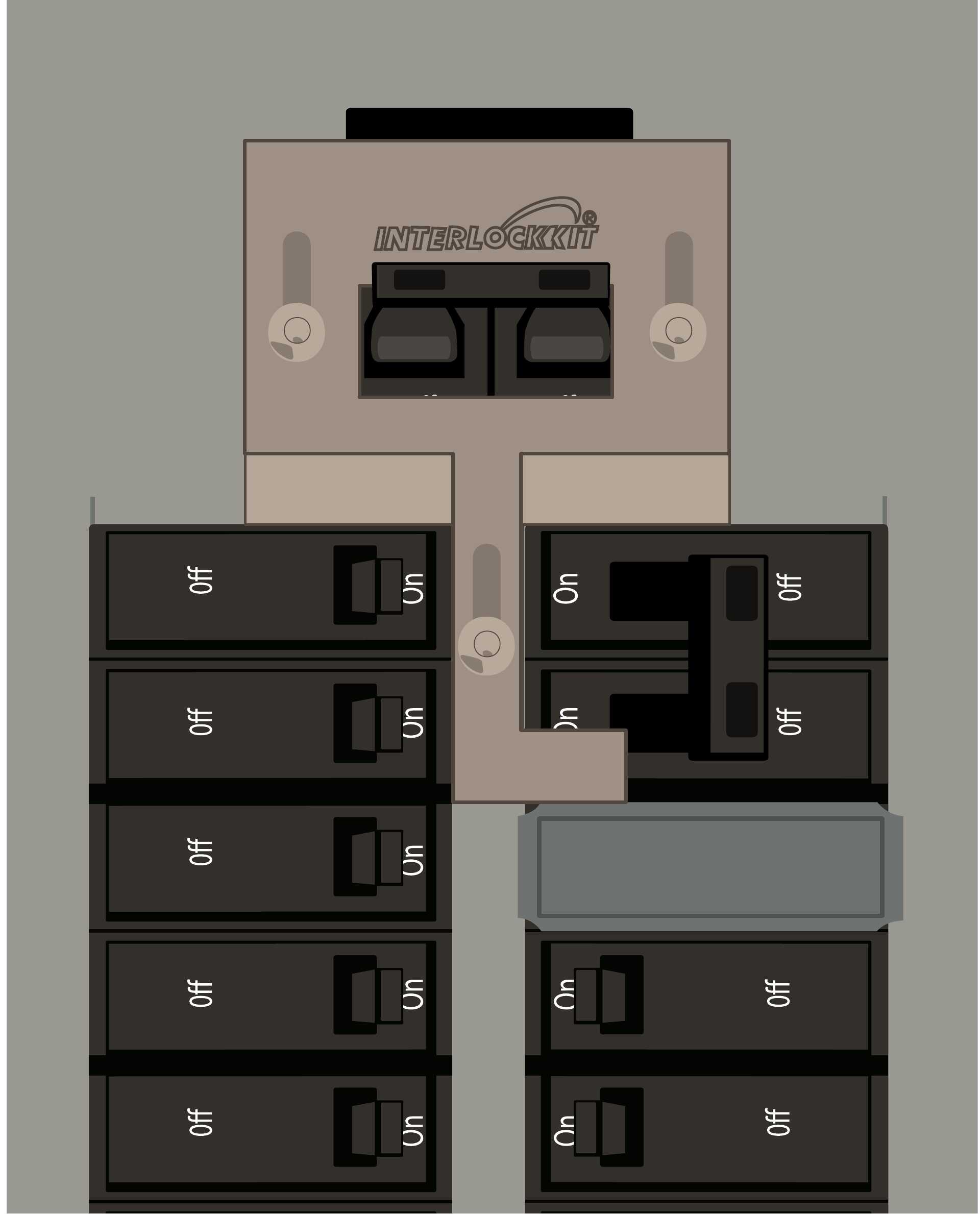

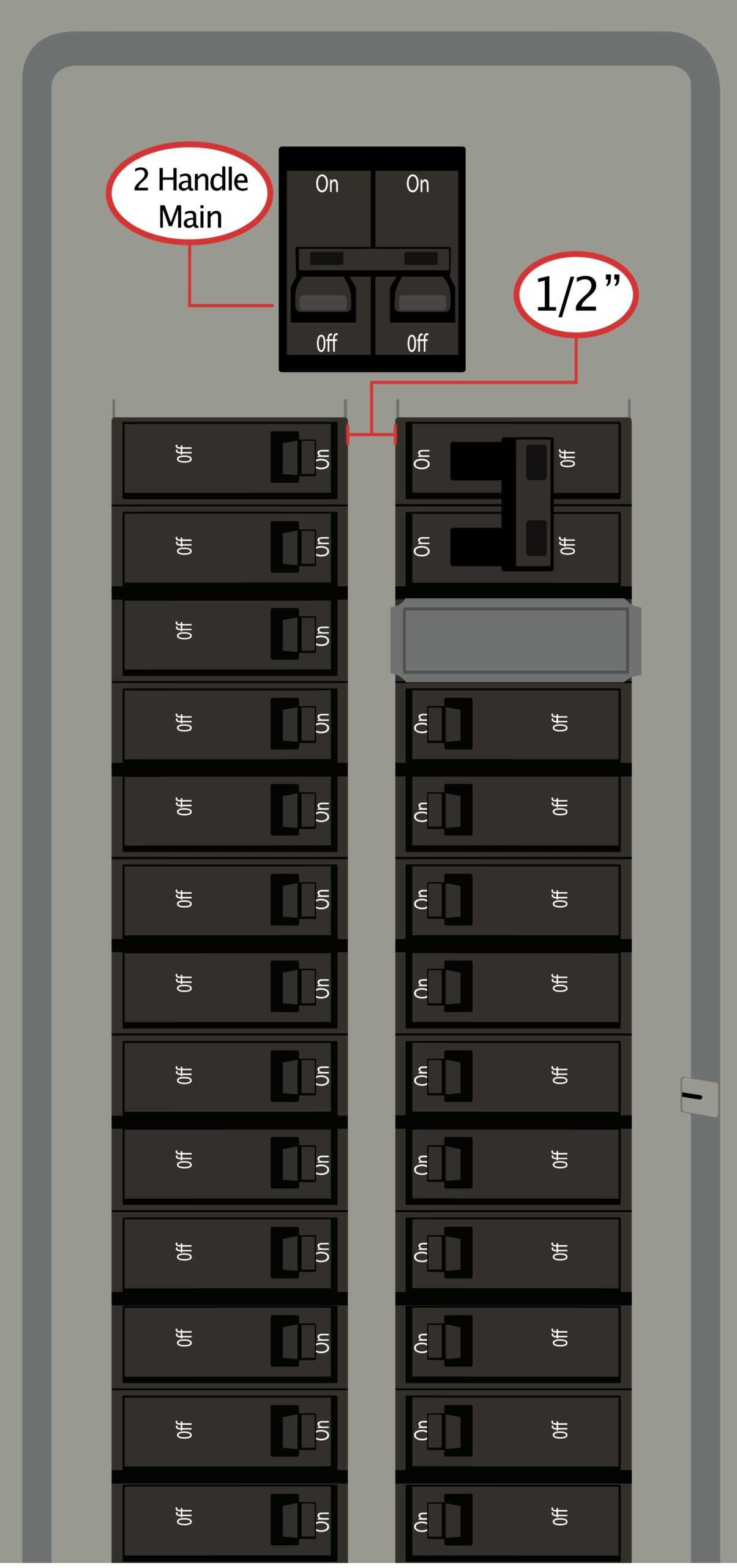

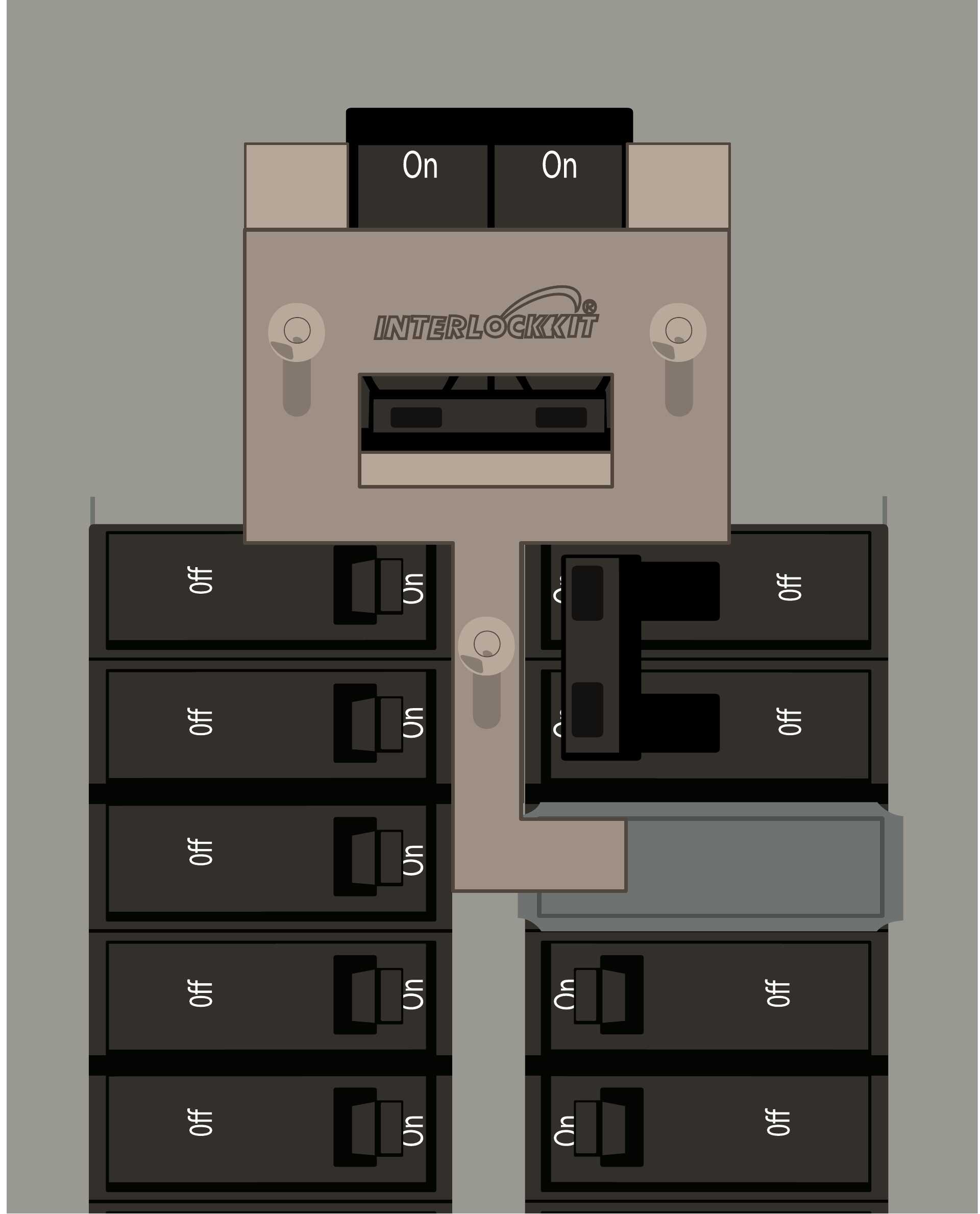

This Interlock Kit mounts to Siemens, ITE, and Murray electrical panels with the following features:

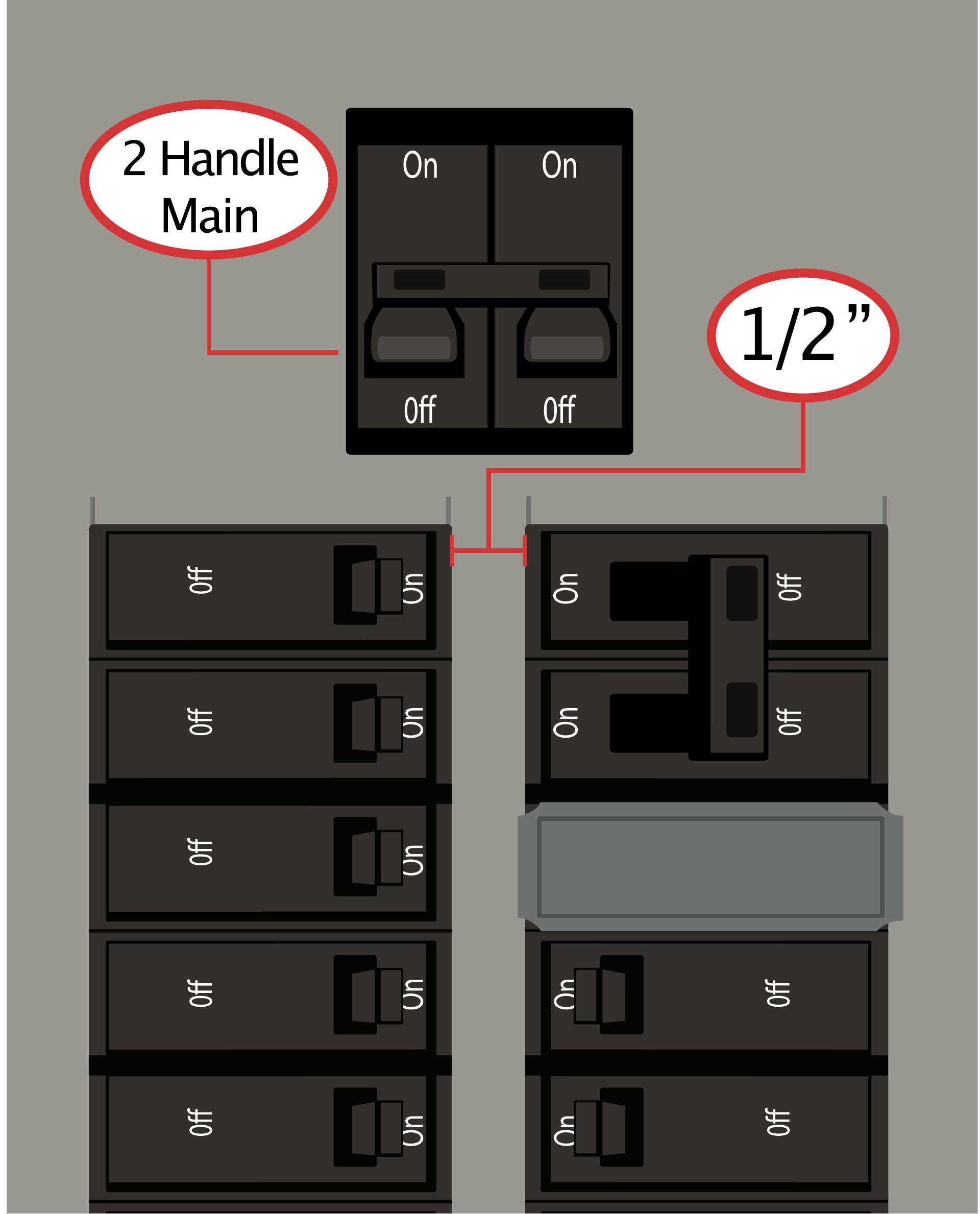

  • Space between breaker columns: 1/2"
  • Gap between main breaker and columns below, is: 1/2"
  • 100-125 amp main breaker
  • Main breaker toggle action: vertical (up-down) throw direction, but, ON is UP & OFF is DOWN
  • Main breaker centered over both breaker columns

Requirements:

  • Install a generator breaker at the top of the right column: spaces 2 & 4
  • Page four of the installation instructions includes a list of contents included in Kit K-4115

Modified versions of this Interlock Kit exist, see: K-4110 if main breaker is ON DOWN and OFF when in the UP position

Additional information

Weight 1 lbs
