Interlock Kit K-1510
This Kit performs like a manual transfer switch for Siemens / ITE / Murray electrical panels with the following features:
- Space between breaker columns: 1/2"
- Gap between the main breaker and columns below, is: 1 1/4" approximately
- 100-125 amp two-pole main breaker
- Main breaker toggle action: Horizontal (left-right) throw direction ON & OFF

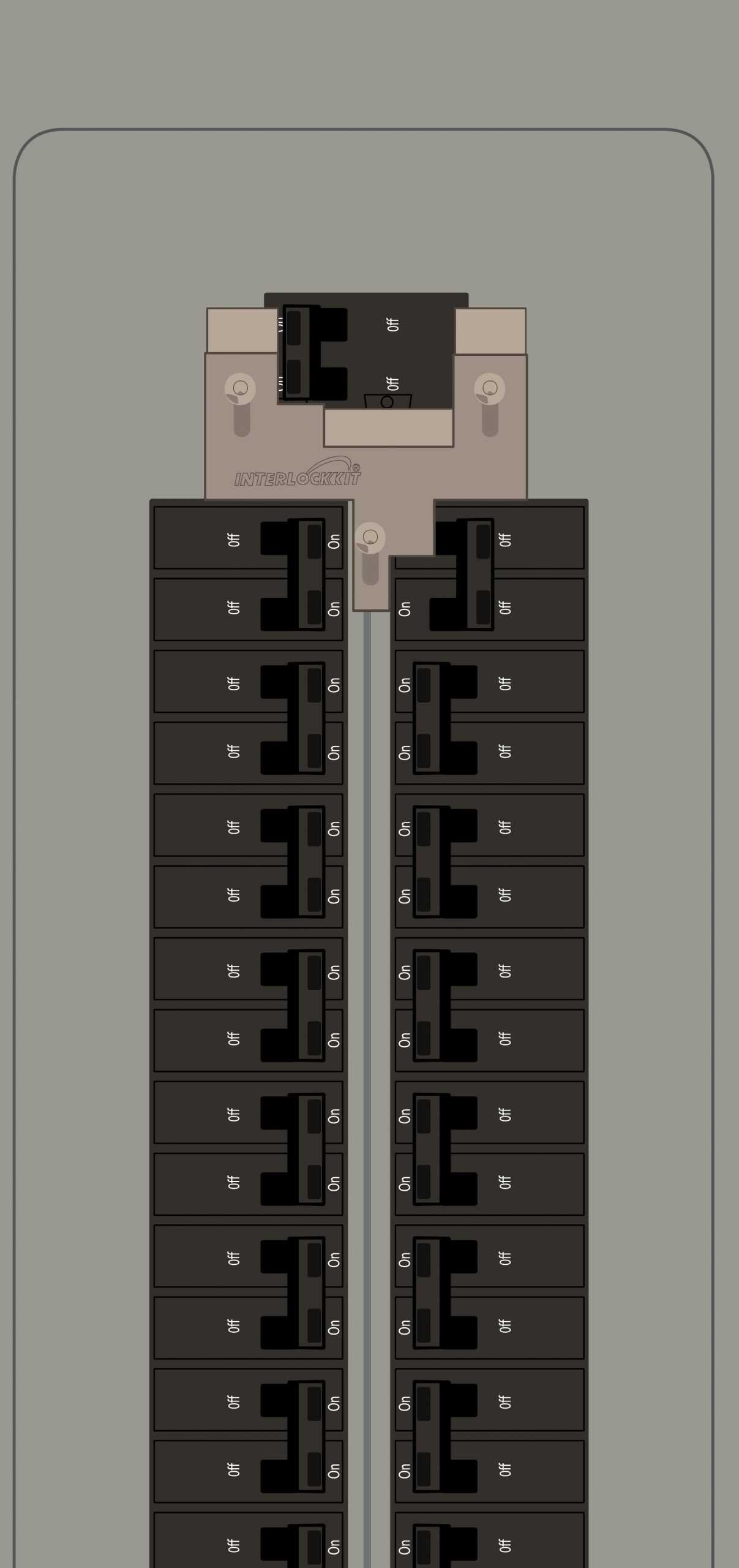

- Main breaker sits centered over both breaker columns

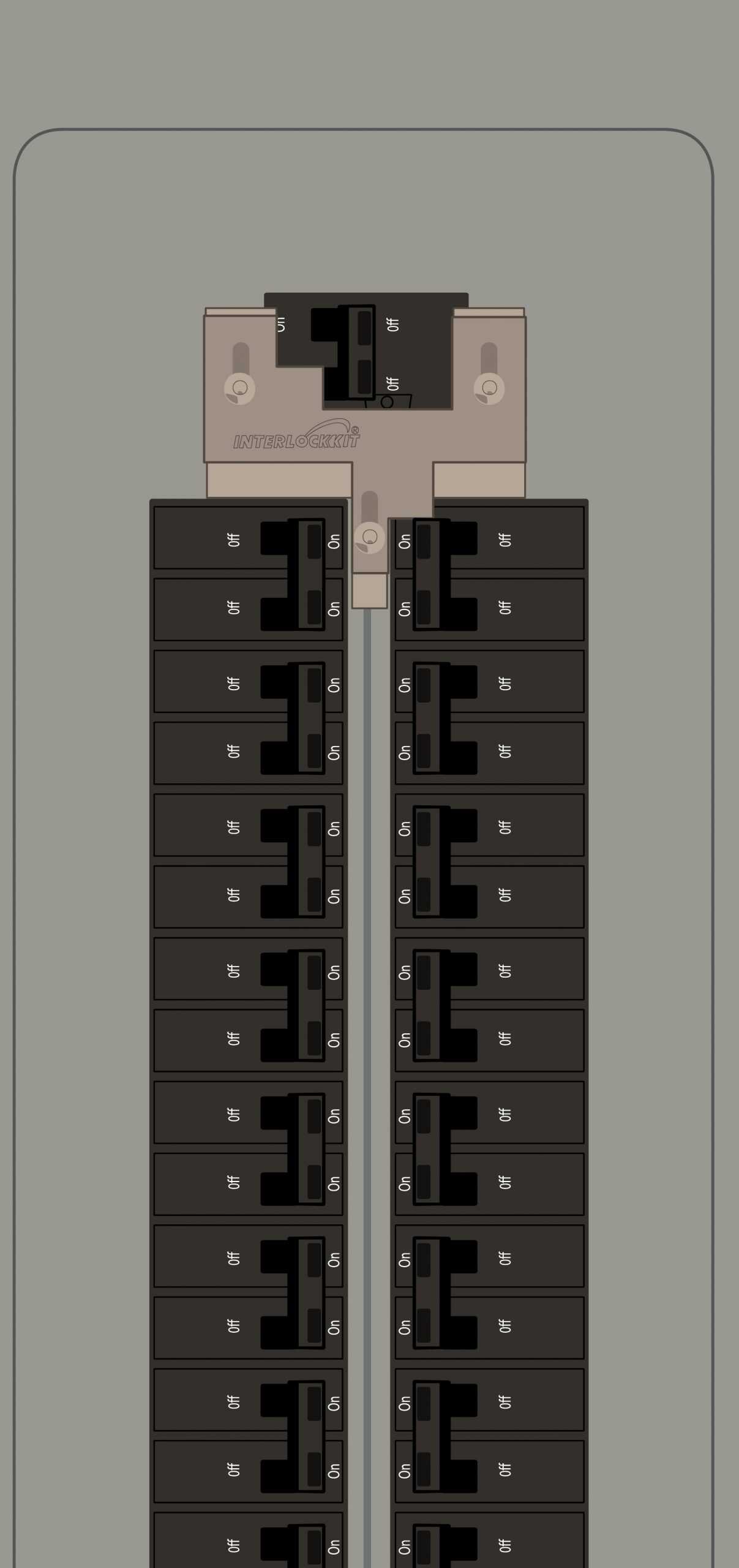

- Install a generator breaker at the top of the right column: spaces 2 & 4
- Page four of the installation instructions includes a list of contents included in Kit K-1510
Modified versions of this Interlock Kit exist, see: Kit K-1512
Kit Installation Instructions
|Catalog #:|| |
LC2040B1100P, S2020B1100P – other compatible catalog #'s may not be listed here yet. Use the details listed in "Description" to help match your kit!
