Interlock Kit K-7110


415 in stock


Have a question or don’t see a kit for your panel? We make custom Interlock Kits for any panel or solar scenario – call (804) 531-3359 or Contact Us!

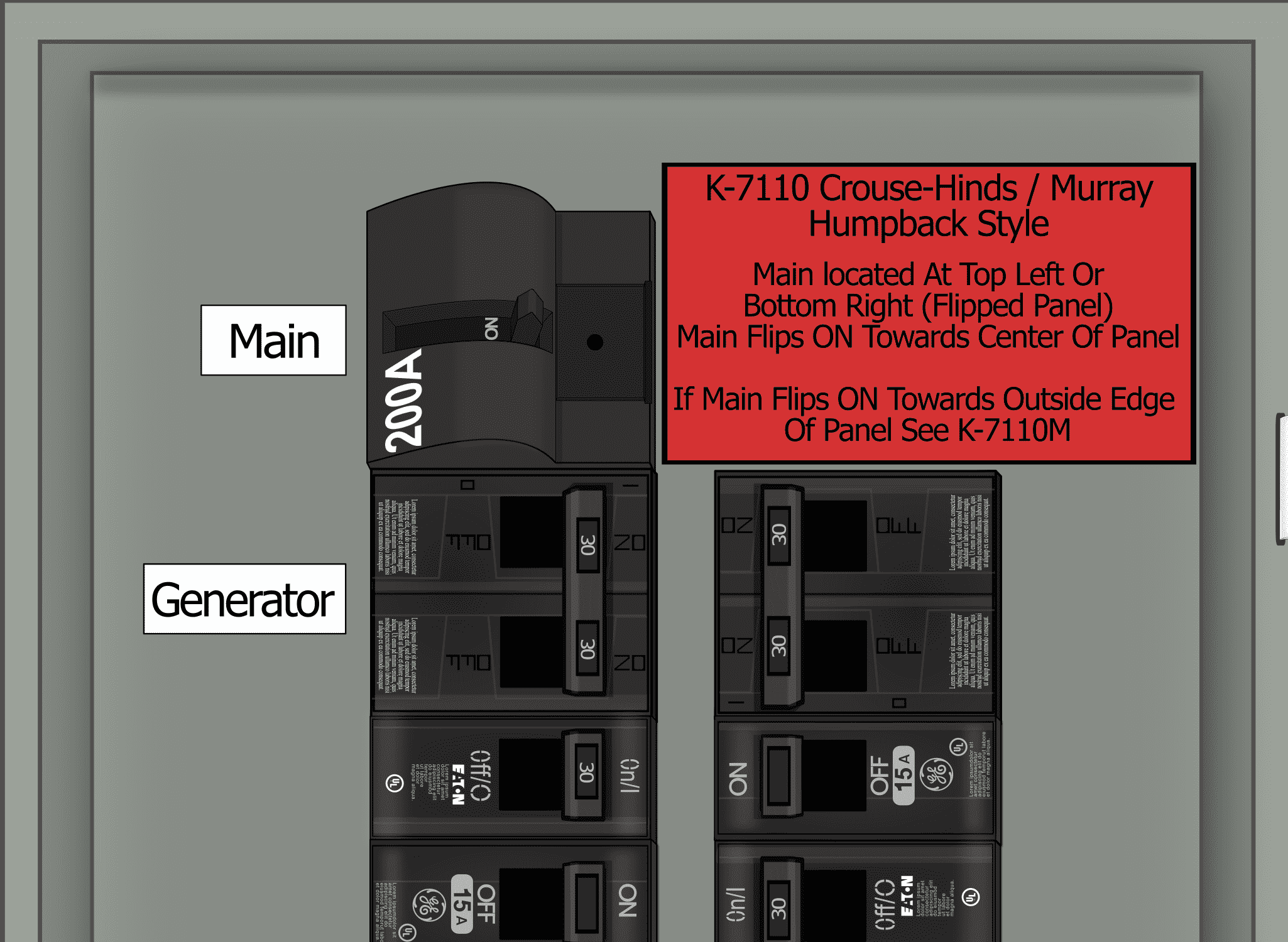

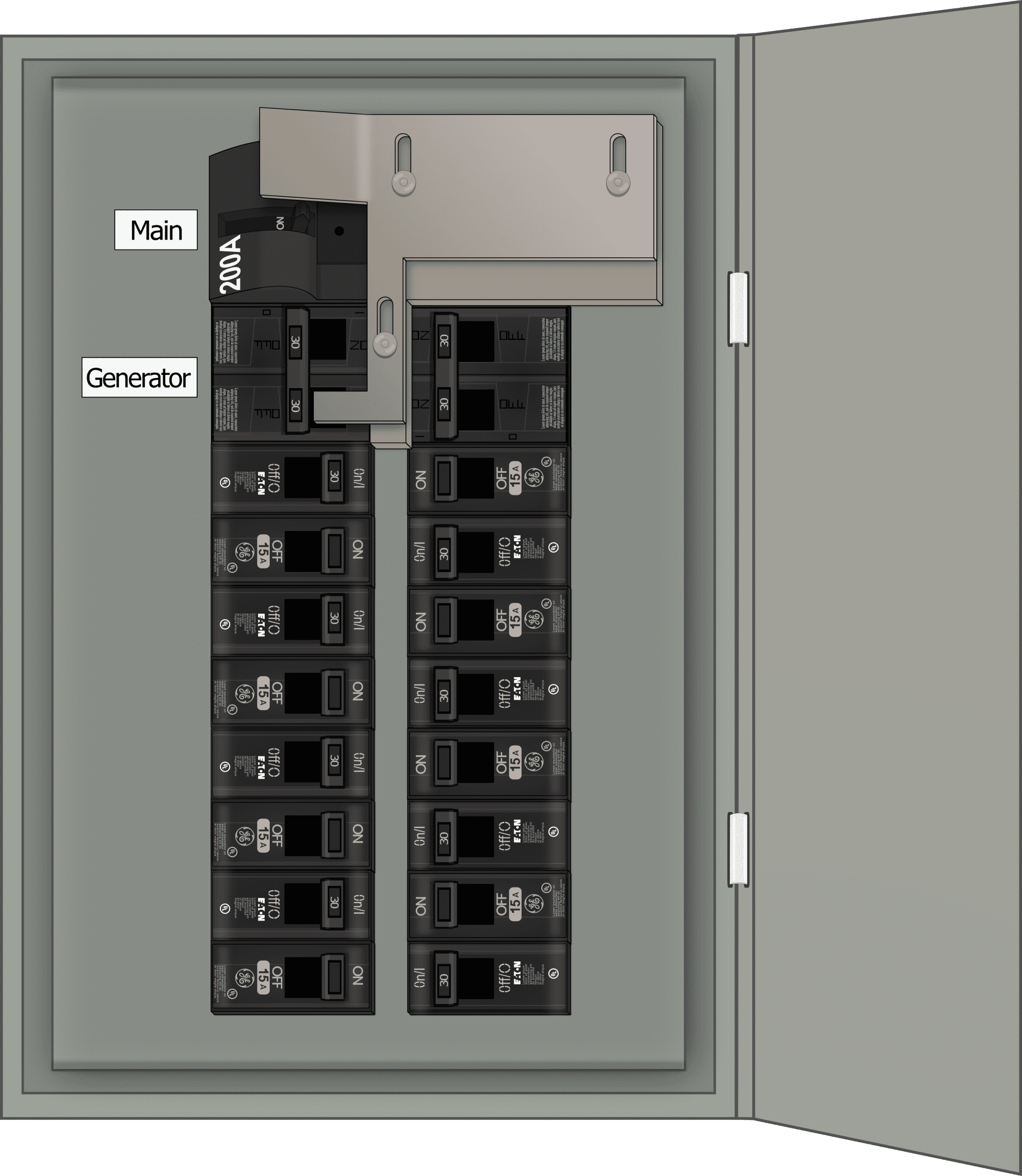

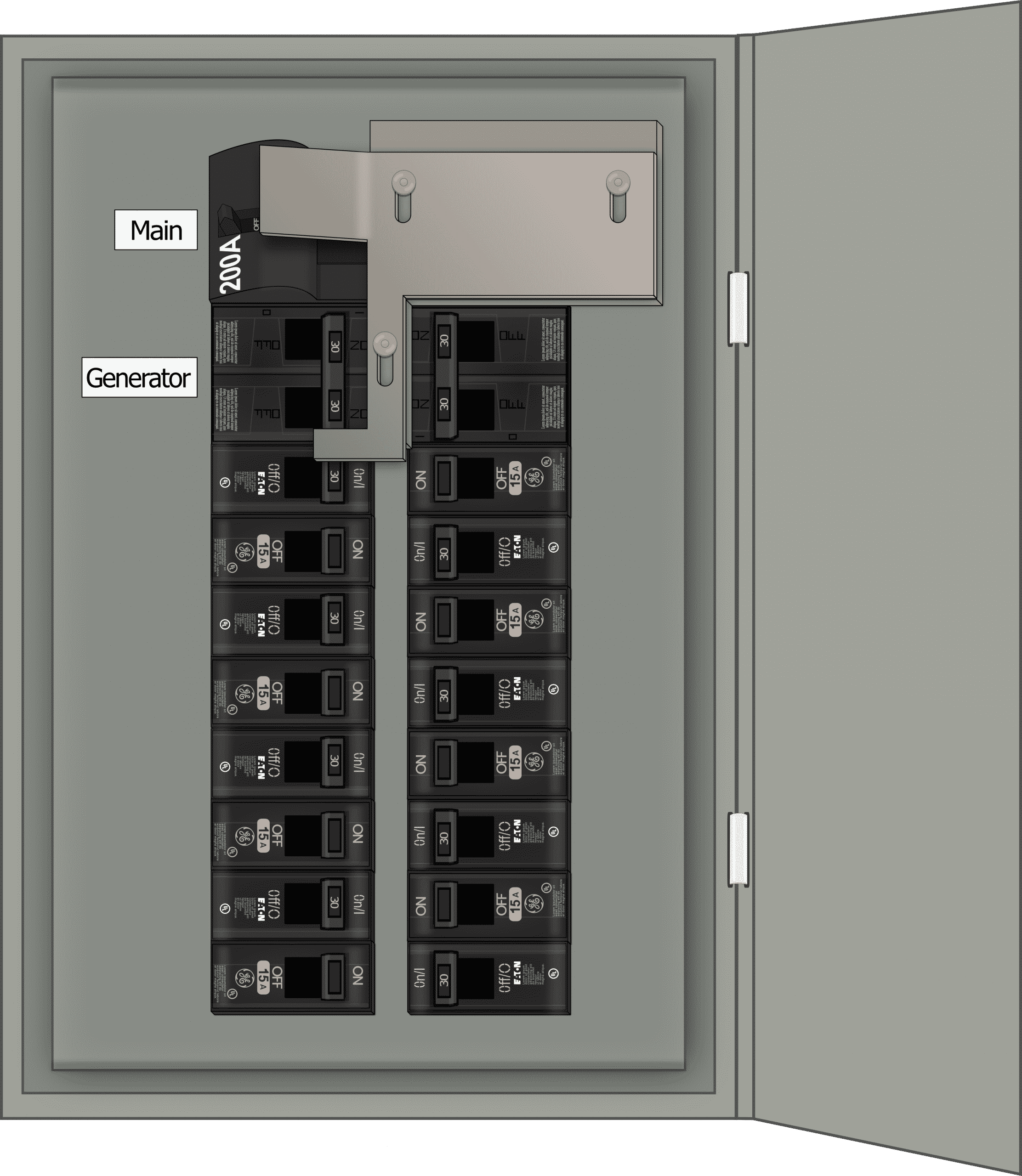

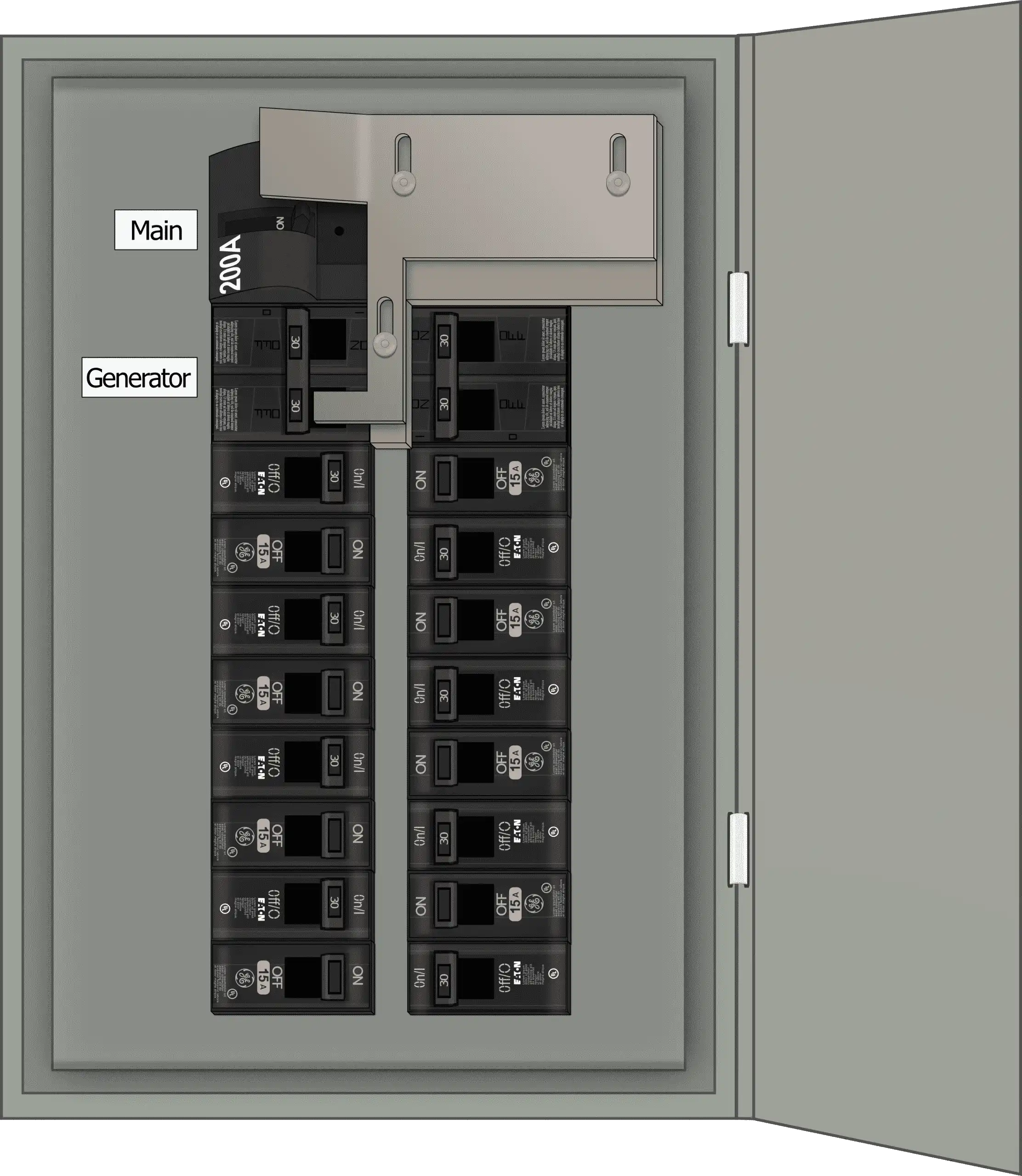

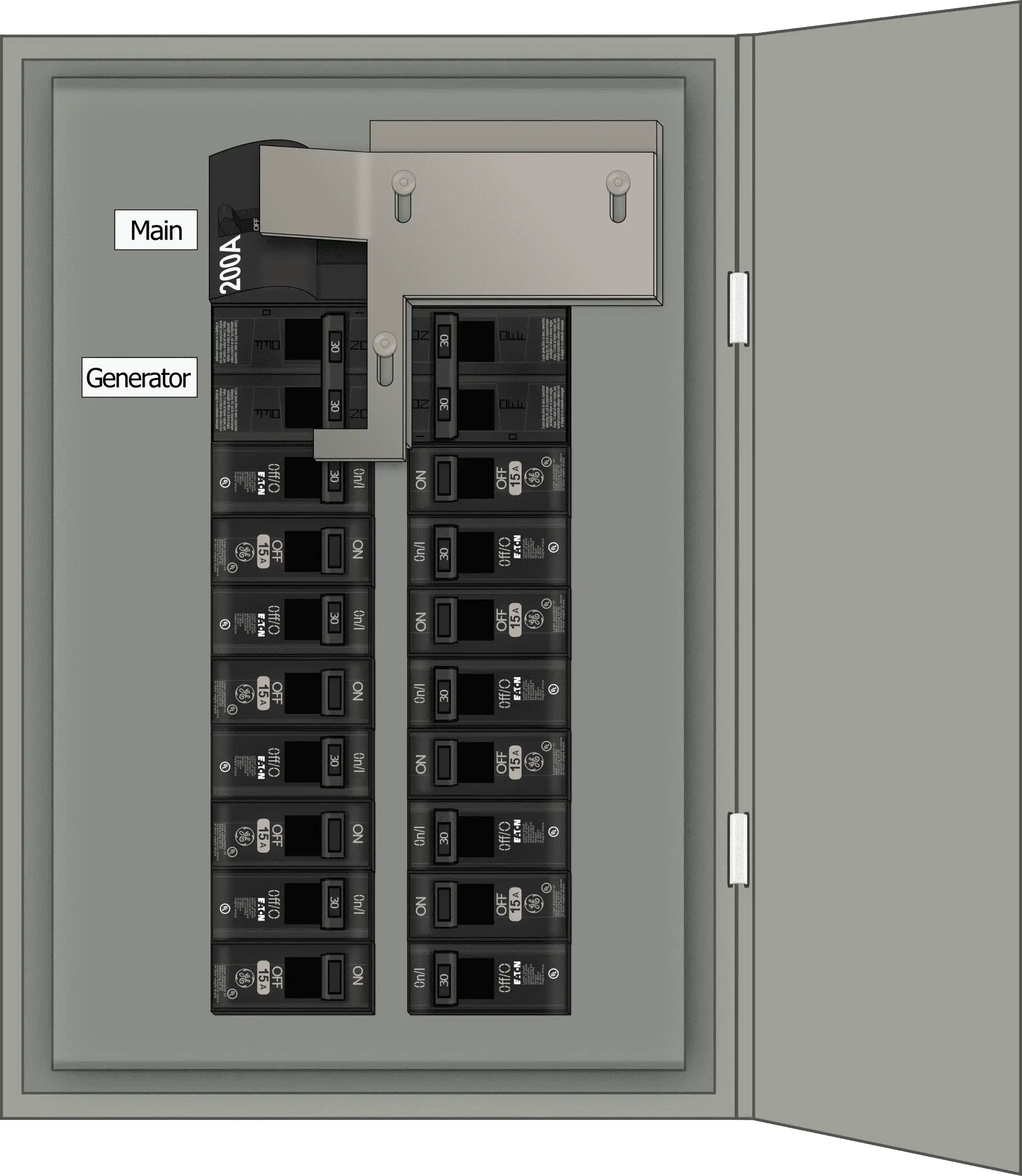

This Interlock Kit performs like a manual transfer switch for Crouse-Hinds / Murray electrical panels with the following features:

  • This kits works with the existing humpback style main breaker!
  • Space between breaker columns: 1/2"
  • No gap
  • 100-200 amp two pole hump-back style main breaker
  • Main breaker toggle action: Horizontal (right-left) throw direction ON & OFF
  • Main breaker sits directly on top of the breaker stack in the left column


  • Install a generator breaker directly below the main breaker in spaces: 1 & 3 a filler plate beneath the generator breaker in space 5
  • Page four of the installation instructions includes a list of contents for Kit K-7110

There are three modified versions of this Interlock Kit: K-7010, K-7010M, & K-7110M

Kit Installation Instructions

Additional information

Weight 2 lbs
Catalog #:

LC1212EC, MC216EC, PC216EC, LC224EC, LC224ES, LC224MC, LC224MS, LC224PC, LC224PS- other compatible catalog #'s may not be listed here yet. Use the details listed in "Description" to help match your kit!
