Crouse-Hinds / Murray Kit K-7010

$149.95

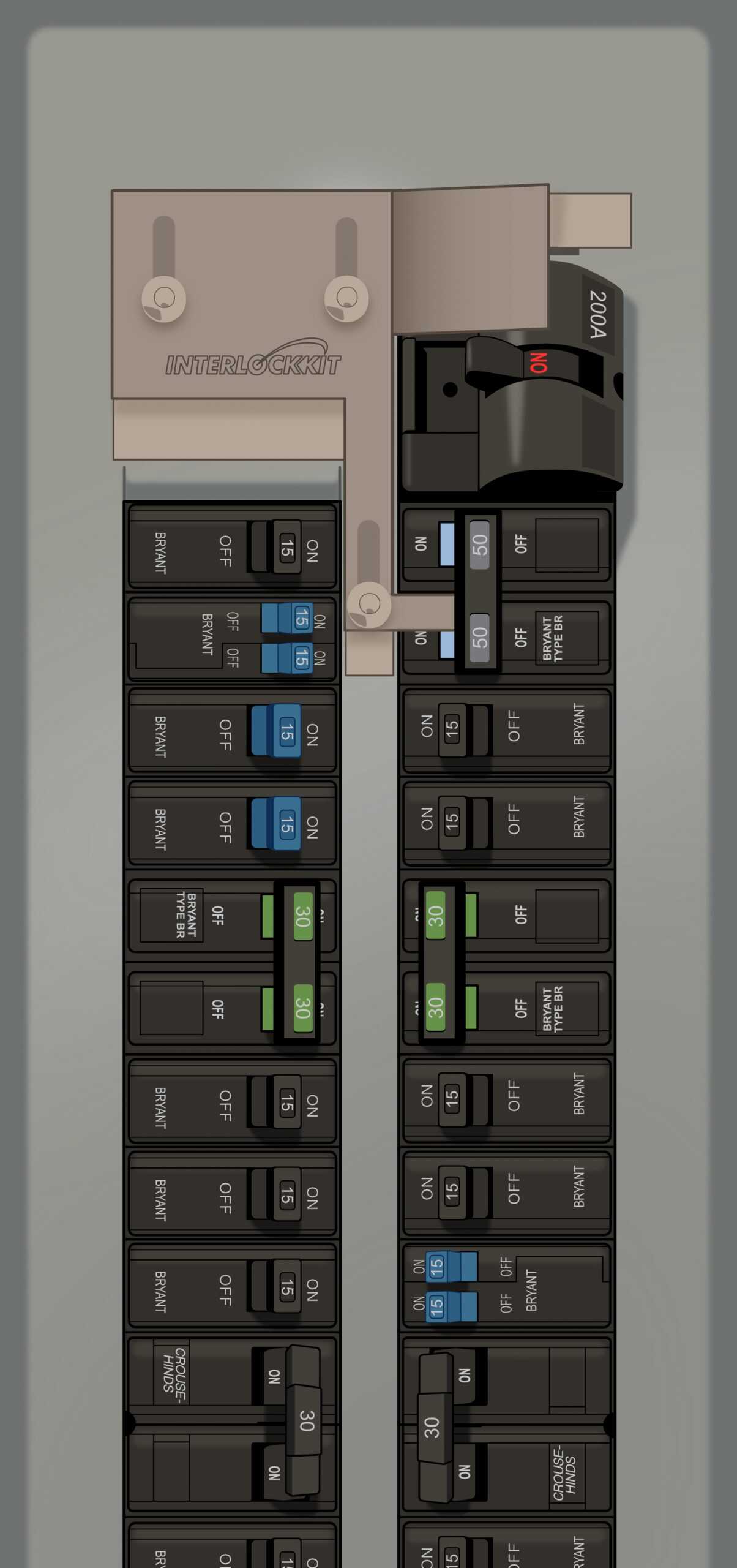

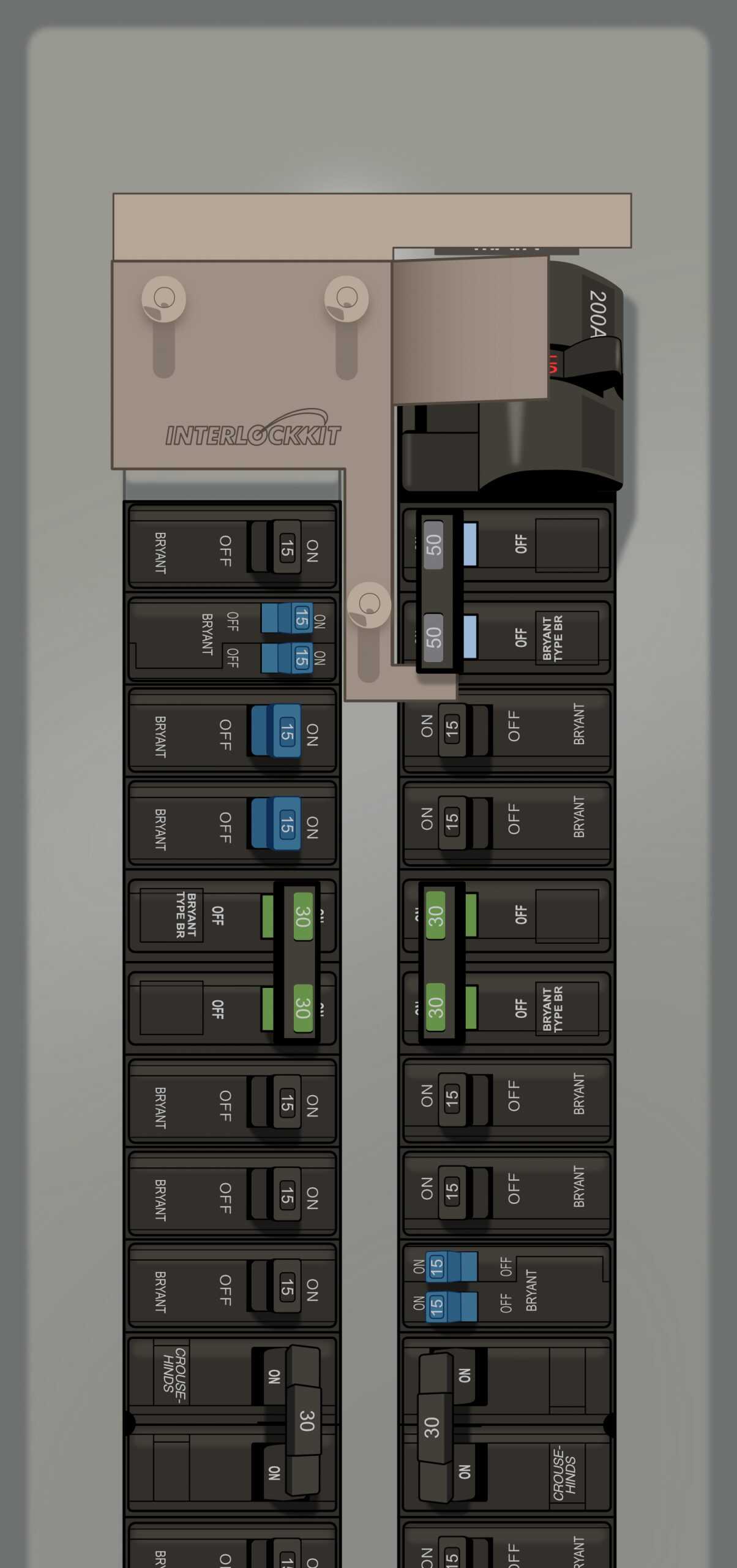

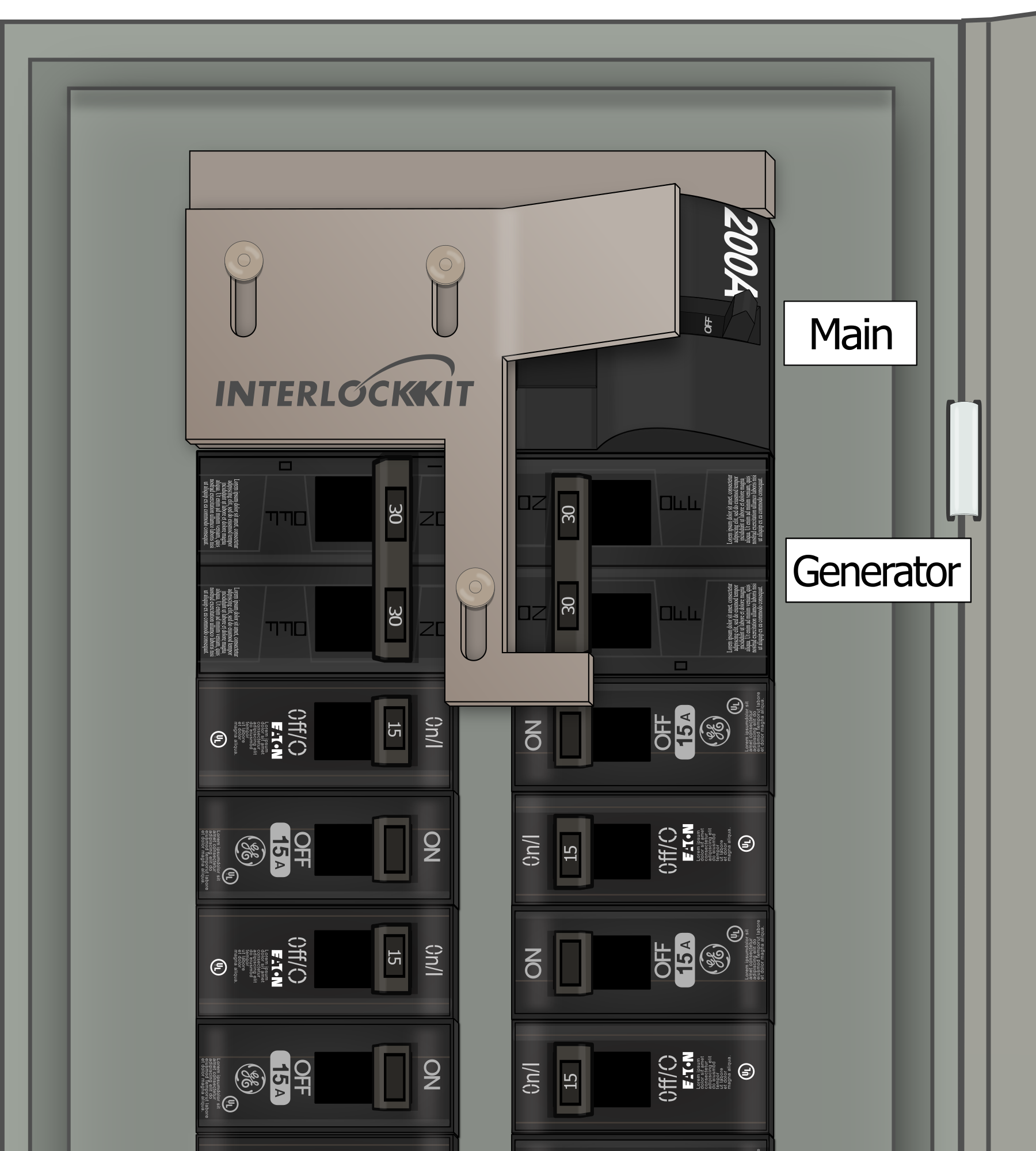

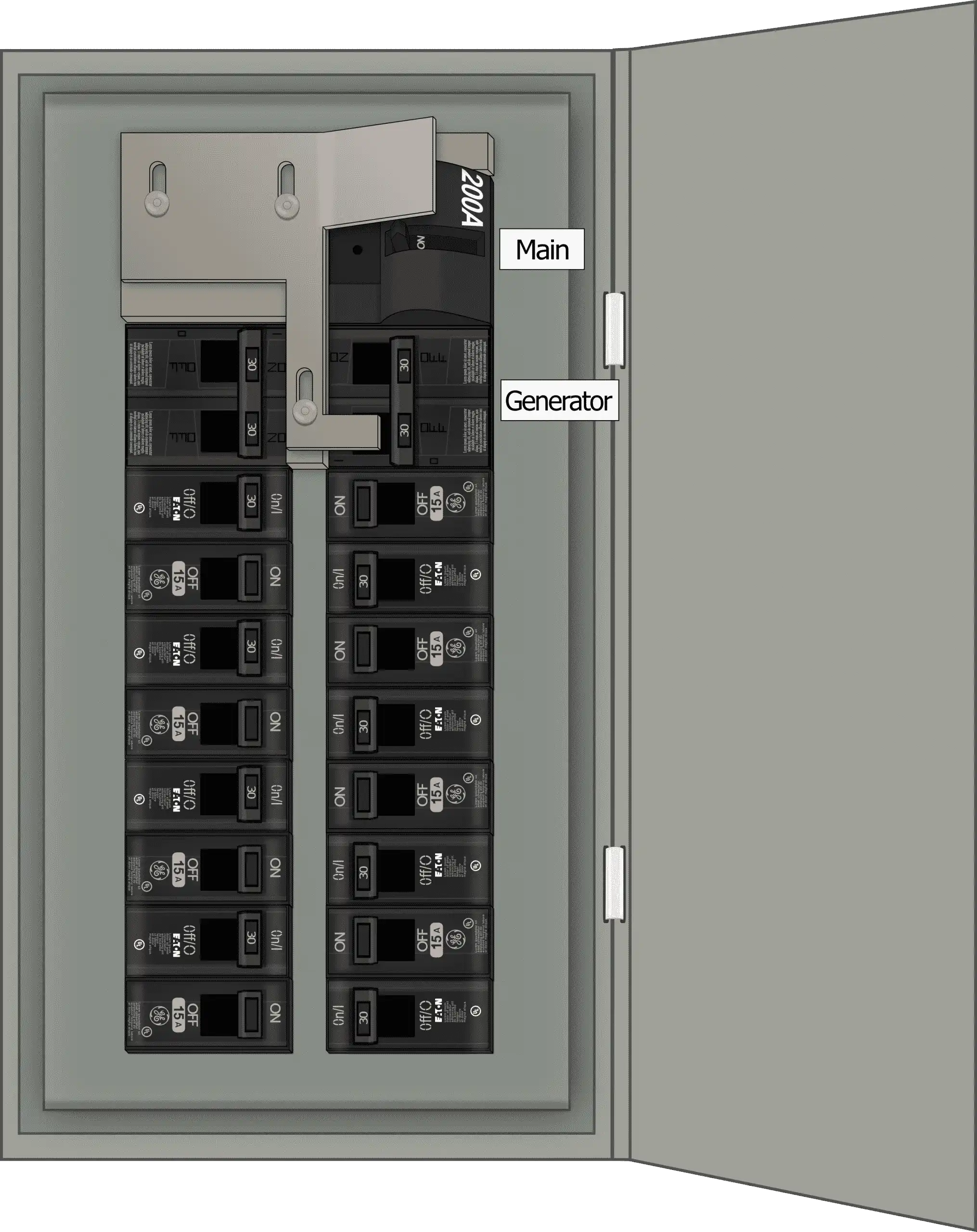

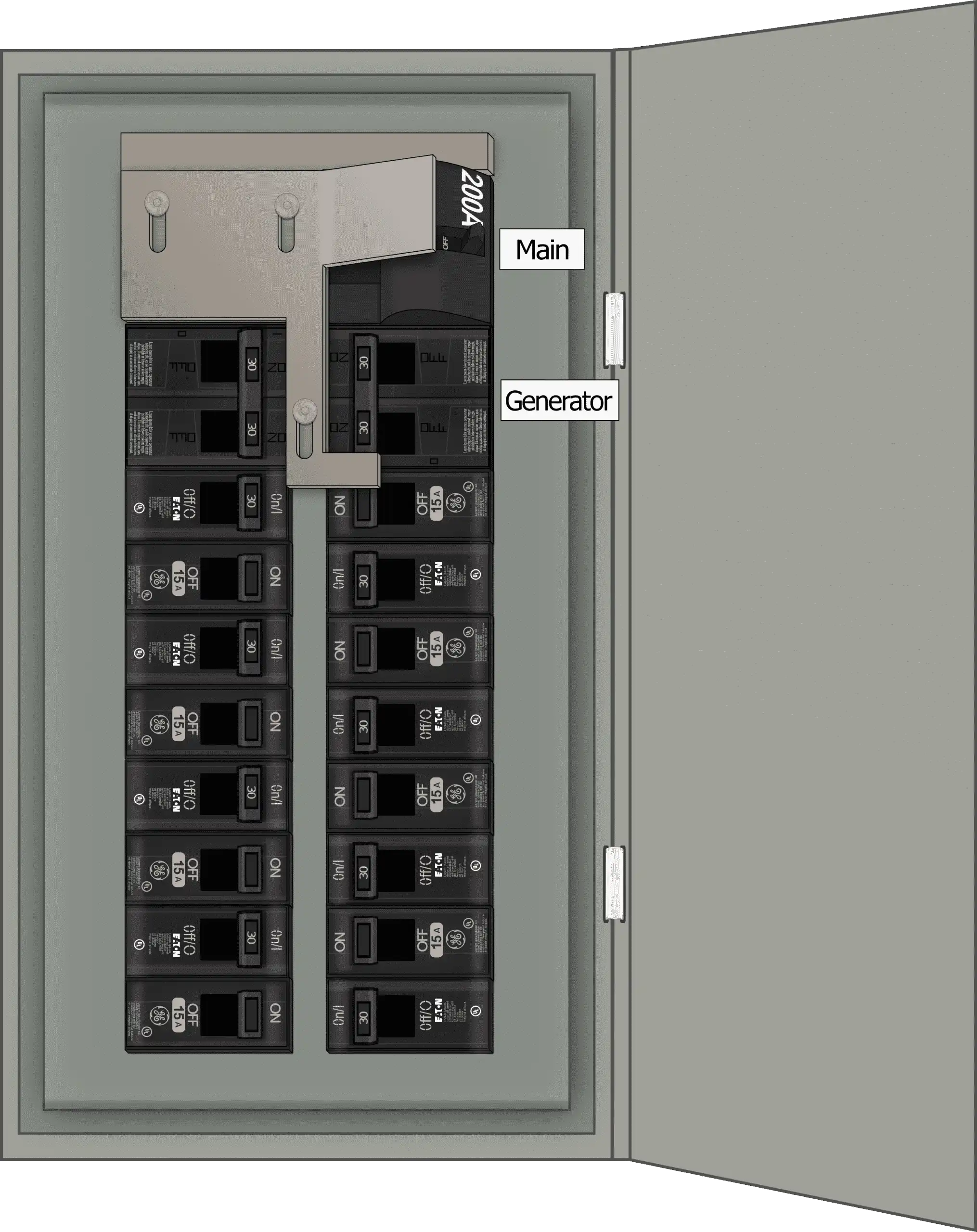

This Interlock Kit performs like a manual transfer switch for Crouse-Hinds / Murray electrical panels with the following features:

  • This kits works with the existing humpback style main breaker!
  • Space between breaker columns: 1/2″
  • No gap

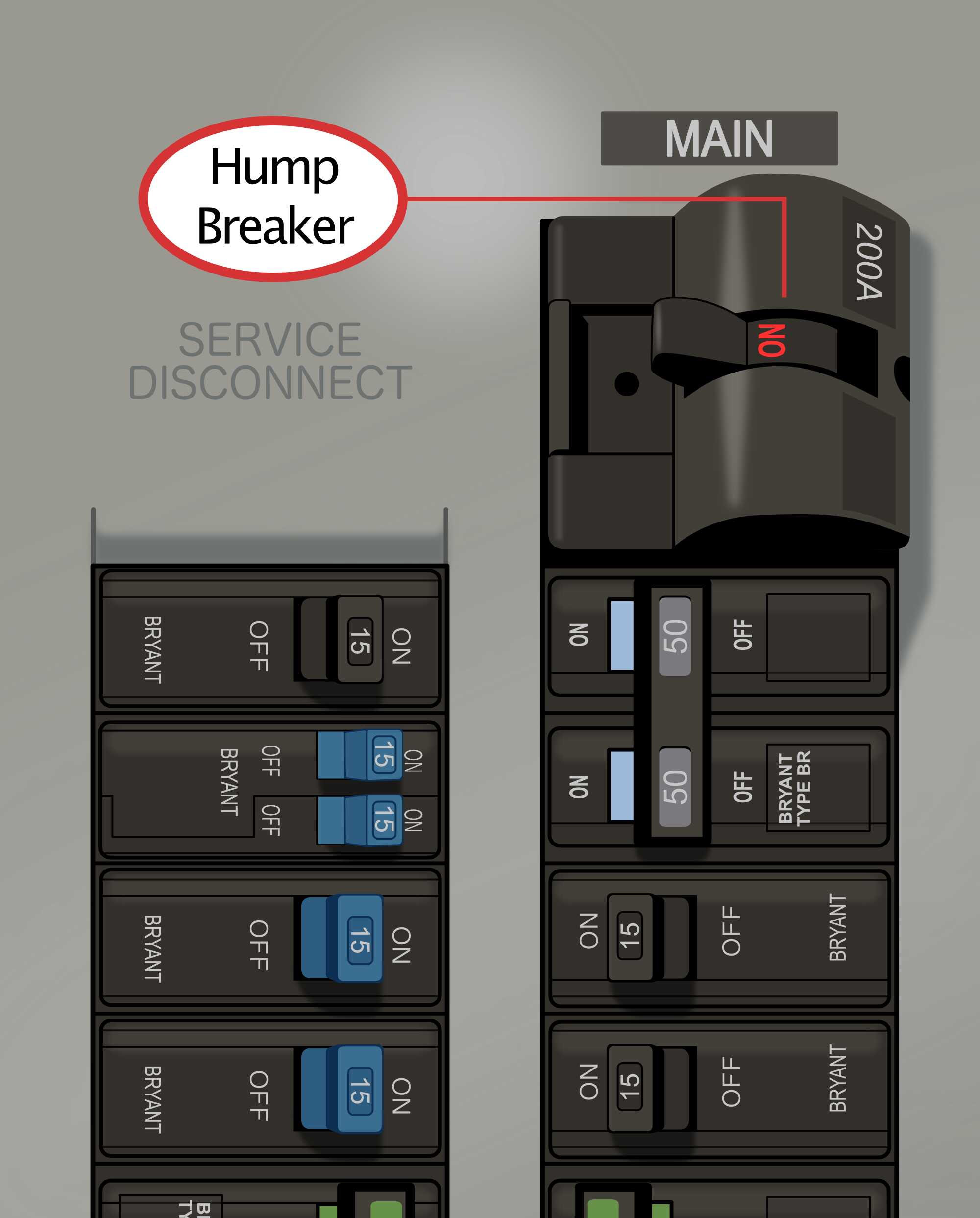

  • 150-200 amp two pole hump-back style main breaker

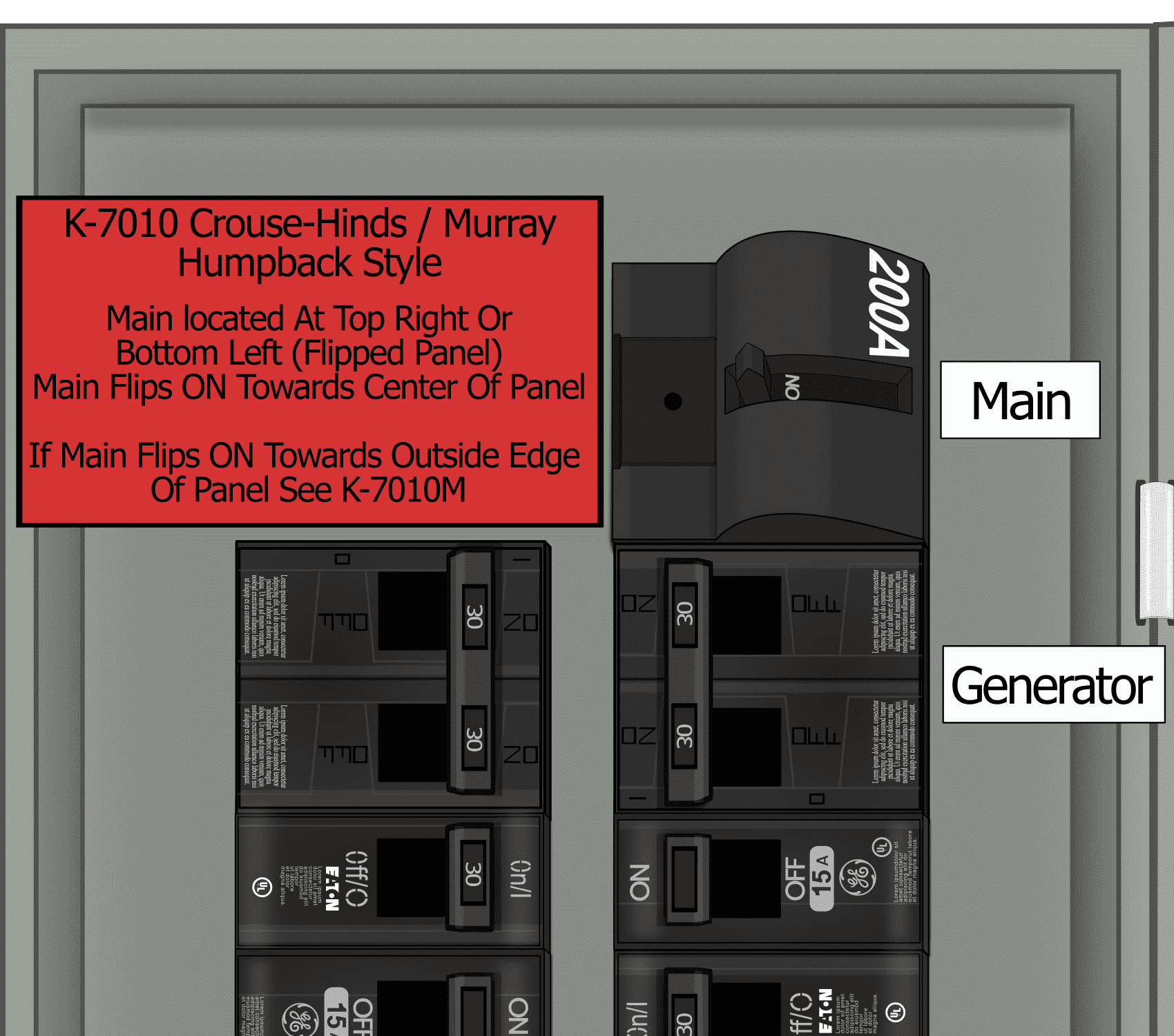

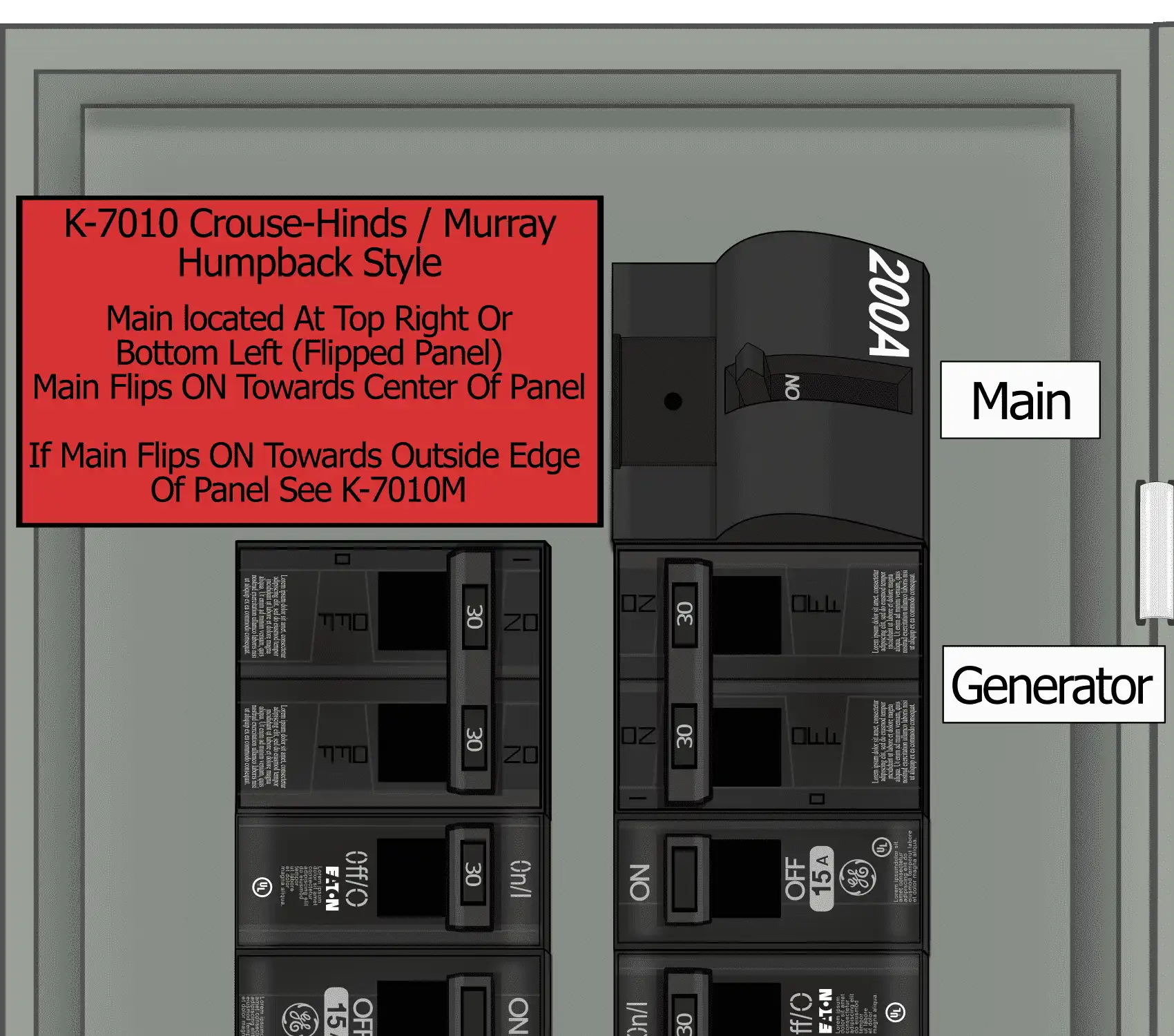

  • Main breaker toggle action: Horizontal (left-right) throw direction ON & OFF
  • Main breaker sits directly on top of the breaker stack in the right column

Requirements:

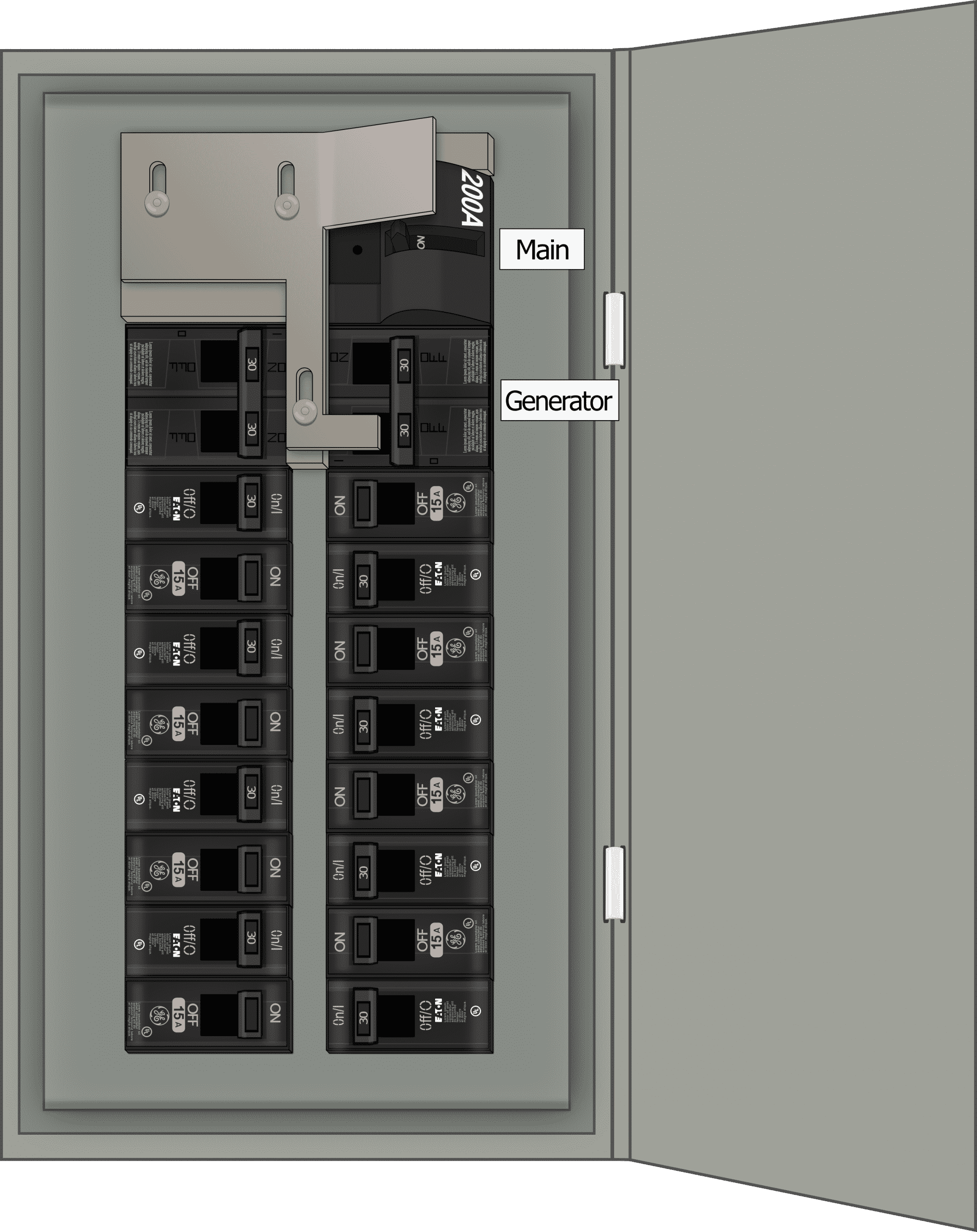

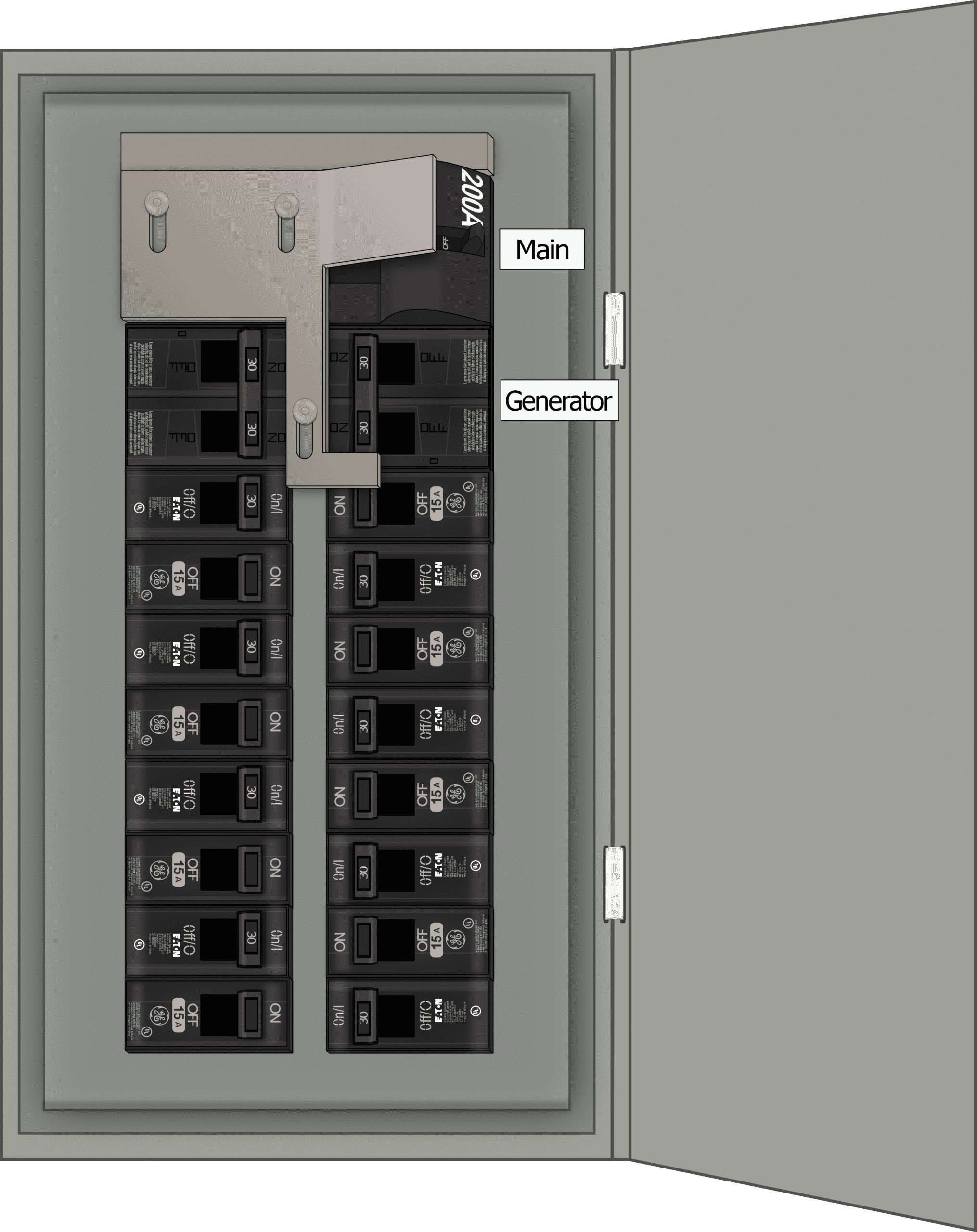

  • Install a generator breaker directly below the main breaker in spaces: 2 & 4 and a filler plate beneath that in space 6
  • Page four of the installation instructions includes a list of contents for Kit K-7010

There are three modified versions of this Interlock Kit: K-7010M, K-7110, & K-7110M

Kit Installation Instructions

Description

This Interlock Kit performs like a manual transfer switch for Crouse-Hinds / Murray electrical panels with the following features:

  • This kits works with the existing humpback style main breaker!
  • Space between breaker columns: 1/2″
  • No gap
  • 150-200 amp two pole hump-back style main breaker
  • Main breaker toggle action: Horizontal (left-right) throw direction ON & OFF
  • Main breaker sits directly on top of the breaker stack in the right column

Requirements:

  • Install a generator breaker directly below the main breaker in spaces: 2 & 4 and a filler plate beneath that in space 6
  • Page four of the installation instructions includes a list of contents for Kit K-7010

There are three modified versions of this Interlock Kit: K-7010M, K-7110, & K-7110M

Kit Installation Instructions

Additional information

Weight 2 lbs
