Interlock Kit KS-1316
$349.95
PATENT PENDING PRODUCT
Have a question or don’t see a kit for your panel? We make custom Interlock Kits for any panel or solar scenario – call (804) 531-3359 or Contact Us!

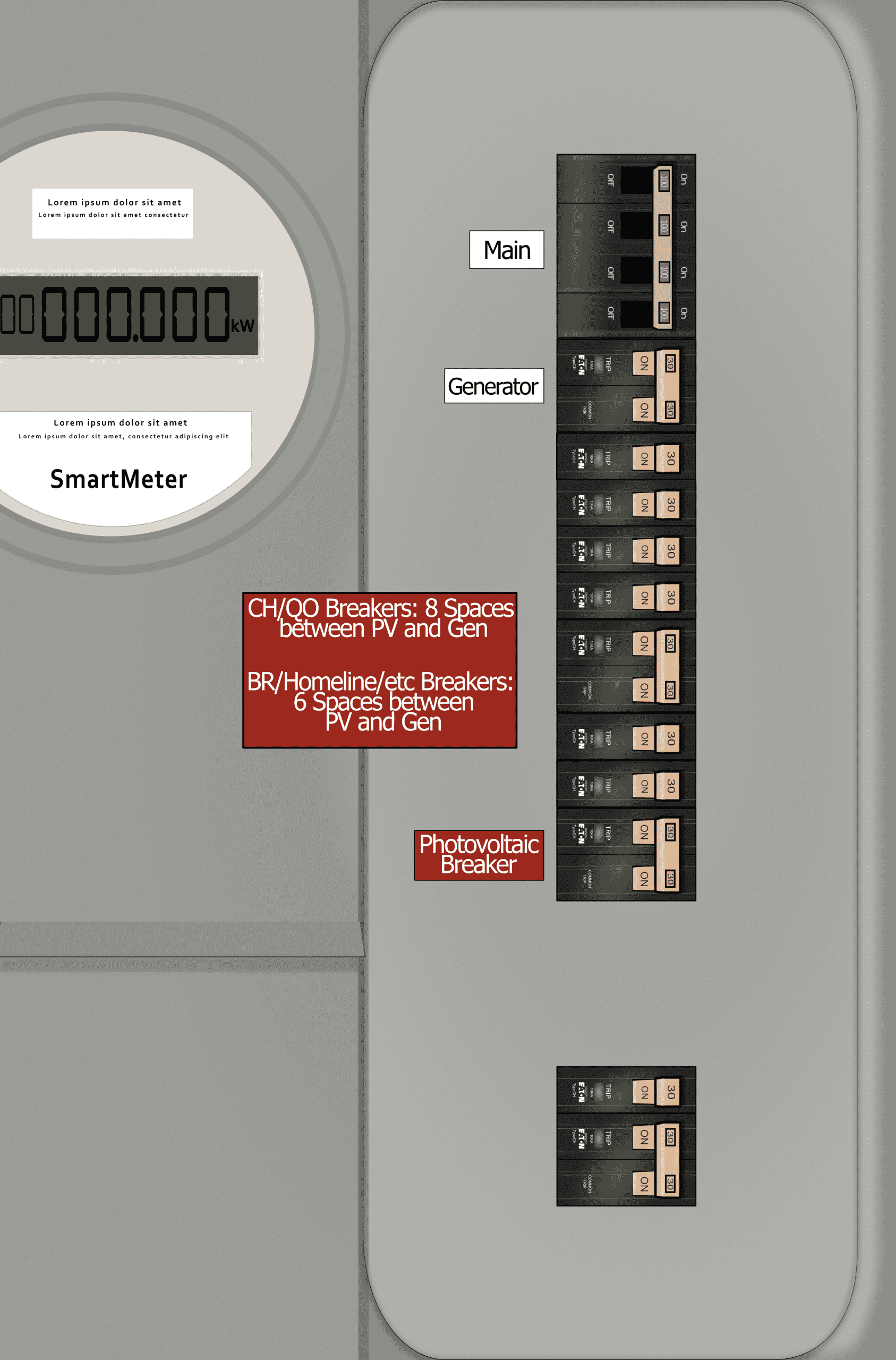

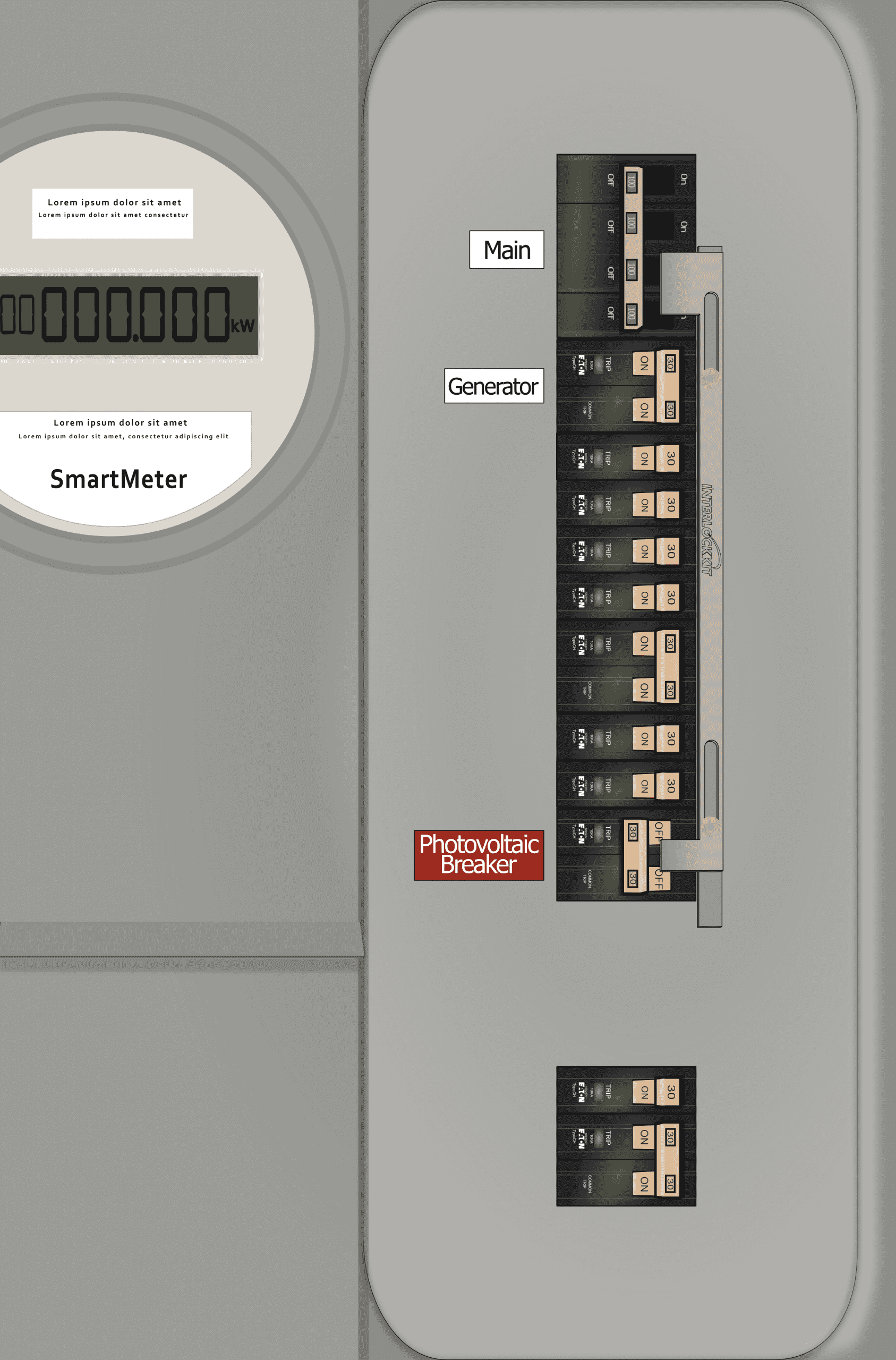

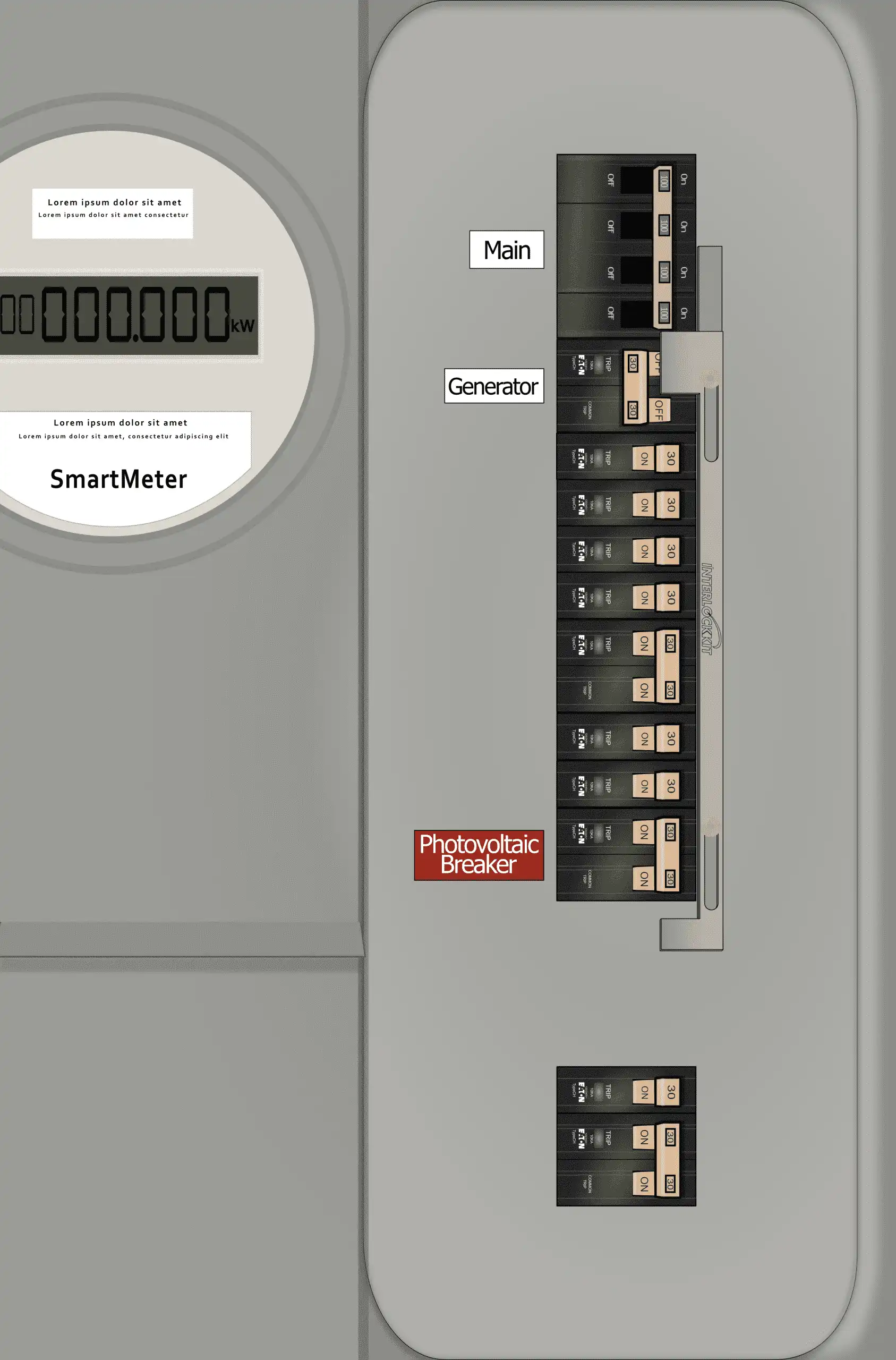

This Interlock Kit mounts to EATON electrical panels with the following features:
- SOLAR & GENERATOR COMPATIBLE INTERLOCK KIT
- Space between breaker columns: 1/2"
- 100-200 amp main breaker
- Main breaker toggle action: horizontal (left-right) throw direction
- Main breaker is above left breaker column
Requirements:
- Install a generator breaker directly below the main breaker
- Install a solar breaker in the bottom of the branch circuit columns
- Compatible with 20 space 40 circuit panels. 10 1" spaces in the left column & 10 1" spaces in the right
Modified versions of this Interlock Kit exist, see: KS-1315 (solar modified Interlock Kit) call for more details about modified kits: (804)726-2448
Additional information
| Weight | 2 lbs |
|---|
