Interlock Kit K-6716 | Interlock Kit

$149.95

97 in stock

PATENT PENDING PRODUCT

Have a question or don’t see a kit for your panel? We make custom Interlock Kits for any panel or solar scenario – call (804) 531-3359 or Contact Us!

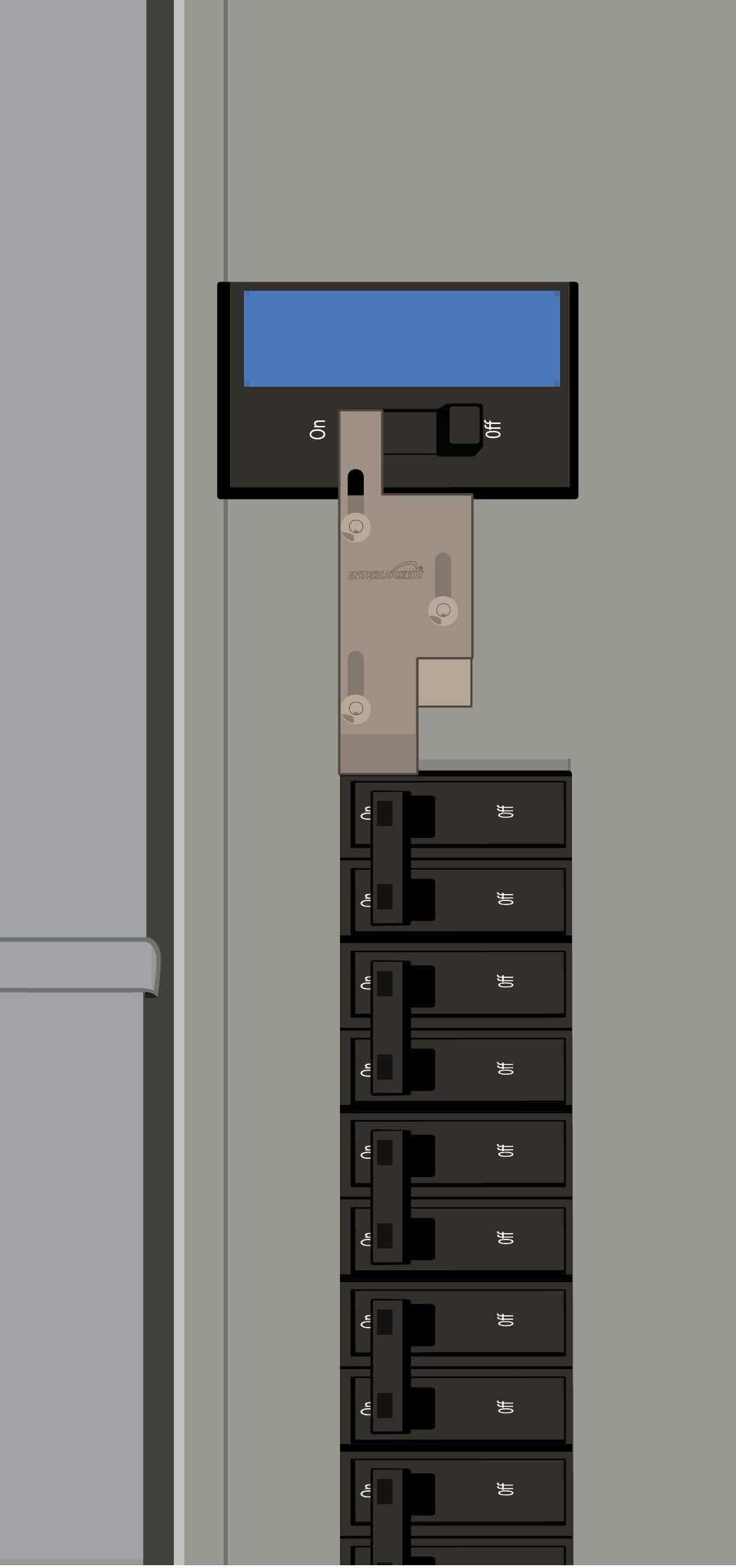

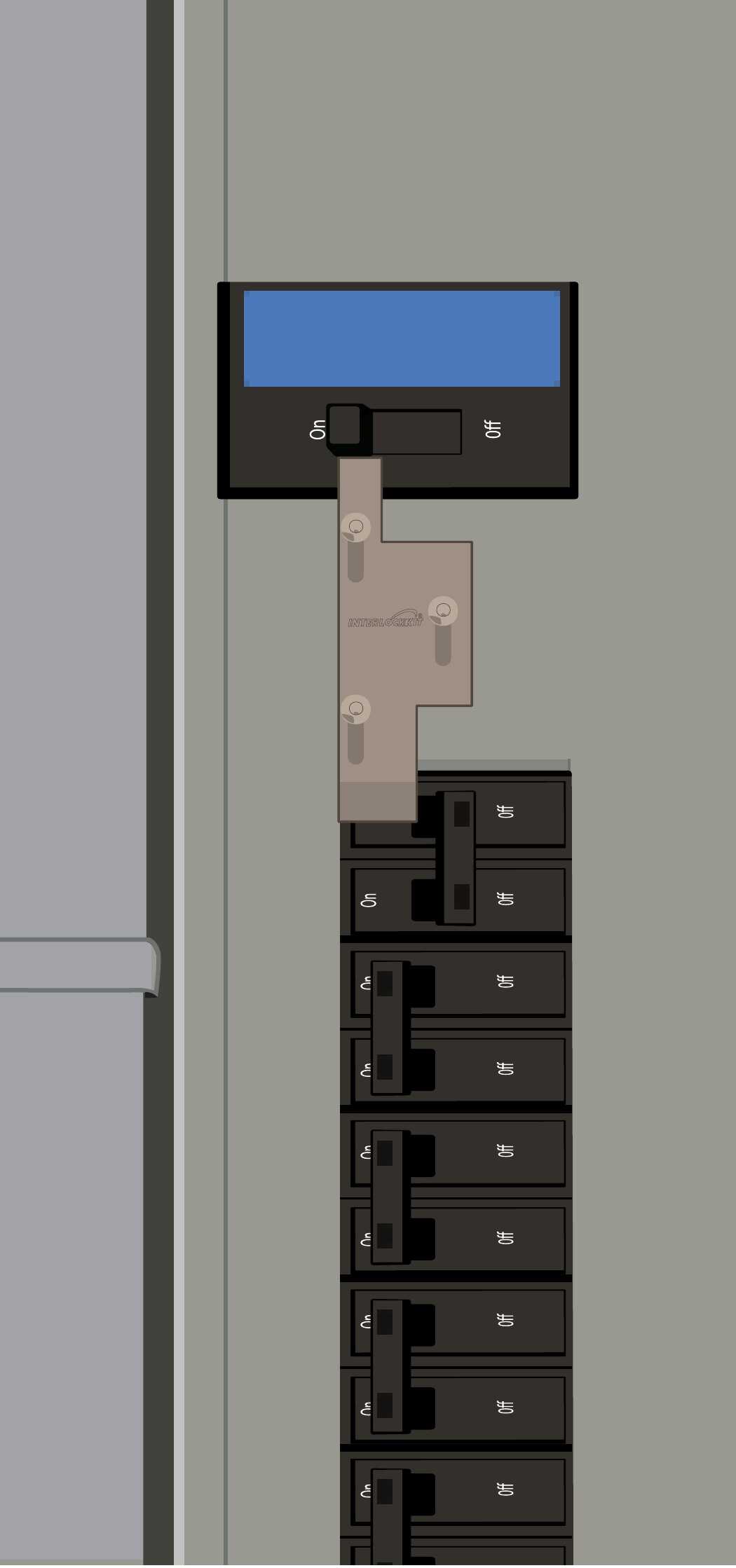

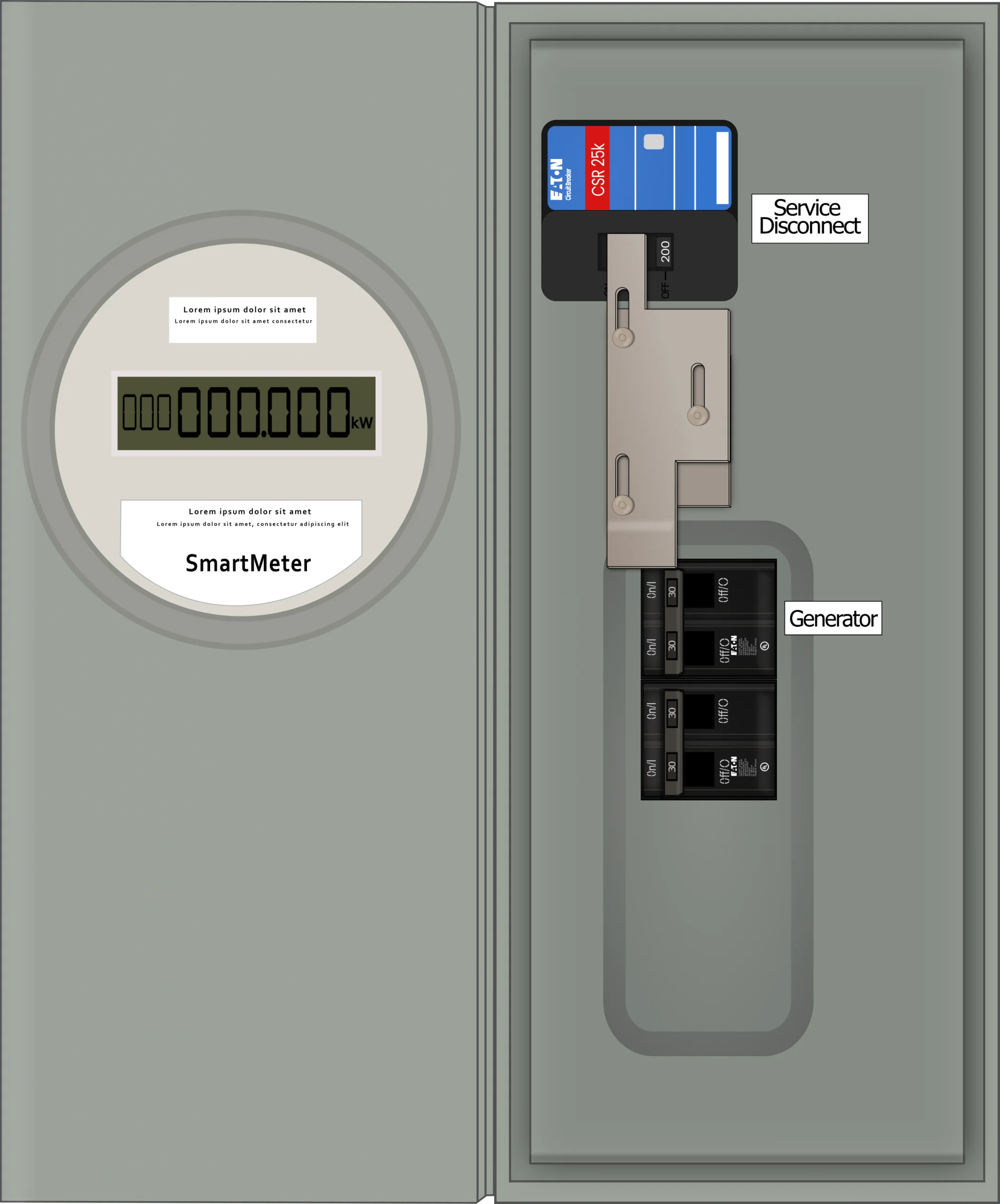

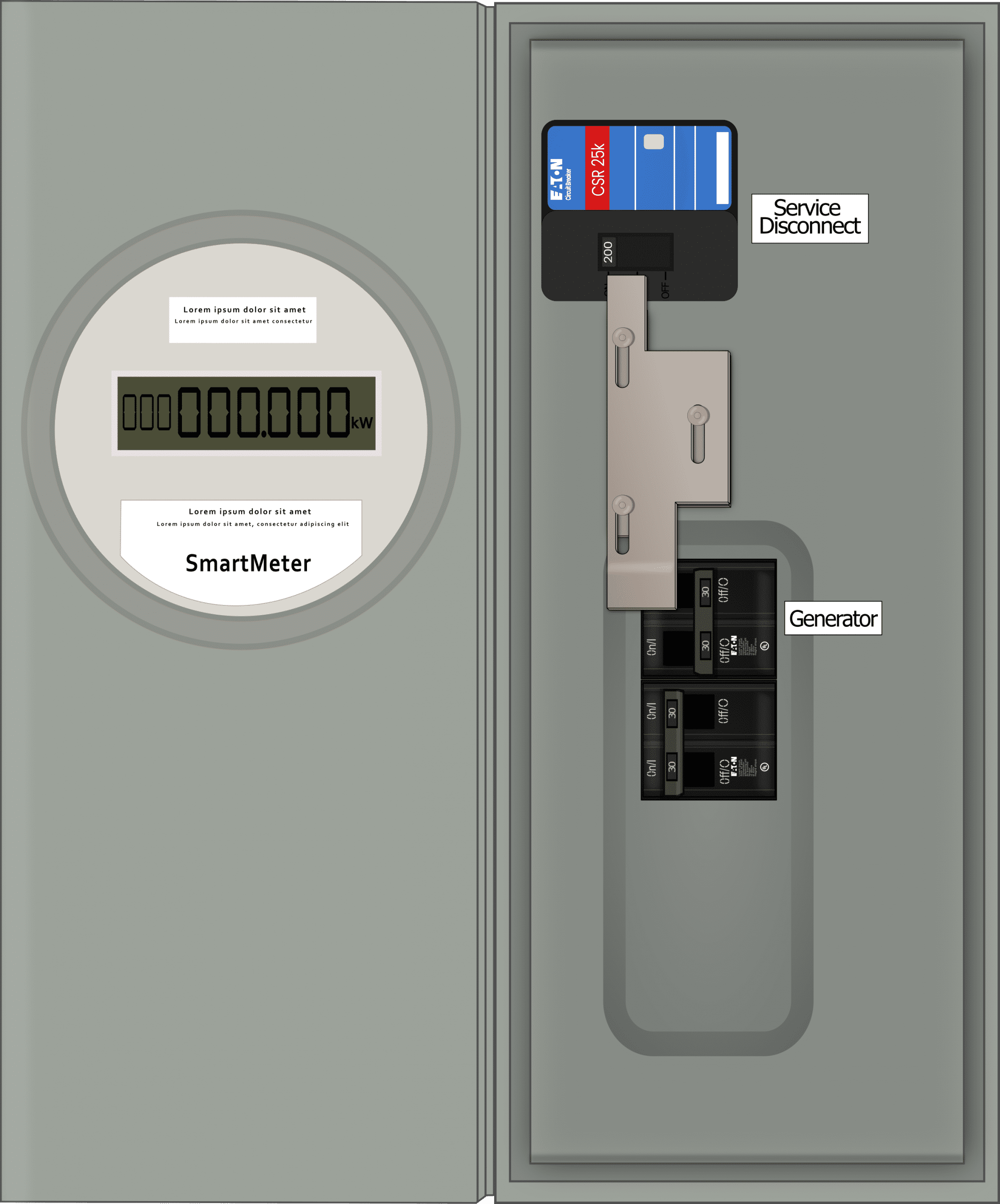

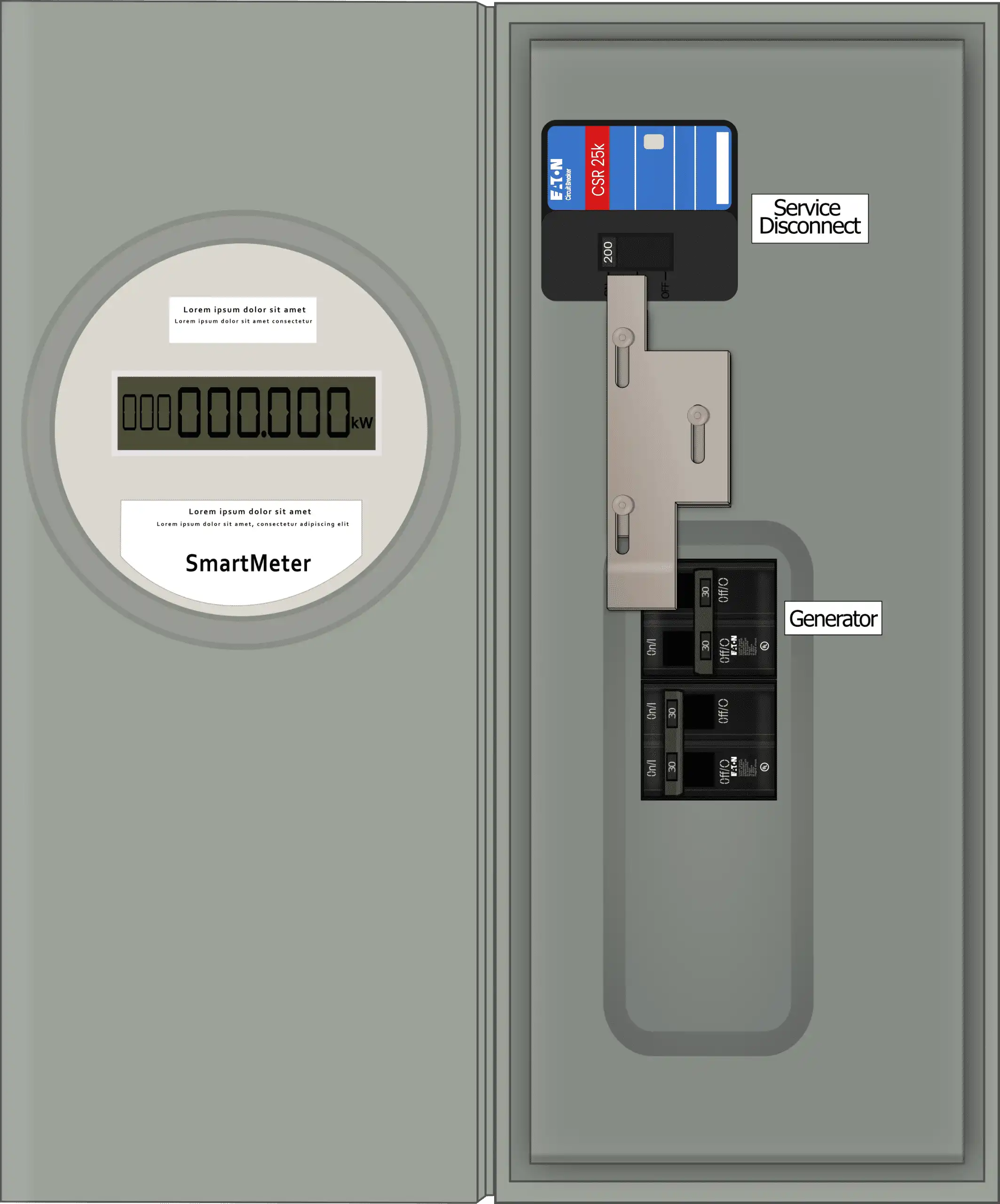

This Kit performs like a manual transfer switch for Cutler Hammer / EATON electrical panels with the following features:

  • Space between breaker columns: 1/2"

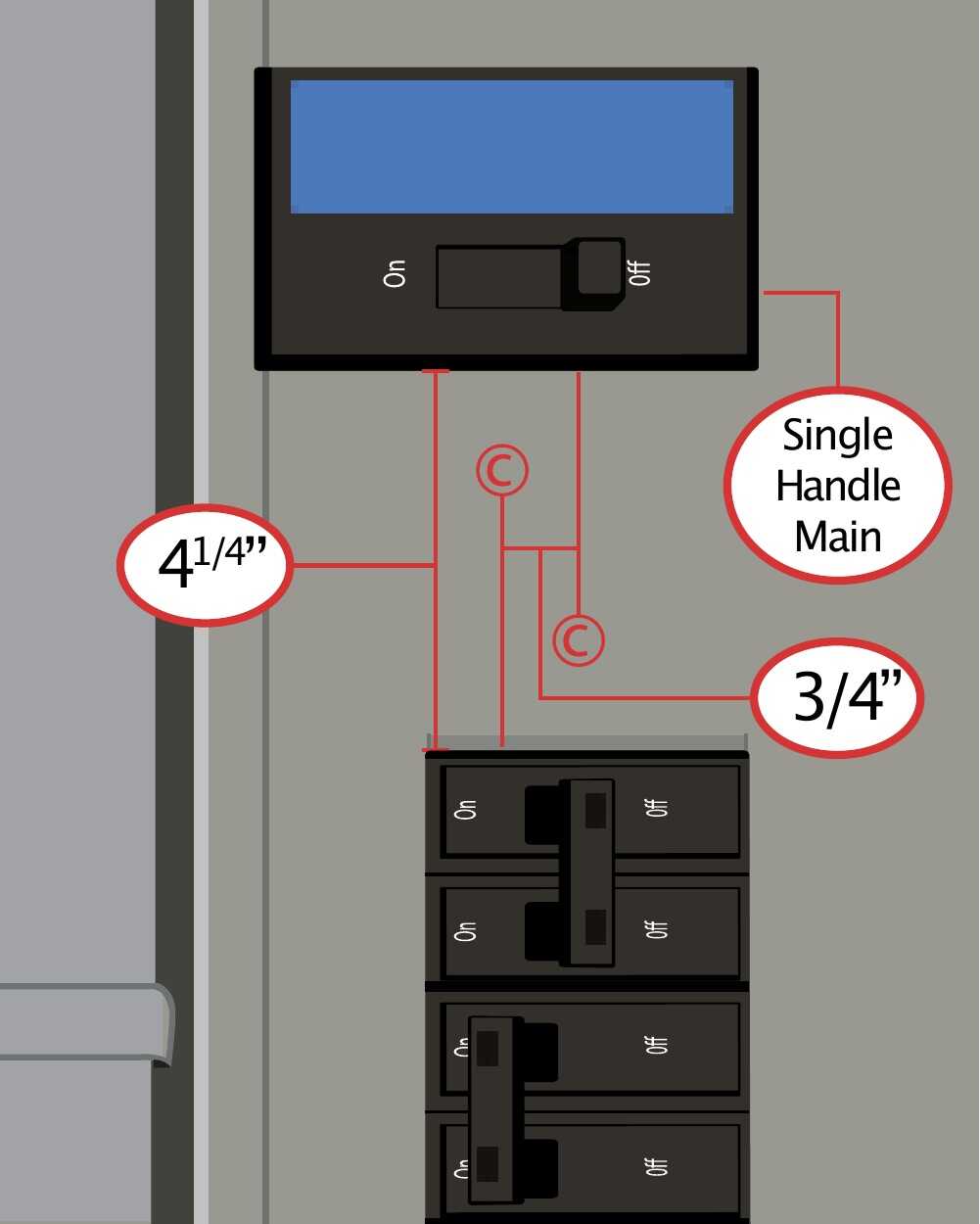

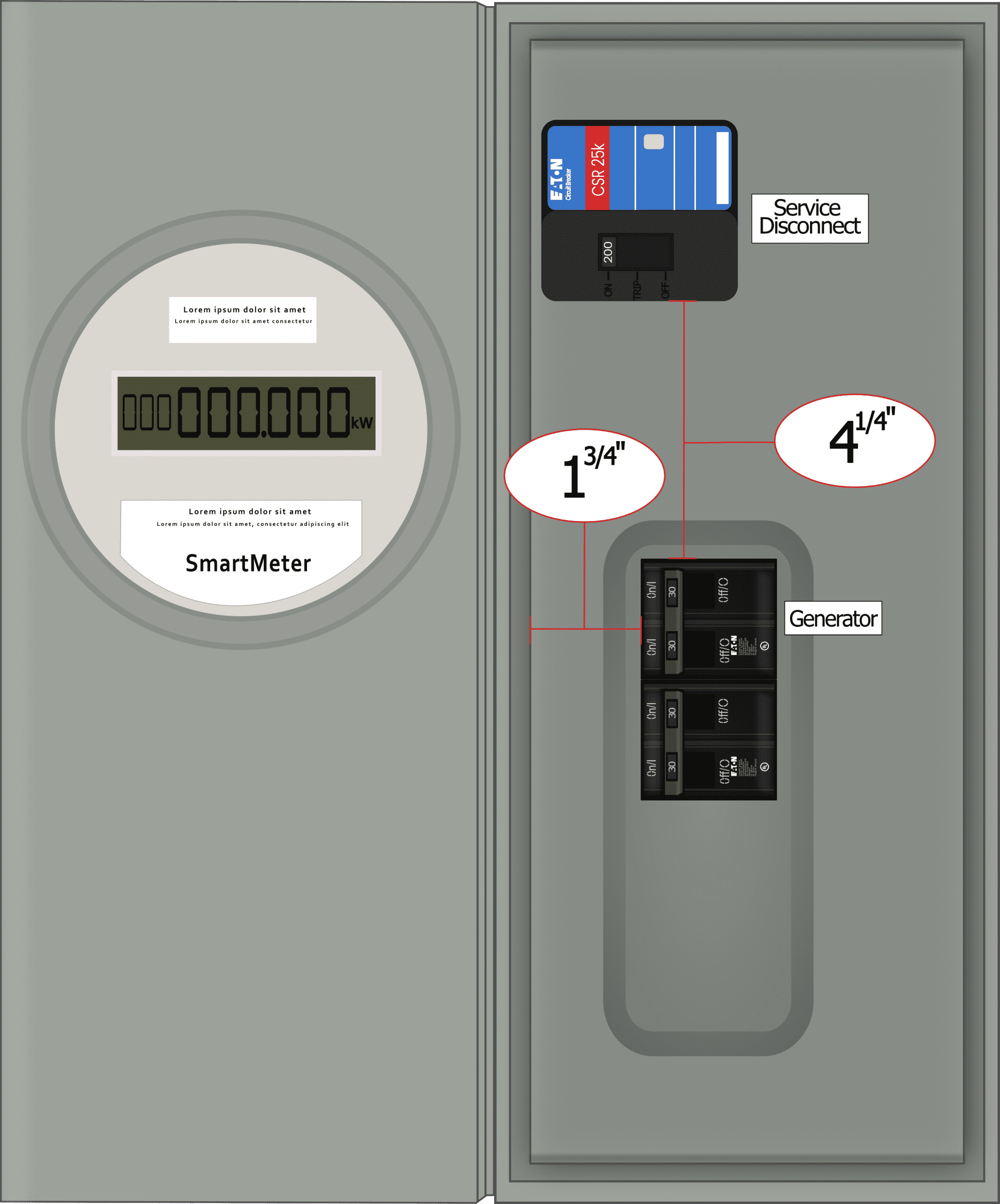

  • Gap between main breaker and breaker column below: 4 1/4"
  • 150-200 amp main breaker
  • Main breaker toggle action: horizontal (left-right) throw direction ON & OFF
  • Main breaker is offset from the center: 3/4" to the left
  • Compatible with: BR style breakers

Requirements

  • Install a two pole generator breaker directly below the main breaker at the top of the breaker column
  • Page four of the installation instructions include a list of contents included in Kit K-6716

Kit Installation Instructions

Additional information

Weight 1 lbs
Catalog #:

MBE816P200TS, MBE88B200BTS, MBER48B150BTS, MBER48B200BTS, MB2040B150BTS, MBE2040B200BTS, MB48B200BTSG, MB48P200BTSG, MBB200BTSGO, MB48B150BTSG, MBB150BTSGO – other compatible catalog #'s may not be listed here yet. Use the details listed in "Description" to help match your kit!

Have a question or don’t see a kit for your panel? We make custom Interlock Kits for any panel or solar scenario – call (804) 531-3359 or Contact Us!
