Square D Kit K-5010 (125-200 Amp Main)

$149.95

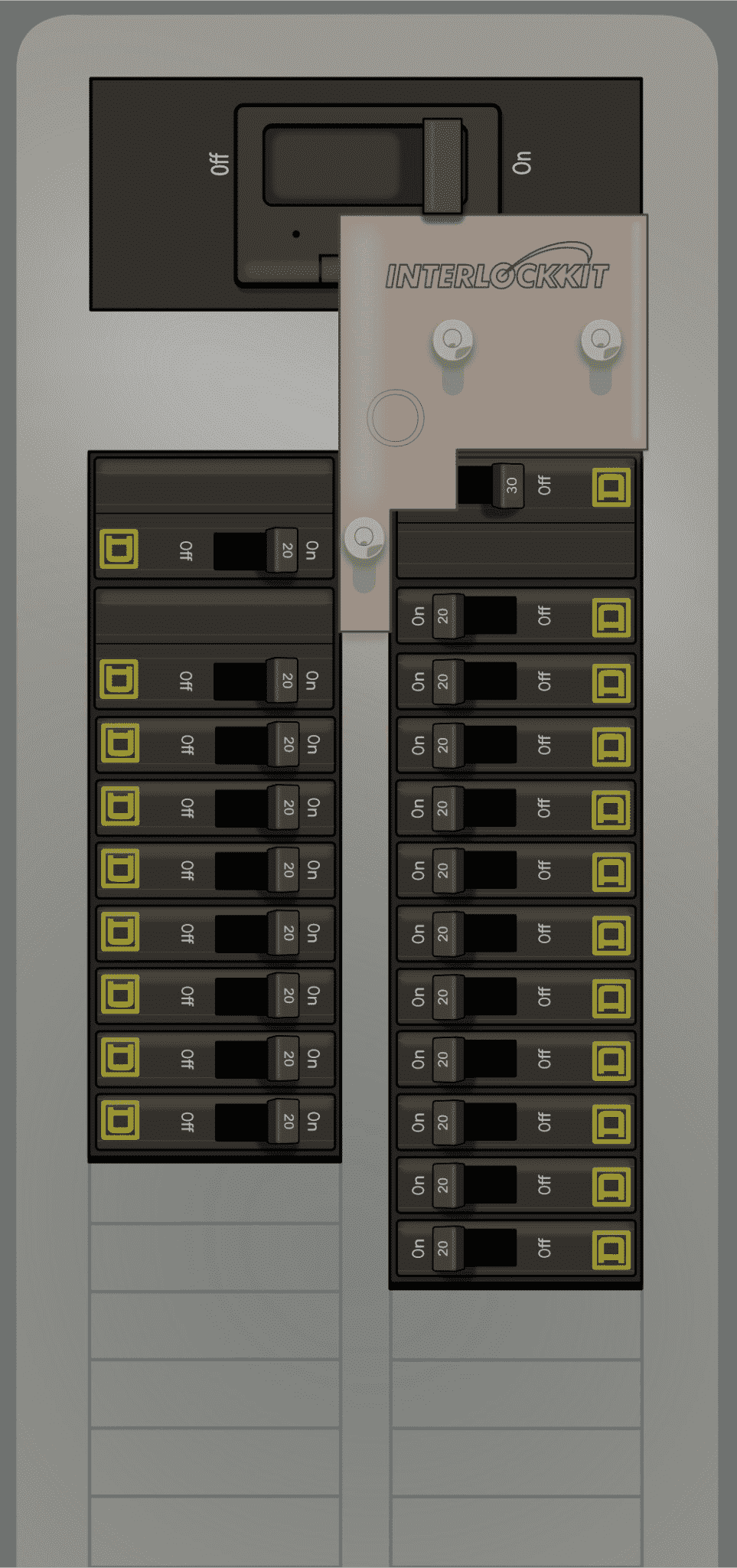

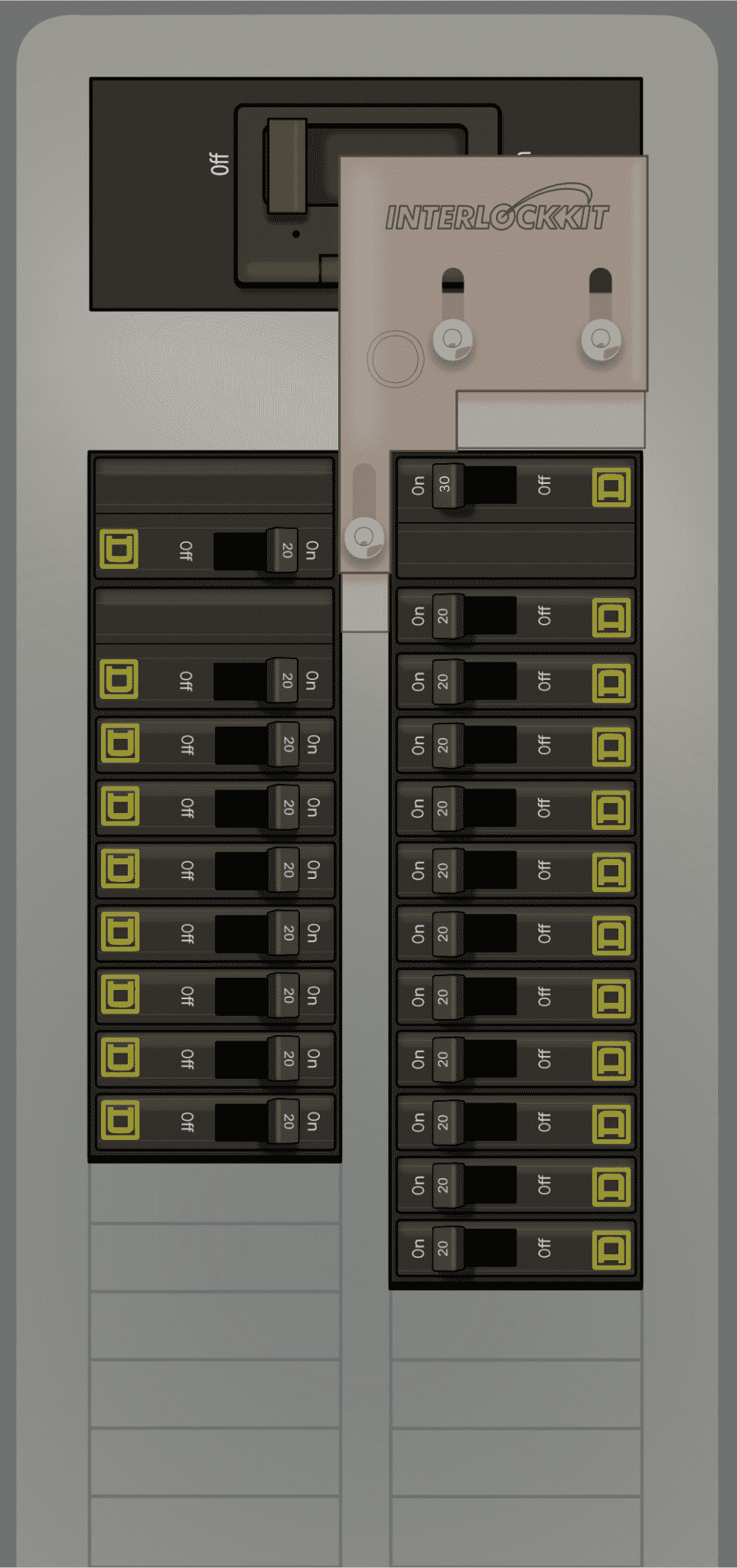

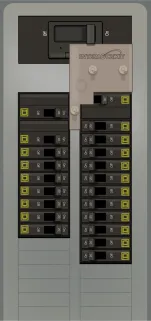

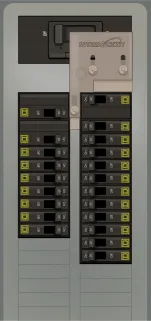

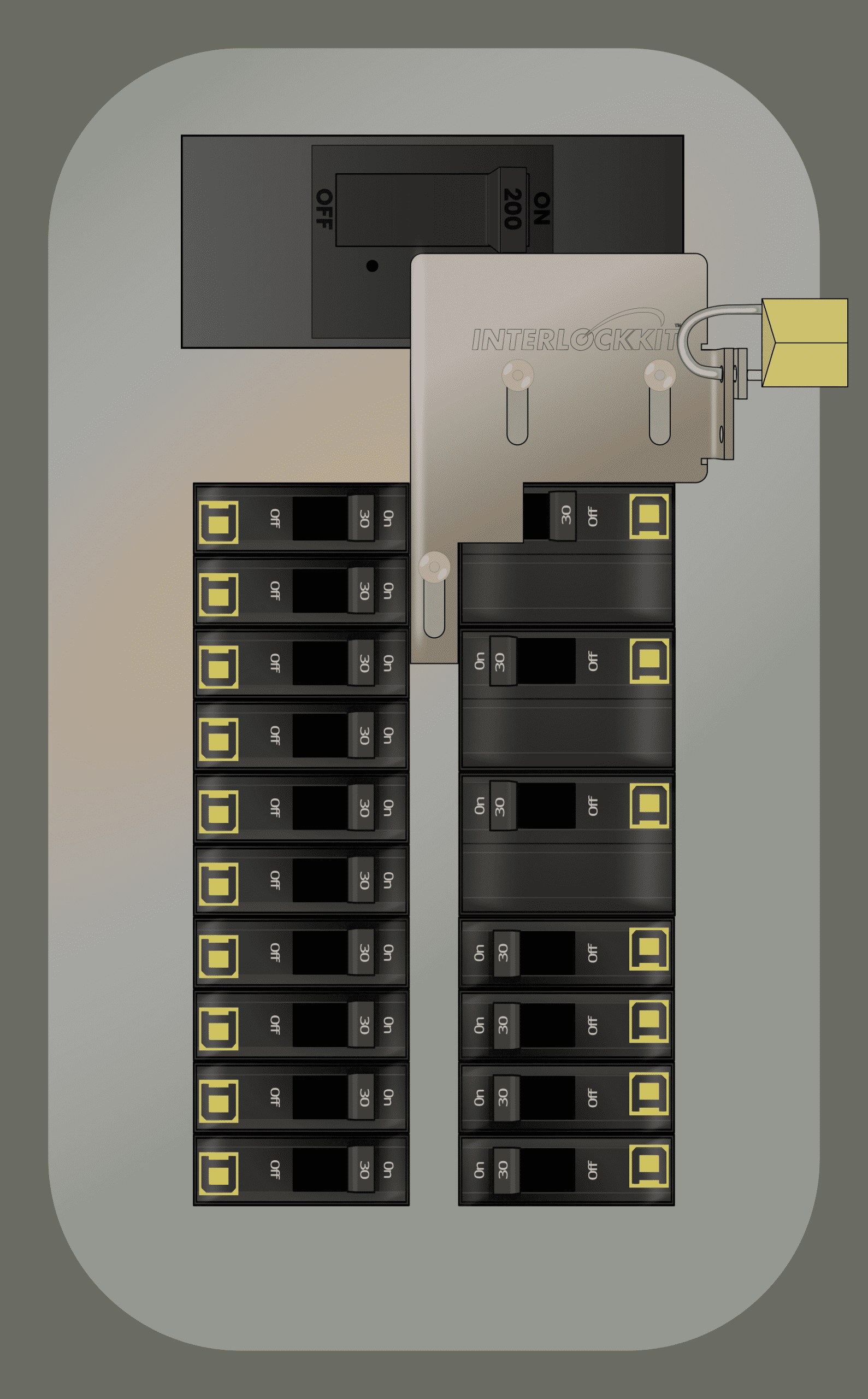

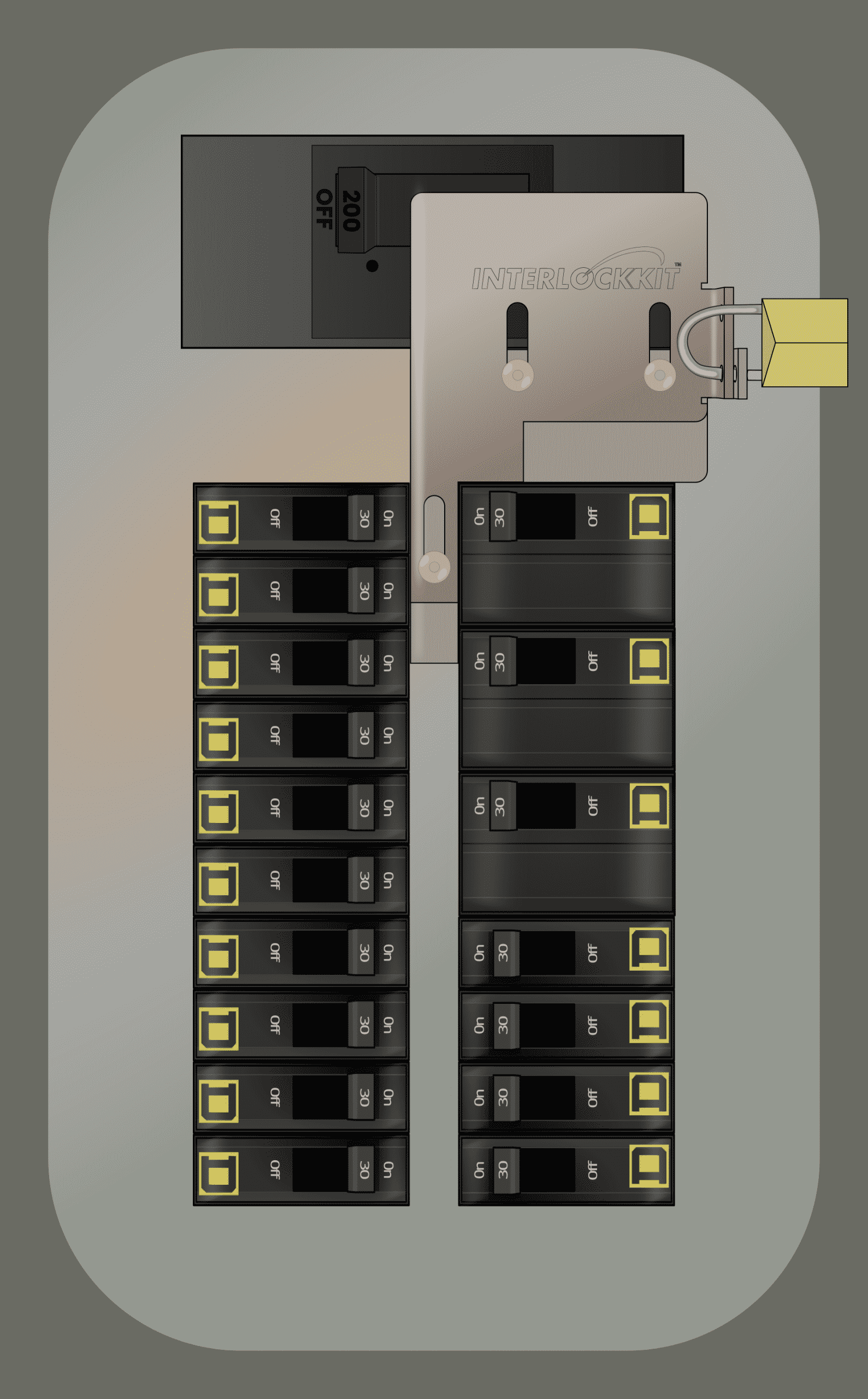

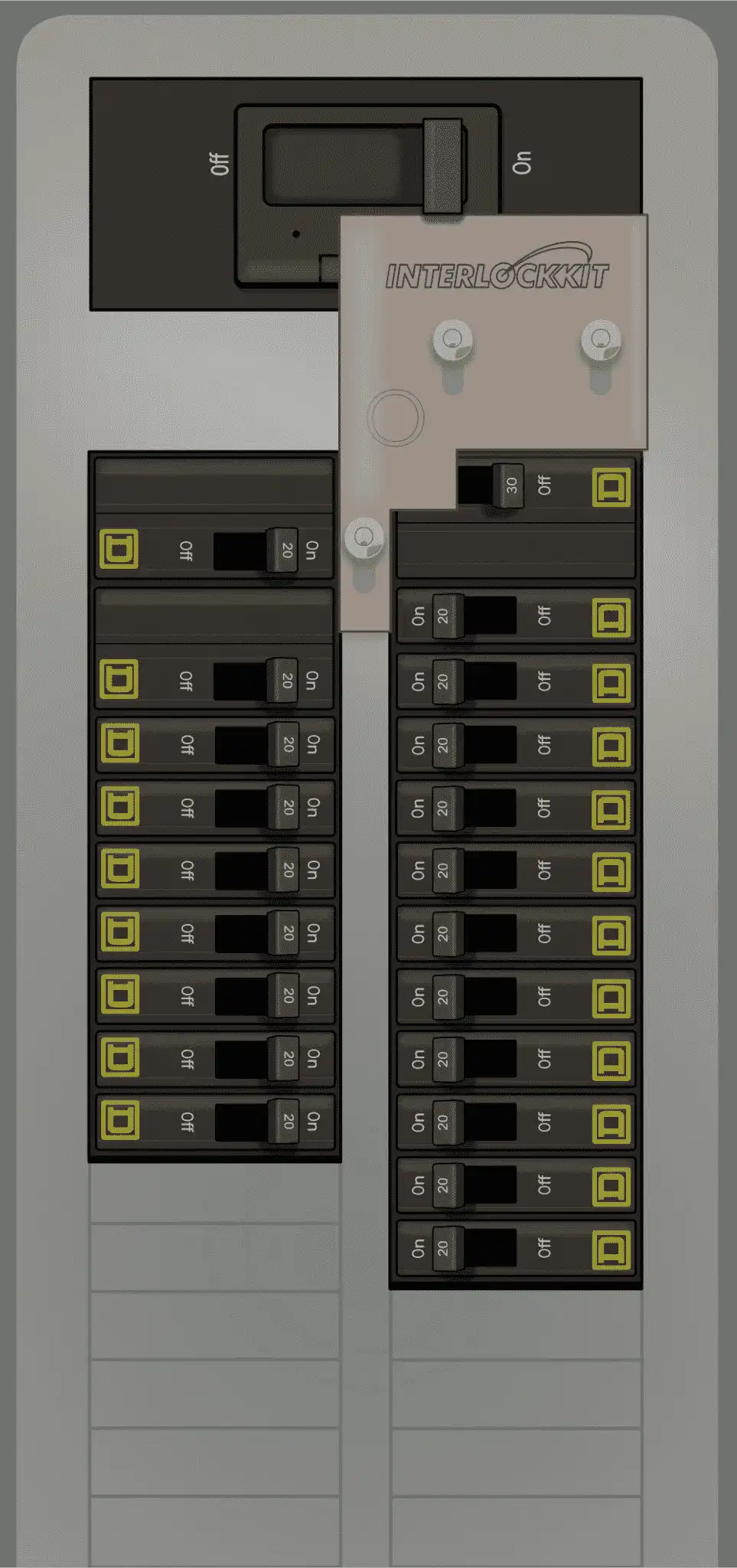

This Interlock Kit mounts to Square D electrical panels with the following features:

  • Space between breaker columns: 1/2″

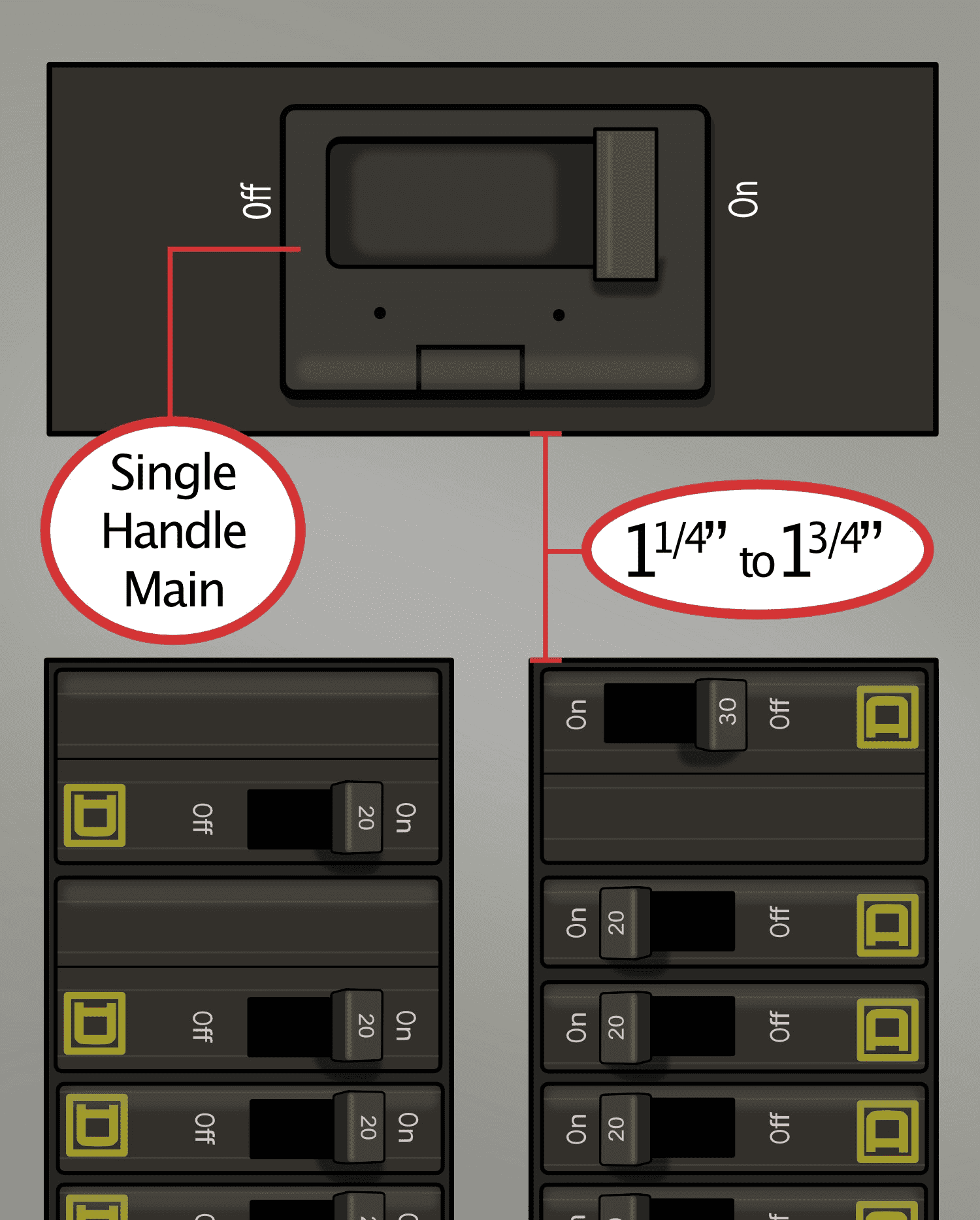

  • Gap between main breaker and columns below: 1 1/4 – 1 1/2″
  • 100-200 amp main breaker
  • Main breaker toggle action: horizontal (left-right) throw direction
  • Main breaker is centered over both breaker columns
  • Compatible with: QO & HOMELINE type BREAKERS

Requirements:

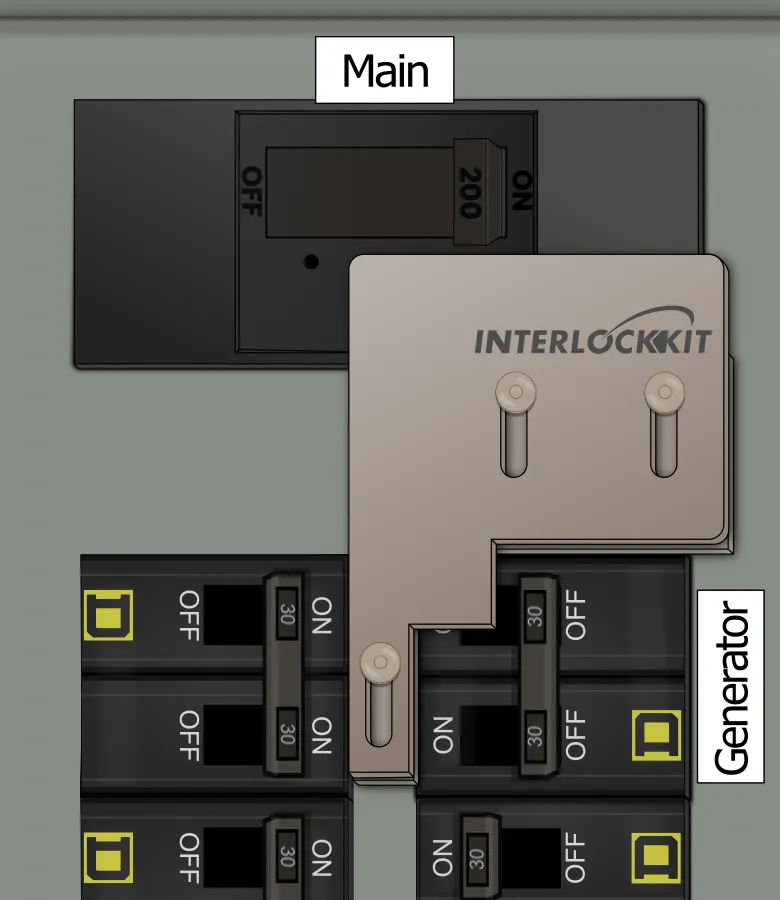

  • Install a generator breaker at the top of the right column: spaces 2 & 4
  • Page four of the installation instructions includes a list of contents included in Kit K-5010

Modified versions of this Interlock Kit exist, see: K-5011 (not featured on site) , KS-5010 (solar modified Interlock Kit) call for more details about modified kits for K-5010: (804)726-2448

Kit Installation Instructions

Description

This Interlock Kit mounts to Square D electrical panels with the following features:

  • Space between breaker columns: 1/2″
  • Gap between main breaker and columns below: 1 1/4 – 1 1/2″
  • 100-200 amp main breaker
  • Main breaker toggle action: horizontal (left-right) throw direction
  • Main breaker is centered over both breaker columns
  • Compatible with: QO & HOMELINE type BREAKERS

Requirements:

  • Install a generator breaker at the top of the right column: spaces 2 & 4
  • Page four of the installation instructions includes a list of contents included in Kit K-5010

Modified versions of this Interlock Kit exist, see: K-5011 (not featured on site) , KS-5010 (solar modified Interlock Kit) call for more details about modified kits for K-5010: (804)726-2448

Kit Installation Instructions

Additional information

Weight 1 lbs
