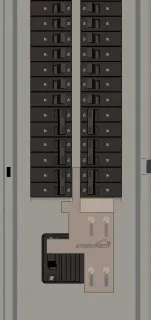

Interlock Kit K-8115 | Interlock Kit

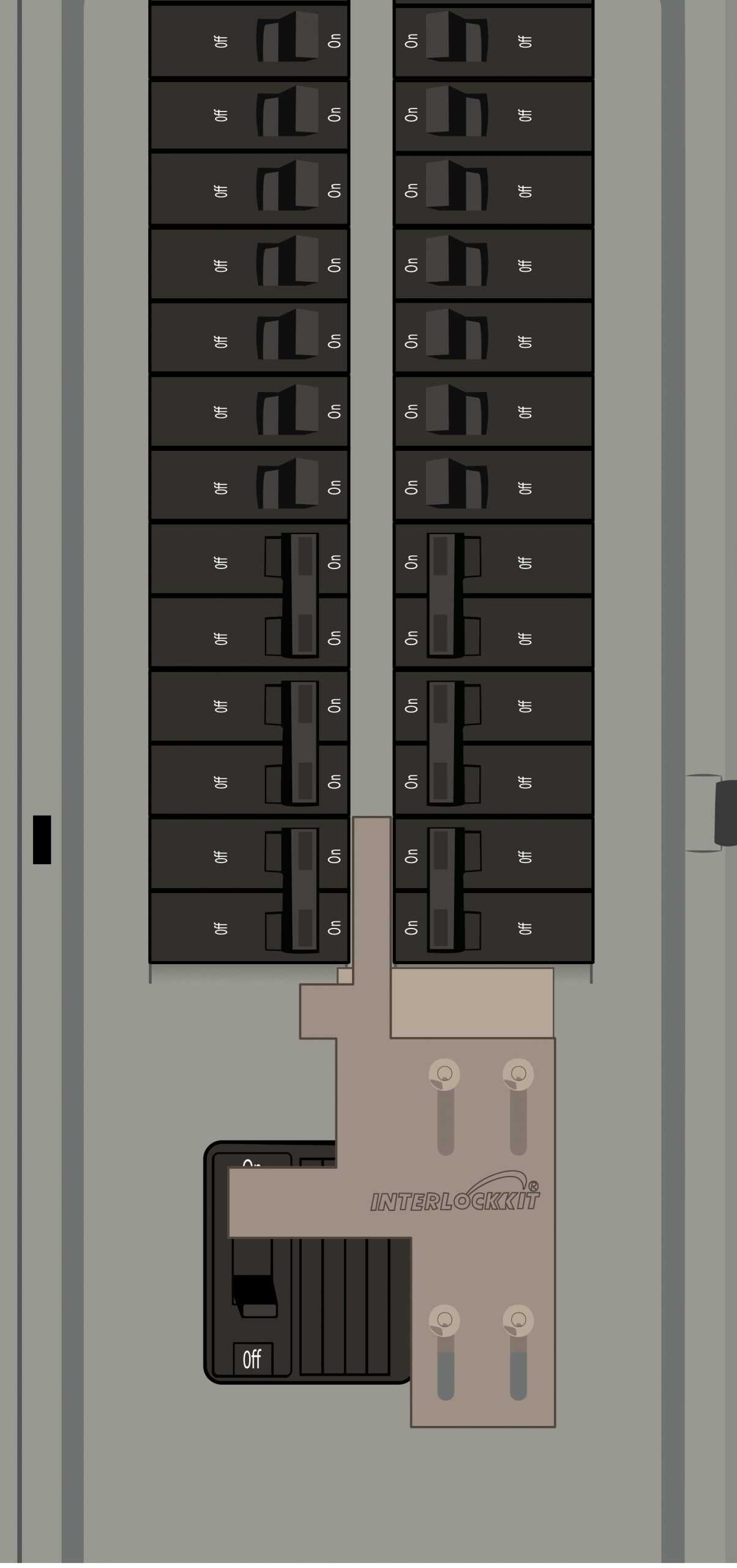

This Kit mounts to General Electric (GE) electrical panels with the following features:

• Space between breaker columns: 1/2"

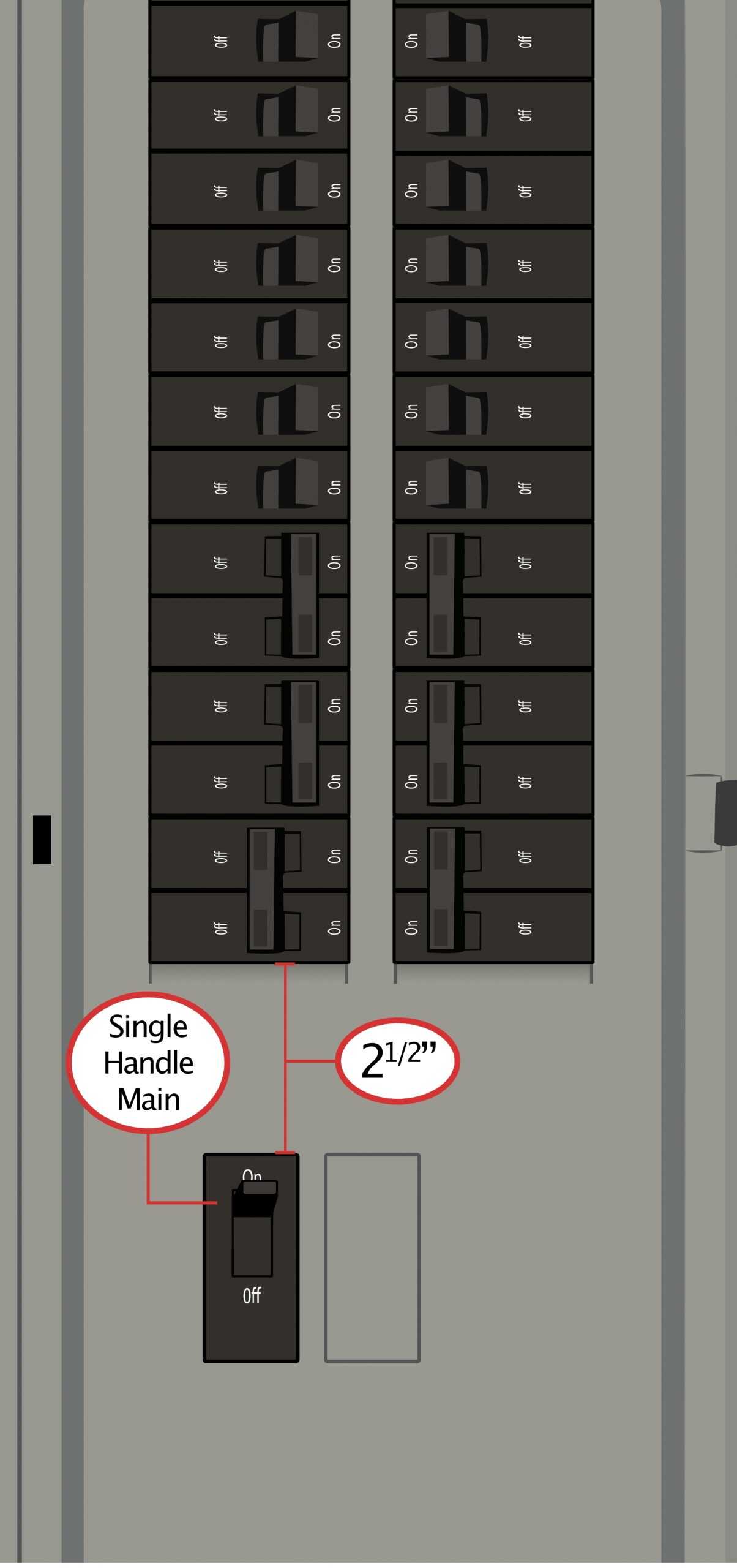

• Gap between the main breaker and columns above/below, is: 2 1/2"
• 150-200 amp main breaker
• Main breaker toggle action: vertical (up & down) throw direction ON & OFF
• Main breaker may be centered or offset to the left in the panel
• Main breaker may be bottom fed or top fed in this panel

Requirements

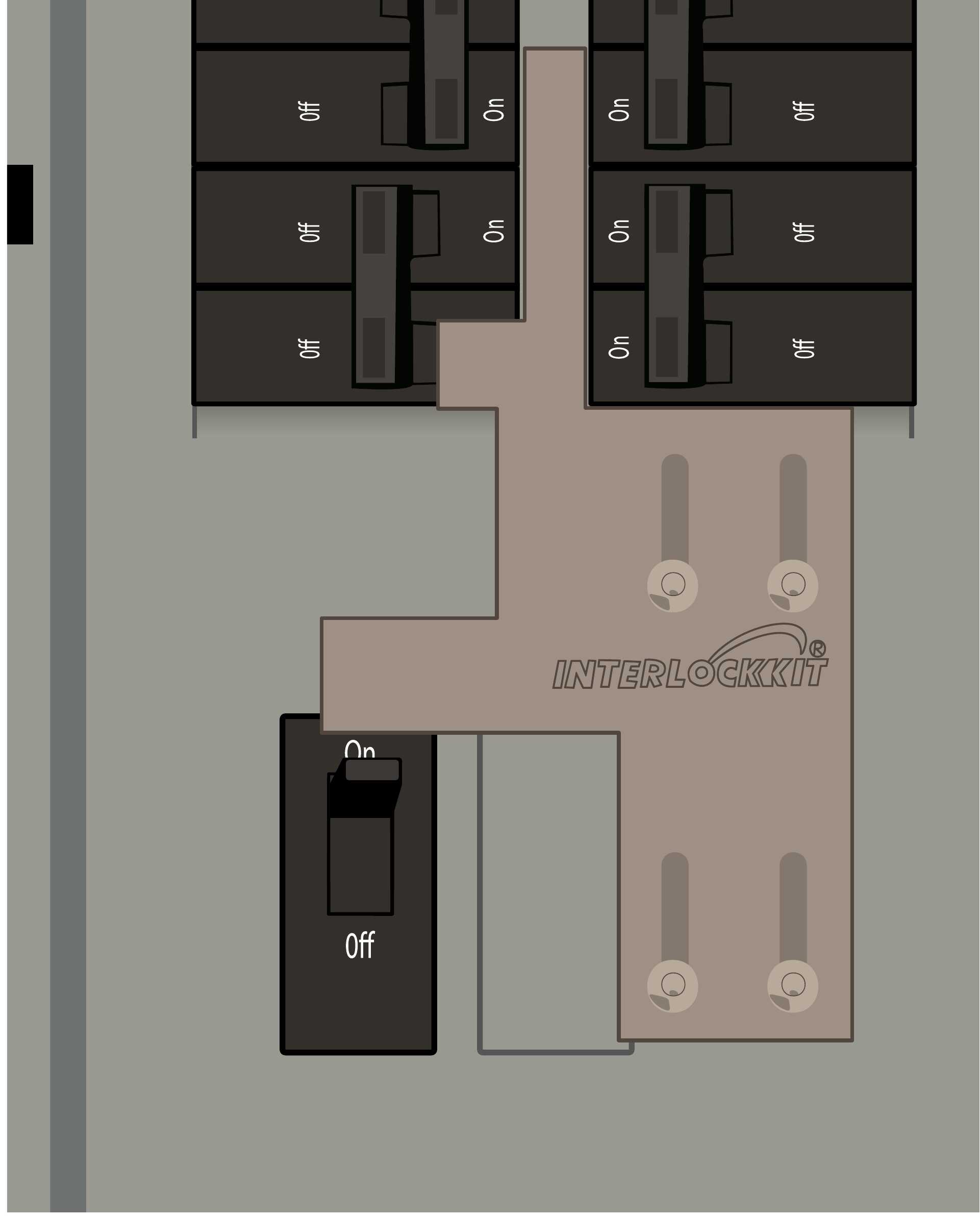

• Install a two pole generator breaker, located in: spaces 2 & 4 (top two spaces in the right column)
• If the main breaker is bottom fed install a two-pole generator breaker in the bottom two spaces in the left circuit column

Kit Instillation Instructions
