Interlock Kit K-6415

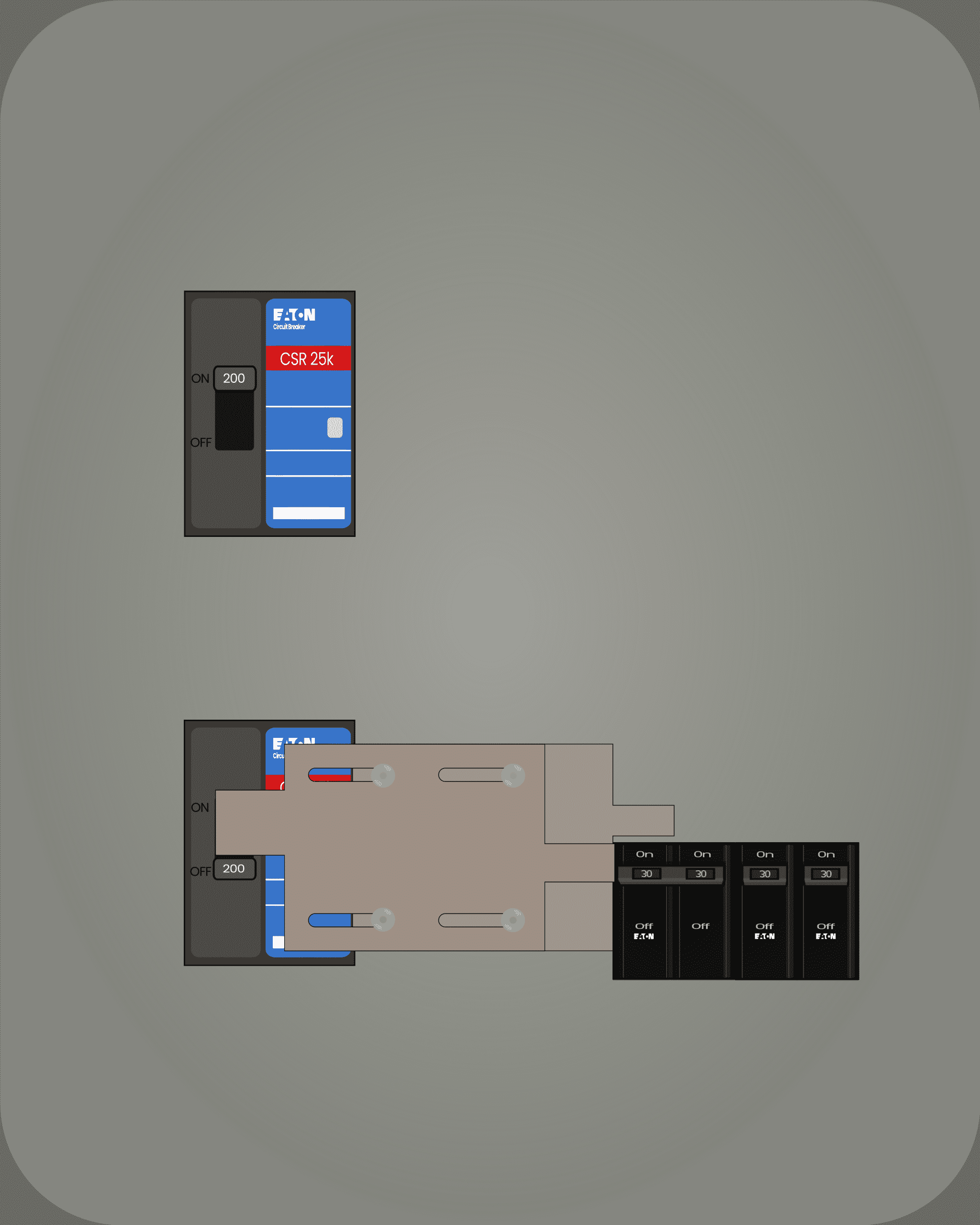

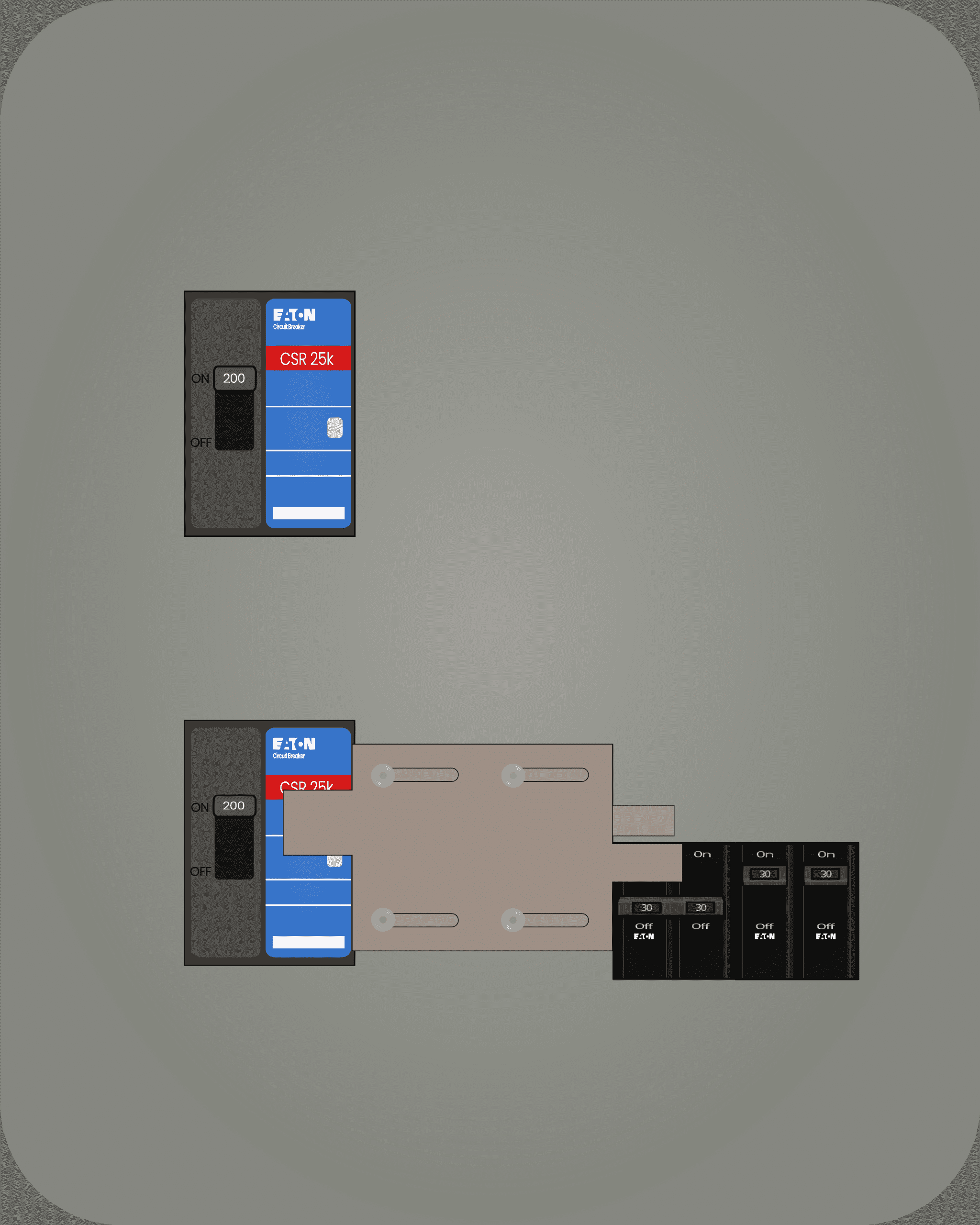

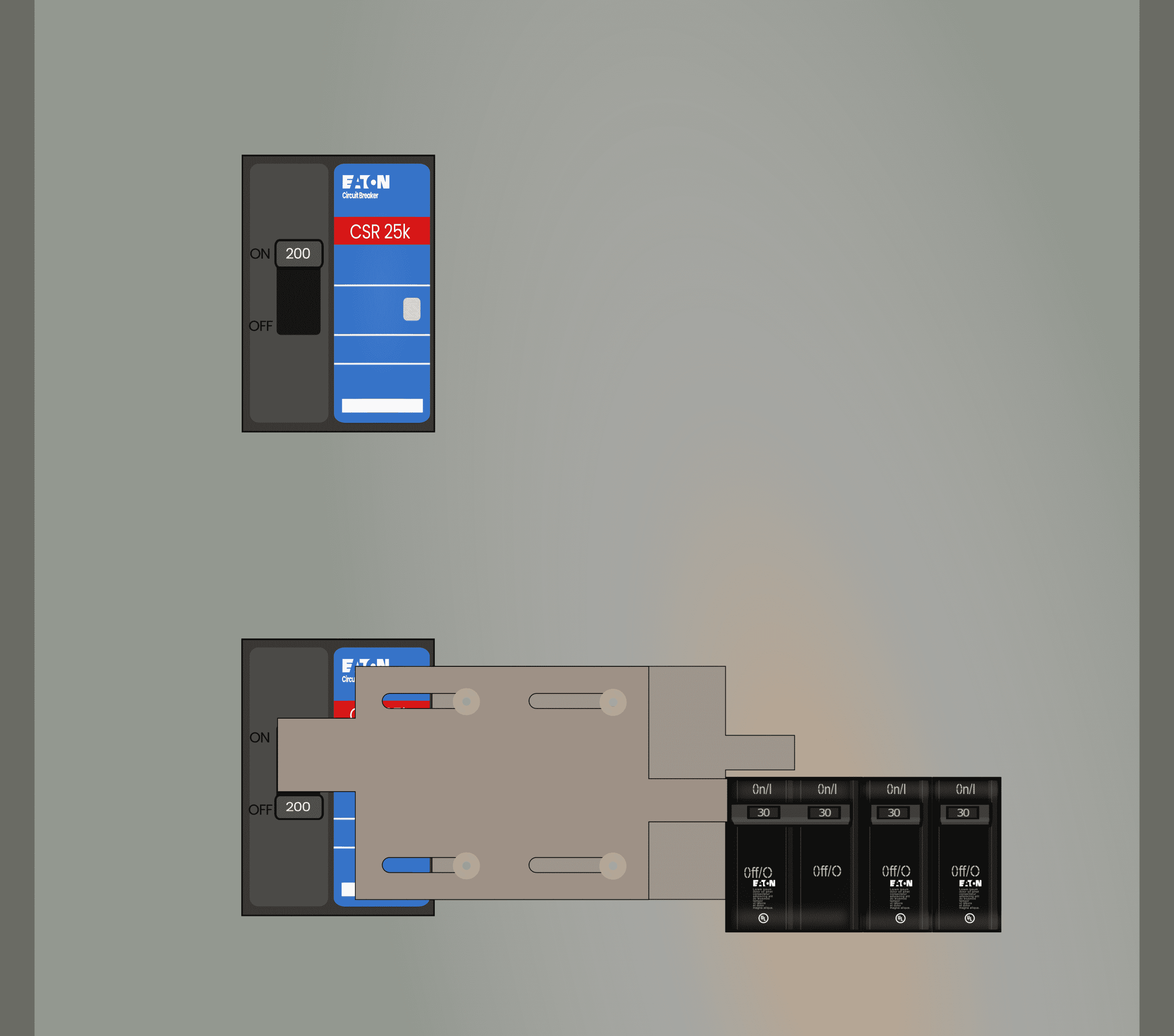

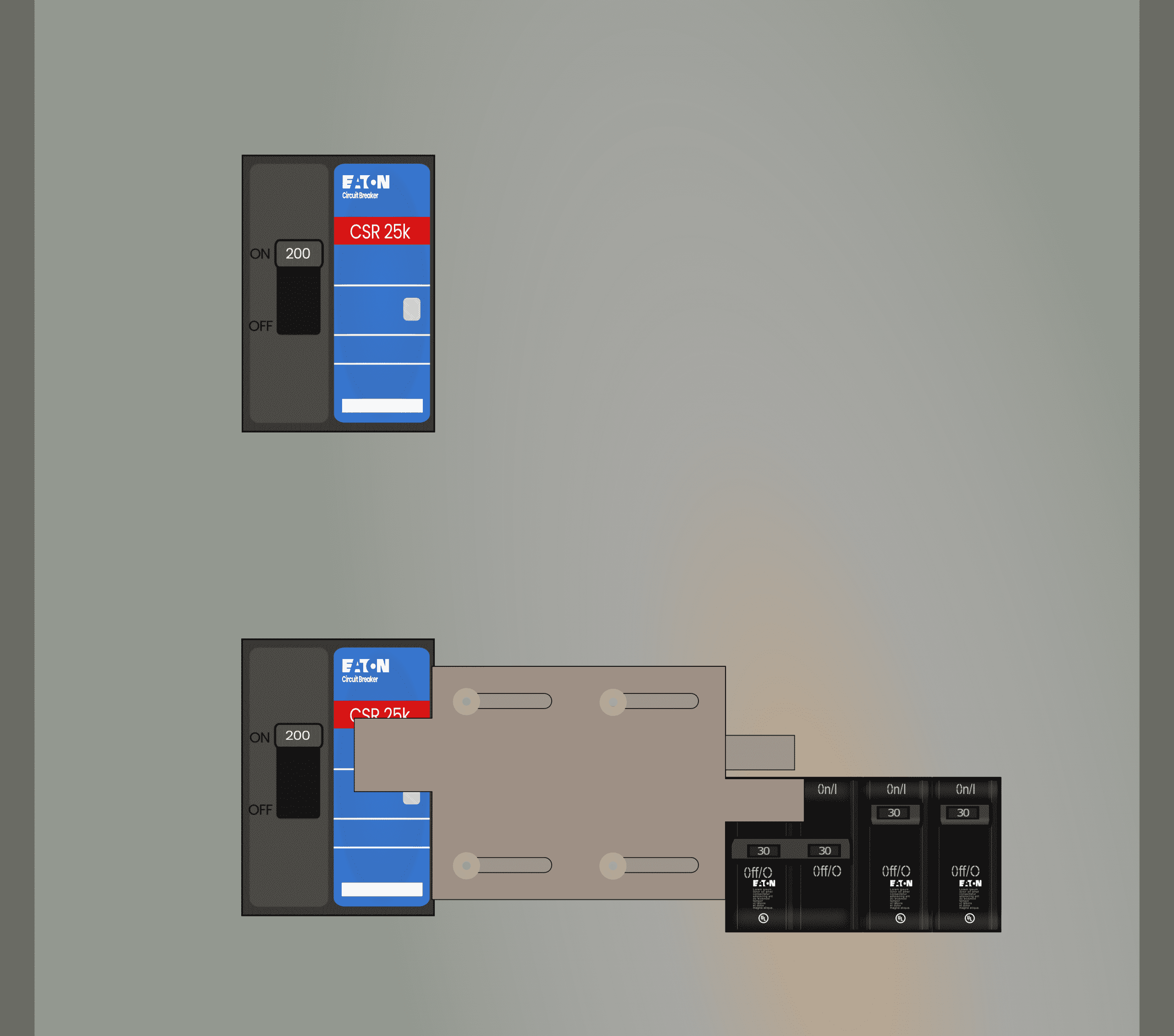

This Kit performs like a manual transfer switch for Cutler Hammer/EATON electrical panels with the following features:

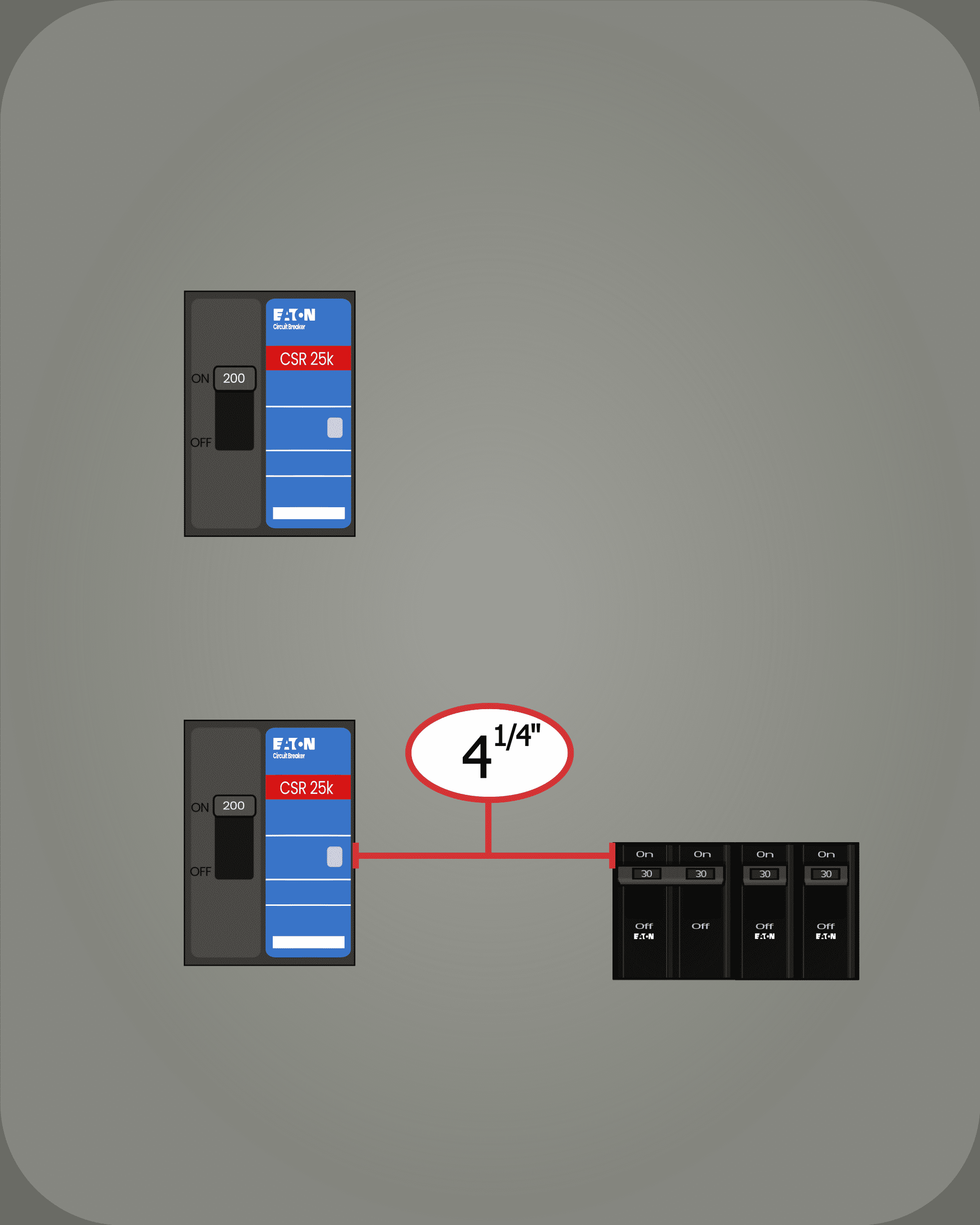

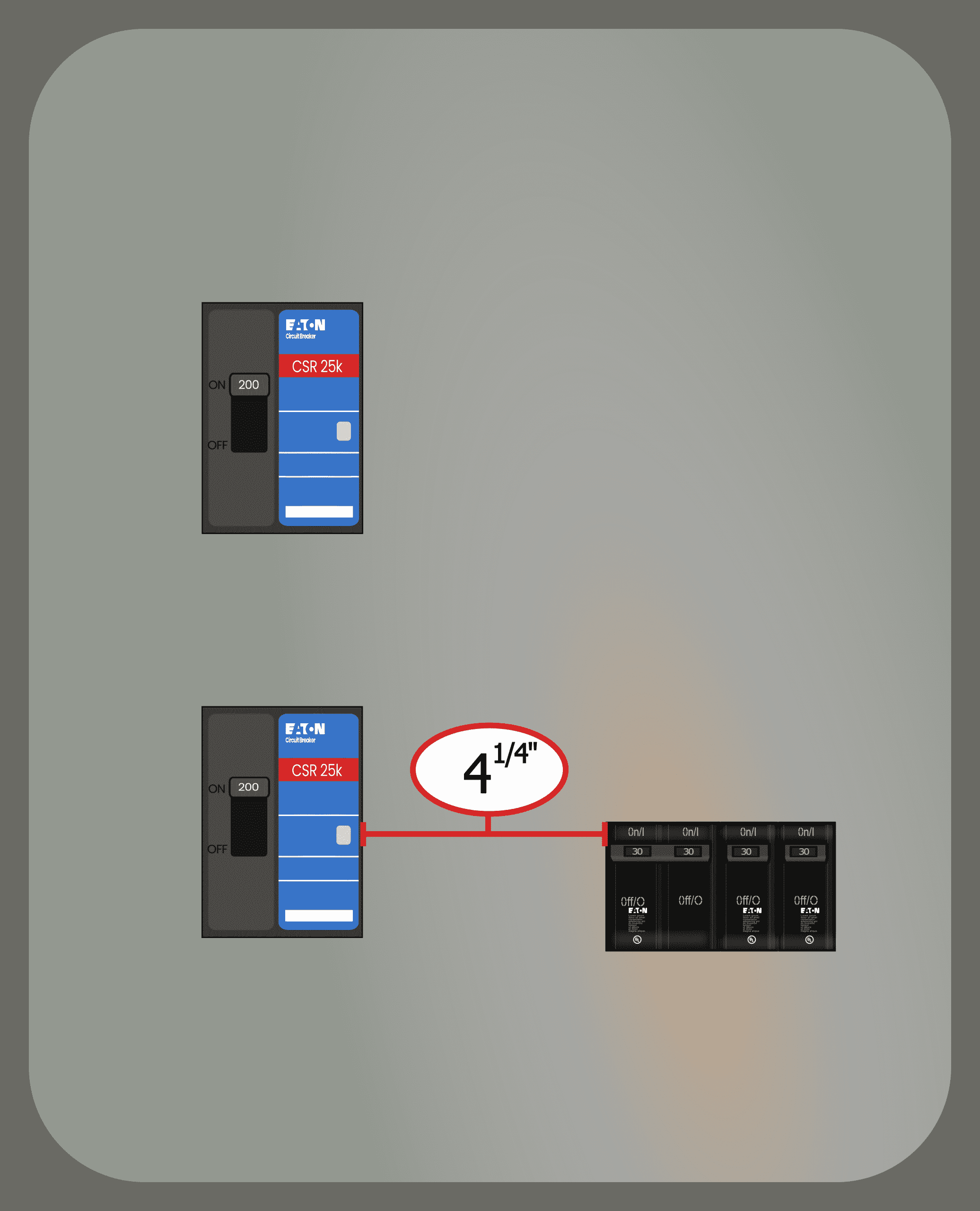

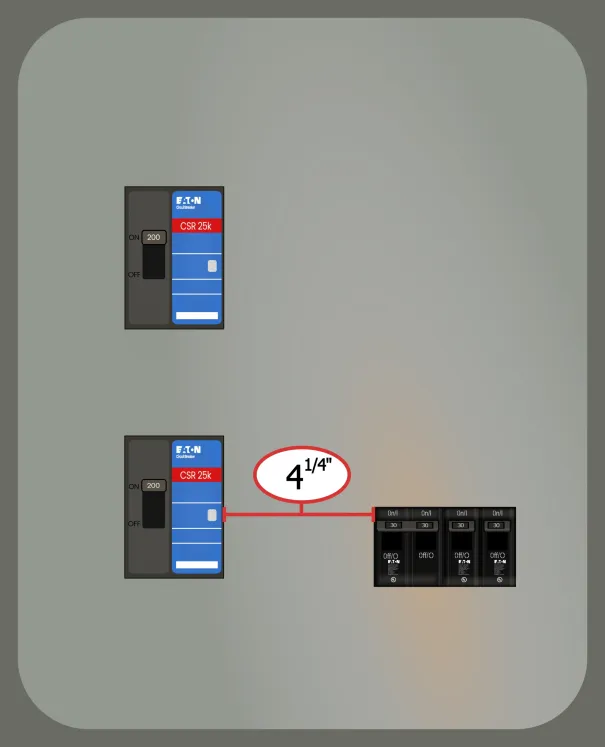

• Gap between the main breaker and breaker row adjacent is: 4 1/4"
• 200-400 amp main breaker panel
• Main breaker toggle switch: Horizontal (left-right) throw direction ON & OFF
• Compatible with: BR type breakers

Requirements

• Install a two pole generator breaker at the left of the breaker row: spaces 1 & 2

Modified versions of this Interlock Kit exist, see: K-6416 (Double Main Lockout).

Kit Installation Instructions
