Interlock Kit K-6710

This Interlock Kit mounts to EATON / Cutler Hammer electrical panels with the following features:

• Single breaker column below the main breaker

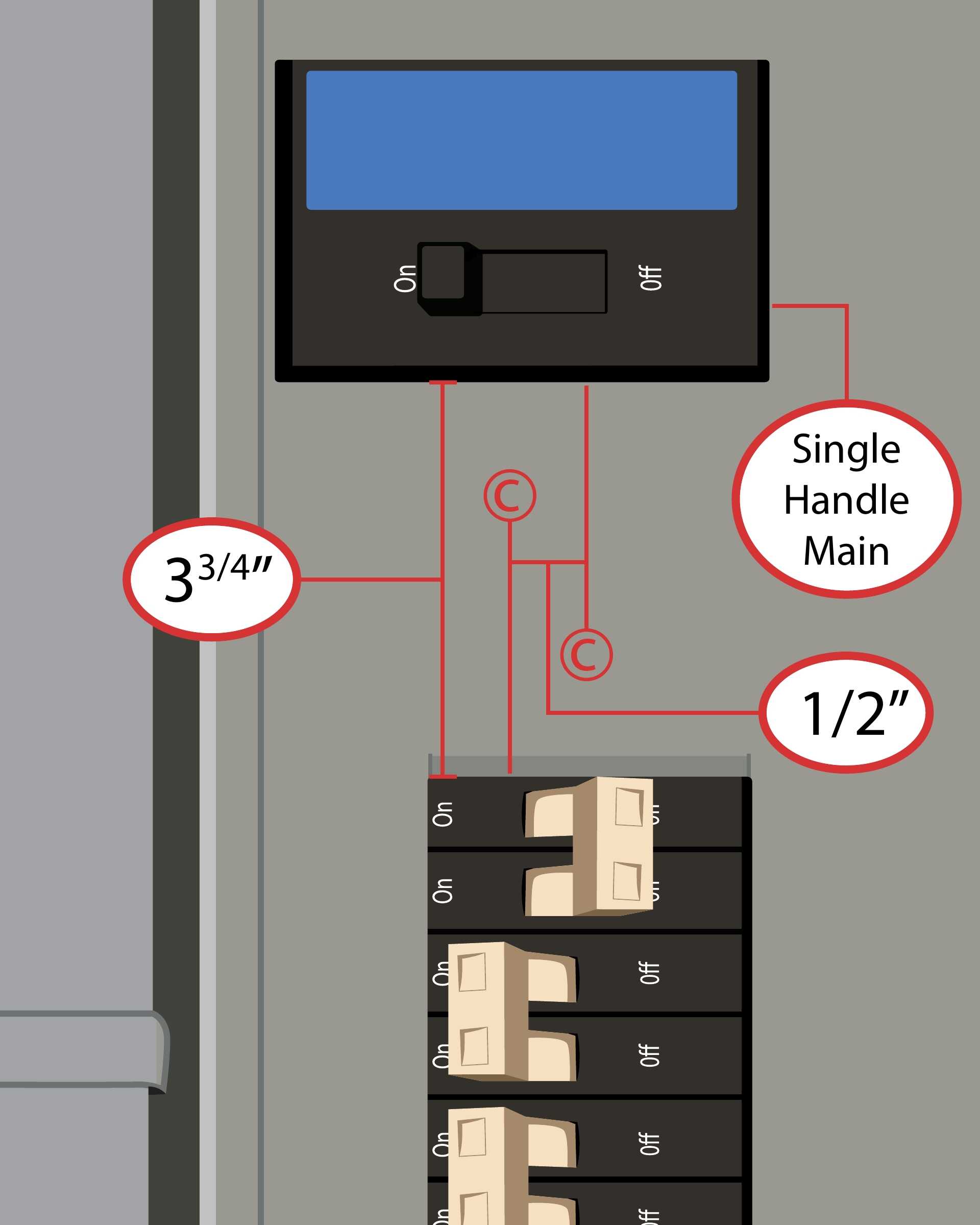

• Gap between main breaker and breaker columns below, is: 3 3/4″
• 150-200 amp main breaker
• Main breaker toggle action: horizontally (left-right) throw direction ON & OFF
• Compatible with CH breakers

Requirements

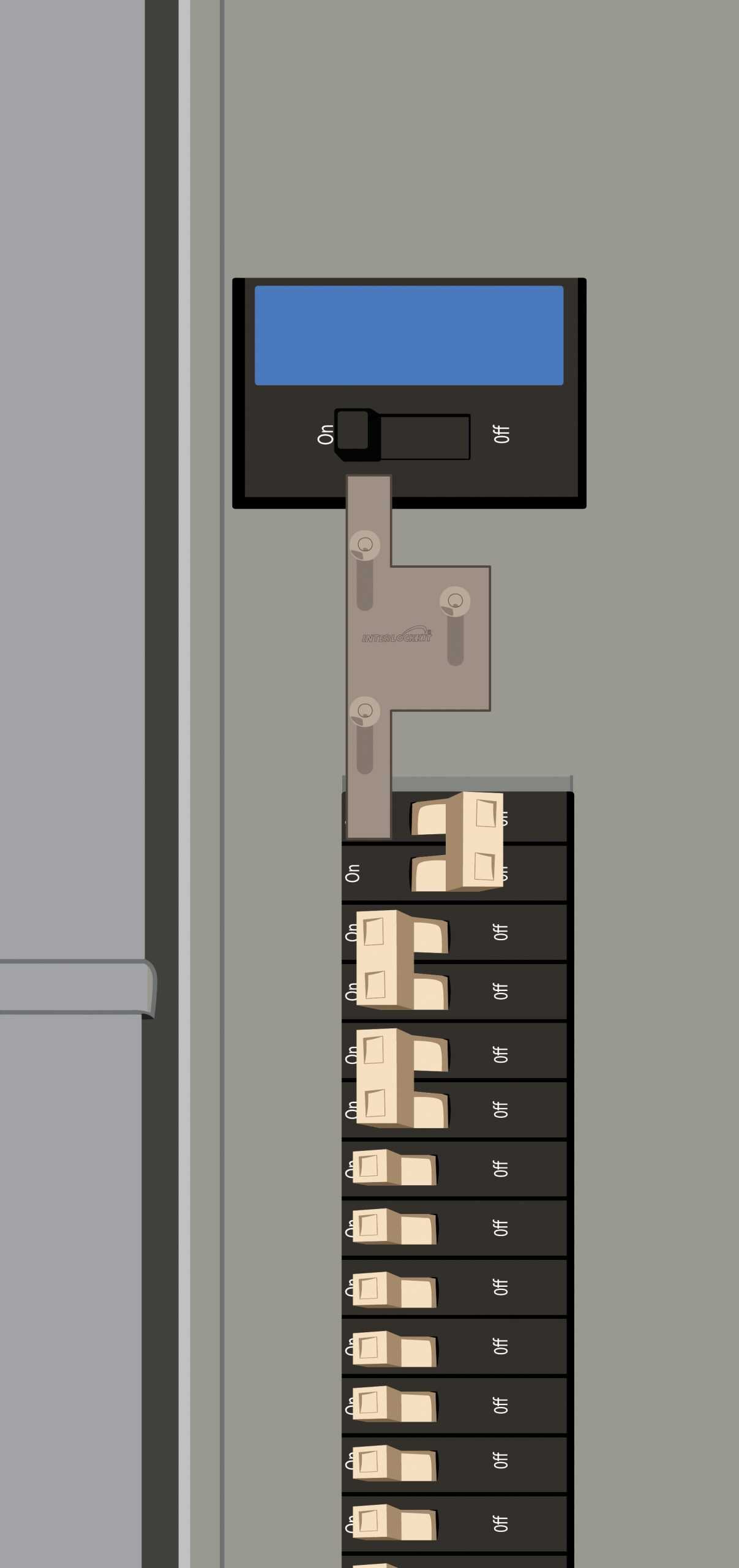

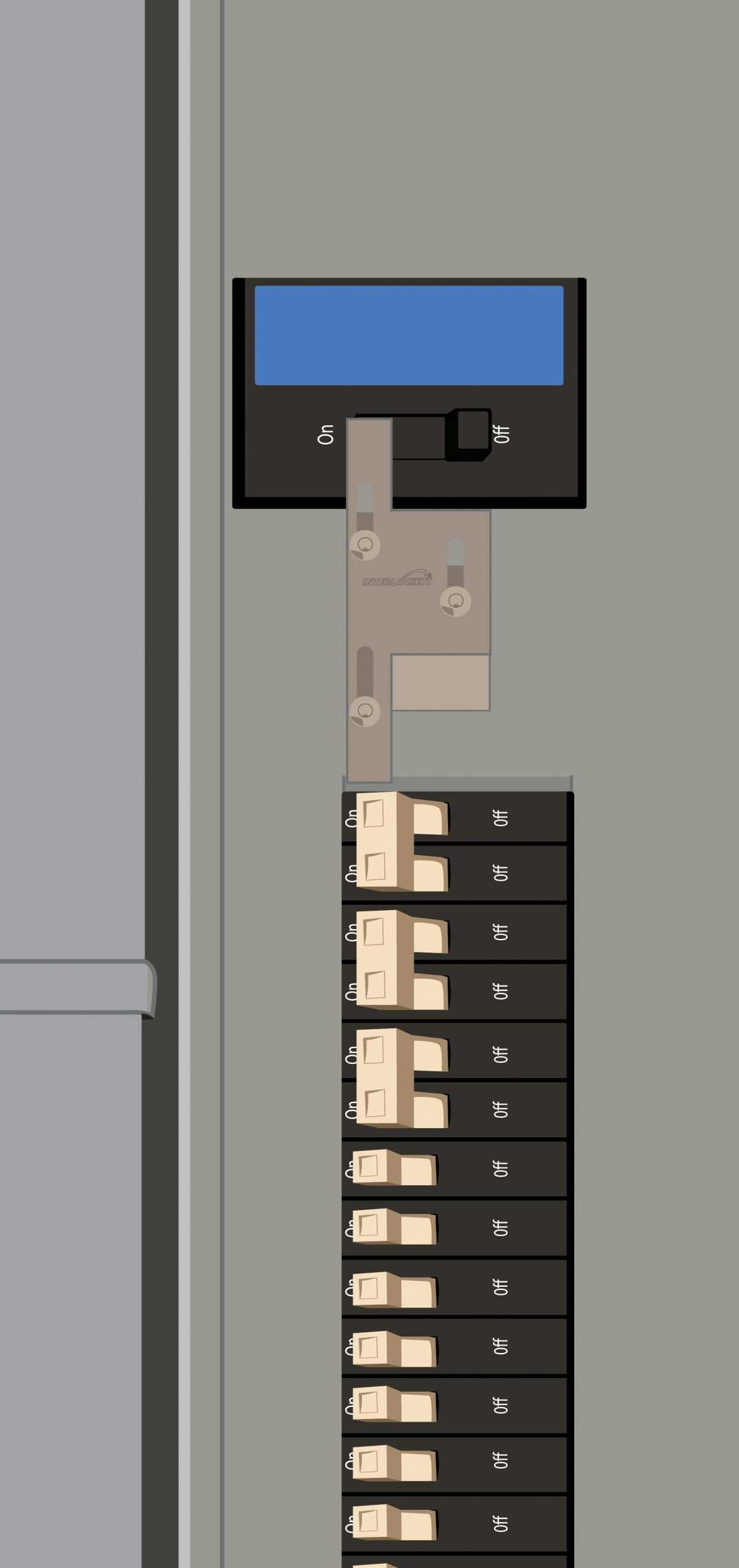

• Install a two pole generator breaker directly below the main in the top two spaces of the breaker column
• Page four of the installation instructions includes a list of contents included in Kit K-6710

Modified versions of the Interlock Kit exist, see: K-6610, K-6715, K-6716

Kit Installation Instructions
