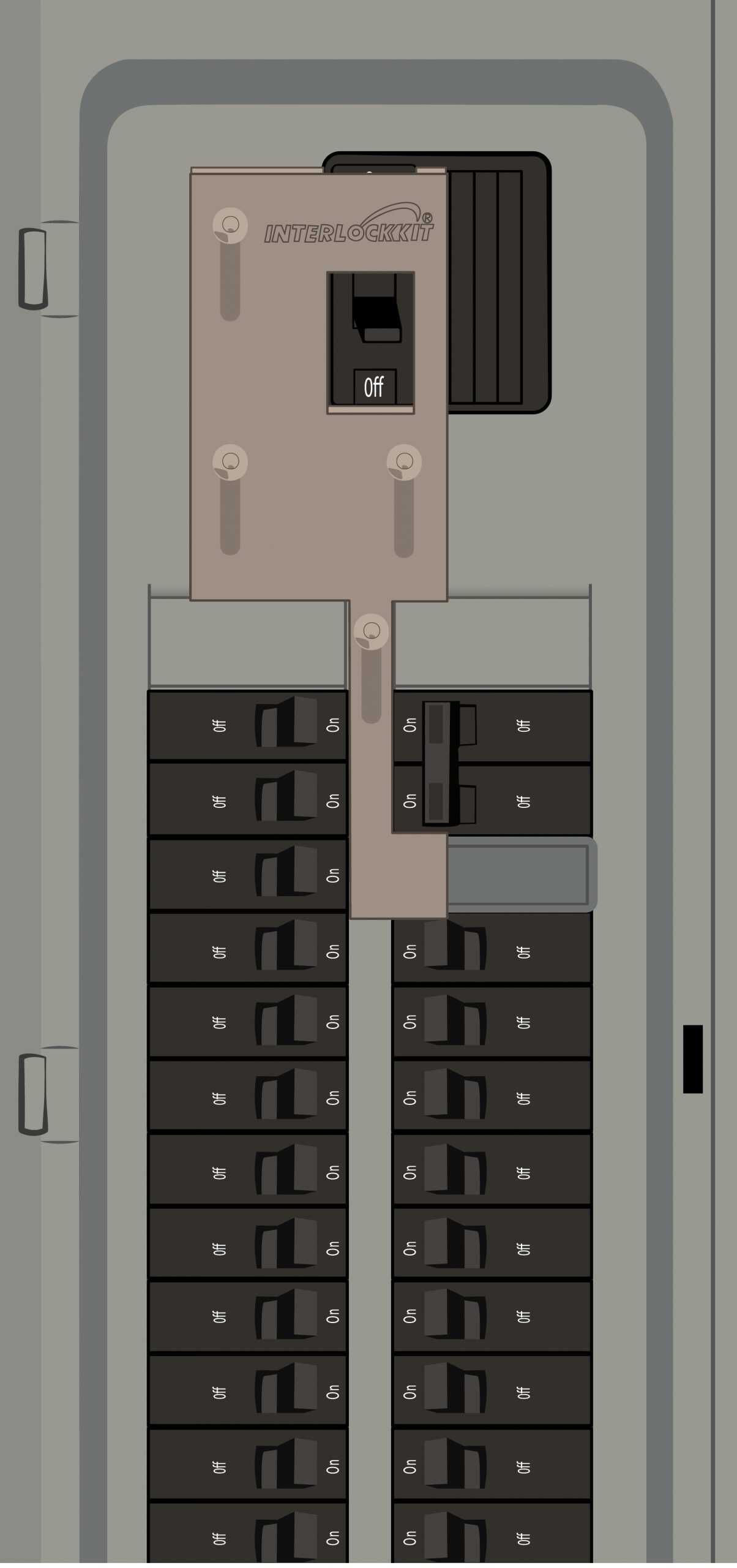

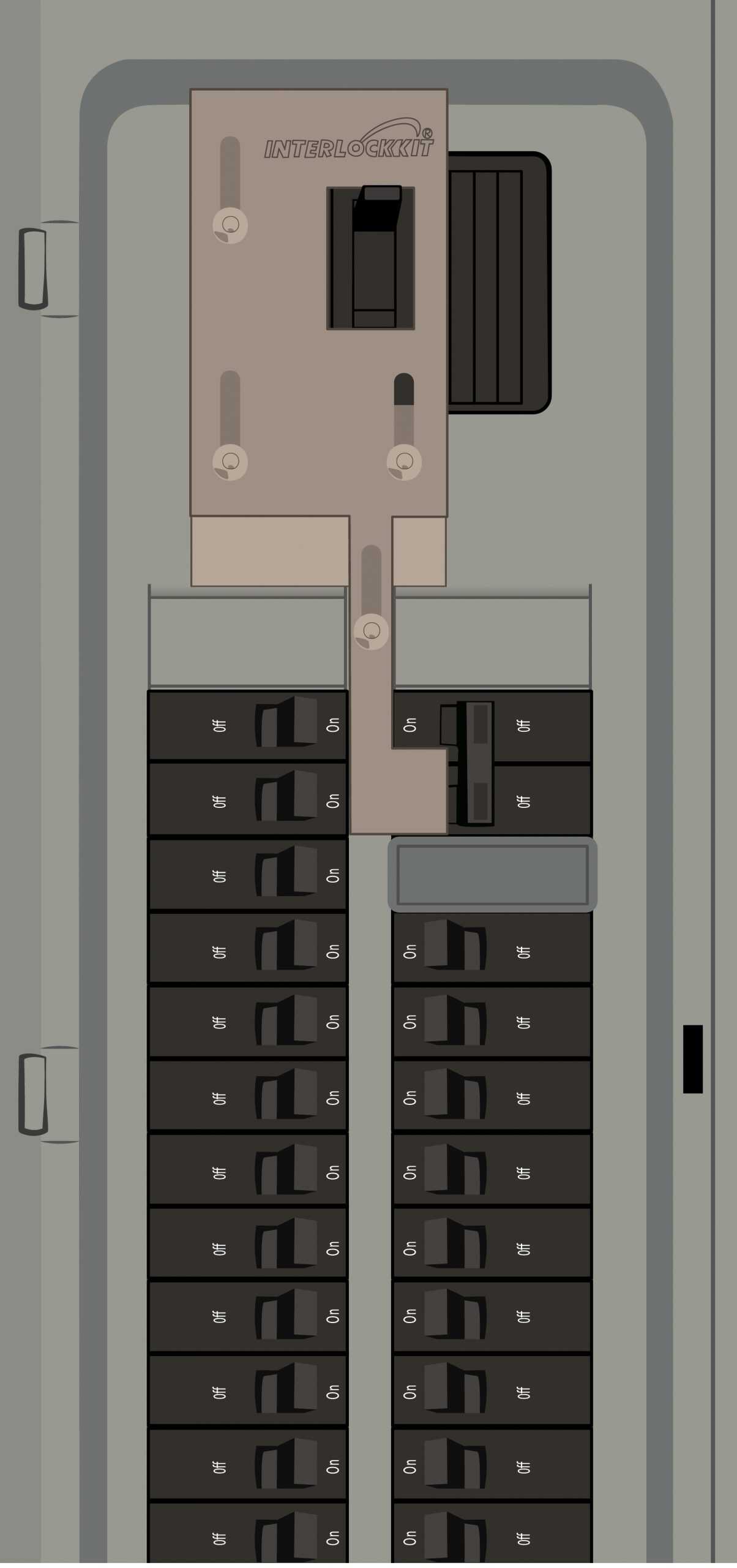

Interlock Kit K-8110M | Interlock Kit

This Kit mounts to General Electric (GE) electrical panels with the following features:

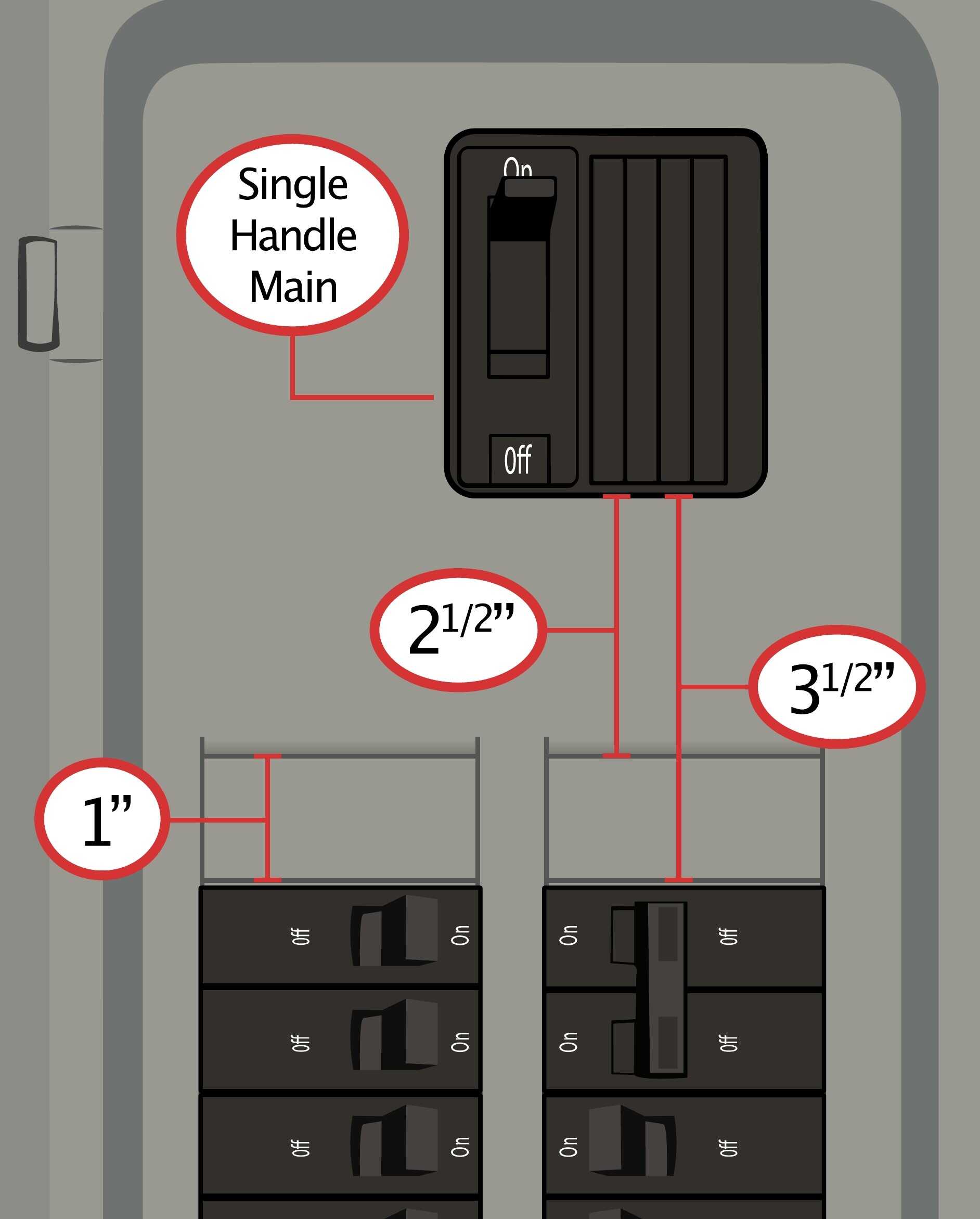

• Space between breaker columns: 1/2″
• Gap between the main breaker and generator breaker location, is: 3 1/2″ - 1 inch filler plate for unavailable space + 2 1/2" to the main breaker cutout
• 150-200 amp main breaker
• Main breaker toggle action: vertical (up & down) throw direction ON & OFF
• Main breaker is centered directly over both breaker columns

Requirements

• Install a two pole generator breaker, located in: spaces 4 & 6 (top two spaces in the right column)
• Page four of the installation instructions includes a list of contents for Kit K-8110M

Modified versions of this Interlock Kit exist, see: Kit K-8110 (for generator breakers installed in spaces 2 & 4)

Kit Installation Instructions
