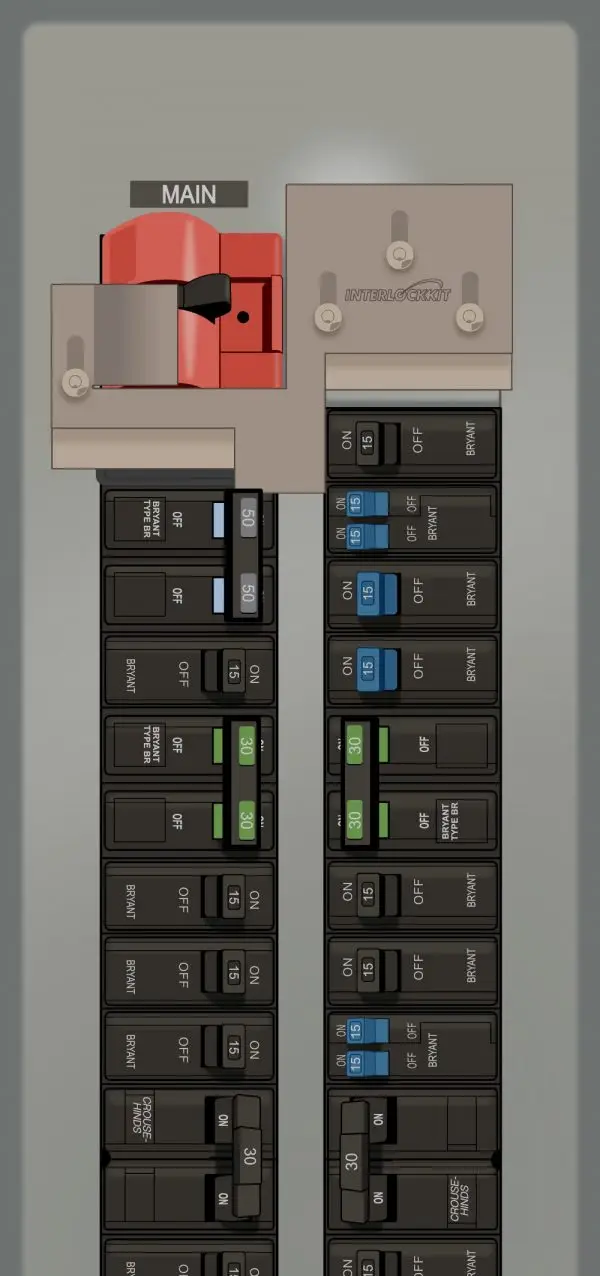

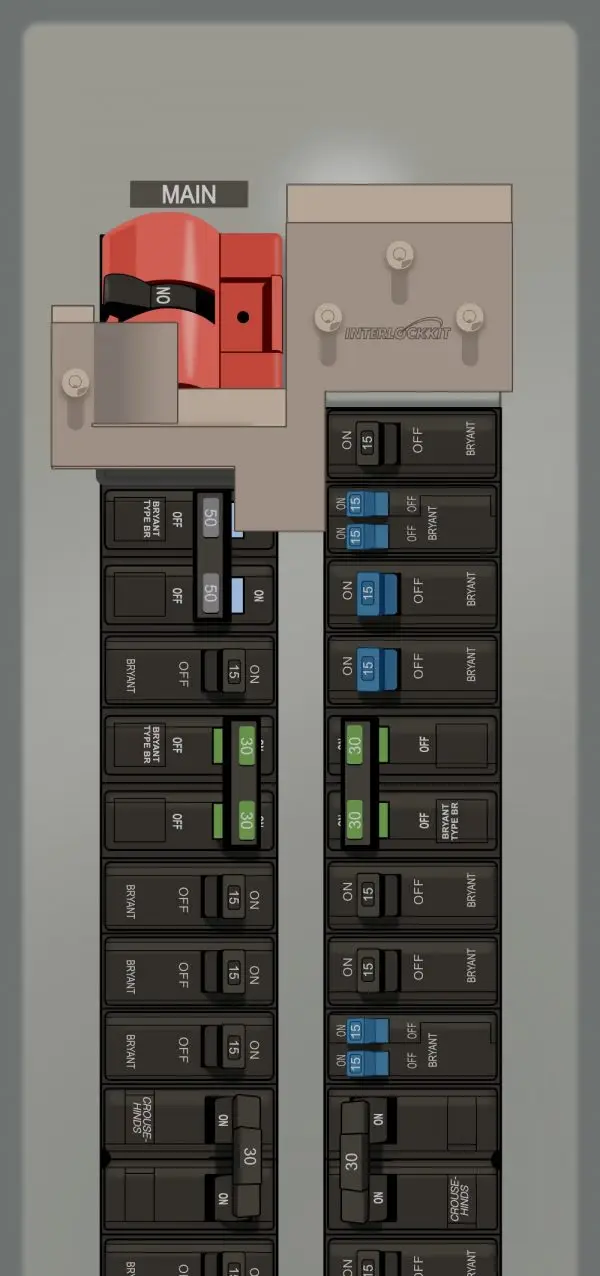

This Interlock Kit performs like a manual transfer switch for Crouse-Hinds / Murray electrical panels with the following features:

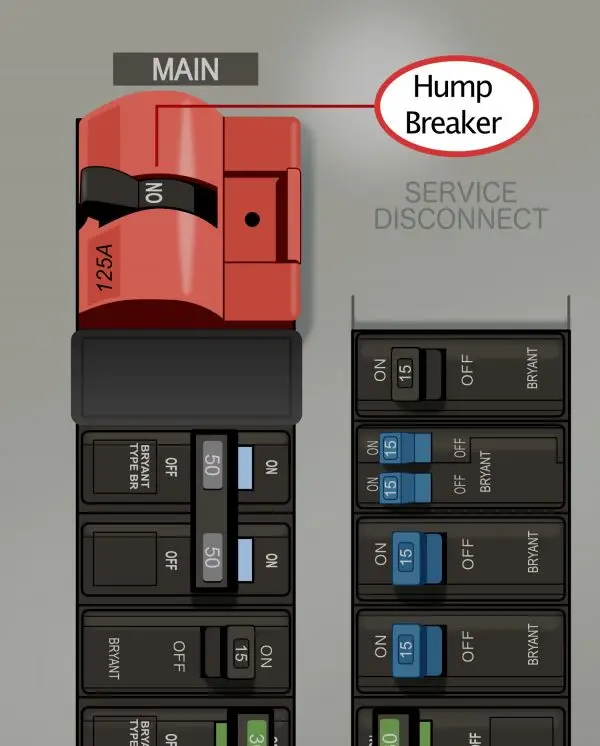

- This Kit works with the existing humpback style main breaker!
- "M" stands for modified. The main breaker engages ON to the left in this scenario
- Space between breaker columns: 1/2"
- No gap
- 100-150 amp two pole hump-back style main breaker
- Main breaker toggle action: Horizontal (right-left) throw direction ON & OFF
- Main breaker sits directly on top of the breaker stack in the left column
Requirements
- Install a filler plate directly beneath the main breaker in spaces: 5 and install the generator breaker directly below the filler plate in spaces 7 & 9
- Page four of the installation instructions includes a list of contents for K-7110M
Kit Installation Instructions
