Interlock Kit K-3010

Name: Interlock Kit K-3010
SKU: K-3010
Availability: InStock

$149.95

254 in stock

PATENT PENDING PRODUCT

Have a question or don’t see a kit for your panel? We make custom Interlock Kits for any panel or solar scenario – call (804) 531-3359 or Contact Us!

SKU: K-3010 Categories: Bryant, Challenger, Westinghouse

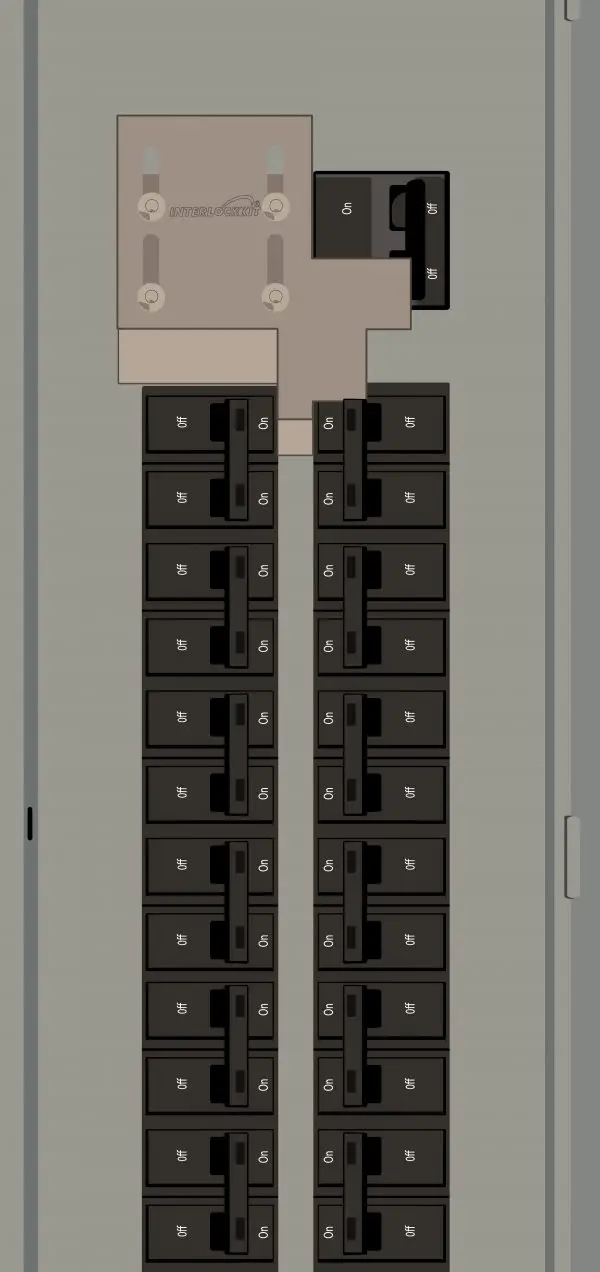

This Interlock Kit mounts to Bryant electrical panels with the following features:

Space between breaker columns: 1/2"

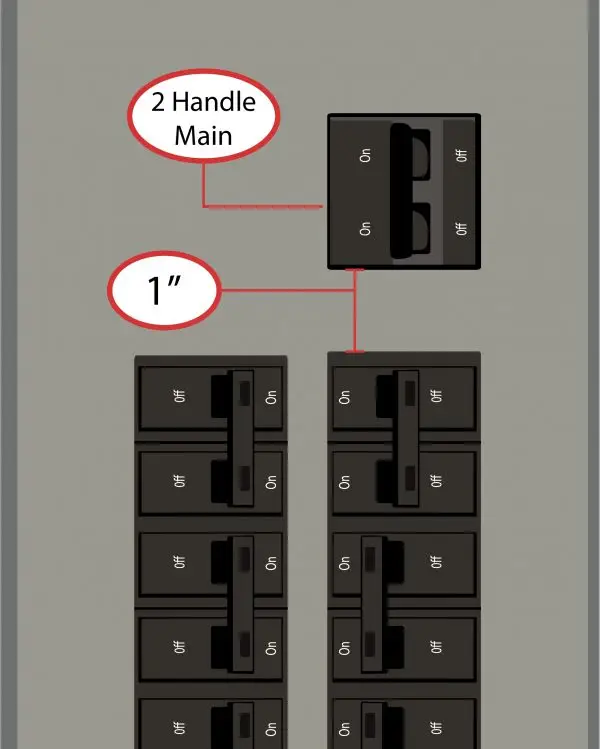

Gap between the main breaker columns below is: 1"
Install a two pole generator breaker in spaces: 2 & 4 (top two spaces in the right column, directly below the main)
Main breaker toggle action: horizontal (left-right) throw direction ON & OFF
Main breaker is offset from center directly over the right breaker column

Additional information

Weight	1 lbs
Catalog #:	B20 2040CG , B15 1630C Indoor 150 amps Other compatible catalog #'s may not be listed here yet. Use the details listed in "Description" to help match your kit!
