Bryant / Westinghouse Kit K-3110

Description

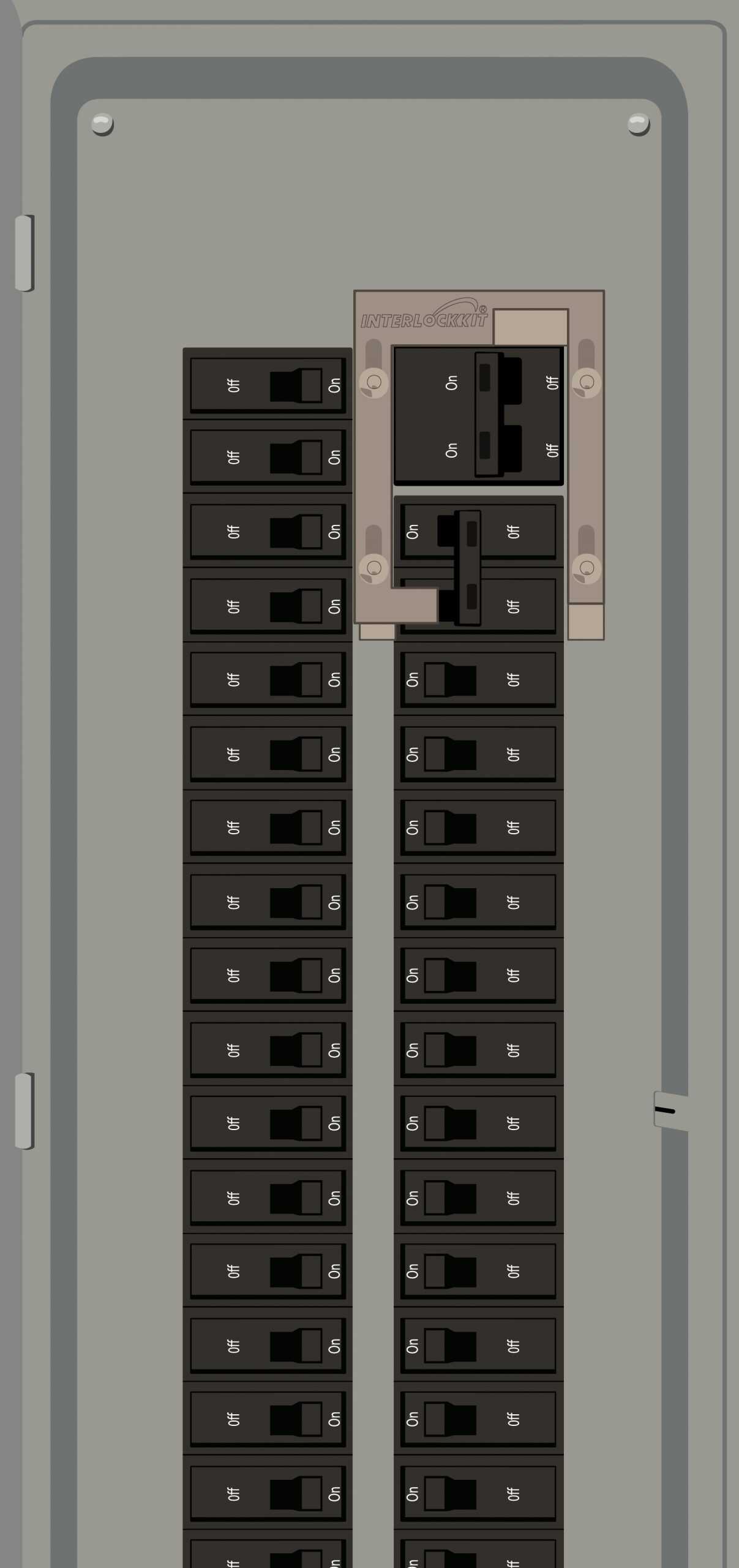

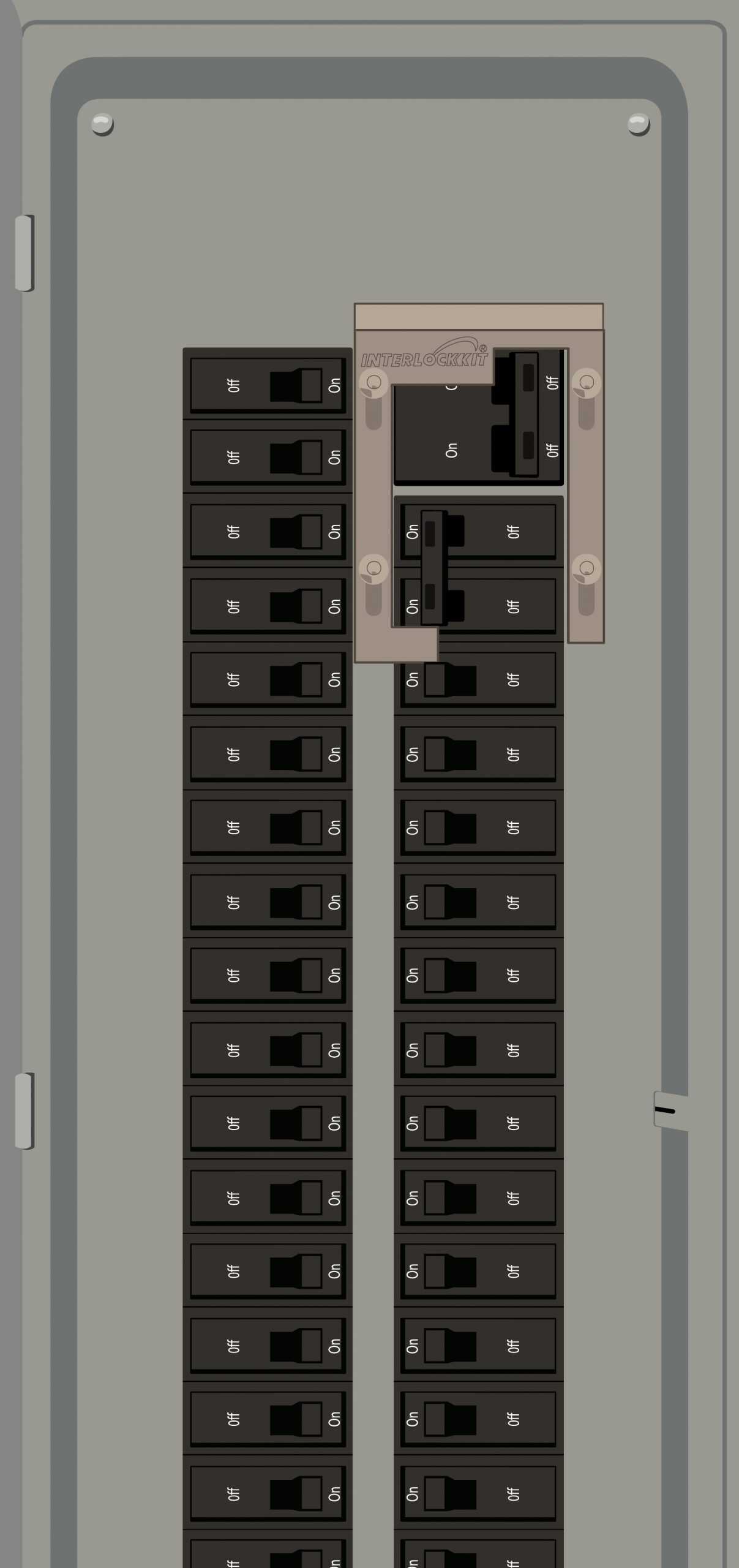

This Interlock Kit performs like a manual transfer switch for Bryant / Westinghouse electrical panels with the following features:

• Space between breaker columns: 1/2″
• No Gap

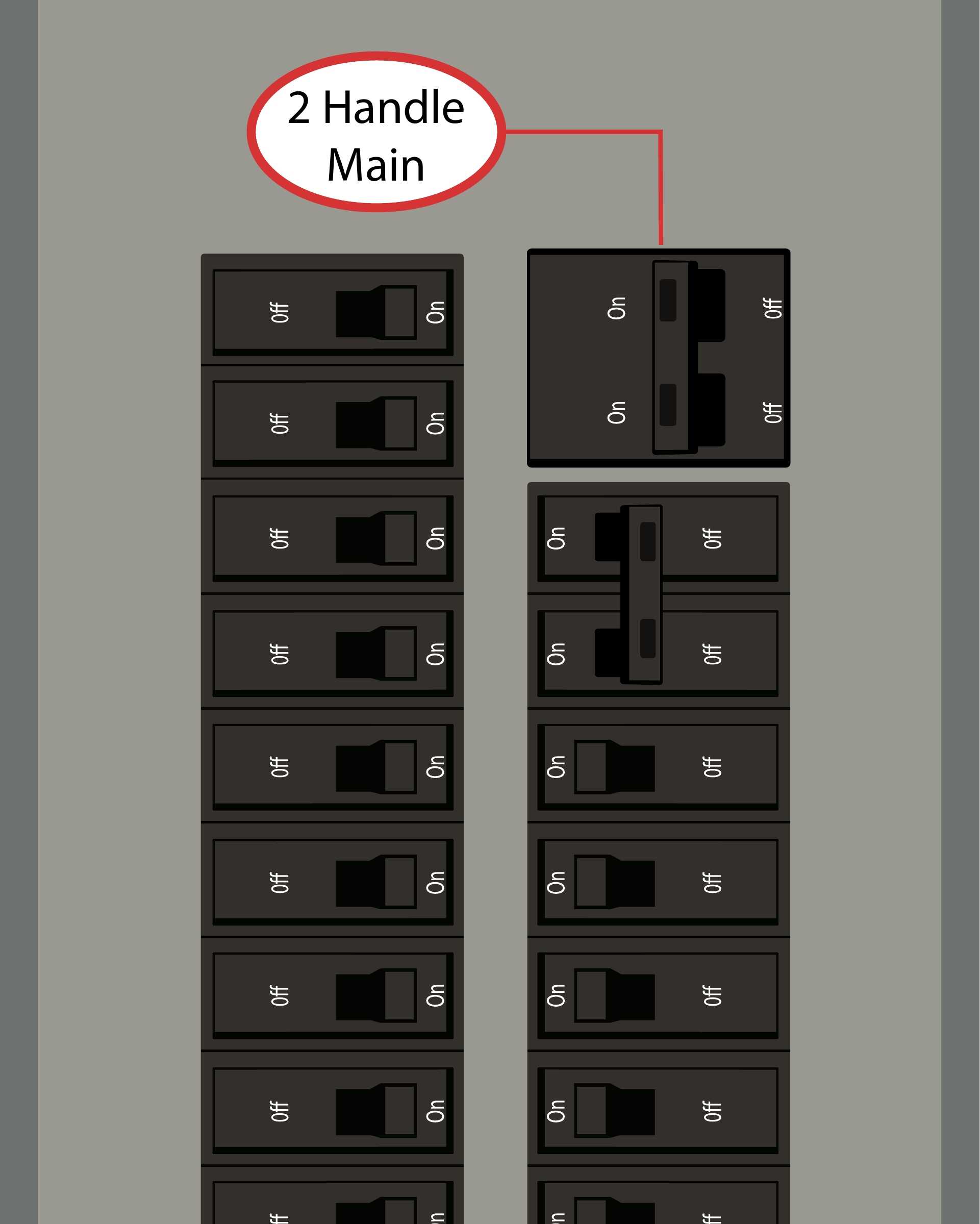

• 150-200 amp 2 pole main breaker
• Main breaker toggle action: Horizontal (left-right) throw direction ON & OFF
• Main Breaker sits directly on top of the right breaker column

Requirements:

• Install a generator breaker directly below the main breaker in spaces: 6 & 8
• Page four of the installation instructions includes a list of contents included in K-3110

See Interlock Kit K-3210 if the main breaker is located on the left side of the panel

Kit Installation Instructions
