Interlock Kit KS-5010 QO

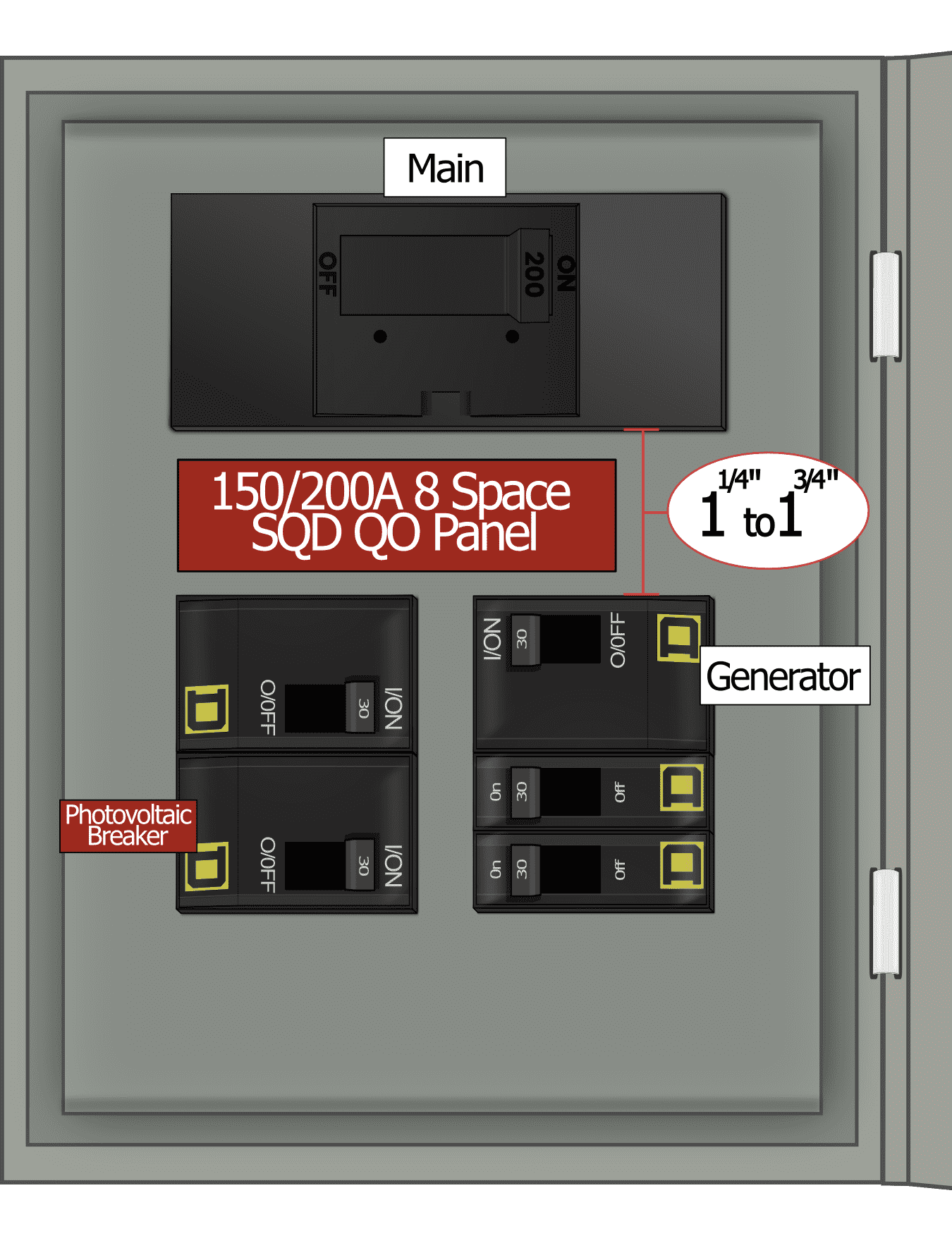

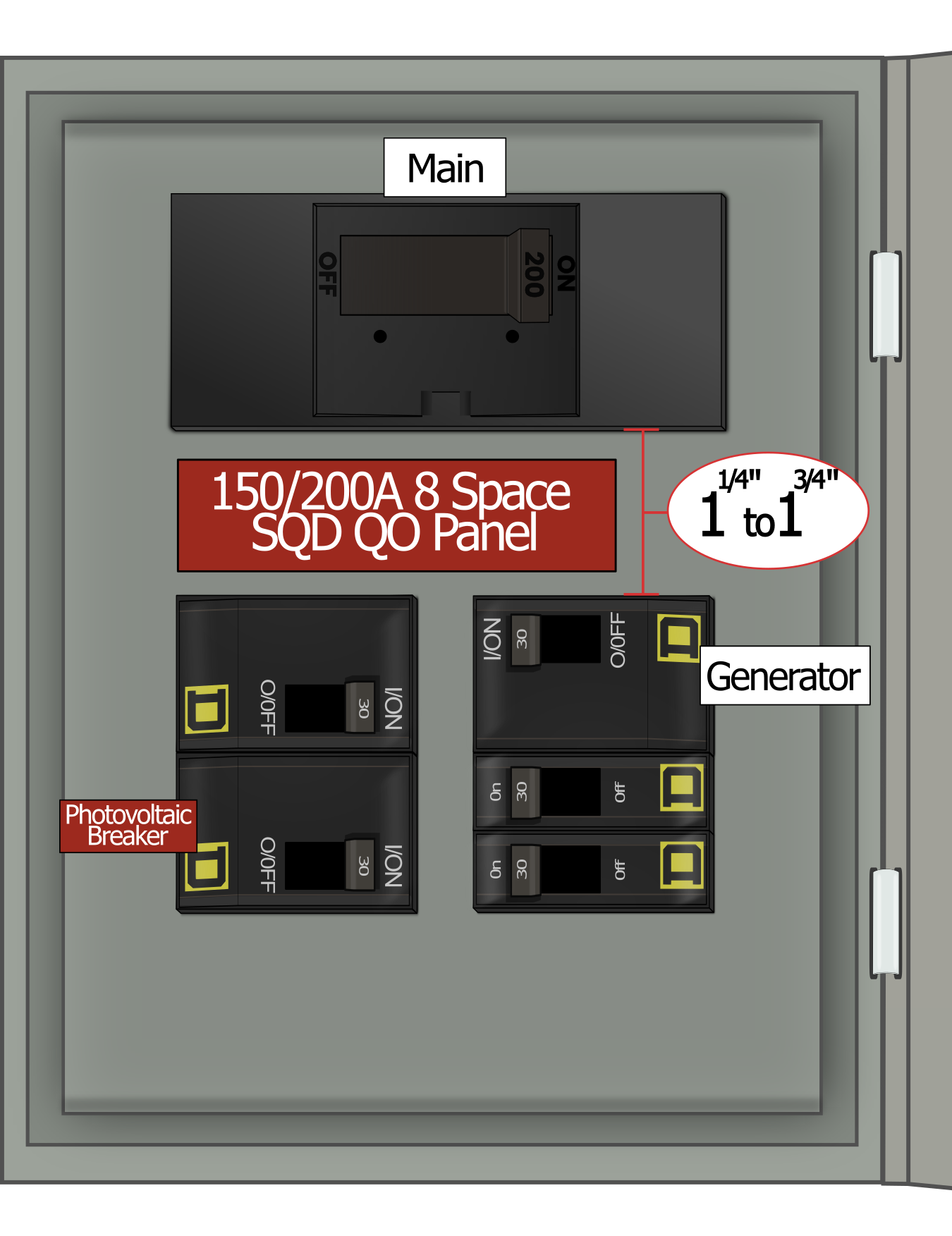

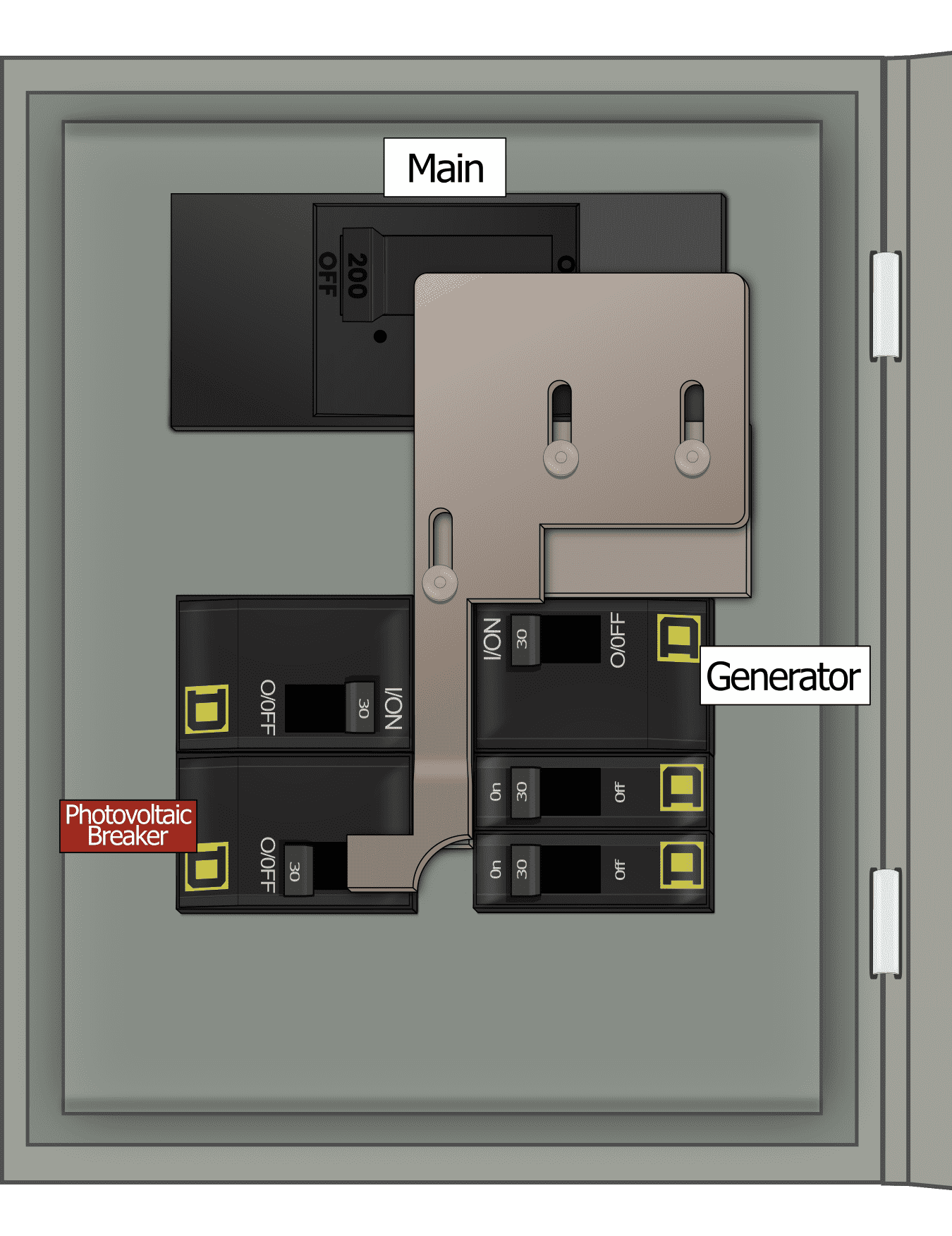

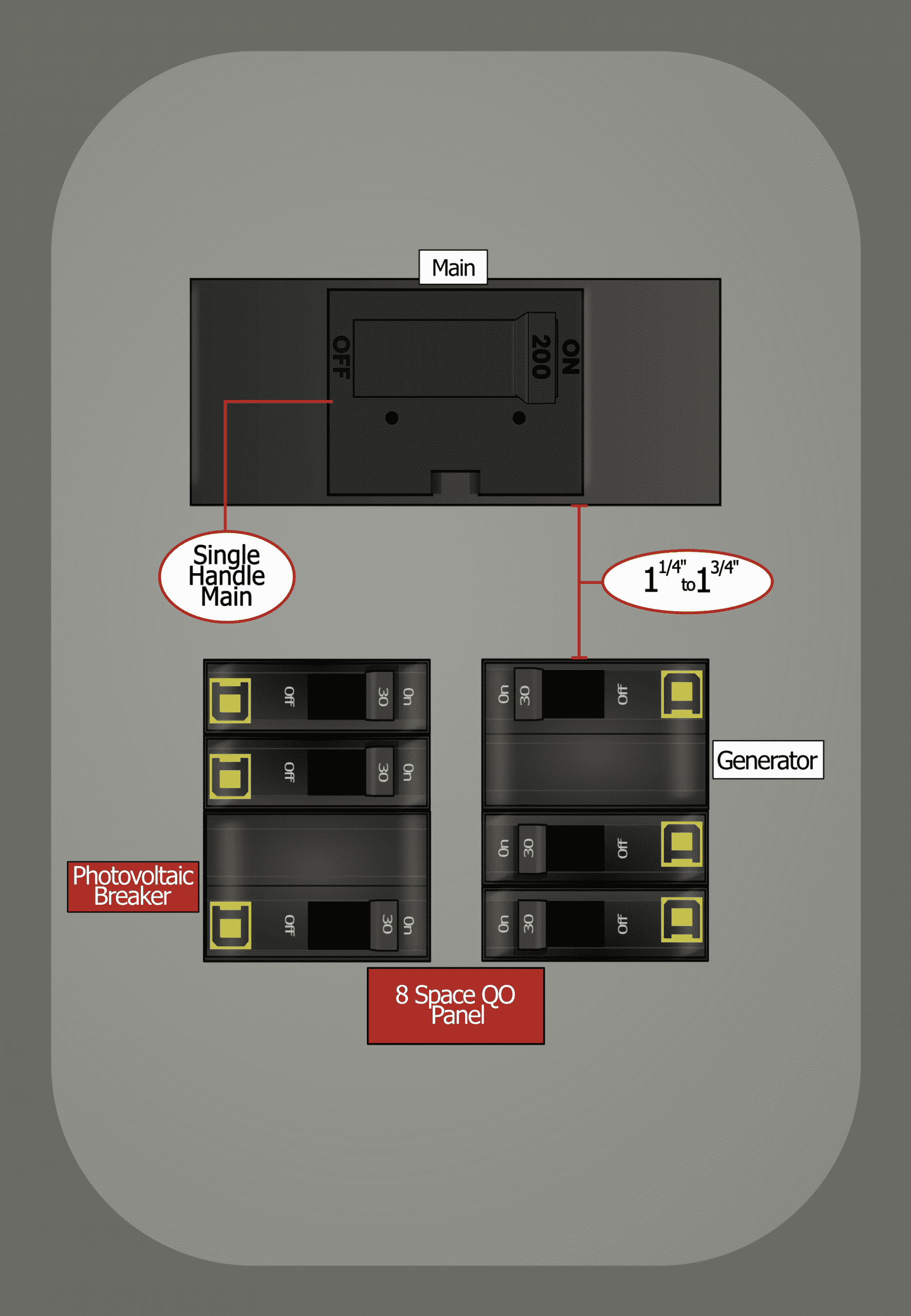

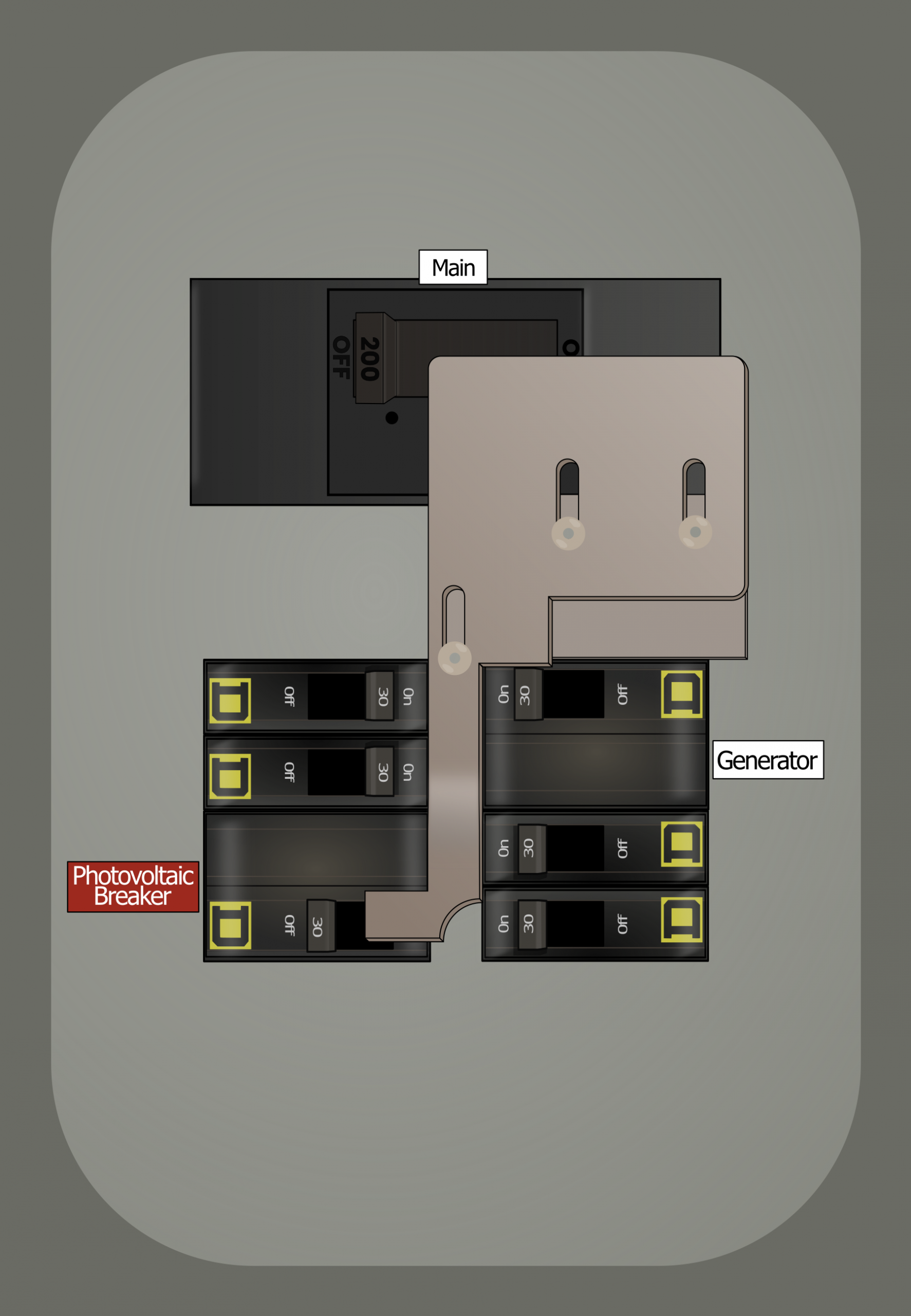

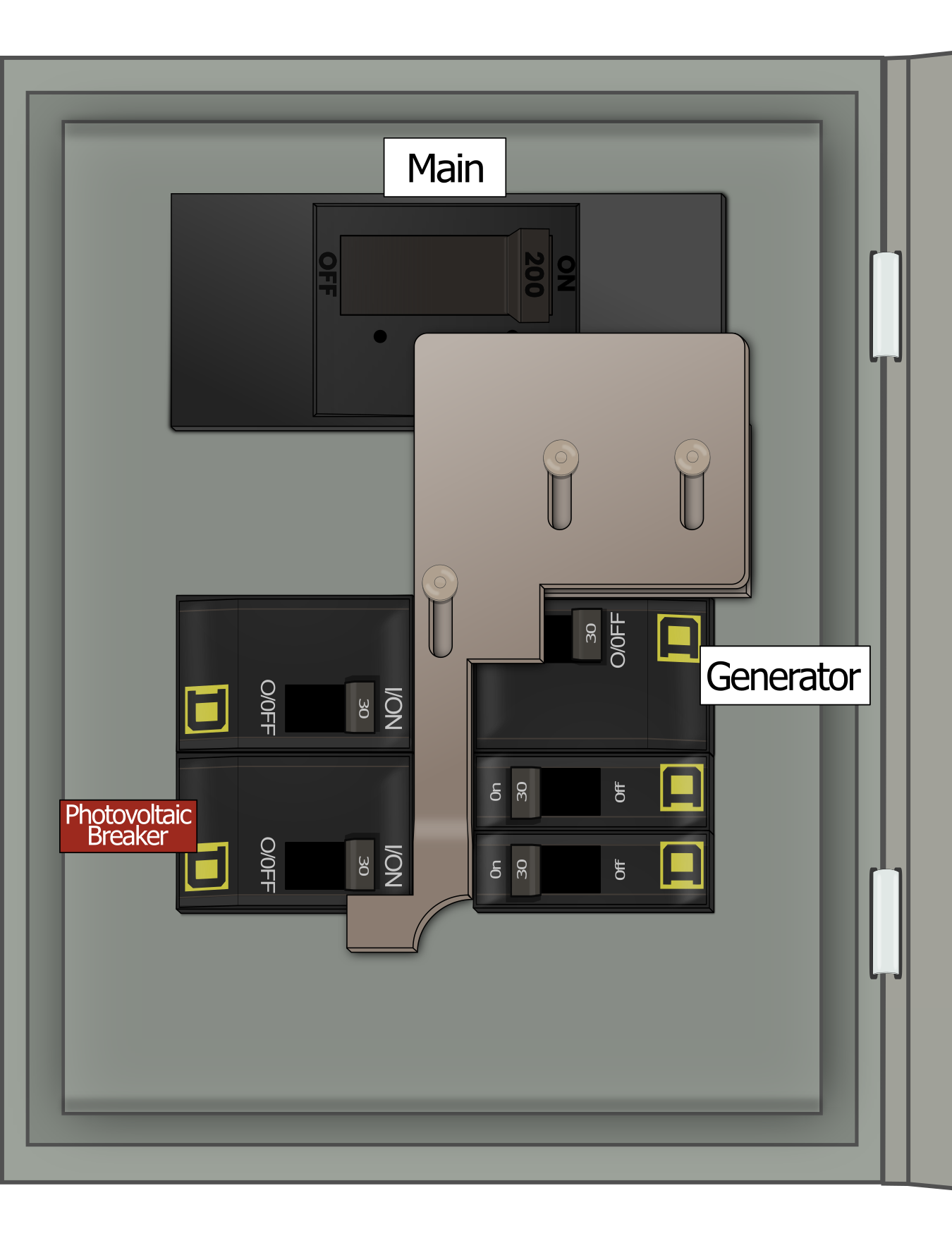

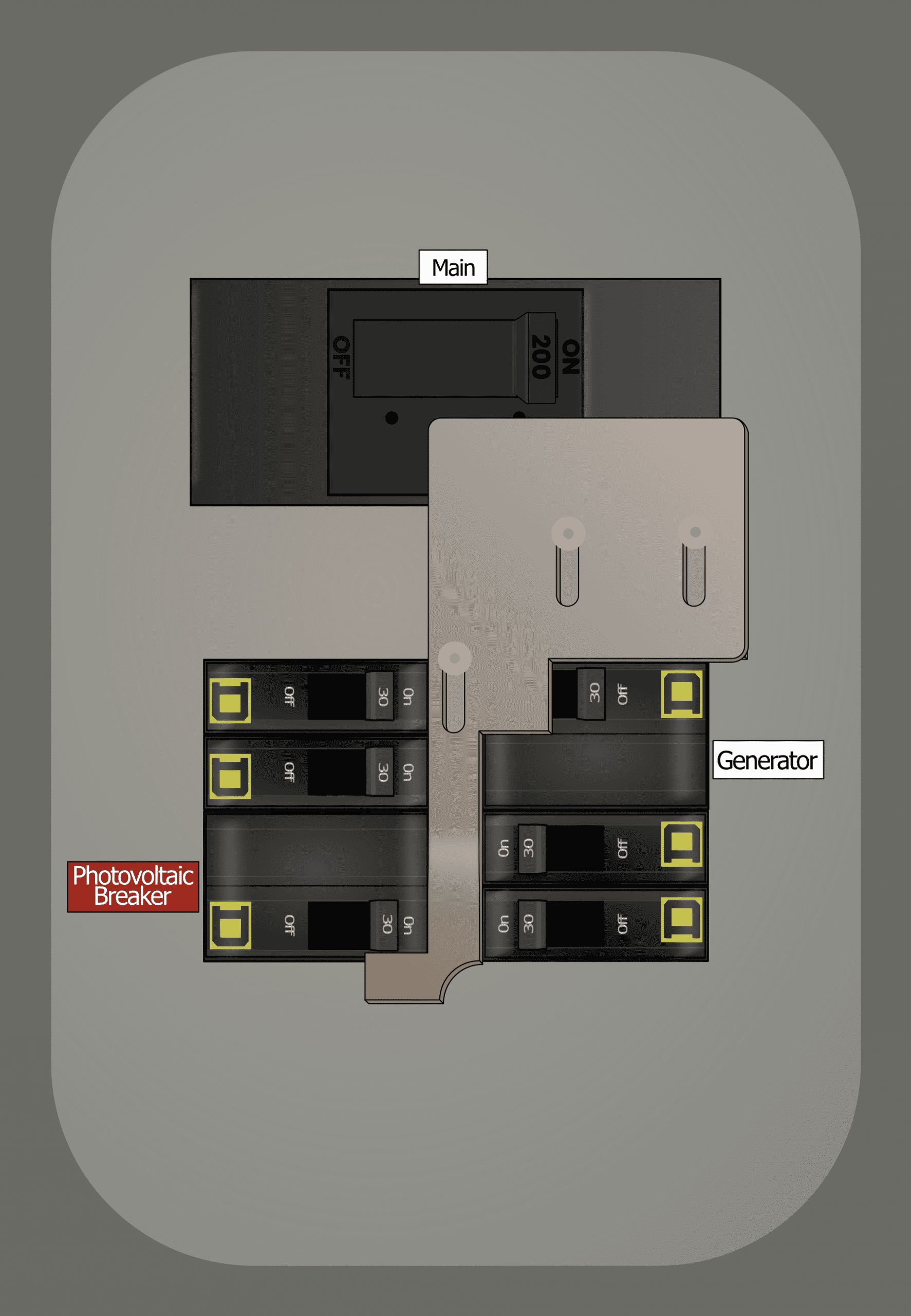

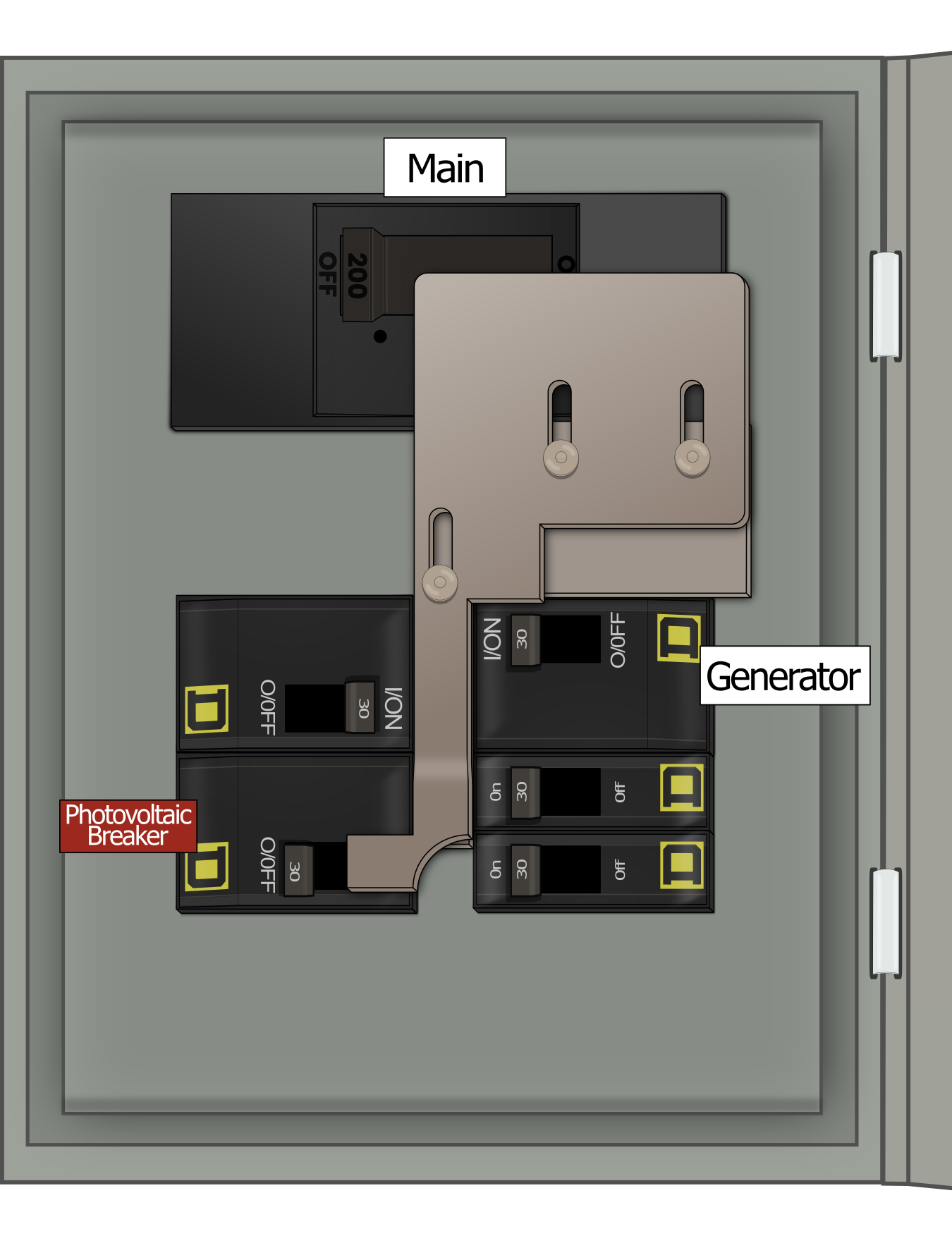

This Interlock Kit mounts to Square D electrical panels with the following features:

• SOLAR & GENERATOR COMPATIBLE INTERLOCK KIT
• Space between breaker columns: 1/2"

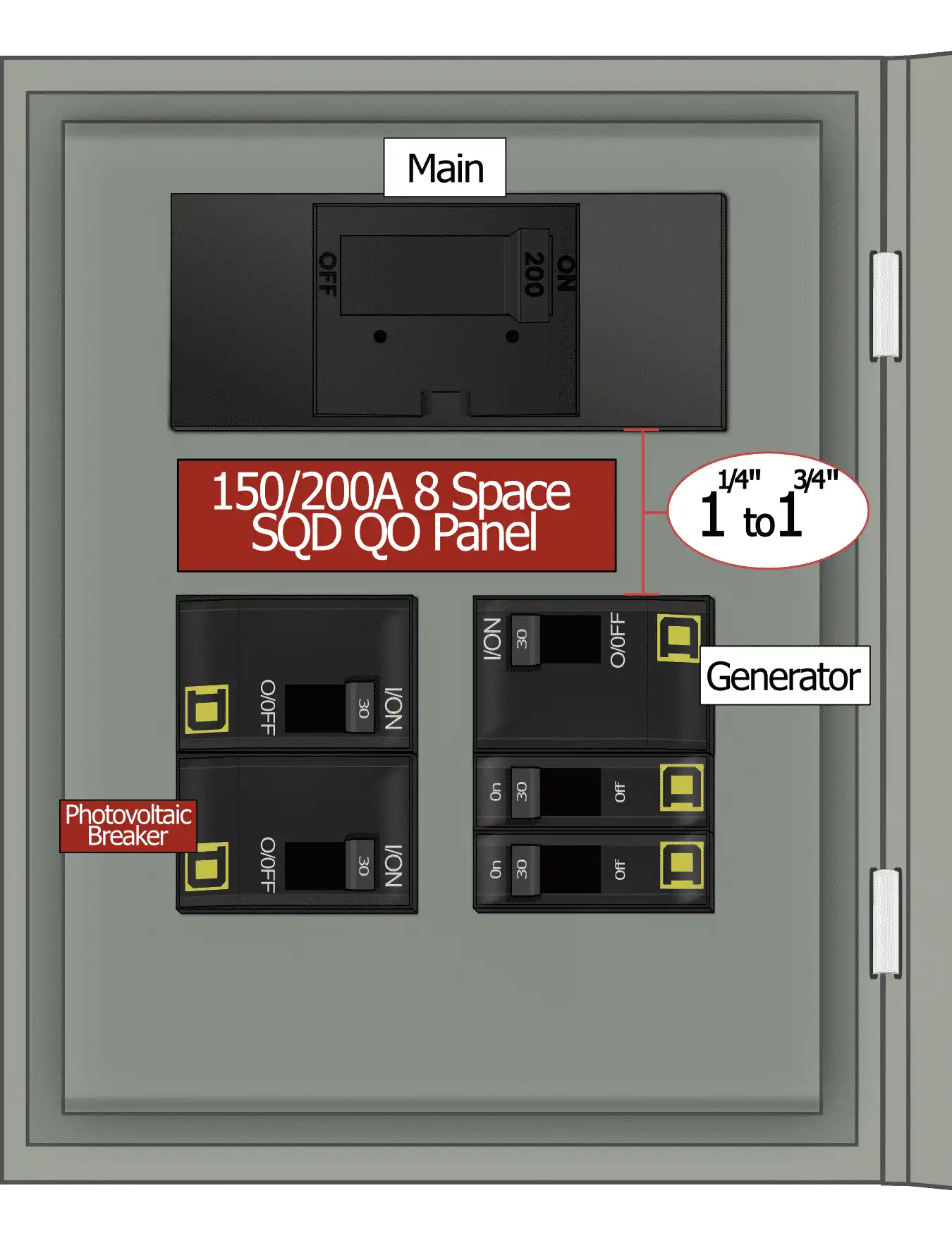

• Gap between main breaker and columns below: 1 1/4 - 1 1/2"
• 125-200 amp main breaker
• Main breaker toggle action: horizontal (left-right) throw direction
• Main breaker is centered over both breaker columns

Requirements:

• Install a generator breaker at the top of the right column: spaces 2 & 4
• Install a solar breaker in the bottom left corner of the branch circuit columns
• Compatible with 8 space 16 circuit panels. 4 1 inch spaces in the left column & 4 1 inch spaces in the right
• Fits QO Breakers, Not Homeline Compatible
• Page four of the installation instructions includes a list of contents included in Kit KS-5010

Kit Installation Instructions
