Interlock Kit KS-1317
$349.95
PATENT PENDING PRODUCT
Have a question or don’t see a kit for your panel? We make custom Interlock Kits for any panel or solar scenario – call (804) 531-3359 or Contact Us!

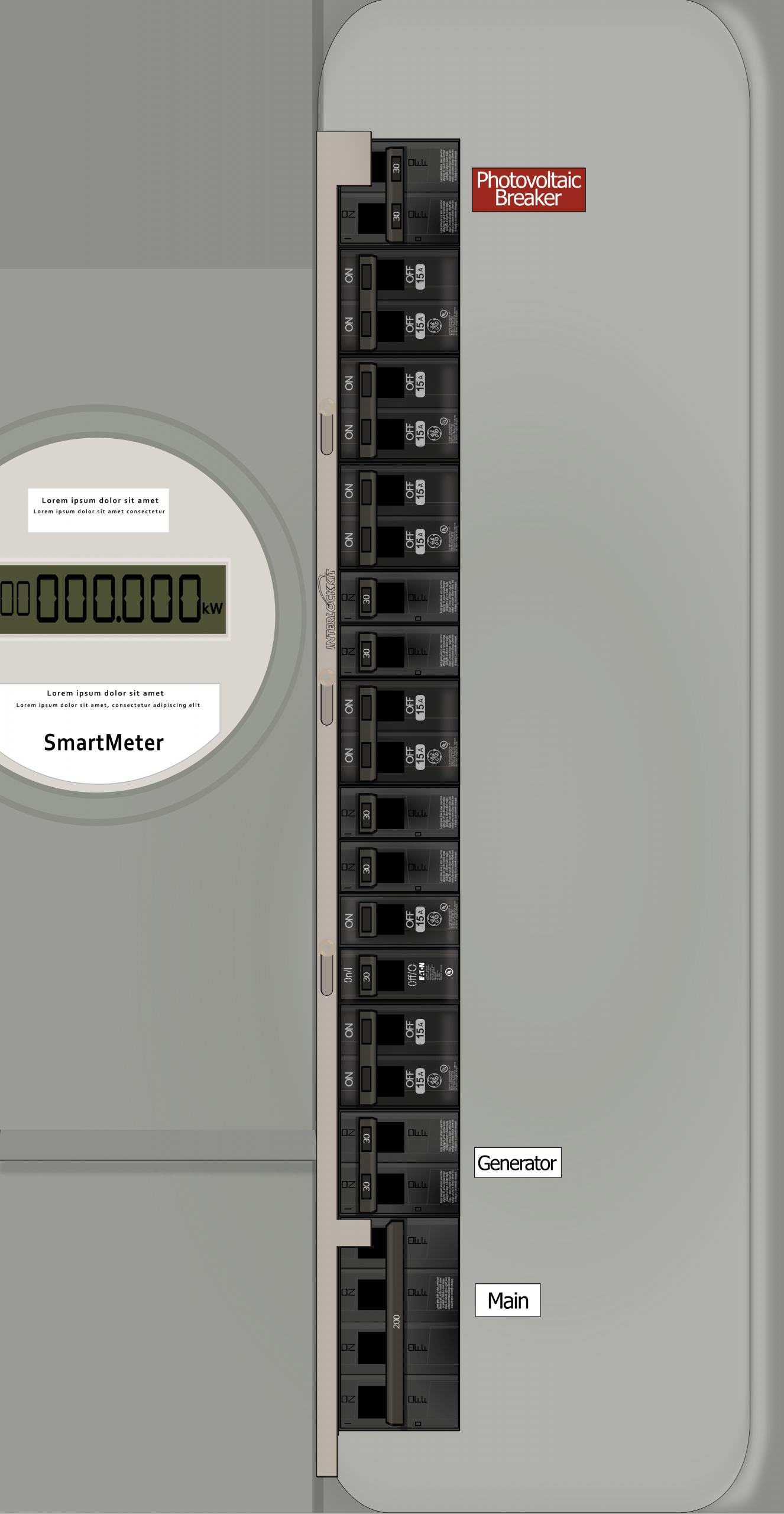

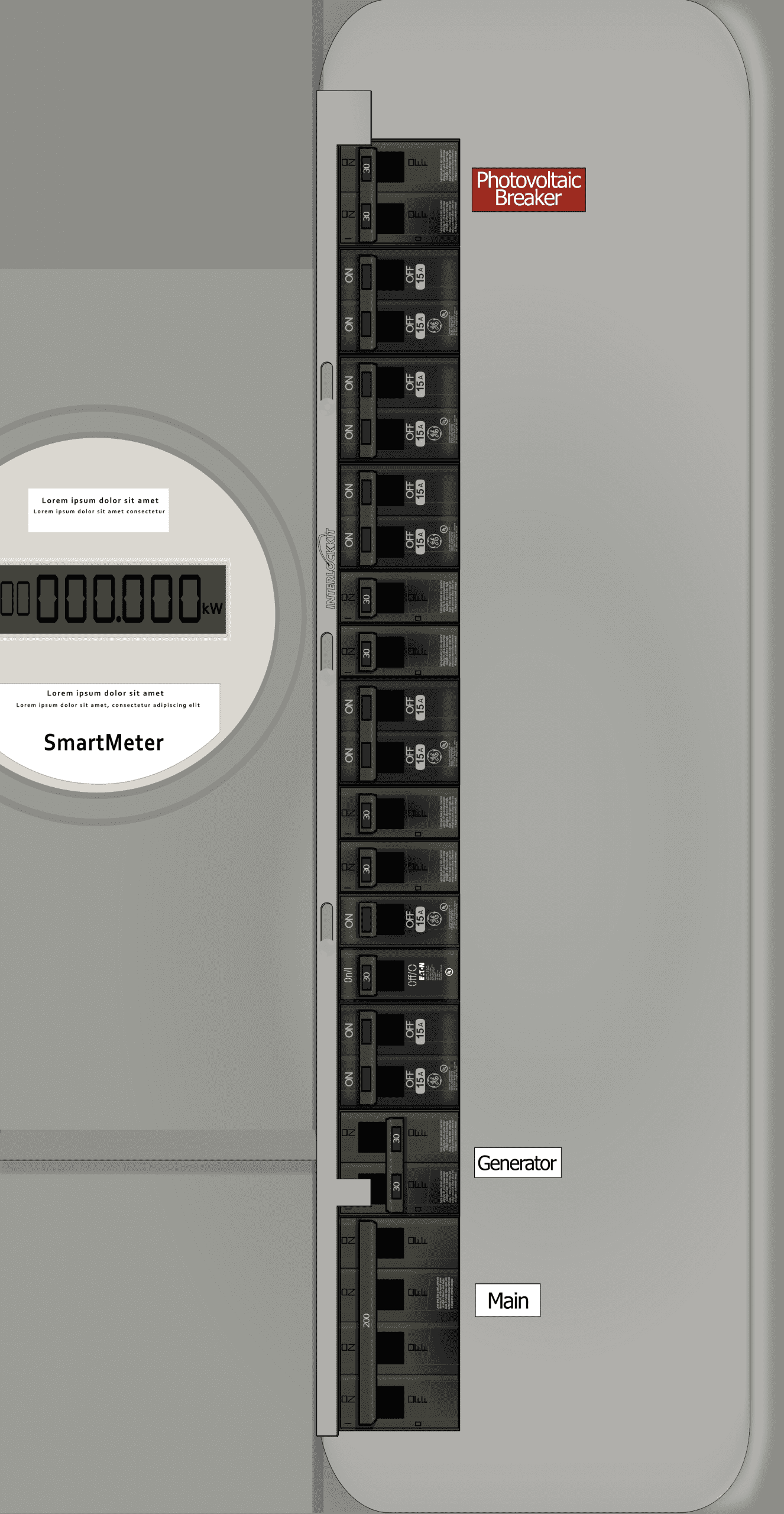

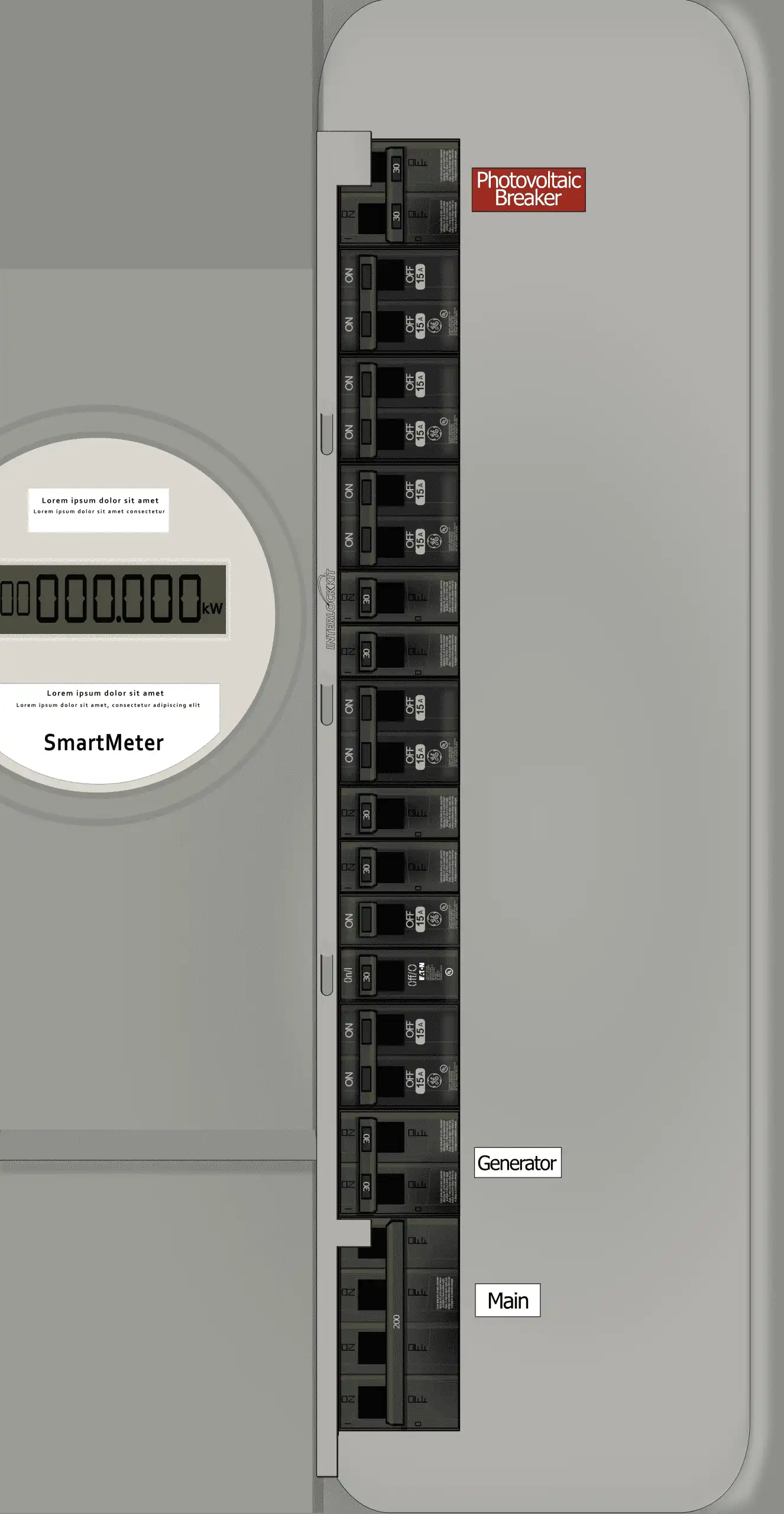

This Interlock Kit mounts to EATON electrical panels with the following features:
- SOLAR & GENERATOR COMPATIBLE INTERLOCK KIT

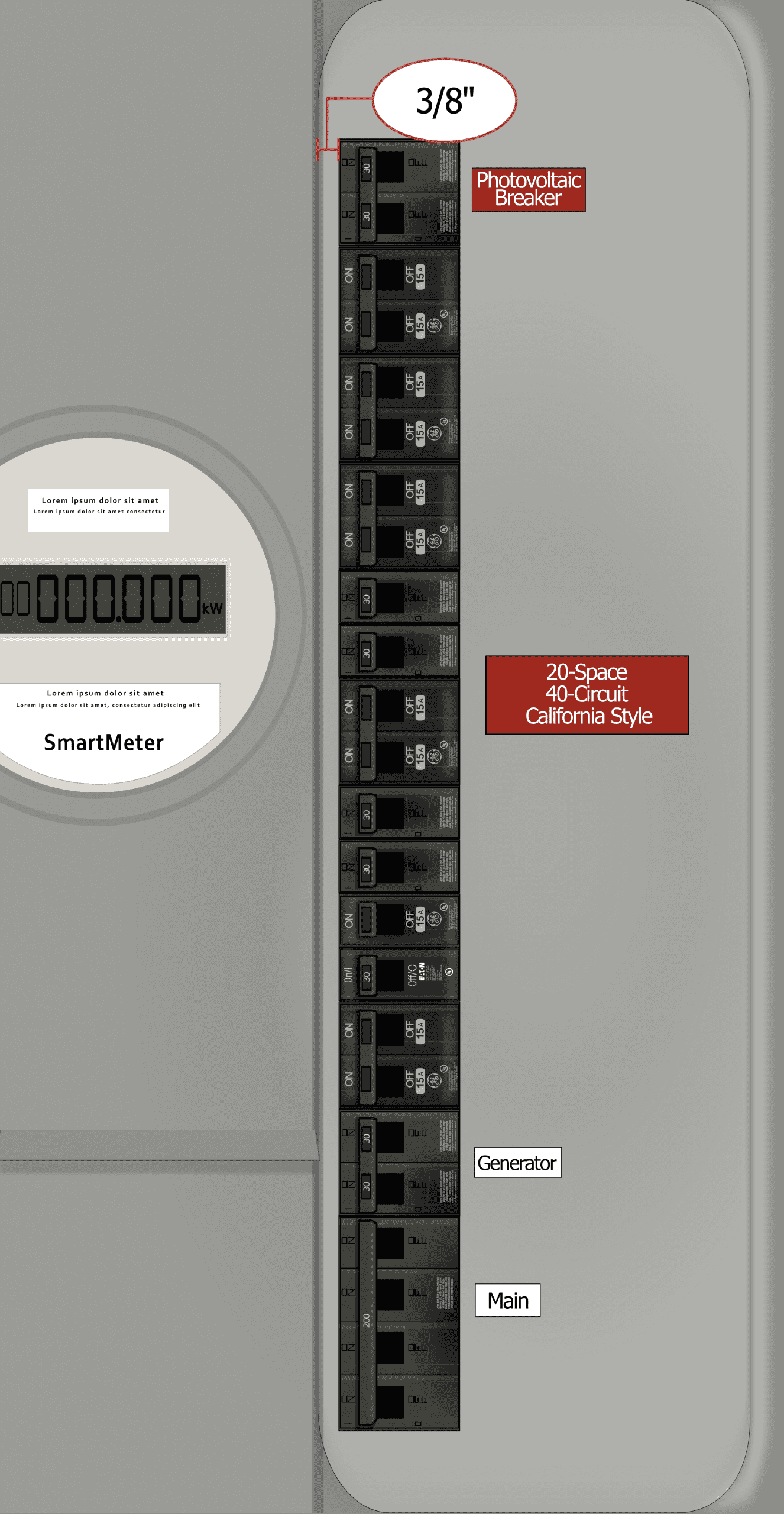

- Space between breaker columns: 3/8"
- 200 amp main breaker
- Main breaker toggle action: horizontal (left-right) throw direction
- Main breaker is at the bottom of the breaker column
Requirements:
- Install a generator breaker directly above the main breaker
- Install a solar breaker in the top of the breaker column
- Compatible with 20 space 40 circuit panels. 20 1" spaces (Excluding the main breaker)
Modified versions of this Interlock Kit exist, see: KS-1315 (solar modified Interlock Kit) call for more details about modified kits: (804)726-2448
Additional information
| Weight | 2 lbs |
|---|---|
| Catalog # | mc2040b1200esc |
Have a question or don’t see a kit for your panel? We make custom Interlock Kits for any panel or solar scenario – call (804) 531-3359 or Contact Us!
