Interlock Kit K-5610

This Interlock Kit mounts to Square D electrical panels with the following features:

• Space between breaker columns: 1/2"
• Gap between main breaker and columns below: 4 1/4"
• 200 amp main breaker
• Main breaker toggle action: vertical (up-down) throw direction
• Main breaker is offset 1 3/8" to the right of the center of the breaker columns
• Compatible with: QO type BREAKERS

Requirements:

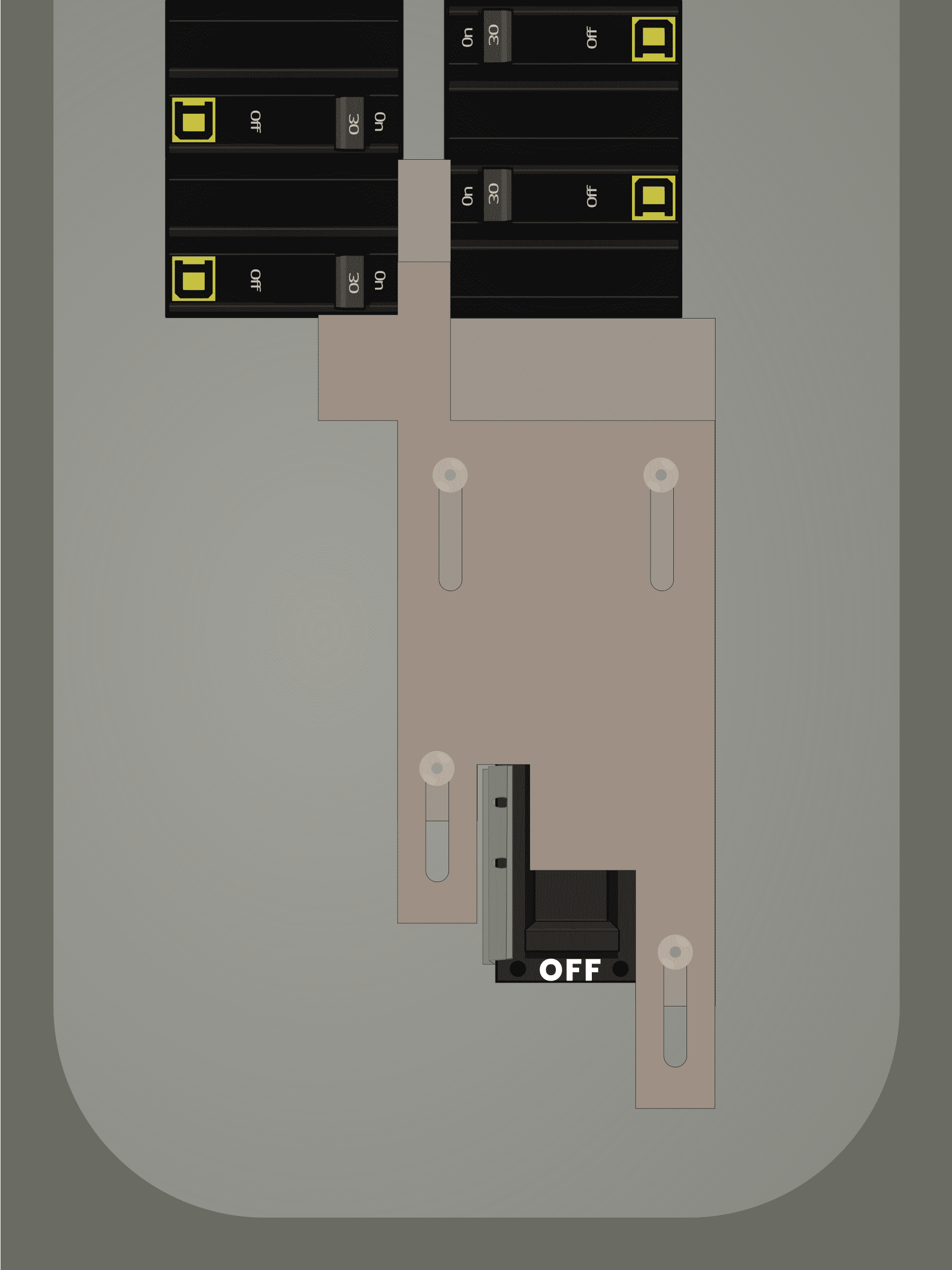

• Install a generator breaker at the bottom of the left column: spaces 2 & 4

Kit Installation Instructions
