Interlock Kit K-5310

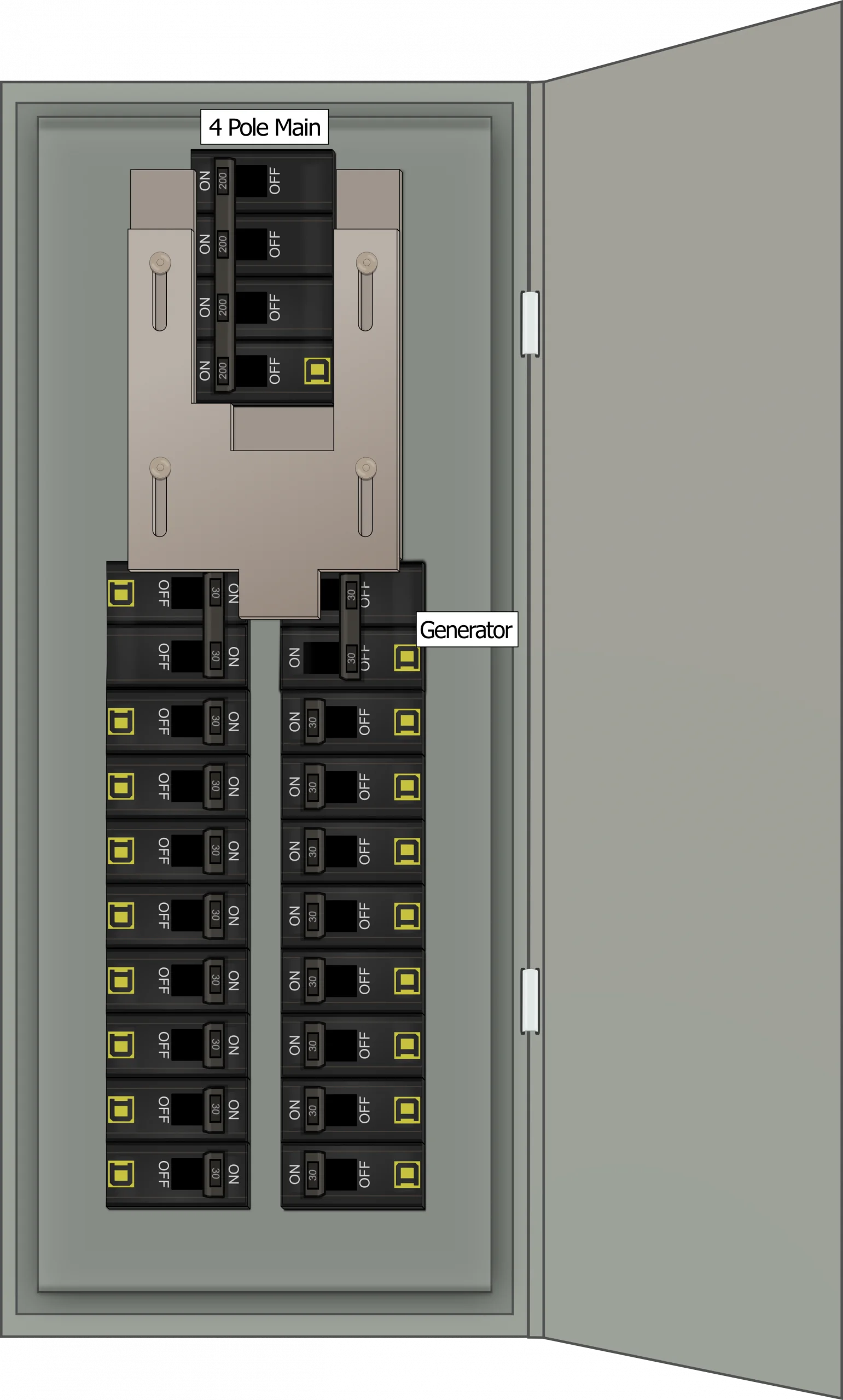

This Kit mounts to Square D Homeline Series electrical panels with the following features:

• Space between breaker columns: 1/2"

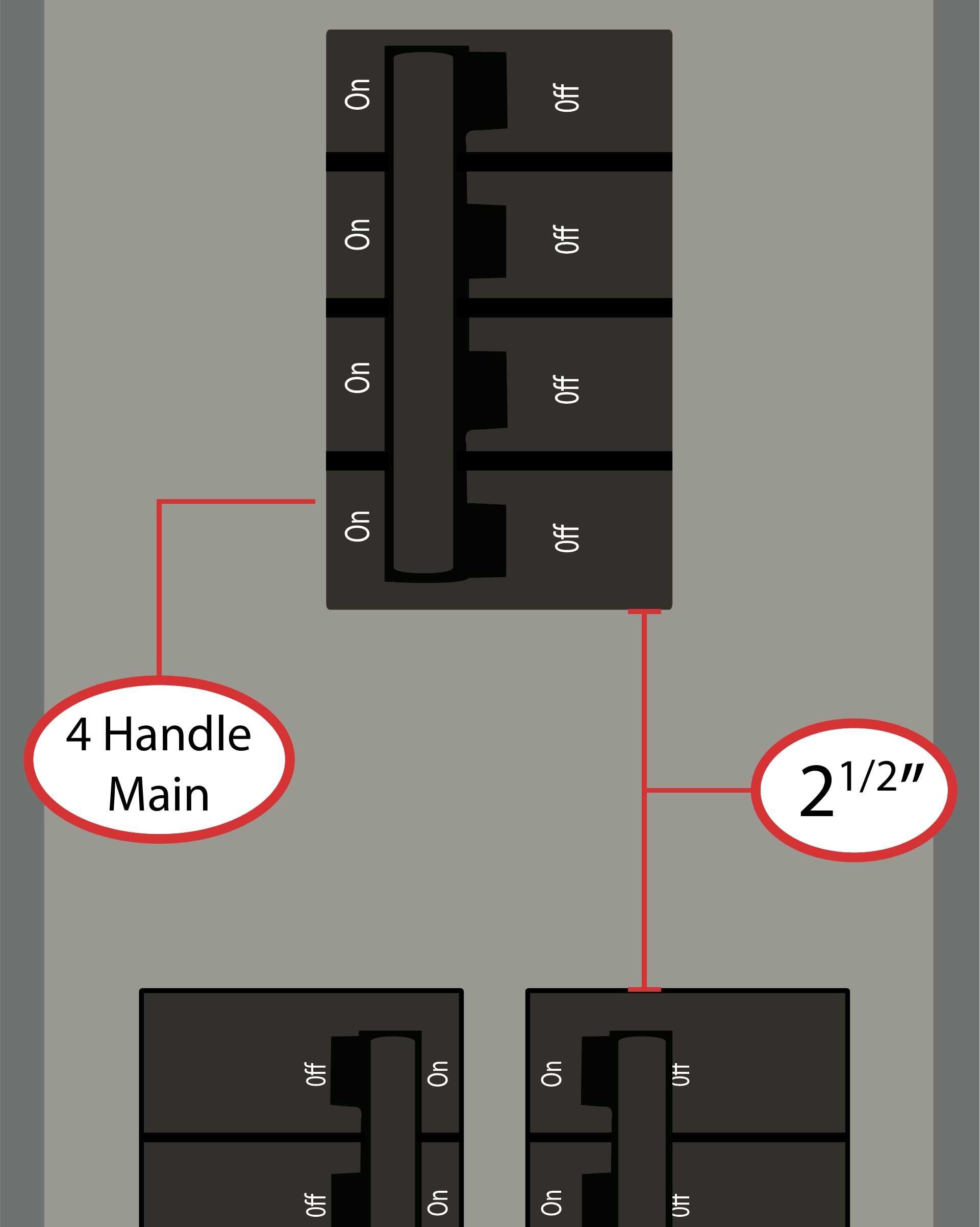

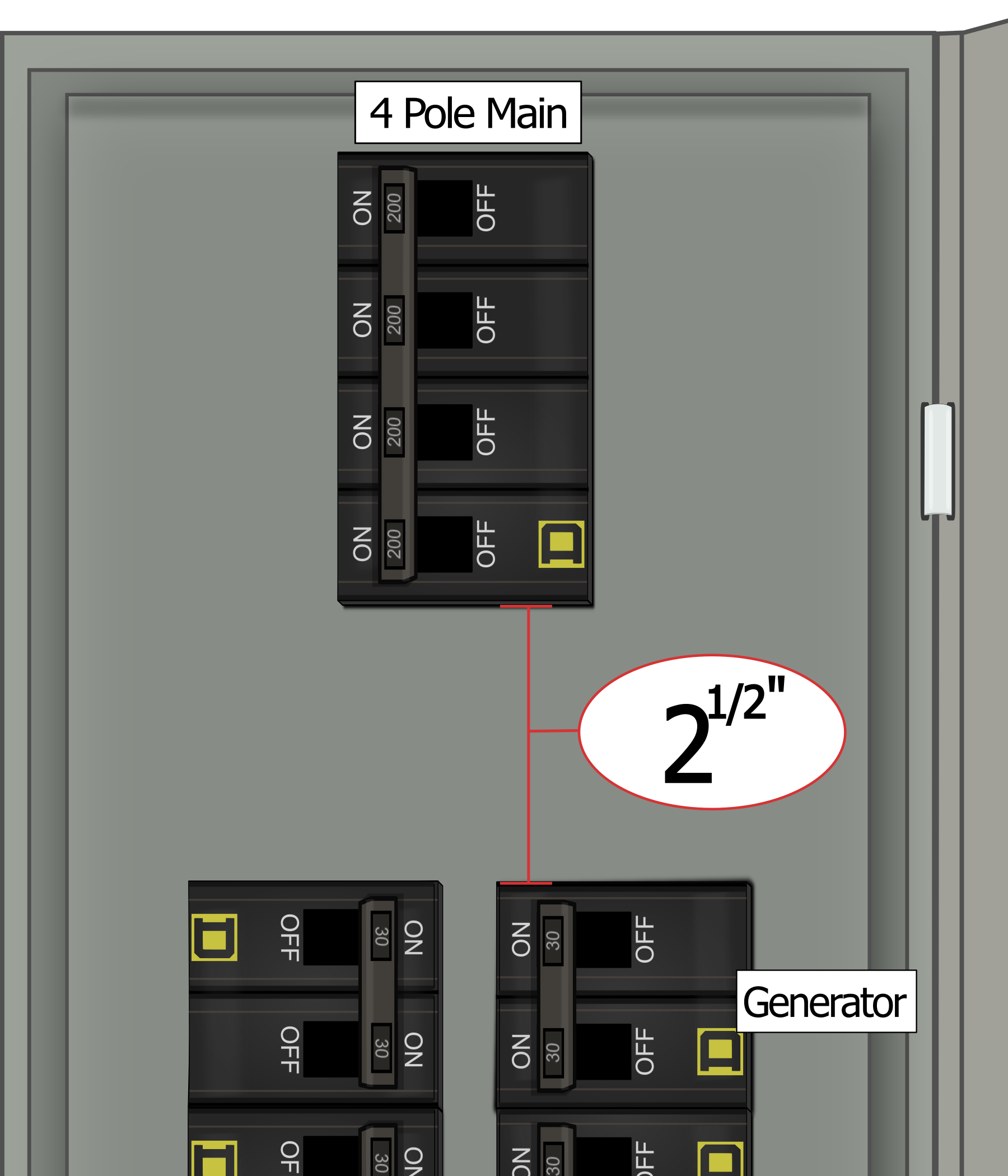

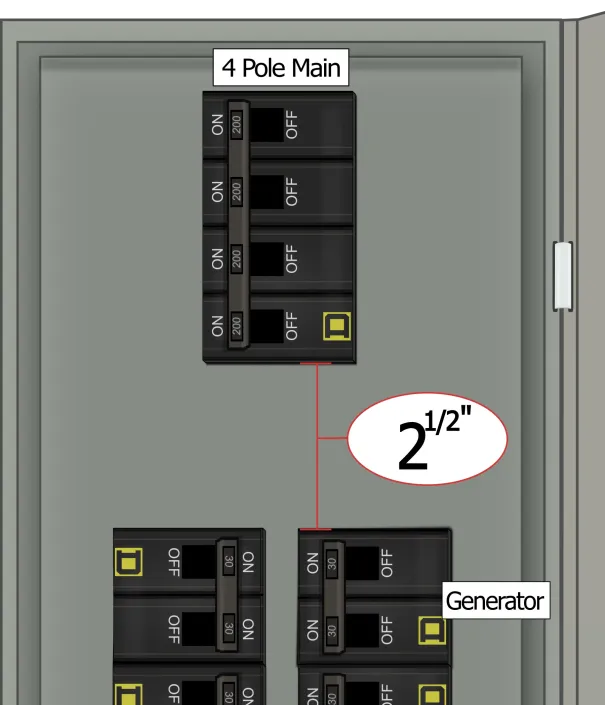

• Gap between main breaker and columns below, is: 2 1/2" approximately
• 150-200 amp main breaker
• Main breaker toggle action: horizontal (left-right) throw direction ON & OFF
• Main breaker is centered over top of both breaker columns
• Compatible with: Homeline series breakers

Requirements:

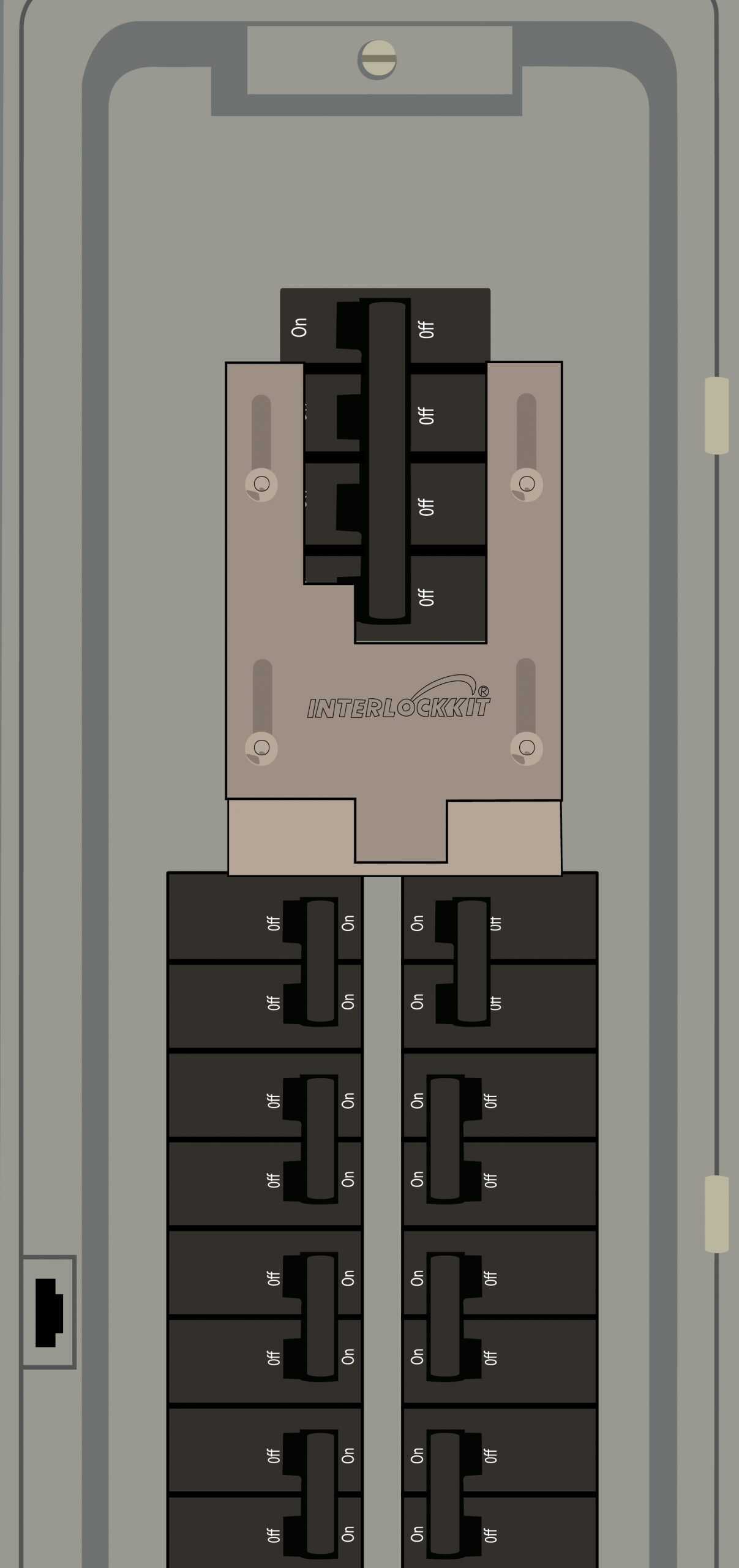

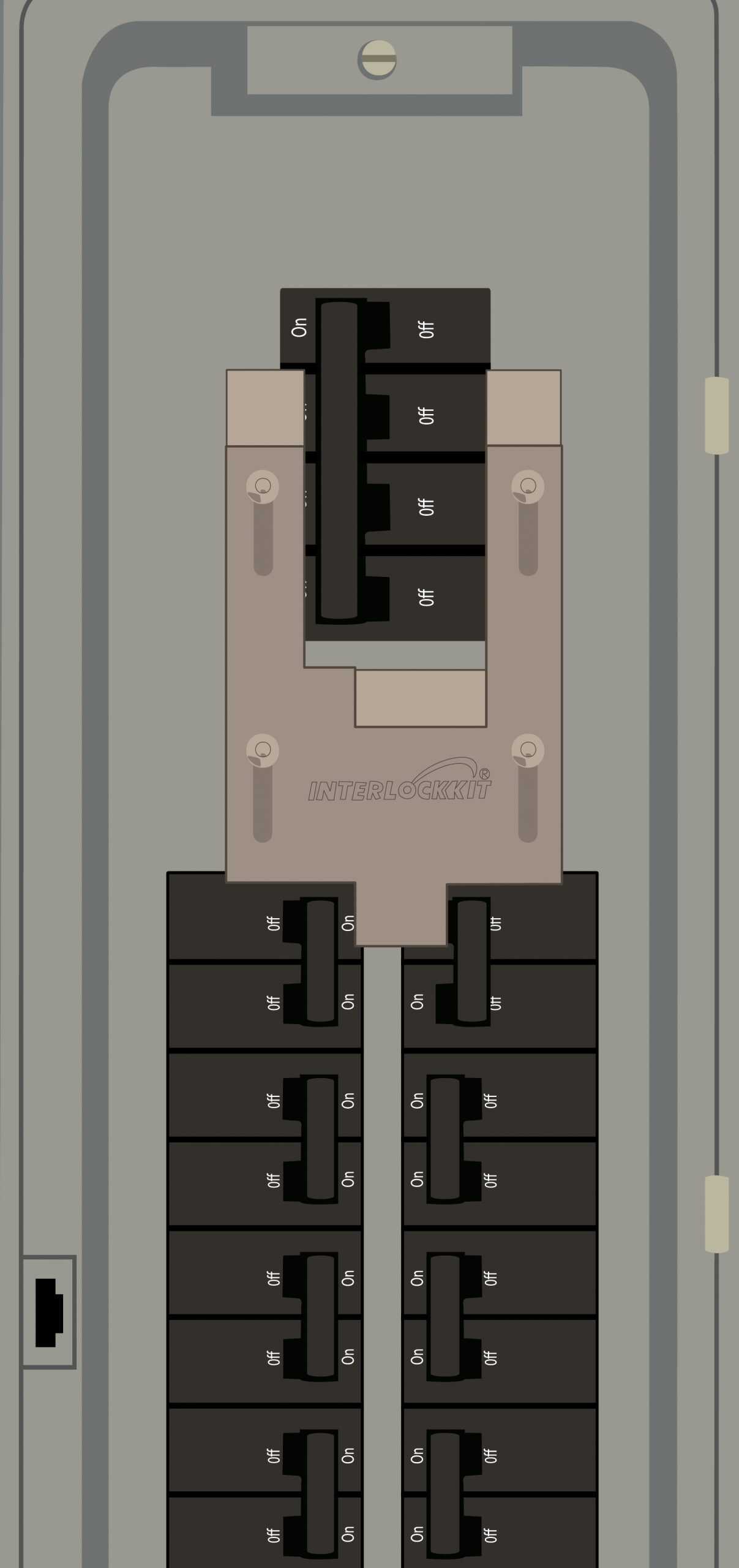

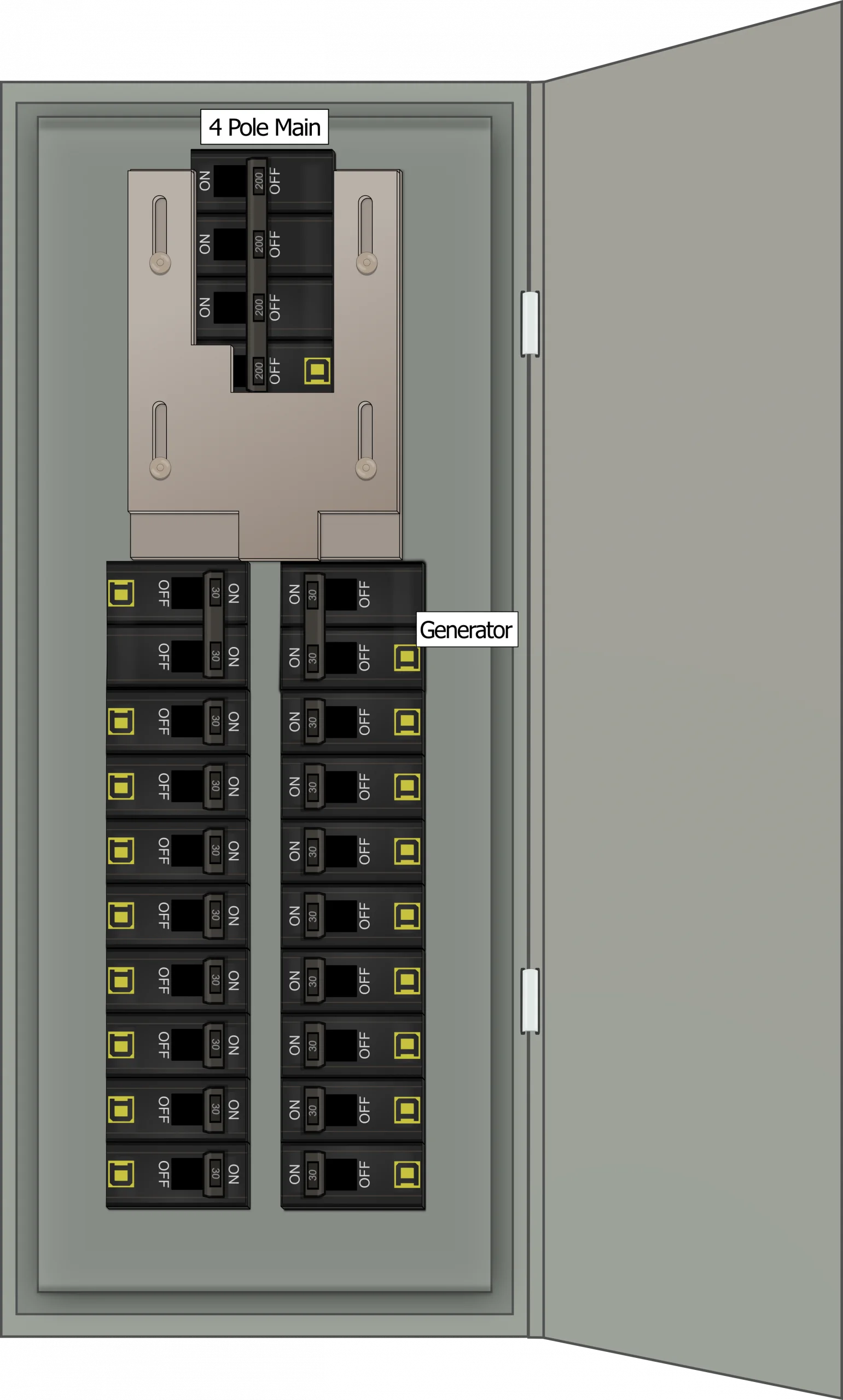

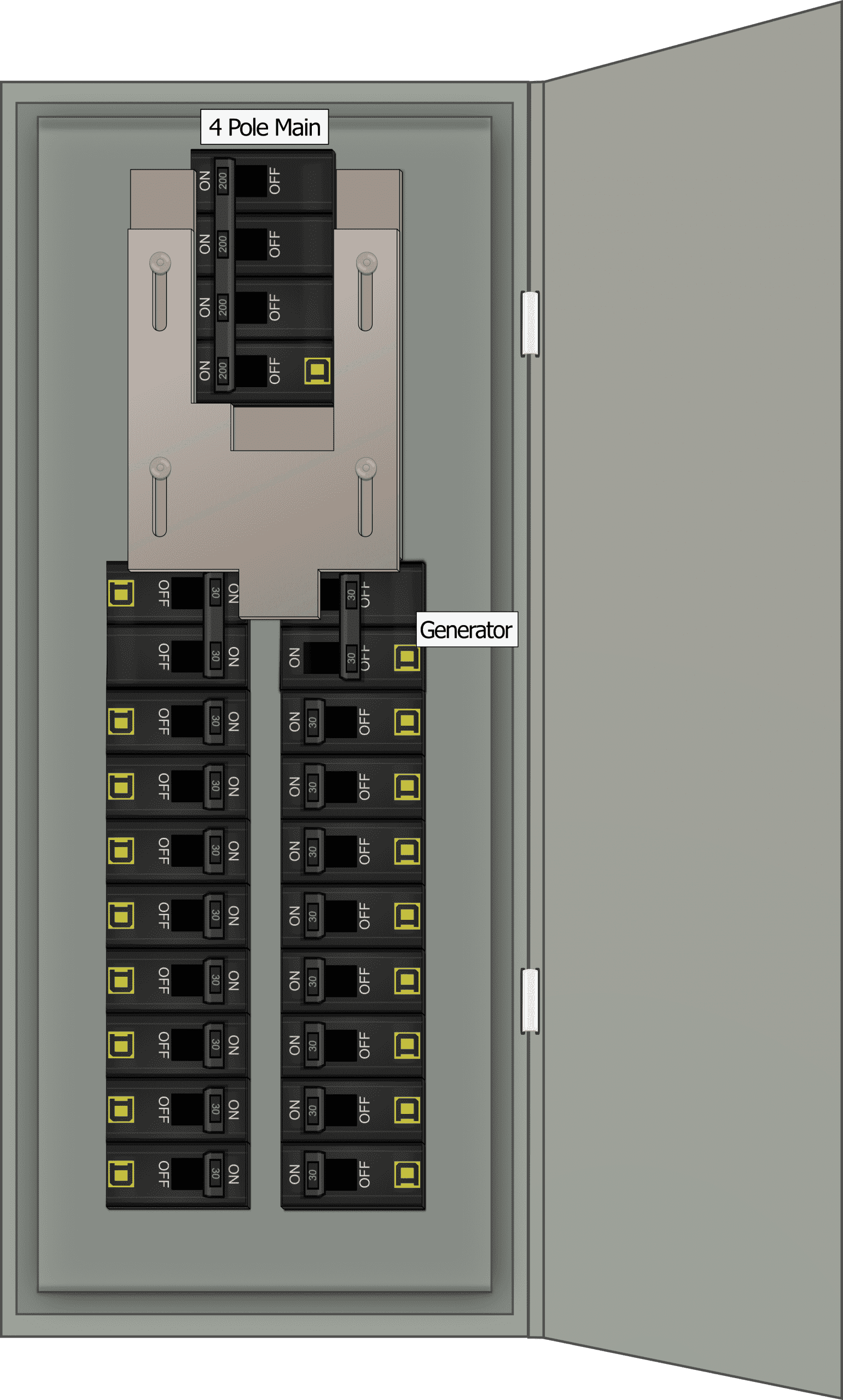

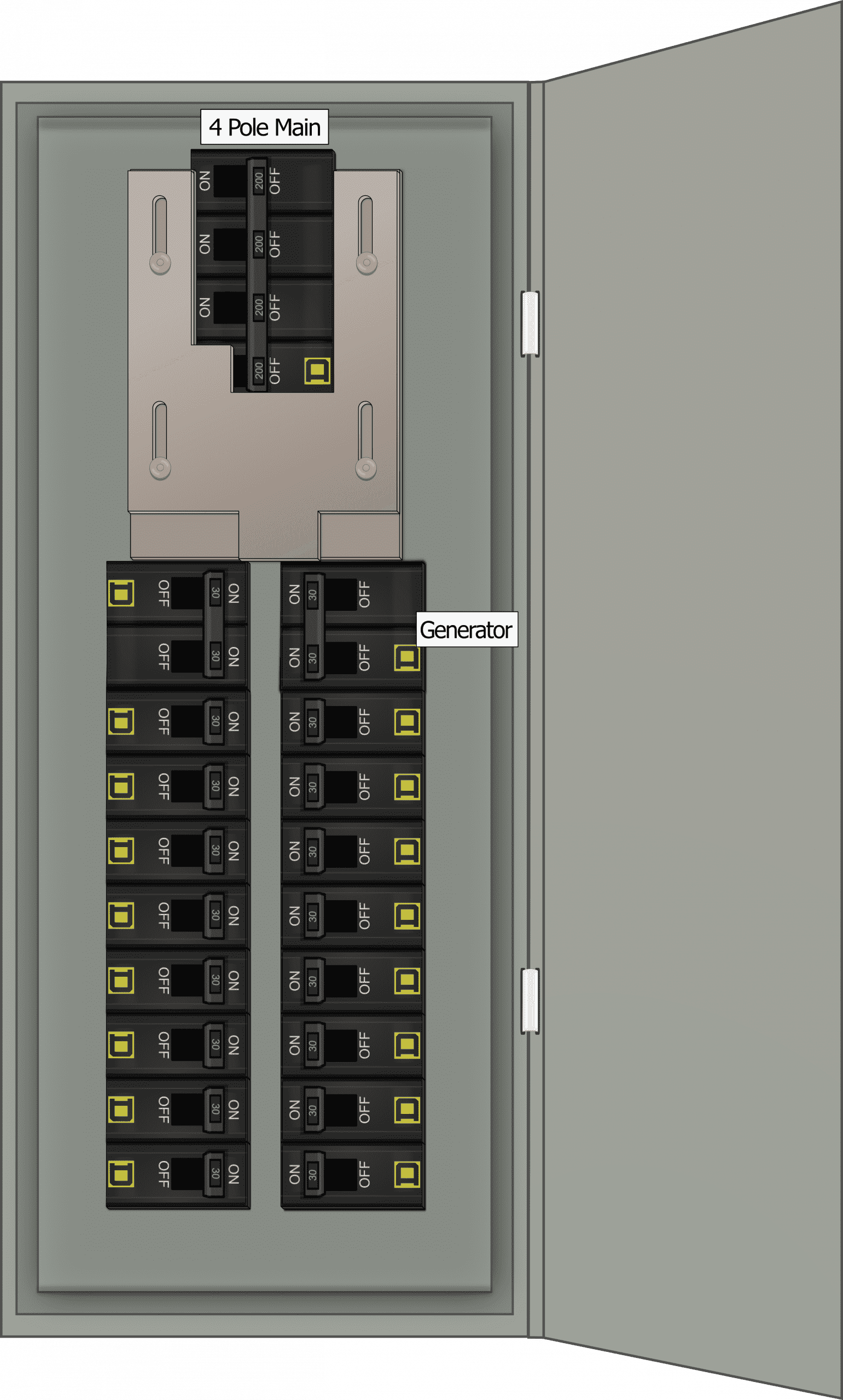

• Install a two pole generator breaker in the top two spaces of the right column: spaces 2 & 4
• Page four of the installation instructions includes a list of contents included in Kit K-5310

Kit Installation Instructions
