Interlock Kit K-2310 | Interlock Kit
$149.95
PATENT PENDING PRODUCT
Have a question or don’t see a kit for your panel? We make custom Interlock Kits for any panel or solar scenario – call (804) 531-3359 or Contact Us!

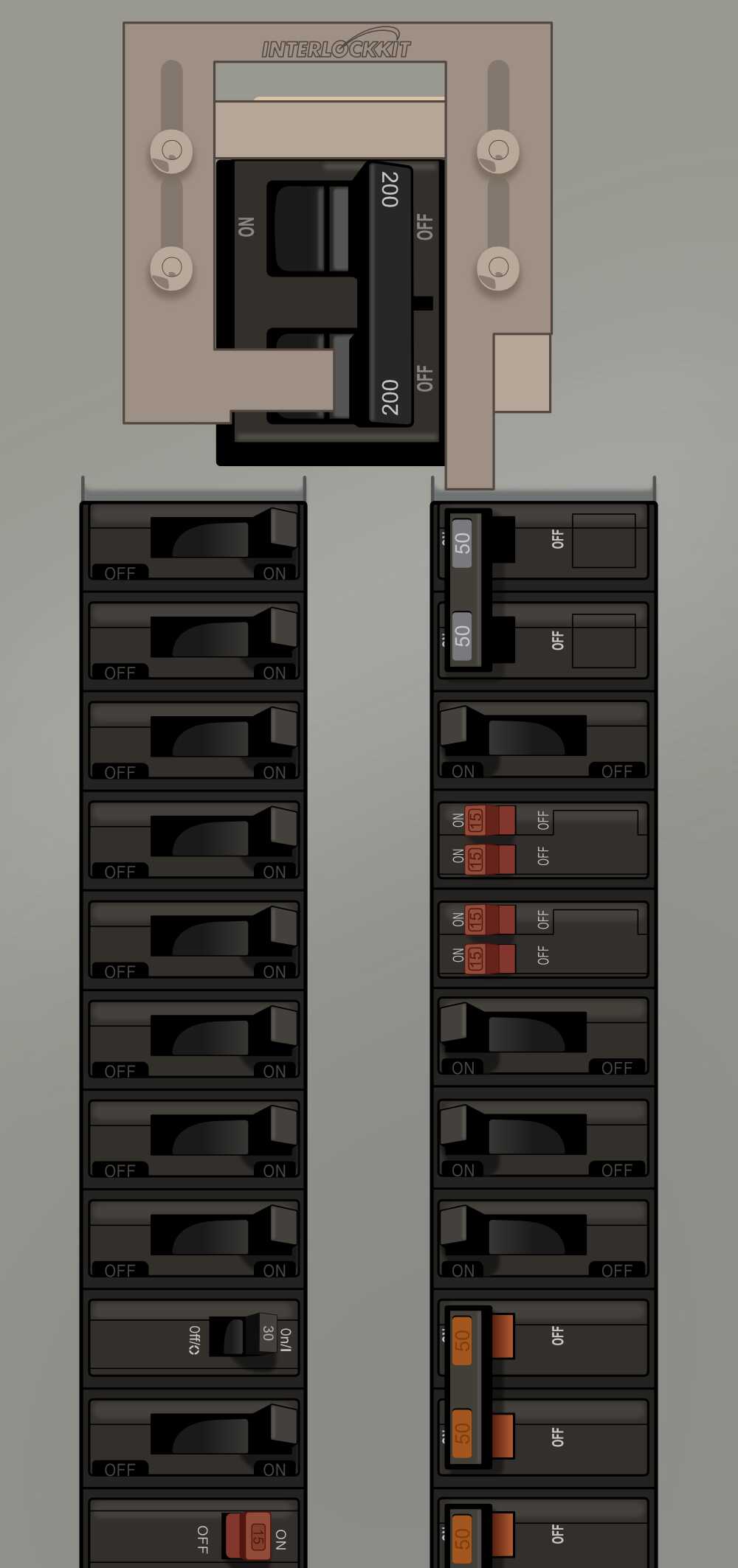

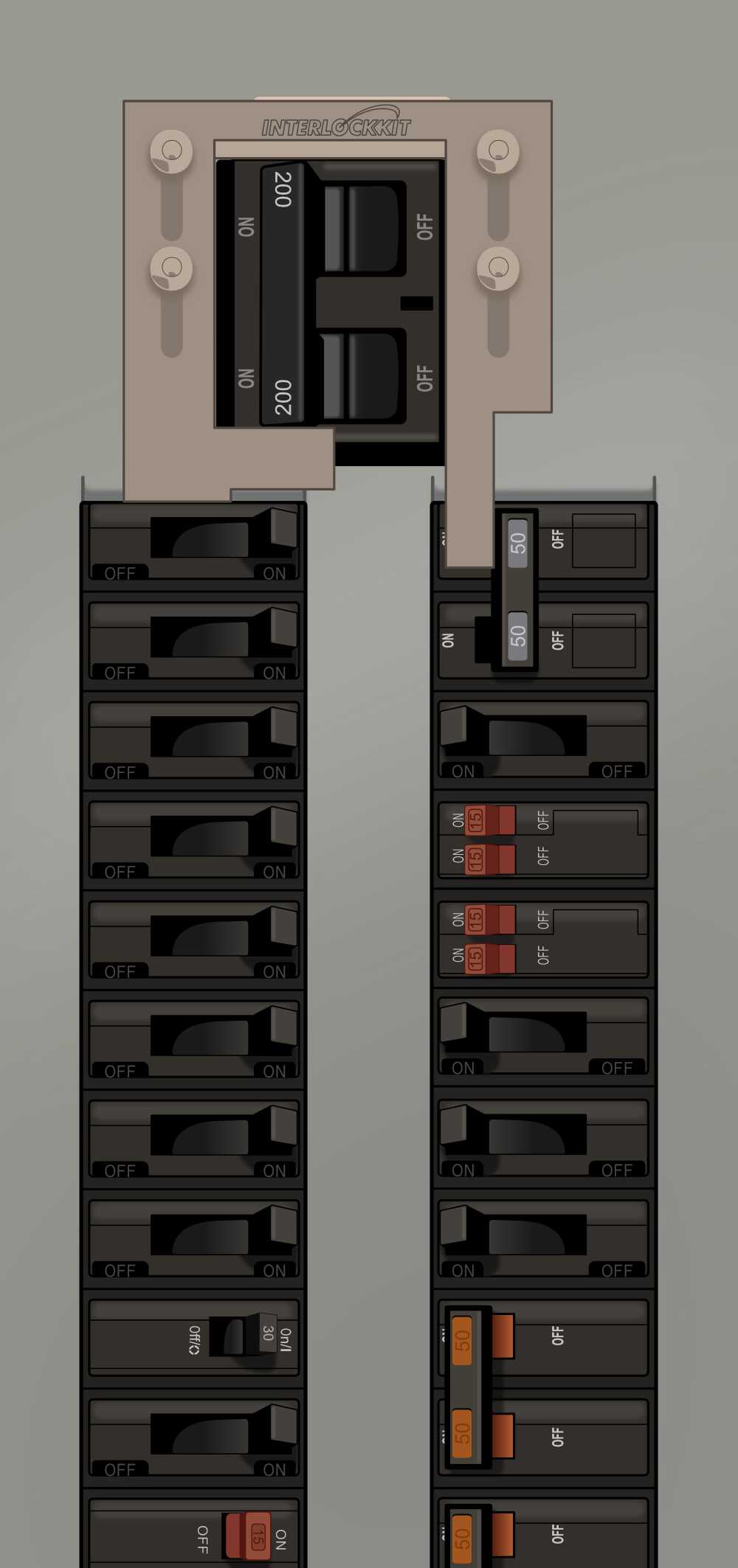

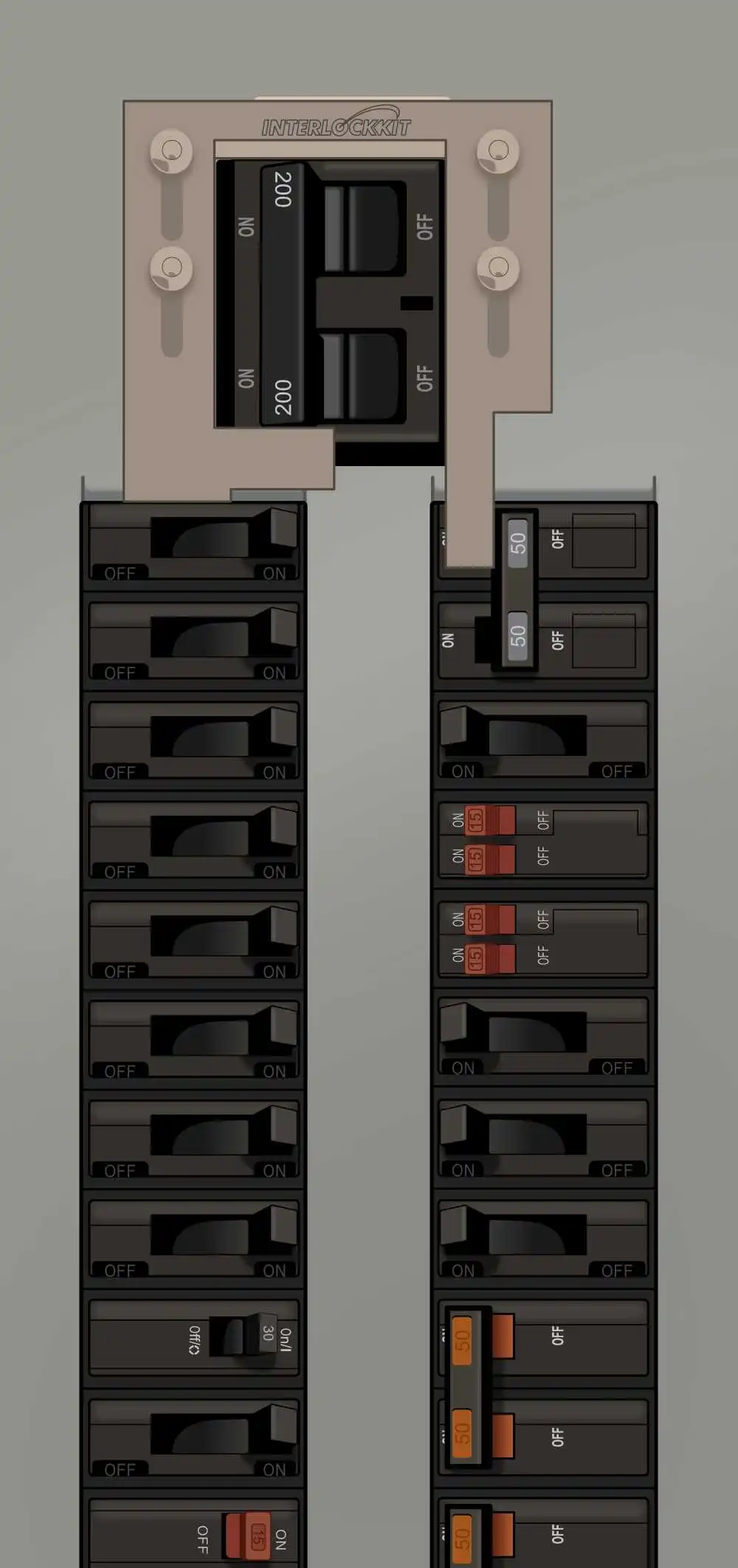

This Kit performs like a manual transfer switch for General Switch/ Murray panels with the following features:

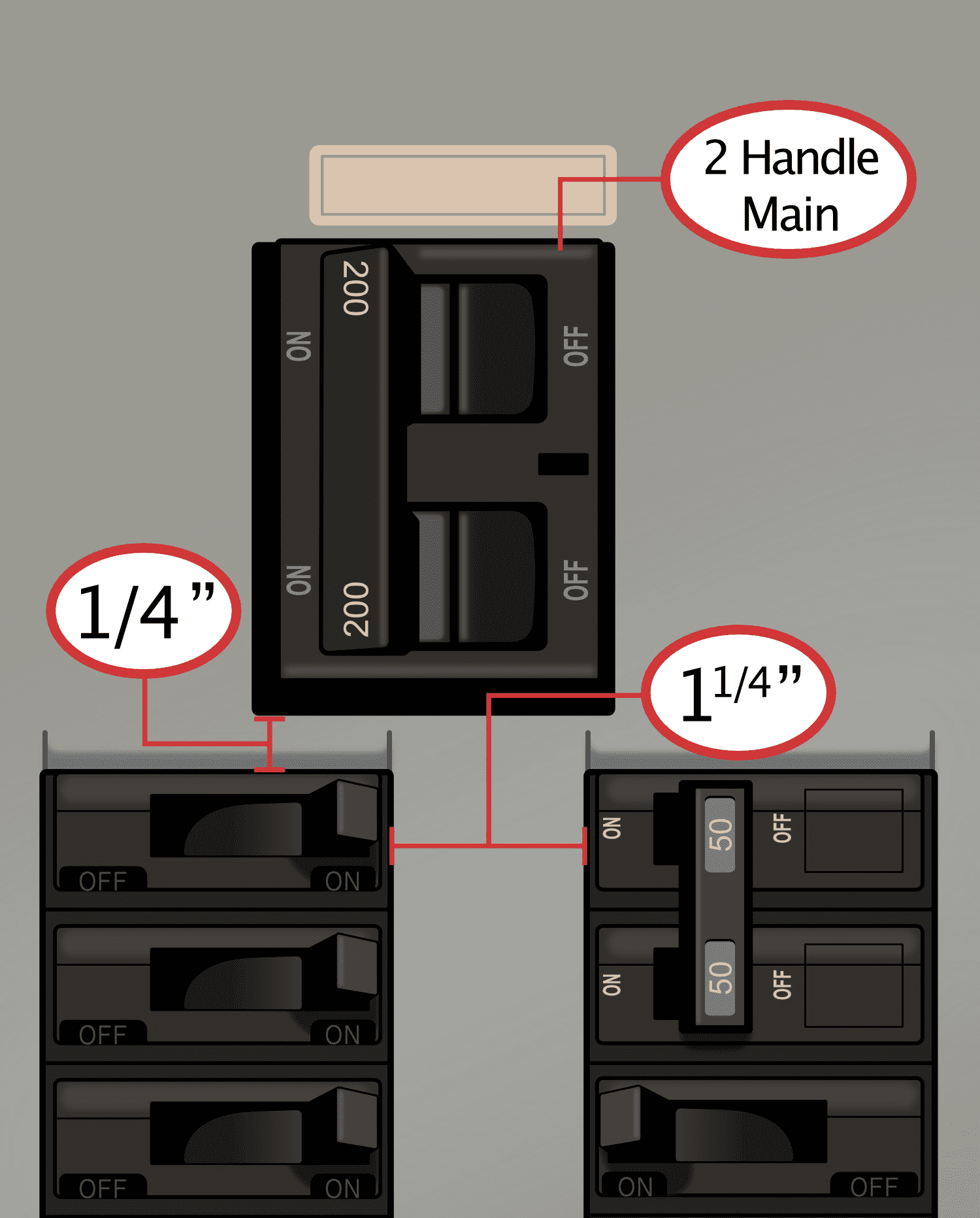

- Space between breaker columns: 1 1/4"
- Gap between main breaker and breaker column below, is: 1/4"
- 150-200 amp main breaker
- Main breaker toggle action: horizontal (left-right) throw direction ON & OFF
Requirements:
- Install a two pole generator breaker at the top of the right breaker column: spaces 21 & 22
- Page four of the installation instructions includes a list of contents included in Kit K-2310
Modified versions of this Interlock Kit exist, see: K-2010
Additional information
| Weight | 2 lbs |
|---|---|
| Catalog #: | MB200-40- other compatible catalog #'s may not be listed here yet. Use the details listed in "Description" to help match your kit! |
