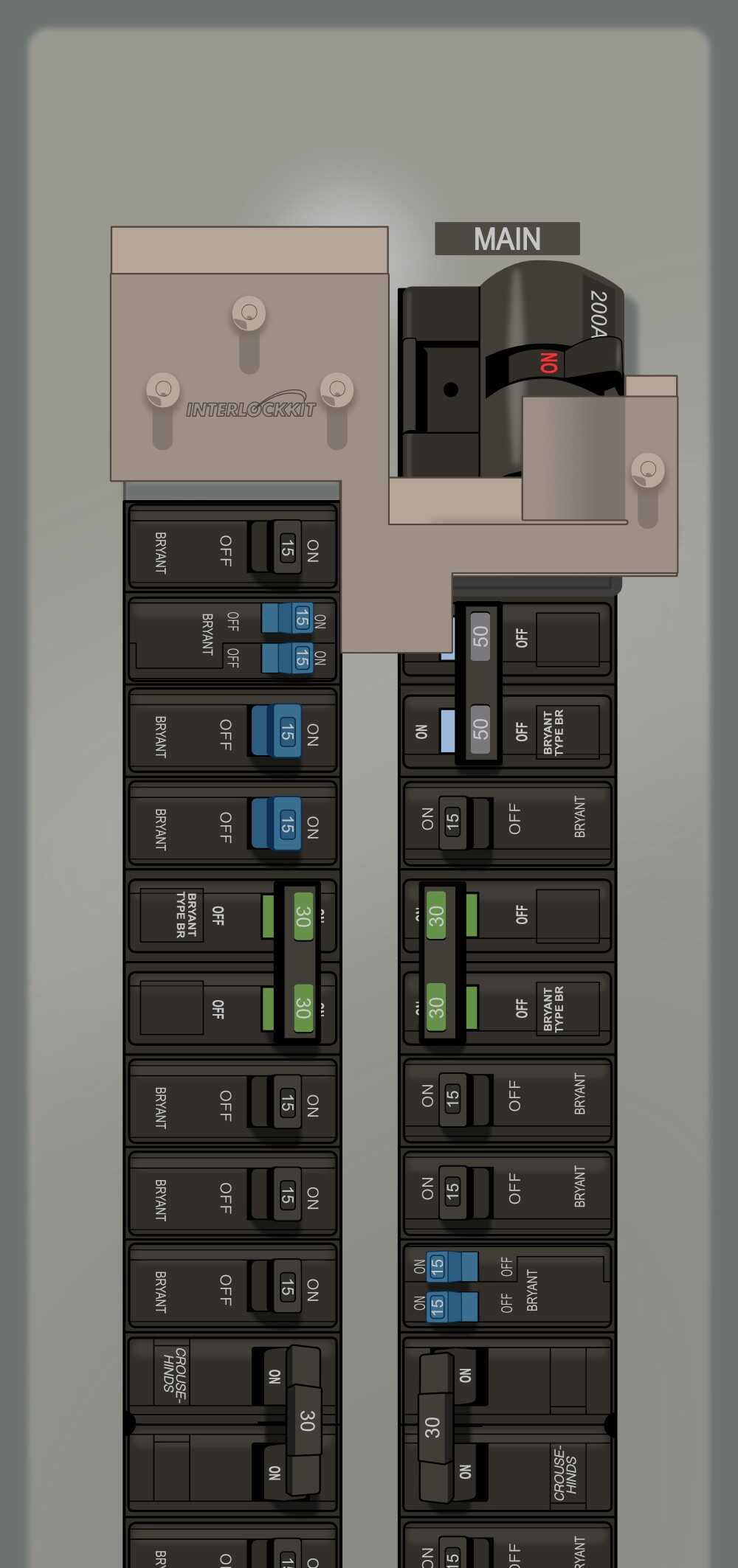

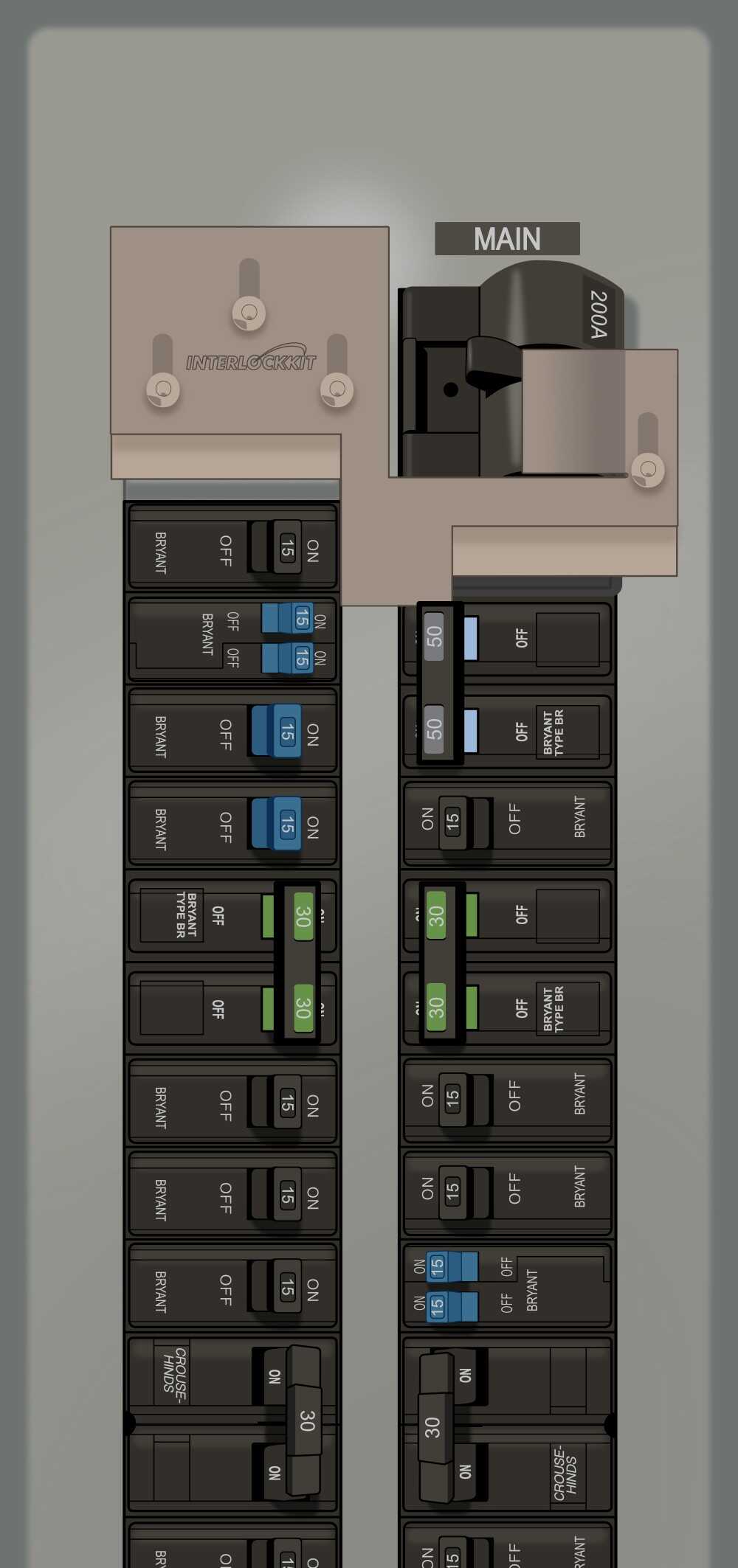

Interlock Kit K-7010M

This Interlock Kit performs like a manual transfer switch for Crouse-Hinds / Murray electrical panels with the following features:

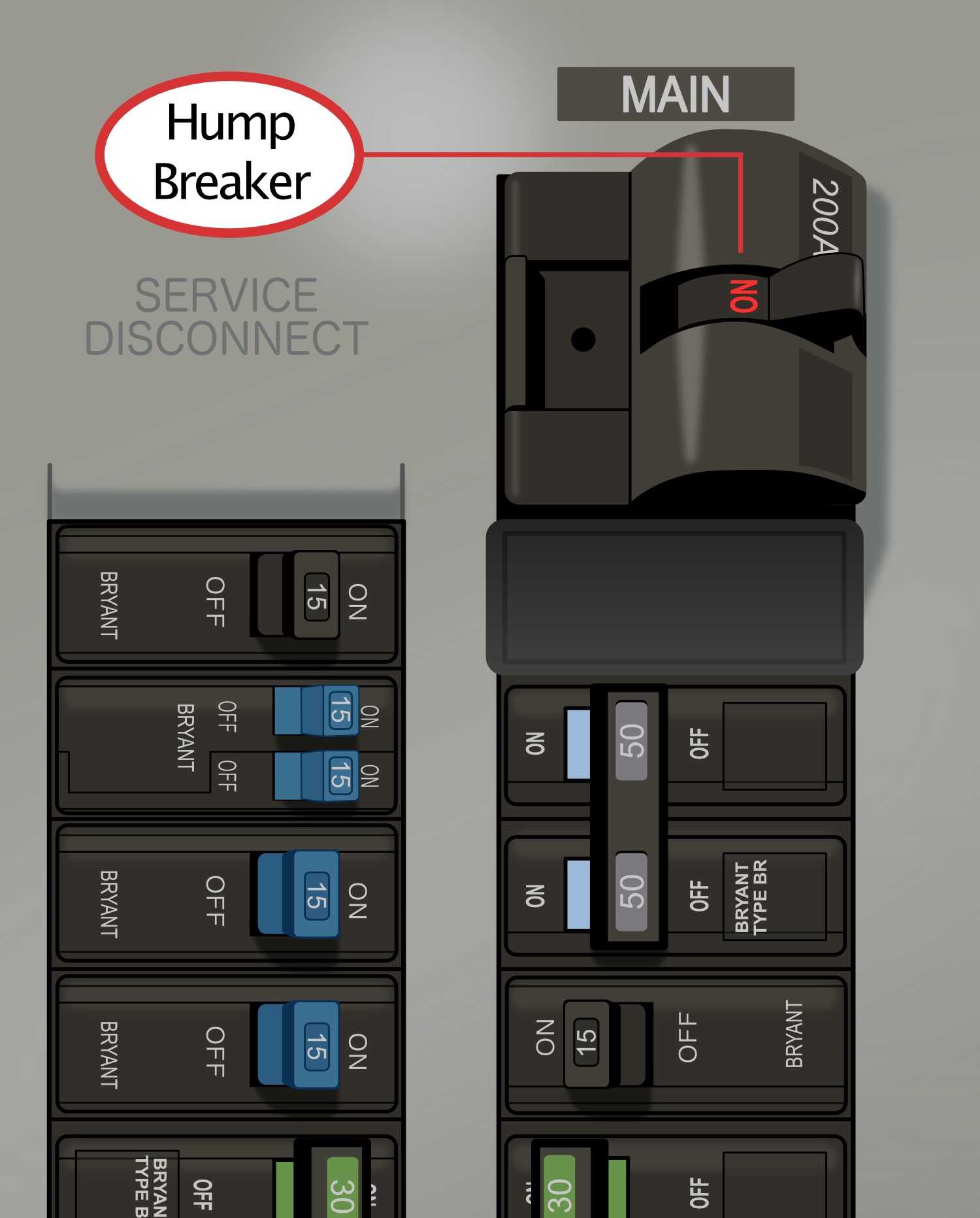

• This kit works with the existing humpback style main breaker!

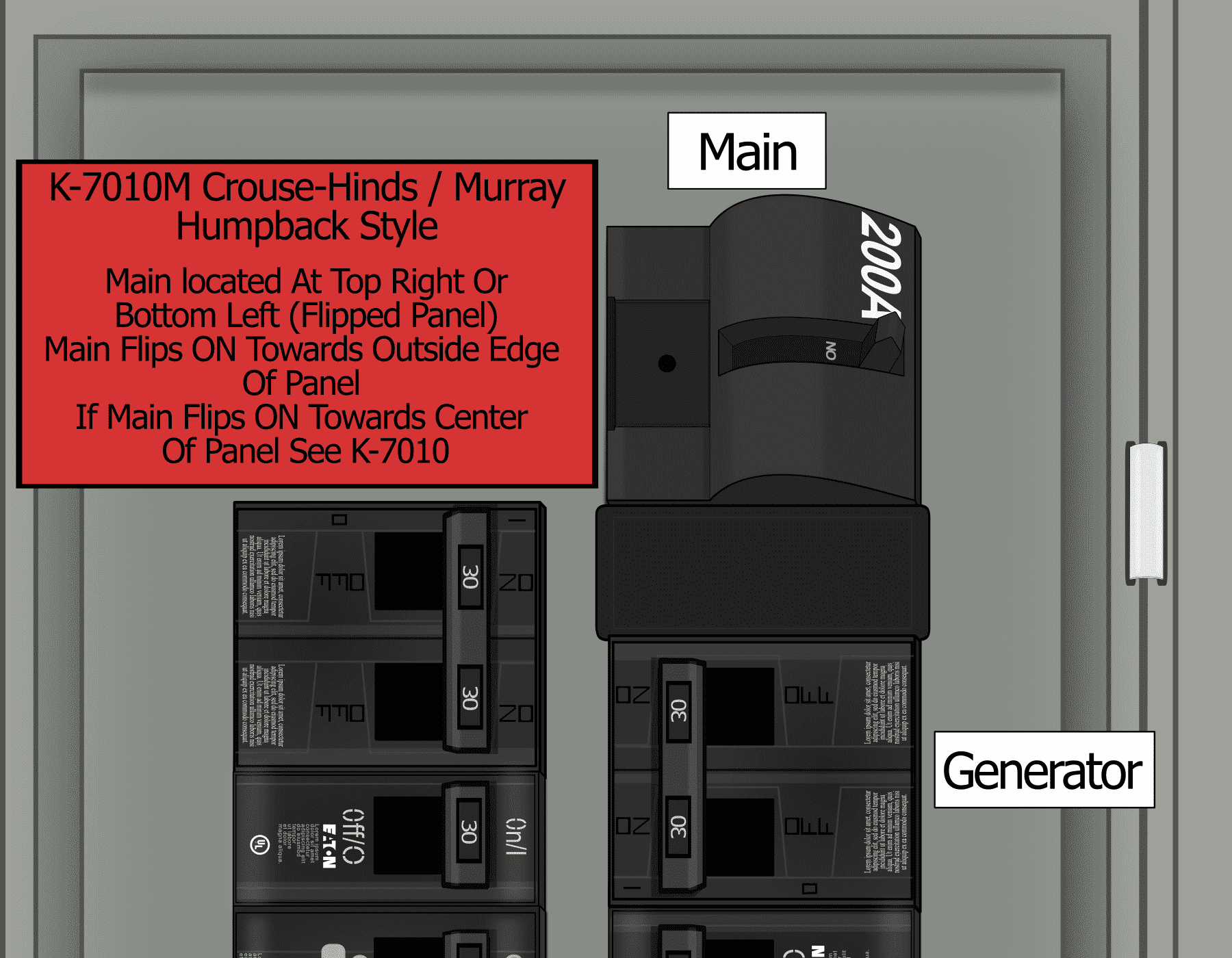

• "M" stands for modified. The main breaker engages ON to the right in this scenario
• Space between breaker columns: 1/2"
• No gap
• 150-200 amp two pole hump-back style main breaker
• Main breaker toggle action: Horizontal (right-left) throw direction ON & OFF
• Main breaker sits directly on top of the breaker stack in the right column

Requirements

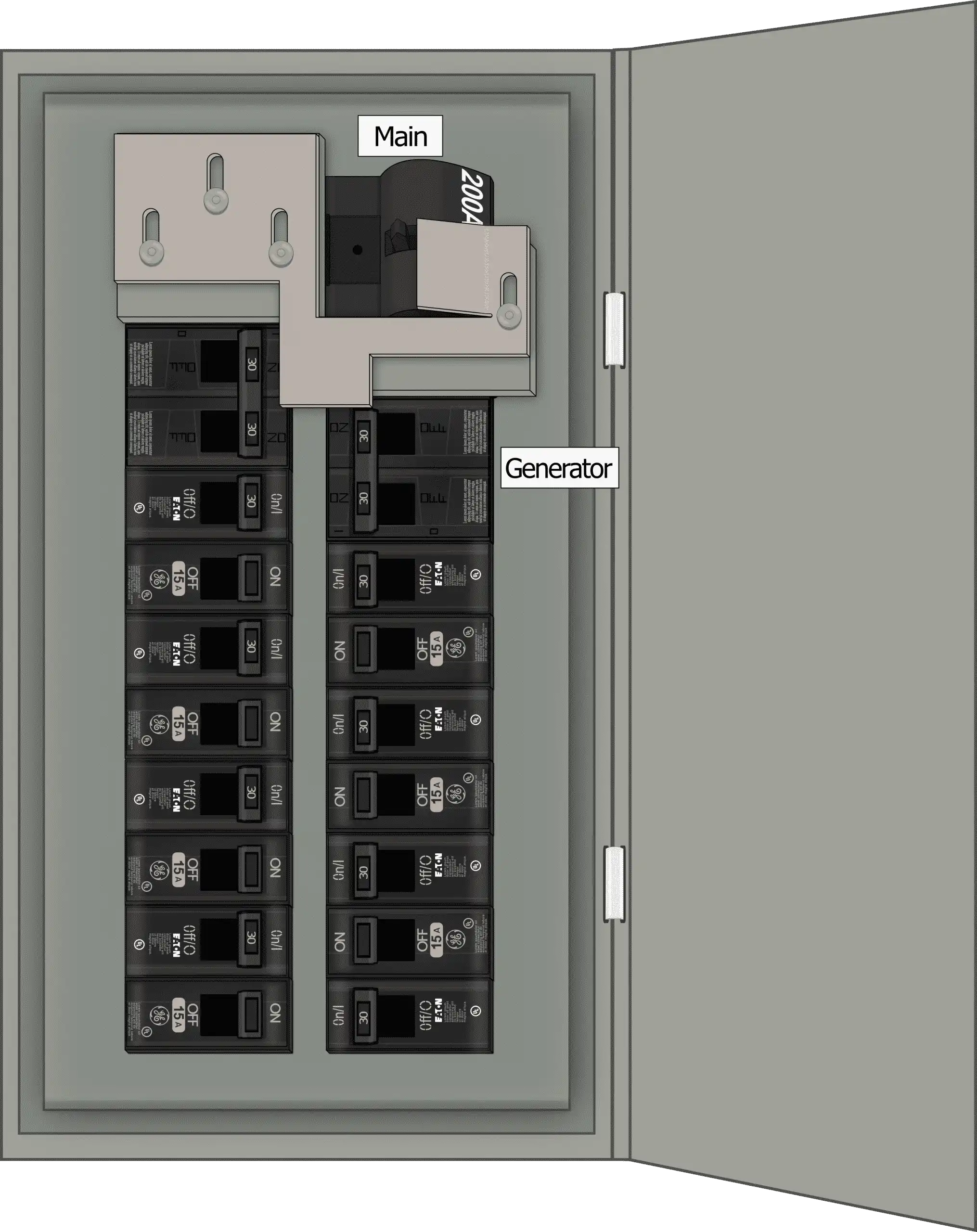

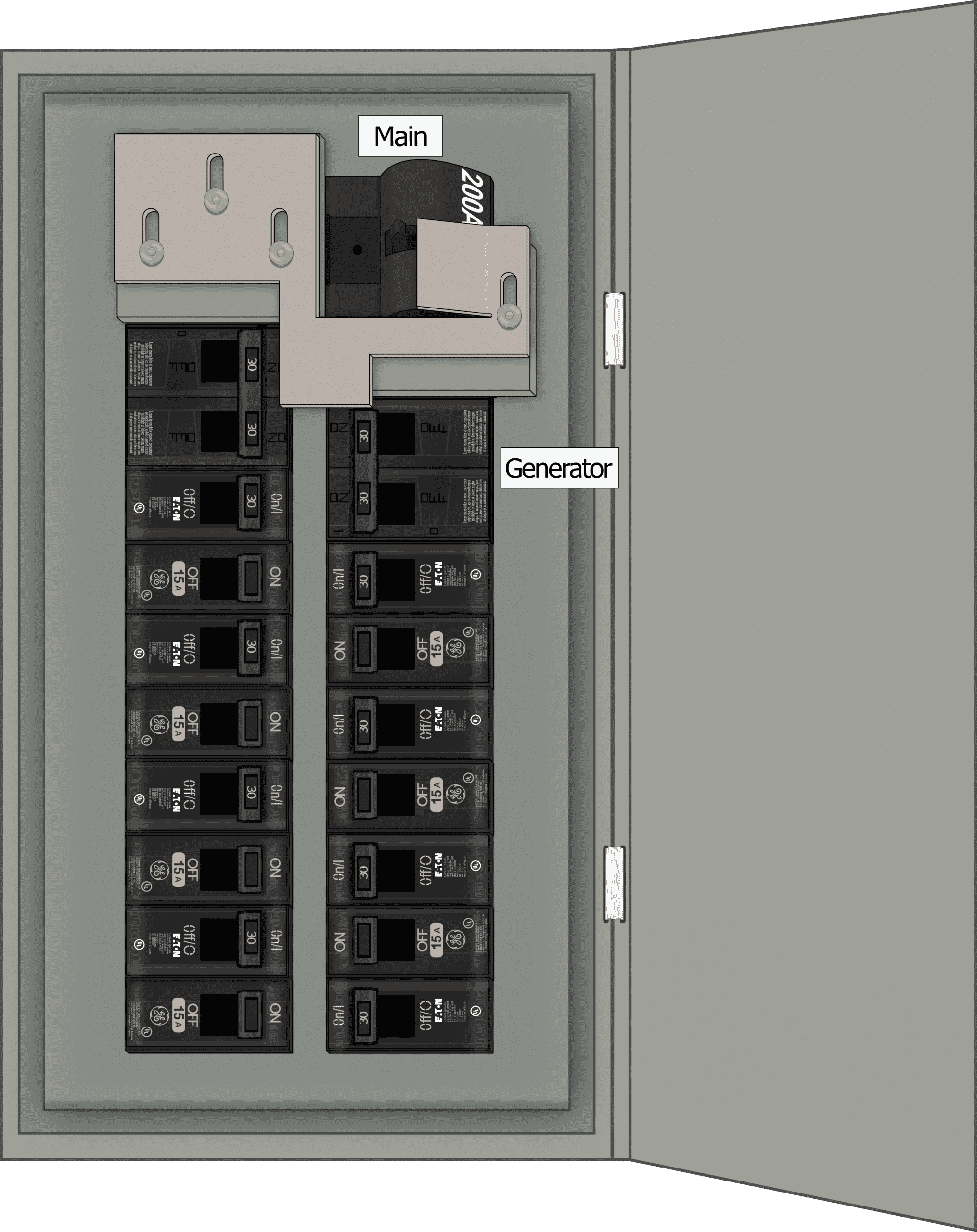

• Install a filler plate directly below the main breaker in spaces: 6 and a generator breaker below the filler plate in spaces 8 & 10
• Page four of the installation instructions includes a list of contents for Kit K-7010M

There are three modified versions of this Interlock Kit: K-7010, K-7110, & K-7110M

Kit Installation Instructions
