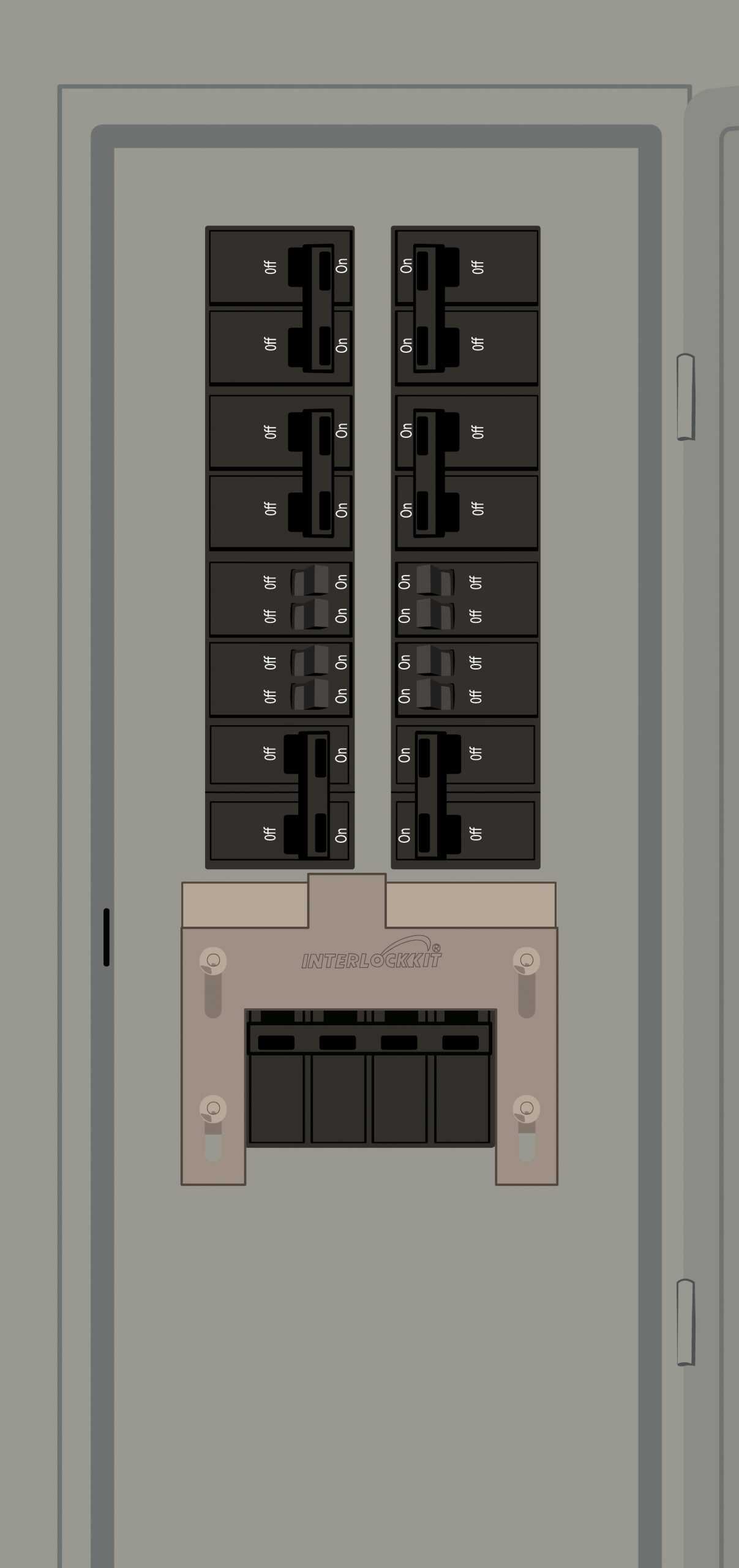

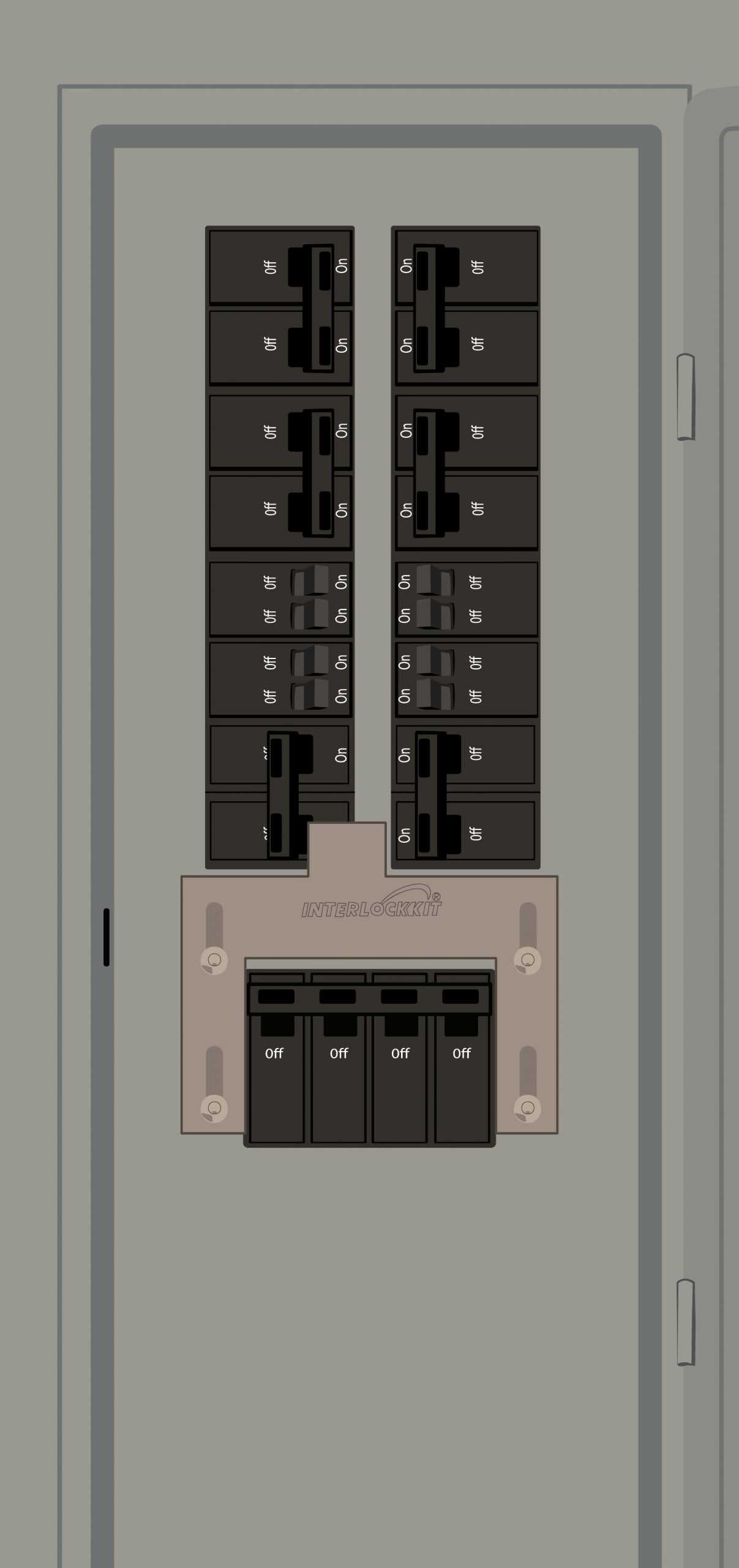

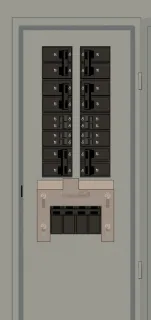

Interlock Kit K-2110

This Interlock Kit mounts to Westinghouse, Thomas & Betts, and Challenger electrical panels with the following features:

• Space between breaker columns: 1/2"

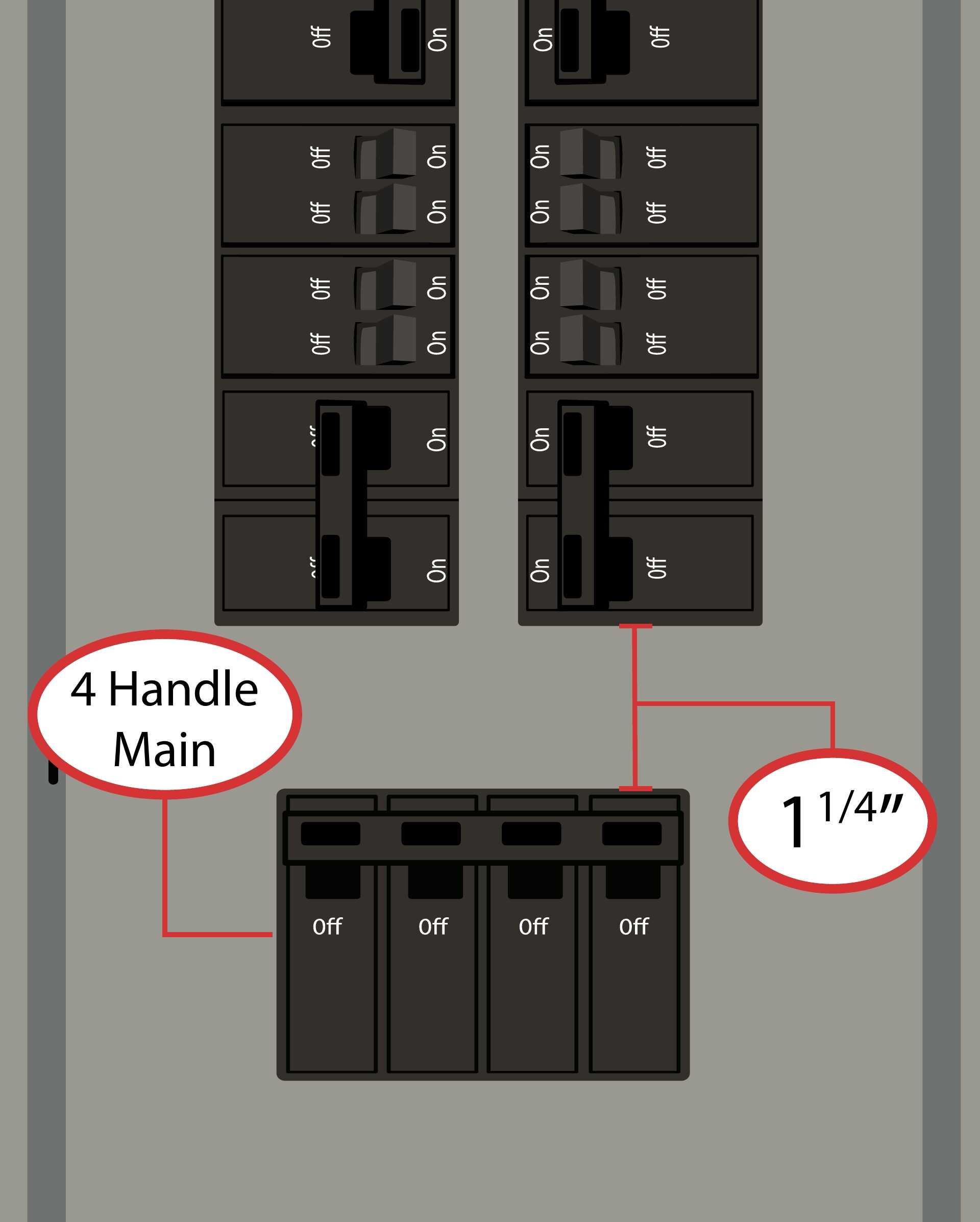

• Gap between main breaker and columns above, is: 1 1/4"
• 150-200 amp main breaker
• Main breaker toggle action: vertical (up-down) throw direction ON & OFF
• Main breaker is centered directly below both breaker columns

Requirements:

• Install a two pole generator breaker, located in: spaces 2 & 4 (bottom two spaces in the left column)
• Page four of the installation instructions includes a list of contents for Kit K-2110

Modified versions of this Interlock Kit exist: K-1010
Kit Installation Instructions
