Westinghouse / Thomas & Betts / Challenger Kit K-2010
$149.95

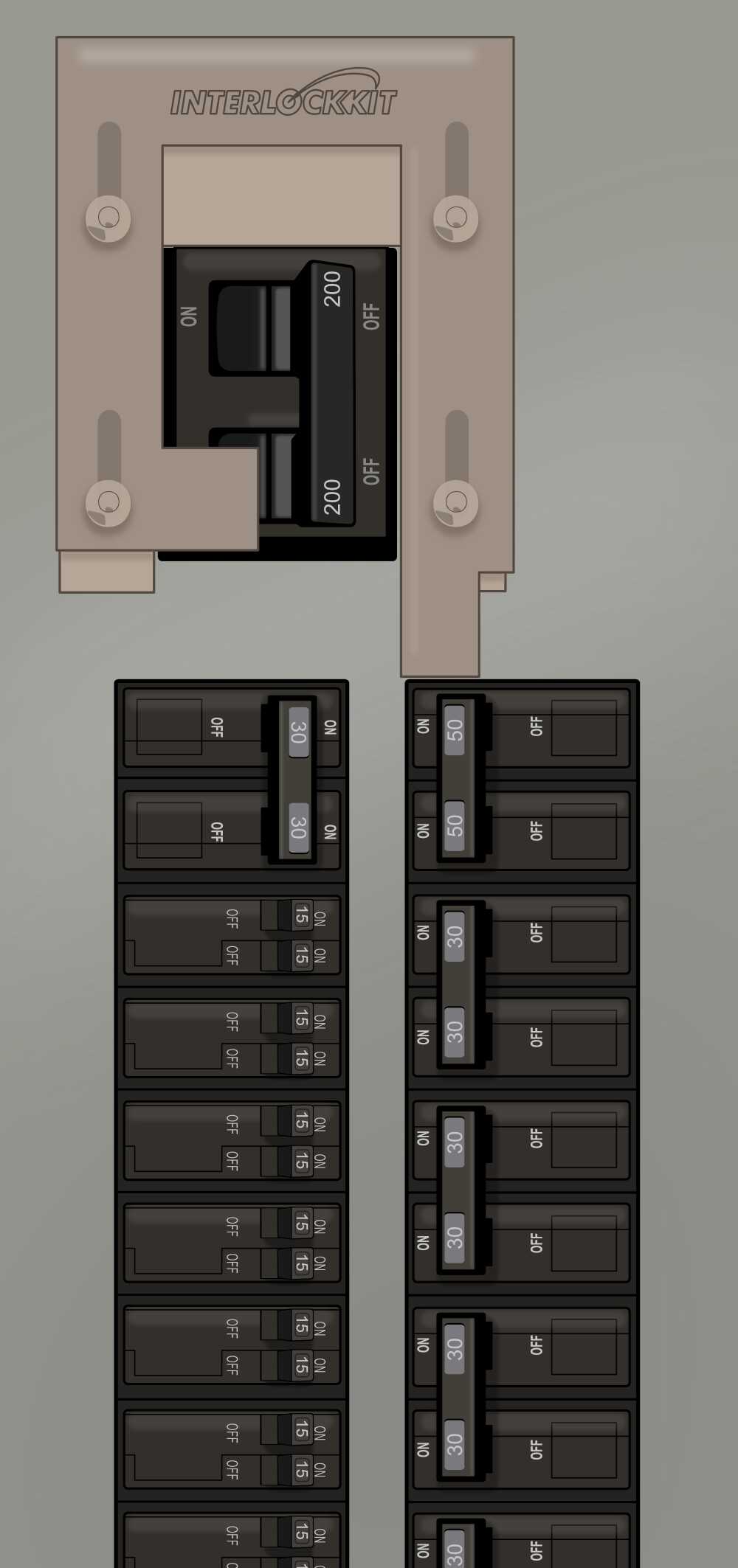

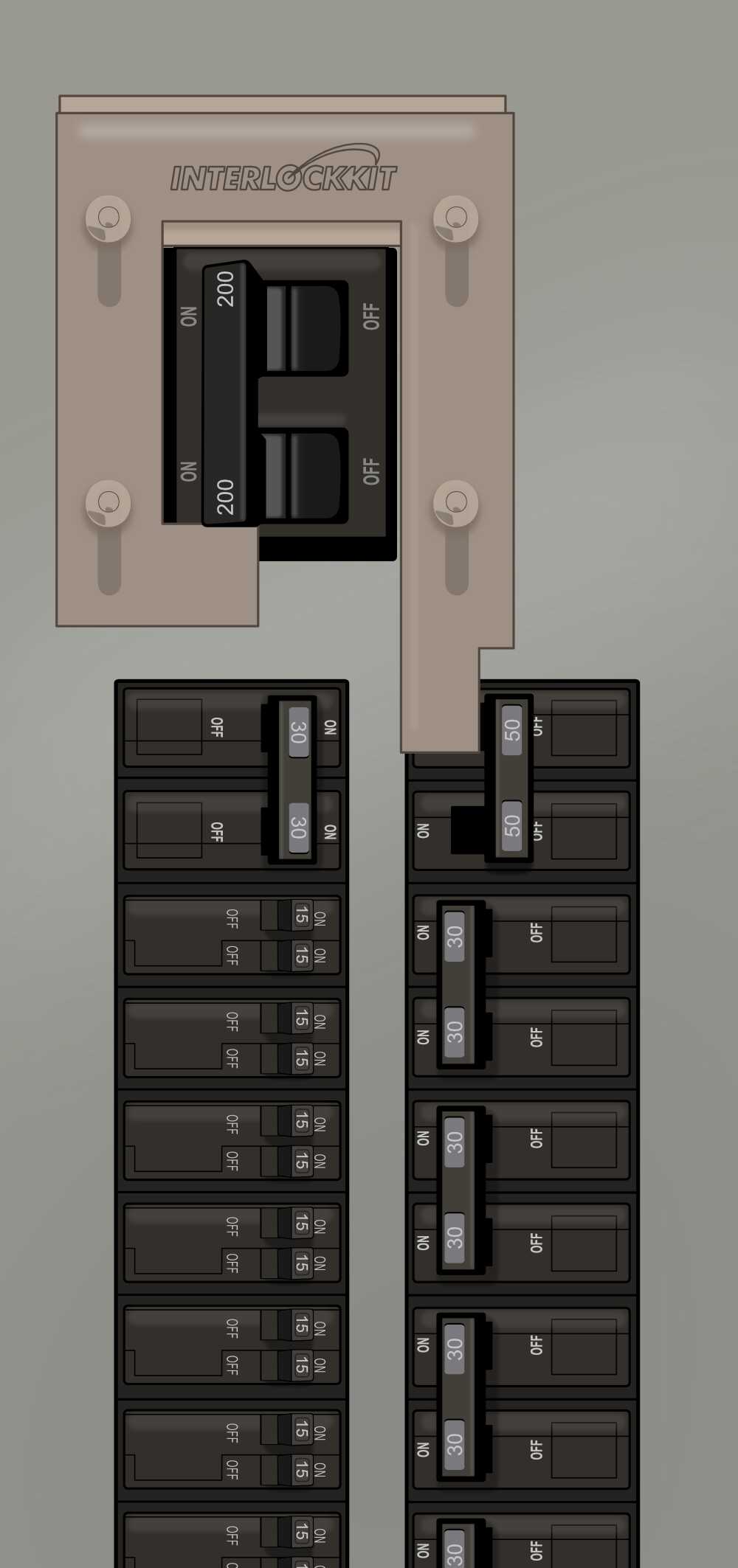

This Kit performs like a manual transfer switch for Westinghouse, Thomas & Betts, and Challenger electrical panels with the following features:

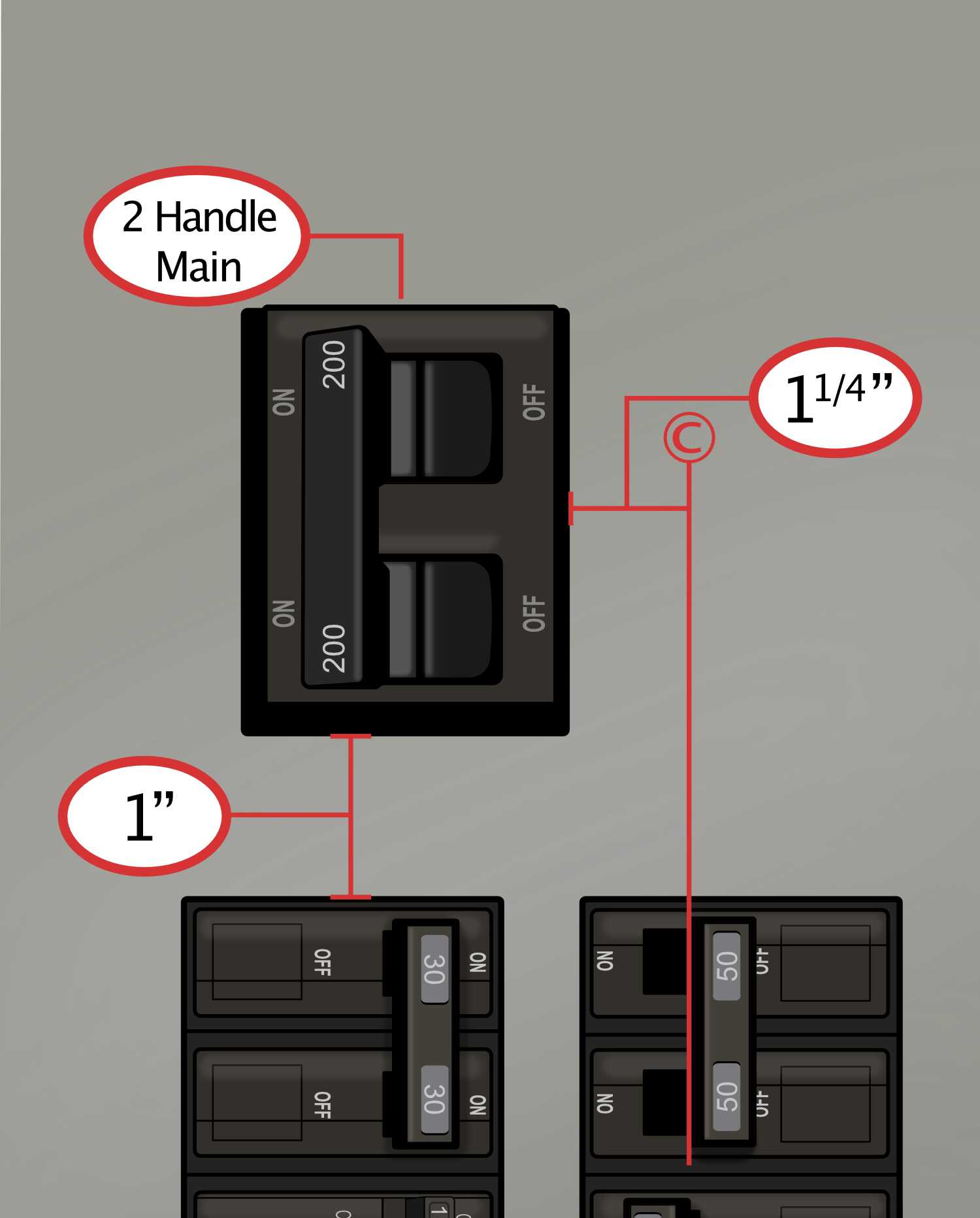

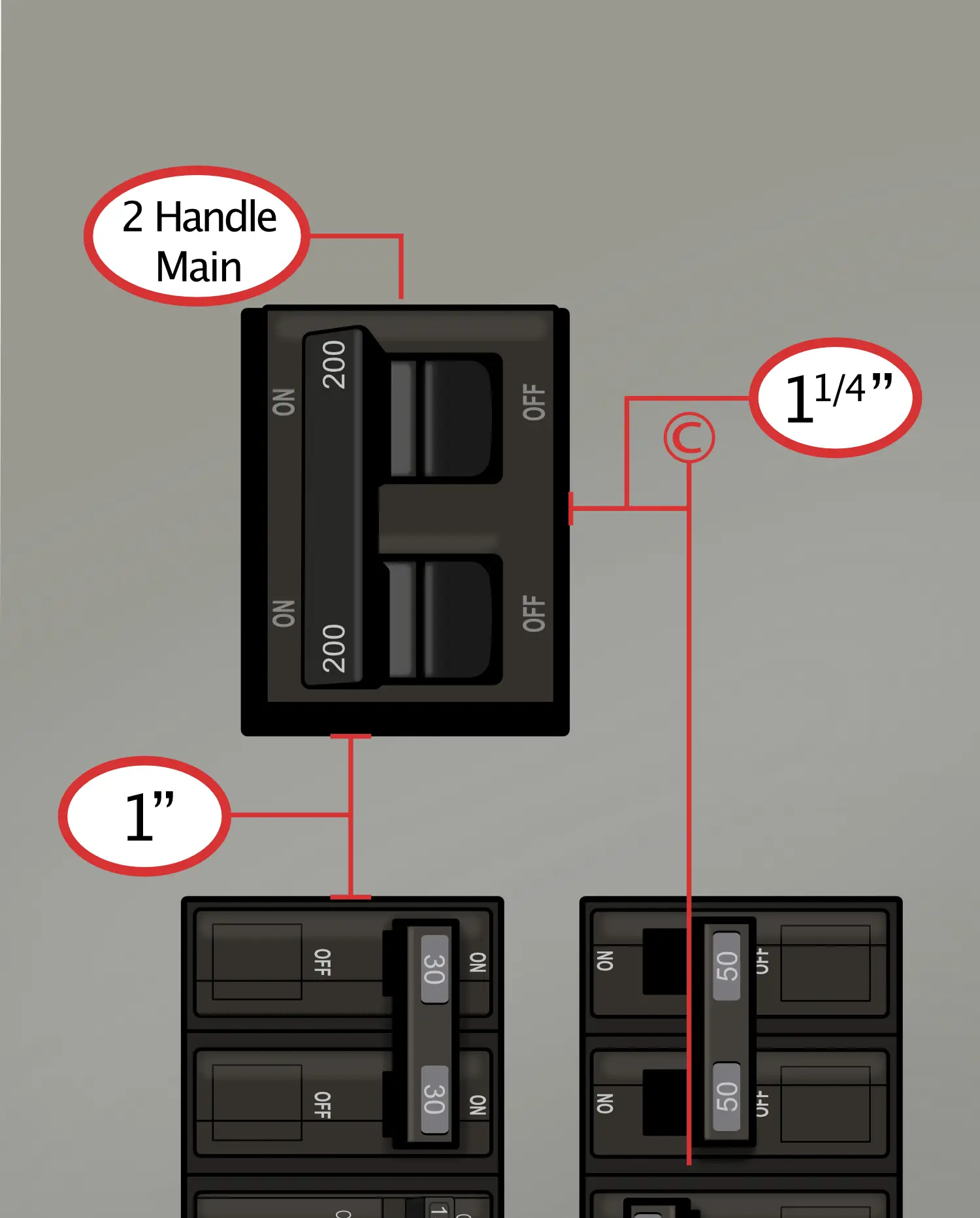

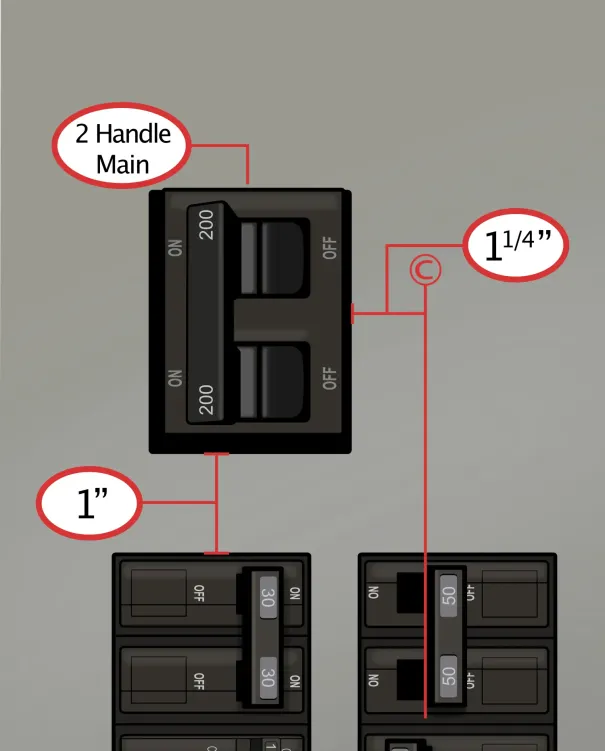

- Space between breaker columns: 1/2″
- Gap between main breaker and breaker column below, is: 1″
- 150-200 amp main breaker
- Main breaker toggle action: horizontal (left-right) throw direction ON & OFF
- Main breaker is offset from the center: 1 1/4″ to the left
Requirements:
- Install a two pole generator breaker at the top of the right breaker column: spaces 2 & 4
- Page four of the installation instructions includes a list of contents included in Kit K-2010
Modified versions of this Interlock Kit exist, see: K-2010M (no product info listed) please call us for more info on this Kit!
Kit Installation Instructions
Description
This Kit performs like a manual transfer switch for Westinghouse, Thomas & Betts, and Challenger electrical panels with the following features:
- Space between breaker columns: 1/2″
- Gap between main breaker and breaker column below, is: 1″
- 150-200 amp main breaker
- Main breaker toggle action: horizontal (left-right) throw direction ON & OFF
- Main breaker is offset from the center: 1 1/4″ to the left
Requirements:
- Install a two pole generator breaker at the top of the right breaker column: spaces 2 & 4
- Page four of the installation instructions includes a list of contents included in Kit K-2010
Modified versions of this Interlock Kit exist, see: K-2010M (no product info listed) please call us for more info on this Kit!
Kit Installation Instructions
