Square D Kit K-5110 (QO & Homeline 100 Amp Main)

$149.95

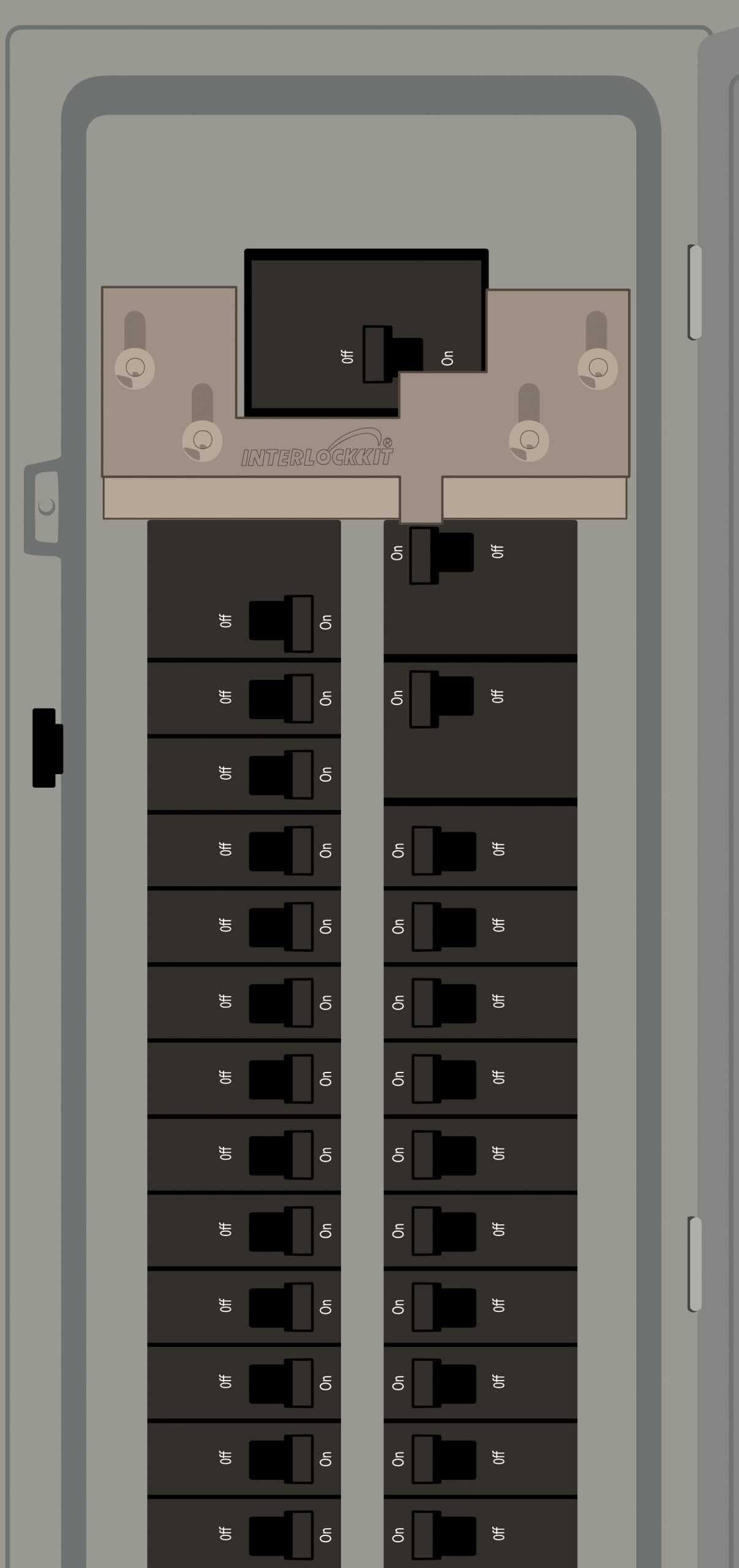

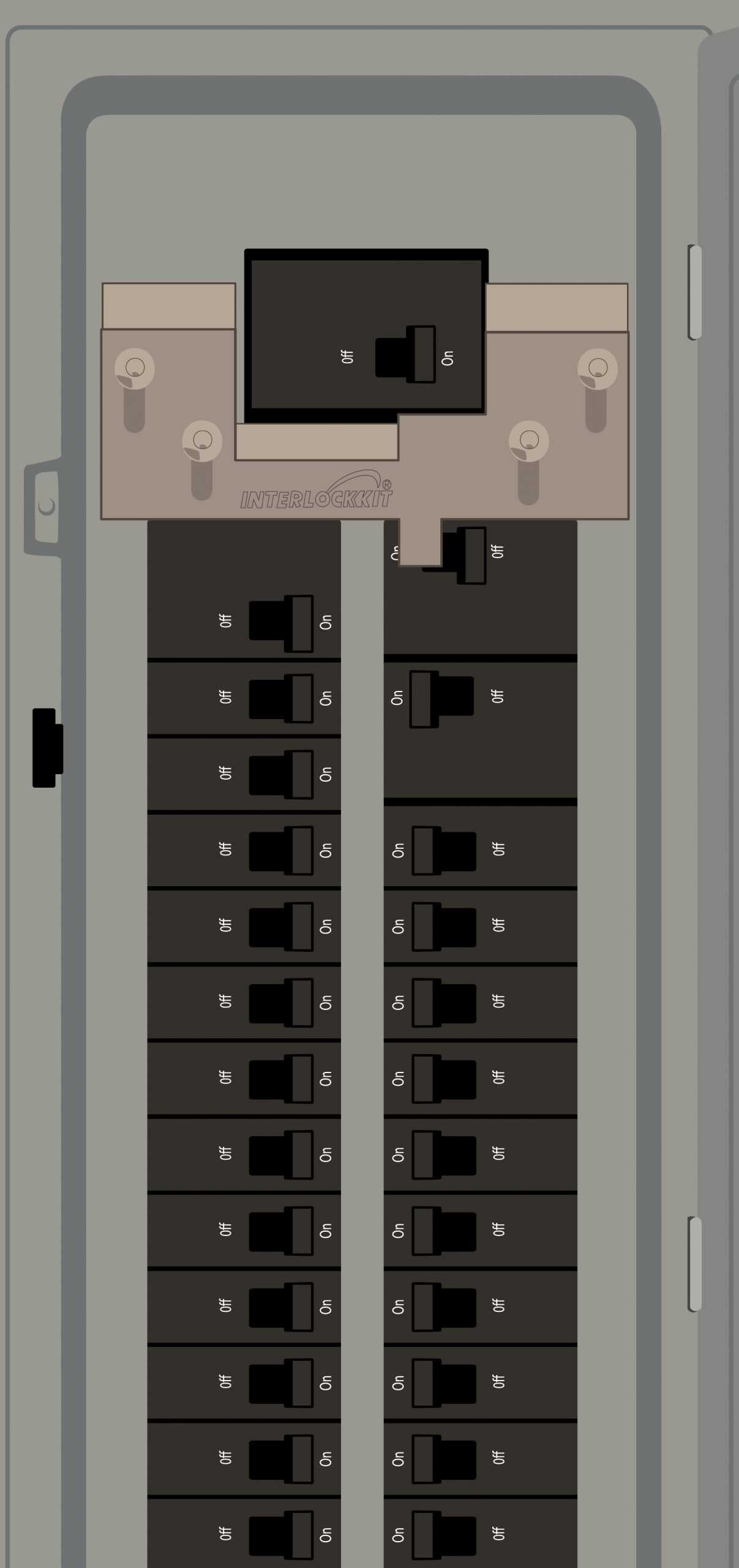

This Interlock Kit performs like a manual transfer switch for Square D electrical panels with the following features:

  • Space between breaker columns: 1/2″

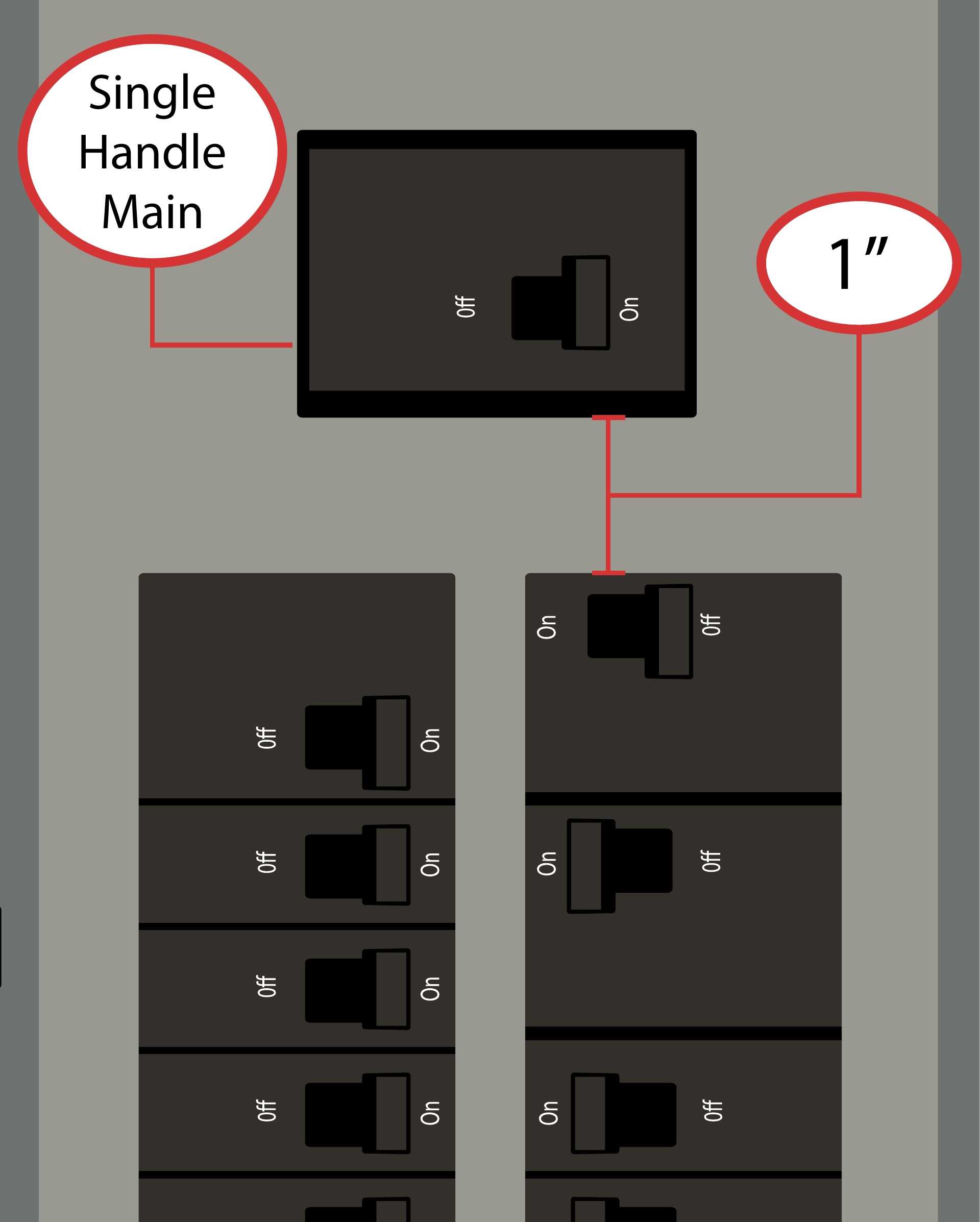

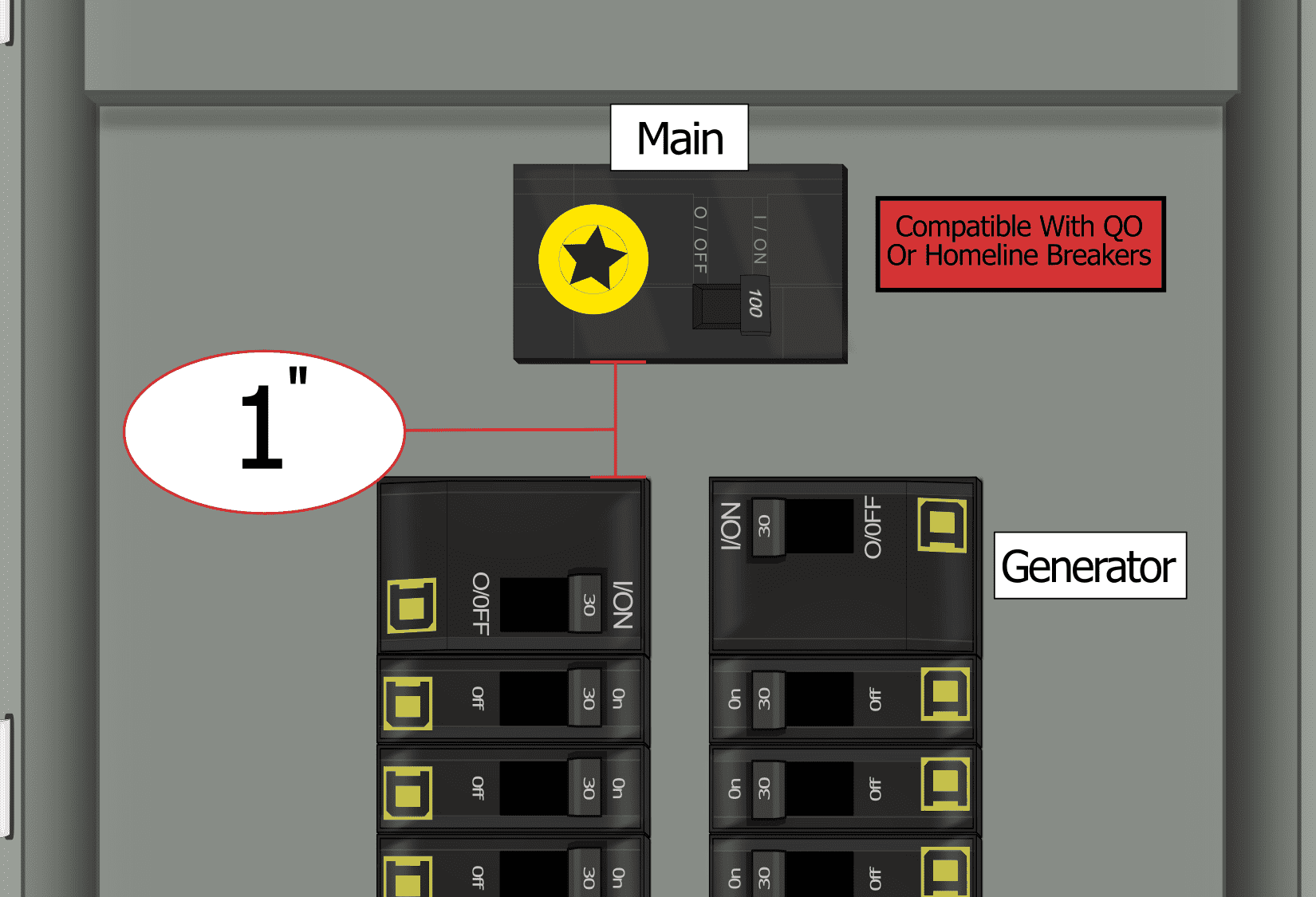

  • Gap between main breaker and breaker columns below: 1″ or more
  • 100-125 amp main breaker
  • Main breaker toggle action: horizontal (left-right) throw direction ON & OFF
  • Main breaker centered over both breaker columns
  • Compatible with: QO breakers

Requirements:

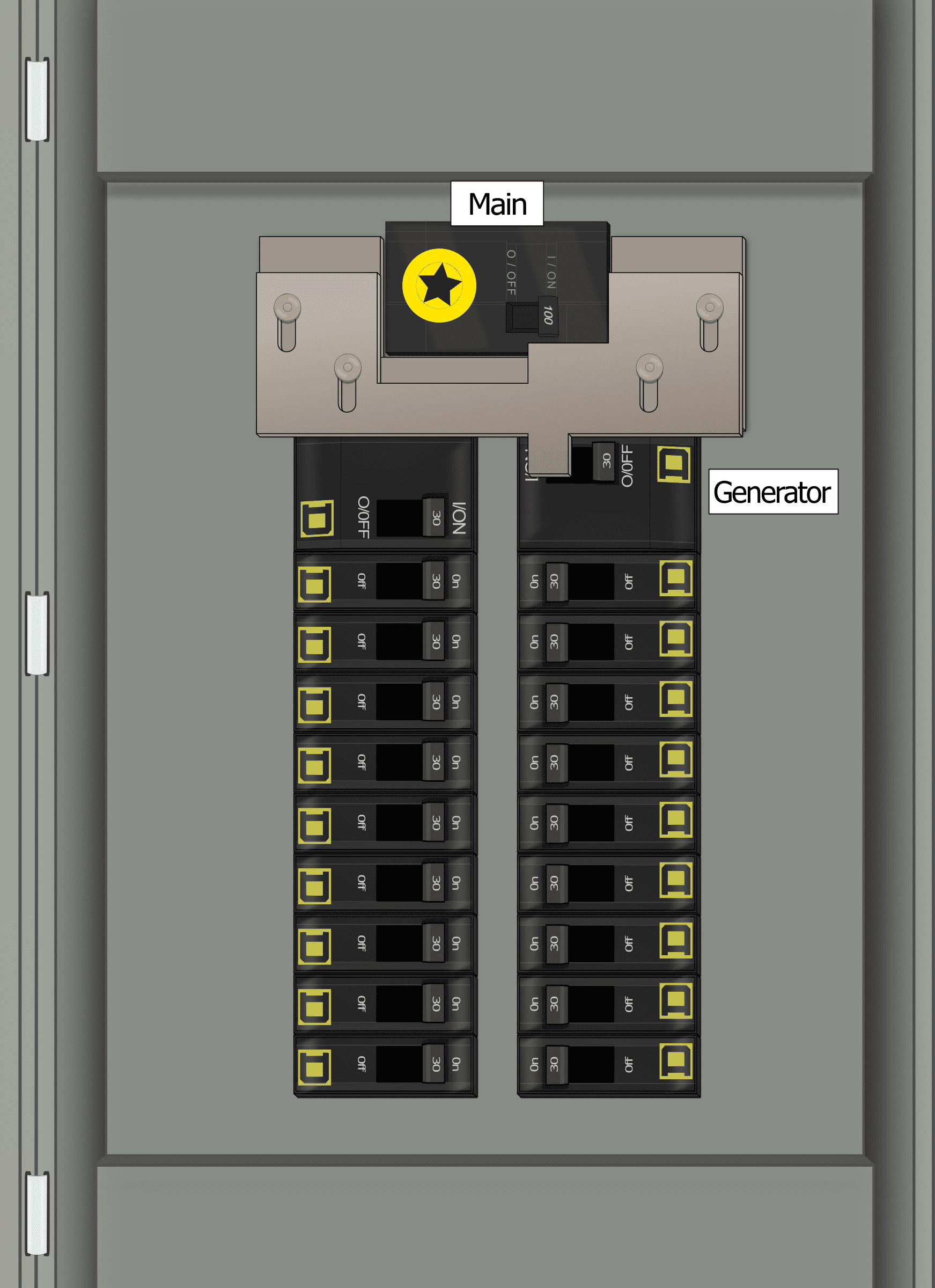

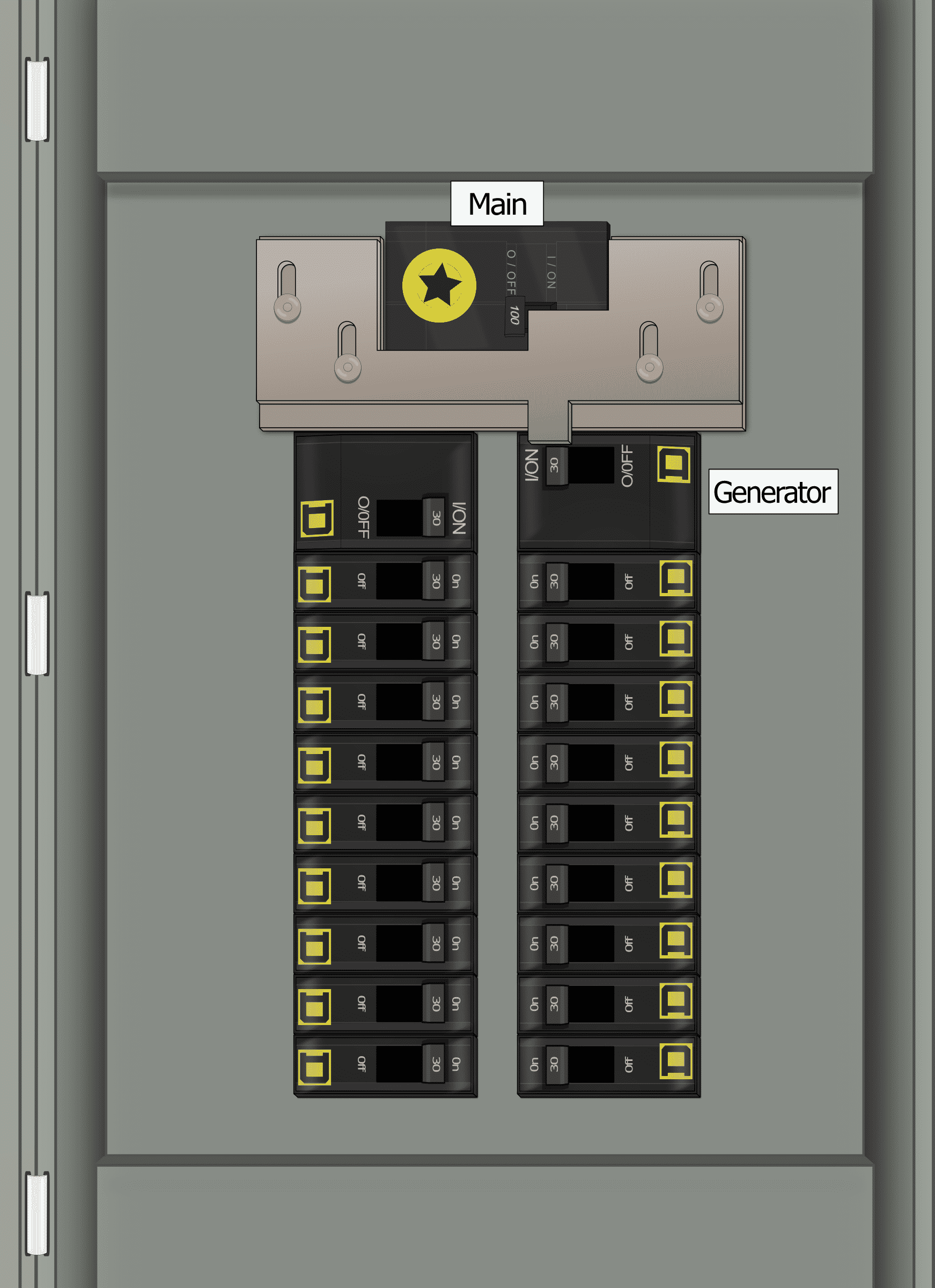

  • Install a two pole generator breaker in the top two spaces of the right column: spaces 2 & 4
  • Page four of the installation instructions includes a list of contents included in Kit K-5110

Kit Installation Instructions

Description

This Interlock Kit performs like a manual transfer switch for Square D electrical panels with the following features:

  • Space between breaker columns: 1/2″
  • Gap between main breaker and breaker columns below: 1″ or more
  • 100-125 amp main breaker
  • Main breaker toggle action: horizontal (left-right) throw direction ON & OFF
  • Main breaker centered over both breaker columns
  • Compatible with: QO breakers

Requirements:

  • Install a two pole generator breaker in the top two spaces of the right column: spaces 2 & 4
  • Page four of the installation instructions includes a list of contents included in Kit K-5110

Kit Installation Instructions

Additional information

Weight 1 lbs
