Interlock Kit K-1011 | Interlock Kit

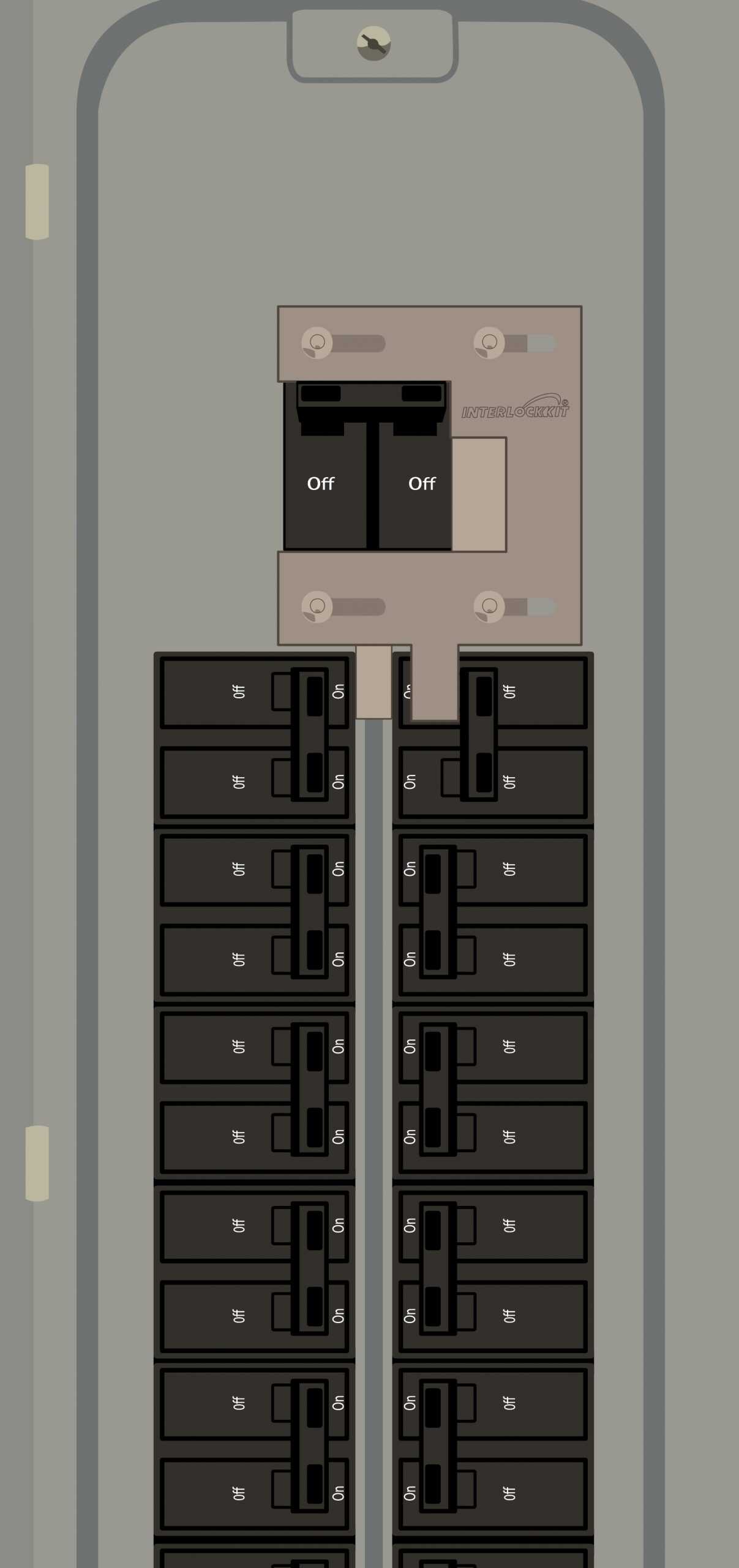

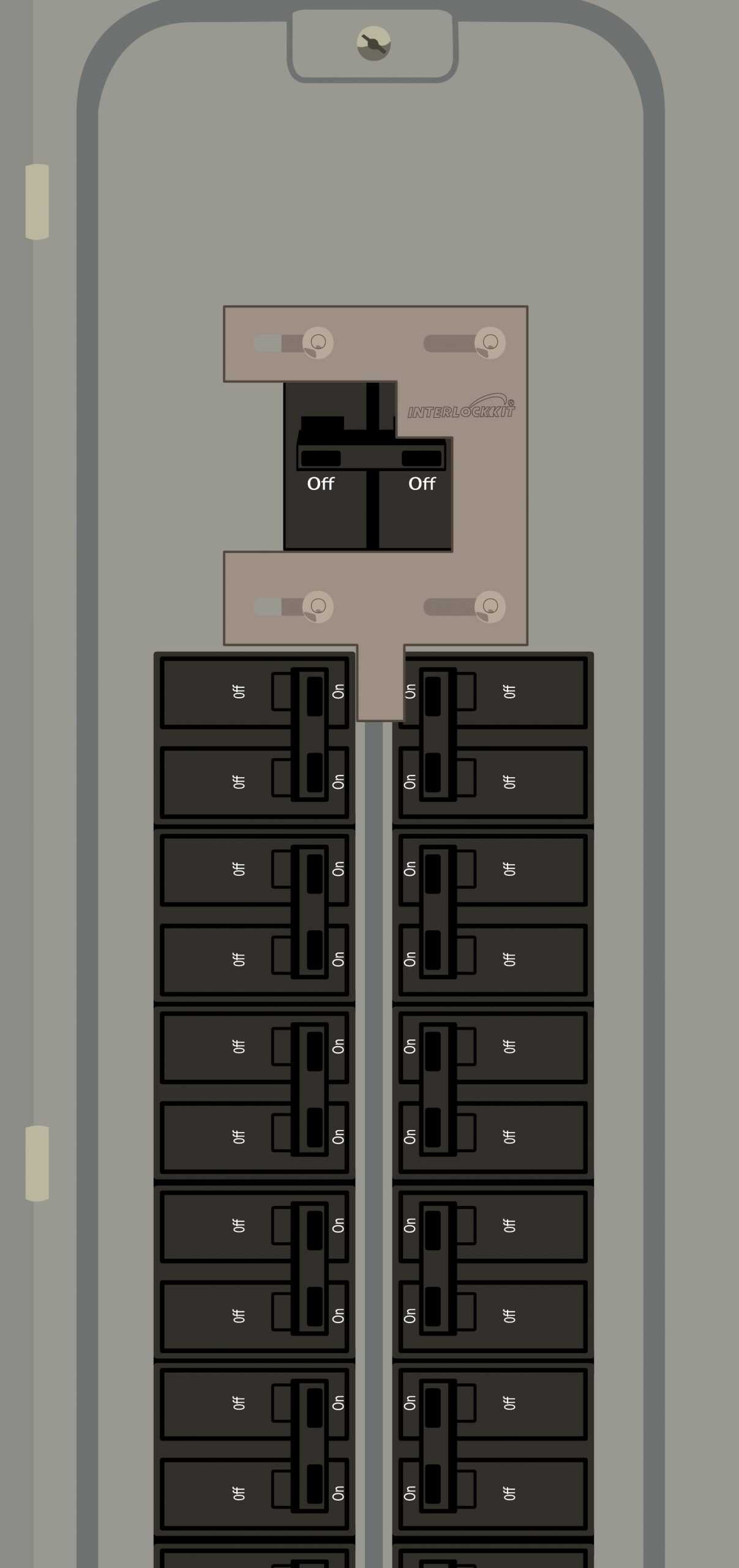

This Interlock Kit mounts to Siemens / ITE / Sylvania and Murray electrical panels with the following features:

• Spaces between breaker columns: 1/2"

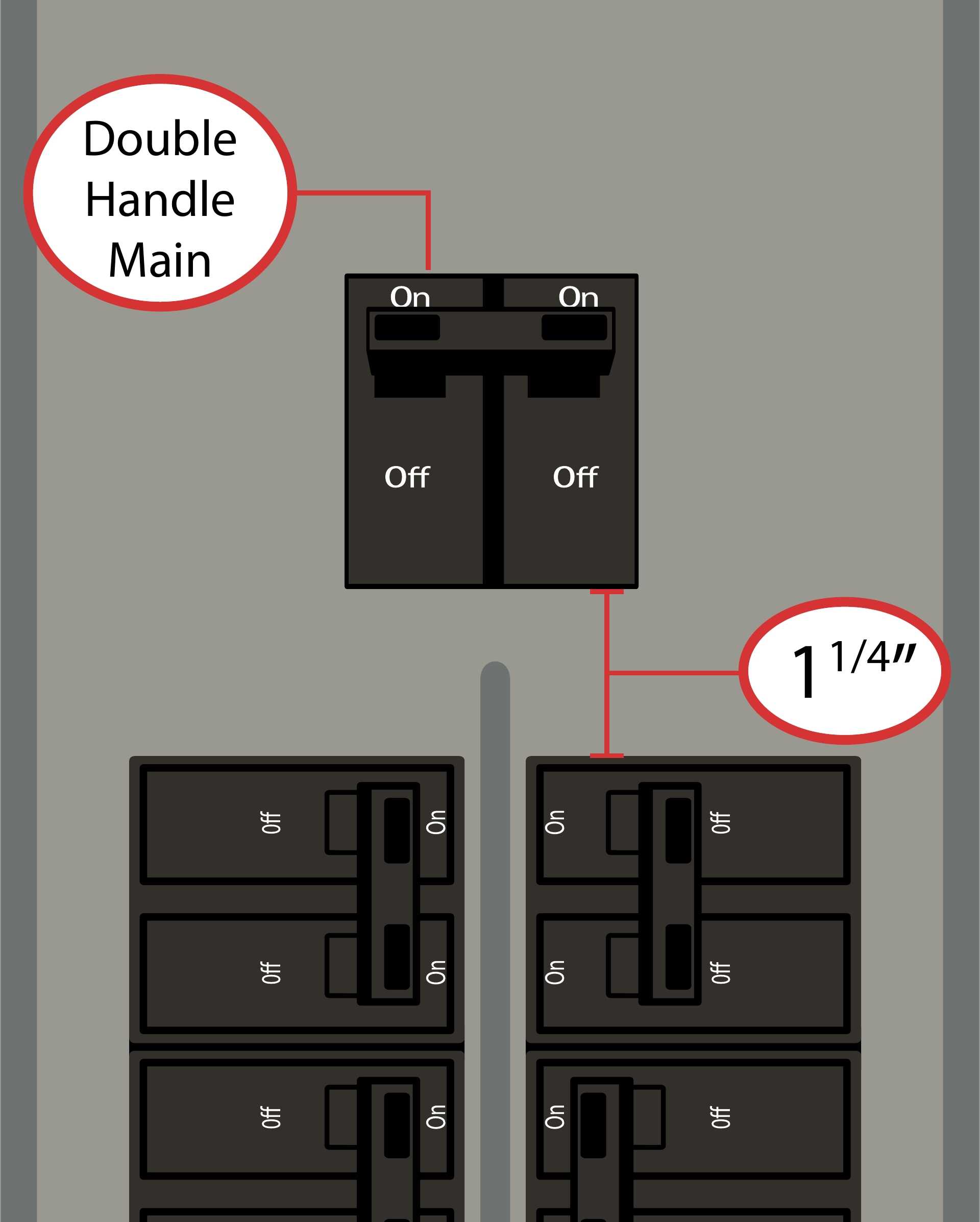

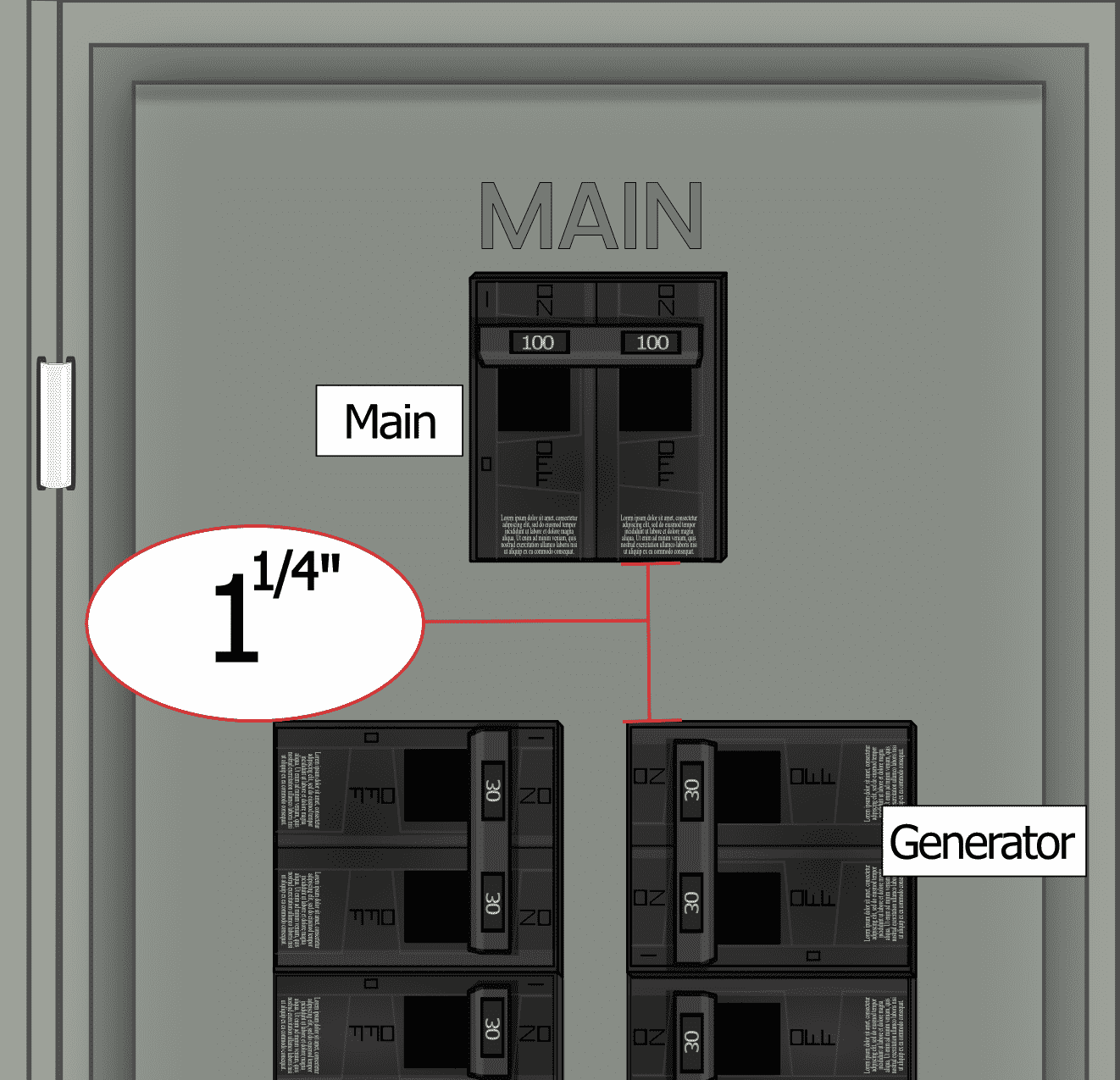

• Gap between the main breaker and columns below, is: 1 1/4"- 2 1/4"
• 100-125 amp main breaker
• Main breaker toggle action: vertical (up & down) throw direction ON & OFF
• Main breaker is centered over both breaker columns

Requirements:

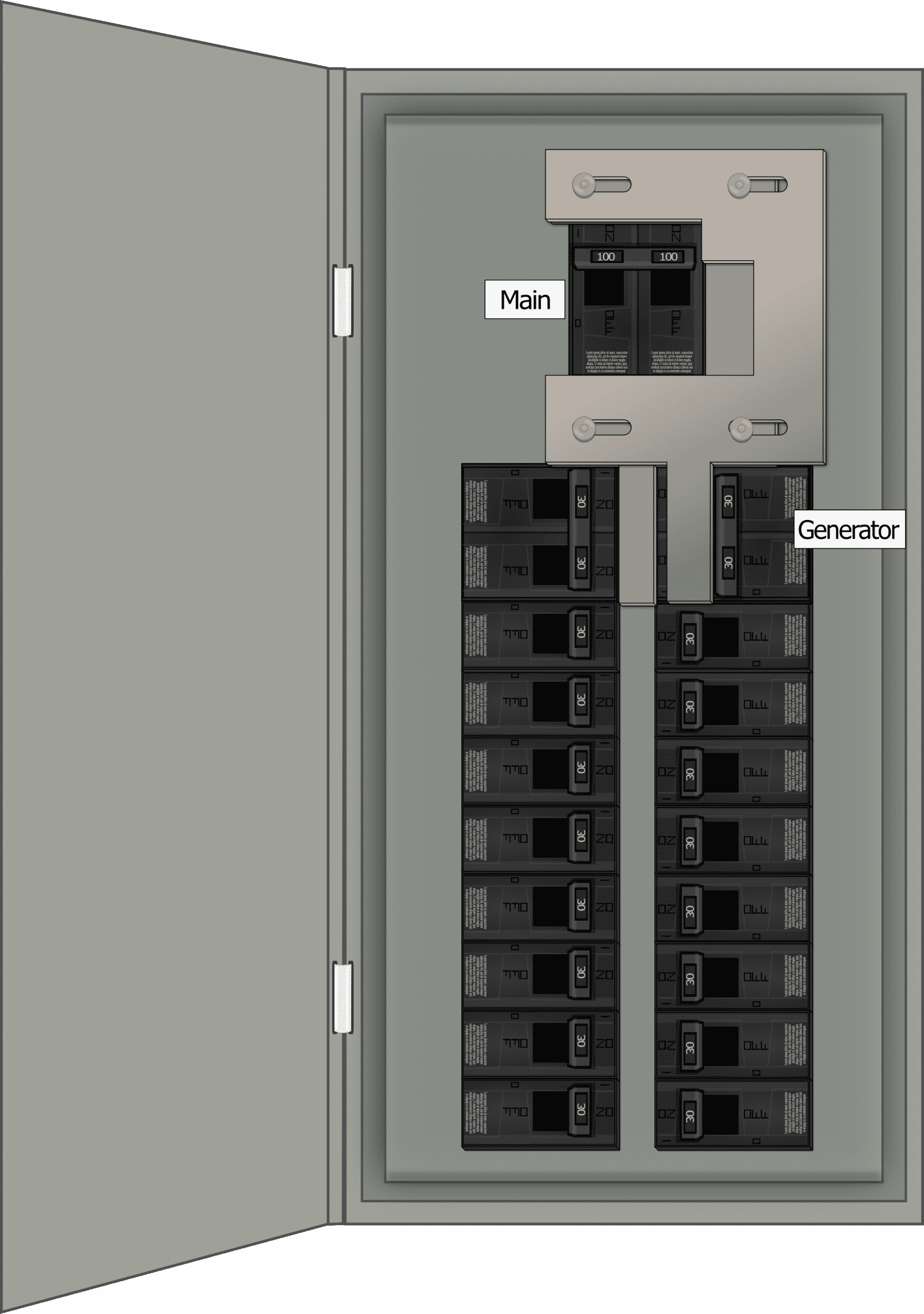

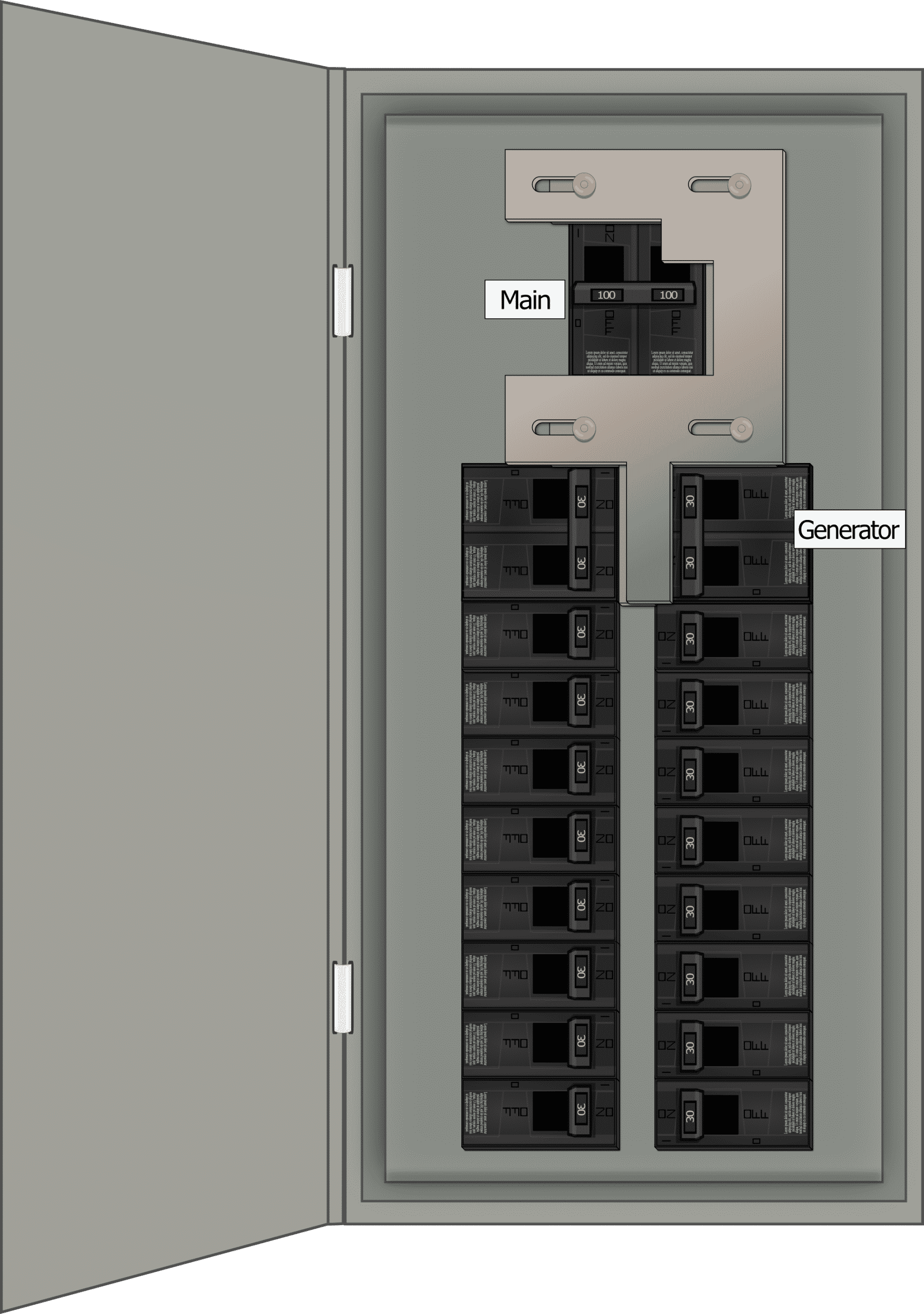

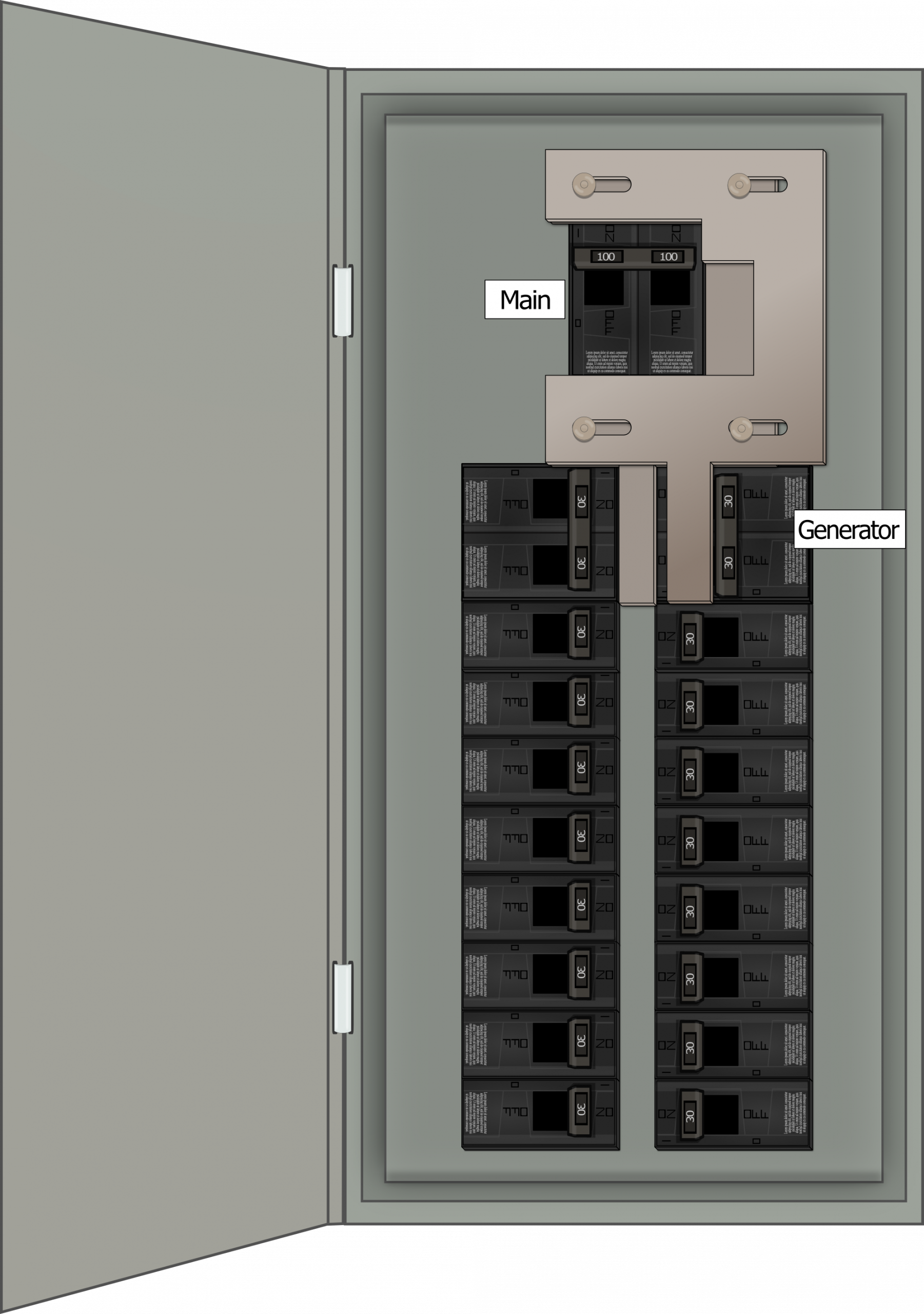

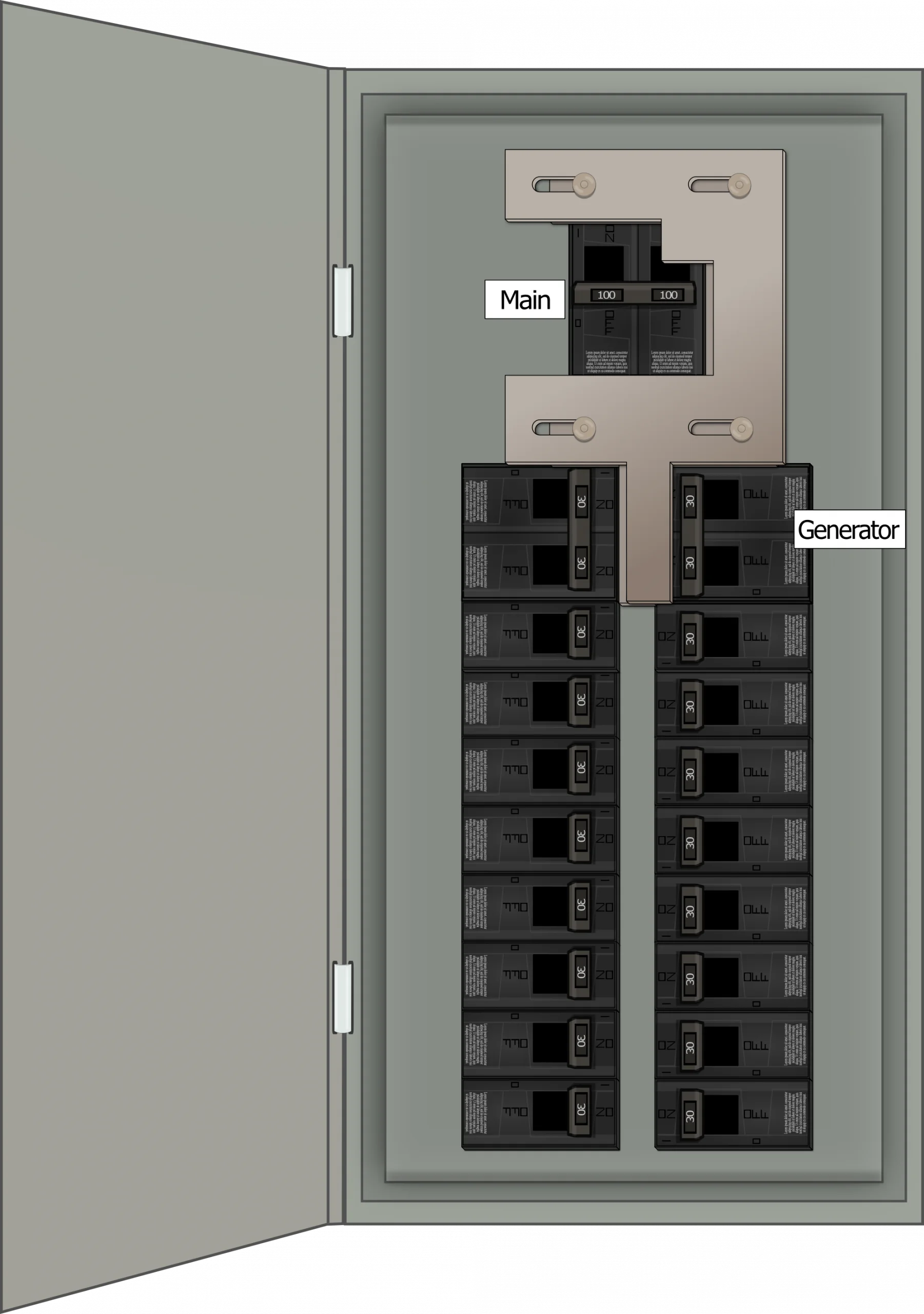

• Install a two pole generator breaker, located in: spaces 2 & 4 (top two spaces in the right columns)
• Page four of the installation instructions includes a list of kit contents for Interlock Kit K-1011

Modified versions of Interlock Kit K-1011 exist: K-1012 for plug on neutral panels
Kit Installation Instructions
