Interlock Kit K-9010 | Interlock Kit
$149.95
PATENT PENDING PRODUCT
Have a question or don’t see a kit for your panel? We make custom Interlock Kits for any panel or solar scenario – call (804) 531-3359 or Contact Us!
This Kit performs like a manual transfer switch for Siemens / GE / EATON / Cutler Hammer / Westinghouse / Thomas & Betts / Challenger / Crouse-Hinds electrical panels with the following features:
- Space between breaker columns: 1/2″

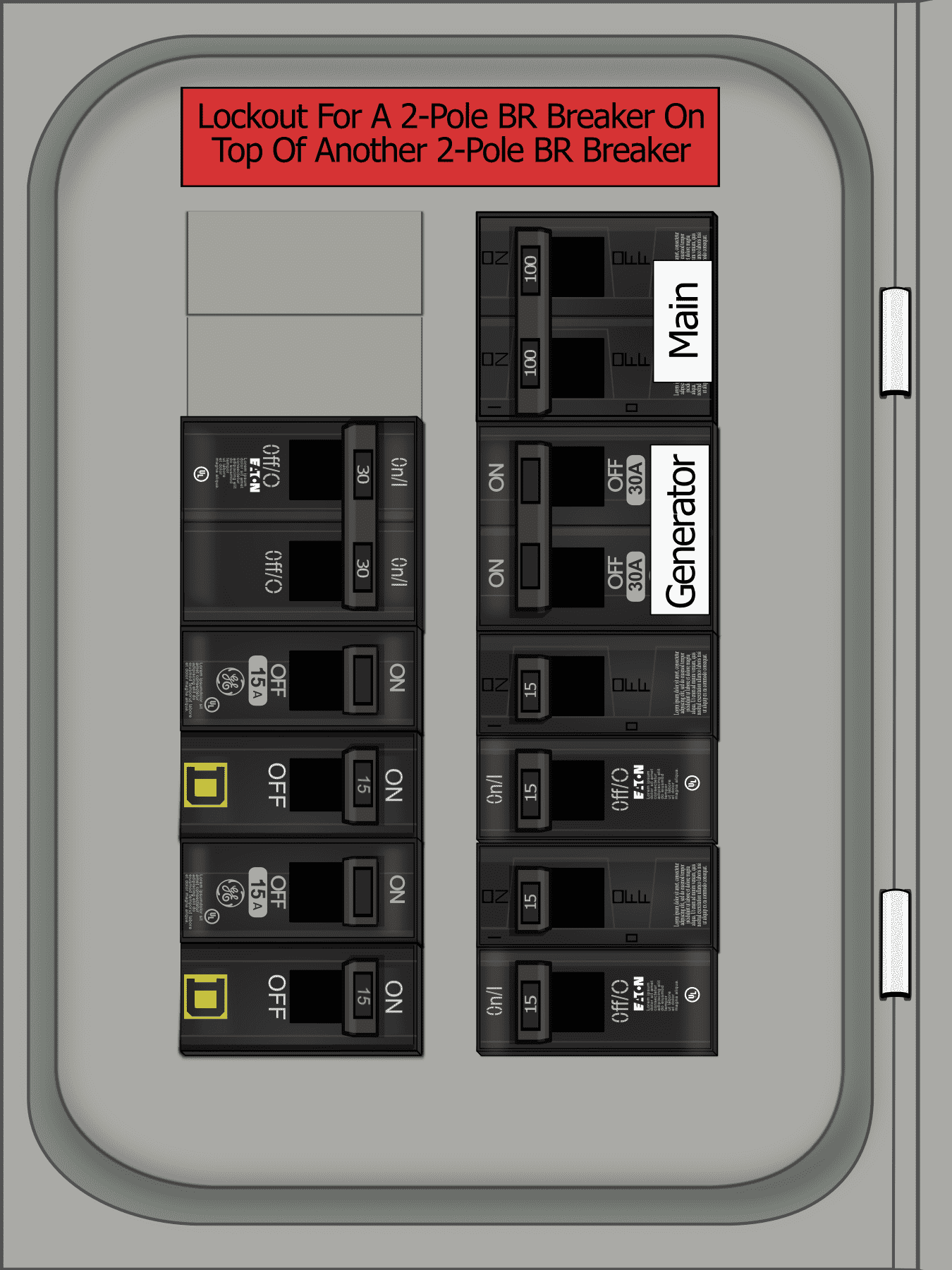

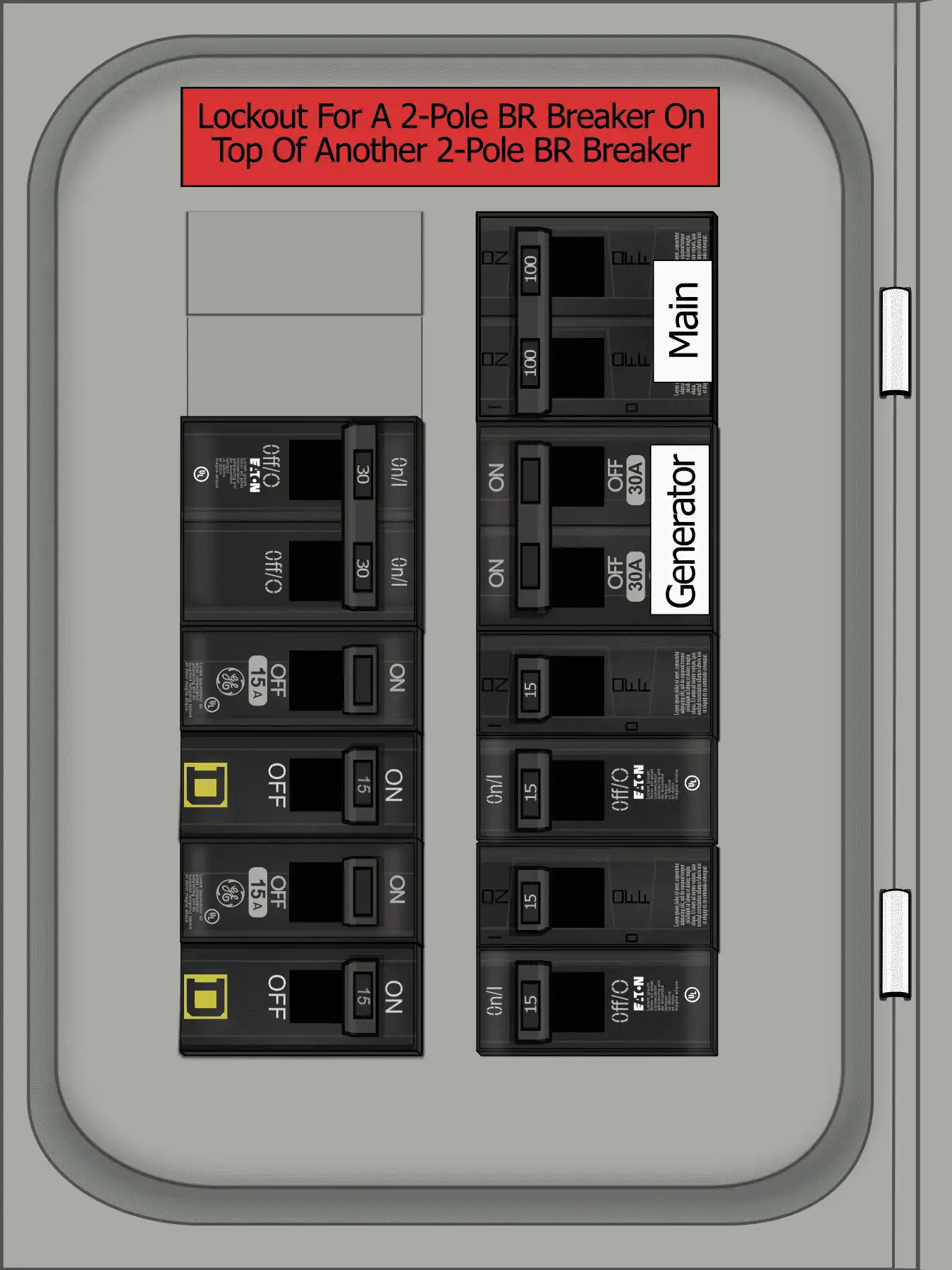

- The main breaker sits directly on top of the breaker stack in the right breaker column
- 100-125 amp two pole main breaker
- Main breaker toggle action: horizontal (left-right) throw direction ON & OFF
- Compatible with BR, Siemens, Homeline, & GE style breakers
Requirements:

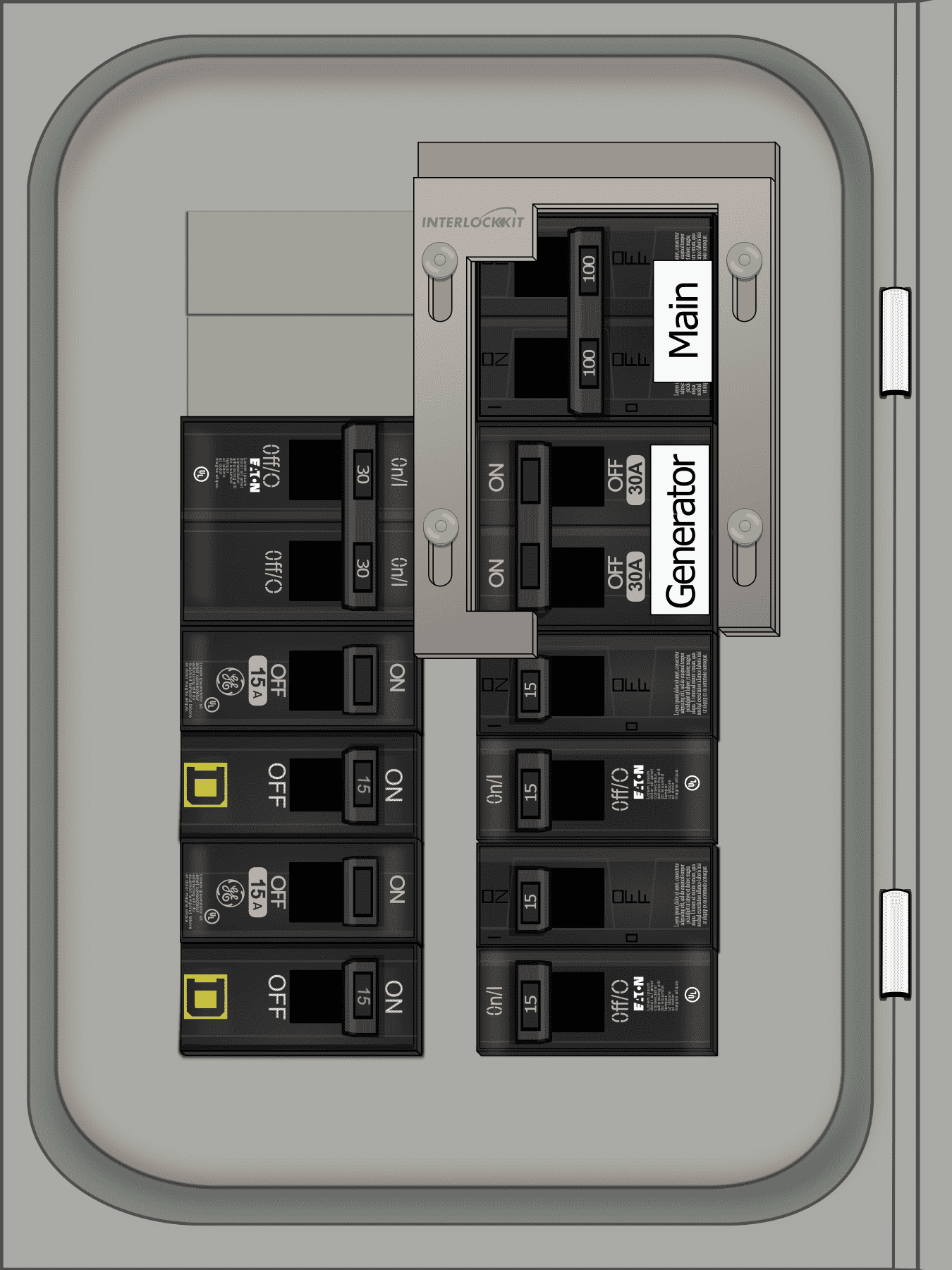

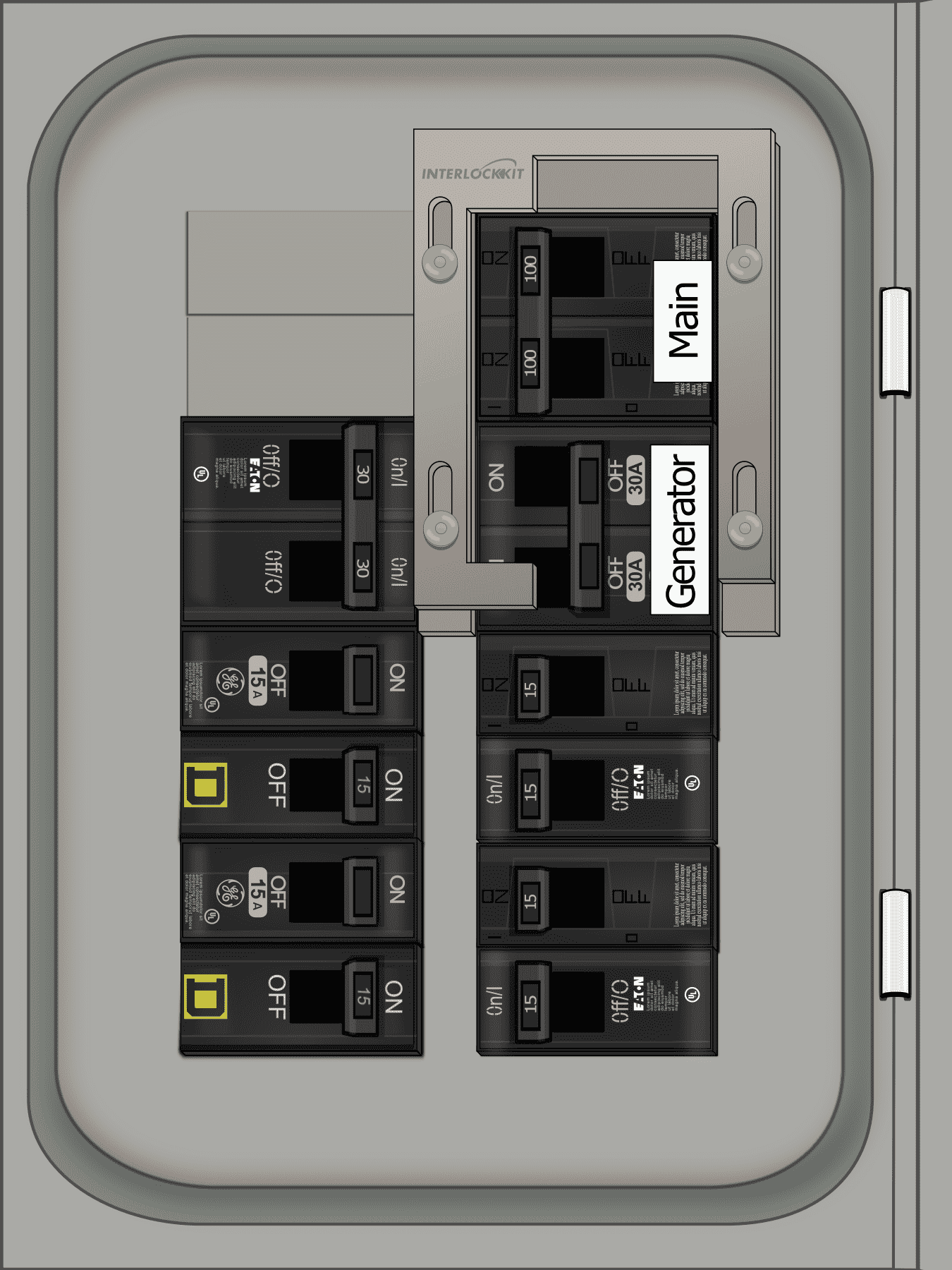

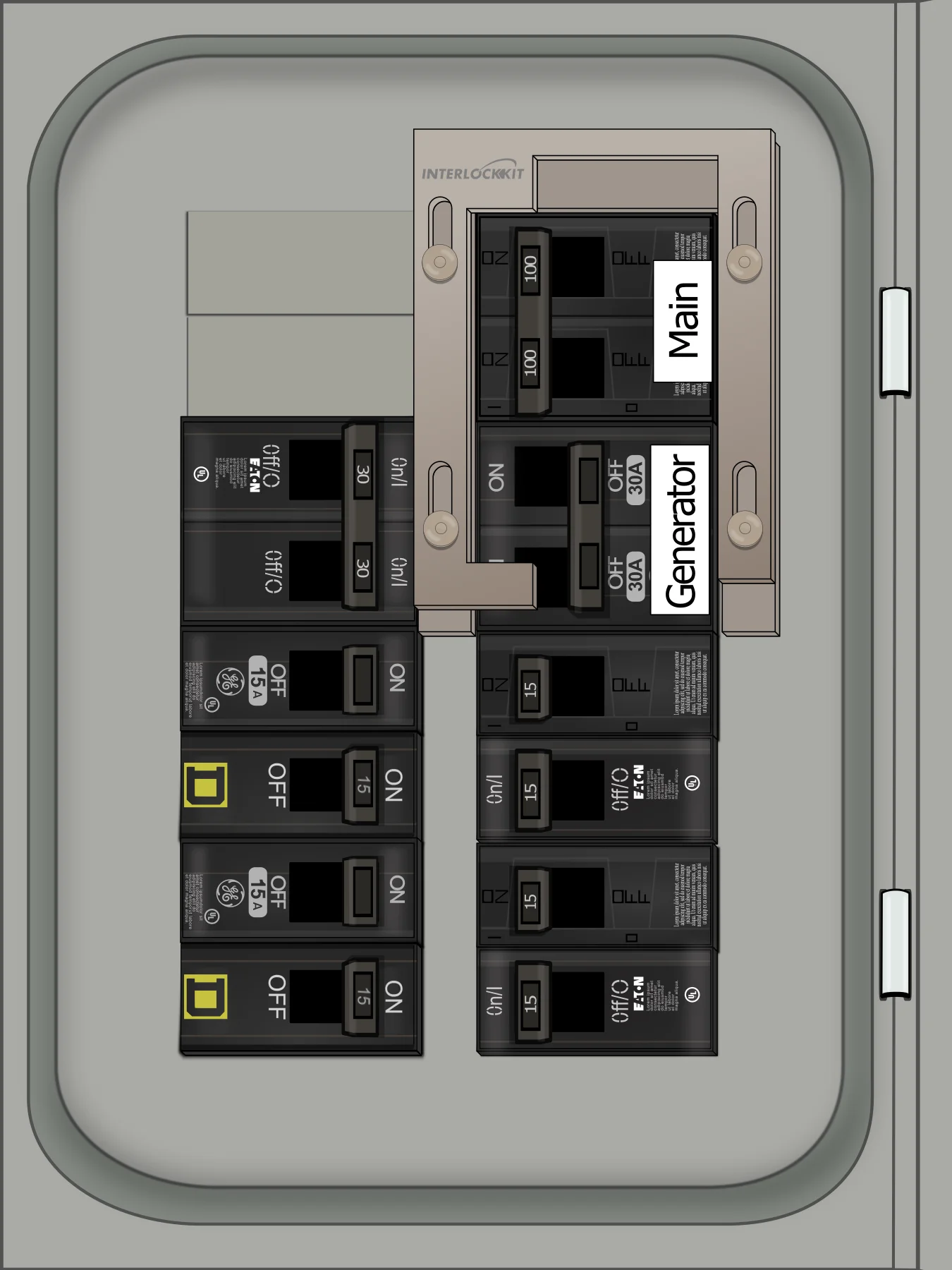

- Install a two pole generator directly below the main breaker in spaces: 6 & 8
- Page four of the installation instructions includes a list of contents included in Kit K-9010
Interlock Kits similar to this kit include: K-9011, K-9110, K-9210, K-9310, & K-9410
Additional information
| Weight | 1 lbs |
|---|---|
| Catalog #: | BRP12L125V24, HOM612L100RBCP, TLM1212CCUP, BRP16B100, BRP12B100, G2020MB1100, LC130DC, B20-20 FN,SN 100 amps – other compatible catalog #'s may not be listed here yet. Use the details listed in "Description" to help match your kit! |
