Interlock Kit K-1212 | Interlock Kit

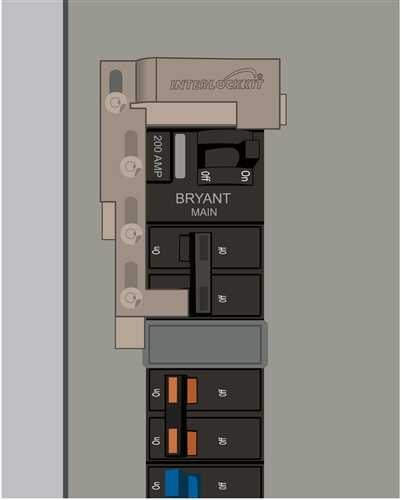

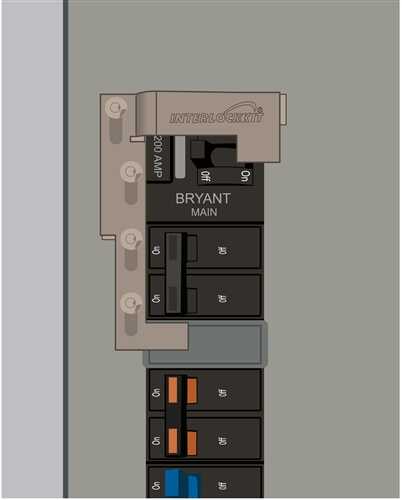

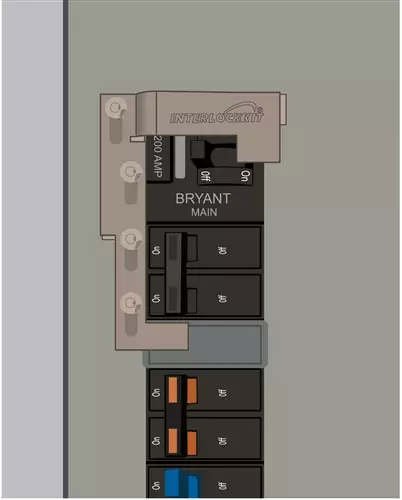

This Kit performs like a manual transfer switch for Siemens / ITE / Murray electrical panels with the following features:

• Single breaker column
• The main breaker sits directly on top of the breaker column
• 150-200 amp 2 pole main breaker
• Main breaker toggle action: horizontal (left-right) throw direction ON & OFF

Requirements:

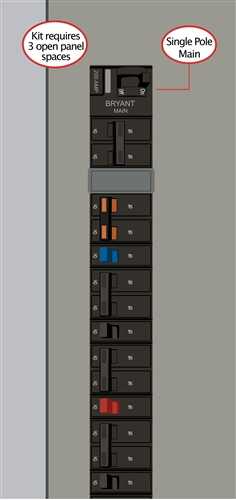

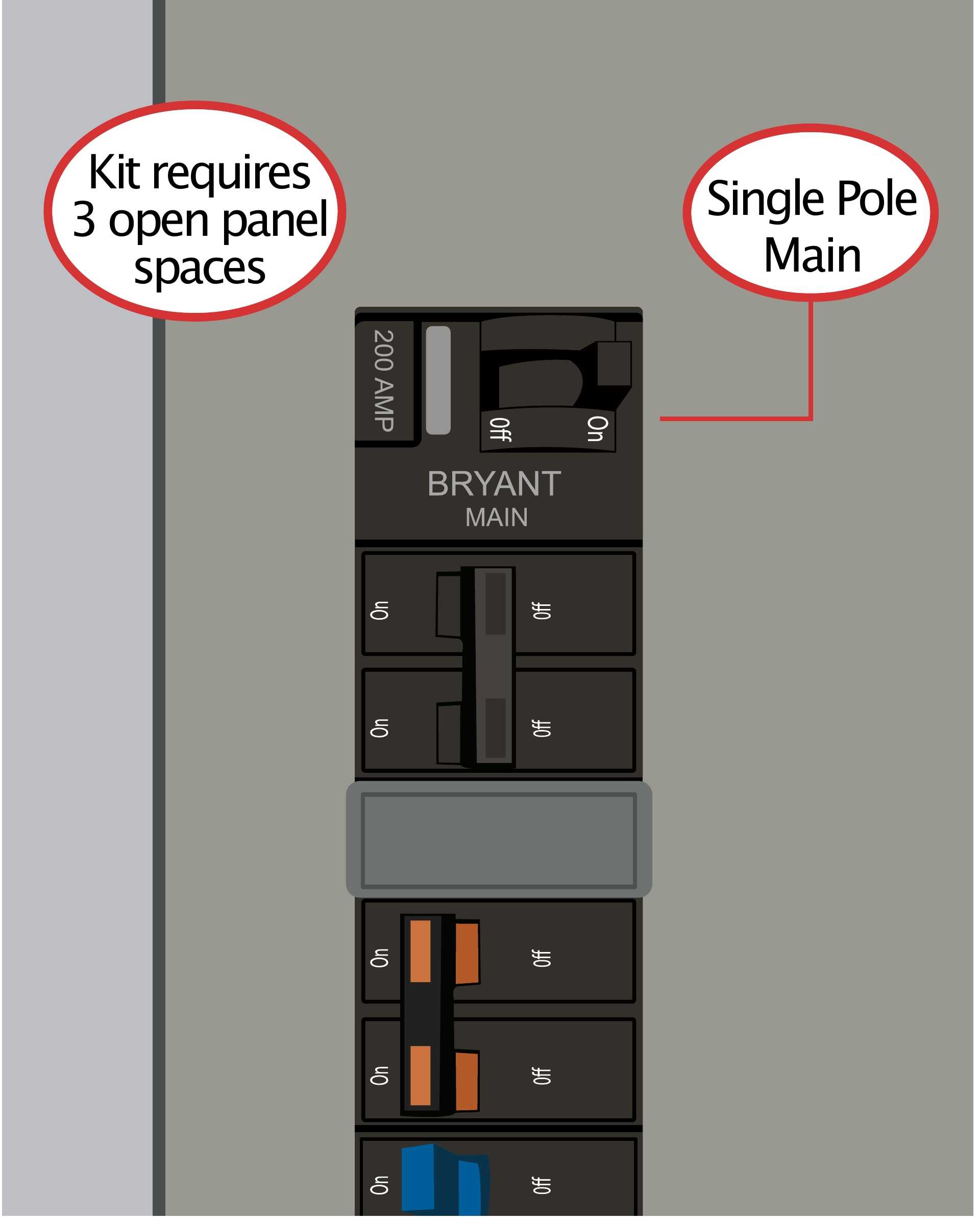

• Install a 2 pole generator breaker directly under the main: spaces 2 & 4
• Page four of the installation instructions includes a list of contents included in Kit K-1212

Modified versions of this Interlock Kit exist, see: K-1210, Kit K-1210M, K-1215, K-1215M

Kit Installation Instructions
